Yale Forklift GLP/GDP16-20AF/BF (A810) Parts Manual – PDF DOWNLOAD

Description

Yale Forklift GLP/GDP16-20AF/BF (A810) Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Yale Forklift GLP/GDP16-20AF/BF (A810) Parts Manual – PDF DOWNLOAD

Language : English
Pages : 592
Downloadable : Yes
File Type : PDF
PN : 504250718

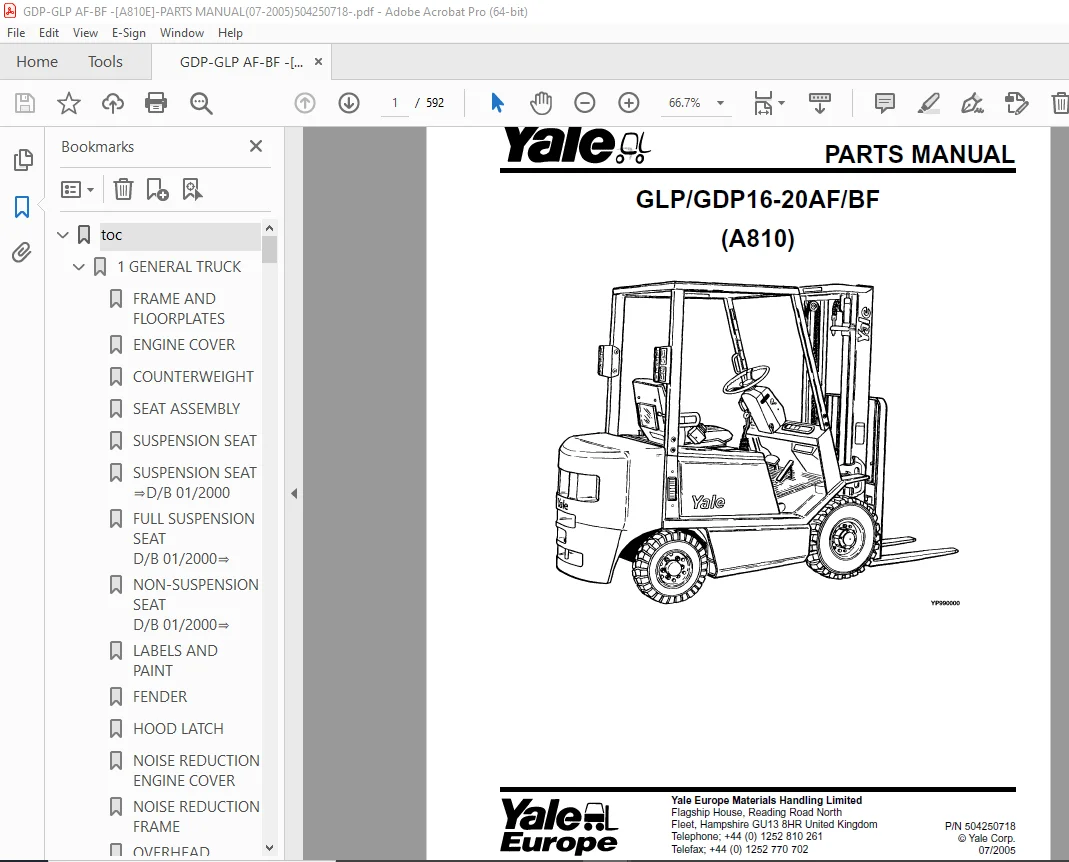

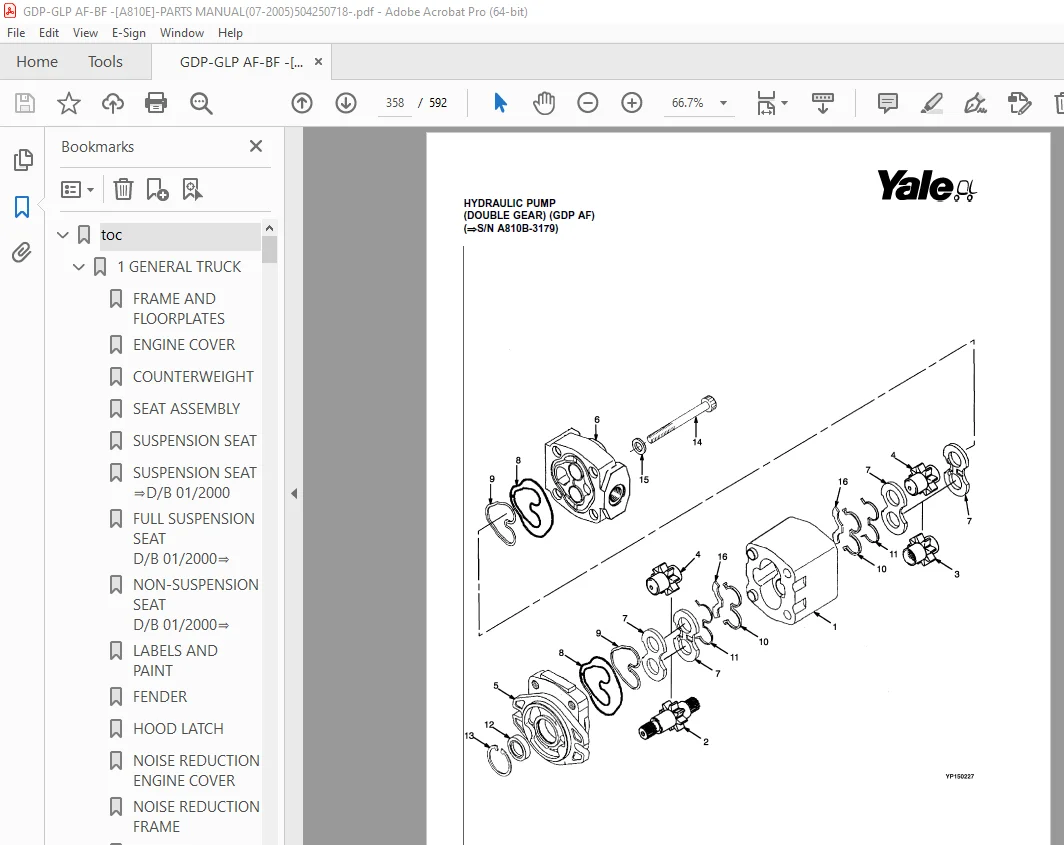

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Yale Forklift GLP/GDP16-20AF/BF (A810) Parts Manual – PDF DOWNLOAD

toc 1
1 GENERAL TRUCK 19
FRAME AND FLOORPLATES 22
ENGINE COVER 26
COUNTERWEIGHT 28
SEAT ASSEMBLY 30
SUSPENSION SEAT 32
SUSPENSION SEAT ⇒D/B 01/2000 34
FULL SUSPENSION SEAT D/B 01/2000⇒ 36
NON-SUSPENSION SEAT D/B 01/2000⇒ 40
LABELS AND PAINT 42
FENDER 46
HOOD LATCH 48
NOISE REDUCTION ENGINE COVER 50
NOISE REDUCTION FRAME 52
OVERHEAD GUARD 54
2 DIESEL ENGINE (2 5L) 57
ENGINE MOUNT GDP AF 60
UPSWEPT EXHAUST GDP AF 62
RADIATOR GDP AF 64
FLYWHEEL AND TORQUE CONVERTER XA, GDP AF ⇒S/N A810B-2577 66
FLYWHEEL AND TORQUE CONVERTER XA, GDP AF S/N A810B-2578⇒ 68
CYLINDER BLOCK XA, GDP AF 70
CYLINDER HEAD GDP AF 72
CAMSHAFT AND VALVES GDP AF 74
CRANKSHAFT AND PISTON GDP AF 76
TIMING GEAR COVER AND OIL SUMP GDP AF 78
OIL PUMP GDP AF 80
MANIFOLD GDP AF 82
FUEL SYSTEM GDP AF 84
FUEL FILTER GDP AF 86
NOZZLE HOLDER GDP AF 88
INJECTION PUMP GDP AF 90
COOLING GDP AF 92
ELECTRICAL SYSTEM GDP AF 2 5L 94
3 LPG ENGINE (1 5L) 97
ENGINE MOUNT GP/GLP BF 100
UPSWEPT EXHAUST GP/GLP BF 102
RADIATOR GP/GLP BF 104
CYLINDER BLOCK GP/GLP BF 106
CYLINDER HEAD GP/GLP BF 108
CRANKSHAFT AND PISTON GP/GLP BF 110
CAMSHAFT AND VALVES GP/GLP BF 112
TIMING GEAR COVER AND OIL SUMP GP/GLP BF 114
EXHAUST MANIFOLD GP/GLP BF 116
INTAKE MANIFOLD GP/GLP BF 118
OIL PUMP AND FILTER GP/GLP BF 120
ELECTRICAL SYSTEM GP/GLP BF 1 5L 122
FUEL SYSTEM GP/GLP BF 124
COOLING GP/GLP BF 126
FLYWHEEL AND TORQUE CONVERTER D5, GP/GLP BF ⇒S/N A810B-2577 128
FLYWHEEL AND TORQUE CONVERTER D5, GP/GLP BF S/N A810B-2578⇒ 130
4 LPG ENGINE (2 0L) 133
ENGINE MOUNT GP/GLP AF ⇒S/N A810B-2360 136
ENGINE MOUNT GP/GLP AF S/N A810B-2361⇒ 138
UPSWEPT EXHAUST GP/GLP AF 140
RADIATOR GP/GLP AF 142
CYLINDER BLOCK GP/GLP AF 144
CYLINDER HEAD GP/GLP AF 146
CRANKSHAFT AND PISTON GP/GLP AF 148
CAMSHAFT AND VALVES GP/GLP AF 150
OIL SUMP AND TIMING GEAR GP/GLP AF 152
INTAKE AND EXHAUST MANIFOLD GP/GLP AF 154
OIL PUMP AND FILTER GP/GLP AF 156
ELECTRICAL SYSTEM GP/GLP AF 2 0L 158
FUEL SYSTEM GP/GLP AF 160
COOLING GP/GLP AF 162
FLYWHEEL AND TORQUE CONVERTER FE, GP/GLP AF ⇒S/N A810B-02424S 164
FLYWHEEL AND TORQUE CONVERTER FE, GP/GLP AF S/N A810B-02425S⇒ 166
5 FUEL SYSTEM 169
FUEL TANK AND LINES GP AF/BF 172
LPG TANK GLP AF/BF 174
FUEL TANK AND LINES GDP AF 176
FUEL SYSTEM GLP AF/BF 178
FILTER AND LOCK-OFF VALVE GLP AF/BF 180
LPG CONVERTER AF/BF IDENTIFY BY CODE LETTER 182
LPG CONVERTER AF/BF IDENTIFY BY CODE LETTER “K” ⇒D/B 06/1998 184
LPG CONVERTER IDENTIFY BY CODE LETTER “K” D/B 06/1998⇒ 186
GOVERNOR GP/GLP AF/BF 188
CARBURETOR GP AF/BF 190
CARBURETOR GLP AF/BF 192
AIR FILTER GP/GLP AF/BF ⇒S/N A810B-3831 194
AIR FILTER GDP AF ⇒S/N A810B-3831 196
AIR FILTER GDP AF S/N A810B-3832⇒ 198
THROTTLE LINKAGE GDP AF/BF 200
THROTTLE LINKAGE GP AF/BF 202
THROTTLE LINKAGE GLP AF/BF 204
DIRECTIONAL CONTROL PEDAL LINKAGE D/B 02/1999⇒ 206
DIRECTIONAL CONTROL PEDAL D/B 02/1999⇒ 208
6 ELECTRICAL SYSTEM 211
ELECTRICAL SYSTEM GP/GLP AF 214
ELECTRICAL SYSTEM GP/GLP BF 216
ELECTRICAL SYSTEM GDP AF 218
ELECTRICAL SYSTEM COWL 220
DISTRIBUTOR GP/GLP AF 224
DISTRIBUTOR GP/GLP BF 226
ALTERNATOR 228
STARTER MOTOR GP/GLP AF ⇒S/N A810B-05935W 230
STARTER MOTOR GP/GLP AF S/N A810B-05936W⇒ 232
STARTER MOTOR GP/GLP BF 234
STARTER MOTOR GDP AF 236
INSTRUMENT PANEL 238
BATTERY 240
WIRE HARNESS CHASSIS 242
7 STEERING SYSTEM 243
STEERING COLUMN 246
TRAIL AXLE 250
ORBITROL UNIT 252
STEERING CYLINDER ⇒D/B 07/1997 254
STEERING CYLINDER D/B 07/1997⇒ 256
8 BRAKE SYSTEM 259
BRAKE PEDAL LINKAGE ⇒S/N A810B-2577 262
BRAKE PEDAL LINKAGE S/N A810B-2578⇒ 266
BRAKE ASSEMBLY ⇒S/N A810B03647U 270
BRAKE ASSEMBLY S/N A810B03648U⇒ 272
BRAKE LINES 274
BRAKE MASTER CYLINDER 276
PARK BRAKE LEVER 278
SHIFT LEVER 280
9 TRANSMISSION 283
TRANSMISSION HOUSING ⇒S/N A810B-2577 286
TRANSMISSION HOUSING S/N A810B-2578⇔S/N A810B-07072Y 290
TRANSMISSION HOUSING S/N A810B-7073Y⇒ 294
TRANSMISSION GEARS ⇒S/N A810B-2577 298
TRANSMISSION GEARS S/N A810B-2578⇒ 300
HYDRAULIC CLUTCH FORWARD/REVERSE ⇒S/N A810B-2577 302
HYDRAULIC CLUTCH FORWARD/REVERSE S/N A810B-2578⇔S/N A810B-0707 304
HYDRAULIC CLUTCH FORWARD/REVERSE S/N A810B-07073Y⇒ 306
DIFFERENTIAL 308
CONTROL VALVE ⇒S/N A810B-2577 310
CONTROL VALVE S/N A810B-2578⇔D/B 11/1998 312
CONTROL VALVE D/B 11/1998⇔D/B 08/2001 314
CONTROL VALVE D/B 08/2001⇒ 316
DRIVE AXLE 318
SOLENOID VALVE 320
TRANSMISSION HYDRAULIC LINES ⇒S/N A810B-2577 322
TRANSMISSION HYDRAULIC LINES S/N A810B-2578⇔S/N A810B-3078 324
TRANSMISSION HYDRAULIC LINES S/N A810B-3079⇒ 326
GEAR PUMP ⇒S/N A810B-2577 328
GEAR PUMP S/N A810B-2578⇔S/N A810B-07072Y 330
GEAR PUMP S/N A810B-07073Y⇒ 332
END PLATE 334
10 HYDRAULIC SYSTEM 337
HYDRAULICS GROUP ⇒D/B 01/1995 340
HYDRAULICS GROUP D/B 01/1995⇒ 344
HYDRAULIC PUMP SINGLE GEAR GDP AF ⇒S/N A810B-3179 348
HYDRAULIC PUMP SINGLE PUMP DIESEL S/N A810B-3180⇒ 350
HYDRAULIC PUMP DUAL GEAR DIESEL 352
HYDRAULIC PUMP SINGLE GEAR GP/GLP ⇒S/N A810B-3179 354
HYDRAULIC PUMP SINGLE PUMP GP/GLP S/N A810B-3180⇒ 356
HYDRAULIC PUMP DOUBLE GEAR GDP AF ⇒S/N A810B-3179 358
TILT CYLINDER 360
CONTROL VALVE ATTACHING PARTS THREE FUNCTION 362
CONTROL VALVE ATTACHING PARTS FOUR FUNCTION 366
CONTROL VALVE THREE FUNCTION SINGLE RELIEF ⇒D/B 07/1996 368
CONTROL VALVE THREE FUNCTION SINGLE RELIEF WITHOUT UNLOADER VALV 372
CONTROL VALVE THREE FUNCTION SINGLE RELIEF WITH UNLOADER VALVE D 376
CONTROL VALVE FOUR FUNCTION SINGLE RELIEF ⇒D/B 07/1996 380
CONTROL VALVE FOUR FUNCTION SINGLE RELIEF WITH UNLOADER VALVE D/ 384
CONTROL VALVE THREE FUNCTION DUAL RELIEF VALVE ⇒D/B 07/1996 388
CONTROL VALVE THREE FUNCTION DUAL RELIEF VALVE WITH UNLOADER VAL 392
CONTROL VALVE FOUR FUNCTION DUAL RELIEF VALVE ⇒D/B 07/1996 396
CONTROL VALVE FOUR FUNCTION DUAL RELIEF VALVE WITH UNLOADER VALV 400
PUMP DRIVE GDP AF 404
PUMP DRIVE GP/GLP BF/AF 406
11 MAST-TWO STAGE LIMITED FREE-LIFT 409
OUTER MAST TWO STAGE LIMITED FREE-LIFT 412
INNER MAST TWO STAGE LIMITED FREE-LIFT 414
LIFT TWO STAGE LIMITED FREE-LIFT ⇒S/N A550B-2249 416
LIFT TWO STAGE LIMITED FREE-LIFT S/N A550B-2250⇒ 418
LIFT CYLINDER LEFT HAND TWO STAGE LIMITED FREE-LIFT 420
LIFT CYLINDER RIGHT HAND TWO STAGE LIMITED FREE-LIFT 422
CARRIAGE SIX ROLLER TWO STAGE LIMITED FREE-LIFT 424
HEADER HOSE THREE FUNCTION TWO STAGE LIMITED FREE-LIFT 426
HEADER HOSE FOUR FUNCTION TWO STAGE LIMITED FREE-LIFT 428
MAST INSTALLATION TWO STAGE LIMITED FREE-LIFT 432
12 MAST-THREE STAGE FULL FREE-LIFT 435
OUTER MAST THREE STAGE FULL FREE-LIFT 438
INTERMEDIATE MAST THREE STAGE FULL FREE-LIFT 440
INNER MAST THREE STAGE FULL FREE-LIFT 442
MAIN LIFT THREE STAGE FULL FREE-LIFT ⇒S/N A554B-2099 444
MAIN LIFT THREE STAGE FULL FREE-LIFT S/N A554B-2100⇒ 448
FREE-LIFT THREE STAGE FULL FREE-LIFT 450
MAIN CYLINDER LEFT HAND THREE STAGE FULL FREE-LIFT 452
MAIN CYLINDER RIGHT HAND THREE STAGE FULL FREE-LIFT 454
FREE-LIFT CYLINDER THREE STAGE FULL FREE-LIFT 456
CARRIAGE SIX ROLLER THREE STAGE FULL FREE-LIFT 458
HEADER HOSE THREE FUNCTION THREE STAGE FULL FREE-LIFT 460
HEADER HOSE FOUR FUNCTION THREE STAGE FULL FREE-LIFT 464
MAST INSTALLATION THREE STAGE FULL FREE-LIFT 468
13 MAST-TWO STAGE FULL FREE-LIFT 471
OUTER MAST TWO STAGE FULL FREE-LIFT 474
INNER MAST TWO STAGE FULL FREE-LIFT 476
MAIN LIFT TWO STAGE FULL FREE-LIFT ⇒S/N A558B-1670 478
MAIN LIFT TWO STAGE FULL FREE-LIFT S/N A558B-1671⇒ 480
FREE-LIFT TWO STAGE FULL FREE-LIFT 482
MAIN CYLINDER LEFT HAND TWO STAGE FULL FREE-LIFT 486
MAIN CYLINDER RIGHT HAND TWO STAGE FULL FREE-LIFT 488
FREE-LIFT CYLINDER TWO STAGE FULL FREE-LIFT 490
CARRIAGE SIX ROLLER TWO STAGE FULL FREE-LIFT 492
HEADER HOSE THREE FUNCTION TWO STAGE FULL FREE-LIFT 494
HEADER HOSE FOUR FUNCTION TWO STAGE FULL FREE-LIFT 498
MAST INSTALLATION TWO STAGE FULL FREE-LIFT 502
14 FORKS, LOAD BACKREST, AND MAST INSTALLATION 505
LOAD BACKREST EXTENSION 508
FORK 1600 KG 510
FORK 2000 KG 511
15 OPTIONS 513
LIFTING EYE 516
SIDE-SHIFT CARRIAGE 518
SIDE-SHIFT CYLINDER 522
DRIVE WHEEL AND TIRE 887 MM SHEET 1 OF 2 524
DRIVE WHEEL AND TIRE 887 MM SHEET 2 OF 2 526
DRIVE WHEEL AND TIRE 930 MM SHEET 1 OF 3 528
DRIVE WHEEL AND TIRE 930 MM SHEET 2 OF 3 530
DRIVE WHEEL AND TIRE 930 MM SHEET 3 OF 3 532
DRIVE WHEEL AND TIRE 1060 MM 534
DRIVE WHEEL AND TIRE WITH STUD 536
STEERING TIRE AND WHEEL 538
STEERING TIRE AND WHEEL WITH STUD 540
BACK-UP ALARM 542
DRIVE, TURN, AND SIDELIGHTS 544
STROBE LIGHT 546
TAIL LIGHTS EARLY PRODUCTION 548
TAIL LIGHTS LATE PRODUCTION 550
WIRE HARNESS TAIL LIGHT 552
FIRE EXTINGUISHER 554
