Yale Forklift MC10-12-15 Parts Manual PN 273123300 – PDF DOWNLOAD

Description

Yale Forklift MC10-12-15 Parts Manual PN 273123300 – PDF DOWNLOAD

FILE DETAILS:

Yale Forklift MC10-12-15 Parts Manual PN 273123300 – PDF DOWNLOAD

Language : English_Italian_German_French_Spanish
Pages : 68
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Yale Forklift MC10-12-15 Parts Manual PN 273123300 – PDF DOWNLOAD

Part sheet index / Indice delle tavole / Index des tables / Tafelverzeichnis / Indice de tablas
Legend of symbols used in this handbook / Legenda simbologia impiegata sul catalogo / Legende symbolique utilisée
sur catalogue / Legende der Katalogsymbole / Leyenda simbología empleada en el catálogo
How to use the handbook / Uso del catalogo / Utilisation du catalogue / Nachschlagen des Katalogs /
Uso del catálogo
Frame MC10-12-15 pedestrian drive / Telaio MC10-12-15 guida a terra / Chassis MC10-12-15 guide au sol /
Rahmen MC10-12-15 steuerung vom bodenaus / Bastidor MC10-12-15 guia en el piso (part sheet 1)
Frame MC10-12-15 ride-on drive / Telaio MC10-12-15 guida a bordo / Chassis MC10-12-15 guide au bord /
Rahmen MC10-12-15 steuerung vom gerät aus / Bastidor MC10-12-15 guia a bordo (part sheet 1 1)
Masts MC10-12-15 duplex / Montanti MC10-12-15 duplex / Montants MC10-12-15 duplex /
Pfosten MC10-12-15 Duplex / Montante MC10-12-15 dúplex (part sheet 2)
Masts MC10-12-15 triplex / Montanti MC10-12-15 triplex / Montants MC10-12-15 triplex /
Pfosten MC10-12-15 Triplex / Montante MC10-12-15 tríplex (part sheet 2 1)
Masts MC10-12-15 triplex G A L / Montanti MC10-12-15 triplex G A L / Montants MC10-12-15 triplex G A L /
Pfosten MC10-12-15 Triplex G A L / Montante MC10-12-15 tríplex G A L (part sheet 2 2)
Fem carriage MC10-12-15 / Spalliera fem MC10-12-15 / Espalier fem MC10-12-15 /
Fem-Auflage MC10-12-15 / Pared lateral fem MC10-12-15 (part sheet 3)
Drawbar MC10-12-15 pedestrian drive / Timone MC10-12-15 guida a terra / Timon MC10-12-15guide au sol /
Deichsel MC10-12-15 steuerung vom bodenaus / Direccion MC10-12-15 guia en el piso (part sheet 4)
Drawbar MC10-12-15 ride-on drive / Timone MC10-12-15 guida a bordo / Timon MC10-12-15 guide au bord /
Deichsel MC10-12-15 steuerung vom gerät aus / Direccion MC10-12-15 guia a bordo (part sheet 4 1)
Steering column MC10-12-15 ride-on drive / Canotto sterzo MC10-12-15 guida a bordo / Colonne direction
MC10-12-15 guide au bord / Lenksäule MC10-12-15 steuerung vom gerät aus / Tubo dirección MC10-12-15
guia a bordo (part sheet 5)
Load wheels MC10-12-15 / Ruote portanti MC10-12-15 / Roues portantes MC10-12-15 /
Tragende räder MC10-12-15 / Ruedas portantes MC10-12-15 (part sheet 6)
Hydraulic system MC10-12-15 / Impianto idraulico MC10-12-15 / Installation hydraulique MC10-12-15 /
Hydraulikanlage MC10-12-15 / Installacion hidraulica MC10-12-15 (part sheet 7)
Truck model / Carrello tipo / Chariot modele / Staplertyp / Tipo de carretilla MC10-12-15
MC10-12-15 – Pag 2
Lifting unit MC10-12-15 duplex / Gruppo sollevamento MC10-12-15 duplex / Groupe de soulevement MC10-12-15
duplex / Hebe-Gruppe MC10-12-15 duplex / Grupo elevación MC10-12-15 dúplex (part sheet 8)
Lifting unit MC10-12-15 triplex / Gruppo sollevamento MC10-12-15 triplex / Groupe de soulevement MC10-12-15
triplex / Hebe-Gruppe MC10-12-15 triplex / Grupo elevación MC10-12-15 tríplex (part sheet 8 1)

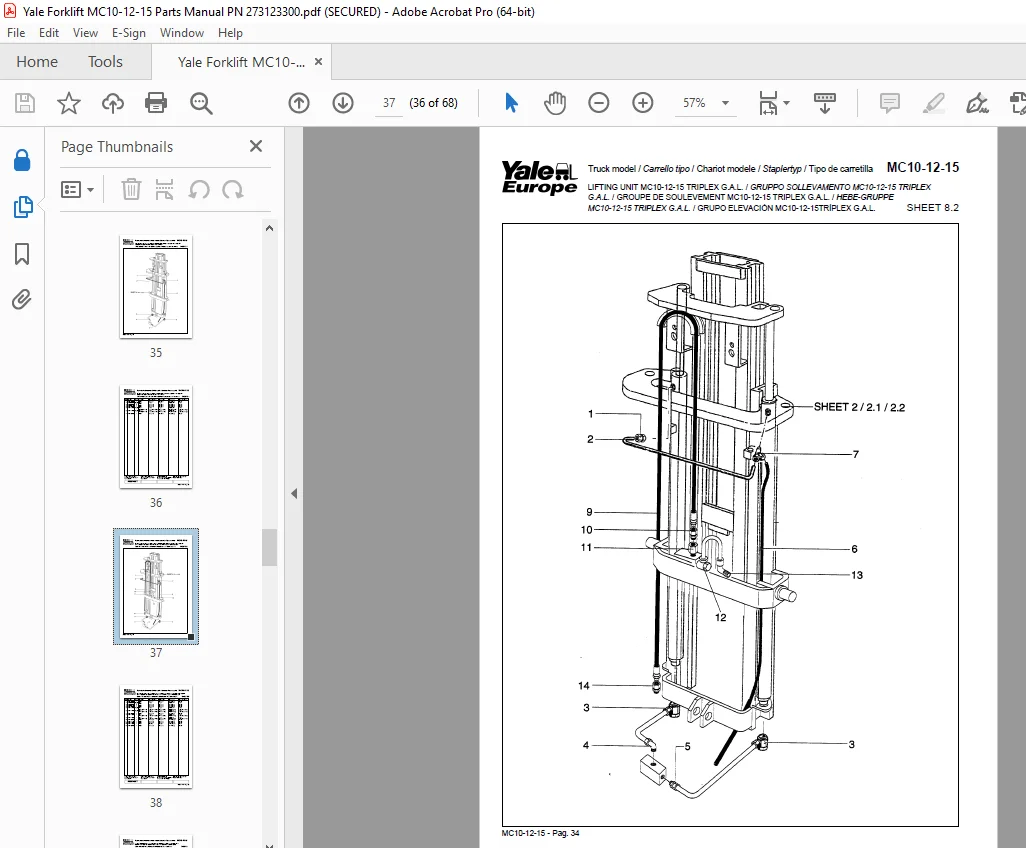

Lifting unit MC10-12-15 triplex G A L / Gruppo sollevamento MC10-12-15 triplex G A L / Groupe de soulevement
MC10-12-15 triplex G A L / Hebe-Gruppe MC10-12-15 triplex G A L / Grupo elevación MC10-12-15 tríplex G A L
(part sheet 8 2)
Lifting cylinder MC10-12-15 duplex / Cilindro sollevamento MC10-12-15 duplex / Cilindre de soulevement
MC10-12-15 duplex / Hubzylinder MC10-12-15 duplex / Cilindro de elevación MC10-12-15 dúplex (part sheet 9)
Lifting cylinder MC10-12-15 triplex / Cilindro sollevamento MC10-12-15 triplex / Cilindre de soulevement
MC10-12-15 triplex / Hubzylinder MC10-12-15 triplex / Cilindro de elevación MC10-12-15 tríplex (part sheet 9 1)
Lifting cylinder MC10-12-15 triplex G A L / Cilindro sollevamento MC10-12-15 triplex G A L / Cilindre de
soulevement MC10-12-15 triplex G A L / Hubzylinder MC10-12-15 triplex G A L / Cilindro de elevación
MC10-12-15 tríplex G A L (part sheet 9 2)
Auxiliary cylinder MC10-12-15 triplex G A L / Cilindro ausiliario MC10-12-15 triplex G A L / Cylindre auxyliaire
MC10-12-15 triplex G A L / Hilfszylinder MC10-12-15 triplex G A L / Cilindro auxiliar MC10-12-15 tríplex G A L
(part sheet 10)
Tilting cylinder MC10-12-15 / Cilindro brandeggio MC10-12-15 / Cylindre d’inclinaison du mat MC10-12-15 /
Schwenkylinder MC10-12-15 / Cilindro de rotacion MC10-12-15 (part sheet 11)
Electronic system MC10-12-15 / Impianto elettronico MC10-12-15 / Installation électronique MC10-12-15 /
Elektronik MC10-12-15 / Instalacion electronica MC10-12-15 (part sheet 12)
Reduction unit MC10-12-15 / Riduttore MC10-12-15 / Reducteur MC10-12-15 / Untersetzerachse MC10-12-15 /
Reductor MC10-12-15 (part sheet 13)
Traction motor MC10-12-15 / Motore di trazione MC10-12-15 / Moteur de traction MC10-12-15 / Zugmotor
MC10-12-15 / Motor de traccion MC10-12-15 (part sheet 14)
Electromagnetic brake MC10-12-15 / Freno elettromagnetico MC10-12-15 / Frein electromagnetique MC10-12-15 /
Elektromagnetische bremse MC10-12-15 / Freno electromagnético MC10-12-15 (part sheet 15)
Truck model / Carrello tipo / Chariot modele / Staplertyp / Tipo de carretilla MC10-12-15
MC10-12-15 – Pag 3
Adesive label MC10-12-15 pedestrian drive / Targhette e adesivi MC10-12-15 guida a terra / Autocollants de
segnalisation MC10-12-15 guide au sol / Selbstklebeschilder MC10-12-15 steuerung vom bodenaus /
Tarjetas adhesivas MC10-12-15 guia en el piso (part sheet 16)
Adesive label MC10-12-15 ride-on drive / Targhette e adesivi MC10-12-15 guida a bordo / Autocollants de
segnalisation MC10-12-15 guide au bord / Selbstklebeschilder MC10-12-15 steuerung vom gerät aus /
Tarjetas adhesivas MC10-12-15 guia a bordo (part sheet 16 1)
Hydraulic diagram MC10-12-15 / Schema oleodinamico MC10-12-15 / Schéma hydraulique MC10-12-15 /
Hydraulikschaltplan MC10-12-15 / Esquema oleodinámico MC10-12-15 (part sheet 17)
Electronic diagram MC10-12-15 / Schema elettronico MC10-12-15 / Schéma électronique MC10-12-15 /
Elektronikschaltplan MC10-12-15 / Esquema electrónico MC10-12-15 (part sheet 18)
Note / Note / Note / Hinweise / Notas

S.V 07/24
