Yamaha RX-V559/HTR-5950/DSP-AX559 AV RECEIVER/AV AMPLIFIER Service Manual – PDF
$26.95
Yamaha RX-V559/HTR-5950/DSP-AX559 AV RECEIVER/AV AMPLIFIER Service Manual – PDF DOWNLOAD
Description
Yamaha RX-V559/HTR-5950/DSP-AX559 AV RECEIVER/AV AMPLIFIER Service Manual – PDF DOWNLOAD
FILE DETAILS:
Yamaha RX-V559/HTR-5950/DSP-AX559 AV RECEIVER/AV AMPLIFIER Service Manual – PDF DOWNLOAD
Language : English, Japanese
Pages : 116
Downloadable : Yes
File Type : PDF

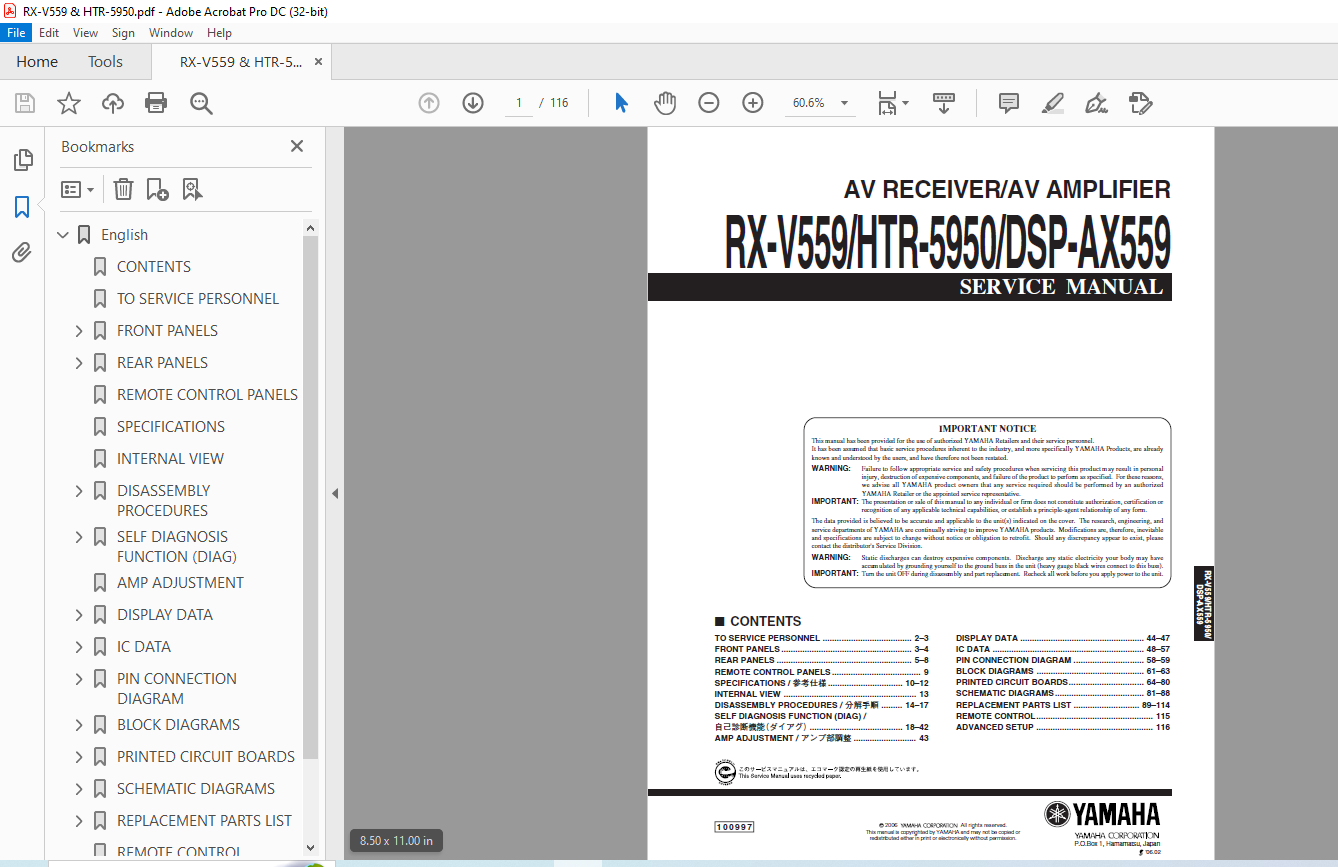

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Yamaha RX-V559/HTR-5950/DSP-AX559 AV RECEIVER/AV AMPLIFIER Service Manual – PDF DOWNLOAD
CONTENTS
TO SERVICE PERSONNEL ……………………………….. 2–3
FRONT PANELS ……………………………………………….. 3–4
REAR PANELS …………………………………………………. 5–8
REMOTE CONTROL PANELS……………………………….. 9
SPECIFICATIONS / 参考仕様………………………….. 10–12
INTERNAL VIEW ………………………………………………… 13
DISASSEMBLY PROCEDURES / 分解手順……… 14–17
SELF DIAGNOSIS FUNCTION (DIAG) /
自己診断機能（ダイアグ）…………………………………. 18–42
AMP ADJUSTMENT / アンプ部調整……………………… 43
DISPLAY DATA …………………………………………….. 44–47
IC DATA ……………………………………………………….. 48–57
PIN CONNECTION DIAGRAM ………………………… 58–59
BLOCK DIAGRAMS ………………………………………. 61–63
PRINTED CIRCUIT BOARDS………………………….. 64–80
SCHEMATIC DIAGRAMS……………………………….. 81–88
REPLACEMENT PARTS LIST ………………………. 89–114
REMOTE CONTROL………………………………………….. 115
ADVANCED SETUP ………………………………………….. 116
