Yamaha Towny Mj50 Scooter Digital Workshop Repair Manual 1981 Onward – PDF DOWNLOAD

Description

Yamaha Towny Mj50 Scooter Digital Workshop Repair Manual 1981 Onward

FILE DETAILS:
LANGUAGE:ENGLISH & FRENCH
PAGES:27
DOWNLOADABLE:YES
FILE TYPE:PDF

YAMAHA TOWNY MJ50 SCOOTER DIGITAL WORKSHOP REPAIR MANUAL 1981 ONWARD – PDF DOWNLOAD:

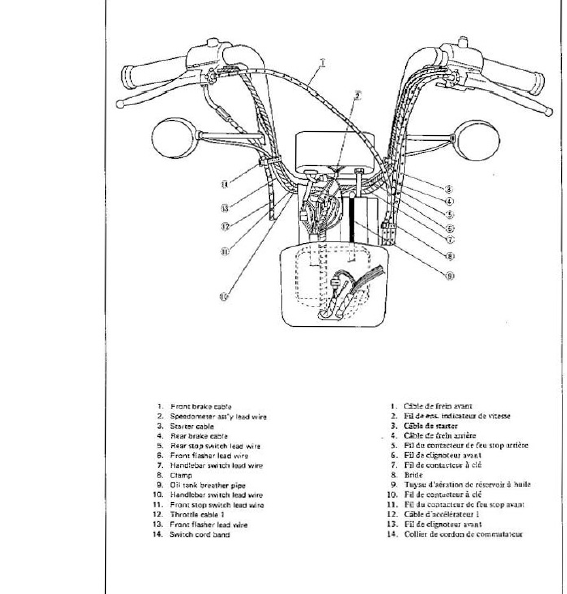

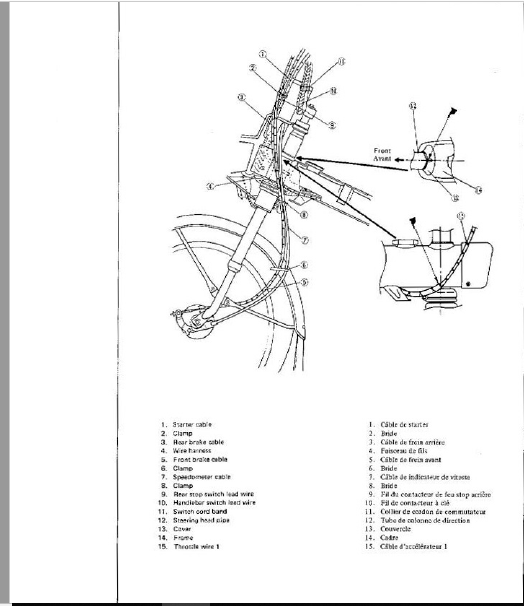

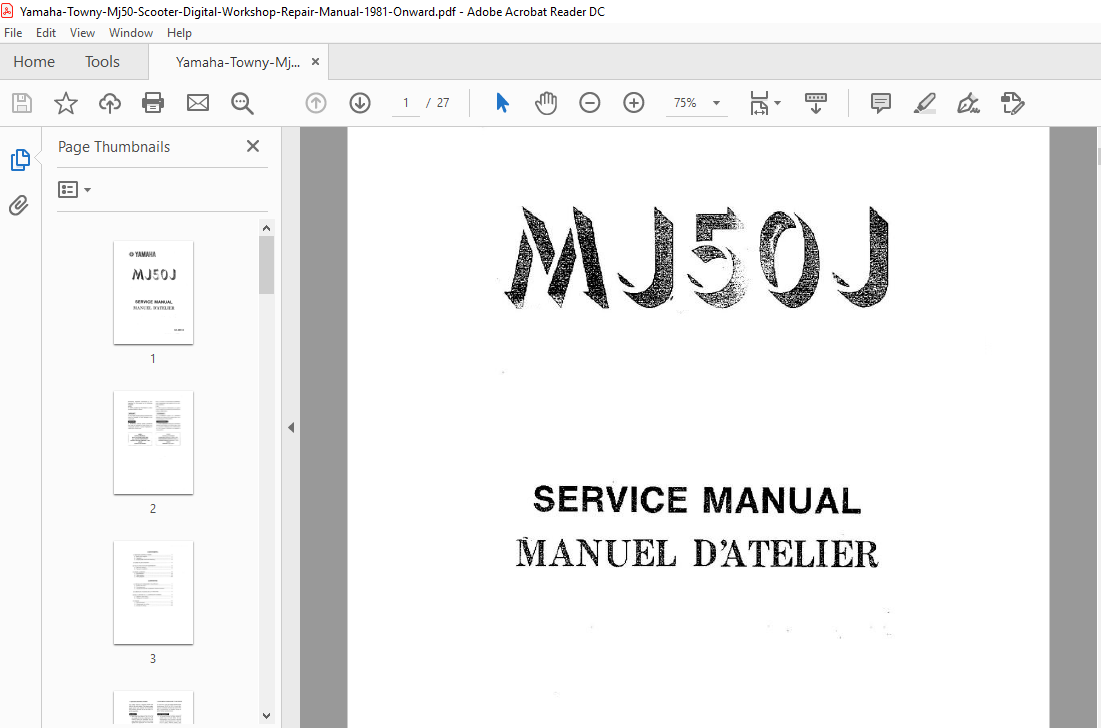

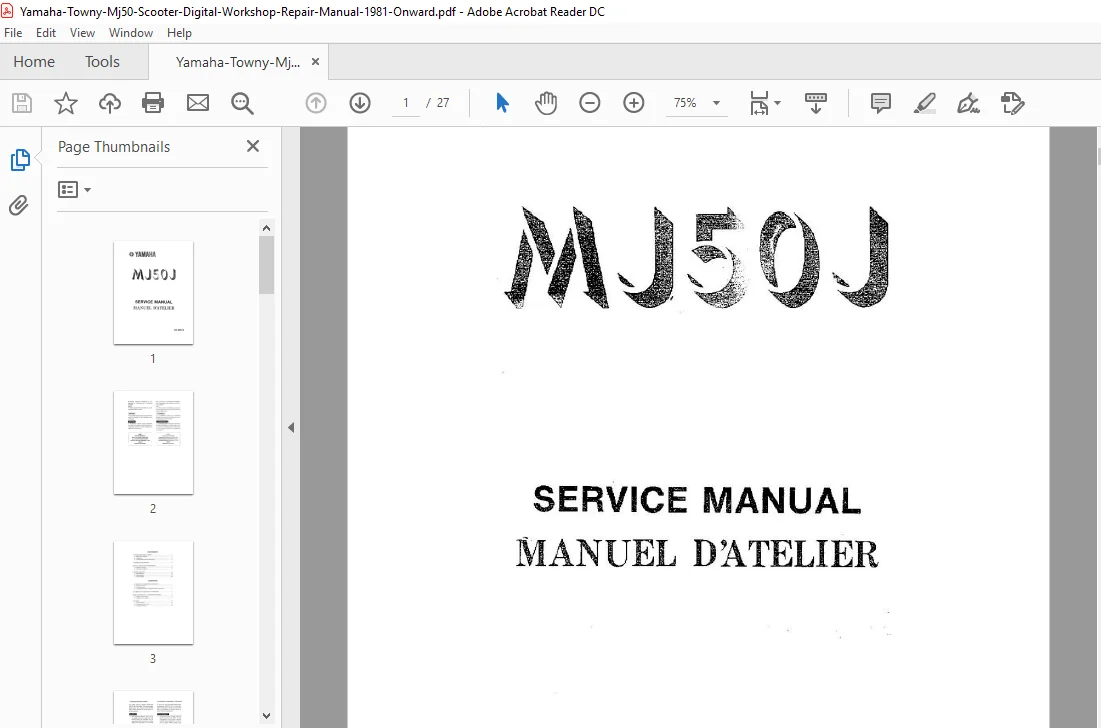

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Yamaha Towny Mj50 Scooter Digital Workshop Repair Manual 1981 Onward

WHEN THE KEY IN “START”  THE ENGINE CAN BE STARTED. When the main switch key is set to START, the start indicator light is turn- ed on by the battery. When the kick pedal is kicked, the fly- wheel magneto turns and the charge coil generates a voltage of 150 to 350 volts which is stored in the condenser in the CDI unit. When a trigger voltage from the pulser coil turns on the SCRI {siliconvcontrolled rectifier), the elect ricity stored in the condenser is discharg- ed to the primary winding of the ignition call.

• This induces a high voltage surge in the secondary winding and produces a spark across the spark plug gap. WHEN THE KICK PEDAL IS KICKED WITH THE KEY IN “START” AND THE THROTTLE GRIP IS OPENED.
• THE ENGINE WILL NOT PICK UP SPEED AND YOU CAN’T START OFF. When the kick Starter is kicked with the key in “START” and the throttle grip is opened, the engine speed will increase slowly.
• But before the engine reaches the speed where the clutch engages, a trigger voltage from the pulser coil turns on the zener dioke (20) which turns on SCRZ. As a result, the voltage from the charge coil is not supplied to the CDI unit;thus no spark is produced at the spark plug.
• As the engine speed decreases, both 20 and SCR2 turn off but the engine keeps on running by utilizing the CDI circuit. By alternating the operation specified above, the engine speed is controlled to 2,300 2 300 r,‘min.

TABLE OF CONTENTS:

 Yamaha Towny Mj50 Scooter Digital Workshop Repair Manual 1981 Onward

IGNITION CONTROL SYSTEM
A Basic circuit diagram
B Operation
C Engine speed control unit checking
POWER FLOW DIAGRAM
REAR ARM AND REAR SUSPENSION
A Roar arm removal
B Rear arm installation
MISCELLANEOUS
A Specifications
B Cabler outing
C Wiring diagram

 PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
