Yamaha XT225H XT225HC Supplementary Service Manual 1995 PDF
Original price was: $90.00.$29.95Current price is: $29.95.
Discover essential updates in this Yamaha XT225H maintenance specifications engine and XT225HC carburetor settings California guide. This supplementary manual offers detailed Yamaha XT225 valve clearance adjustment guide, XT225 front fork repair procedures, and XT225 clutch assembly and adjustment details for USA, California, and CDN models. Ideal for mechanics tackling Yamaha XT225 cable routing diagram and chassis lubrication. Use alongside the XT225D/DC manual for complete service.
Description
Yamaha XT225H XT225HC Supplementary Service Manual 1995 – PDF DOWNLOAD
Description
This comprehensive Yamaha XT225H service manual supplement 1995 provides critical updates and new data for servicing the XT225H and XT225HC models, ensuring optimal performance and compliance with emissions standards. Designed for Yamaha dealers and qualified mechanics, it emphasizes safe Yamaha XT225 valve clearance adjustment guide procedures, including cold intake and exhaust settings, to prevent damage or unsafe conditions. Key sections cover Yamaha XT225 maintenance specifications engine details like valve dimensions for intake and exhaust, along with region-specific XT225HC carburetor settings California, USA, and CDN variations for main jet, pilot jet, and fuel level adjustments.
The manual includes exploded diagrams, illustrated symbols for lubrication points, and step-by-step instructions on XT225 front fork repair procedures, such as coil-spring/oil damper front and coil-gas spring/oil damper rear shock absorbers. It also details XT225 clutch assembly and adjustment details, including clutch and oil pump maintenance, to facilitate precise engine assembly. For electrical and mechanical troubleshooting, it incorporates Yamaha XT225 cable routing diagram guides to aid in proper installation and avoid common faults.
Table of Contents
- General Information (Page 1)
- Motorcycle Identification
- Vehicle Identification Number
- Engine Serial Number
- Specifications (Page 2)
- General Specifications
- Maintenance Specifications
- Engine (Page 3)
- Chassis (Page 6)
- Lubrication Points and Lubricant Type
- Chassis (Page 7)
- Cable Routing (Page 8)
- Engine (Page 12)
- Engine Assembly and Adjustment
- Clutch and Oil Pump
- Chassis (Page 13)
- Front Fork
No dedicated index section is present, but the manual uses thumb tabs with illustrated symbols for chapters like General Information, Specifications, Engine, Chassis, and Troubleshooting, making navigation intuitive.
Key Tables Extracted and Formatted:
General Specifications Table:
| Item | Details |
|---|---|
| Model | XT225H/HC |
| Model code number | 4BED: XT225H (USA-Except for California) 4BEE: XT225HC (USA-For California) 4BEF: XT225H (CDN) |
| Vehicle identification number | JYA4BEE0TA035101 (USA-Except for California) JYA4BEC0TA040101 (USA-For California) JYA4BENO*TA042101 (CDN) |
| Engine starting number | 4BE-035101 (USA-Except for California) 4BE-040101 (USA-For California) 4BE-042101 (CDN) |
| Shock absorber: Front | Coil-Spring/Oil damper |
| Shock absorber: Rear | Coil-Gas spring/Oil damper |
Maintenance Specifications – Engine Table (Excerpt):
| Item | Details |
|---|---|
| Valve clearance (cold): Intake | 0.05~0.09 mm (0.002~0.004 in) |
| Valve clearance (cold): Exhaust | 0.15~0.19 mm (0.006~0.007 in) |
| Valve dimensions: Intake “A” head diameter | 33.9~34.1 mm (1.33~1.34 in) |
| Valve dimensions: Exhaust “A” head diameter | 28.4~28.6 mm (1.12~1.13 in) |
Carburetor Specifications Table (Region-Specific):
| Item | USA | California | CDN |
|---|---|---|---|
| I.D. Mark | 4BE 10 | 4BE 00 | 3RW 01 |
| Main jet (M.J.) | #130 | ← | #122.5 |
| Jet needle (J.N.) | 5DL27-1 | ← | 5GN50-3/5 |
| Pilot jet (P.J.) | #40 | ← | #42.5 |
| Pilot screw (P.S.) | Preset | ← | 2 turns out |
| Starter jet (G.S.1) | #60 | ← | #45 |
| Fuel level (F.L.) | 11.0~12.0 mm (0.43~0.47 in) | ← | ← |
| Engine idle speed | 1,300~1,500 r/min | ← | ← |
This supplement integrates seamlessly with the base XT225D/DC service manual (4BE-28197-20), focusing on updates for 1995 models while highlighting safety alerts, special tools, and lubrication symbols like engine oil, molybdenum disulfide grease, and locking agents. Perfect for DIY enthusiasts or professionals handling XT225 front fork repair procedures or XT225 clutch assembly and adjustment details in real-world scenarios.
File Details
- Manual Name: XT225 Service Manual (Supplementary for H/HC Models)
- Models Covered: XT225H, XT225HC (references XT225D/DC; USA, California, CDN variants)
- Year: 1995

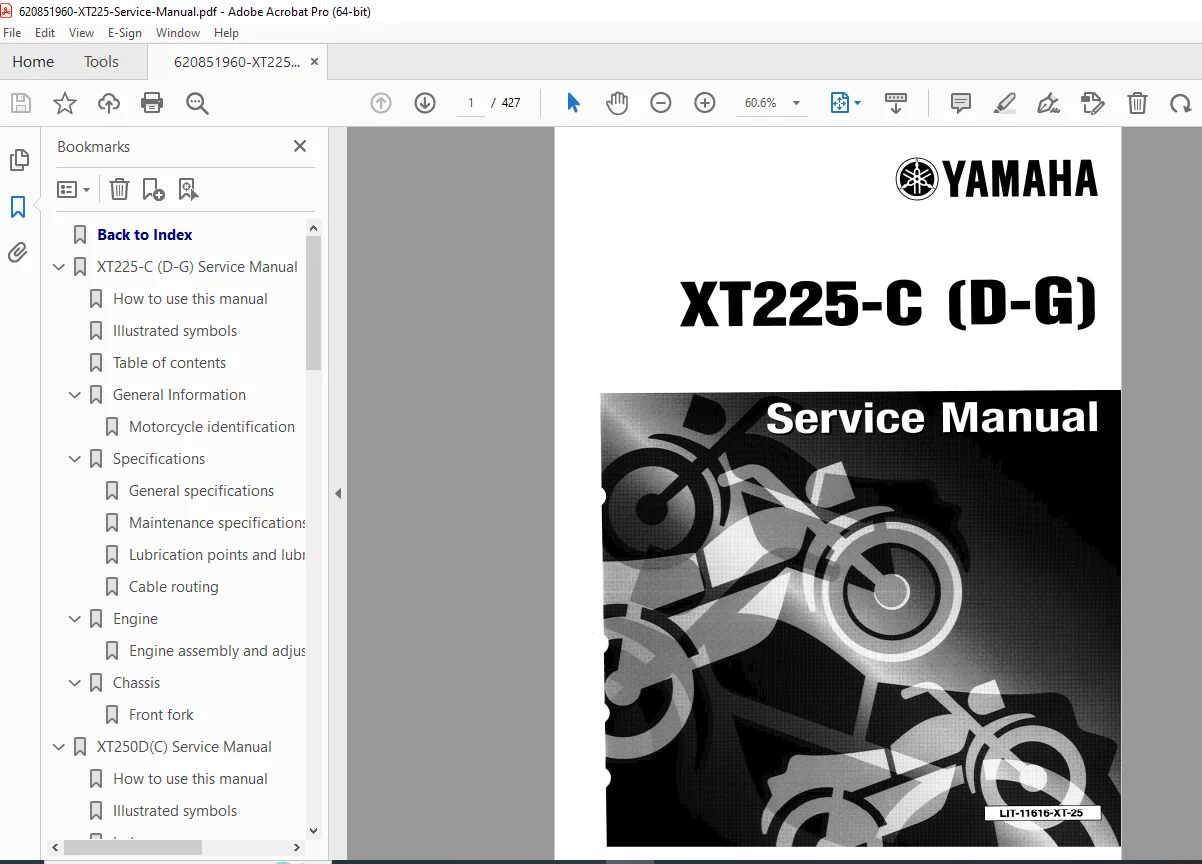

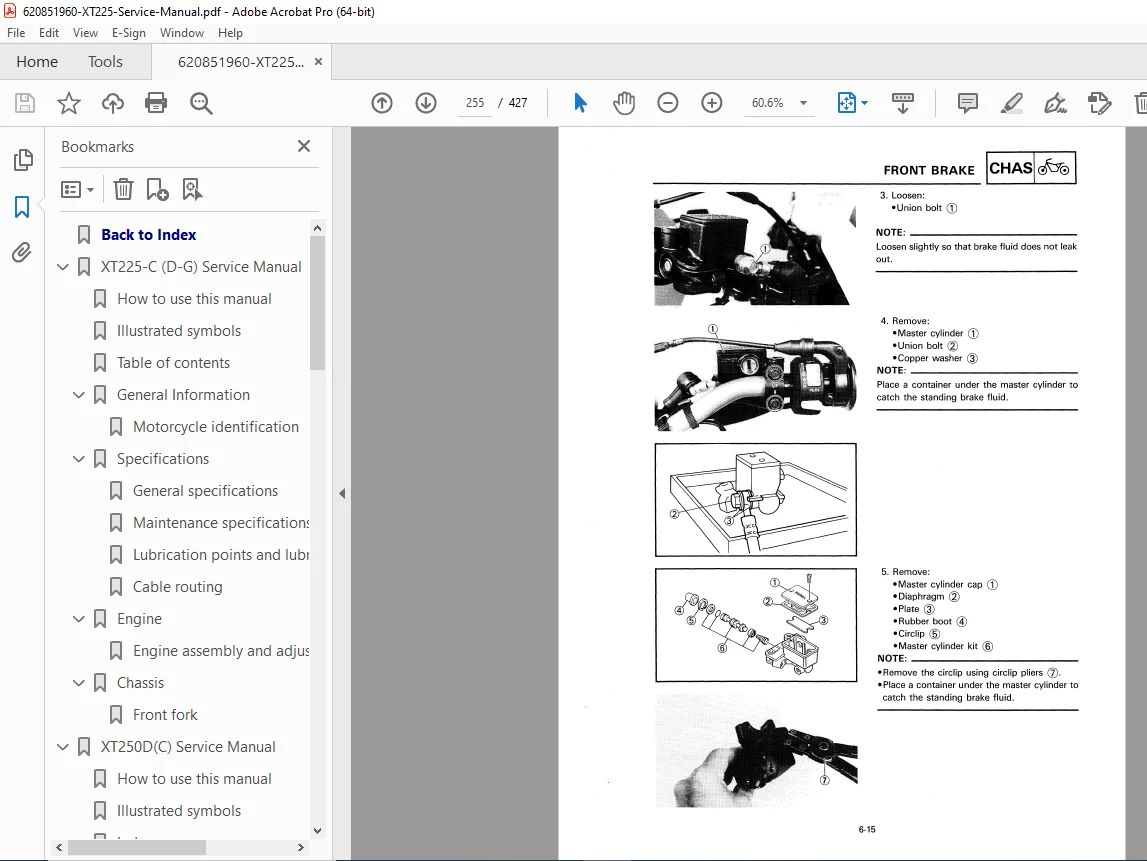

- Manual PDF Quality: Scanned, clear and readable with illustrations and tables
- No of Pages: 427
