GENERAL INFORMATION

MOTORCYCLE I DENTI FI CATION

FRAME SERIAL NUMBER Th~ frame serial number CD is stamped into the right side of the steering head.

Starting serial number:
JLD-000101
JSC-000101 (El
JTD-000101 (CH)

ENGINE SERIAL NUMBER

The engine serial number G) is stamped into the right side of the engine. Starting serial number: JLD-000101 JSC-000101 ( El JTD-000101 (CH)

Starting serial number:
JLD-000101
JSC-000101 ( El
JTD-000101 (CH

NOTE:

The first three digits of these numbers are for model identifications; the remaining digits are the unit production number. • Designs and specifications are subject to change without notice.

IMPORTANT INFORMATION PREPARATION FOR REMOVAL

1. Remove all dirt, mud, dust, and foreign material before removal and disassembly.

2. Use proper tools and cleaning equipment. Refer to “SPECIAL TOOL”.

3. When disassembling the machine, keep mated parts together. This includes gears, cylinders, pistons, and other mated parts that have been “mated” through normal wear. Mated parts must be reused as an assembly or replaced.

4. During the machine disassembly, clean all parts and place them in trays in the order of disassembly. This will speed up assembly time and help assure that all parts are correctly reinstalled.

5. Keep away from fire.

ALL REPLACEMENT PARTS

1. Use only genuine Yamaha parts for all replacements. Use oil and/or grease recommended by Yamaha for assembly and adjustment. Other brands may be similar in function and appearance, but inferior in quality

GASKETS, OIL SEALS, AND O-RINGS

1. All gaskets, seals, and O-rings should be replaced when an engine is overhauled. All gasket surfaces, oil seal lips, and O-rings must be cleaned.

2. Properly oil all mating parts and bearings during reassembly. Apply grease to the oil seal lips.
TABLE OF CONTENTS:

YAMAHA XTZ750 – XTZ750 SERVICE MANUAL – PDF DOWNLOAD

GENERAL INFORMATION
SPECIFICATIONS
PERIODIC INSPECTION
AND ADJUSTMENT
ENGINE OVERHAUL
COOLING SYSTEM
CARBURETION
CHASSIS
ELECTRICAL
TROUBLESHOOTING
CHAPTER 1
GENERAL INFORMATION
MOTORCYCLE IDENTIFICATION 1-1
FRAME SERIAL NUMBER 1-1
ENGINE SERIAL NUMB~R 1-1
IMPORTANT INFORMATION 1-2
PREPARATION FOR REMOVAL 1-2
ALL REPLACEMENT PARTS 1-2
GASKET, OIL SEALS, AND O-RINGS 1-2
LOCK WASHER/PLATES AND COTTER PINS 1-3
BEARINGS AND OIL SEALS 1-3
CIRCLIPS 1-3
SPECIAL TOOLS 1-4
FOR TUNE UP 1-4
FOR ENGINE SERVICE 1-5
FOR CHASSIS SERVICE 1-7
FOR ELECTRICAL COMPONENTS 1-8
Customer Support: [email protected]

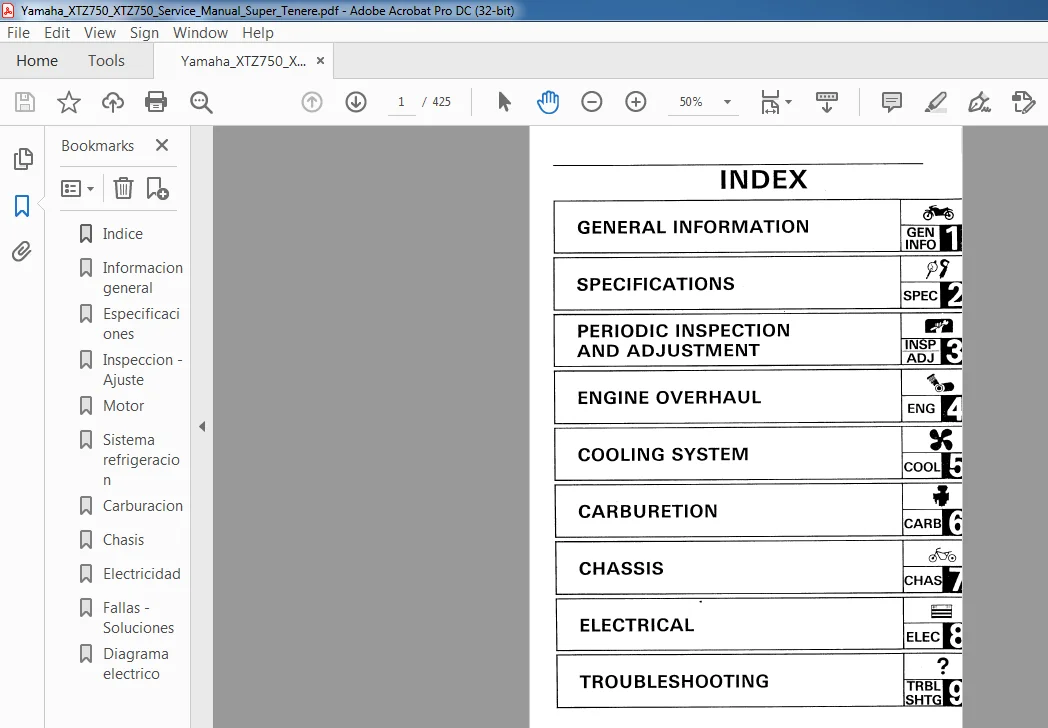

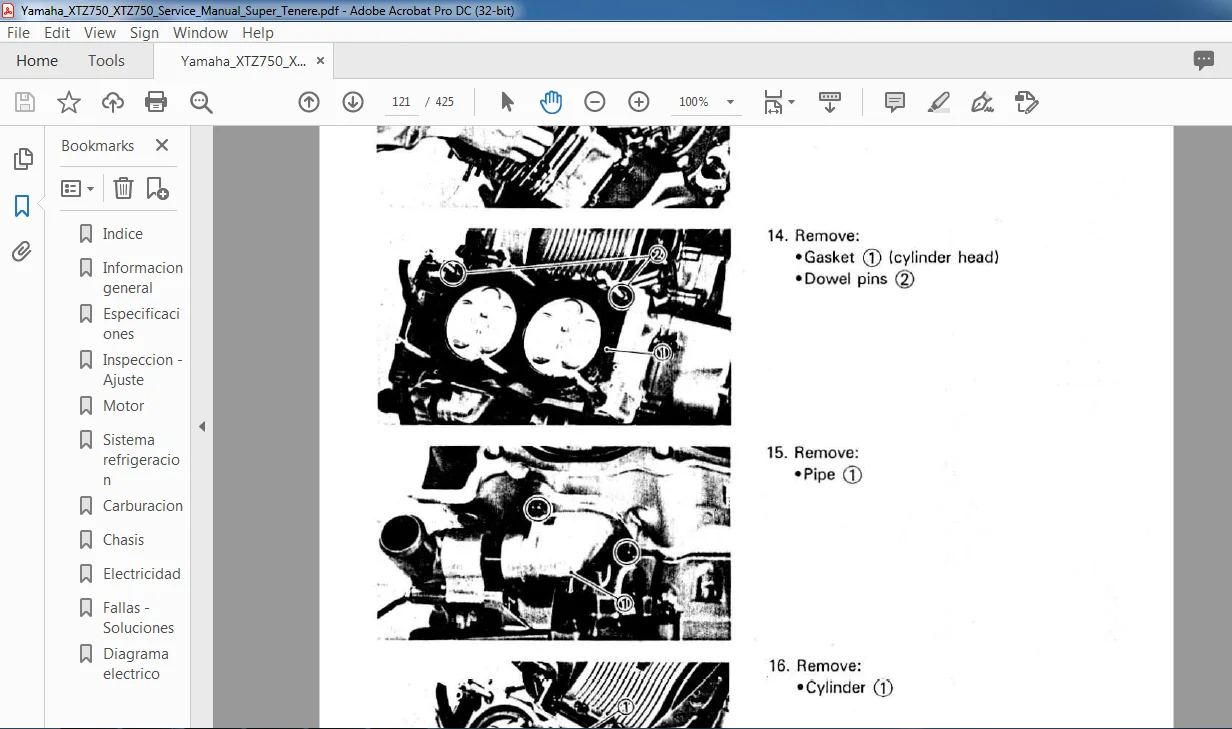

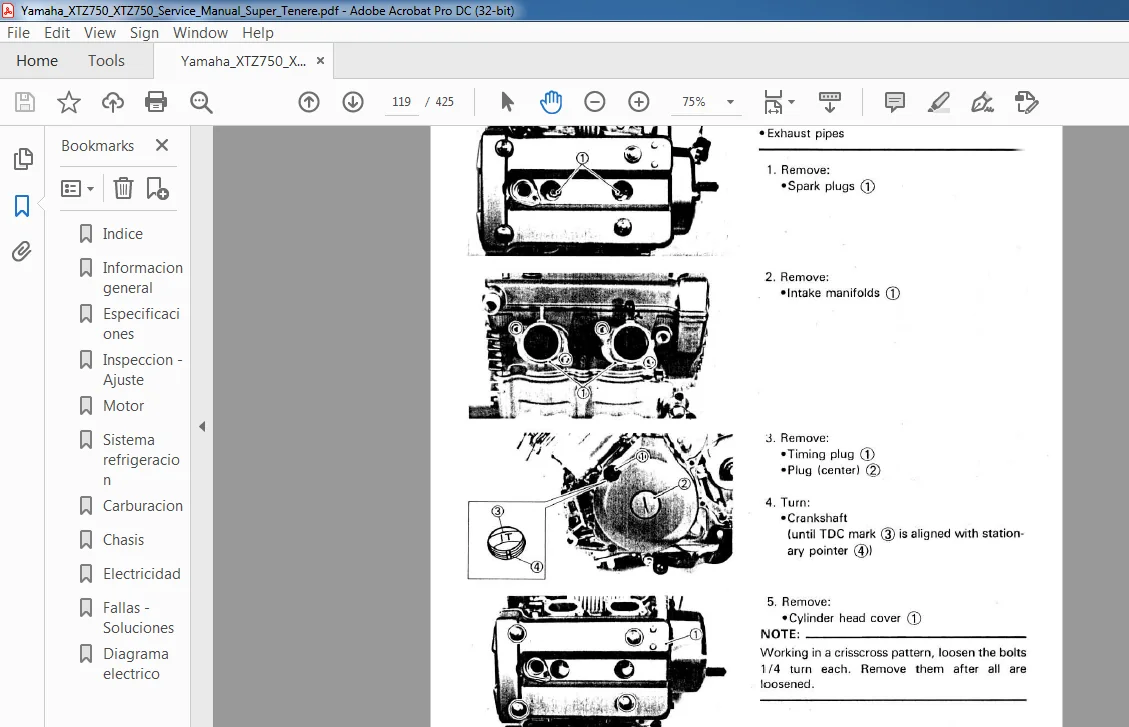

IMAGES PREVIEW OF THE MANUAL:
