Yanmar 4TNV98 4TNE98 Diesel Engine Service Manual PDF Download
Original price was: $95.00.$28.95Current price is: $28.95.
Complete factory service manual for Yanmar 4TNV98 and 4TNE98 industrial diesel engines covering engine overhaul, fuel injection system, lubrication, periodic maintenance, and troubleshooting. Technical documentation includes cylinder head service, crankshaft specifications, fuel pump timing, injector testing, torque specifications, and emission control standards. Professional reference for Doosan forklift engines D20S-5, D25S-5, D30S-5, D33S-5, D35C-5 series.
Description
Yanmar 4TNV98 4TNE98 Diesel Engine Service Manual PDF Download
File Details
| Item | Details |
|---|---|
| Manual name | Service Manual – 4TNV98 & 4TNE98 Diesel Engine (SB4319E00) |
| Models covered | 4TNV98 (EM0Q3/EM0Q4/EM0Q5) • 4TNE98 (EM0QC/EM0QD/EM0QE) + Doosan D20S-5 to D35C-5, D20G/D25G/D30G |
| Year | Jan 2008 |

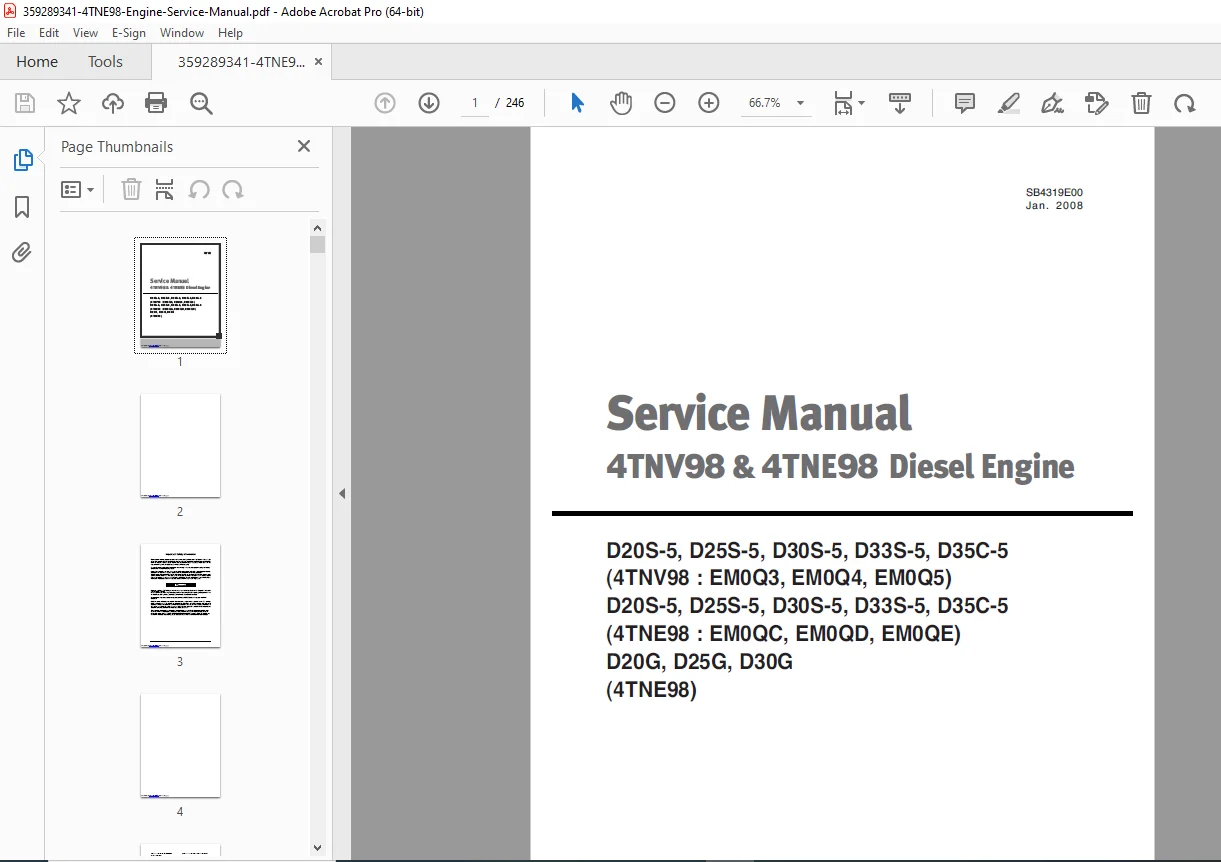

| Manual PDF quality | Clean, readable workshop manual with tables, specs, procedures & diagrams |
| Pages | 246 pages |
📘 Full Long Description
If you’re rebuilding, servicing, or troubleshooting a Yanmar 4TNV98 / 4TNE98 diesel engine (common in Doosan lift trucks), this is the proper workshop-level service manual—packed with specifications, service standards, torque data, maintenance intervals, fuel injection timing procedures, and step-by-step repair workflows.
✅ Engine & system coverage highlights
Correct service standards (valve clearances, injection timing, compression pressure limits, oil pressure, thermostat specs)
Full engine teardown & rebuild: cylinder head, crankshaft, pistons, camshaft & timing gear train
Fuel system: pump removal/installation, timing check/adjust, injector testing & pressure adjustment
Cooling, lubrication, starter motor service + wiring diagram & troubleshooting charts
📚 Table of Contents (Neatly Categorized)
Section 1 — General Service Information
Component identification + label/nameplate locations
Emission regulations/labels (EPA/ARB + 97/68/EC)
Fluids & capacities:
Diesel fuel specs + priming procedures
Engine oil specs/viscosity + capacities
Coolant specs/filling + capacities
General engine specifications (DI vs IDI, lubrication system, rotation, etc.)
Principal engine specs (4TNV98 Tier 2 / 4TNE98 Tier 3)
Service standards, tightening torques, abbreviations, unit conversions
Section 2 — Periodic Maintenance
Maintenance schedule (daily to 2000 hours)
Procedures: drain water separator, oil/filter, fuel filter service, inspections and interval-based tasks
Section 3 — Engine (Mechanical)
Cylinder head specs + disassembly/inspection/reassembly
Valve clearance measuring/adjusting (4TNE98 & 4TNV98)
Crankshaft/camshaft/timing gear train:
Disassembly, inspection, honing/boring, reassembly, final assembly
Special service tools + measuring instruments
Section 4 — Fuel System
4TNV98 fuel injection pump service, timing check/adjust, injector test/pressure adjustment
4TNE98 pump structure/operation, governor, timer, solenoid, injector servicing & timing
Section 5 — Cooling System
Cooling system diagram + coolant pump removal/disassembly/inspection/reassembly
Section 6 — Lubrication System
Lubrication diagram + oil pressure checks + trochoid oil pump service
Section 7 — Starter Motor

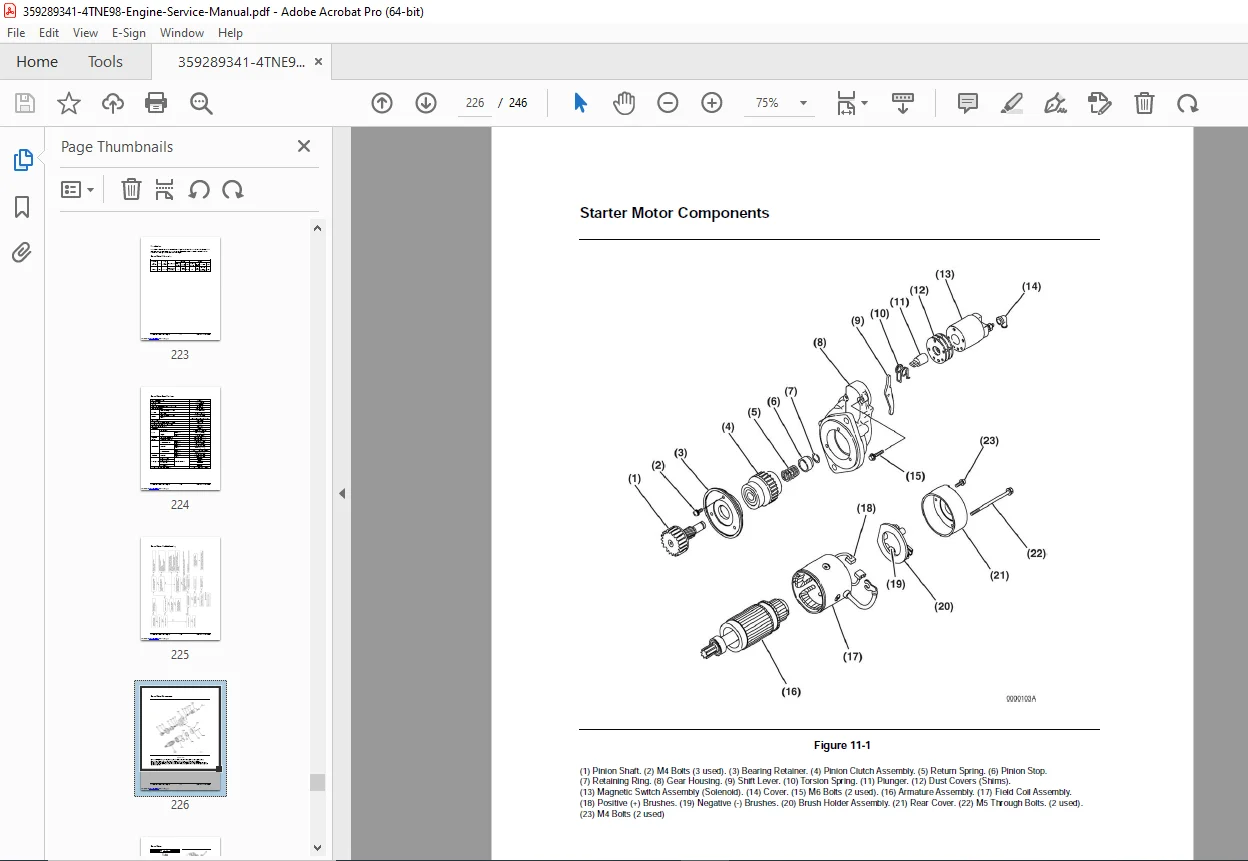

Starter specs, troubleshooting, teardown, inspection, reassembly, no-load test
Section 8 — Troubleshooting
Compression pressure troubleshooting method
Quick reference troubleshooting table + charts + wiring diagram
Fix it right the first time—this 4TNV98 / 4TNE98 service manual gives you the exact specs, procedures, and troubleshooting flow used in the shop. Instant download so you can start diagnosing and rebuilding immediately
