Yanmar 4TNV98-ZNMS 4TNV98-ZNMS2 4TNV98-ZNGT 4TNV98T-ZNMS 4TNV98-ZNTBL 4TNV98T-ZNTBL 4TNV98T-ZXNMS 4TNV98T-ZXNMS2 Engines Parts Manual 917304 – PDF DOWNLOAD

Description

Yanmar 4TNV98-ZNMS 4TNV98-ZNMS2 4TNV98-ZNGT 4TNV98T-ZNMS 4TNV98-ZNTBL 4TNV98T-ZNTBL 4TNV98T-ZXNMS 4TNV98T-ZXNMS2 Engines Parts Manual 917304 – PDF DOWNLOAD

FILE DETAILS:

Yanmar 4TNV98-ZNMS 4TNV98-ZNMS2 4TNV98-ZNGT 4TNV98T-ZNMS 4TNV98-ZNTBL 4TNV98T-ZNTBL 4TNV98T-ZXNMS 4TNV98T-ZXNMS2 Engines Parts Manual 917304 – PDF DOWNLOAD

Language : English
Pages : 78
Downloadable : Yes
File Type : PDF
Size: 1.76 MB

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

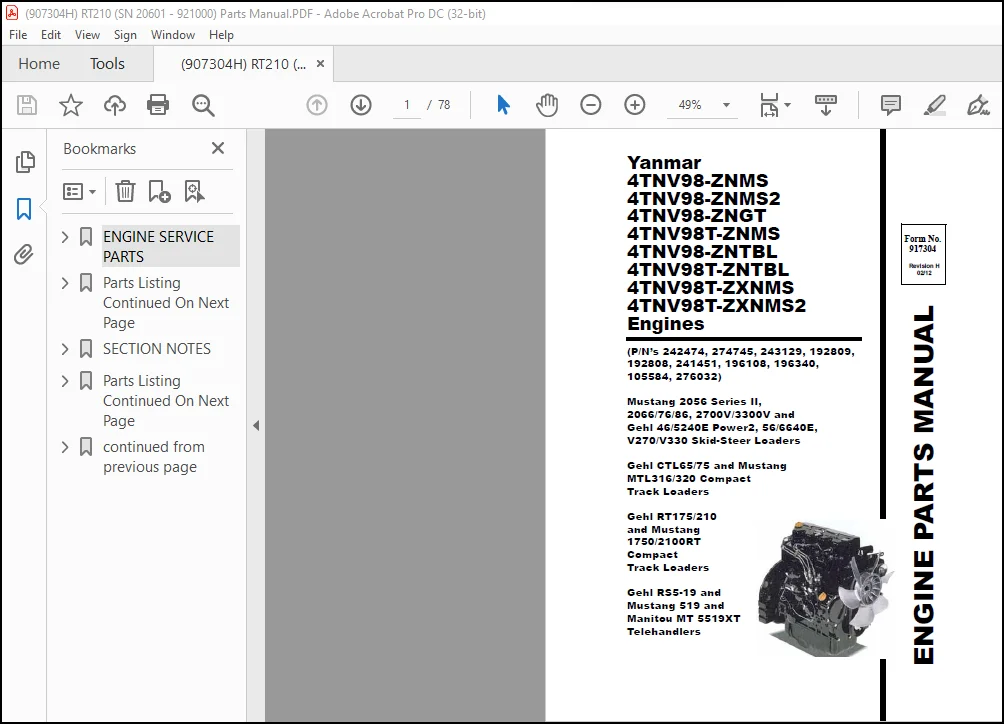

Yanmar 4TNV98-ZNMS 4TNV98-ZNMS2 4TNV98-ZNGT 4TNV98T-ZNMS 4TNV98-ZNTBL 4TNV98T-ZNTBL 4TNV98T-ZXNMS 4TNV98T-ZXNMS2 Engines Parts Manual 917304 – PDF DOWNLOAD\

Applicable Models:

(P/N’s 242474, 274745, 243129, 192809,
192808, 241451, 196108, 196340,
105584, 276032)
Mustang 2056 Series II,
2066/76/86, 2700V/3300V and
Gehl 46/5240E Power2, 56/6640E,
V270/V330 Skid-Steer Loaders
Gehl CTL65/75 and Mustang
MTL316/320 Compact
Track Loaders
Gehl RT175/210
and Mustang
1750/2100RT
Compact
Track Loaders
Gehl RS5-19 and
Mustang 519 and
Manitou MT 5519XT
Telehandlers

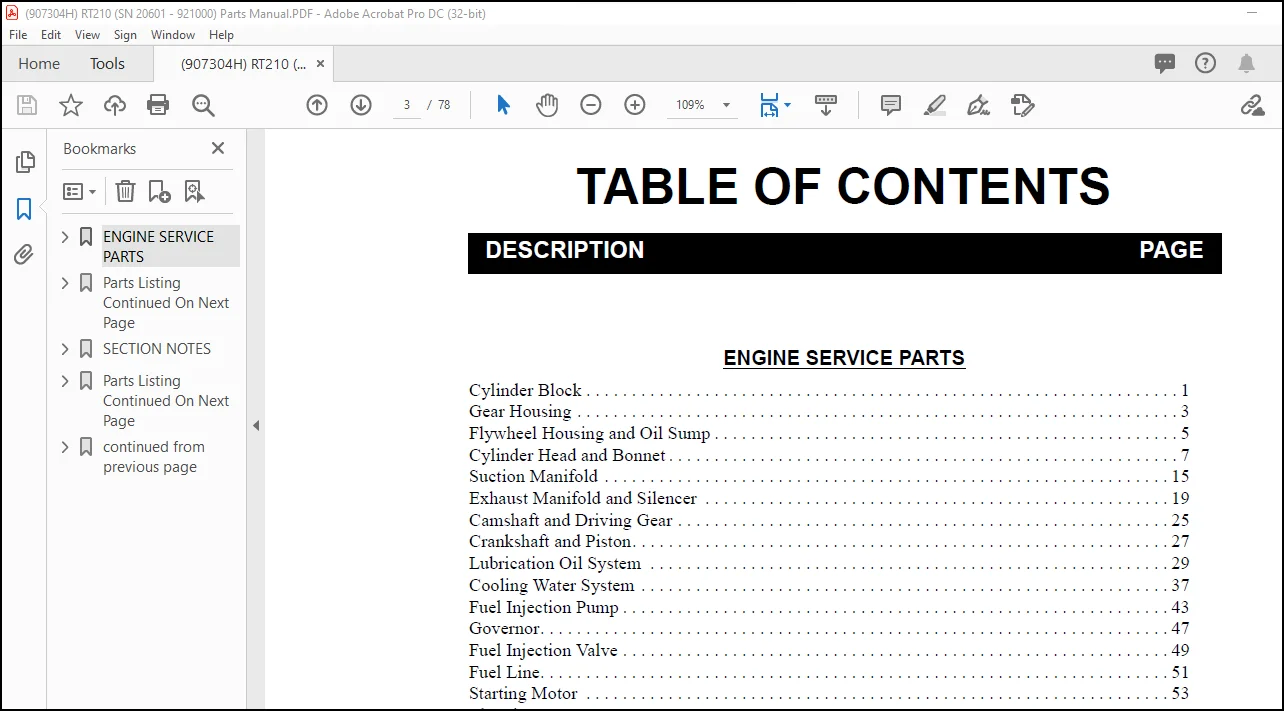

TABLE OF CONTENTS:

Yanmar 4TNV98-ZNMS 4TNV98-ZNMS2 4TNV98-ZNGT 4TNV98T-ZNMS 4TNV98-ZNTBL 4TNV98T-ZNTBL 4TNV98T-ZXNMS 4TNV98T-ZXNMS2 Engines Parts Manual 917304 – PDF DOWNLOAD

Cylinder Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

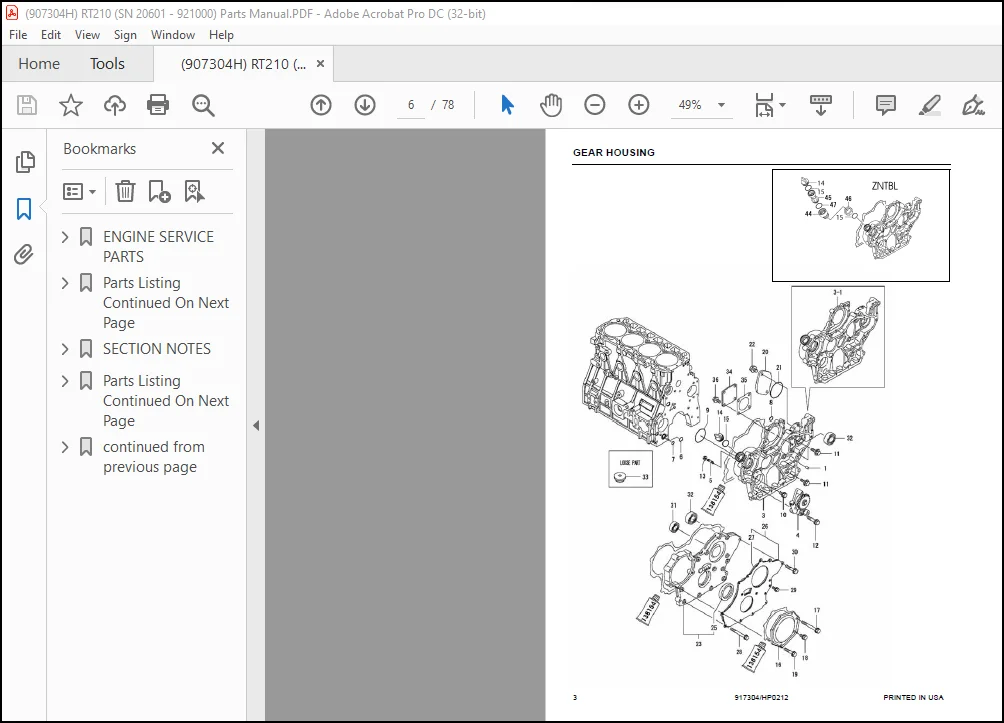

Gear Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Flywheel Housing and Oil Sump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Cylinder Head and Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Suction Manifold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Exhaust Manifold and Silencer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Camshaft and Driving Gear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Crankshaft and Piston. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Lubrication Oil System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Cooling Water System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Fuel Injection Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Governor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Fuel Injection Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Fuel Line. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Starting Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Electric Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Tool and Gasket Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Turbine (Turbocharged) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Lubrication Oil Line (Turbocharged) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Generator (ZNTBL engine, plus ZNMS, T-ZNMS part numbers) . . . . . . . . . . . . . . . . . . . . . . . . 65
Numerical Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
