Yanmar Crawler Backhoe B30V-1 Parts Catalog Manual – PDF DOWNLOAD

Description

Yanmar Crawler Backhoe B30V-1 Parts Catalog Manual – PDF DOWNLOAD

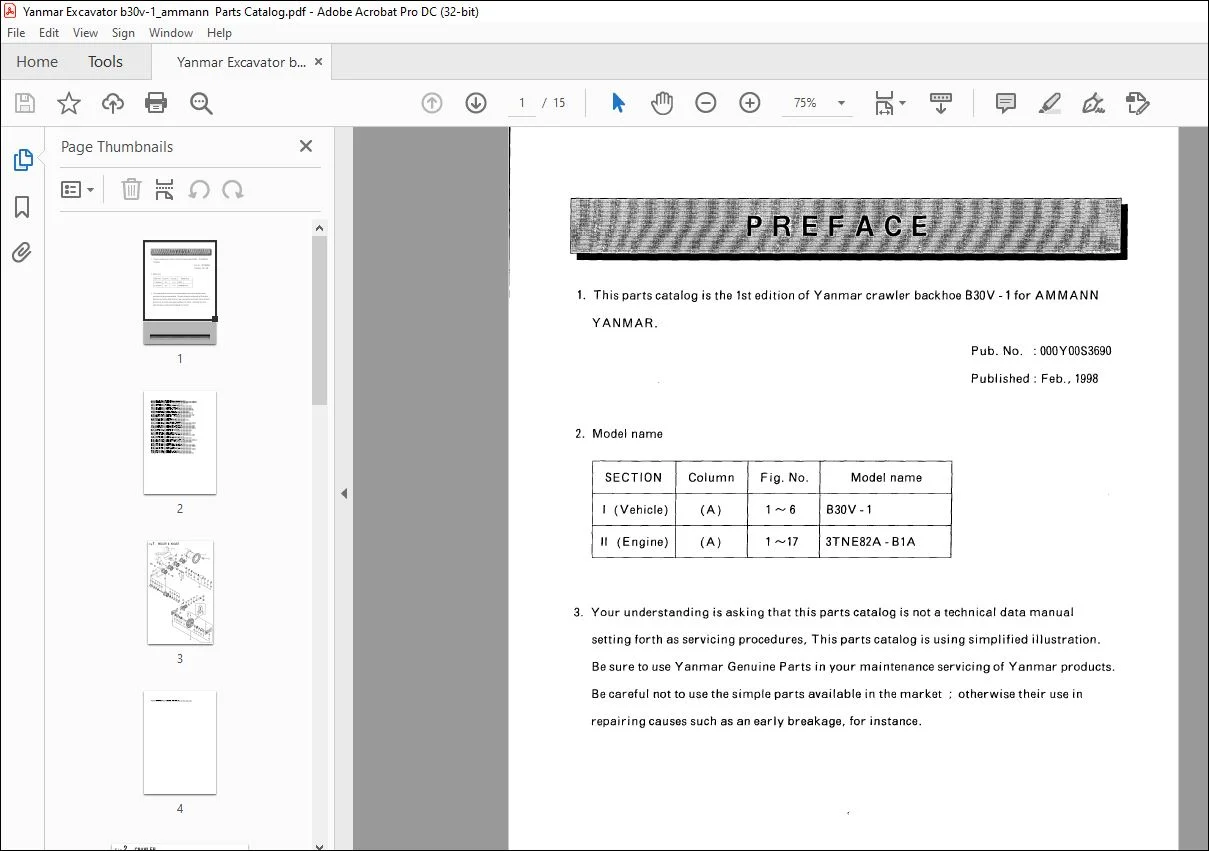

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Yanmar Crawler Backhoe B30V-1 Parts Catalog Manual – PDF DOWNLOAD

1,1,,172141-29110,,SPROCKET,2,,,,,,,,,,,,,,,,,,
2,1,,26013-120302,,”BOLT W/WASHER M12X30″,18,,,,,,,,,,,,,,,,,,
3,1,,772422-37100,,”IDLER 289″,2,,,,,,,,,,,,,,,,,,
4,2,,172422-37100,,IDLER,2,,,,,,,,,,,,,,,,,,
5,2,,172141-37111,,”FORK(L), IDLER”,2,,,,,,,,,,,,,,,,,,
6,2,,172141-37121,,”FORK(R), IDLER”,2,,,,,,,,,,,,,,,,,,
7,2,,172175-99490,,”IDLER KIT, FRONT”,2,,,,,,,,,,,,,,,,,,
8,3,,172164-37120,,”SEAL 45 85 8.5 19″,4,,,,,,,,,,,,,,,,,,
9,3,,172175-37130,,”SHAFT, IDLE”,2,,,,,,,,,,,,,,,,,,
10,3,,172631-37150,,”COLLER 35X45X34″,2,,,,,,,,,,,,,,,,,,
11,3,,172631-37160,,”COLLER 35X45X22.5″,4,,,,,,,,,,,,,,,,,,
12,3,,22242-000300,,”CIRCLIP 30″,2,,,,,,,,,,,,,,,,,,
13,3,,22252-000800,,”CIRCLIP 80″,4,,,,,,,,,,,,,,,,,,
14,3,,24101-063074,,BEARING,4,,,,,,,,,,,,,,,,,,
15,2,,194630-42120,,”PLUG PT1/8″,2,,,,,,,,,,,,,,,,,,
16,1,,172422-37700,,SPRING,2,,,,,,,,,,,,,,,,,,
17,1,,172422-37780,,”PISTON ASSY, ADJUST”,2,,,,,,,,,,,,,,,,,,
18,1,,172122-37830,,”RING, BUCK UP”,2,,,,,,,,,,,,,,,,,,
19,1,,172122-37843,,”VALVE ASSY, NIPPLE”,2,,,,,,,,,,,,,,,,,,
20,2,,24315-000140,,”O-RING 1B P-14.0″,2,,,,,,,,,,,,,,,,,,
21,2,,24761-020000,,”NIPPLE PT1/8,GREASE”,2,,,,,,,,,,,,,,,,,,
22,1,,24325-000400,,”O-RING 1B G 40″,2,,,,,,,,,,,,,,,,,,
23,1,,26013-100402,,”BOLT M10X 40″,8,,,,,,,,,,,,,,,,,,
24,1,,933111-23600,,”SEAL 4052710″,2,,,,,,,,,,,,,,,,,,
25,1,,933171-13691,,”PLUG PT1/8″,2,,,,,,,,,,,,,,,,,,
26,1,,172441-37301,,”ROLLER ASSY, TRACK”,8,,,,,,,,,,,,,,,,,,
28,2,,172422-37310,,SHAFT,8,,,,,,,,,,,,,,,,,,
29,2,,172141-37320,,”SPACER 75X2.6″,16,,,,,,,,,,,,,,,,,,
30,2,,1A1030-48250,,”SEAL QLF30621218,OIL”,16,,,,,,,,,,,,,,,,,,
31,2,,22252-000620,,”CIRCLIP 62(H)”,16,,,,,,,,,,,,,,,,,,
32,2,,22252-000750,,”CIRCLIP 75″,16,,,,,,,,,,,,,,,,,,
33,2,,933111-73800,,BEARING,16,,,,,,,,,,,,,,,,,,
34,1,,172441-37500,,”ROLLER ASSY, CARIA”,2,,,,,,,,,,,,,,,,,,
36,2,,172146-37510,,”SHAFT, CARIA ROLLER”,2,,,,,,,,,,,,,,,,,,
37,2,,172116-37540,,”COVER, BLIND”,2,,,,,,,,,,,,,,,,,,
38,2,,1E6140-73420,,”SEAL QLF255218, OIL”,2,,,,,,,,,,,,,,,,,,
39,2,,22252-000520,,”CIRCLIP 52″,4,,,,,,,,,,,,,,,,,,
40,2,,24101-062054,,”BEARING #6205″,4,,,,,,,,,,,,,,,,,,
41,2,,24311-000460,,”O-RING 1A P-46.0″,2,,,,,,,,,,,,,,,,,,
