Yanmar Models L48N L70N L100N Service Repair Manual – PDF Download

Description

Yanmar Models L48N L70N L100N Service Repair Manual

Sample Page From The Manual:

Yanmar Models L48N L70N L100N Service Repair Manual

• Always check the clearance between the valve and valve guide before grinding or lapping the valve seats. See Intake / Exhaust Valves, Guides and Seals on page 6-6 for the service limit.
• If the clearance exceeds the limit, replace the valve and/ or cylinder head to bring the clearance within the limit. Roughness or burrs will cause poor seating of a valve. Visually inspect the seating surfaces of each valve and valve seat to determine if lapping or grinding is needed.
• Visually inspect all valve faces and valve seats for pitting, distortion, cracking or evidence of overheating. Usually the valves and the valve seats can be lapped or ground to return them to serviceable condition.
• Severely worn or damaged components will require replacement.If you believe your Yanmar engine has experienced a failure due to a defect in material and / or workmanship, you must contact an authorized Yanmar industrial engine dealer or distributor within thirty (30) days of discovering the failure.
• You must provide proof of ownership of the engine, proof of the date of the engine purchase and delivery, and documentation of the engine operation hours.
• Acceptable forms of proof of delivery date include, but are not limited to the original warranty registration or sales receipts or other documents maintained in the ordinary course of business by Yanmar dealers and / or distributors, indicating the date of delivery of the Yanmar product to the original retail purchaser.
• This information is necessary to establish whether the Yanmar product is still within the warranty period. Thus, Yanmar strongly recommends you register your engine as soon as possible after purchase in order to facilitate any future warranty matters.
• You are responsible for the transportation of the engine to and from the repair location as designated by Yanmar.

Table of Contents:

Yanmar Models L48N L70N L100N Service Repair Manual

Yanmar Limited Warranty
What is Covered by this Warranty?
How Long is the Warranty Period?
What the Engine Owner Must Do
To Locate an Authorized Yanmar Industrial Engine
Dealer or Distributor
What Yanmar Will Do
What is Not Covered by this Warranty?
Warranty Limitations
Warranty Modifications
Questions
Retail Purchaser Registration
Warranty
Warranty Coverage
Exclusions
Owners Warranty Responsibilities

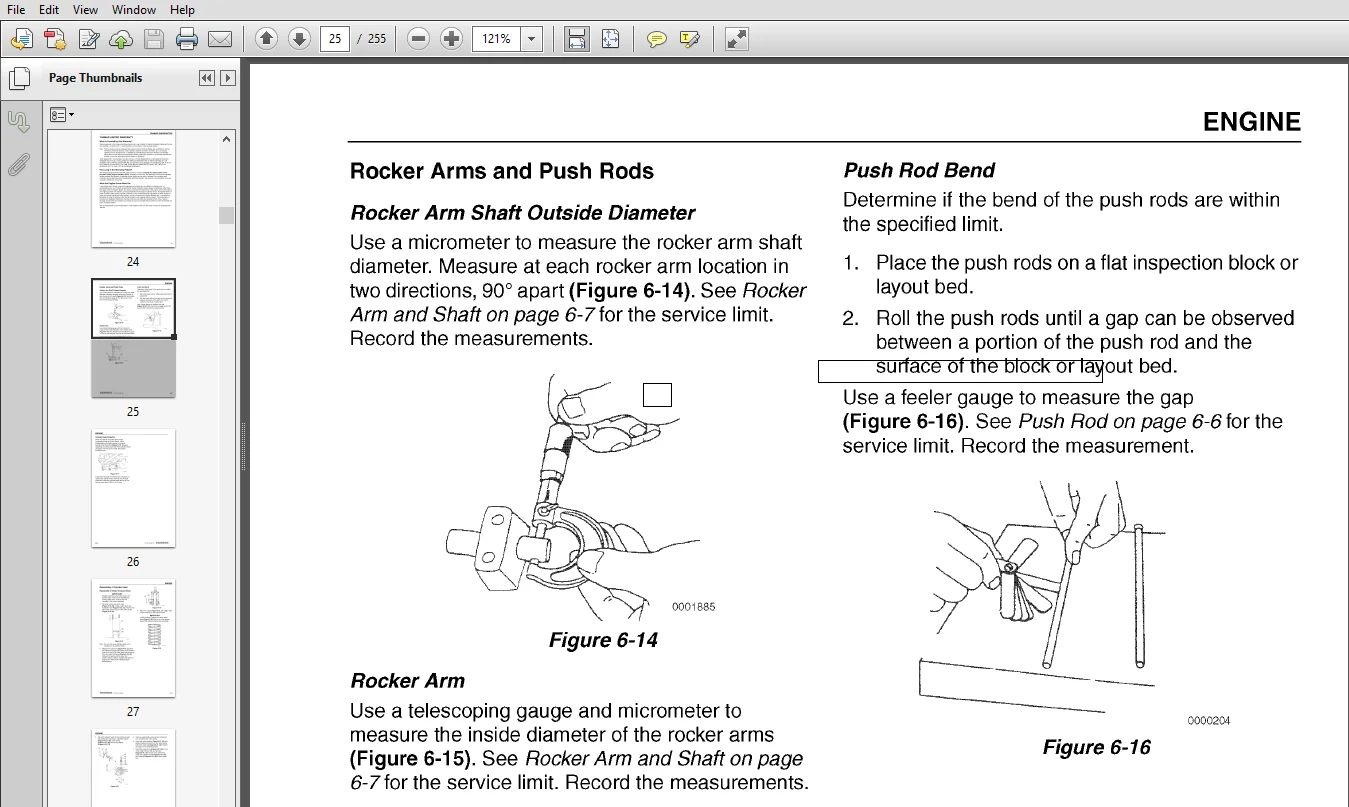

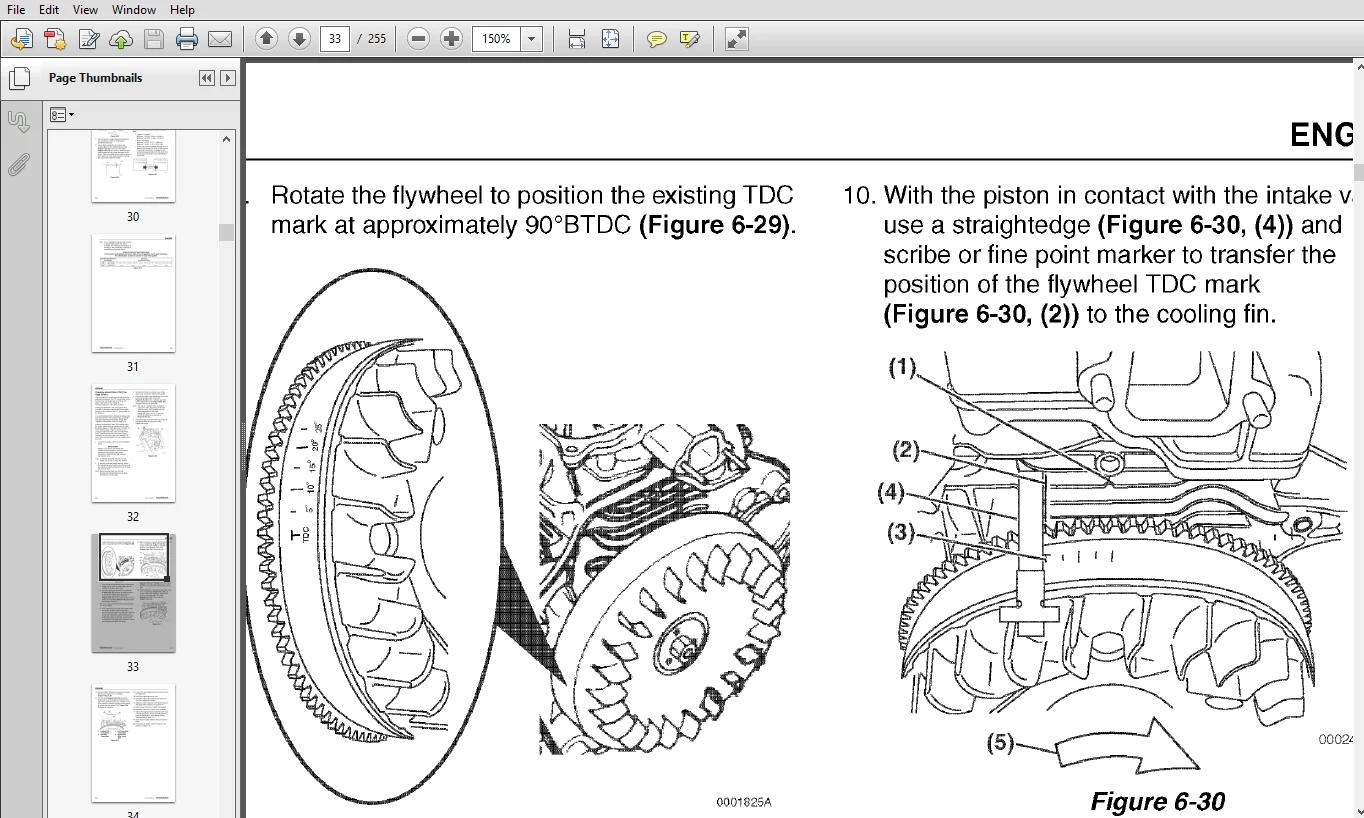

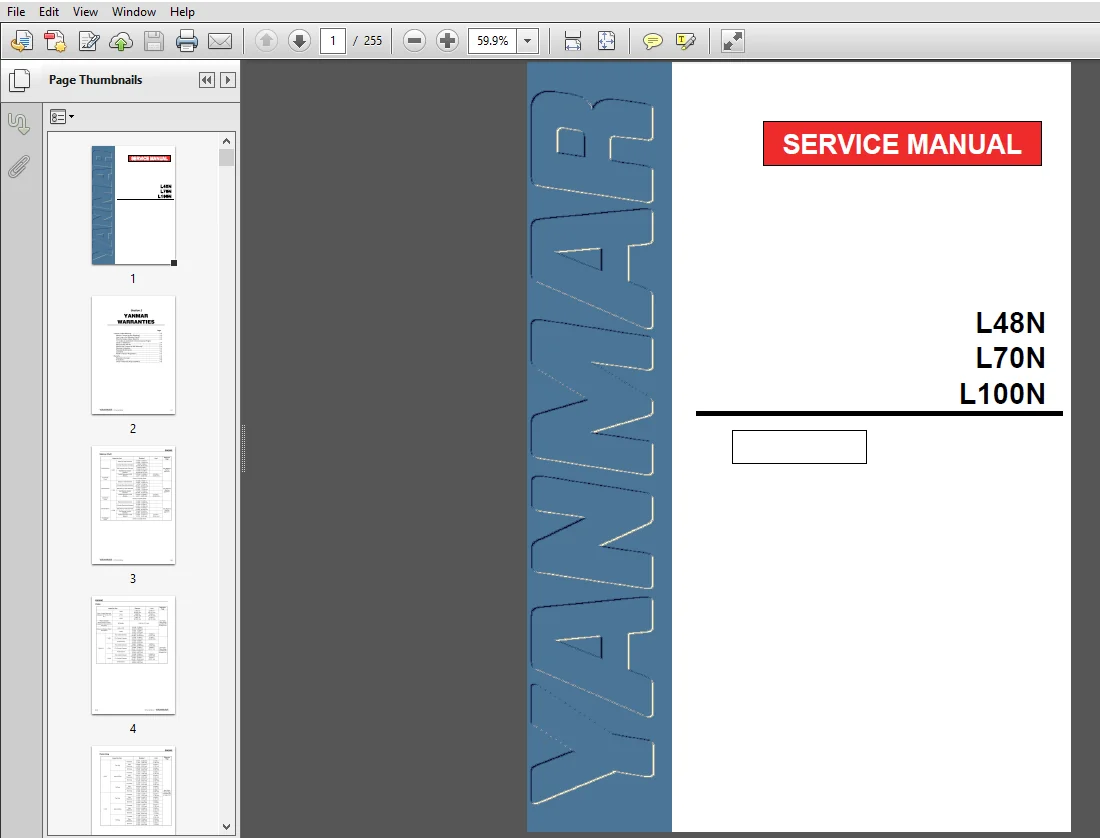

Image Preview:

YANMAR MODELS L48N L70N L100N SERVICE REPAIR MANUAL – PDF DOWNLOAD:

Please Note:

⦁ This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
⦁ The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
⦁ Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
