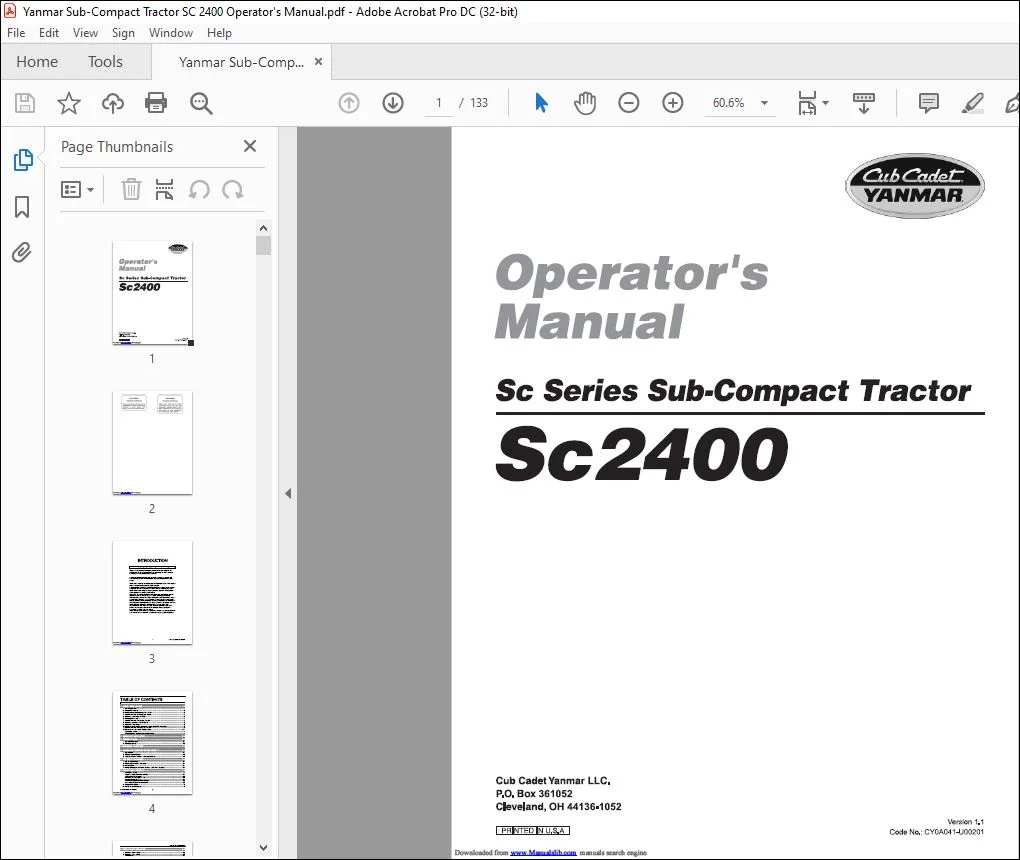

Yanmar Sc2400 Sc SERIES SUB-COMPACT TRACTOR OPERATOR’S MANUAL – PDF DOWNLOAD

Description

Yanmar Sc2400 Sc SERIES SUB-COMPACT TRACTOR OPERATOR’S MANUAL – PDF DOWNLOAD

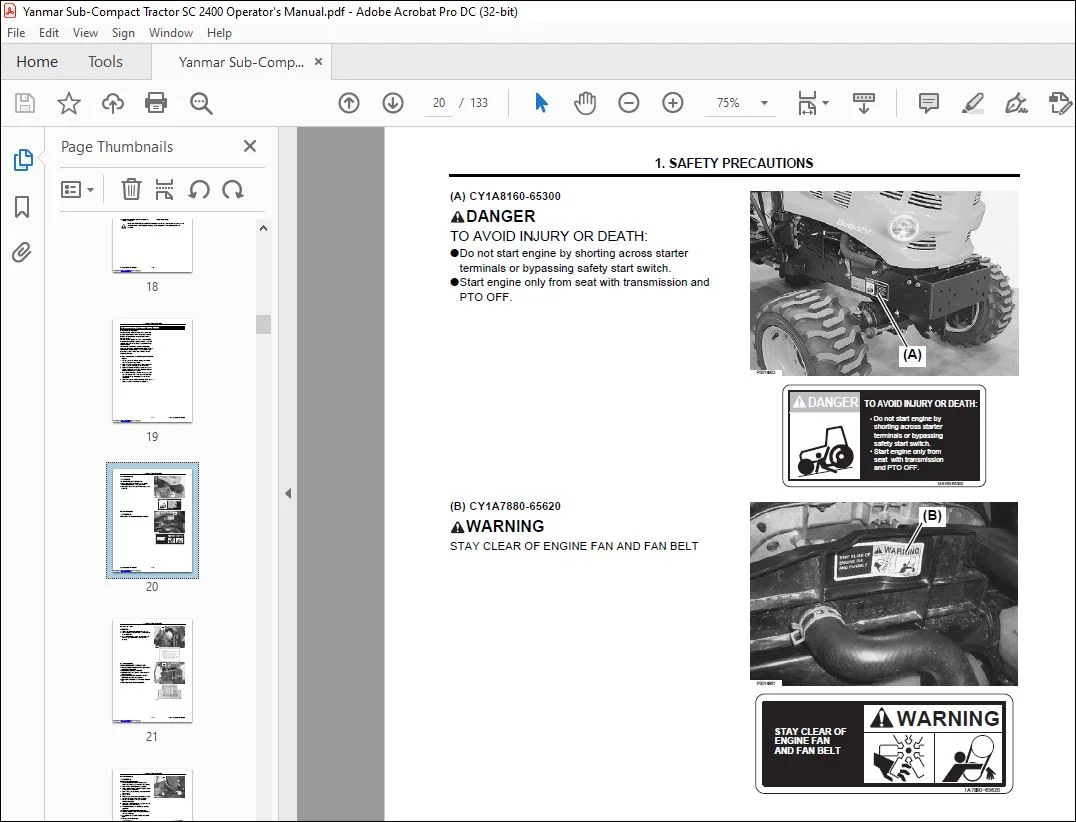

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Yanmar Sc2400 Sc SERIES SUB-COMPACT TRACTOR OPERATOR’S MANUAL – PDF DOWNLOAD

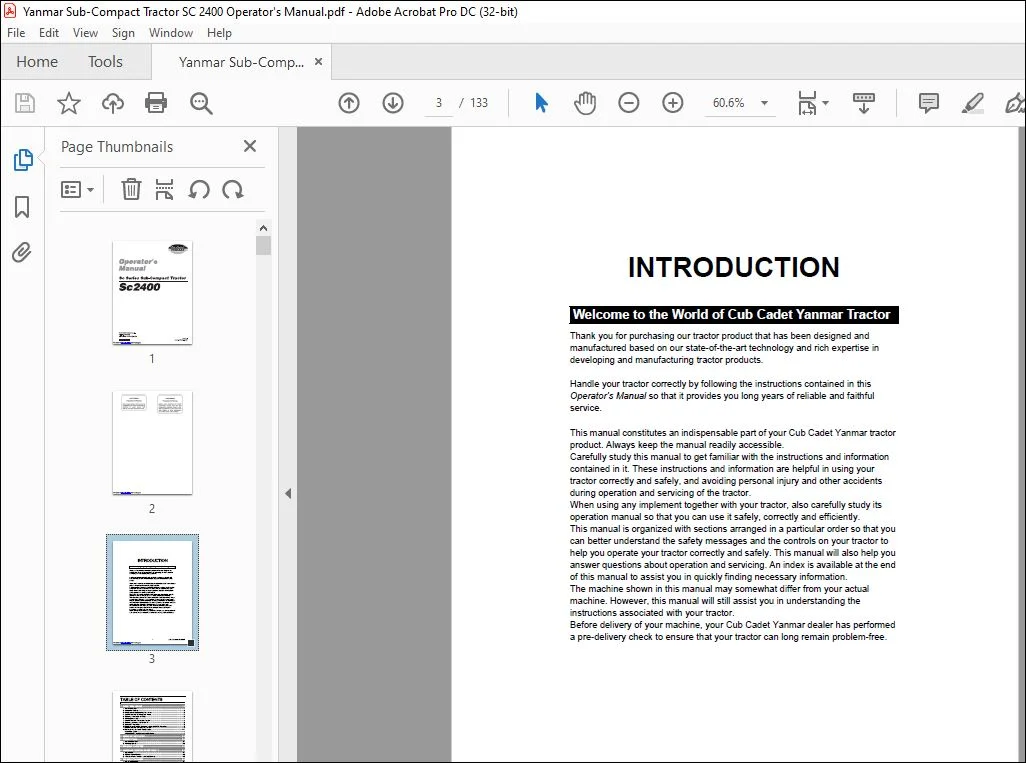

INTRODUCTION:
CODE NO: CY0A041-U00201

• Handle your tractor correctly by following the instructions contained in this
  Operator’s Manual so that it provides you long years of reliable and faithful
  service.
• This manual constitutes an indispensable part of your Cub Cadet Yanmar tractor
  product. Always keep the manual readily accessible.
• Carefully study this manual to get familiar with the instructions and information
  contained in it. These instructions and information are helpful in using your
  tractor correctly and safely, and avoiding personal injury and other accidents
  during operation and servicing of the tractor.
• When using any implement together with your tractor, also carefully study its
  operation manual so that you can use it safely, correctly and efficiently.
• This manual is organized with sections arranged in a particular order so that you
  can better understand the safety messages and the controls on your tractor to
  help you operate your tractor correctly and safely. This manual will also help you
  answer questions about operation and servicing. An index is available at the end
  of this manual to assist you in quickly finding necessary information.
• The machine shown in this manual may somewhat differ from your actual
  machine. However, this manual will still assist you in understanding the
  instructions associated with your tractor.
• Before delivery of your machine, your Cub Cadet Yanmar dealer has performed
  a pre-delivery check to ensure that your tractor can long remain problem-free.

TABLE OF CONTENTS:

Yanmar Sc2400 Sc SERIES SUB-COMPACT TRACTOR OPERATOR’S MANUAL – PDF DOWNLOAD

1 About This Manual 1-1
2 Safety-Alert Symbols 1-2
3 Precautions before Operating Your Tractor 1-3
4 Safe Practices for Operating Your Tractor 1-4
5 Operating Your Tractor on Slopes 1-6
6 Traveling on a Road 1-7
7 Safe Practices for Parking Your Tractor 1-7
8 Operating the Power Take Off (PTO) 1-8
9 Using the 3-Point Hitch 1-8
10 Safety Frame (Roll-Over Protective Structure) (ROPS) Precautions 1-8
11 Safe Practices for Servicing Your Tractor 1-9
12 Understanding the Tractor Safety Decals 1-11
? Safety-Alert Symbols 1-11
? Care of DANGER, WARNING and CAUTION Decals 1-11
1 Specifications Table 3-1
2 Traveling Speeds 3-2
1 Appearance 5-1
2 Operator Station Controls 5-2
3 Instrument Panel, Switches and Hand Controls 5-3
1 Pre-Operation Check 6-1
2 Precautions before the Operation 6-1
3 Routine Check 6-1
4 Prevent Damage to the Plastic Surfaces and Painted Surfaces 6-1
1 Starting the Engine 7-1
? Opening / Closing the Fuel Shut-Off Valve 7-1
? Adjusting the Operator’s Seat 7-2
? Fastening the Retractable Seat Belt 7-2
? Engaging the Parking Brake 7-3
? Checking the Lights on the Instrument Panel 7-6
? Warming Up the Engine in Cold Weather 7-7
2 Stopping the Engine 7-8
3 Restarting a Stalled Engine 7-9
1 SAFETY PRECAUTIONS 1-1
2 SERVICING THE TRACTOR 2-1
3 SPECIFICATIONS 3-1
4 IMPLEMENT CAPACITIES 4-1
5 NAMES AND FUNCTIONS OF COMPONENTS 5-1
6 PRE-OPERATION CHECK 6-1
7 OPERATING THE ENGINE 7-1
Downloaded from www Manualslib com manuals search engine
3
TABLE OF CONTENTS
Sc2400 Operator’s Manual
1 Operating a New Tractor 8-2
2 Operation of the Tractor 8-3
? Turn Signals 8-3
? Headlights / Work Lights 8-3
? Hazard Lights 8-3
? Range Shift Lever 8-4
? 4-Wheel Drive Lever 8-4
? Throttle Control Lever 8-5
? Forward and Reverse Drive Pedal 8-6
? Engaging the Cruise Control 8-7
? Disengaging the Cruise Control 8-7
3 Stopping Travel of the Tractor 8-8
? Emergency Stop Procedure 8-8
4 Parking the Tractor 8-9
? Applying the Parking Brake 8-9
? Releasing the Parking Brake 8-9
5 Safe Practices for Operation 8-10
? Engaging the Differential Lock 8-10
? Disengaging the Differential Lock 8-10
? Hydro Static Transmission (HST) pressure release lever 8-13
? Uphill / Downhill 8-16
? Steep Downhill 8-16
1 Operating the Power Take Off (PTO) 9-1
? Rear- Power Take Off (PTO) 9-2
? Mid- Power Take Off (PTO) 9-2
? Engaging the Power Take Off (PTO) 9-2
? Disengaging the Power Take Off (PTO) 9-4
2 Installing an Implement to the Power Take Off (PTO) Drivelines 9-5
3 Operating the Power Take Off (PTO) while the Tractor is Traveling
in the Reverse Direction (Reverse Override Function) 9-5
1 Adjusting the 3-Point Hitch 10-1
? Right Lift Link 10-2
? Top Link 10-2
? Sway Link 10-2
? Hitch 10-2
1 3-Point Hitch Control System 11-1
? Operating the 3-Point Hitch Control / Cutting Height Adjustment Lever to Raise or Lower the 3-Point Hitch 11-1
? Hydraulic Flow Control / Stop Knob 11-2
2 Controlling the Implement Control Valve (Option) 11-3
? Implement Control Valve (Option) 11-3
? Implement Control Lever (Option) 11-4
? Implement Lock Lever (Option) 11-4
? Connecting the Implement Hydraulic Hoses 11-5
8 OPERATING THE TRACTOR 8-1
9 POWER TAKE OFF (PTO) 9-1
10 3-POINT HITCH 10-1
11 HYDRAULIC SYSTEM 11-1
Downloaded from www Manualslib com manuals search engine
Sc2400 Operator’s Manual 4
TABLE OF CONTENTS
1 Tires 12-1
? Inflation Pressure 12-2
? Wheel Bolt Tightening Torque 12-2
2 Ballast 12-3
? Front Ballast 12-3
? Maximum Weight 12-4
? Using Liquid Weight for the Tires 12-4
1 Maintenance Check List 13-1
2 Lubricants 13-2
3 Replacement Parts 13-3
■ Warranty and Repair of the Engine 14-1
1 Opening / Closing the Hood 14-2
? Opening the Hood 14-2
? Closing the Hood 14-2
2 Daily Checks 14-3
? Refilling the Fuel Tank 14-3
? Checking the Engine Oil Level 14-5
? Checking the Transmission Oil Level 14-6
? Checking the Radiator Hoses and Clamps 14-7
? Cleaning the Radiator Cooling Fins and Screen 14-7
? Cleaning the Rear Grille Screen 14-8
? Checking the Cooling System 14-9
? Checking the Fuel Line 14-10
? Checking the Intake Air Hoses and Clamps 14-10
? Checking the Safety Interlock System 14-11
? Checking and Adjusting the Brake 14-13
? Checking the Seat Belt and Roll-Over Protective Structure (ROPS) 14-13
? Checking the Wheel Bolt Tightening Torque 14-14
? Checking the Inflation Pressure 14-14
? Checking the Light Bulbs 14-15
? Checking the Tie-rod Rubber Boots 14-15
? Checking the Hydraulic Hoses 14-16
3 First 50 Hours 14-18
? Changing the Engine Oil 14-18
? Replacing the Engine Oil Filter 14-18
? Changing the Transmission Oil 14-18
? Replacing the Transmission Oil Filter 14-18
4 Every 50 Hours 14-18
? Checking the Front Axle Oil Level 14-18
? Checking the Fuel / Water Separator 14-19
? Adjusting the Fan Belt 14-20
? Greasing and Lubricating 14-21
5 Every 100 Hours 14-23
? Engine Oil 14-23
? Changing the Engine Oil 14-23
? Cleaning the Fuel / Water Separator 14-24
? Cleaning the Air Cleaner Element 14-25
12 TIRES, WHEELS AND BALLAST 12-1
13 MAINTENANCE 13-1
14 PERIODIC SERVICE 14-1
Downloaded from www Manualslib com manuals search engine
5
TABLE OF CONTENTS
Sc2400 Operator’s Manual
6 Every 200 Hours 14-27
? Replacing the Engine Oil Filter 14-27
? Adjusting the Toe-in 14-28
7 Every 300 Hours 14-28
? Transmission Oil 14-28
? Changing the Transmission Oil and Replacing the Transmission Oil Filter 14-29
8 Every 500 Hours 14-30
? Front Axle Case Oil 14-30
? Changing the Front Axle Case Oil 14-30
? Replacing the Fuel Filter Element (in the Fuel / Water Separator) 14-31
? Replacing the Fuel Filter 14-31
9 Every 1000 Hours 14-32
? Coolant 14-32
? Flushing the Cooling System 14-33
? Changing the Coolant 14-35
? Adjusting the Engine Valve Clearance 14-35
? Checking the Fuel Injection Nozzle Injection Pressure 14-35
? Checking the Fuel Injection Pump 14-35
10 Every 1 Year 14-36
? Replacing the Air Cleaner Element 14-36
? Flushing the Cooling System 14-36
? Changing the Coolant 14-36
11 Every 2 Years 14-36
? Replacing the Radiator Hoses and Clamp 14-36
? Replacing the Fuel Line 14-36
? Replacing the Intake Air Hose 14-36
? Replacing the Hydraulic Hoses 14-36
1 Battery 15-1
? Special Note for the Battery 15-1
? Servicing the Battery Safely 15-2
? Inspecting the Battery 15-3
? Removing and Installing the Battery 15-3
? Cleaning the Battery and Terminals 15-4
? Using a Booster Battery 15-5
2 Fuses 15-6
? Replacing the Accessory Fuses 15-6
? Checking the Alternator Fuse and the Main Fuse 15-6
3 Bulb 15-7
? Replacing the Headlight Bulb 15-7
? Replacing the Work Light Bulb 15-8
? Replacing the Tail Light Bulb 15-9
? Replacing the Turn Signal / Hazard Lights Bulb 15-9
? Replacing the Instrument Panel Light Bulb 15-10
4 Headlights 15-10
? Adjusting the Headlights 15-10
15 SERVICING THE ELECTRICAL SYSTEM 15-1
