YANMAR V3-5B V4-5B V5-B WHEEL LOADER PARTS CATALOG MANUAL 0CK20-M39601EN – PDF DOWNLOAD

Description

YANMAR V3-5B V4-5B V5-B WHEEL LOADER PARTS CATALOG MANUAL 0CK20-M39601EN – PDF DOWNLOAD

DESCRIPTION:

YANMAR V3-5B V4-5B V5-B WHEEL LOADER PARTS CATALOG MANUAL 0CK20-M39601EN – PDF DOWNLOAD

INTRODUCTION:

• This parts catalog does not contain the technical data needed for maintenance
  service.
• The illustrations used in this parts catalog have been simplified for clarity.
  The contents of this parts catalog are subject to change without notice.
  Be sure to use only Yanmar genuine parts for repairs If imitation parts are used,
  it may cause engine defects.

Directions for the Parts Catalog:
1.The parts stipulated in this Parts Catalog are not necessarily standard equipped parts.
2.Parts may change without prior notice.
3.The following is an example of the Parts Catalog format.

TABLE OF CONTENTS:

YANMAR V3-5B V4-5B V5-B WHEEL LOADER PARTS CATALOG MANUAL 0CK20-M39601EN – PDF DOWNLOAD

Reference Materials 2
Contents 8
1 LABEL 10
2 SAFETY LABEL 11
3 BACK MIRROR 12
4 SILENCER 13
5 AIR CLEANER & ENGINE DRAIN 14
6 FOOT ACCELERATOR 15
7 ENGINE MOUNT 16
8 RADIATOR 17
9 FUEL TANK 19
10 BATTERY 20
11 WIRING 21
12 ELECTRIC PART 22
13 ELECTRIC PART(AUTO LEBELLER) 26
14 CLUTCH HOUSING & DRIVE SHAFT 27
15 TRANSFER CASE 28
16 SPIRAL BEVEL GEAR 29
17 DIFFERENTIAL GEAR 30
18 AXLE SHAFT 31
19 FINAL GEAR 32
20 AXLE CASE 33
21 AXLE HOLDER 34
22 CENTER BRAKE 35
23 TIRE & DISKE 36
24 SNOW TIRE(OPTIONAL) 37
25 TIRE(PLATED)(OPTIONAL) 38
26 INCHING PEDAL 39
27 BRAKET PEDAL 40
28 PARK BRAKE LEVER 41
29 HYD OIL CONTROL LEVER 42
30 3RD VALVE CONTROL 43
31 STEERING WHEEL & COLUMN 44
32 CONTROL COVER 45
33 CONTROL COVER(3RD) 46
34 FRONT FRAME 47
35 REAR FRAME 48
36 OPERATION FRAME & COVER 50
37 SEAT & BONNET 52
38 BONNET SOUNDPROOF MATERIAL 53
39 FRAME SOUNDPROOF MATERIAL 54
40 CANOPY 55
41 CABIN 57
42 CABIN DOOR 60
43 ELECTRIC PART & WIPER(CABIN) 62
44 HEATER(CABIN) 64
45 LIFT CYLINDER 65
46 DUMP CYLINDER 66
47 POWER STEERING CYLINDER 67
48 HST PUMP 68
49 HST PUMP 70
70 (49A)HST PUMP(COMPONENT PART) 71
71 (49B)HST PUMP(COMPONENT PART) 73
50 HST MOTOR 75
51 HST MOTOR 76
72 (51A)HST MOTOR(COMPONENT PART) 77
73 (51B)HST MOTOR(COMPONENT PART) 79
52 STEERING UNIT 81
53 CONTROL VALVE(2-WAY) 82
54 CONTROL VALVE(3-WAY) 83
55 HYD OIL TANK 84
56 FILTER & FITTING 85
57 HYD OIL PIPING(HST) 86
58 HYD OIL PIPING(HST) 87
59 HYD OIL PIPING(LOADER) 89
60 HYD OIL PIPING(3RD) 90
61 LIFT ARM 91
62 LOADER LINK 92
63 BUCKET 93
74 (63A)BUCKET(0 4) 94
75 (63B)BUCKET(0 5) 95
76 (63C)BUCKET(0 6) 96
64 ATTACH HOLDER(ATTACHMENT) 97
65 BUCKET&MANIA FORK(ATTACHMENT) 98
66 PALLET FORK(ATTACHMENT) 99
67 WINDOW WASHER(OPTIONAL) 100
68 TOOL(OPTIONAL) 101
69 UNIQUE TIRE(OPTIONAL) 102
77 BUCKET(0 5) KIT(OPTIONAL) 103
78 BUCKET(0 6)KIT(OPTIONAL) 104
79 BUCKET(0 8)KIT(OPTIONAL) 105
80 BUCKET(0 9) KIT(OPTIONAL) 106
81 BUCKET(0 6)(PLATING)KIT(OPTIONAL) 107
82 BUCKET(0 8)(PLATING) KIT(OPTIONAL) 108
83 BUCKET(0 9)(PLATING) KIT(OPTIONAL) 109
84 BUCKET(0 4)(QUICK HOLDER) KIT(OPTIONAL) 110
85 BUCKET(0 5)(QUICK HOLDER) KIT(OPTIONAL) 111
86 BUCKET(0 6)(QUICK HOLDER) KIT(OPTIONAL) 112
87 BUCKET(0 5)(QUICK HOLDER)KIT(OPTIONAL) 113
88 BUCKET(0 6)(QUICK HOLDER) KIT(OPTIONAL) 114
89 BUCKET(0 8)(QUICK HOLDER) KIT(OPTIONAL) 115
90 BUCKET(0 9)(QUICK HOLDER) KIT(OPTIONAL) 116
Parts No Index 117

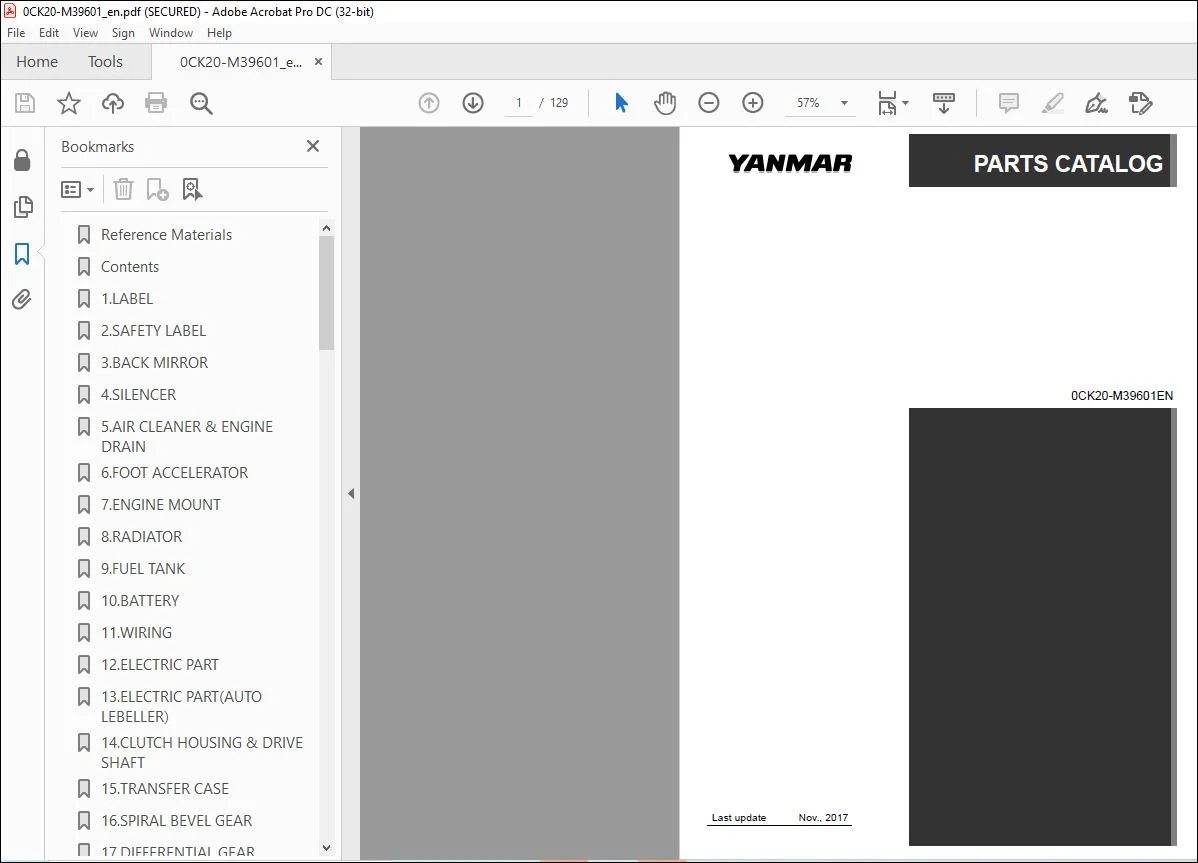

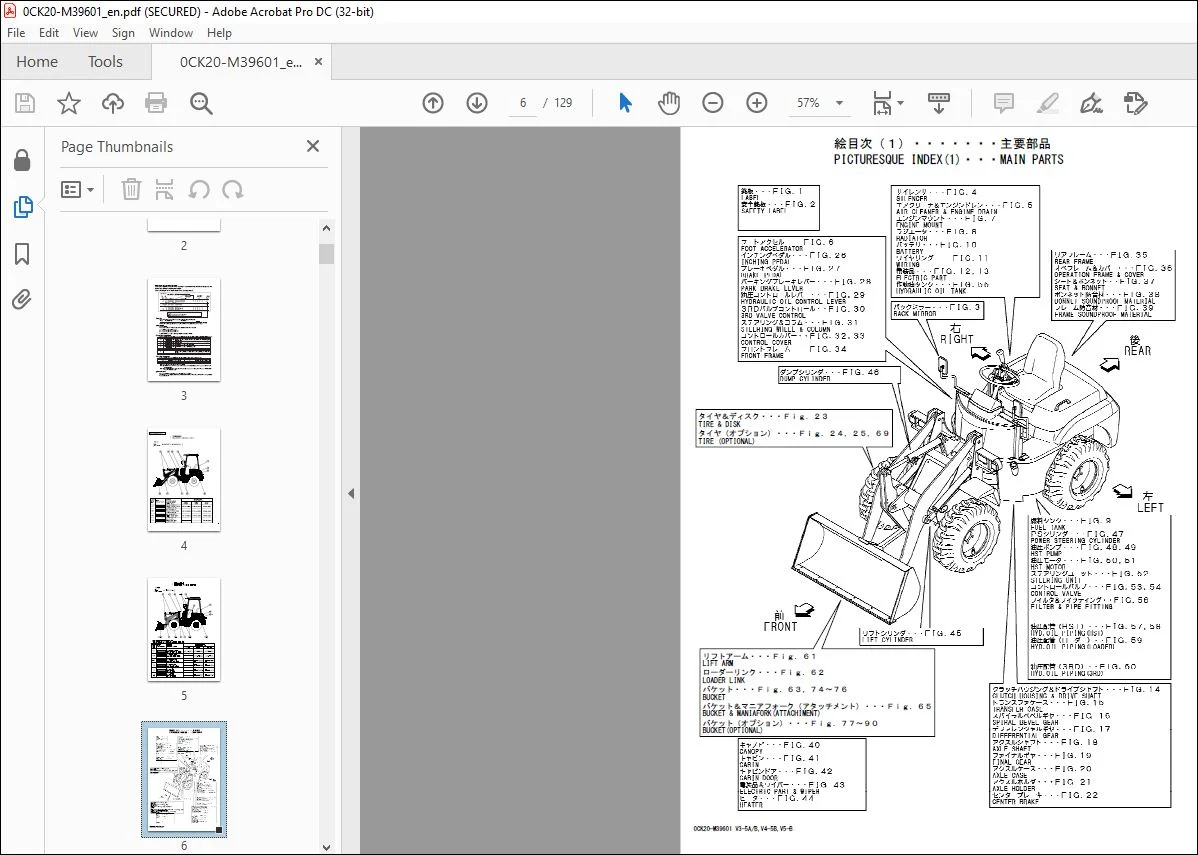

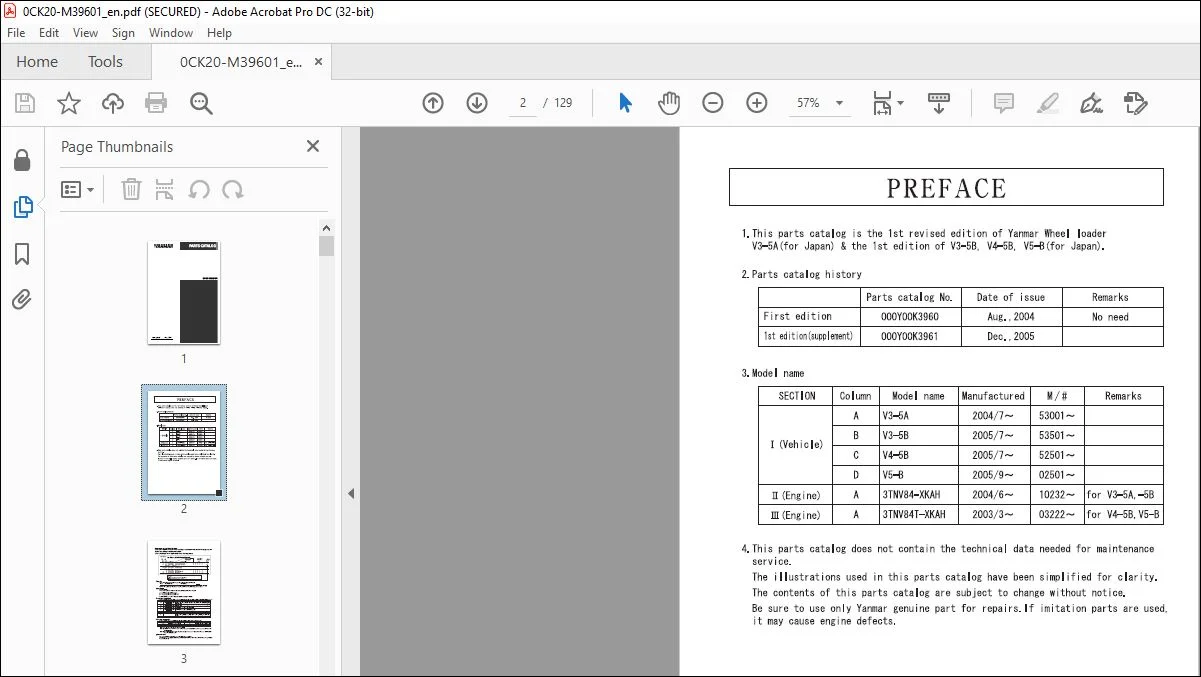

IMAGES PREVIEW OF THE MANUAL:
