Yanmar V7 Wheel Loader Parts Catalog Manual

Description

Yanmar V7 Wheel Loader Parts Catalog Manual – PDF DOWNLOAD

YANMAR V7 WHEEL LOADER PARTS CATALOG MANUAL:

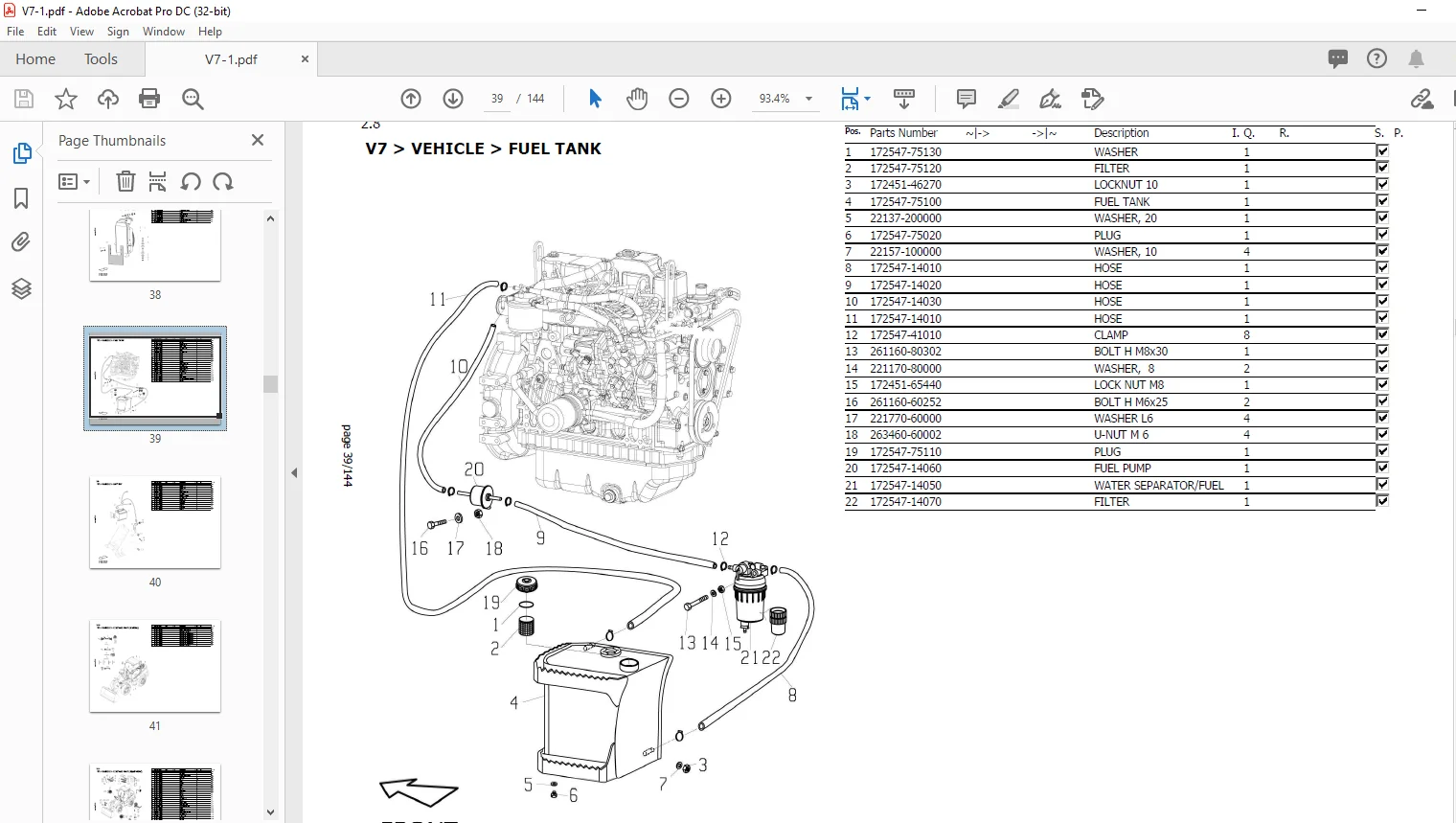

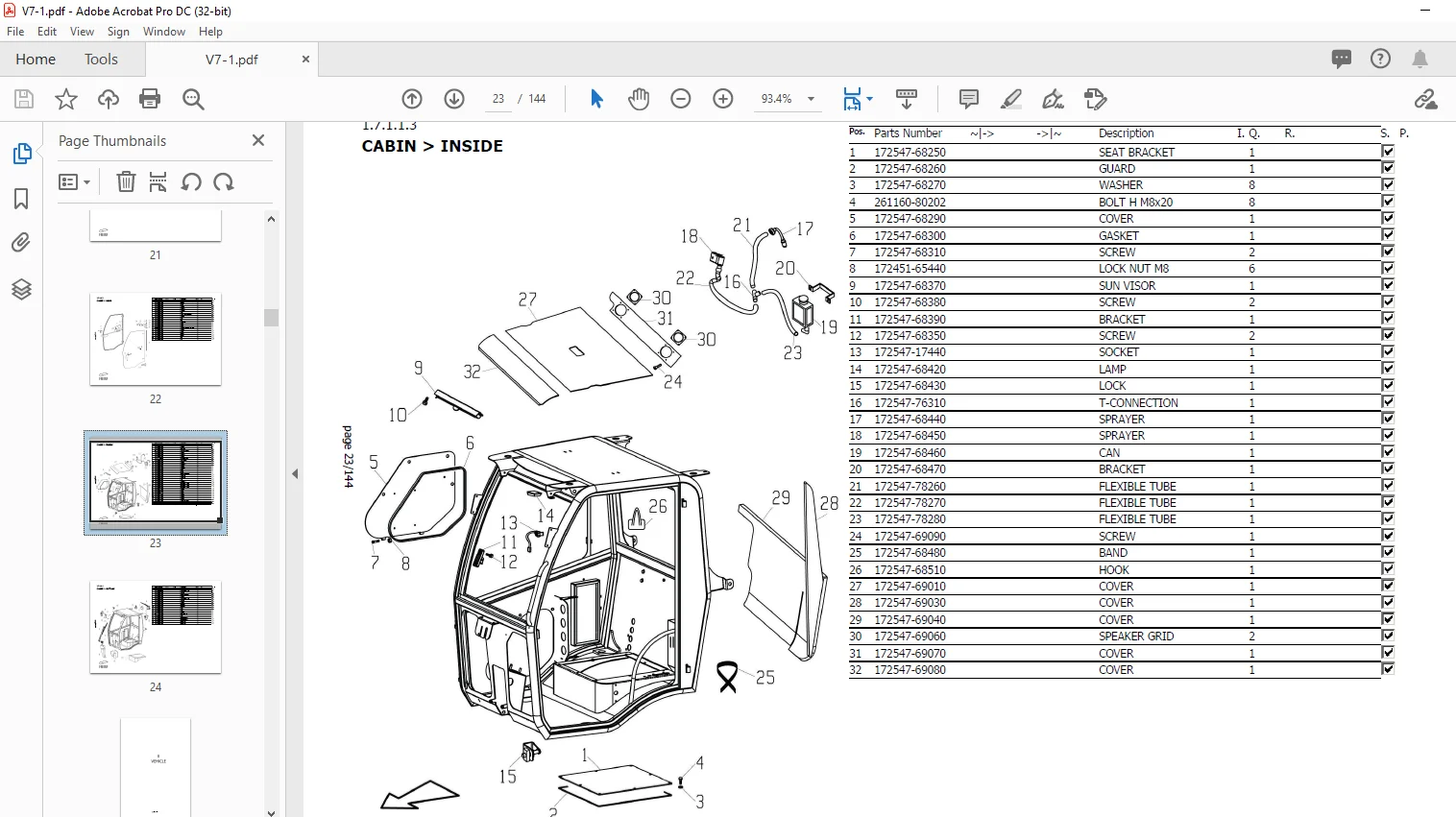

IMAGE PREVIEW:

DESCRIPTION:

Yanmar V7 Wheel Loader Parts Catalog Manual – PDF DOWNLOAD

• This parts catalog is for Yanmar wheel loader V7 for Europe. (2). Parts catalog history
• (3). This parts catalog does not contain the technical data needed for service.
• The illustrations used in this parts catalog have been simplified for clarification.
• The content of this parts catalog is subject to change without prior notice. Be sure to use only Yanmar genuine spare-parts.
• If imitation parts are used, it may cause machine defects. (4). How to read this parts catalog: Parts change may be made without prior notice. 1- Position number.
• The position number is in accordance with the position number on the illustration.
• 4- Quantity of parts. 3- When a part change takes place, one of the following interchangeability symbols is indicated for that part.
• 2- Cut in/out of the parts. ~|-> shows when the parts started to be used ->|~ shows when the parts stopped to be used 6-
• The number indicate the page to refer for see detail of the part. 5- Part can be sold. page 2/

TABLE OF CONTENTS:

Yanmar V7 Wheel Loader Parts Catalog Manual – PDF DOWNLOAD

V7
EQUIPMENTS
PTO
3RD HYDRAULIC CIRCUIT
4TH HYDRAULIC CIRCUIT
PROGRESSIVE BRAKE
PROGRESSIVE BRAKE
SEAT
SEAT
SEAT ASS’Y
SEAT
BELLOWS SEAT
HEATING
HEATING
QUICK HITCH
QUICK HITCH
WHEEL
WHEEL
CABIN
CABIN
CABIN
GLASS
BAY WINDOW SIDE R
COVER
DOOR
INSIDE
OUTSIDE
VEHICLE
PAINTING
LABEL
BOARD LABEL DRIVE
BOARD LABEL PICTO
KIT LABEL DECO
SILENCER
AIR CLEANER
AIR CLEANER ASSY
AIR CLEANER
ACCELERATOR
ENGINE MOUNT
RADIATOR & MOUNT
COOLER
FUEL TANK
BATTERY
ELECTRIC PART (WIRING)
ELECTRIC PART (EQUIPMENT)
FRONT AXLE
CENTER HOUSING
DIFFERENTIAL
BRAKE
FRONT AXLE
HOLDER
TRANSMISSION
REAR AXLE
AXLE SUPPORT
CENTER HOUSING
GEAR
REAR AXLE
REAR AXLE
BRAKE PEDAL
PARK BRAKE LEVER
CONTROL LEVER
FRONT FRAME
REAR FRAME
COVER (ENGINE)
COVER (CABIN)
COVER
COVER
COVER
LIFT CYLINDER
LIFTING CYLINDER ASSY
BUKET CYLINDER
BUCKET CYLINDER ASSY
STEERING CYLINDER
STEERING CYLINDER ASSY
HYDRAULIC PUMP
HYDROSTATIC PUMP
HYDROSTATIC MOTOR
COUPLING ASSY
STEERING UNIT
STEERING COLUMN
CONTROL VALVE
VALVE BANK (3 SEC )
SECTION
SECTION
SECTION
SECTION
SECTION
VALVE BANK (4 SEC )
HYDRAULIC OIL TANK
OIL FILTER
HYDRAULIC OIL PIPING (PUMP-RADIATOR-TANK)
HYDRAULIC OIL PIPING (CONTROL VALVE-PUMP-TANK)
HYDRAULIC OIL PIPING (LIFT CYLINDER)
HYDRAULIC OIL PIPING (BUKET CYLINDER)
HYDRAULIC OIL PIPING (STEERING CYLINDER)
HYDRAULIC OIL PIPING (STEERING)
HYDRAULIC OIL PIPING (PRESSURE OUTLETS)
ARM BUKET
BOOM
CONNECTING-ROD
ACCESSORY
ENGINE
CYLINDER BLOCK
GEAR HOUSING
FLYWHEEL HOUSING & OIL SUMP
CYLINDER HEAD & BONNET
SUCTION MANIFOLD
EXHAUST MANIFOLD
CAMSHAFT & DRIVING GEAR
CRANKSHAFT & PISTON
LUBRICANT OIL SYSTEM
COOLING WATER SYSTEM
FUEL INJECTION PUMP
GOVERNOR
FUEL INJECTION VALVE
FUEL LINE
STARTING MOTOR
GENERATOR
GASKET SET
MAINTENANCE KIT
KIT PER HOUR
SERVICE KIT 50H
DOCUMENTS
USER MANUAL
