YANMAR VIO15-2 EXCAVATOR CRAWLER BACKHOE PARTS CATALOG MANUAL 0CK10-M37902EN – PDF DOWNLOAD

Description

YANMAR VIO15-2 EXCAVATOR CRAWLER BACKHOE PARTS CATALOG MANUAL 0CK10-M37902EN – PDF DOWNLOAD

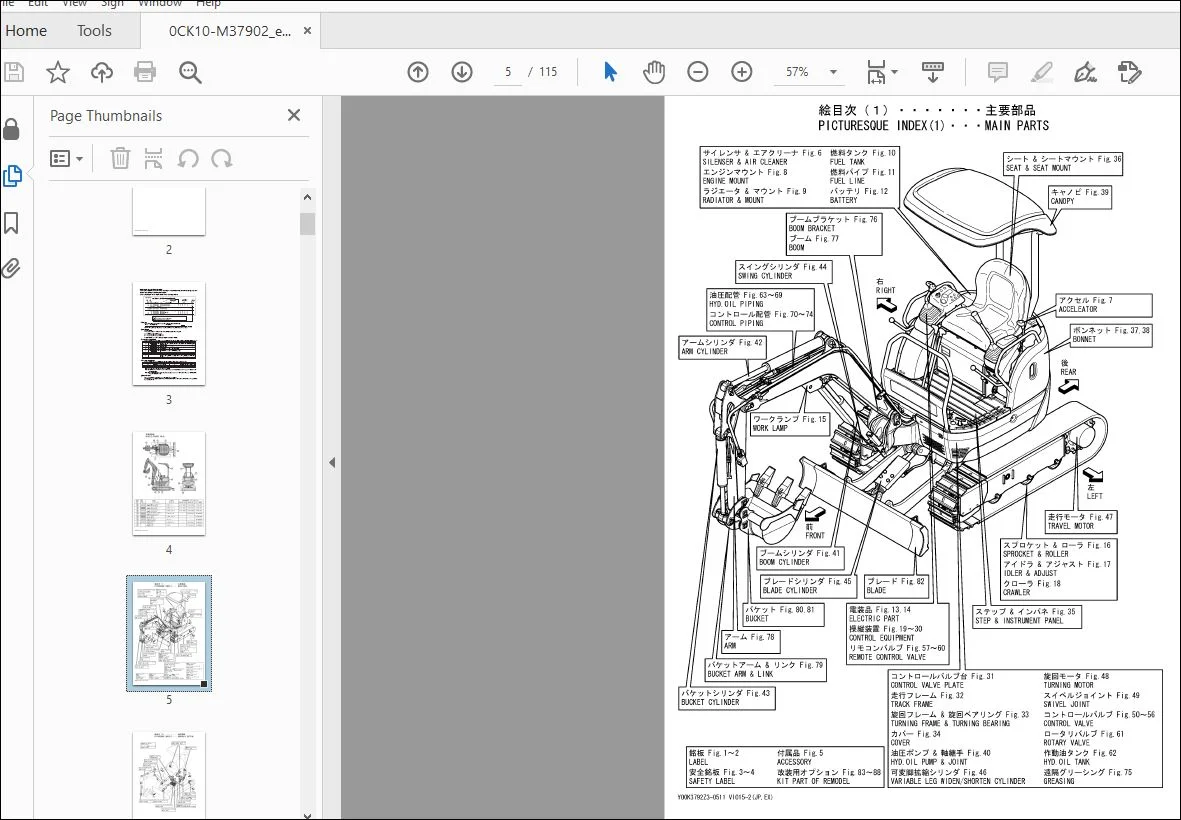

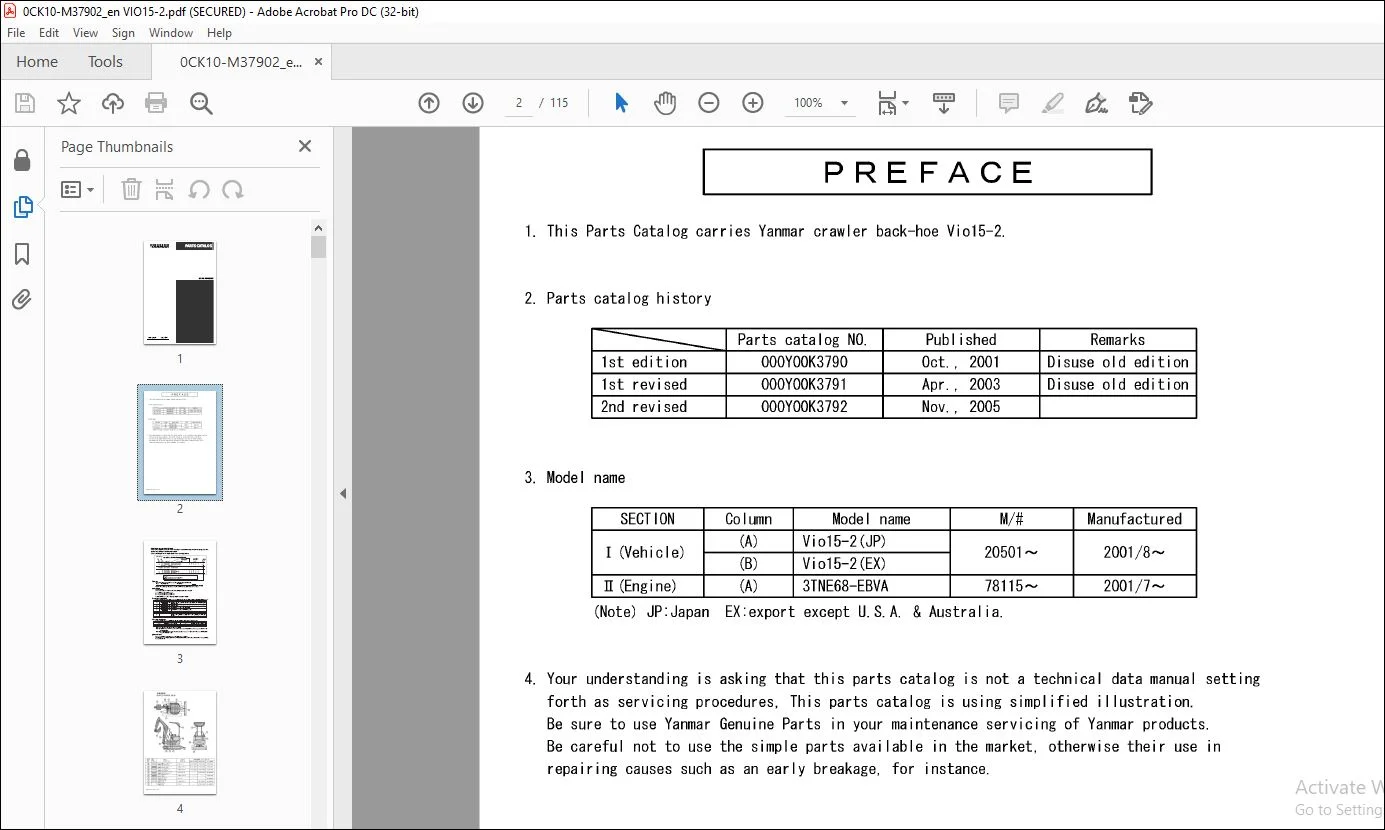

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

YANMAR VIO15-2 EXCAVATOR CRAWLER BACKHOE PARTS CATALOG MANUAL 0CK10-M37902EN – PDF DOWNLOAD

INTRODUCTION:

• Your understanding is asking that this parts catalog is not a technical data manual setting
  forth as servicing procedures, This parts catalog is using simplified illustration.
• Be sure to use Yanmar Genuine Parts in your maintenance servicing of Yanmar products.
  Be careful not to use the simple parts available in the market, otherwise their use in
  repairing causes such as an early breakage, for instance.

Directions for the Parts Catalog:
1.The parts stipulated in this Parts Catalog are not necessarily standard equipped parts.
2.Parts may change without prior notice.
3.The following is an example of the Parts Catalog format.

TABLE OF CONTENTS:

YANMAR VIO15-2 EXCAVATOR CRAWLER BACKHOE PARTS CATALOG MANUAL 0CK10-M37902EN – PDF DOWNLOAD

Reference Materials 2
Contents 7
1 LABEL(JP) 10
2 LABEL(EX) 12
3 SAFETY LABEL(JP) 14
4 SAFETY LABEL(EX) 15
5 ACCESSORY 16
6 SILENSER & AIR CLEANER 17
7 ACCELERATOR 18
8 ENGINE MOUNT 19
9 RADIATOR & MOUNT 20
10 FUEL TANK 21
11 FUEL LINE 22
12 BATTERY 23
13 ELECTRIC PART(WIRING) 24
14 ELECTRIC PART(EQUIPMENT) 25
15 WARK LAMP 26
16 SPROCKET & ROLLER 27
17 IDLER & ADJUST 28
18 CRAWLER 30
19 CONTROL EQUIPMENT(LOCK LEVER & STAND)(RIGHT)A-SPEC 31
20 CONTROL EQUIPMENT(LOCK LEVER & STAND)(RIGHT)B-SPEC 32
21 CONTROL EQUIPMENT(LOCK LEVER & STAND)(LEFT)A-SPEC 33
22 CONTROL EQUIPMENT(LOCK LEVER & STAND)(LEFT)B-SPEC 34
23 CONTROL EQUIPMENT(TRAVEL LEVER & LINK STAND) 35
24 CONTROL EQUIPMENT(OPERATION LEVER) 36
25 CONTROL EQUIPMENT(BLADE LEVER) 37
26 CONTROL EQUIPMENT(VARIABLE LEG LEVER) 38
27 CONTROL EQUIPMENT(SWING PEDAL) 39
28 CONTROL EQUIPMENT(LOW-HIGH PEDAL) 40
29 CONTROL EQUIPMENT(P T O PEDAL) 41
30 CONTROL EQUIPMENT(P T O LINK) 42
31 CONTROL VALVE PLATE 43
32 TRACK FRAME 44
33 TURNING FRAME & TURNING BEARIN 45
34 COVER 46
35 STEP & INSTRUMENT PANEL 47
36 SEAT & SEAT MOUNT 48
37 BONNET(1) 49
38 BONNET(2) 50
39 CANOPY 51
40 HYD OIL PUMP & JOINT 52
41 BOOM CYLINDER 54
42 ARM CYLINDER 55
43 BUCKET CYLINDER 56
44 SWING CYLINDER 57
45 BLADE CYLINDER 58
46 VARIABLE LEG WIDEN / SHORTEN CYLINDER 59
47 TRAVEL MOTOR 60
48 TURNING MOTOR 63
49 SWIVEL JOINT(Y SPEC ) 64
89 (49A)SWIVEL JOINT(N SPEC ) 65
50 CONTROL VALVE(1/7) 66
51 CONTROL VALVE(2/7) 67
52 CONTROL VALVE(3/7) 68
53 CONTROL VALVE(4/7) 69
54 CONTROL VALVE(5/7) 70
55 CONTROL VALVE(6/7) 71
56 CONTROL VALVE(7/7) 72
57 REMOTE CONTROL VALVE 73
58 REMOTE CONTROL VALVE(STD-A-SPEC ) 74
59 REMOTE CONTROL VALVE(STD-B-SPEC ) 75
60 REMOTE CONTROL VALVE(2-WAY SPEC ) 76
61 ROTARY VALVE(4-WAY SPEC ) 77
62 HYD OIL TANK 78
63 HYD OIL PIPING(TANK – PUMP – CONTROL VALVE) 79
64 HYD OIL PIPING(PUMP, CONTROL VALVE – TURNING MOTOR, BOOM) 80
65 HYD OIL PIPING(CONTROL VALVE – SWIVEL JOINT, SWING CYLINDER) 81
66 HYD OIL PIPING(RETURN) 82
67 HYD OIL PIPING(TRACK FRAME) 83
68 HYD OIL PIPING(BOOM) 84
69 HYD OIL PIPING(P T O ) 85
70 CONTROL PIPING(PUMP – CONTROL VALVE – RETURN : A-SPEC ) 86
71 CONTROL PIPING(PUMP – CONTROL VALVE – RETURN : B-SPEC ) 87
72 CONTROL PIPING(REMOTE CONTROL V – CONTROL V : STD SPEC ) 88
73 CONTROL PIPING(REMOTE CONTROL V – ROTARY V : 4-WAY SPEC ) 89
74 CONTROL PIPING(ROTARY VALVE – CONTROLE VALVE : 4-WAY SPEC ) 90
75 GREASING 91
76 BOOM BRACKET 92
77 BOOM 93
78 ARM 94
79 BUCKET ARM & LINK 95
80 BUCKET(S-TYPE) 96
81 BUCKET(H-TYPE) 97
82 BLADE 98
83 ONE-TOUCH DECEL KIT(OPTIONAL) 99
84 4-WAY MULTI VALVE KIT(OPTIONAL) 100
85 TRAVEL ALARM KIT(OPTIONAL) 101
86 2-WAY MULTI VALVE KIT(OPTIONAL) 102
87 C,D PATTERN KIT(OPTIONAL) 103
88 P T O KIT(OPTIONAL) 104
Parts No Index 105
