YSI 6-Series Environmental Monitoring Systems Service Manual – PDF DOWNLOAD

Description:

scope & models

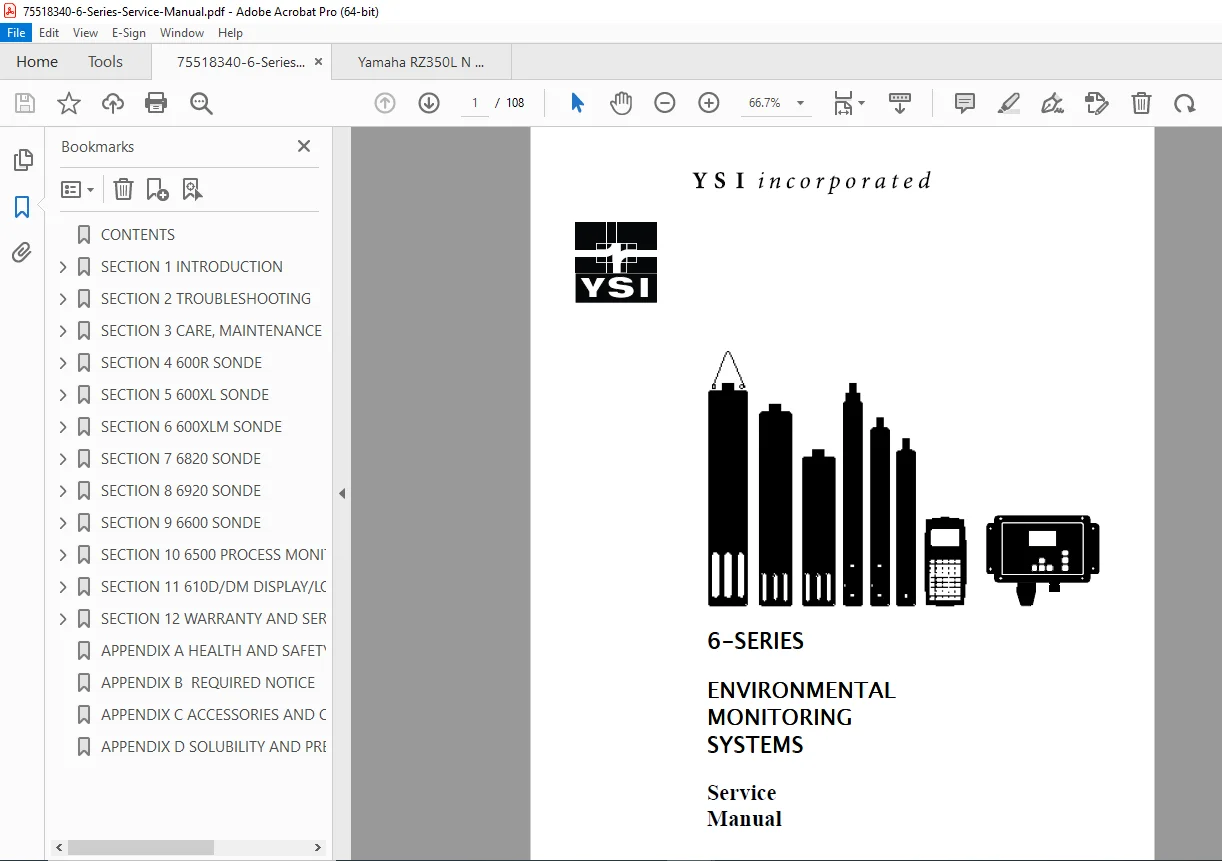

Official service manual covering YSI 600, 600XL, 600XLM, 6600, 6820, 6920 sondes, plus 610 display/logger and 6500 environmental process monitor. Sections include Introduction, Troubleshooting, Care/Maintenance/Storage, per-model service (600R, 600XL, 600XLM, 6820, 6920, 6600), and hardware for 6500/610, with appendices for health & safety and calibration standards.

75518340-6-Series-Service-Manual

IMAGES:

what’s inside (highlights)

• Troubleshooting tables: calibration error messages, PC6000 software issues, sonde comms (COM port, baud, power), sensor performance (pH/ORP/ISE, DO, conductivity, temperature, turbidity), 610 logger and 6500 monitor symptoms/causes/actions.

  75518340-6-Series-Service-Manual

• Calibration error codes: High DO Charge, Out of Range, Illegal Entry, with corrective steps (resurface DO electrodes, verify standards, correct entry).

  75518340-6-Series-Service-Manual

• Care, maintenance & storage: sonde port drying/greasing, conductivity cell cleaning brushes, DO membrane/electrolyte change & probe resurfacing (6035 kit), pH/ORP cleaning (detergent, HCl, bleach steps), ISE membrane handling, depth/level sensor vent/desiccant care, interim vs long-term storage protocols (humidity in cup vs KCl).

  75518340-6-Series-Service-Manual

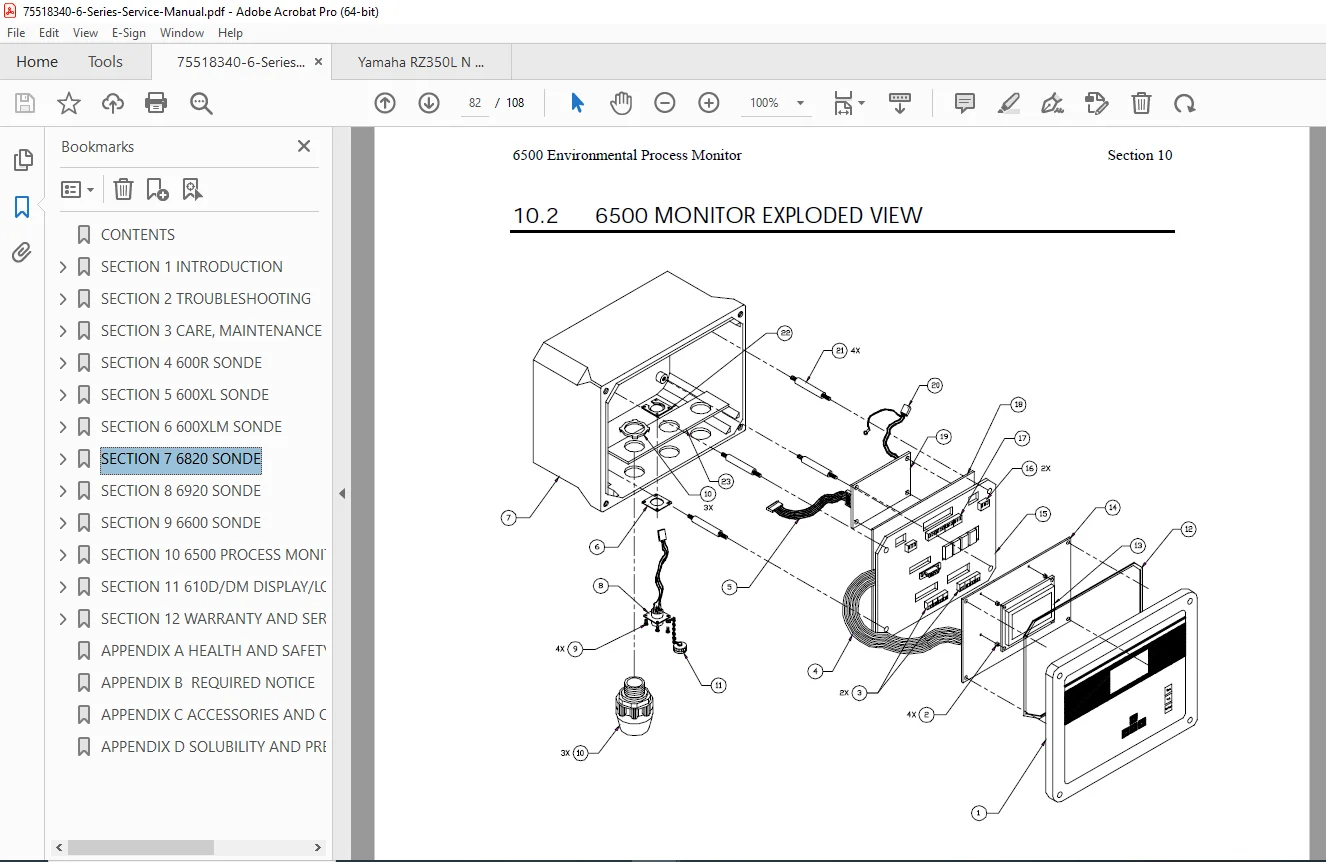

• Per-model service: disassembly/assembly warnings (ESD), depth module handling, PC board replacement policy, and test procedures (pH in buffer, 10 mS/cm conductivity, temp bath tolerance, DO zero test). Includes exploded views and replacement parts lists.

  75518340-6-Series-Service-Manual

• Diagrams: bulkhead wiring, block diagrams, board assemblies, 6500 monitor/6502 breakout box, plus 610 software update & loading notes.

  75518340-6-Series-Service-Manual

sample tasks you can actually do

• Diagnose “connect­ing, please wait” and no-data capture in PC6000; fix baud/COM selections and directory paths.

• Stabilize drifting DO: check charge range, resurface silver electrodes, replace electrolyte/membrane, rerun charge drop in Run mode.

• Restore pH/ORP accuracy after contamination: progressive clean (detergent → acid → bleach) then soak & re-hydrate junction.

• Prep sondes for winter: remove selected probes, cap ports, store DO wetted, keep level vent dry with fresh desiccant, seal storage cup.

  75518340-6-Series-Service-Manual
