Zeiss CIRRUS HD-OCT 400 & 4000 Service & User Manual PDF (Software 8.1)
Original price was: $120.00.$32.95Current price is: $32.95.
Maximize the performance of your Zeiss CIRRUS HD-OCT with this essential User and Service Manual PDF. Covering Models 400 and 4000 (Software 8.1), this guide details every aspect of operation, from scan acquisition (Macular, Optic Disc, Anterior Segment) to routine maintenance. It includes critical instructions for fuse replacement, hard disk defragmentation, and resolving power issues, making it a vital resource for ophthalmology clinics and biomedical engineers.
Description
Zeiss CIRRUS HD-OCT 400 & 4000 Service & User Manual PDF DOWNLOAD
DESCRIPTION
This is the official Instructions for Use and Maintenance Manual for the Carl Zeiss Meditec CIRRUS HD-OCT (Models 400 and 4000). It serves as a comprehensive training, usage, and reference guide for the spectral domain optical coherence tomography (SD-OCT) system.
Beyond standard operation, this manual includes a dedicated Routine Maintenance chapter that bridges the gap between user operation and basic service, providing instructions on hardware care, fuse replacement, and system troubleshooting.
Manual Contents & Key Categories:
1. System Setup & Administration
Initial Setup: Configuring Institution Name, User Accounts, and Staff Registration.
Data Management: Archiving/Retrieving data (Native & DICOM), Database backups.
Networking: Connecting to FORUM® archives and Modality Worklists.
2. Scan Acquisition (Step-by-Step)
Posterior Segment Scans:
Macular Cube ($512\times128$ & $200\times200$).
Optic Disc Cube $200\times200$.
HD 5 Line Raster & HD 1 Line 20x.
Anterior Segment Scans:
Anterior Chamber & Cornea imaging.
HD Angle & Pachymetry scans.
Wide Angle-to-Angle scans.

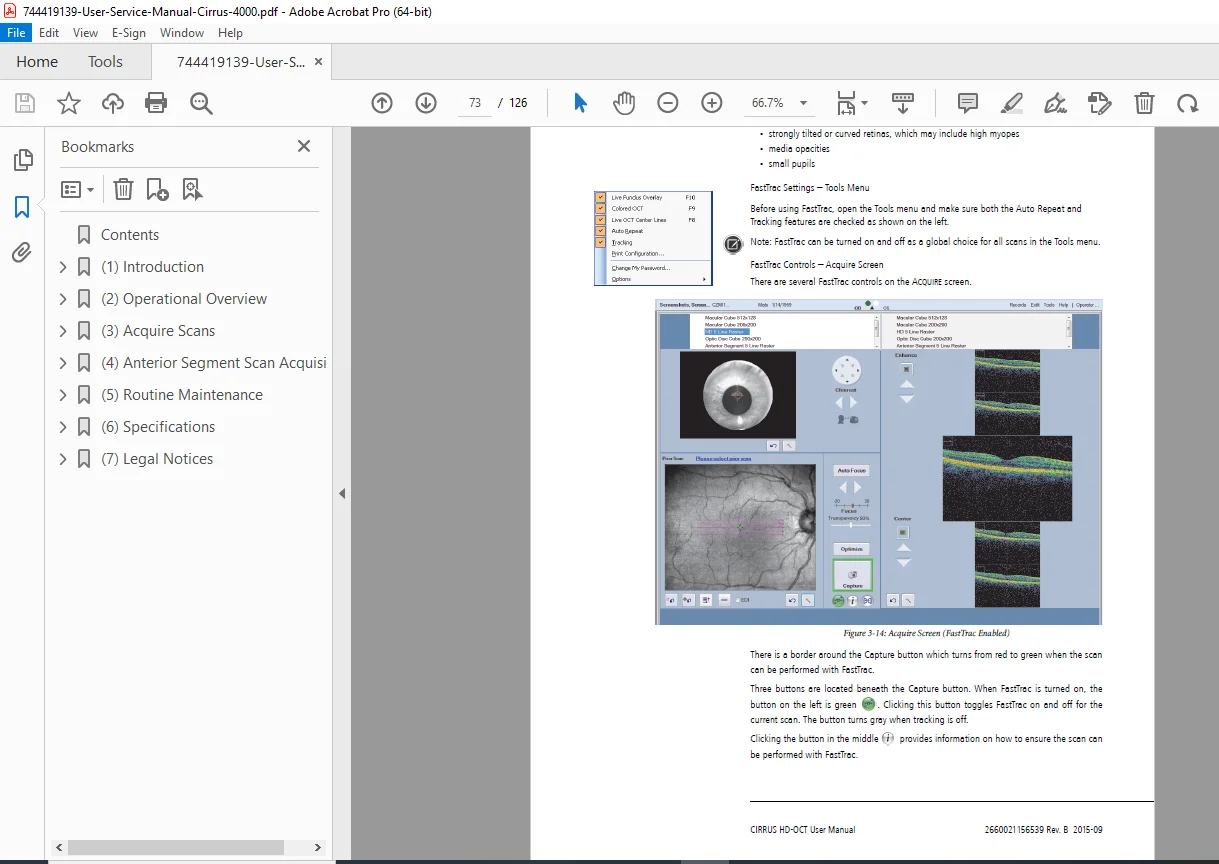

FastTrac™ Technology: Using the tracking system to reduce saccade artifacts.
3. Routine Maintenance & Troubleshooting
Fuse Replacement: Detailed guide to accessing and replacing fuses on Models 400/4000.
System Optimization: Hard Disk Defragmentation procedures to maintain database speed.
Cleaning: Safe procedures for the Imaging Aperture, External Lenses, and Fan Filters.
Power Issues: Troubleshooting steps for when the instrument or table will not power on.
4. Specifications & Compliance
Imaging Specs: Resolution, scan speed (27,000 A-scans/sec), and optical power data.
Physical Data: Weight, dimensions, and electrical ratings (115V/230V).
Safety Standards: EMC guidelines and patient environment safety.
Technical Specifications Table:
| Feature | Model 400 | Model 4000 |
| Methodology | Spectral Domain OCT | Spectral Domain OCT |
| Fundus Imaging | Live OCT Fundus Technology | Line Scanning Ophthalmoscope (LSO) |
| Scan Speed | 27,000 A-scans/sec | 27,000 A-scans/sec |
| Axial Resolution | 5 μm (in tissue) | 5 μm (in tissue) |
| A-Scan Depth | 2.0 mm (1024 points) | 2.0 mm (1024 points) |
FILE DETAILS

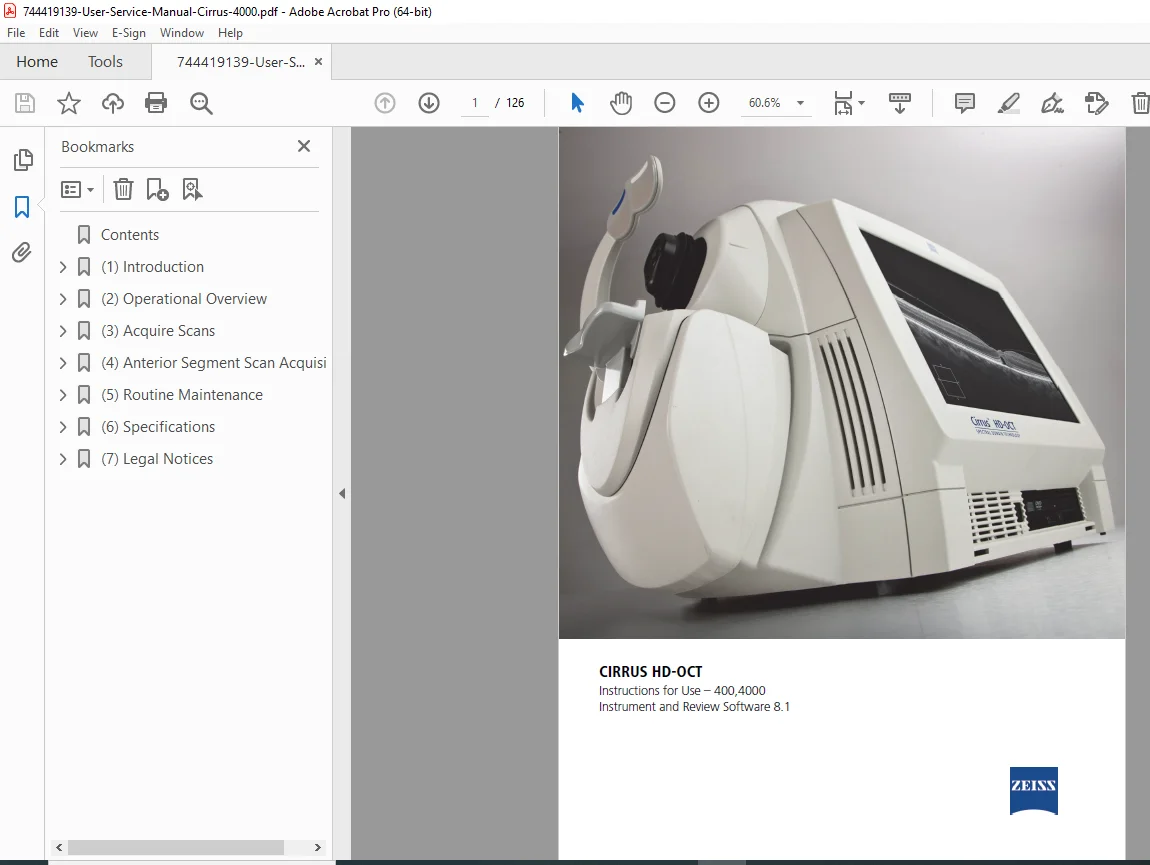

Manual Name: CIRRUS HD-OCT Instructions for Use (Models 400, 4000)
Software Version: Instrument and Review Software 8.1
Revision: 2660021156539 Rev. B (Sept 2015)
File Type: High-Quality Searchable PDF
Total Pages: 126 pages
Ensure your diagnostic precision never falters. Download this official manual instantly to master the advanced features of your CIRRUS HD-OCT and perform critical maintenance yourself—saving your clinic time and expensive service call fees!
