Zetor Tractor 3321 3341 4321 4341 5321 5341 6321 6341 Super 7321 7341 Super Turbo Parts Manual – PDF DOWNLOAD

Description

Zetor Tractor 3321 Super 3341 Super 4321 Super 4341 Super 5321 Super 5341 Super 6321 Super 6341 Super 7321 Super Turbo 7340 Super Turbo Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Zetor Tractor 3321 Super 3341 Super 4321 Super 4341 Super 5321 Super 5341 Super 6321 Super 6341 Super 7321 Super Turbo 7340 Super Turbo Parts Manual – PDF DOWNLOAD’

Language : English
Pages : 408
Downloadable : Yes
File Type : PDF
Size: 7.54 MB

DESCRIPTION:

Zetor Tractor 3321 Super 3341 Super 4321 Super 4341 Super 5321 Super 5341 Super 6321 Super 6341 Super 7321 Super Turbo 7340 Super Turbo Parts Manual – PDF DOWNLOAD

EXPLANATORY NOTES TO THE PRESENT SPARE PARTS CATALOG:
The Spare Parts Catalog lists items of spare parts composing Zetor tractor models 3321 – 7341-SUPER TURBO. Items forming the tractor
are grouped into section (Engine, Gearbox) composed of groupes formed by one ore more sheets. All information, illustrations and specifications
in this catalog are based on the latest information available at the time of publication.
The up-dating of the catalog will take place by including information in ZETOR SERVICE REPORTS published regularly.
TEXT SECTION:
The section index and alphabetical index of groupes hepls to identity easy a part. In the text section you will find six columns on each text page:
column 1 – contains the group nubber
column 2 – contains the drawing number
column 3 – contains the item number
column 4 – contains the part ordering number
column 5 – contains parts name, tractor model
column 6 – shows quantity of parts used on tractor
column 7 – contains additional explanatory notes: dimension, standard, note

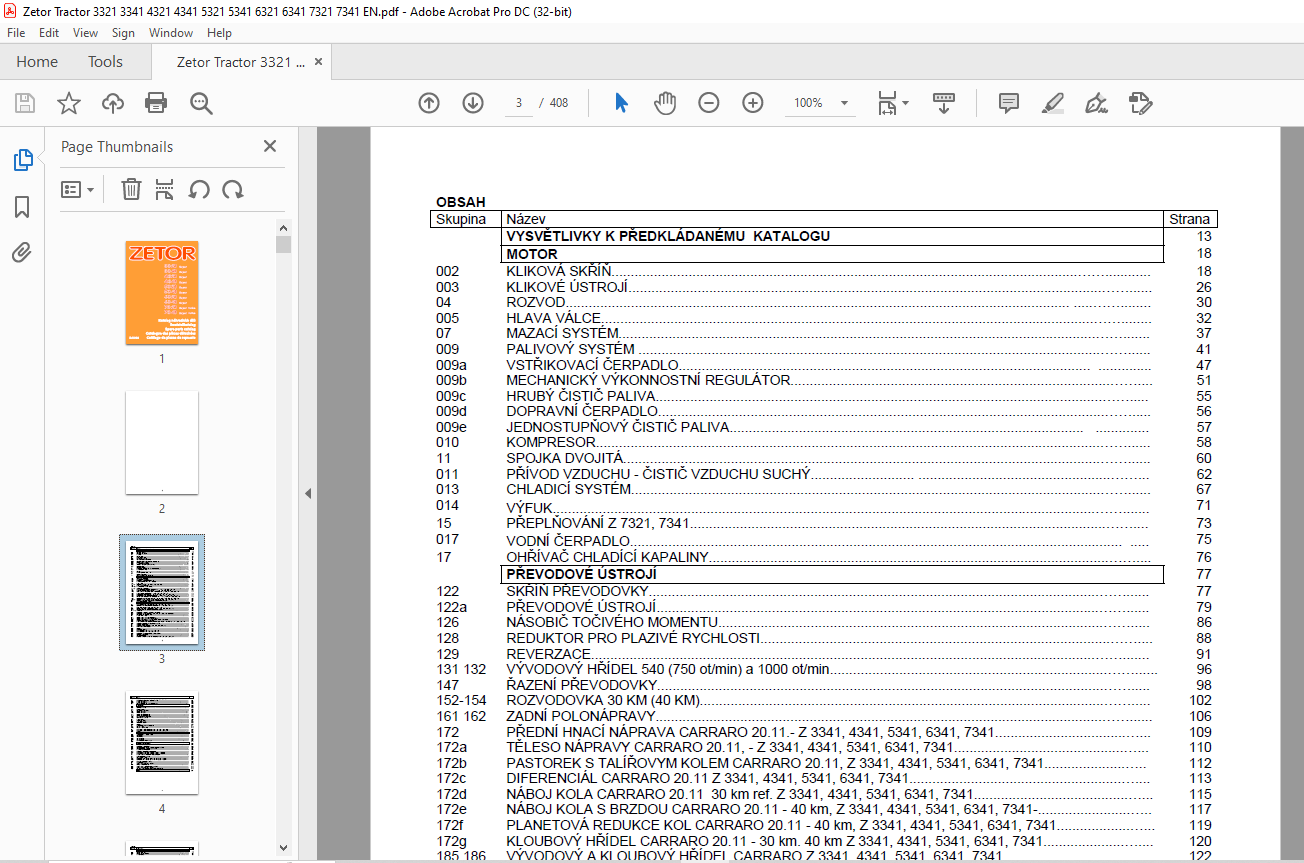

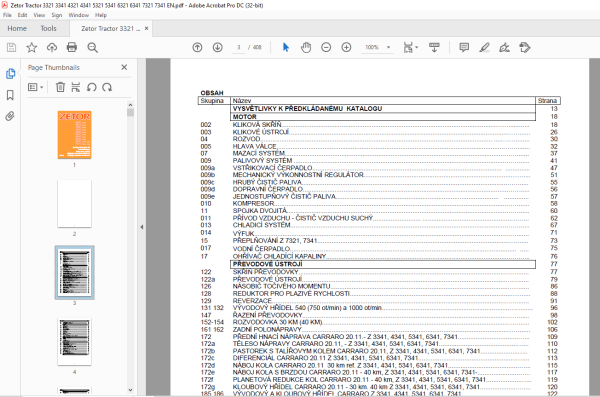

TABLE OF CONTENTS:

Zetor Tractor 3321 Super 3341 Super 4321 Super 4341 Super 5321 Super 5341 Super 6321 Super 6341 Super 7321 Super Turbo 7340 Super Turbo Parts Manual – PDF DOWNLOAD

EXPLANATORY NOTES TO THE PRESENT SPARE PARTS CATALOG 15
ENGINE 18
002 CRANKCASE …… 18
003 CRANKSHAFT MECHANISM …… 26
04 VALVE GEAR …… 30
005 CYLINDER HEAD …… 32
07 LUBRICATING SYSTÉM … 37
009 FUEL SYSTEM …… 41
009a INJECTION PUMP …… 47
009b MECHANICAL OUTPUT GOVERNOR …… 51
009c COARSE FUEL FILTER …… 55
009d FUEL DELIVERY PUMP …… 56
009e ONE-STAGE FUEL FILTER …… 57
010 COMPRESSOR …… 58
11 DUAL CLUTCH …… 60
011 AIR SUPPLY, DRY AIR CLEANER …… 62
013 COOLING SYSTEM …… 67
014 EXHAUST …… 71
15 TURBOCHARGING Z 7321, 7341 …… 73
017 WATER PUMP …… 75
17 COOLANT HEATER …… 76
TRANSMISSION MECHANISM 77
122 GEARBOX …… 77
122a TRANSMISSION MECHANISM …… 79
126 TORQUE CONVERTER …… 86
128 GRAWLING GEARS REDUCER …… 88
129 REVERSING EQUIPMENT …… 91
131 132 PTO SHAFT 540 (750 r p m ) and 1000 r p m …… 96
147 GEARBOX SHIFTING MECHANISM …… 98
152-154 FINAL DRIVE HOUSING 30 KM (40 KM) …… 102
161 162 REAR HALF-AXLES …… 106
172 FRONT WHEEL AXLE CARRARO 20 11 Z 3341, 4341, 5341, 6341, 7341 … 109
172a AXLE BODY CARRARO 20 11 Z 3341, 4341, 5341, 6341, 7341 …… 110
172b BEVEL PINION WITH CROWN GEAR CARRARO 20 11 Z 3341, 4341, 5341, 6341, 7341 … 112
172c DIFFERENTIAL CARRARO 20 11 Z 3341, 4341, 5341, 6341, 7341 … 113
172d WHEEL HUB CARRARO 20 11 30 km Z 3341, 4341, 5341, 6341, 7341 … 115
172e WHEEL HUB WITH BRAKE CARRARO 20 11 – 40 km – Z 3341, 4341, 5341, 6341, 7341 … 117
172f EPICYCLIC REDUCTION GEAR CARRARO 20 11 – 40 km – Z 3341, 4341, 5341, 6341, 7341 119
172g CARDAN SHAFT CARRARO 20 11 – 30 km 40 km Z 3341, 4341, 5341, 6341, 7341 … 120
185 186 DRIVE AND CARDAN SHAFT CARRARO Z 3341, 4341, 5341, 6341, 7341 … 122
210 PNEUMATICALLY OPERATED DECLUTCHING OF PTO SHAFT … 128
60 FRONT PTO SHAFT …… 131
UNDER-CARRIAGE 136
33 FRONT AXLE WITH BRACKET Z 3321, 4321, 5321, 6321, 7321 … 136
203 FRONT AXLE BRACKET CARRARO Z 3341, 4341, 5341, 6341, 7341 … 138
34 RIGID EXTENSIONS Z 3321, 4321, 5321, 6321, 7321 …… 140
205 RIGID EXTENSIONS Z 3321, 4321, 5321, 6321, 7321 …… 142
210a PTO SHAFT MECHANICAL CONTROL …… 144
211 -216 REAR WHEELS …… 146
222 CONTROL OF THE TORGUE MULTIPLIER …… 150
225 FRONT BRAKES CONTROL Z 3341, 4341, 5341, 6341, 7341-CARRARO … 154
227 DISK TYPE FOOT BRAKE KNOTT— …… 158
231 HAND BRAKE KNOTT …… 166
234 AIR EQUIPMENT FOR BRAKES …… 168
234a AIR EQUIPMENT FOR OPERATING DEVICES …… 172
236 PRESSURE AIR BRAKES 1 AND 2 HOSE TYPE FOR TRAILERS … 175
238 HYDRAULIK TRAILER BRAKES …… 178
246 FRAME FOR FRONT WHEEL DRIVE WITH BALLAST WEIGHTS CARRARO Z 3341,4341,5341,6341,7341 … 180
249 THREE-POINT FRONT SUSPENSION WEIGHTS 181
62 REAR WHEEL BALLAST WEIGHTS …… 182
63 FRONT AXLE BALLAST WEIGHTS Z 3321, 4321, 5321, 6321, 7321 … 184
254 DIFERENTIAL-LOCK …… 186
255 PEDALS …… 188
256 CONTROLS CLUTCH …… 193
258 FRONT WHEELS Z 3321 4321, 5321, 6321, 7321 …… 196
266 FRONT WHEELS Z 3341 4341, 5341, 6341, 7341 …… 198
269 FRONT PTO SHAFT CONTROL …… 201
272 STEERING WHEEL WITH SEATING …… 203
273 INCLINABLE STEERING WHEEL …… 205
275 HYDROSTATIC STEERING OF THE FRONT DRIVEN AXLECARRARO Z 3341, 4341, 5341, 6341, 7341 208
276 HYDROSTATIC STEERING Z 3321, 4321, 5321, 6321, 7321 … 215
83 POWER STEERING HYDROSTATIC PUMP …… 221
295 THROTTLE CONTROL …… 222
295a THROTTLE CONTROL …… 224
85 STANDARD EQUIPMENT AND SPARE PARTS …… 226
BODY 229
302 ENGINE BONNET …… 229
306 STEERING BRACKET …… 233
312 FUEL TANK …… 235
334 MUDGUARDS AND FLOOR …… 237
342 SEAT …… 240
342a SEAT …… 241
344 MATE’S SEAT …… 244
344a MATE’S SEAT …… 245
345 WINDSHIELD WASHER …… 246
345a TOOL BOX …… 248
361 CAB FRAME …… 249
364 REAR MUNGUARDS …… 251
367 CAB ROOF …… 254
368 CAB OUTFIT …… 258
369 CAB …… 262
371 CAB WARM-WATER HEATING EQUIPMENT …… 271
372 AIRCONDITION …… 276
372a DIAVIA – AIRCONDITION …… 278
70 FRONT RUBBER MUDGUARDS Z 3321, 4321, 5321, 6321, 7321 … 290
383 FRONT RUBBER MUDGUARDS Z 3341, 4341, 5341, 6341, 7341 … 291
802 PLATES WITH TRACTOR MARK …… 292
ELECTRICAL EQUIPMENT 296
350 ELECTRICAL EQUIPMENT …… 296
350a STARTER MOTOR …… 303
350b STARTER MOTOR …… 304
350c ALTERNÁTOR …… 305
350d ALTERNÁTOR …… 306
351 CAB ELECTRICAL EQUIPMEMT …… 307
358 DASHBOARD – TABLEAU DE BORD …… 312
HYDRAULIC SYSTÉM 327
400 LIFTING MECHANISM …… 327
402 CONTROLS OF THE HYDRAULICS …… 333
407 FRONT HYDRAULIC OUTER CIRCUIT TAPPING …… 340
408 HYDRAULIC OUTER CIRCUIT OUTLETS …… 341
413 DISTRIBUTOR OF HYDRAULIC …… 342
415 SELECTING CONTROL VALVE OPTIONAL …… 345
420 GEAR PUMP OF HYDRAULIC CIRCUIT …… 347
421 GEAR PUMP OF HYDRAULIC CIRCUIT …… 351
42 LOWER TIE RODS WITH SLIPPING OUT END PIECES …… 355
44 TELESCOPIC STRUT …… 356
44a STABILIZER …… 357
440 LIFTING TIE ROD OPERATED FROM SAFETY CAB … 358
440a LIFTING TIE ROD OPERATED FROM SAFETY CAB … 361
448 FRONT THREE-POINT HITCH …… 364
50 THREE POINT …… 367
51 TRAILER COUPLING MULTISTAGE SUSPENSION LINKAGE … 373
452 FIXED AND SWINGING DRAWBAR …… 374
453 COUPLING FOR SEMI-TRAILER …… 376
458 TRAILER COUPLING MULTISTAGE SUSPENSION LINKAGE … 378
459 AUTOMATIC MOUTHPIECE FOR TRAILER COUPLING …… 379
INDEX

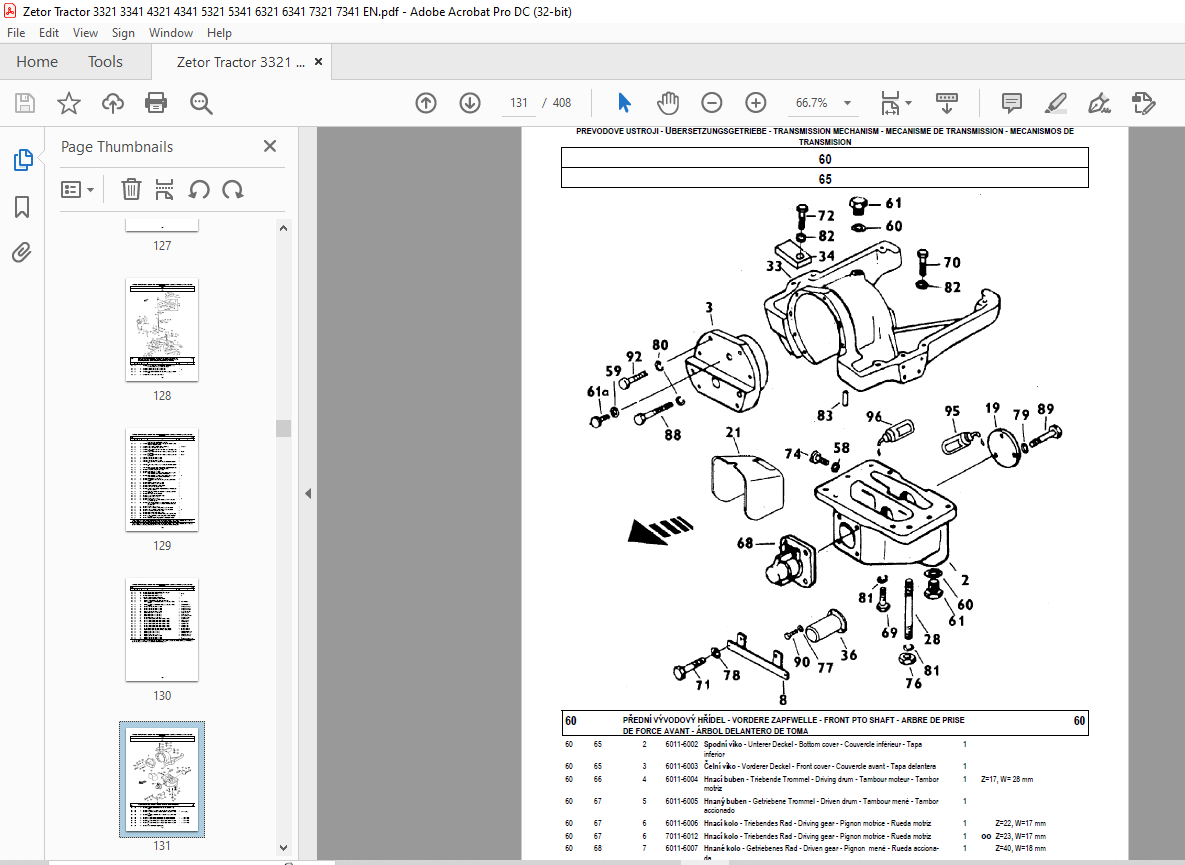

IMAGES PREVIEW OF THE MANUAL:
