Zetor Tractor Forterra 100 Forterra 110 Forterra 120 Forterra 130 Forterra 140 Operator’s Manual – Pdf Download
Original price was: $78.00.$25.95Current price is: $25.95.
Zetor Tractor Forterra 100 Forterra 110 Forterra 120 Forterra 130 Forterra 140 Operator’s Manual – PDF DOWNLOAD
Description
Zetor Tractor Forterra 100 Forterra 110 Forterra 120 Forterra 130 Forterra 140 Operator’s Manual – PDF DOWNLOAD
FILE DETAILS:
Zetor Tractor Forterra 100 Forterra 110 Forterra 120 Forterra 130 Forterra 140 Operator’s Manual – Pdf Download
Language : English
Pages :211
Downloadable : Yes
File Type : PDF
Size: 3.65 mb
DESCRIPTION:
Zetor Tractor Forterra 100 Forterra 110 Forterra 120 Forterra 130 Forterra 140 Operator’s Manual – PDF DOWNLOAD
ZETOR:
- This Operator’s Manual for the Zetor tractors, which we are presenting to you will help you to
become familiar with the operation and maintenance of your new tractor. - Although many of you have rich experience with the operation of other tractors, please, read the
information contained in this Operator’s Manual very carefully. - In the Manual you will find a lot of new information and get a perfect overview of how to use the
tractor with maximum efficiency during various kinds of work. - If you observe the rules of tractor operation and maintenance and driving safety, your new tractor will
become your reliable and long-term friend.
thoroughly acquainted with the operation and safety rules.
? Besides the safety instructions mentioned in the Operator´s Manual you are obliged to respect
generally valid safety and traffic rules of the country where the tractor is used.
Proper clothing:
? Do not wear loose clothing and free flying long hair.
? During all work use suitable (prescribed) means of personal protection (working boots, gloves,
goggles, etc.)
? Only start the engine from the driver´s seat with the clutch pedal fully depressed.
Life hazard when starting by means of short-circuiting the starter terminals!
? The key in the switch box must be in the ‘I’ position.
? When heating the engine with the * electric heater first plug the power supply cord to the heater and
only then to the electric mains. After the end of heating first disconnect the heater from the electric
mains.
? Driving down a slope with the aim of starting the engine is not permitted.
? It is forbidden to put the tractor in motion using another tractor or vehicle with the aim of starting the
engine.
? Hoses of the hydrostatic steering, brakes and fuel system must be checked and replaced immediately
if any signs of damage are found. These are some examples of hose damage signs: – cracks on the
hose surface, releasing of pretensioning of hose connection (which can be verified by easy removal of
the hose from the connection) and mechanical damage of the hose. Hoses with indicated service life
must be replaced immediately after the expiration of the service period.
? The brakes and steering must be in the perfect condition all the time.
? During driving on roads with trailers and tools the brake pedals must be connected with a latch.
? Driving downhill without an engaged gear is forbidden.
? Pay special attention when driving on a slope and muddy, sandy, icy or uneven ground.
? Observe the maximum prescribed slope gradient of 12°.
? Respect the total permissible weight of the tractor and trailer specified on the data plate of the tractor
or on the rear wheel mudguard.
? Do not use the differential lock when driving into a bend.
? It is forbidden to get into and out of a moving tractor.
? When driving with machines attached to the rear hitches the load of the steered axle must not drop
below 18 % of the current weight of the set.
? When driving the tractor with agricultural machines attached to the front three-point hitch, reduce the
driving speed to 20 km/h.

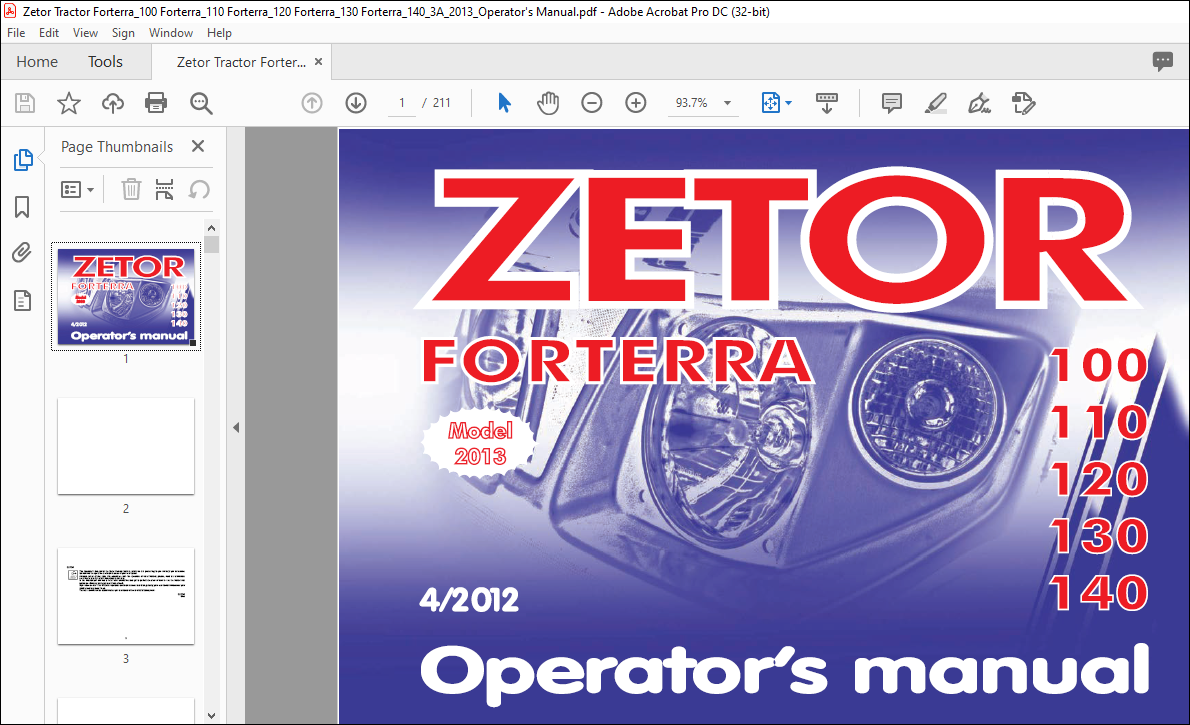

IMAGES PREVIEW OF THE MANUAL:

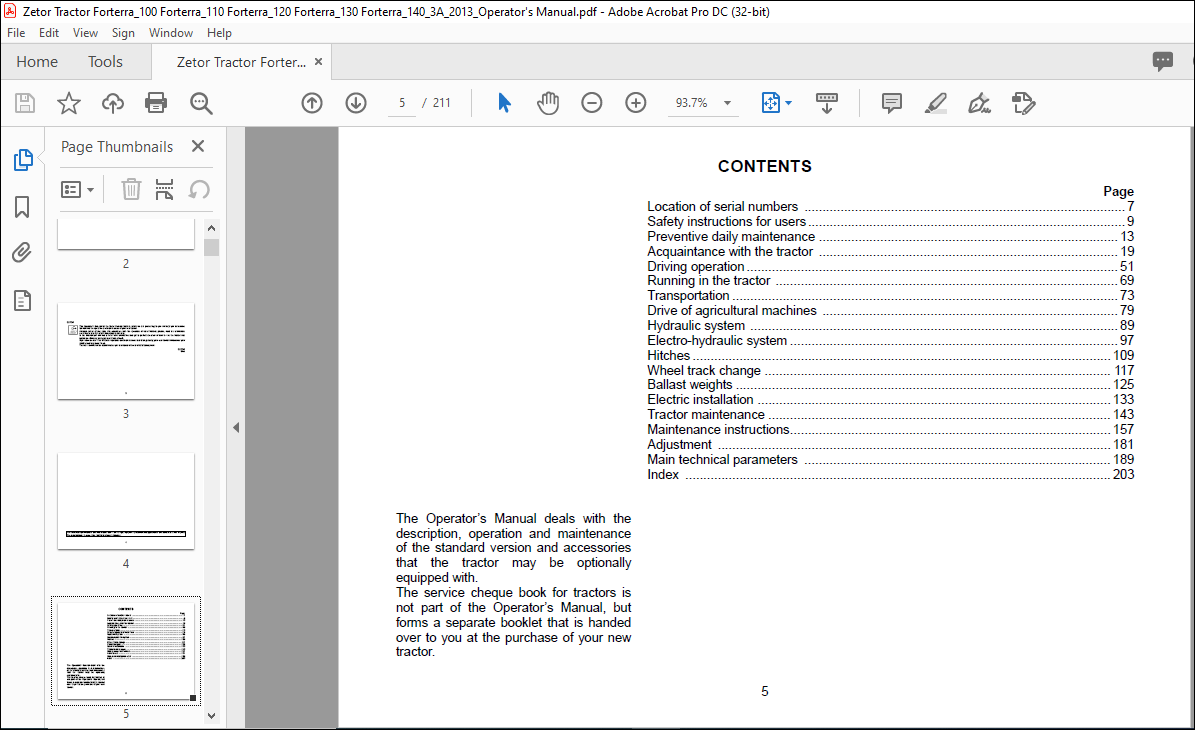

TABLE OF CONTENTS:
Zetor Tractor Forterra 100 Forterra 110 Forterra 120 Forterra 130 Forterra 140 Operator’s Manual – PDF DOWNLOAD

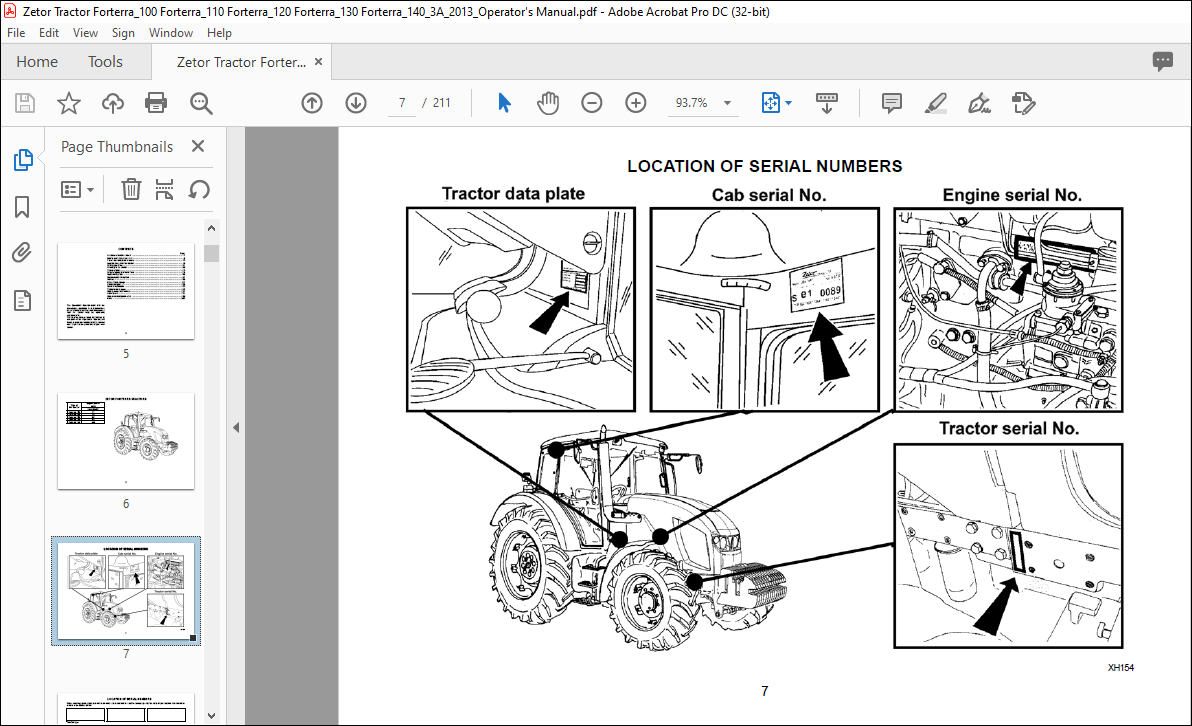

Location of serial numbers . 7
Safety instructions for users 9
Preventive daily maintenance .13
Acquaintance with the tractor . 19
Driving operation . 51
Running in the tractor . 69
Transportation . 73
Drive of agricultural machines 79
Hydraulic system 89
Electro-hydraulic system . 97
Hitches 109
Wheel track change 117
Ballast weights 125
Electric installation 133
Tractor maintenance . 143
Maintenance instructions .157
Adjustment .181
Main technical parameters . 189
Index 203
Contact us: [email protected]
PLEASE NOTE:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
S.M
