Zeutschel OS 12000 Large Format Scanner Service Manual PDF

Description

Zeutschel OS 12000 Large Format Scanner Service Manual PDF DOWNLOAD

Description

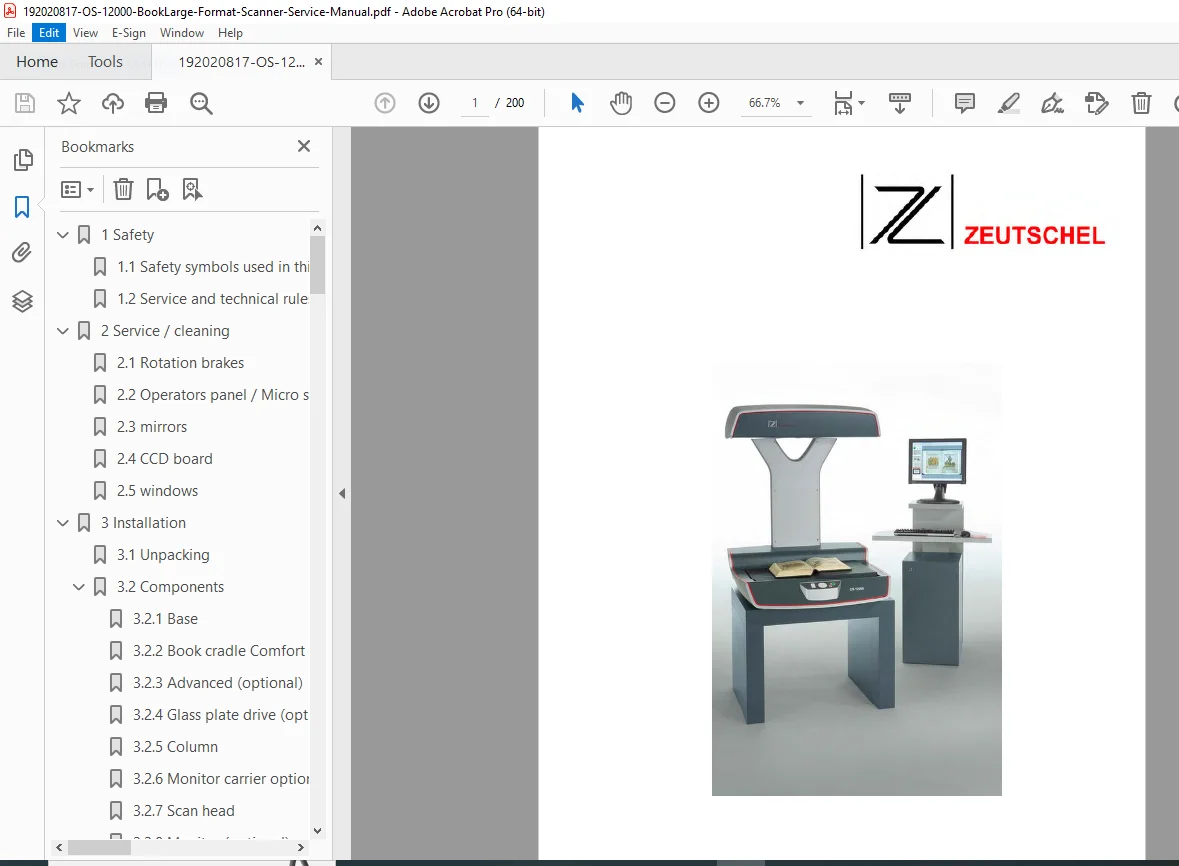

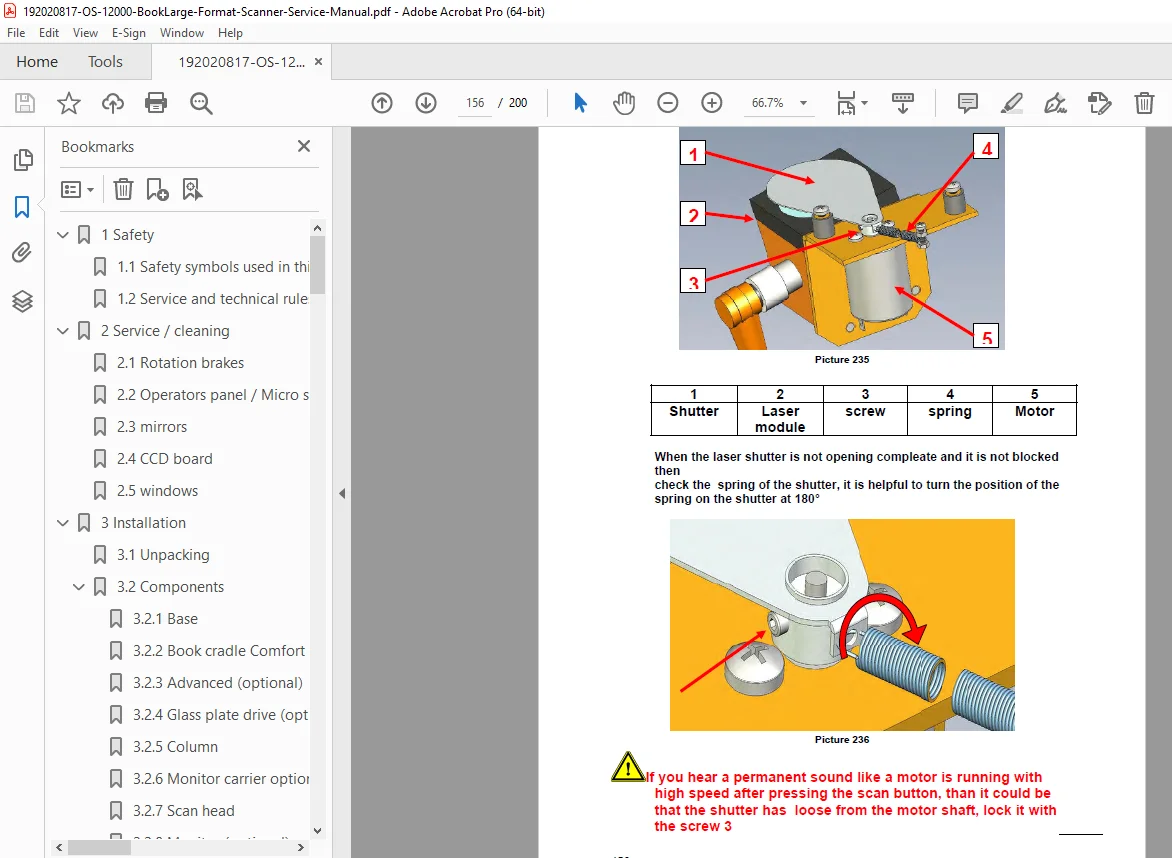

This is the official Zeutschel OS 12000 Service Manual PDF (Document TS-0737E), the same technical guide provided to certified Zeutschel technicians. It includes complete installation instructions, all calibration procedures (shading, 2D shading, geometric, laser, black reference), Perfect Book alignment, firmware upgrade methods, error codes, and detailed troubleshooting for hardware, software, and mechanical subsystems.

Designed for servicing OS 12000 A1/A2 large-format book scanners, this manual provides the essential procedures needed to keep the scanner operating at optimal quality, including preventive maintenance schedules and parts replacement intervals.

📑 Key Sections Included

1. Safety

• Safety symbols

• Rules for electrical and mechanical servicing

• Anti-static handling reminders

2. Service & Cleaning

• Rotation brake replacement

• Operator panel care

• Cleaning CCD, mirrors, acrylic windows

• Wear part replacement cycle (every 500,000 scans)

3. Installation

• Unpacking & components

• Base, column, scan head, book cradle

• Monitor mount, computer, accessories

• Correct screw lengths (critical!)

• Scan head parallel alignment procedure

4. Preparing for Service

• Complete tool list

• Maintenance plan

• Preventive lubrication points

• Annual/semi-annual service recommendations

5. Basic Settings

• Perfect Book basics

• FireWire driver installation

• PC setup workflows

• Machine-specific parameter loading

6. Calibration

A major section covering all OS 12000 calibrations:

• Start position

• Sharpness

• Laser/high measurement

• Black reference

• Shading & 2D shading

• Geometric calibration

• Colour profile management

• Perfect Book: adjust, inner, outer calibration

7. Scan Head

• Disassembly procedures

• CCD unit

• SCU & PCU boards

• Laser unit

• Light system

• Mirrors

8. Base & Book Cradle

• Comfort and Advanced cradle versions

• Glass plate drive servicing

• Malfunctions & adjustments

9. Software Settings

• Omniscan advanced settings

• Perfect Book parameters

• Firmware upgrade workflow

• Bookcopy admin passwords

10. Errors & Solutions

• Hardware errors (PCU, motors, glass plate drive)

• Height measurement faults

• Software errors (scanner not found, reset failures, timeout errors)

• LED codes on SCU & PCU boards

11. Modifications

• Scan motor adjustments

• PCU board replacement & modifications

• Upgrading OS 12000 with Perfect Book
