ZF Transmission 6 HP – 26 Repair Manual – PDF DOWNLOAD

Description

ZF Transmission 6 HP – 26 Repair Manual – PDF DOWNLOAD

FILE DETAILS:

ZF Transmission 6 HP – 26 Repair Manual – PDF DOWNLOAD

Language : English
Pages : 104
Downloadable : Yes
File Type : PDF

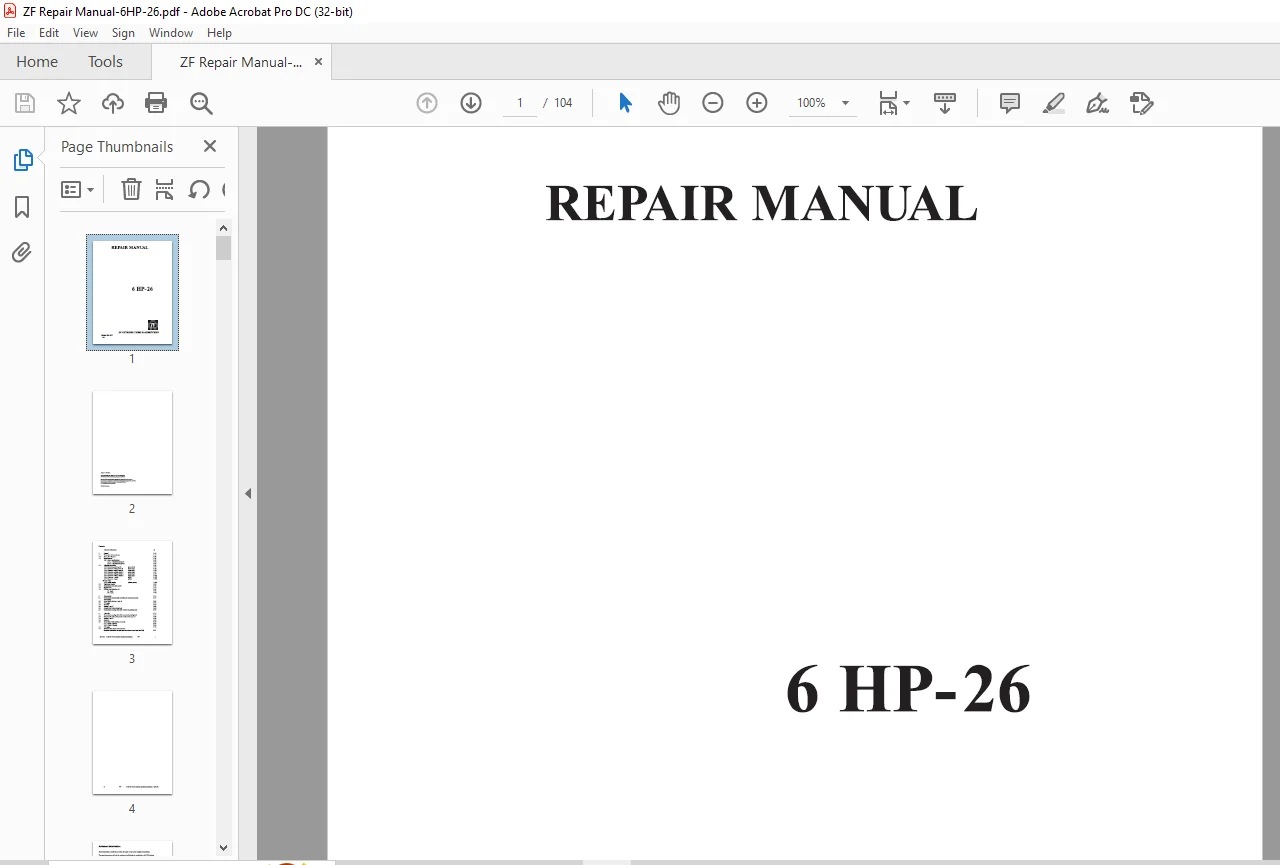

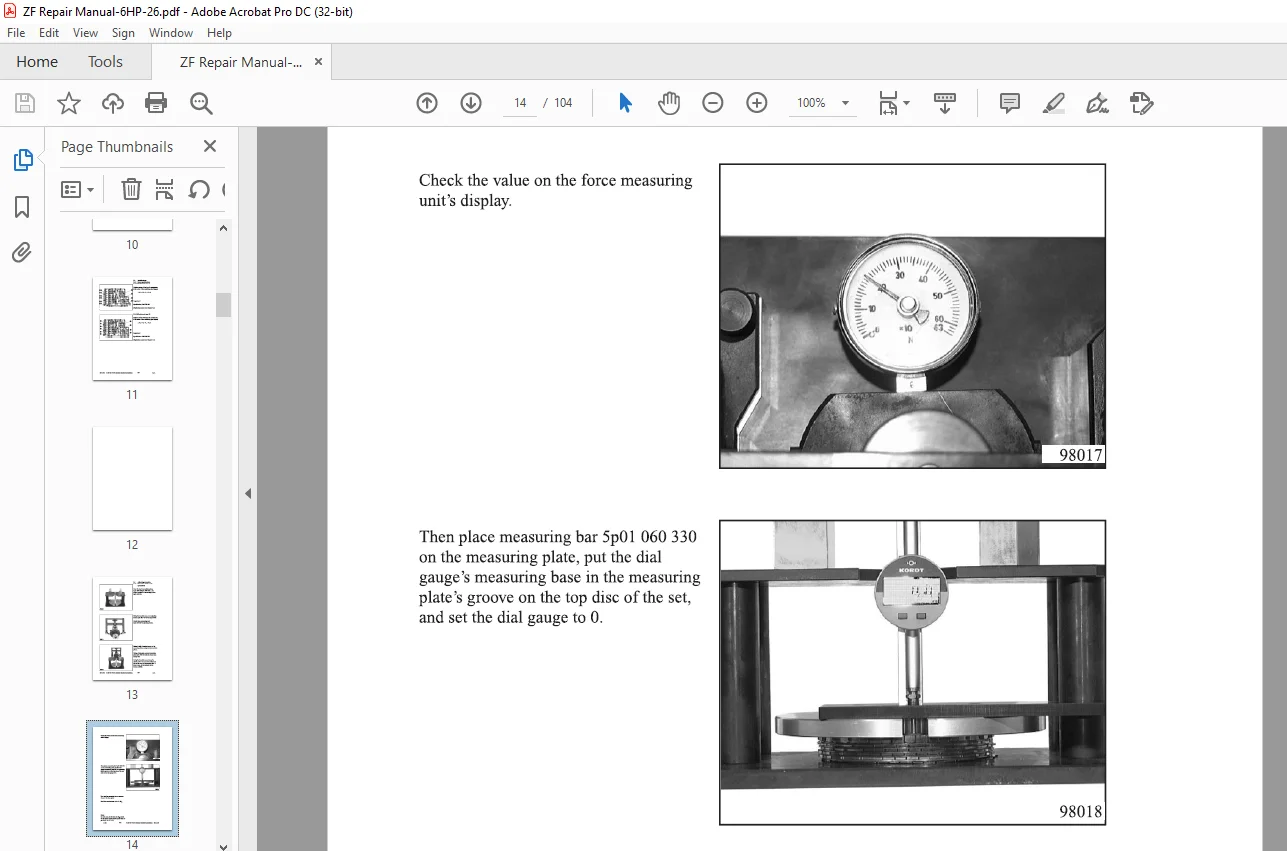

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

ZF Transmission 6 HP – 26 Repair Manual – PDF DOWNLOAD

Advance Information:

• These instructions contain the procedure for repair work on the complete transmission.
• The repair instructions will only be understood sufficiently in combination with ZFS training.
  Neglecting this could lead to installation errors.
• All disassembly and assembly work is listed in chronological order.
• Photos and illustrations for the various applications are general in character and not binding for every
  individual case.
• Important changes and those relevant to specific applications that have to be considered during repair
  work are announced in Technical Circular Letters and training courses.
• During the repair work ELCAT regulations and specifications must be observed.

Please note the following:
• Seals, e.g. O-rings, shaft sealing rings, gaskets and filters must always be renewed.
• During assembly, all O-rings, cylindrical rings and other sealing rings must be greased with
Vaseline before mounting.
• All bearings must be slightly oiled when installed.
• Exchange all lining and steel disks in transmissions with higher distance readings (> 80,000
kilometers / 50,000 miles).
• After clutch / brake damage, converters, oil pipes and oil coolers must be cleaned out
thoroughly and sufficiently with an appropriate cleaning agent.
• After damage to brake F, if the distance reading is high(> 80,000 km / 50,000 miles), piston
F must be renewed.

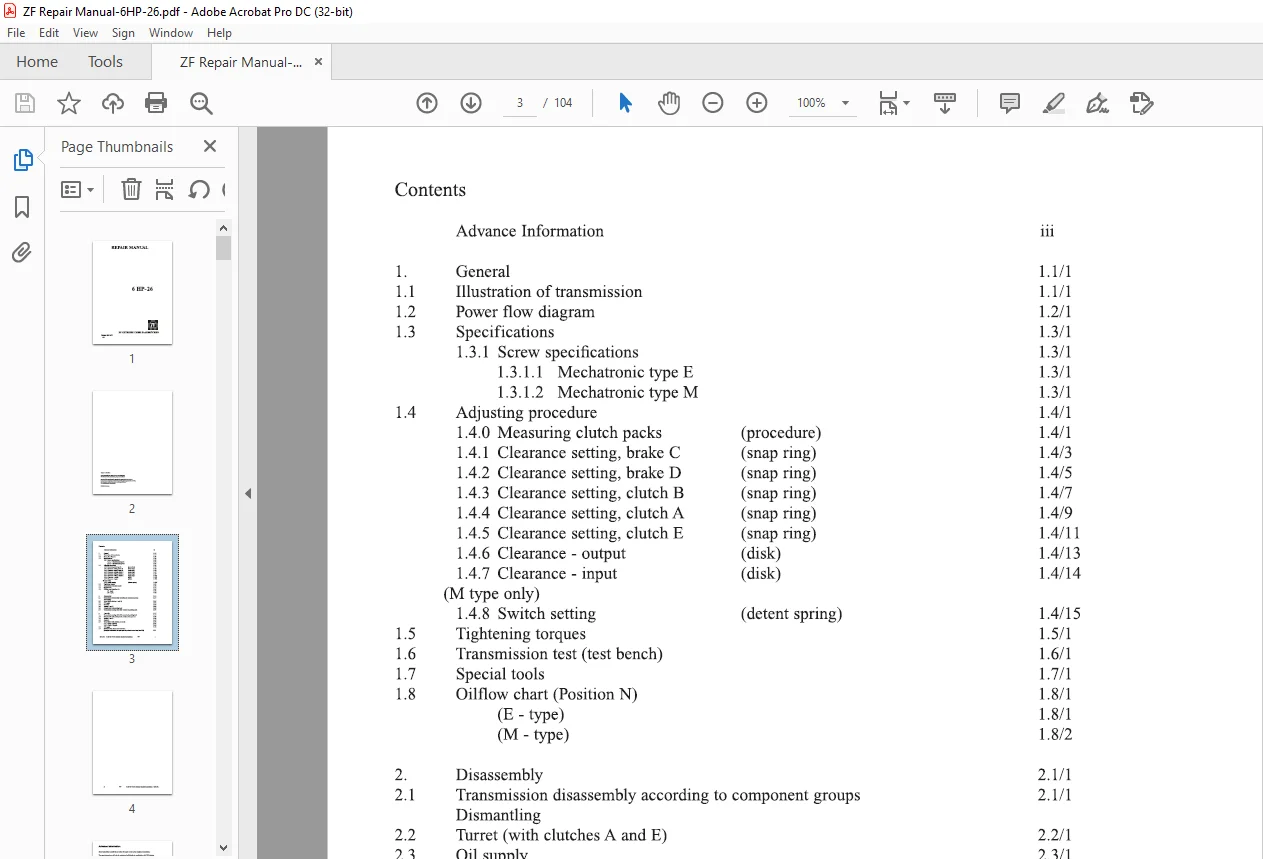

TABLE OF CONTENTS:

ZF Transmission 6 HP – 26 Repair Manual – PDF DOWNLOAD

Advance Information
1. General
1.1 Illustration of transmission
1.2 Power flow diagram
1.3 Specifications
1.3 .1 Screw specifications
1.3.1.1 Mechatronic type E
1.3.1.2 Mechatronic type M
1.4 Adjusting procedure
1.4.0 Measuring clutch packs
1.4.1 Clearance setting, brake C
1.4.2 Clearance setting, brake D
1.4.3 Clearance setting, clutch B
1.4.4 Clearance setting, clutch A
1.4.5 Clearance setting, clutch E
1.4.6 Clearance – output
1.4.7 Clearance – input
(M type only)
1.4.8 Switch setting
1.5 Tightening torques
1.6 Transmission test (test bench)
1. 7 Special tools
1.8 Oilflow chart (Position N)
(E – type)
(M – type)
Disassembly
(procedure)
(snap ring)
(snap ring)
(snap ring)
(snap ring)
(snap ring)
(disk)
(disk)
( detent spring)
2.1 Transmission disassembly according to component groups
Dismantling
Turret (with clutches A and E)
Oil supply
Clutch B
Brakes C and D
Output shaft with parking lock
Transmission casing with shift-control and parking lock
Assembly
Transmission casing with shift control and parking lock
Output shaft with parking lock and planetary gear set
Brakes C and D
Clutch B
Turret ( drive with clutches A and E)
3 .5 .1 Clutch E (drive)
3.5.2 Clutch A (input)
Oil supply
Mechatronics, oil pan and converter
(Complete mechatronics, see spare parts list, technical cover sheet, item Y02)

Customer Support: [email protected]

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]

S.V
