ZF-TRONIC 10AS 2301, 12AS 2301 & 16AS 2601 Repair Manual 1327 751 101 PDF
$17.95
ZF-TRONIC 10AS 2301, 12AS 2301 & 16AS 2601 Repair Manual 1327 751 101 – PDF DOWNLOAD
Description
ZF-TRONIC 10AS 2301, 12AS 2301 & 16AS 2601 Repair Manual 1327 751 101 – PDF DOWNLOAD
FILE DETAILS:
ZF-TRONIC 10AS 2301, 12AS 2301 & 16AS 2601 Repair Manual 1327 751 101 – PDF DOWNLOAD
Language : English
Pages : 58
Downloadable : Yes
File Type : PDF

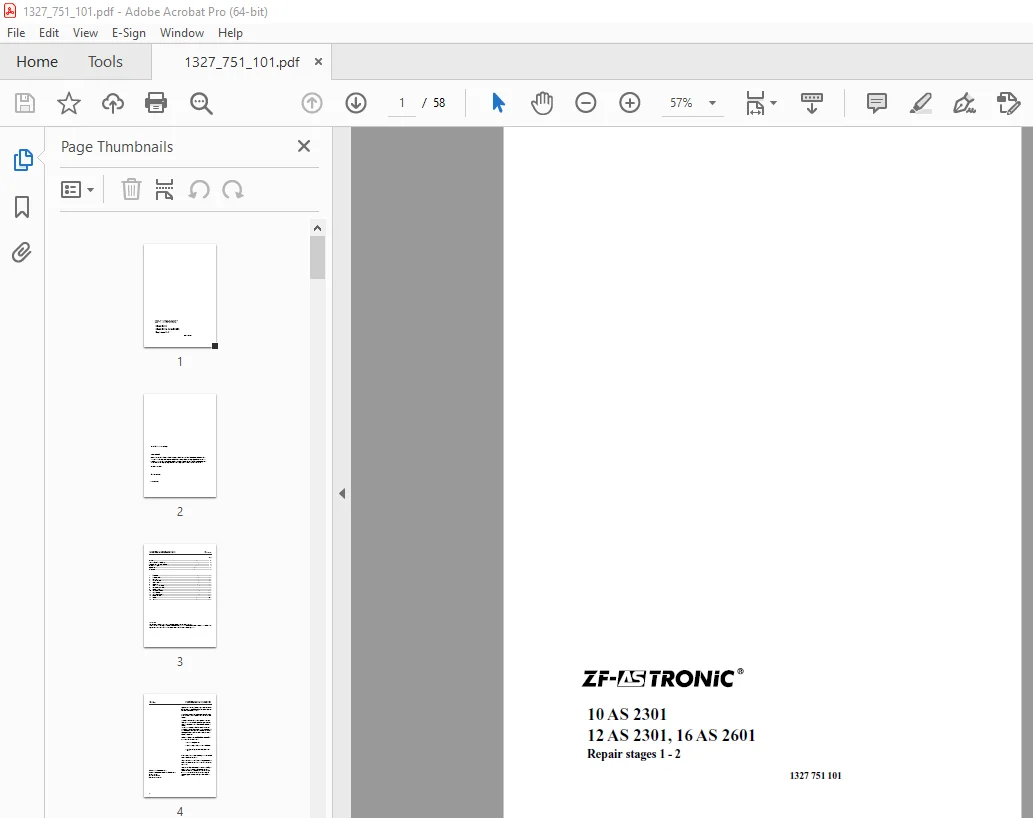

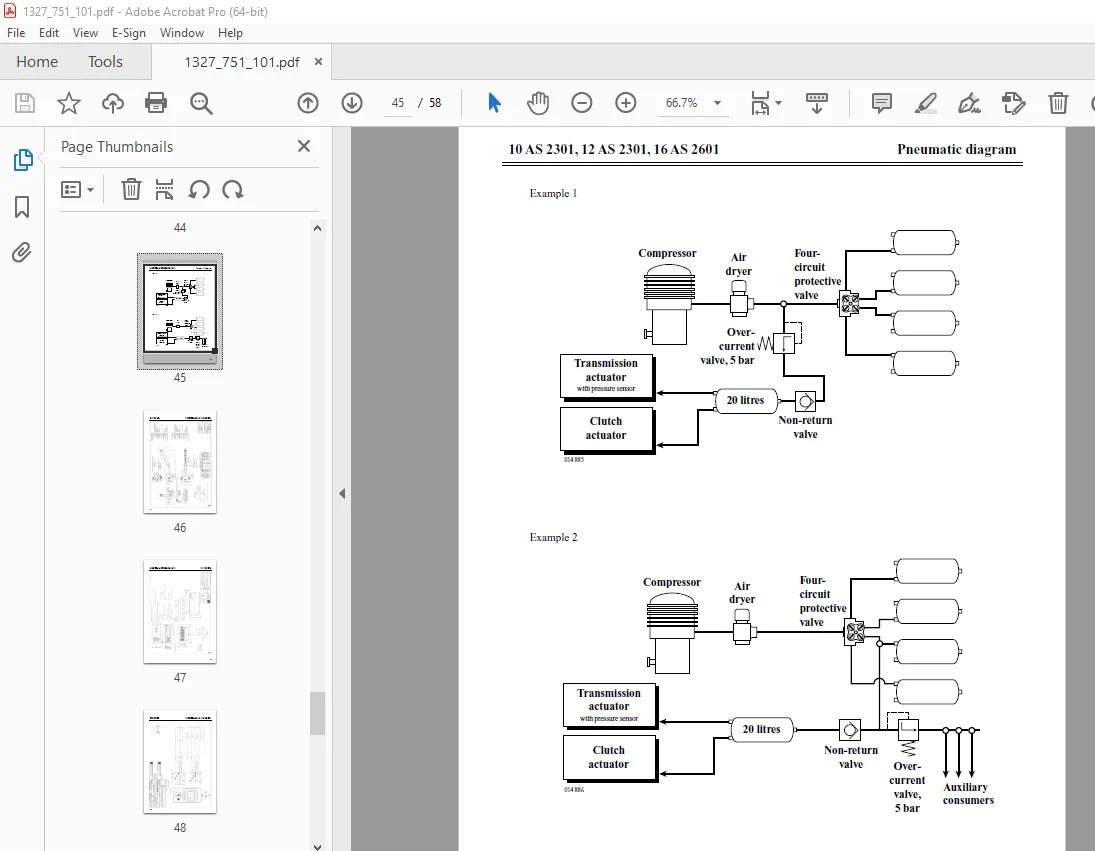

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
ZF-TRONIC 10AS 2301, 12AS 2301 & 16AS 2601 Repair Manual 1327 751 101 – PDF DOWNLOAD
back to the start 0
10 AS 2301 12 AS 2301, 16 AS 2601ZF-ASTRONIC 1
Contents 3
Preface 4
Important information 5
SAFETY NOTICE 5
GENERAL INFORMATION 5
Instructions for repairs 6
Tightening torques 8
Special tools 10
Diagnosis 13
1 E module* 15
1 1 Removal 15
1 2 Fitting 15
1 3 Changing the connector 15
2 Range selector 17
2 1 Console range selector 17
2 1 1 Removal 17
2 1 2 Fitting 17
2 1 3 Changing the connector 17
2 2 Steering column range selector* 18
2 2 1 Removal 18
2 2 2 Fitting 18
2 2 3 Changing the connector 18
3 Display 19
3 1 Removal 19
3 2 Installation 19
3 3 Wiring diagram 19
3 3 1 Changing the connector 19
4 Wiring harness (central wiring) 21
4 1 Removal 21
4 2 Fitting 21
4 3 Vehicle connectors 21
5 Clutch actuator 23
5 1 Removal 23
5 2 Thrust rod 23
5 3 Fitting 24
6 Changing the driver disc (not within ZF’s scope of supply) 25
6 1 Fitting engine, clutch and transmission 25
7 Clutch release device 27
7 1 Removal of release fork 27
7 2 Fitting release fork 27
8 Transmission actuator 29
8 1 Removal 29
8 2 Installation 30
9 Changing input shaft seal 31
9 1 Removal 31
9 2 Fitting 31
10 Changing transmission brake 33
10 1 Removal 33
10 2 Fitting 34
11 Output flange 35
11 1 Removal 35
11 2 Fitting 35
11 3 Removing output cover 36
11 4 Fitting output cover 36
12 Output speed sensor (impulse sensor) Depends on vehicle manufacturer 37
12 1 Removal 37
12 2 Fitting 37
12 3 Changing the connector 37
DESCRIPTION:
ZF-TRONIC 10AS 2301, 12AS 2301 & 16AS 2601 Repair Manual 1327 751 101 – PDF DOWNLOAD
Preface :
This manual is intended for skilled personnel trained by ZF FRIEDRICHSHAFEN AG to carry out maintenance and repair work on ZF products.
- This manual deals with a ZF product in accordance with the state of development of test rigs on the date of issue.
- However, due to continuing development of function test rigs, repair work might require work practices and test or adjustment data which are not contained in this manual.
- We therefore recommend that work done on your ZF product is carried out only by skilled mechanics and fitters who have had their practical and theoretical knowledge updated on a regular basis at our After-Sales Service training courses.
Service points equipped by ZF FRIEDRICHSHAFEN AG all over the world offer you:
1. Well-trained personnel.
2. Specified equipment, e.g. specialized tools.
3. Genuine ZF spares, to our latest specifications.
S.V 1/04/2025
