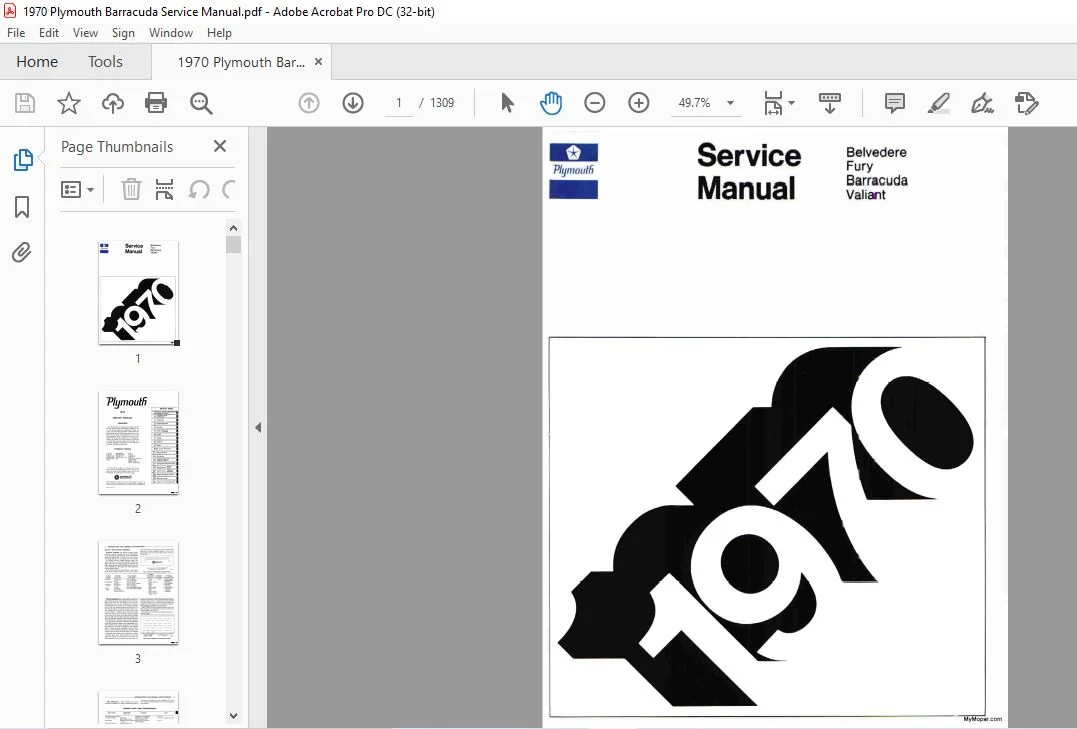

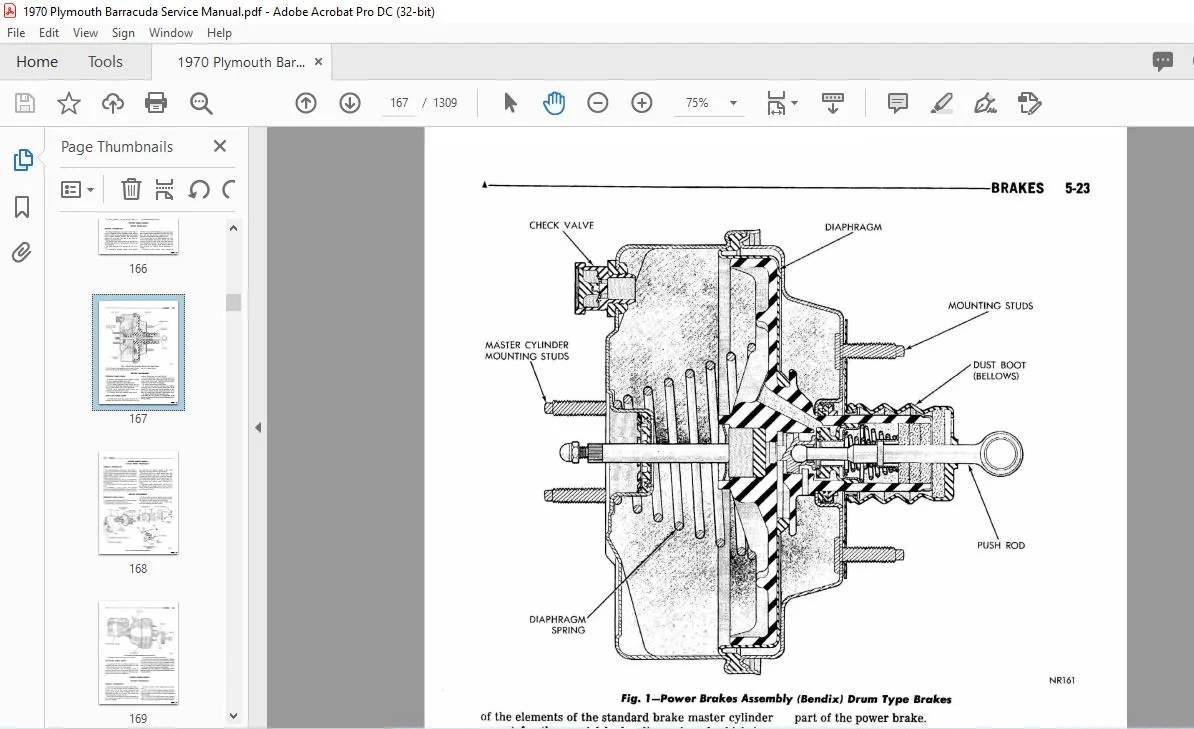

IMAGE PREVIEW:
DESCRIPTION:
1970 PLYMOUTH BELVEDERE FURY BARRACUDA VALIANT SERVICE MANUAL – PDF DOWNLOAD
- This Plymouth Service Manual has been prepared with the latest service information available for use on 1970 models.
- Diagnosis, disassembly, repair, assembly and installation procedures coupled with complete specifications and tightening references can be found in each group.
- This publication is one of the most important “tools” available to the service technician.
- It will prove an invaluable aid in properly performing any phase of service necessary to maintain or restore the fine performance and reliability characteristics designed, engineered, and manufactured into these outstanding automobiles.All engine serial numbers contain fourteen characters and digits.
- The first two designate power train, the next three are the cubic inch displacement, the next one designates lo’:Y compression, -the next four are based on a 10,000 day calendar and the last four designate engine built that day.
- All 198 and 225 cubic inch engines have the serial numbers stamped on the joint face at right corner, adjacent to number 1 cylinder bore. All 318 and 340 cubic inch engines have the serial numbers stamped on the front of the block just below the left cylinder head. All 383, 426 and 440 cubic inch engines have the serial numbers stamped on the cylinder block pan rail at the left rear corner below the starter opening.
- On all engines, information identifying undersized crankshaft, oversized tappets, low compression, oversized cylinder bores, engine built that day, the shift and 10,000 day calendar is stamped on the cylinder block at various locations depending on engine. There can be as many as fifteen characters and digits in this location. 198 and 225 cubic inch engines are stamped on the joint face at right corner, adjacent to number 1 cylinder bore, after serial number.
- 318 and 340 cubic inch engines are stamped on the front of the block just below the left cylinder head. 383 cubic inch U-440 H/Perf. V-440 3/2 Bbl. Z-Spec. Ord. 8 (Export) R-Windsor engines are stamped on the right bank joint face just forward of the number 2 cylinder bore. 426 and 440 cubic inch engines are stamped on the left bank pad, adjacent to front tappet rail. For additional information on engines, see Group 9 in this manual.
TABLE OF CONTENTS:
1970 PLYMOUTH BELVEDERE FURY BARRACUDA VALIANT SERVICE MANUAL – PDF DOWNLOAD
Introduction, General Specifications
and Conve sion Tables
0 Lubrication and ] Maintenance
1 Accessories I
2 Front Suspension I
3 Re~r Axle I
5 Service
~- -Brakes_.:..Parking . I
6 Clutch I
7 Cooling I
8 Electrical I
9 Engine I
9-A Cleaner Air System I
(_ _lJ “””‘Exhaust System I
I 14 Fuel System I
16 Propeller Shaft and
Universal Joints
17 Springs and Shock Absorbers
19 . Manual
Steenng Gear-power
21 Transmission-
22 Wheels, Bearings and Tires
23 Body and Frame
24 Heaters and Air-Conditioning
