1971 Chevrolet Truck chassis 10 30 series & passengers cars overhaul manual – PDF DOWNLOAD
Video Preview:

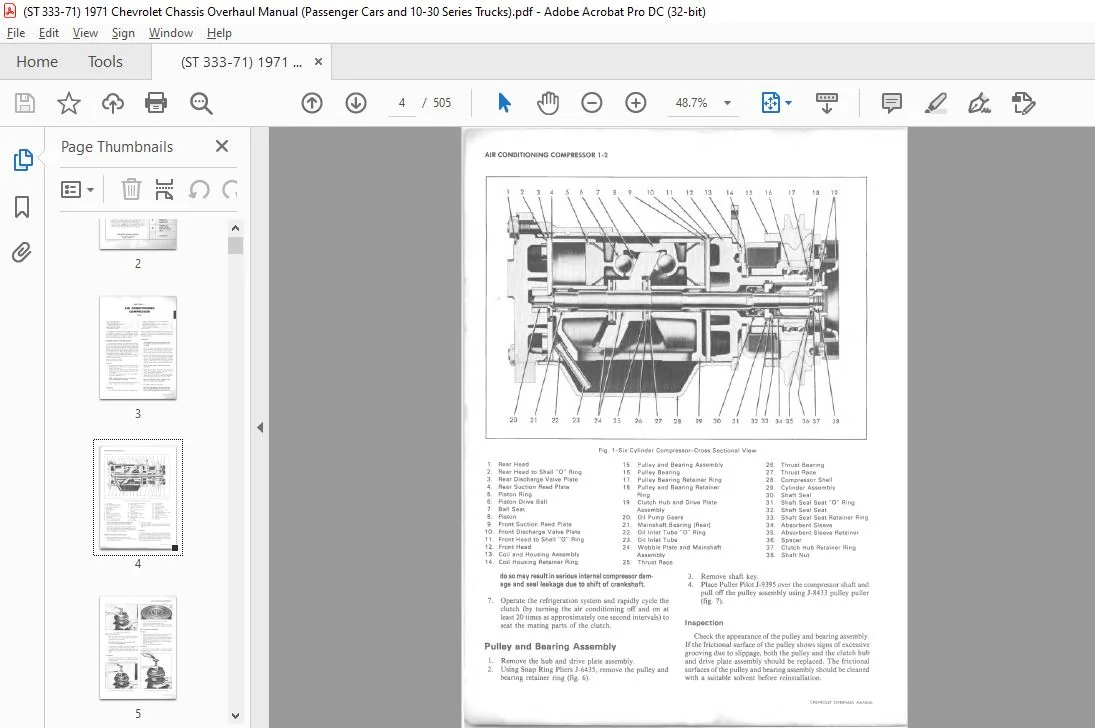

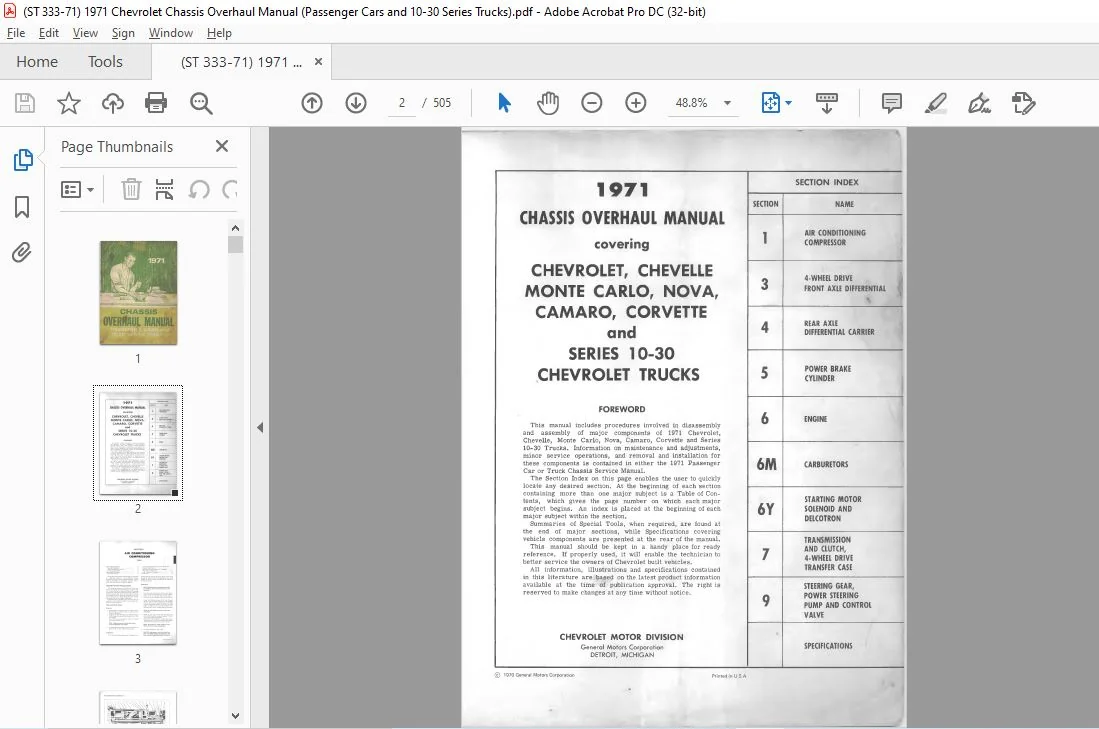

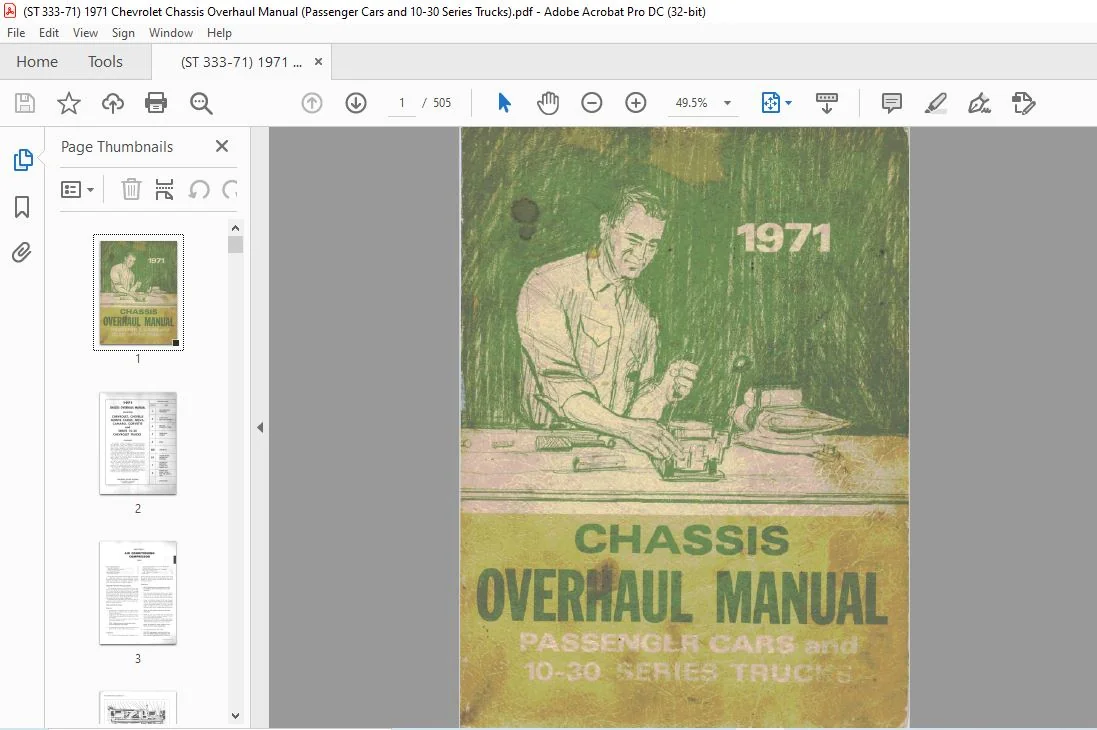

Image Preview:
Description:
1971 Chevrolet Truck chassis 10 30 series & passengers cars overhaul manual – PDF DOWNLOAD
- This manual includes procedures involved in disassembly and assembly of major components of 1971 Chevrolet, Chevelle, Monte Carlo, Nova, Camaro, Corvette and Series 10-30 Trucks.
- Information on maintenance and adjustments, minor service operations, and removal and installation for these components is contained in either the 1971 Passenger Car or Truck Chassis Service Manual.
- The Section Index on this page enables the user to quickly locate any desired section. At the beginning of each section containing more than one major subject is a Table of Contents, which gives the page number on which each major subject begins.
- An index is placed at the beginning of each major subject within the section. Summaries of Special Tools, when required, are found at the end of major sections, while Specifications covering vehicle components are presented at the rear of the manual.
- This manual should be kept in a handy place for ready reference. If properly used, it will enable the technician to better service the owners of Chevrolet built vehicles. All information, illustrations and specifications contained in this literature are based on the latest product information available at the time of publication approval.
- The right is reserved to make changes at any time without notice.
Table Of Contents:
1971 Chevrolet Truck chassis 10 30 series & passengers cars overhaul manual – PDF DOWNLOAD
Minor Repair Procedures…………………………… …………. 1-1
Compressor Rear Head and Internal Mechanism 1-7
Hub and Drive Plate……………………………….. …………. 1-1
Pressure Relief Valve …………………………………………. 1-7
Pulley and Bearing Assembly…………………. …………. 1-2
Rear Head, Oil Pump and Valve Assemblies…… 1-7
Coil Housing Assembly …………………………. …………. 1-3
Major Internal Mechanism…………………………………. 1-8
Major Repair Procedures…………………………… …………. 1-4
Leak Testing the Compressor…………………………….. 1-13
Shaft Seal Assembly……………………………….. ………… 1-5
Special T o o ls…………………………………………………………… 1-15
Please Note:
- This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
- This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
- Require some other service manual or have any queries: please WRITE to us at [email protected]
Leon T –
Downloaded manual, received as ordered. Thanks!
