1983 Suzuki XN85 Turbo Service Manual – Turbo & Electronic Fuel Injection Repair Guide

Description

The 1983 Suzuki XN85 Turbo Service Manual is the complete workshop repair guide for Suzuki’s turbocharged, fuel-injected 673 cc four-cylinder sport motorcycle. It covers the full XN85 Turbo – engine, turbocharger, electronic fuel injection, transistorized ignition, anti-dive front fork, Full-Floater rear suspension, and every chassis and electrical system fitted to the machine. Every procedure, specification, torque value and service limit printed in this 1983 Suzuki XN85 Turbo service manual was written for the technician working on the XN85 Turbo itself, not for a generic Suzuki four. If you own, restore, or maintain an XN85 Turbo, this is the reference document that matches your machine.

File Details

• Manual type: Service manual – full workshop repair, maintenance and overhaul guide
• Brand: Suzuki
• Model: XN85 TURBO (XN85)
• Model year: 1983
• Language: English
• File format: PDF
• Page count: Approximately 200 pages

Chapters Covered

• 1. General Information
  • Serial number locations (VIN and engine number)
  • Fuel and oil recommendations
  • Breaking-in procedures
  • Cylinder identification
  • Special features: blowby gas recycling, turbocharger, electronic fuel injection, transistorized ignition with electronic advance, Twin Dome combustion chamber, anti-dive front fork, Full-Floater suspension, special materials
  • Precautions and general instructions
  • Specifications
• 2. Periodic Maintenance and Tune-Up Procedures
  • Periodic maintenance schedule
  • Battery
  • Cylinder head nuts and exhaust pipe bolts
  • Air cleaner
  • Tappet clearance (shim replacement)
  • Spark plugs
  • Fuel lines and fuel filter
  • Engine oil and oil filter
  • Engine idle speed and throttle cable play
  • Clutch adjustment
  • Drive chain
  • Brakes, brake fluid, brake pads, brake pedal height, brake light switches, air bleeding
  • Tires, steering, front fork
  • Chassis bolts and nuts torque table
• 3. Servicing Engine
  • Compression check
  • Engine components removable with the engine in place
  • Engine removal and reinstallation
  • Engine disassembly
  • Cylinder head, valve and valve guide servicing
  • Camshaft, cam chain tensioner, cam chain
  • Cylinder, piston, piston rings
  • Connecting rod and crankshaft bearing selection
  • Clutch and starter clutch
  • Oil pump
  • Transmission gears and shift forks
  • Engine reassembly
• 4. Turbo-Charger and FI System
  • Turbo-charger layout, lubrication, removal, inspection and reassembly
  • Actuator and waste gate testing
  • Air flow system: air cleaner, air flow meter, potentiometer and air thermo-sensor
  • Intake manifold and throttle valve balancing
  • Fuel system: fuel tank, fuel cock, fuel filter, fuel pump, delivery pipe, injectors, pressure regulator, circuit opening relay
  • Fuel pressure and injector discharge testing

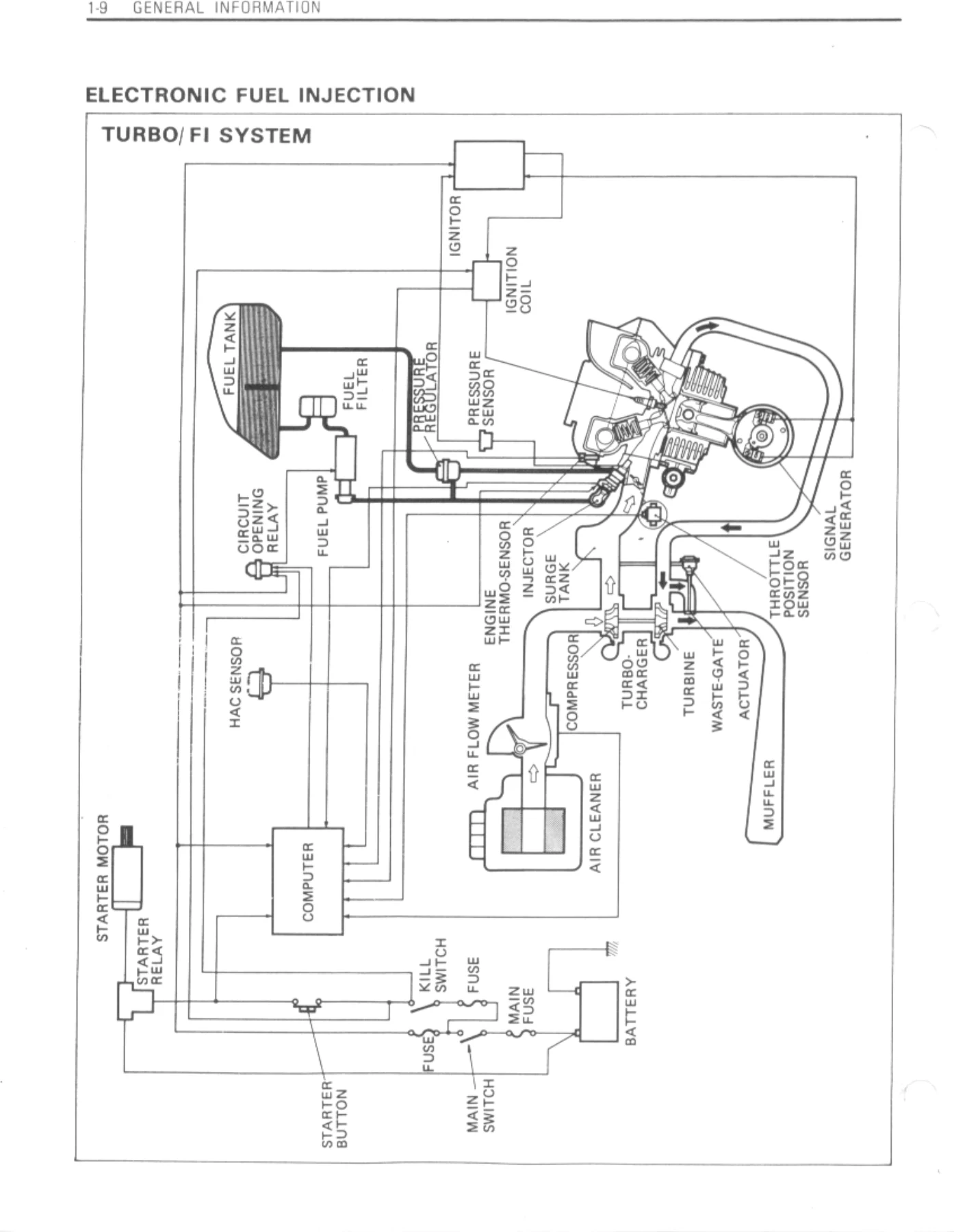

  • Electronic control system: computer, sensors, fuel injection compensation

The XN85 Turbo is not a warmed-over GS. It is a turbocharged, fuel-injected, anti-dive-equipped motorcycle built around systems that appear on no other Suzuki of its era, and this service manual treats those systems as first-class service items rather than footnotes. The turbocharger has its own removal procedure, its own lubrication path and its own actuator test with a hand air pump. The electronic fuel injection has a dedicated chapter covering the air flow meter and its measuring plate, the potentiometer, the air thermo-sensor, the four injectors, the delivery pipe, the pressure regulator and the circuit opening relay. The transistorized ignition with electronic advance is documented with revolution advance, boost advance, closing angle control, excess revolution prevention and excess supercharge pressure prevention characteristics. Nothing about this machine is left to guesswork.

The Turbocharger and Electronic Fuel Injection Are Covered in Depth

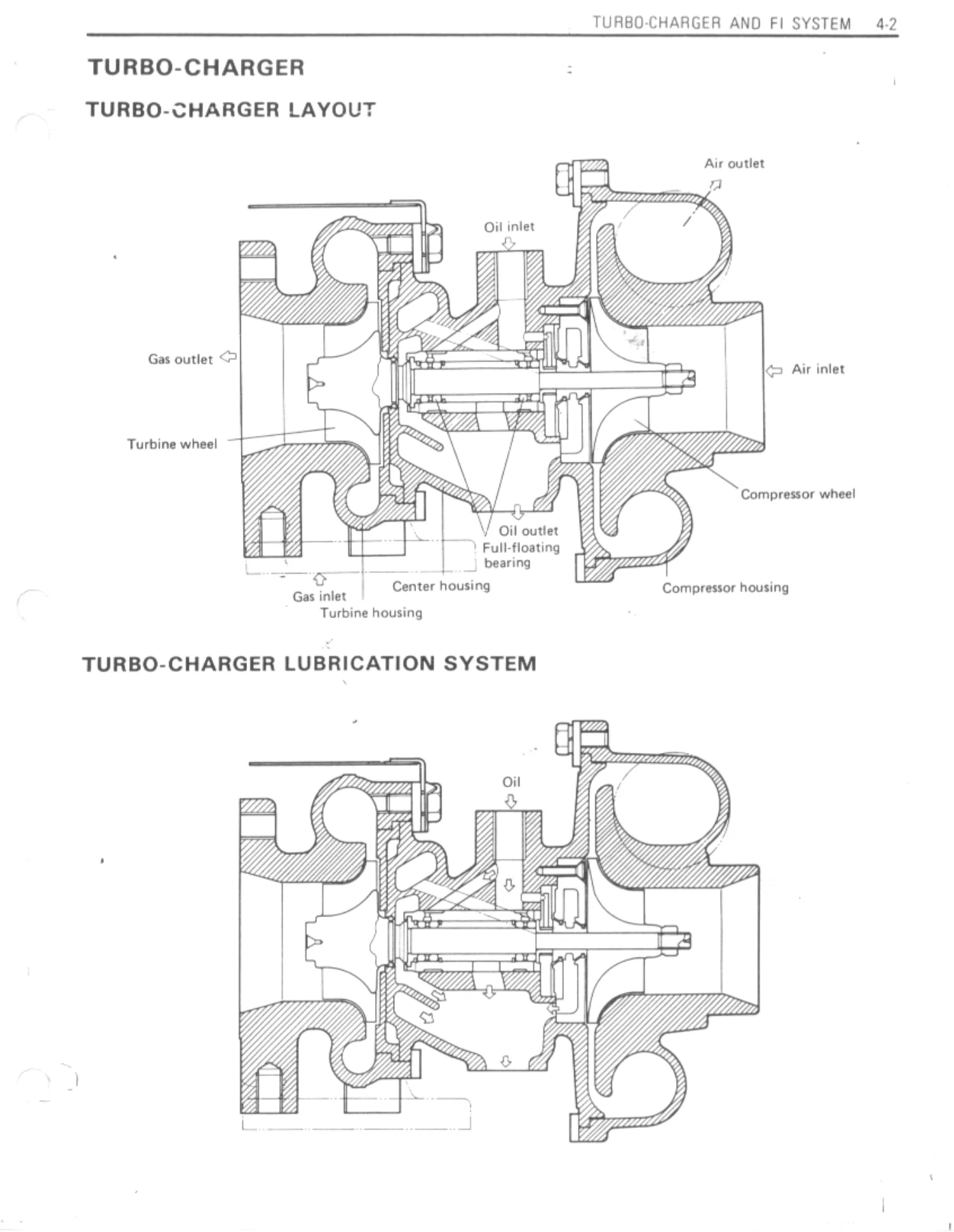

Most period manuals for Suzuki fours stop at carburettors and coil ignition. This one goes further. The turbocharger chapter walks through the turbine, compressor, center housing with its full-floating bearings, and the boost control waste gate, then gives a realistic field test using a hand air pump and air pressure regulating gauge at approximately 0.6 kg/cm2 to confirm the actuator rod moves. The air flow system chapter explains how the measuring plate and damping chamber smooth intake pulses before the signal reaches the computer, and how the bypass passage and CO adjustment screw are set at the factory. The fuel system chapter explains the low-pressure and high-pressure sides of the fuel circuit, the check valve that holds residual pressure for easier restarts, and the relief valve set at 4.5 kg/cm2. Injector testing is spelled out: 2 to 3 ohm solenoid coil resistance, a click test on 3 V, a 35 plus or minus 5 ml discharge over 15 seconds, and a 10-second leak check that should show no more than one drop.

Why the XN85 Turbo Needs Its Own Manual

The XN85 Turbo was produced in limited numbers, and its turbocharger, EFI computer, air flow meter, boost control, anti-dive fork hydraulics and Full-Floater rear suspension were never shared with the mainstream GS range. A generic Suzuki four-cylinder manual will not tell you how to bleed the front brakes in the correct anti-dive sequence, how to balance the four throttle valves with a carburetor balancer at around 2000 r/min, how to select the correct crankshaft and connecting rod bearing by colour code, or how to time the camshafts using the arrow marks and the 20th chain roller pin. This manual does. It is the difference between a running turbocharged four and a machine that sits because the fuel pressure, boost reference or valve timing was set by ear.

What You Can Do With This Manual

With this 1983 Suzuki XN85 Turbo service manual in hand you can carry out the full periodic maintenance schedule, adjust tappet clearances by shim replacement, set engine idle to 1050 plus or minus 50 r/min, adjust throttle cable play to 0.5 mm and clutch cable play to 2 to 3 mm, and set drive chain slack to 30 to 40 mm. You can remove and reinstall the engine, strip the top end, service the valves and valve guides, check camshaft runout and cam wear against the service limits, measure cylinder bore and piston clearance, replace piston rings and circlips, select connecting rod and crankshaft journal bearings by code, rebuild the clutch and starter clutch, service the oil pump, and reassemble the transmission with the correct shift fork positions. On the induction side you can remove and inspect the turbocharger, test the waste gate actuator, check the air flow meter potentiometer resistance values, verify the air thermo-sensor resistance across the temperature range, test the pressure regulator in both positive and negative pressure, measure fuel pump discharge, test the injectors, and check the circuit opening relay. On the chassis you can bleed the linked anti-dive brake circuit in the correct order, set brake pedal height, service the Full-Floater rear suspension, and torque every listed chassis fastener from the handlebar clamp bolts to the swing arm pivot nut. The torque tables, service limits and clearance values are all here, which is exactly what matters when a turbocharged engine will punish a wrong clearance far faster than a naturally aspirated one.

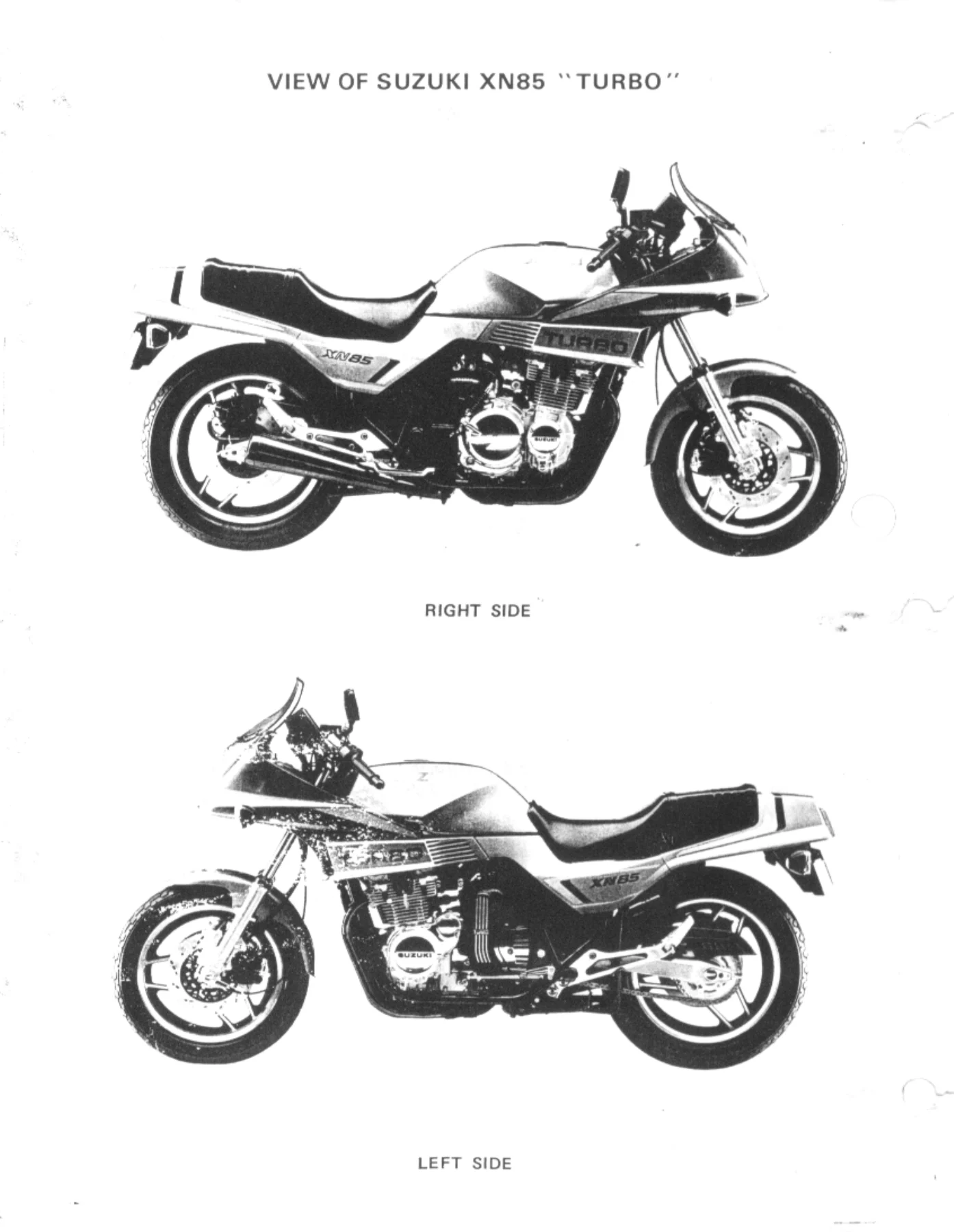

IMAGES PREVIEW

Delivery is instant. This 1983 Suzuki XN85 Turbo service manual is supplied as a PDF download – no shipping, no waiting, no physical book to lose in the workshop. Open it on a laptop, tablet or phone, zoom into the exploded views and wiring diagrams, and print the pages you need for the job in front of you. Whether you are doing a routine service, chasing a boost or fuelling fault, or bringing a neglected XN85 Turbo back to life, this is the document that keeps the work correct.
