1989-1998 Honda PC800 Pacific Coast Service Manual – Complete Workshop PDF

Description

1989-1998 Honda PC800 Pacific Coast Service Manual

This Honda PC800 Pacific Coast Service Manual is the model-specific workshop reference for the Pacific Coast, covering the 1989-1990 and 1994-1998 model years. Published by Honda Motor Co., Ltd. Service Publication Office, it is written for technicians who already have a basic working knowledge of Honda motorcycle, scooter, or ATV maintenance. The manual is designed to be used alongside the Common Service Manual, which covers shared service procedures; this edition focuses on every procedure that is specific to the PC800 Pacific Coast.

Whether you are servicing a single machine in a home garage or running a workshop that sees these machines regularly, this 1989-1998 Honda PC800 Pacific Coast Service Manual provides the sequence, the settings, and the illustrations needed to work to manufacturer-level standards.

File Details

• Manual Type: Model-Specific Service Manual
• Brand: Honda
• Model: PC800 Pacific Coast
• Coverage Years: 1989-1990, 1994-1998
• Language: English
• Pages: 138
• File Format: PDF
• Publisher: Honda Motor Co., Ltd. Service Publication Office

Chapters Covered in This PC800 Pacific Coast Service Manual

The manual is divided into 22 numbered sections. Each section opens with its own table of contents, and most service procedures are led by a large system illustration with numbered callouts. The chapters in this Honda PC800 Pacific Coast Service Manual are:

• 1. General Information
• 2. Frame/Body Panels/Exhaust System
• 3. Maintenance
• 4. Lubrication System
• 5. Fuel System
• 6. Cooling System
• 7. Engine Removal/Installation
• 8. Cylinder Head/Cylinder/Piston
• 9. Clutch/Gearshift Linkage
• 10. Crankshaft/Transmission
• 11. Final Drive
• 12. Front Wheel/Suspension/Steering
• 13. Rear Wheel/Suspension
• 14. Brake System
• 15. Charging System/Alternator
• 16. Ignition System
• 17. Electric Starter/Starter Clutch
• 18. Lights/Meters/Switches
• 19. Wiring Diagram
• 20. Technical Feature
• 21. Troubleshooting
• 22. Index

Section 1 and Section 3 apply to the whole motorcycle, while Section 2 illustrates removal and installation of the body panels and components needed before you can reach the systems detailed in Sections 4 through 19. Sections 4 through 19 are grouped by area — engine internals, transmission and final drive, chassis, brakes, and electrical. Section 20 covers the technical features specific to the PC800, Section 21 is a standalone troubleshooting chapter, and the index at the back lets you jump directly to a component or procedure.

What This Honda PC800 Service Manual Covers in Practice

Because the 1989-1998 Honda PC800 Pacific Coast Service Manual was assembled by Honda for the PC800 rather than adapted from a generic source, it addresses the machine on its own terms. The engine is an 800cc liquid-cooled 45-degree V-twin with a silent multi-link chain-drive OHC valvetrain and rocker arms. The manual documents valve train service, hydraulic tappet inspection and adjustment, camshaft removal and installation with the RT and FT timing marks, cam chain tensioner inspection, and cylinder head, cylinder, and piston procedures — all with the specific wear limits and torque values the factory publishes for this engine.

On the driveline side, this Honda PC800 Pacific Coast Service Manual walks through the clutch and primary drive gear, the hydraulic clutch master and slave cylinders, the gearshift linkage and shift drum service, crankshaft and transmission, and the final drive gear assembly with its backlash, preload, and shim selection procedures. Rear wheel and final drive oil capacity, hypoid gear oil specification, and ring gear-to-stop pin clearances are all listed in the specification tables.

The chassis and braking chapters cover the telescopic front fork with anti-dive case, the swingarm and rear damper, the hydraulic double-disc front brake and mechanical drum rear brake, wheels, tires, and steering head bearings. The electrical chapters include the charging system and alternator, ignition system with pickup coil and exciter coil resistance values, electric starter and starter clutch, and the lights, meters, and switches section. A dedicated wiring diagram section is included, and the emission control chapters cover the crankcase emission system, exhaust emission control system, and — for the California model — the evaporative emission control system with its purge control valve, air vent control valve, canister, and vacuum hose routing diagram.

Specifications, Torque Values, and Service Limits

A large General Information section near the front of this 1989-1998 Honda PC800 Pacific Coast Service Manual gathers the numbers you need in one place. It includes motorcycle dimensions, dry and curb weights, maximum weight capacity, tire pressures and sizes, fuel tank capacity, and fork oil capacity for pre-1994 and post-1994 models. Engine specifications list bore and stroke at 79.5 x 80.6 mm, displacement of 800cc, a 9.0:1 compression ratio, and firing order. Lubrication, fuel system, cylinder head, cylinder and piston, crankshaft, transmission, clutch, cooling, drive train, wheels and tires, front and rear suspension, brake, battery and charging, ignition, and starting system specifications each have their own table of standard and service-limit values.

Standard fastener torque values and a detailed list of important torque specifications for engine, frame, cooling, fuel, suspension, and brake fasteners are included. Notes alongside the torque tables flag the fasteners that require sealant, locking agent, molybdenum disulfide oil, engine oil, or grease, and identify left-hand threads, staked fasteners, and UBS bolts.

Maintenance Schedule and Troubleshooting

Section 3 in this Honda PC800 Pacific Coast Service Manual is the maintenance schedule, listing the intervals in miles and kilometres for the items that must be inspected, cleaned, adjusted, lubricated, or replaced — fuel line, throttle operation, carburetor choke, air cleaner, spark plug, engine oil and filter, carburetor synchronization, idle speed, radiator coolant, cooling system, evaporative emission control, final drive oil, brake fluid, brake shoe and pad wear, brake system, brake light switch, headlight aim, clutch, clutch fluid, side stand, suspension, nuts and bolts, wheels and tires, and steering head bearings. Section 21 groups troubleshooting symptoms — engine won’t start, lean mixture, rich mixture, stalling, afterburn, misfiring, poor driveability, and excessive exhaust noise — under the likely causes.

Who This Honda PC800 Pacific Coast Service Manual Is For

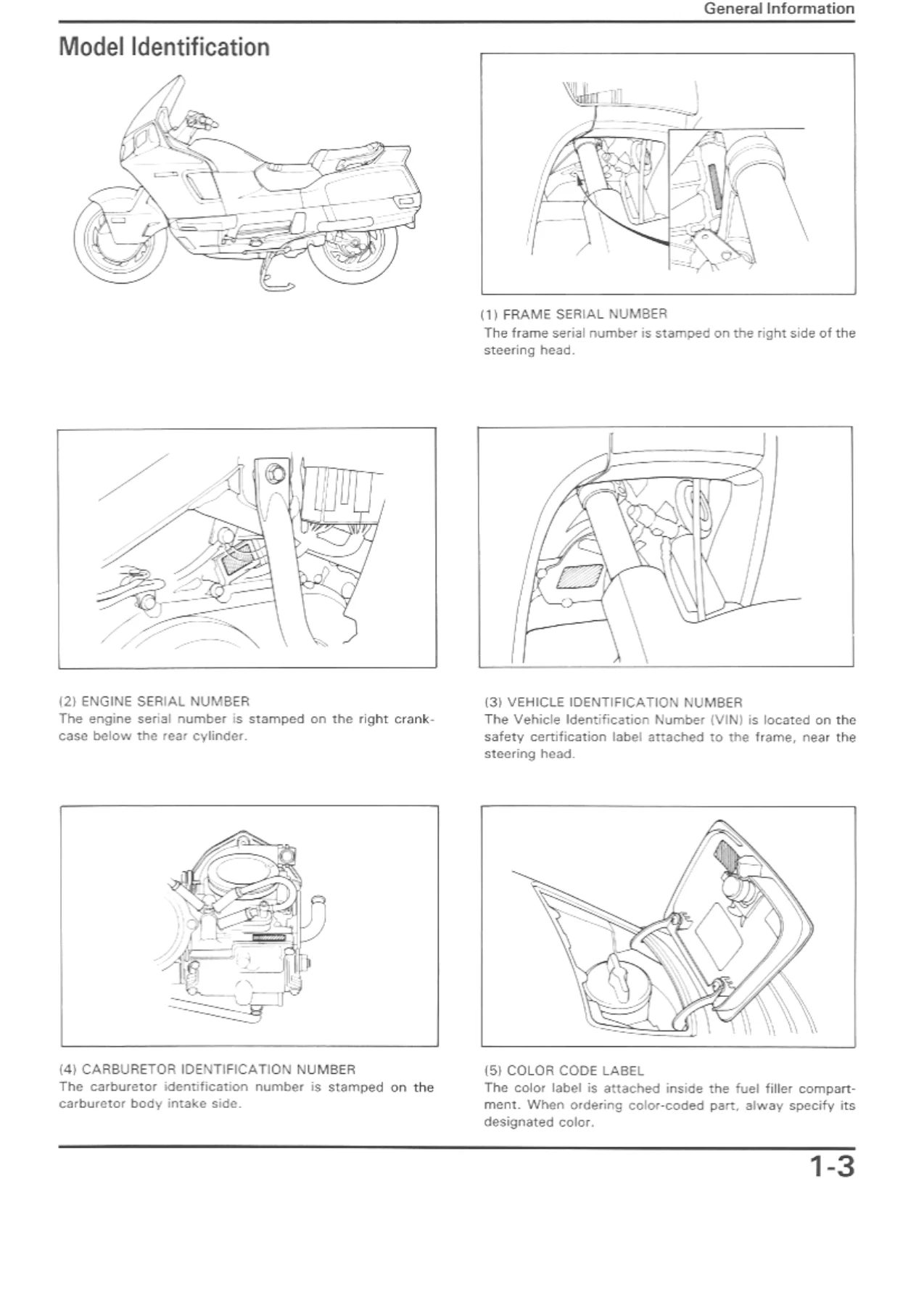

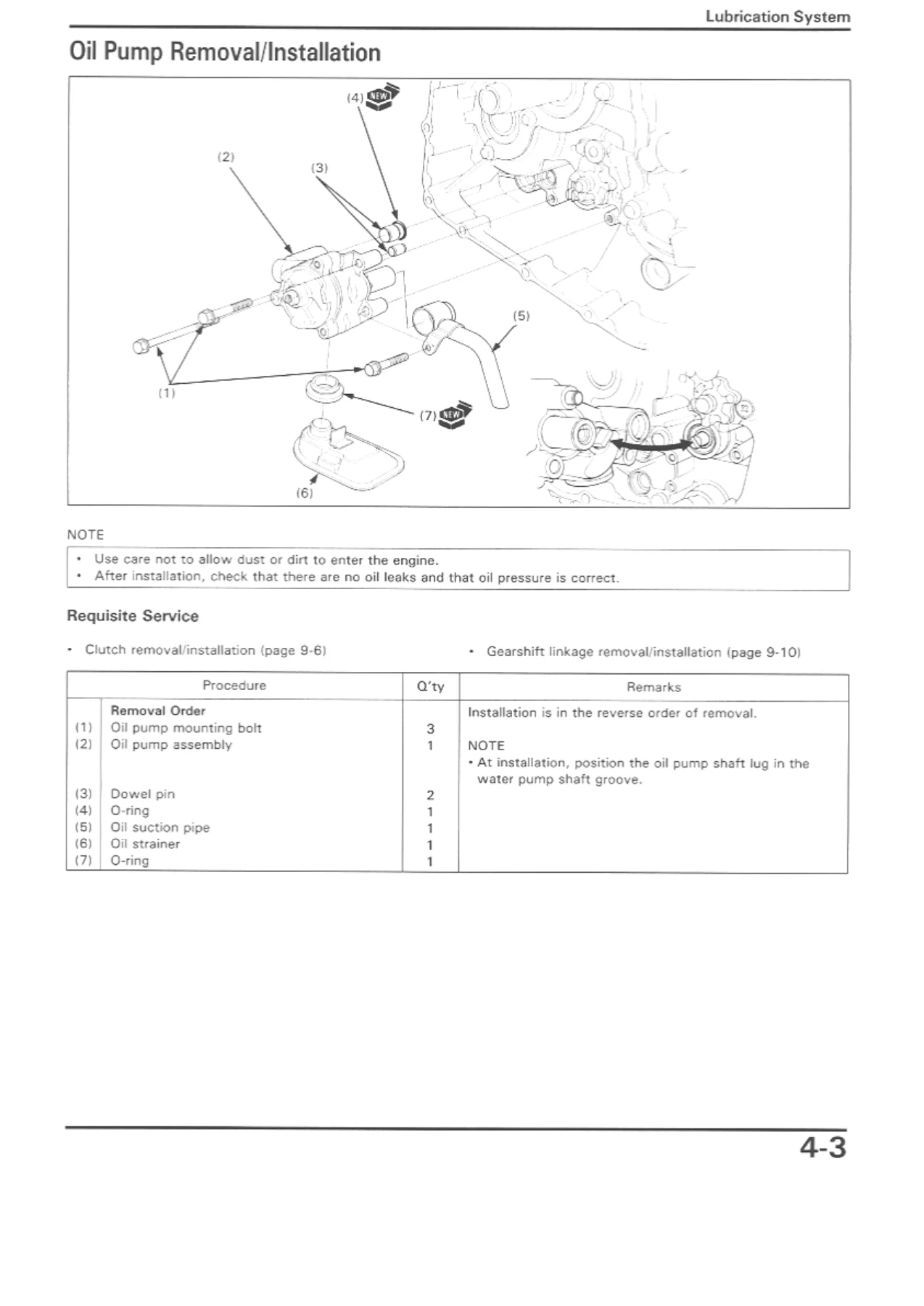

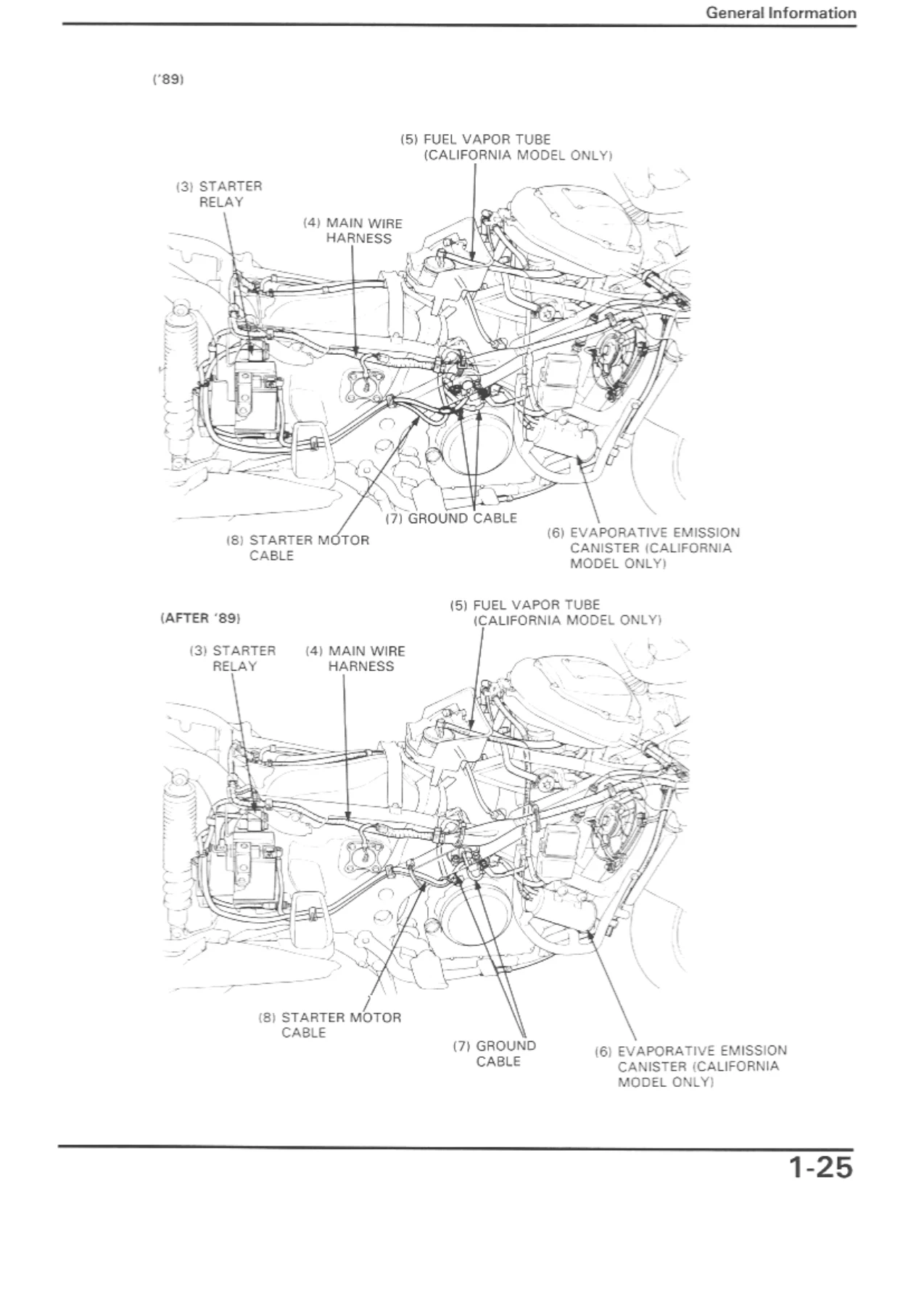

IMAGES PREVIEW

This manual is intended for readers who already understand basic motorcycle service. It is a working reference rather than an introduction to mechanics, and it makes the most sense for owners, independent shops, and restorers who already have the Common Service Manual or equivalent experience to fall back on. The 1989-1998 Honda PC800 Pacific Coast Service Manual is delivered as an instant PDF download, so you can have it open on a laptop or tablet in the garage, print the pages you need for a job, and keep the rest of the manual clean.
