1992-2010 Ford Econoline E-Series E-150 E-250 E-350 Service Repair Manual PDF

Description

1992-2010 Ford Econoline E-Series E-150 E-250 E-350 Service Repair Manual PDF

This 3346-page 1992-2010 Ford Econoline E-Series E-150 E-250 E-350 Service Repair Manual PDF is a large service and repair compilation for Ford Econoline vans. It combines a Haynes Ford Vans Automotive Repair Manual covering 1992 through 2010 gasoline-powered E-Series vans with an extensive set of Mitchell repair-information articles centered on the 1998 Ford Econoline. The result is a broad workshop reference covering routine maintenance, engine mechanical work, driveline service, brakes, steering and suspension, HVAC, electrical systems, engine management, diagnostics and wiring.

The Haynes portion identifies coverage for E-150, E-250 and E-350 Econoline vans with 4.2L V6, 4.9L inline six-cylinder, 5.0L, 5.8L and 7.5L OHV V8, 4.6L and 5.4L OHC V8, and 6.8L OHC V10 gasoline engines from 1992 through 2010. That Haynes section specifically excludes diesel, compressed natural gas and commercial-chassis information. The Mitchell material adds detailed 1998 E-Series information including gasoline diagnostics as well as 7.3L turbo-diesel and 5.4L CNG material in applicable articles.

File Details

• Manual type: Service and repair compilation
• Brand: Ford
• Models: E-150, E-250 and E-350 Econoline vans
• Primary Haynes coverage: 1992 through 2010
• Language: English
• Page count: 3346 pages
• File format: PDF

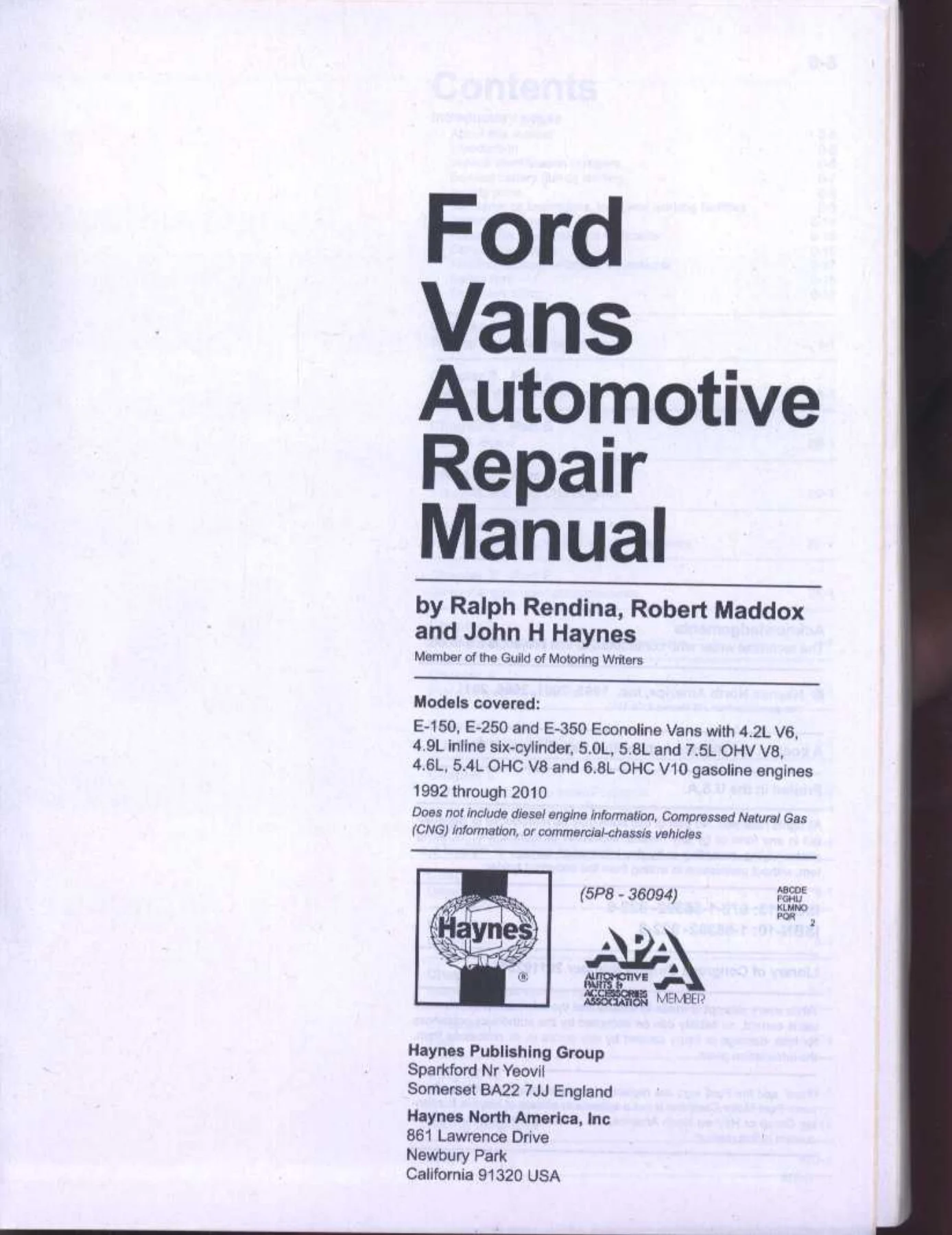

• Haynes title: Ford Vans Automotive Repair Manual
• Haynes ISBN-13: 978-1-56392-922-9
• Additional source: 1998 Mitchell Repair Information Company service articles

Engine Coverage

The Ford Econoline E-Series service repair compilation contains substantial mechanical and engine-management information across the engine families identified in the manual. The Haynes coverage includes the 4.9L inline six-cylinder, 4.2L V6, 5.0L, 5.8L and 7.5L OHV V8 engines, together with 4.6L and 5.4L OHC V8 and 6.8L OHC V10 gasoline engines. The Mitchell section provides especially detailed 1998 information for engines such as the 4.2L V6, 4.6L V8, 5.4L V8 and 6.8L V10, and also contains specific material for the 7.3L turbo diesel and 5.4L CNG applications.

Engine articles go beyond basic removal information. They include identification, adjustments, removal and installation, dismantling and overhaul work, inspection measurements, torque specifications and service limits. Examples within the compilation include intake and exhaust manifolds, cylinder heads, valve gear, camshafts, timing chains, front covers, crankshaft seals, water pumps, oil pans and lubrication systems. Engine specification sections supply dimensional and service data for components such as crankshafts, bearings, pistons, rings, cylinder blocks, valves, valve springs and camshafts.

IMAGES PREVIEW

Chapters Covered

• Introductory information
  • Vehicle identification numbers
  • Booster battery starting
  • Buying parts
  • Maintenance techniques, tools and working facilities
  • Jacking and towing
  • Automotive chemicals and lubricants
  • Conversion factors and safety
  • Troubleshooting
• Chapter 1 – Tune-up and routine maintenance
• Chapter 2 Part A – 4.9L inline six-cylinder engine
• Chapter 2 Part B – 4.2L V6 engine
• Chapter 2 Part C – 5.0L, 5.8L and 7.5L OHV engines
• Chapter 2 Part D – 4.6L, 5.4L and 6.8L V8 and V10 OHC engines
• Chapter 2 Part E – General engine overhaul procedures
• Chapter 3 – Cooling, heating and air conditioning systems
• Chapter 4 – Fuel and exhaust systems
• Chapter 5 – Engine electrical systems
• Chapter 6 – Emissions and engine control systems
• Chapter 7 – Automatic transmission
• Chapter 8 – Driveline
• Chapter 9 – Brakes
• Chapter 10 – Suspension and steering systems
• Chapter 11 – Body
• Chapter 12 – Chassis electrical system
• Wiring diagrams
• Index

The Haynes chapters provide the structured vehicle-wide repair sequence, while the Mitchell portion expands the reference considerably with system-specific service articles, specifications, diagnostic routines and diagrams. Together they give an E-Series owner or technician material for both ordinary workshop jobs and more involved fault tracing.

Detailed Diagnostics and Engine Management

A major part of this Ford Econoline repair manual compilation is devoted to 1998 engine-performance diagnosis. The Mitchell material separates diagnostic work into engine/VIN identification, emission applications, service and adjustment specifications, on-vehicle adjustments, theory and operation, basic diagnostic procedures, self-diagnostics, troubleshooting without codes, system and component testing, pin-voltage charts, sensor operating-range charts, wiring diagrams, vacuum diagrams, and removal/overhaul/installation procedures.

For gasoline E-Series applications, the material contains diagnostic references for 4.2L, 4.6L, 5.4L and 6.8L engines. Procedures cover checking mechanical condition, ignition output, fuel delivery, air induction, emissions controls, PCM circuits and monitored sensors. Symptom-based sections address conditions such as no-start, loss of power, rough running, idle concerns, cooling-fan faults and exhaust-smoke complaints, while self-diagnostic material provides procedures for retrieving and interpreting trouble codes and tracing circuit faults.

The 7.3L diesel section includes EEC-V self-diagnostics and diagnostic trouble-code procedures, while the 5.4L CNG material includes dedicated testing for the applicable fuel and evaporative-control components. These sections are particularly useful because the compilation is not limited to basic mechanical disassembly; it also supports electrical and electronic diagnosis.

Transmission, Brakes, HVAC and Chassis Systems

The compilation extends well beyond engine repair. Transmission material includes diagnosis, service information and wiring relevant to E-Series applications. Driveline chapters cover the components between the transmission and driven wheels, while the brake material includes inspection, hydraulic and power-assist information and procedures applicable to the van platform.

Cooling and climate-control coverage is extensive. The 1998 manual A/C-heater section describes the main and auxiliary systems, compressor and refrigerant specifications, controls, operating modes and system testing. It contains symptom-based troubleshooting for improper airflow, insufficient or no heat, A/C that does not operate correctly, insufficient cooling, blend-door operation and main or auxiliary blower-motor faults. Removal and installation procedures cover components such as the accumulator-drier, blower motor, resistor, condenser, control panel, evaporator core, fixed orifice tube, heater core and auxiliary A/C-heater assembly. Vacuum and electrical diagrams support diagnosis of the HVAC system.

Additional service information covers steering and suspension, body components, accessories and chassis electrical equipment. The Mitchell articles include detailed system tests and component removal instructions where applicable, while the Haynes chapters provide a continuous repair-manual structure for the 1992-2010 gasoline E-Series range.

Specifications, Illustrations and Wiring Information

The 1992-2010 Ford Econoline E-Series E-150 E-250 E-350 Service Repair Manual PDF contains numerous specification tables and technical illustrations. Engine sections provide tightening sequences, torque values, clearances, wear limits and dimensional data. Illustrated procedures show component locations, timing-chain alignment, manifold and cylinder-head tightening sequences, cooling and HVAC arrangements, electrical connectors and other service details.

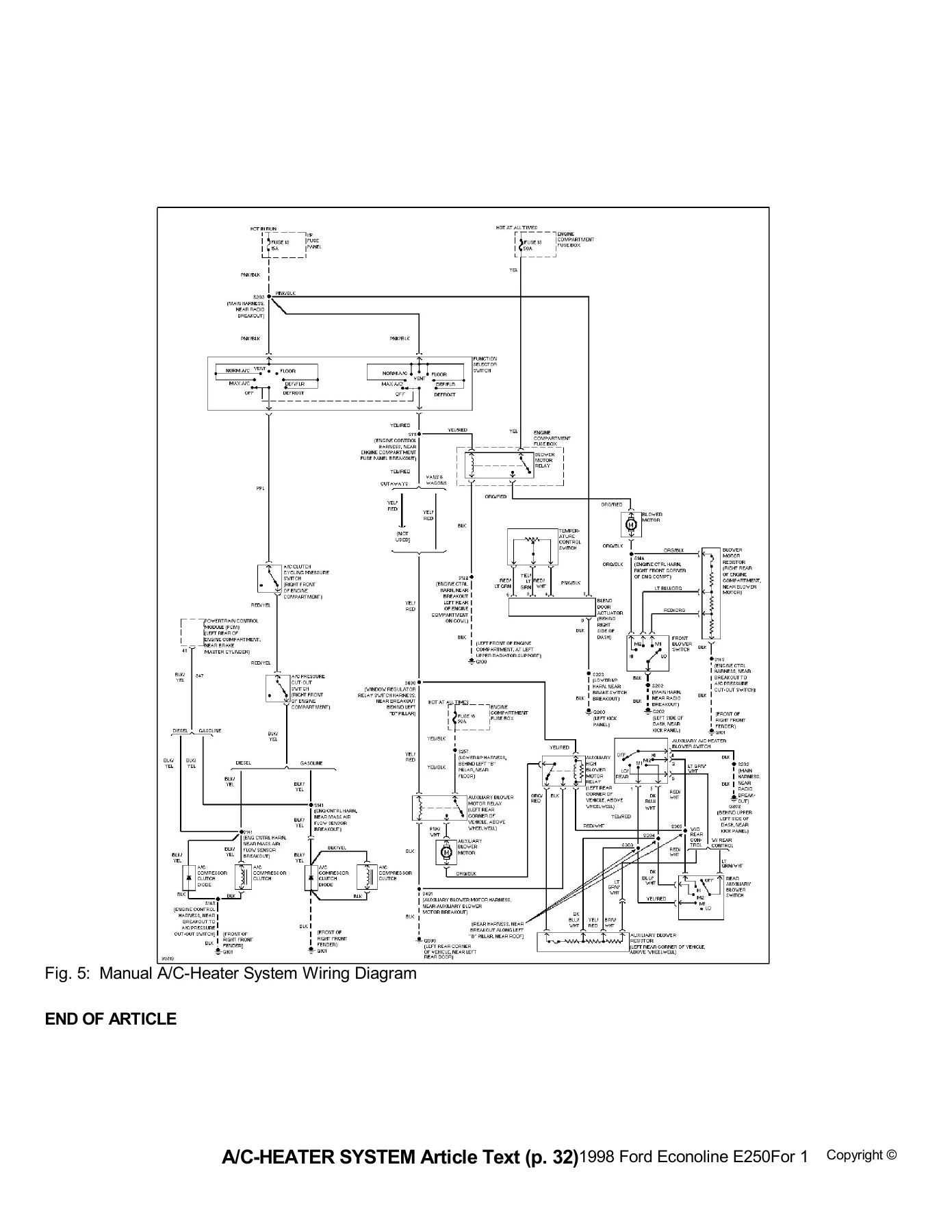

Electrical troubleshooting is supported by dedicated wiring material. The Mitchell engine-performance section includes PCM wiring diagrams, pin-voltage and sensor-range information for applicable engines, while the Haynes manual concludes with chassis electrical coverage and wiring diagrams. HVAC sections also include dedicated vacuum and wiring diagrams, allowing circuits and control paths to be followed during diagnosis.

Important Coverage Note

The Haynes Ford Vans Automotive Repair Manual portion covers E-150, E-250 and E-350 Econoline vans with the listed gasoline engines from 1992 through 2010. Its title page states that diesel-engine information, CNG information and commercial-chassis vehicles are not included in that Haynes coverage. The separate Mitchell portion of this compilation does, however, contain specific 1998 information for the 7.3L turbo diesel and 5.4L CNG alongside extensive gasoline E-Series service information.

Repair Your Ford Econoline with the Correct Procedures and Specifications

This 1992-2010 Ford Econoline E-Series E-150 E-250 E-350 Service Repair Manual PDF can support routine servicing, engine repairs and overhaul work, cooling and HVAC repairs, fuel and exhaust work, engine-management diagnosis, transmission and driveline service, brake repairs, steering and suspension work, chassis electrical troubleshooting and wiring diagnosis. Having the procedures, tightening sequences, measurements, service specifications and diagrams together in one large reference helps reduce guesswork when dismantling, inspecting, diagnosing and reassembling E-Series systems.

The manual is supplied as an instant PDF download after purchase, so there is no shipping or waiting for a printed book. You can open it on a computer, tablet or phone and print the pages you need for workshop use.
