1994-2004 Chevrolet S10 Pickup Service Manual – PDF DOWNLOAD

Description

1994-2004 Chevrolet S10 Pickup Service Manual – PDF DOWNLOAD

FILE DETAILS:

1994-2004 Chevrolet S10 Pickup Service Manual – PDF DOWNLOAD

DESCRIPTION:

1994-2004 Chevrolet S10 Pickup Service Manual – PDF DOWNLOAD

ENGINE IDENTIFICATION :

VEHICLE IDENTIFICATION NUMBER (VIN) :

The VIN is stamped on metal pad located near lower left corner of windshield. The “4” in eighth character of VIN identifies 2.2L 4-cylinder engine.

BROADCAST CODE LABEL & PARTIAL VIN :

The Broadcast Code label is located on the valve rocker arm cover. It identifies engine, transaxle, and vehicle relationship. The partial VIN (9 characters) is stamped on flange on left side of cylinder block, above starter.

Raise vehicle. Disconnect fuel pump electrical connector. Lower vehicle. Start and run engine until fuel supply in pipes is consumed. Engage starter for 3 seconds to assure relief of remaining pressure. Raise vehicle. Reconnect fuel pump electrical connector. Lower vehicle. Disconnect negative battery cable to avoid accidental engine start-up.

S10 Pickup & Sonoma: Turn ignition off. Disconnect negative battery cable. Loosen fuel tank filler cap to release tank vapor pressure. Wrap shop towel around fitting while connecting Fuel Pressure Gauge (J-34730-1A) to fuel pressure connection. Install gauge bleed hose into container. Open gauge valve to bleed system pressure. Drain remaining fuel in pressure gauge into container.

ENGINE:

Removal (Cavalier & Sunfire – MIT)

TABLE OF CONTENTS:

1994-2004 Chevrolet S10 Pickup Service Manual – PDF DOWNLOAD

22L ENGINE 1
43L ENGINE REPAIR 34
4WD STEERING KNUCKLES 455
1994 WIRING 459
1995 ENGINE 43L VIN W 511
1995 ENGINE 43L VIN Z 538
1997 WIRING 559
1999 WIRING 613
2001 WIRING 675
2004 DISC BRAKES 737
2004 ENGINE 874
2004 FRONT DRIVE AXLE 1747
2004 front suspension 1939
2004 GAGES 2081
2004 LIMITED SLIP 2247
2004 REAR DRIVE AXLE 2270
2004 rear suspension 2405
2004 WHEEL DRIVE SHAFTS 2458
2004 WIRING 2511
AC COMPRESSOR 2561
AIRBAGS 2766
ALTENATOR 2819
ANTILOCK BRAKES 2836
AUTO TRANSMISSION SERVICE 2854
BRAKES 2940
CLUTCH 2984
COMPUTER RELEARN 2995
DIFFERENTIAL 3017
ELECTRICAL COMPONENT LOCATOR 3026
ELECTRONIC SUSPENSION 3047
ENGINE ELECTRICAL 3067
engune cooling 3079
EXTERIOR LIGHTS 3108
FRONT AXLE 3109
FRONT SUSPENSION 2WD 3139
FRONT SUSPENSION 4WD 3153
FUSES 3168
GENERIC TROUBLE CODES 3180
GM TROUBLE CODES 3213
HVAC 3227
INSTRUMENT PANELS 3284
KEYLESS ENTRY 3331
MANUAL TRANSMISSION SERVICE 3343
NV 1500 MANUAL TRANSMISSION 3348
NV 3500 MANUAL TRANSMISSION 3424
POWER DOOR LOCKS 3500
POWER WINDOWS 3517
REAR SUSPENSION 3531
RING GEARS 3565
s10 22l engine 3582
STEERING COLUMN 3607
STEERING POWER 3620
SUNROOF 3658
TRANSFER CASE REMOVAL 3787
UNIVERSAL JOINTS 3801
WIPER WASHER 3816

1994-2004 CHEVROLET S10 PICKUP SERVICE MANUAL – PDF DOWNLOAD:

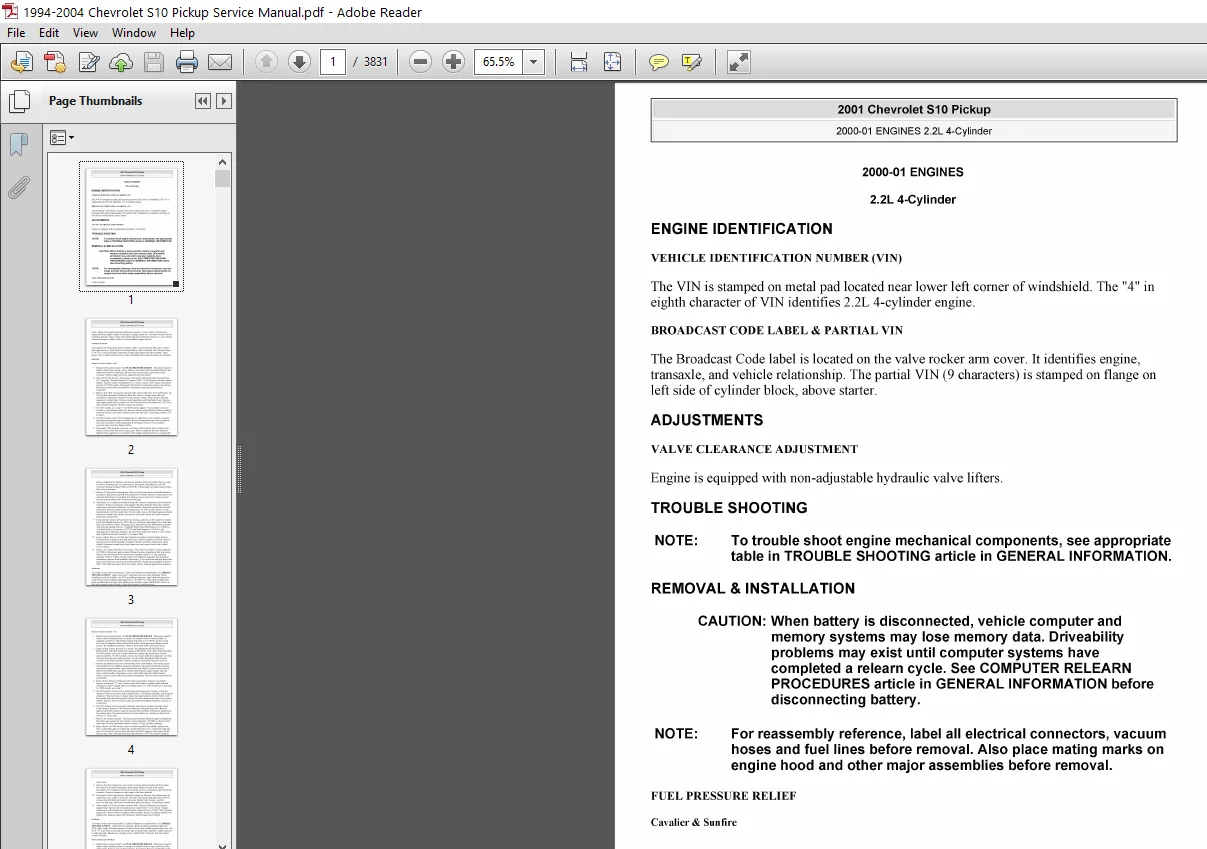

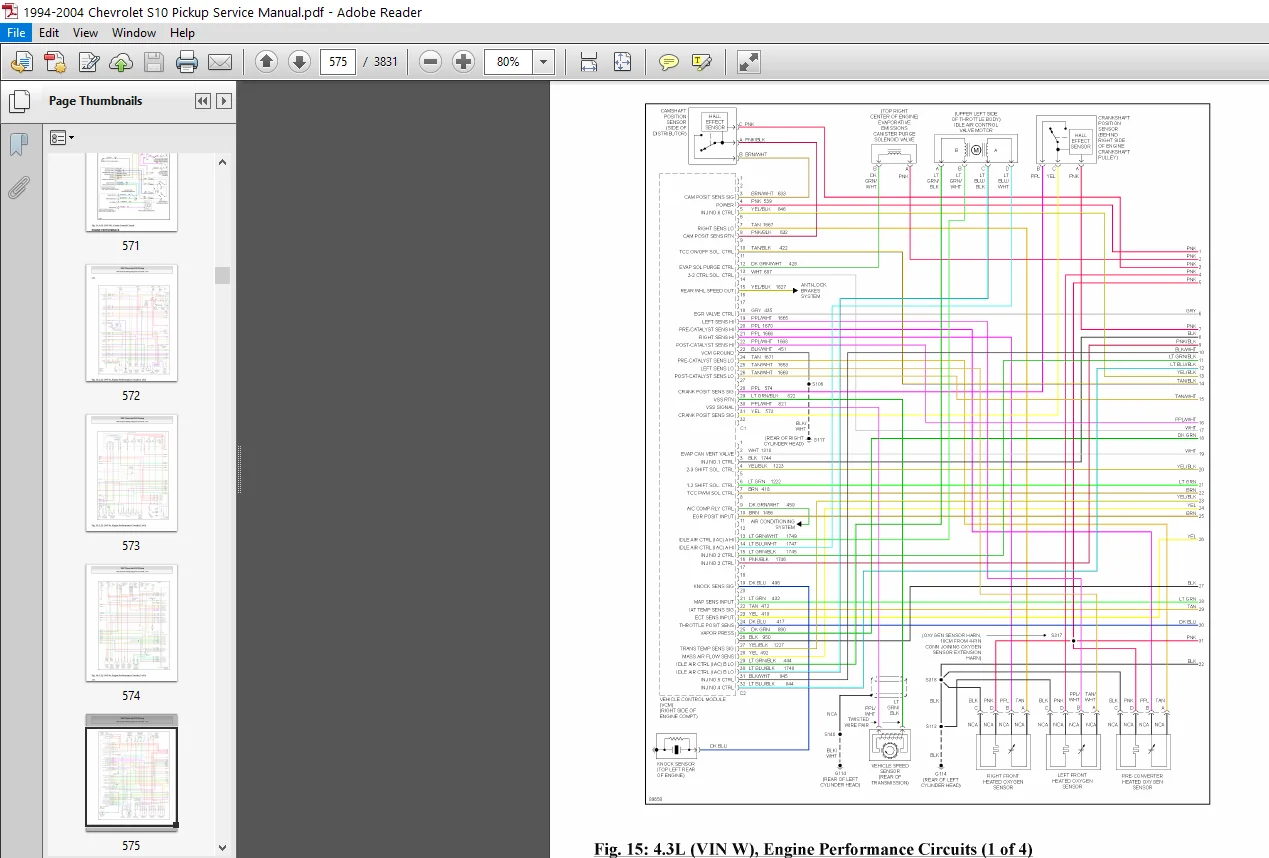

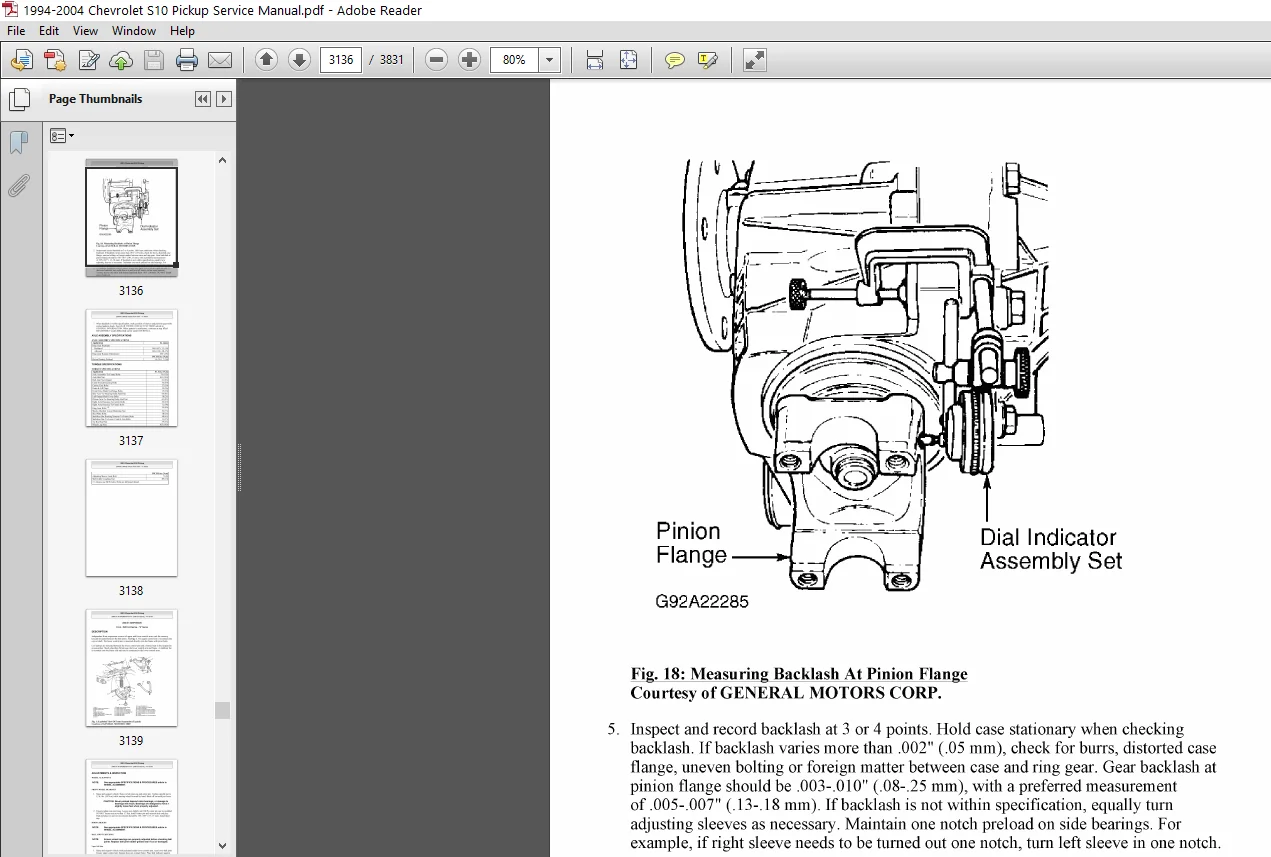

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
