1995 Sea-Doo Watercraft Shop Manual – SP SPI SPX GTS GTX XP Models

Description

1995 Sea-Doo Watercraft Shop Manual – SP SPI SPX GTS GTX XP Models

This complete 1995 Sea-Doo Watercraft Shop Manual is the definitive service and repair guide for Bombardier Sea-Doo personal watercraft. It covers the full 1995 lineup — SP 5873, SPI 5875, SPX 5874, GTS 5815, GTX 5863, and XP 5857 — and includes detailed procedures for the 587, 657 X, and 717 Rotax engines. Whether you are a professional technician or a dedicated owner performing your own maintenance, this manual gives you the factory procedures, specifications, and illustrations needed to keep your watercraft running correctly.

The manual is organized into twelve major sections, each covering a critical system or service area. From routine maintenance like flushing the cooling system and checking the periodic inspection chart, to complex repairs like rebuilding the engine bottom end, overhauling the jet pump, or timing the rotary valve, every procedure is documented with step-by-step instructions, exploded views, and torque specifications.

File Details

• Manual Type: Shop Manual
• Brand: Bombardier / Sea-Doo
• Models Covered: SP 5873, SPI 5875, SPX 5874, GTS 5815, GTX 5863, XP 5857
• Engines Covered: 587, 657 X, 717
• Language: English
• File Format: PDF
• Page Count: 618 pages

Chapters Covered

• 01 — Service Tools and Products: Mandatory Tools, Recommended Tools, Service Products
• 02 — Maintenance: Periodic Inspection Chart, Flushing and Care, Water-Flooded Engine, Storage
• 03 — Troubleshooting: Engine will not start, misfires, runs irregularly, overheats, backfires, detonation, lacks acceleration, runs too fast, abnormal noise from propulsion system
• 04 — Engine: Removal and Installation, Top End, Bottom End, Rotary Valve, Exhaust System
• 05 — Cooling System: Components, Circuit
• 06 — Fuel System: Fuel Circuit, Air Intake, Carburetors
• 07 — Lubrication System: Oil Injection System, Oil Injection Pump
• 08 — Electrical System: Magneto System, Ignition System, Charging System, Starting System, Instruments and Accessories
• 09 — Propulsion System: Jet Pump, Drive System, Reverse System, Variable Trim System
• 10 — Steering System: SP and XP Series, GTS and GTX Models, Alignment
• 11 — Hull/Body: Adjustment and Repair, Painting
• 12 — Technical Data: SP and SPI Models, SPX and XP Models, GTS and GTX Models

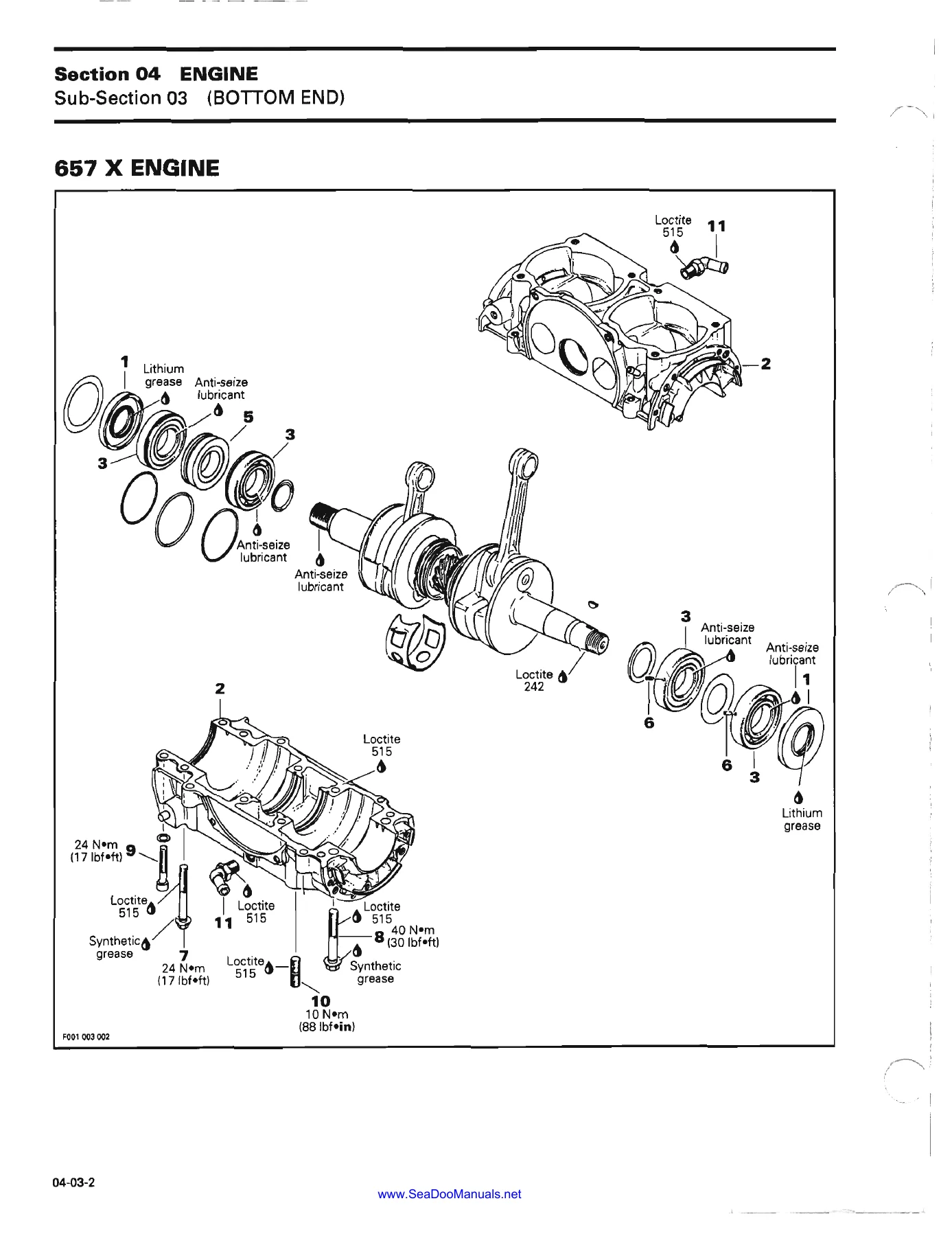

What sets this 1995 Sea-Doo Watercraft Shop Manual apart is the depth of its technical content. The engine section covers complete top-end disassembly including piston removal, cylinder inspection, ring end gap measurement, piston-to-cylinder clearance, and squish gap measurement for the 657 X and 717 engines. The bottom end section details crankcase disassembly, crankshaft deflection measurement, connecting rod inspection, bearing replacement, and crankcase reassembly with proper sealant application. Rotary valve service includes clearance measurement using the 45-degree feeler gauge or solder method, machining information, and precise timing procedures for each model.

The fuel system chapter walks through Mikuni carburetor removal, disassembly, cleaning, inspection, and adjustment — including low-speed and high-speed screw settings, idle speed adjustment, and synchronization for twin-carburetor models. The oil injection system section covers pump removal, bench testing, flow rate verification, bleeding procedures, and synchronization with the throttle cable.

Electrical system coverage includes the NIPPONDENSO CDI ignition system, magneto service, ignition timing with a stroboscopic timing light, charging system testing, starter disassembly and reassembly, and instrument and accessory diagnostics including VTS module and switch testing. The propulsion system section is particularly thorough, covering jet pump removal and disassembly, impeller and wear ring inspection and replacement, drive shaft and seal carrier service, reverse gate adjustment, and the variable trim system for SPX and XP models.

At the back of the manual, the technical data section provides model-specific specifications for the SP and SPI models, the SPX and XP models, and the GTS and GTX models — including engine specifications, torque values, capacities, dimensions, and service limits. This makes it easy to find the exact values you need without searching through multiple sections.

Why This Manual Matters

Personal watercraft repair demands precision. An engine that is assembled with the wrong torque, a carburetor that is adjusted too lean, a rotary valve that is timed incorrectly, or a jet pump that is assembled without the proper clearances can fail quickly and expensively. This 1995 Sea-Doo Watercraft Shop Manual gives you the factory specifications and step-by-step procedures to avoid those mistakes. It is the same information that authorized service technicians use, organized in a logical sequence that takes you from diagnosis through repair and reassembly.

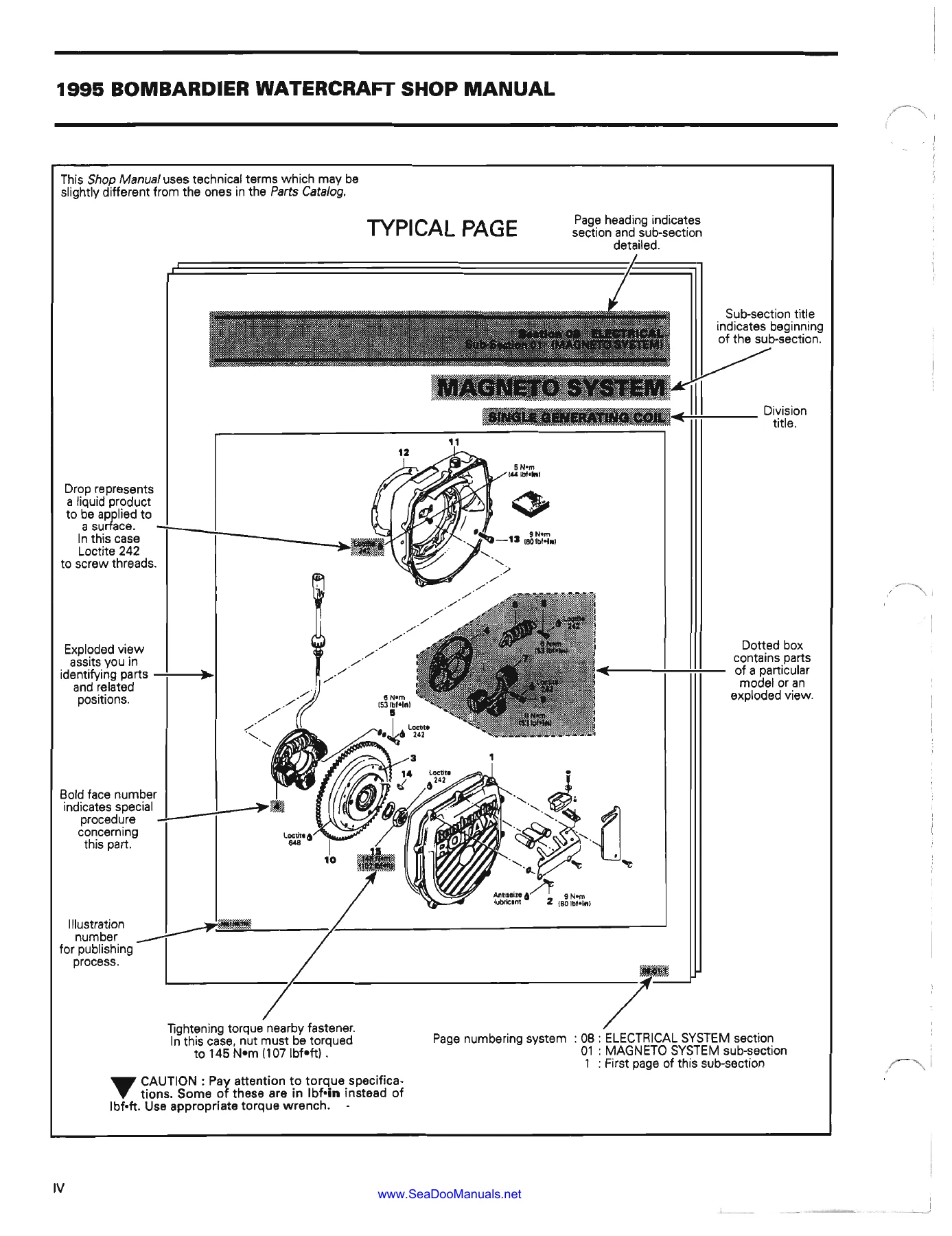

IMAGES PREVIEW

Instant PDF Delivery

You will receive an instant download link after purchase — no shipping, no waiting. The PDF works on any device and every page can be printed for use in your shop or garage. Keep it as a permanent reference for all maintenance and repair work on your 1995 Sea-Doo watercraft.
