1996-1997 Kawasaki Jet Ski 1100stx Jt1100 Watercraft Supplement Service Repair Manual Download 1996 1997 – PDF

Description

📘 COMPREHENSIVE DOCUMENT OVERVIEW

This is a Service Manual Supplement specifically designed for the Kawasaki JET SKI 1100STX watercraft. 🔧 It is intended to be used in conjunction with the base “JET SKI” 1100ZXi watercraft Service Manual (P/N 99924-1195-01). This supplement focuses on the maintenance and repair procedures that are unique to the 1100STX model, ensuring that technicians and experienced owners have all the necessary information for complete and proper servicing.

The manual is structured to provide comprehensive guidance, primarily for “JET SKI” watercraft mechanics in properly equipped shops. However, it also contains sufficient detail and basic information to be useful for operators who wish to perform their own basic maintenance and repair work. A fundamental understanding of mechanics, proper tool usage, and workshop procedures is essential for satisfactory results. ⚠️ Always prioritize safety and follow the procedures carefully, avoiding shortcuts.

Key Sections & Information Covered:

• General Information: Includes model identification (JT1100-A1), detailed general specifications (engine, tuning, drive system, performance, dimensions, engine oil, electrical equipment), comprehensive torque and locking agent tables for all major fasteners, a periodic maintenance chart, lists of special tools and sealants, and cable/wire/hose routing diagrams.

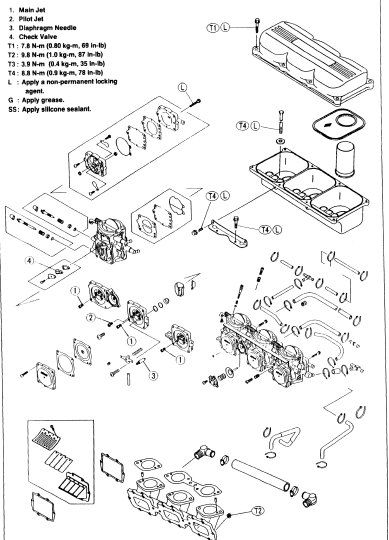

• Fuel System: ⛽ Exploded views, specifications (carburetor make/type, mixture screw settings, main/pilot jet sizes, idle speed, reed valve warp limits, fuel tank capacity), and procedures for fuel tank removal. Other procedures like carburetor adjustment, cleaning, and flame arrester service are referenced to the base manual.
• Engine Lubrication System: Exploded views, specifications for engine oil type and capacity, and oil pump output. Procedures for oil pump and hose bleeding, performance tests, and removal/installation are detailed.
• Exhaust System: Exploded views and torque specifications for components like the exhaust pipe, water pipe joints, exhaust manifold, and expansion chamber.

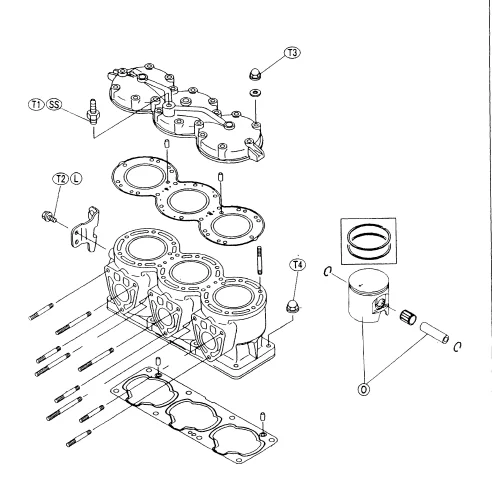

• Engine Top End: Exploded views, specifications for cylinder head compression, cylinder head warp, cylinder inside diameter, piston diameter, piston/cylinder clearance, piston ring end gap, and ring groove details. Lists special tools like piston pin pullers and ring compressors.
• Engine Removal and Installation: Exploded views of engine mounts with torque specifications.
• Engine Bottom End: Exploded views, specifications for crankshaft runout, connecting rod clearances (side, radial), bend/twist limits. Lists special tools like flywheel pullers and holders.
• Cooling and Bilge Systems: Exploded views, procedures for breather removal/installation/cleaning, filter removal/cleaning. Hose inspection and flushing procedures are also covered.
• Drive System: Exploded views, specifications for drive shaft runout, and details on special tools like coupling and drive shaft holders.
• Pump and Impeller: Exploded views, specifications for impeller outside diameter, pump case inside diameter, and impeller clearance. Includes procedures for pump removal, installation, and assembly, highlighting grease points and sealant application. Special tools like impeller wrench and holder are listed.
• Steering: 🧭 Exploded views, torque specifications for handlebar clamps, steering neck, and cable nuts. Covers steering cable removal, shift cable adjustment/removal/installation/inspection/lubrication, reverse bucket removal/installation, and shift lever shaft procedures.
• Hull / Engine Hood: Exploded views showing various hull components, bumpers, and hatch cover. Includes details on hatch cover removal/installation.
• Electrical System: ⚡ Comprehensive wiring diagrams, exploded views of electrical components, specifications (battery, starter motor brush length/commutator diameter, charging system output/resistance, ignition timing, ignition coil resistance, spark plug type/gap, pickup coil resistance/air gap). Covers CDI igniter inspection (internal resistance table), electric case component layout, and multifunction meter display function, fuel/oil level gauge, temperature symbol, and speedometer inspection.
• Storage: 📋 Outlines preparation steps for storage, covering cooling, bilge, fuel, engine, battery, lubrication systems, general inspection, and test run (references to base manual for detailed procedures).
• Appendix: Includes sections for lubrication, troubleshooting (referenced), and unit conversion tables (referenced).

The manual emphasizes the use of genuine Kawasaki “JET SKI” watercraft parts and specified special tools, gauges, and testers for optimal results and safety. It provides clear instructions with diagrams, torque values, and service limits to guide users through each process. Following the Periodic Maintenance Chart is crucial for the longevity of the watercraft. For the duration of the warranty period, it is recommended that all repairs and scheduled maintenance be performed in accordance with this service manual.

🔧 TECHNICAL SPECIFICATIONS & COVERAGE

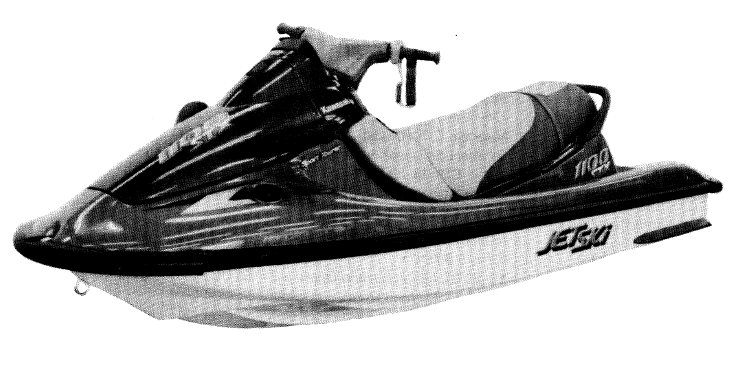

• Equipment Models Covered: Kawasaki JET SKI 1100STX (Model JT1100-A1, specifically for the 1997 year as per hull number information KAW50001□697 or JHT10A-610001).
• Engine Specifications:
  • Type: 2-stroke, 3-cylinder, crankcase reed valve, water-cooled
  • Displacement: 1071 mL
  • Bore and Stroke: 80 x 71 mm
  • Compression Ratio: 5.8:1
  • Maximum Horsepower: 88.2 kW (120 PS) @ 6750 r/min (rpm)
  • Maximum Torque: 129 N·m (13.2 kg-m, 95.5 ft-lb) @ 6000 r/min (rpm)
  • Lubrication System: Oil injection (break-in: Oil injection and fuel mixture 50:1)
  • Carburetion System: Keihin CDK38-29 x 3 diaphragm type (33 mm venturi)
  • Ignition System: Magneto CDI (Digital)
  • Spark Plug: NGK BR9ES, Gap 0.7 ~ 0.8 mm
• Electrical System:
  • Battery: 12V 18Ah
  • Maximum Generator Output: 7.2 A/14V @ 6000 r/min (rpm)
• Drive System:
  • Coupling: Direct drive from engine
  • Jet Pump Type: Axial flow, single stage
  • Thrust: 3570 N (364 kg, 803 lb)
• Special Tools and Equipment: A comprehensive list of special tools is provided in Chapter 1 (General Information), including various pullers, holders, gauges (e.g., Compression Gauge 57001-221), and testers (e.g., Hand Tester 57001-1394). Kawasaki Bond (Silicone Sealant and Liquid Gasket) is also specified.

📋 MANUAL SECTIONS & PROCEDURES

• Service Procedures and Maintenance Schedules: Detailed instructions for pre-ride checks (referenced), auxiliary cooling setup, general servicing practices (dirt prevention, battery handling, tightening sequences, torque application, gasket/O-ring usage), and a comprehensive Periodic Maintenance Chart (initial 10 hours, every 25 hours, every 100 hours).
• Repair Instructions and Troubleshooting Guides: Step-by-step repair instructions for all major systems including Fuel, Engine Lubrication, Exhaust, Engine Top End, Engine Removal/Installation, Engine Bottom End, Cooling/Bilge, Drive System, Pump/Impeller, Steering, Hull/Engine Hood, and Electrical Systems. Troubleshooting is listed in the Appendix (details likely in the base manual).
• Parts Identification and Replacement Procedures: Numerous exploded view diagrams throughout the manual aid in parts identification. Replacement procedures are integral to the repair instructions for each component.
• Assembly and Disassembly Instructions: Clearly outlined procedures for disassembling and assembling components within each system, often accompanied by exploded views and specific torque values.
• Adjustment and Calibration Procedures: Includes adjustments for throttle cable, choke cable, carburetor idle speed and mixture screws, ignition timing, and shift cable.
• Safety Procedures and Precautions: Prominently features WARNING and CAUTION symbols to highlight critical safety instructions and procedures to prevent personal injury or equipment damage. General workshop safety is also emphasized.

❌ WHAT’S NOT INCLUDED

• Physical printed manual (this is a digital download only).
• The complete base “JET SKI” 1100ZXi watercraft Service Manual (P/N 99924-1195-01), which this supplement is designed to be used with.
• Real-time technical support or personalized consultation services.

📊 COMPREHENSIVE RECOMMENDATION SUMMARY

❓ FREQUENTLY ASKED QUESTIONS

📋 SEO Schema for Google:

💬 Customer Questions & Answers:

Q: What specific models and years does this manual cover?
A: This Service Manual Supplement covers the Kawasaki JET SKI 1100STX, model JT1100-A1. The provided information indicates it’s applicable to the 1997 model year (beginning hull numbers KAW50001□697 or JHT10A-610001). It’s crucial to use this supplement alongside the base 1100ZXi Service Manual.

Q: What types of maintenance and repair procedures are included?
A: This supplement details unique procedures for the 1100STX across all major systems: fuel, engine (lubrication, top end, bottom end, removal/installation), exhaust, cooling, bilge, drive, pump/impeller, steering, hull, electrical, and storage. It includes disassembly, assembly, inspection, adjustment, specifications, and torque settings. A periodic maintenance chart is also provided.

Q: Is this manual suitable for DIY mechanics or is it for professionals only?
A: It’s primarily aimed at professional technicians but can be valuable for skilled DIY mechanics comfortable with complex watercraft repairs and who have access to the necessary tools and the base 1100ZXi manual.

Q: What format is this manual in and how do I access it?
A: This is a digital manual in PDF format. You will receive immediate download access after completing your purchase, allowing for permanent access on your computer, tablet, or smartphone.

Q: Are there special tools or diagnostic equipment requirements?
A: Yes, several Kawasaki-specific special tools are listed and recommended for various service operations to ensure accuracy and prevent damage. These include pullers, holders, specialized wrenches, and diagnostic tools like the Hand Tester. Details are in the General Information chapter.

Q: Does this manual include wiring diagrams and hydraulic schematics?
A: Yes, the Electrical System chapter includes a detailed wiring diagram for the 1100STX. Hydraulic schematics are not typically applicable to this type of watercraft in the same way as heavy machinery; jet pump and cooling system diagrams are provided.

Q: Is the manual language technical or user-friendly?
A: The language is technical, intended for individuals with mechanical knowledge. While clear and well-structured, a basic understanding of PWC mechanics and terminology is assumed.

Q: Can I print this manual or use it offline?
A: Yes, being a PDF, you can print sections or the entire manual as needed. It can also be saved and used offline on any device that supports PDF viewing.

🛠️ PROFESSIONAL ASSESSMENT & USABILITY

• Overall Quality Rating: ⭐⭐⭐⭐⭐ (High-quality, manufacturer-grade content specific to the 1100STX supplement)
• Content Classification: Service Manual Supplement for Personal Watercraft (PWC)
• Language & Accessibility: Technical English. Well-structured with a quick reference guide, clear chapter divisions, and helpful diagrams. Requires mechanical aptitude.
• Professional Recommendation: Highly recommended for professional PWC mechanics and service centers dealing with Kawasaki 1100STX models. Essential for accurate and efficient servicing of unique 1100STX components and systems.
• Technical Depth: Excellent. Provides in-depth information, specifications, service limits, and procedures specific to the 1100STX.
• Page Count & Scope: 80 pages of focused technical content supplementing the base manual.
• File Quality & Format: High-resolution digital PDF with clear text, sharp diagrams, and exploded views.
• Update Status: First Edition (1), Sep. 1, 1996. While older, it’s the specific document for this model year.

🎯 IDEAL USE CASES & APPLICATIONS

• Professional PWC Service Shops: Essential for accurate repair and maintenance of Kawasaki 1100STX watercraft.
• Advanced DIY Maintenance: For experienced 1100STX owners performing complex services and repairs.
• Troubleshooting and Diagnostics: Provides critical electrical system data, specifications, and system-specific information to diagnose issues unique to the 1100STX.
• Engine Overhauls: Detailed procedures for engine top end, bottom end, removal, and installation.
• Jet Pump and Drive System Service: Specific instructions for impeller, pump, and drive shaft maintenance.
• Seasonal Preparation & Storage: Guidelines for proper storage procedures to ensure longevity.

📋 Original Product Description:

1996-1997 Kawasaki Jet Ski 1100stx Jt1100 Watercraft Supplement Service Repair Manual Download 1996 1997

DESCRIPTION:

This “JET SKI” HOOSTX watercraft Service Manual Supplement is designed to be used in conjunction with the “JET SKI” 11002)“ watercraft Service Manual (P/N 99924-1195-01). The maintenance and repair procedures described in this supplement are only those that are unique to the “JET SKI” 11008TX watercraft. Most service operations for this model remain identical to those described in the base Service Manual. Complete and proper servicing of the ”JET SKl” 11008TX watercraft therefore requires both this sunnlement and the base Service Manual.

IMAGES:

TABLE OF CONTENTS:

Before Servicing Model identification General Specifications Torque and Looking Agent Periodic Maintenance Chart Special Tools Sealant Cable Wire and Hose Routing
