1996-2002 Kawasaki Jet Ski 1100ZXi Service Manual PDF

Description

1996-2002 Kawasaki Jet Ski 1100ZXi Service Manual

This Kawasaki Jet Ski 1100ZXi service manual is a comprehensive 236-page reference built around the JH1100 platform, covering the full model run from the 1996 JH1100-A1 through the 1997 A2, 1998 A3, 1999 A4, 2000 A5, 2001 A6, and 2002 A7 versions. Two dedicated supplement chapters (1997-1999 Models and 2000-2002 Models) are layered on top of the core 1996 text, so every year in the range has its own exploded views, specifications, and unique procedures rather than a generic one-size-fits-all writeup. This is the same 1100ZXi service manual technicians reach for when a job goes beyond routine maintenance.

• Manual Type: Watercraft Service Manual
• Brand / Model: Kawasaki Jet Ski 1100ZXi (JH1100-A1 to A7)
• Language: English
• Page Count: 236 pages
• File Format: PDF
• Document Number: 99924-1195-04
• Edition: Fourth Edition (1)
• Publication Date: July 18, 2001

Chapters Covered

• General Information — Model Identification, General Specifications, Torque and Locking Agent, Periodic Maintenance Chart, Technical Information (Maintenance Free Battery, Accelerator Pump, Kawasaki Air Induction System, Kawasaki Automatic Trim System), Special Tools, Cable/Wire/Hose Routing
• Fuel System
• Engine Lubrication System
• Exhaust System
• Engine Top End
• Engine Removal and Installation
• Engine Bottom End
• Cooling and Bilge Systems
• Drive System
• Pump and Impeller
• Steering
• Hull/Engine Hood
• Electrical System
• Storage
• Appendix
• Supplement — 1997-1999 Models (General Information, Fuel System, Engine Lubrication System, Electrical System updates specific to JH1100-A2/A3/A4)
• Supplement — 2000-2002 Models (General Information, Fuel System, Electrical System, Wiring Diagram updates specific to JH1100-A5/A6/A7)

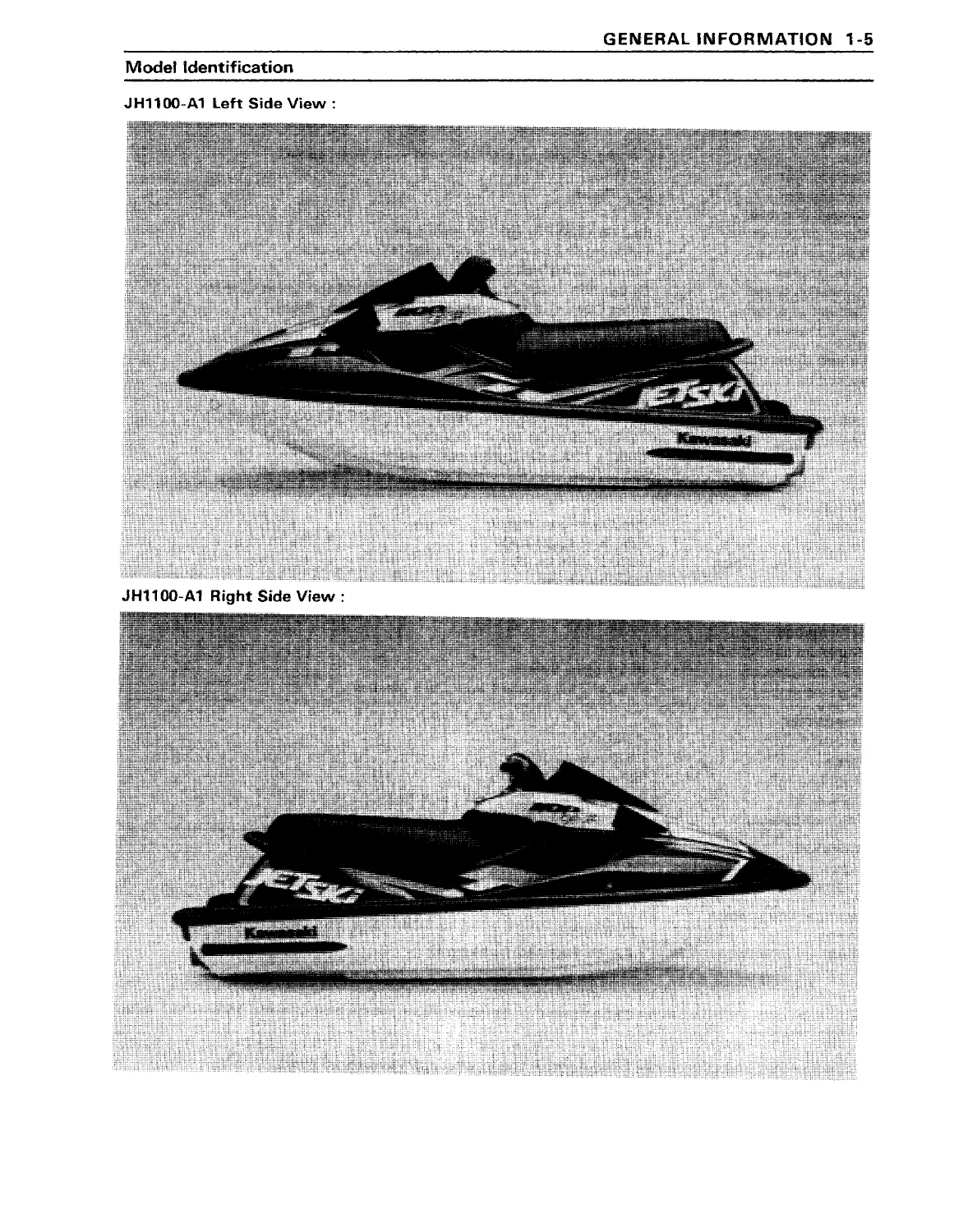

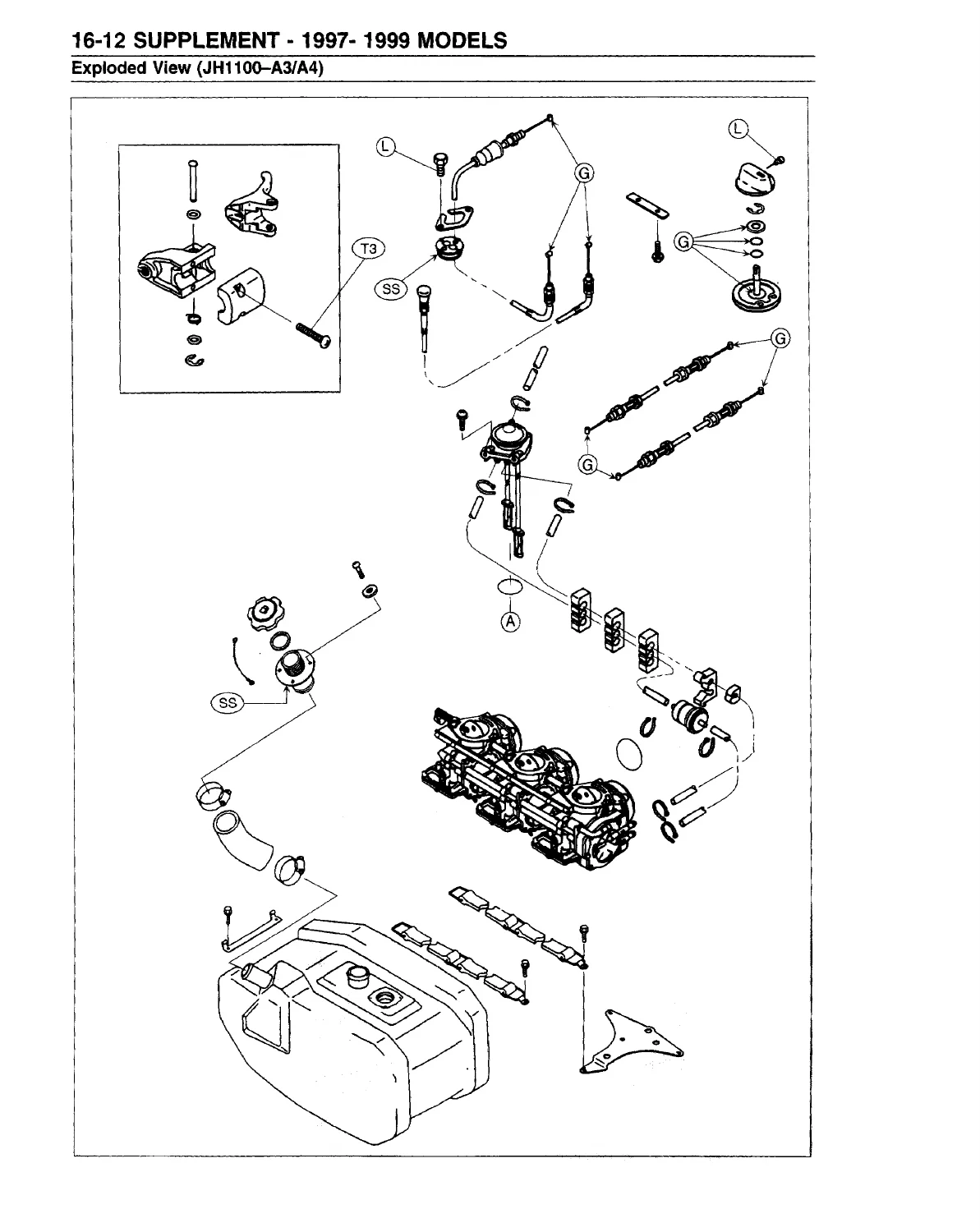

IMAGES PREVIEW

Taken together, these chapters walk a technician from a first inspection all the way through full engine teardown, jet pump service, steering and trim system work, and complete rewiring — with the year-specific supplements making sure the correct carburetor, ignition, and trim details are used for whichever 1100ZXi is actually on the lift.

Specifications and Data Included

The General Specifications table for the base JH1100-A1 lists the 2-stroke, 3-cylinder, crankcase reed valve, water-cooled engine at 1,071 mL displacement (80 x 71 mm bore and stroke), 5.8:1 compression, 88.2 kW (120 PS) at 6,750 rpm, and 129 N-m of torque at 6,000 rpm. Tuning data includes NGK BR9ES spark plugs gapped 0.7-0.8 mm, ignition timing from 17° BTDC at 1,250 rpm to 27° BTDC at 3,000 rpm, Keihin CDK-38-29 carburetors, and idle speeds both in and out of water. Dimensions, dry weight, fuel tank capacity, engine oil type and tank capacity, battery rating, and jet pump thrust are all included, alongside a full torque chart for fasteners across every chapter — from carburetor mounting bolts to flywheel bolts and steering shaft lock nuts.

Why Technicians Reach for This 1100ZXi Manual

This Kawasaki Jet Ski 1100ZXi manual gives you the correct torque values, tuning specs, and disassembly sequences instead of relying on guesswork or forum posts. Because the manual separates the 1997-1999 and 2000-2002 supplements from the base 1996 text, you’re not stuck applying A1-specific fuel or ignition data to a later A5, A6, or A7 unit. Whether you’re chasing a rough idle, rebuilding the top end, servicing the impeller and pump, or tracing a wiring fault using the included diagrams, this 1100ZXi service manual keeps the procedure and the spec together on the same page. It downloads instantly as a PDF after purchase — no shipping wait — and works on a computer, tablet, or phone, or can be printed for shop use.
