1997-1999 Jeep Wrangler TJ Mopar Illustrated Parts Catalog Chassis Body Trim

This 1997-1999 Jeep Wrangler TJ Mopar Illustrated Parts Catalog Chassis Body Trim is the July 2003 English parts book for the TJ Wrangler. The cover identifies the range as 1997-1999 Jeep Wrangler (TJ), illustration and text for chassis, body and trim, superseding the June 2003 issue and carrying Mopar / Chrysler Plymouth Dodge Jeep branding. Use it to identify service parts, exploded assemblies and attaching hardware by group, illustration and item number.

File Details

  • Manual type: Illustrated parts catalog (chassis, body, trim)
  • Brand / model: Jeep Wrangler TJ
  • Coverage years: 1997, 1998, 1999
  • Language: English
  • Page count: 640
  • File format: PDF
  • Publication: July 2003 (supersedes June 2003)

How the Catalog Is Organized

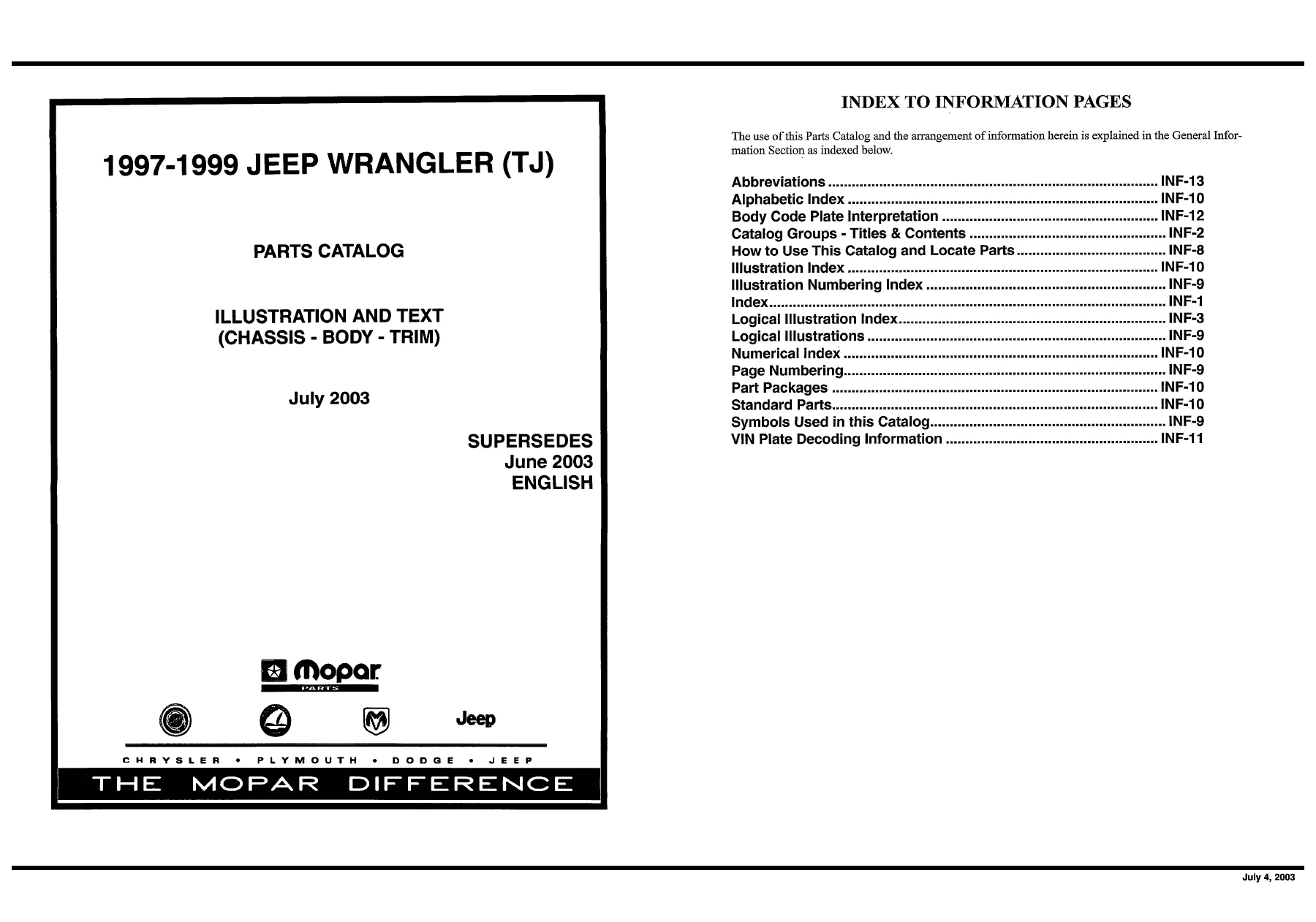

The opening information pages explain abbreviations, alphabetic and numerical indexes, body-code-plate interpretation, VIN plate decoding, catalog groups, logical illustration indexes, page numbering, part packages, standard parts and symbols such as AR (as required), PAR (paint as required) and a dash for parts that are not illustrated. Two-part page numbers identify group then page (for example 2-1 for Front Suspension page 1). Figure and item references such as 14-910/8 point to group, illustration and callout.

VIN decoding in the book uses positions for country of origin, make (J = Jeep), vehicle type (A = MPV), GVWR bands, line (Y = Wrangler 4×4), series (1 = Sport, 2 = Wrangler SE, 4 = Sahara), body style (9 = TJ – 77 inch), engine (P = 2.5L gas unleaded EPE; S = 4.0L gas unleaded ERH), model year (V = 1997, W = 1998, X = 1999) and Toledo #2 assembly plant. Body-code-plate fields include vehicle order number, vinyl roof / door combo, shell car line, price class, body type, paint procedure, primary and secondary paint, interior trim, engine and transmission codes, market codes and VIN.

Complete PDF Bookmark Tree

Complete Bookmarks

The complete bookmarks in the “1997-1999 Jeep Wrangler TJ Mopar Illustrated Parts Catalog Chassis Body Trim” are as follows:

9799TJp. 1
Return To Model Year Index
Return To 1997 Vehicle Family Index
Return To 1998 Vehicle Family Index
Return To 1999 Vehicle Family Index
General Informationp. 1
Abbreviationsp. 7
Alphabetic Indexp. 6
Body Code Plate Interpretationp. 7
Catalog Groups – Titles & Contentsp. 2
How to Use This Catalog and Locate Partsp. 5
Illustration Indexp. 6
Illustration Numbering Indexp. 5
Indexp. 1
Logical Illustration Indexp. 2
Logical Illustrationsp. 5
Numerical Indexp. 6
Page Numberingp. 5
Part Packagesp. 6
Standard Partsp. 6
Symbols Used in this Catalogp. 5
VIN Plate Decoding Informationp. 6

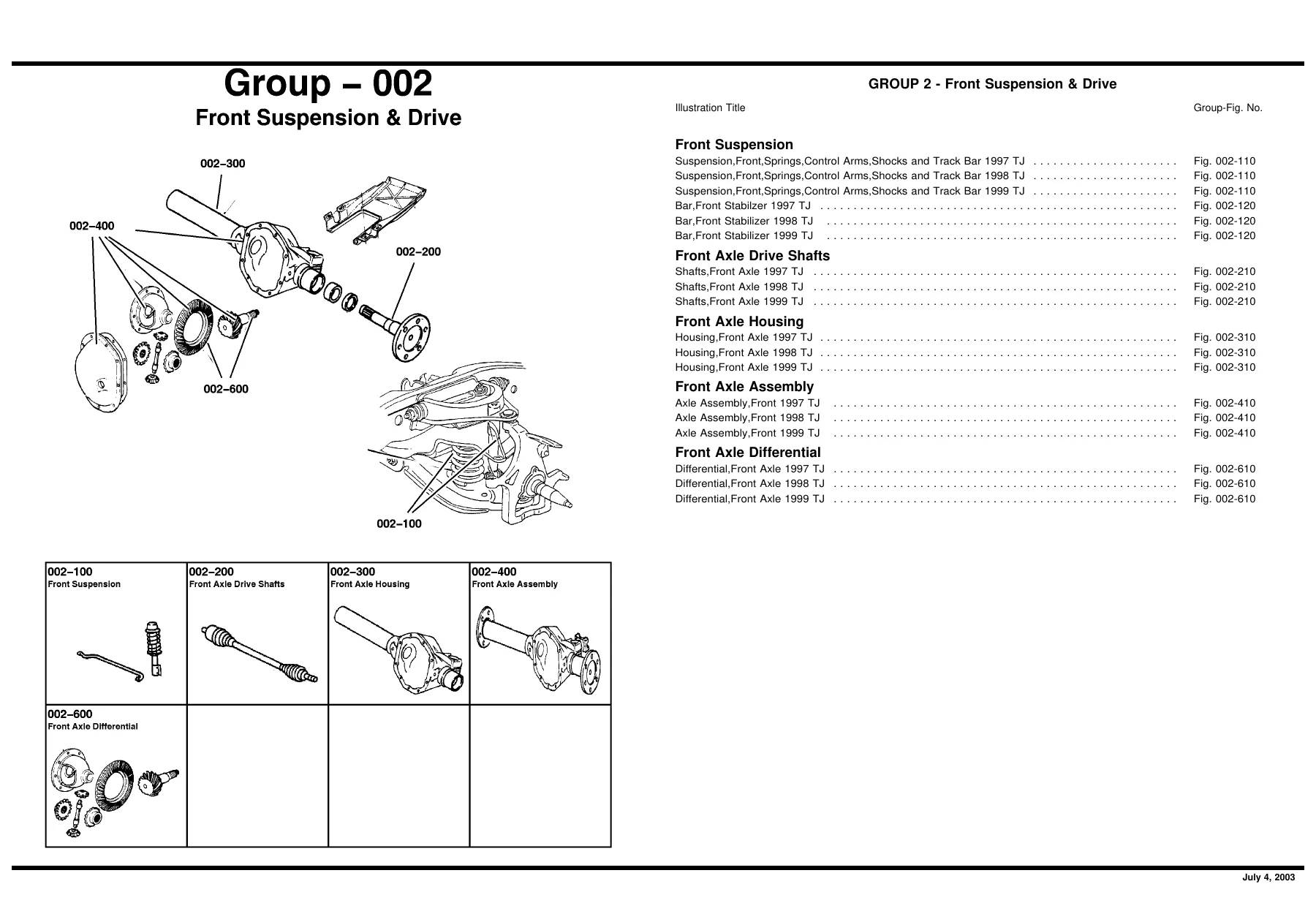

GROUP 002 Front Suspension & Drivep. 8

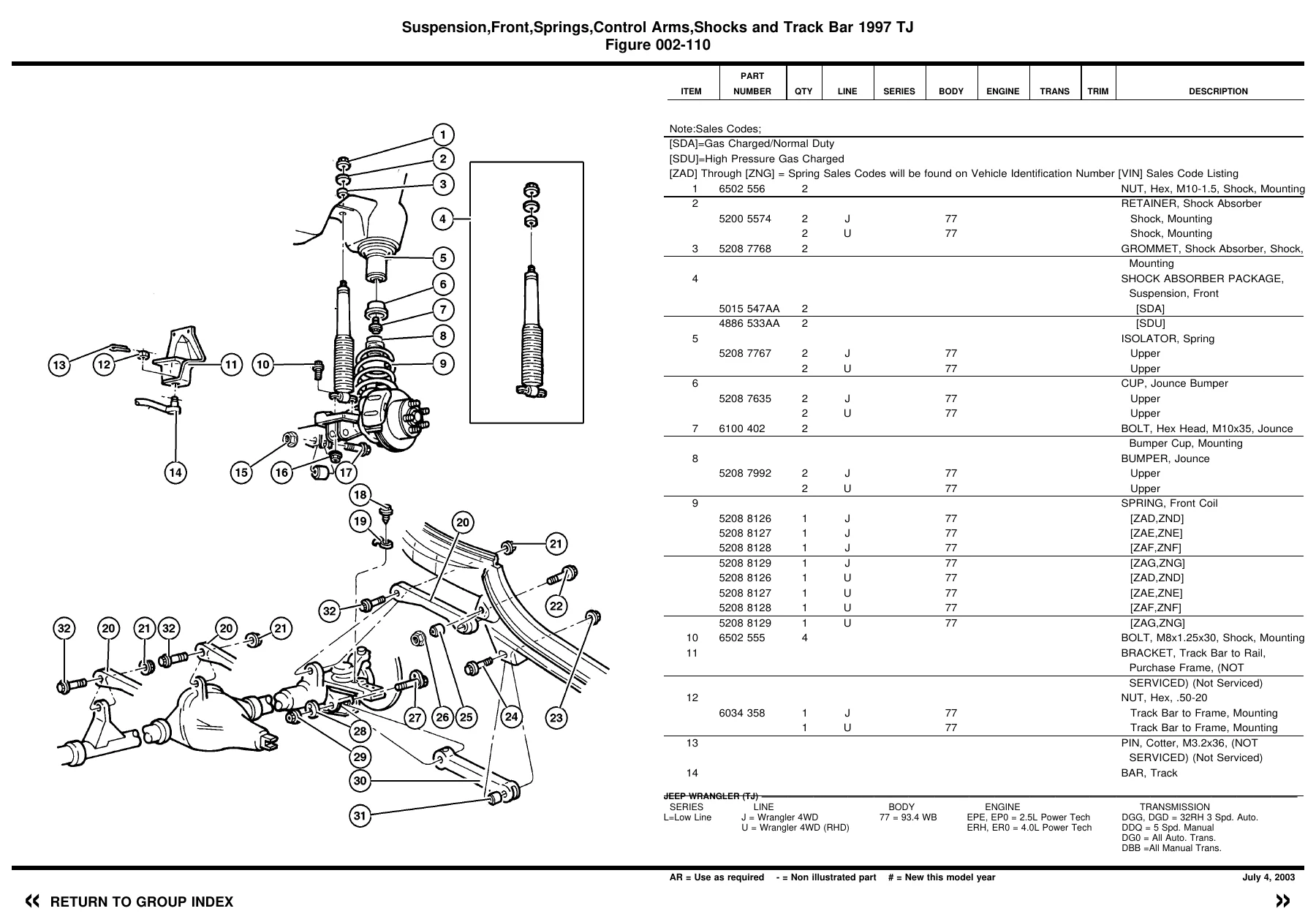

FIGURE 002-110 –>Suspension,Front,Springs,Control Arms,Shocks and Track Bar 1997 TJp. 9
FIGURE 002-110 –>Suspension,Front,Springs,Control Arms,Shocks and Track Bar 1998 TJp. 12
FIGURE 002-110 –>Suspension,Front,Springs,Control Arms,Shocks and Track Bar 1999 TJp. 14
FIGURE 002-120 –>Bar,Front Stabilzer 1997 TJp. 16
FIGURE 002-120 –>Bar,Front Stabilizer 1998 TJp. 17
FIGURE 002-120 –>Bar,Front Stabilizer 1999 TJp. 18
FIGURE 002-210 –>Shafts,Front Axle 1997 TJp. 19
FIGURE 002-210 –>Shafts,Front Axle 1998 TJp. 20
FIGURE 002-210 –>Shafts,Front Axle 1999 TJp. 21
FIGURE 002-310 –>Housing,Front Axle 1997 TJp. 22
FIGURE 002-310 –>Housing,Front Axle 1998 TJp. 24
FIGURE 002-310 –>Housing,Front Axle 1999 TJp. 26
FIGURE 002-410 –>Axle Assembly,Front 1997 TJp. 28
FIGURE 002-410 –>Axle Assembly,Front 1998 TJp. 29
FIGURE 002-410 –>Axle Assembly,Front 1999 TJp. 30
FIGURE 002-610 –>Differential,Front Axle 1997 TJp. 31
FIGURE 002-610 –>Differential,Front Axle 1998 TJp. 33
FIGURE 002-610 –>Differential,Front Axle 1999 TJp. 35
GROUP 003 Rear Axlep. 37
FIGURE 003-110 –>Axle Assembly, Rear 1997 TJp. 38
FIGURE 003-110 –>Axle Assembly,Rear 1998 TJp. 40
FIGURE 003-110 –>Axle Assembly, Rear 1999 TJp. 41
FIGURE 003-210 –>Housing,Rear Axle,Dana 35/194MM [DRJ] 1997 TJp. 42
FIGURE 003-210 –>Housing,Rear Axle,Dana 35/194MM [DRJ] 1998 TJp. 43
FIGURE 003-210 –>Housing,Rear Axle,Dana 35/194MM [DRJ] 1999 TJp. 44
FIGURE 003-220 –>Housing,Rear Axle,Dana 44/226MM [DRK] 1997 TJp. 45
FIGURE 003-220 –>Housing,Rear Axle,Dana 44/226MM [DRK] 1998 TJp. 46
FIGURE 003-220 –>Housing,Rear Axle,Dana 44/226MM [DRK] 1999 TJp. 47
FIGURE 003-230 –>Differential,With and Without Trac-Lok [DSA] Dana 35/194MM [DRJ] 1997 TJp. 48
FIGURE 003-230 –>Differential,With and Without Trac-Lok [DSA] Dana 35/194MM [DRJ] 1998 TJp. 50
FIGURE 003-230 –>Differential,With and Without Trac-Lok [DSA] Dana 35/194MM [DRJ] 1999 TJp. 52
FIGURE 003-240 –>Differential,With Trac-Lok [DSA] Dana 44/226MM [DRK] 1997 TJp. 54
FIGURE 003-240 –>Differential,With Trac-Lok [DSA] Dana 44/226MM [DRK] 1998 TJp. 56
FIGURE 003-240 –>Differential With Trac-Lok [DSA] Dana 44/226MM [DRK] 1999 TJp. 58
FIGURE 003-410 –>Shaft,Rear Axle,Dana 35/194MM [DRJ] 1997 TJp. 60
FIGURE 003-410 –>Shaft,Rear Axle,Dana 35/194MM [DRJ] 1998 TJp. 61
FIGURE 003-410 –>Shaft,Rear Axle,Dana 35/194MM [DRJ] 1999 TJp. 62
FIGURE 003-420 –>Shaft,Rear Axle,Dana 44/226MM [DRK] 1997 TJp. 63
FIGURE 003-420 –>Shaft,Rear Axle,Dana 44/226MM [DRK] 1998 TJp. 64
FIGURE 003-420 –>Shaft,Rear Axle,Dana 44/226MM [DRK] 1999 TJp. 65
GROUP 004 Parking Brakep. 66
FIGURE 004-110 –>Parking Brake Lever and Cables 1997 TJp. 67
FIGURE 004-110 –>Parking Brake Lever and Cables 1998 TJp. 68
FIGURE 004-110 –>Parking Brake Lever and Cables 1999 TJp. 69
GROUP 005 Service Brakesp. 70
FIGURE 005-110 –>Front Brakes 1997 TJp. 71
FIGURE 005-110 –>Front Brakes 1998 TJp. 73
FIGURE 005-110 –>Front Brakes 1999 TJp. 75
FIGURE 005-210 –>Rear Drum Brakes 1997 TJp. 77
FIGURE 005-210 –>Rear Drum Brakes 1998 TJp. 80
FIGURE 005-210 –>Rear Drum Brakes 1999 TJp. 83
FIGURE 005-310 –>Power Brake Booster 1997 TJp. 86
FIGURE 005-310 –>Power Brake Booster 1998 TJp. 87
FIGURE 005-310 –>Power Brake Booster 1999 TJp. 88
FIGURE 005-410 –>Master Cylinder 1997 TJp. 89
FIGURE 005-410 –>Master Cylinder 1998 TJp. 90
FIGURE 005-410 –>Master Cylinder 1999 TJp. 91
FIGURE 005-510 –>Hydralic Control Unit,Anti-Lock Brake 1997 TJp. 92
FIGURE 005-510 –>Hydralic Control Unit,Anti-Lock 1998 TJp. 93
FIGURE 005-510 –>Hydralic Control Unit,Anti-Lock Brake 1999 TJp. 94
FIGURE 005-520 –>Brake Lines and Hoses,Front,LHD Without ABS 1997 TJp. 95
FIGURE 005-520 –>Brake Lines and Hoses w/o ABS Brakes 1998 TJp. 96
FIGURE 005-520 –>Brake Lines and Hoses w/o ABS Brakes 1999 TJp. 97
FIGURE 005-530 –>Brake Lines and Hoses,Front,RHD,Without ABS 1997 TJp. 98
FIGURE 005-530 –>Brake Lines and Hoses w/ABS Brakes 1998 TJp. 99
FIGURE 005-530 –>Brake Lines and Hoses w/ABS Brakes 1999 TJp. 101
FIGURE 005-540 –>Brake Lines and Hoses,Rear,LHD,RHD,Without ABS 1997 TJp. 103
FIGURE 005-550 –>Brake Lines and Hoses,Front,LHD,With ABS 1997 TJp. 104
FIGURE 005-560 –>Brake Lines and Hoses Rear,LHD,With ABS 1997 TJp. 105
FIGURE 005-610 –>Brake Pedal 1997 TJp. 106
FIGURE 005-610 –>Brake Pedal 1998 TJp. 107
FIGURE 005-610 –>Brake Pedal 1999 TJp. 108
GROUP 006 Clutchp. 109
FIGURE 006-110 –>Clutch 1997 TJ 1998 TJp. 110
FIGURE 006-110 –>CLUTCH 1999 TJp. 111
FIGURE 006-210 –>Housing and Pan, Clutch 1997 TJ 1998 TJp. 112
FIGURE 006-210 –>Housing and Pan, Clutch 1999 TJp. 114
FIGURE 006-310 –>Control, Clutch 1997 TJ 1998 TJp. 115
FIGURE 006-310 –>Control, Clutch 1999 TJp. 116
FIGURE 006-410 –>Pedal, Clutch 1997 TJ 1998 TJp. 117
FIGURE 006-410 –>Pedal, Clutch 1999 TJp. 118
GROUP 007 Coolingp. 119
FIGURE 007-110 –>Radiator And Related Parts 1997 TJp. 120
FIGURE 007-110 –>Radiator And Related Parts 1998 TJp. 122
FIGURE 007-110 –>Radiator And Related Parts 1999 TJp. 124
FIGURE 007-205 –>Water Pump 1997 TJp. 126
FIGURE 007-205 –>Water Pump 1998 TJ 1999 TJp. 127
FIGURE 007-302 –>Tank, Coolant Recovery 1997 TJp. 128
FIGURE 007-302 –>Tank, Coolant Recovery 1998 TJ 1999 TJp. 129
FIGURE 007-405 –>Drive Pulleys 1997 TJp. 130
FIGURE 007-405 –>Drive Pulleys 1998 TJ 1999 TJp. 131
FIGURE 007-505 –>Drive Belts 1997 TJ 1998 TJp. 133
FIGURE 007-505 –>Drive Belts 1999 TJp. 134
FIGURE 007-605 –>Oil Cooler Lines 1997 TJp. 135
FIGURE 007-605 –>Oil Cooler Lines 1998 TJ 1999 TJp. 136
FIGURE 007-705 –>Grille And Related Partsp. 137
GROUP 008 Electricalp. 138
FIGURE 008-105 –>Starter 1997 TJ 1999 TJp. 140
FIGURE 008-105 –>Starter 1998 TJp. 141
FIGURE 008-205 –>Alternator 1997 TJp. 142
FIGURE 008-205 –>Alternator 1998 TJp. 144
FIGURE 008-205 –>Alternator 1999 TJp. 145
FIGURE 008-305 –>Distributor 2.5L Engine 1997 TJp. 146
FIGURE 008-305 –>Distributor 2.5L Engine 1998 TJp. 147
FIGURE 008-305 –>Distributor 2.5L Engine 1999 TJp. 148
FIGURE 008-310 –>Distributor 4.0L Engine 1997 TJ 1998 TJp. 149
FIGURE 008-310 –>Distributor 4.0L Engine 1999 TJp. 150
FIGURE 008-405 –>Modules 1997 TJp. 151
FIGURE 008-405 –>Modules 1998 TJp. 152
FIGURE 008-405 –>Modules 1999 TJp. 153
FIGURE 008-505 –>Relays 1997 TJp. 154
FIGURE 008-505 –>Relays 1998 TJp. 155
FIGURE 008-505 –>Relays 1999 TJp. 156
FIGURE 008-605 –>Sensors 1997 TJp. 157
FIGURE 008-605 –>Sensors 1998 TJp. 158
FIGURE 008-605 –>Sensors 1999 TJp. 159
FIGURE 008-705 –>Single Board Engine Controllers (JTEC Module) 1997 TJp. 160
FIGURE 008-705 –>Single Board Engine Controllers (JTEC Module) 1998 TJp. 162
FIGURE 008-705 –>Single Board Engine Controllers (JTEC Module) 1999 TJp. 163
FIGURE 008-805 –>Switches 1997 TJp. 164
FIGURE 008-805 –>Switches 1998 TJp. 166
FIGURE 008-805 –>Switches 1999 TJp. 168
FIGURE 008-905 –>Horns 1997 TJ 1998 TJp. 170
FIGURE 008-905 –>Horns 1999 TJp. 171
FIGURE 008-1005–>Battery Tray & Cables 1997 TJp. 172
FIGURE 008-1005–>Battery Tray & Cables 1998 TJp. 173
FIGURE 008-1005–>Battery Tray & Cables 1999 TJp. 174
FIGURE 008-1105–>Lamps–Front 1997 TJp. 175
FIGURE 008-1105–>Lamps–Front 1998 TJp. 178
FIGURE 008-1105–>Lamps–Front 1999 TJp. 180
FIGURE 008-1110–>Lamps–Rear 1997 TJp. 182
FIGURE 008-1110–>Lamps–Rear 1998 TJp. 183
FIGURE 008-1110–>Lamps–Rear 1999 TJp. 184
FIGURE 008-1115–>Lamps–Cargo-Dome-Courtesy 1997 TJp. 185
FIGURE 008-1115–>Lamps–Cargo-Dome-Courtesy 1998 TJp. 186
FIGURE 008-1115–>Lamps–Cargo-Dome-Courtesy 1999 TJp. 187
FIGURE 008-1120–>Bulbs & Sockets 1997 TJp. 188
FIGURE 008-1120–>Bulbs & Sockets 1998 TJp. 189
FIGURE 008-1120–>Bulbs & Sockets 1999 TJp. 190
FIGURE 008-1205–>Wiring–Engine & Related Partsp. 191
FIGURE 008-1305–>Wiring–Headlamp / Dash Panel 1997 TJp. 193
FIGURE 008-1305–>Wiring–Headlamp / Dash Panel 1998 TJp. 194
FIGURE 008-1305–>Wiring–Headlamp / Dash Panel 1999 TJp. 195
FIGURE 008-1405–>Wiring Instrument Panel & Fusesp. 196
FIGURE 008-1505–>Wiring–Body & Accessory 1997 TJp. 198
FIGURE 008-1505–>Wiring–Body & Accessory 1998 TJp. 200
FIGURE 008-1505–>Wiring–Body & Accessory 1999 TJp. 201
FIGURE 008-1605–>Wiring Repair Package 1997 TJp. 202
FIGURE 008-1605–>Wiring Repair Packages 1998 TJp. 203
FIGURE 008-1605–>Wiring Repair Packages 1999 TJp. 204
FIGURE 008-1610–>Power Distribution Center Repairp. 205
FIGURE 008-1905–>Spark Plugs–Cables–Coil 1997 TJp. 206
FIGURE 008-1905–>Spark Plugs–Cables–Coil 1998 TJp. 207
FIGURE 008-1905–>Spark Plug–Cables–Coils 1999 TJp. 208
GROUP 08A Instrument Panel and Radios and Consolesp. 209
FIGURE 08A-110 –>Instrument Panel 1997 TJp. 210
FIGURE 08A-110 –>Instrument Panel 1998 TJp. 213
FIGURE 08A-110 –>Instrument Panel 1999 TJp. 216
FIGURE 08A-210 –>Instrument Cluster 1997 TJ 1998 TJp. 219
FIGURE 08A-210 –>Instrument Cluster 1999 TJp. 220
FIGURE 08A-315 –>Radio 1997 TJp. 221
FIGURE 08A-315 –>Radio 1998 TJp. 222
FIGURE 08A-315 –>Radio 1999 TJp. 223
FIGURE 08A-320 –>Antenna 1997 TJp. 224
FIGURE 08A-320 –>Antenna 1998 TJp. 225
FIGURE 08A-320 –>Antenna 1999 TJp. 226
FIGURE 08A-325 –>Speakers 1997 TJp. 227
FIGURE 08A-325 –>Speakers 1998 TJp. 228
FIGURE 08A-325 –>Speakers 1999 TJp. 229
FIGURE 08A-410 –>Consoles Full & Mini 1997 TJp. 230
FIGURE 08A-410 –>Consoles Full & Mini 1998 TJp. 231
FIGURE 08A-410 –>Consoles Full & Mini 1999 TJp. 232
GROUP 009 Engine Mountingp. 233
FIGURE 009-110 –>Engine Mounting, Front 2.5L (EPE) Enginep. 234
FIGURE 009-120 –>Engine Mounting, Rear 2.5L (EPE) Enginep. 235
FIGURE 009-130 –>Engine Mounting, Front 4.0L (ERH) Enginep. 236
FIGURE 009-140 –>Engine Mounting, Rear 4.0L (ERH) Enginep. 237
GROUP 2.5L4 Engine 2.5L Four Cylinderp. 238
FIGURE 2.5L4-210 –>Cylinder Head 2.5L (EPE) Enginep. 239
FIGURE 2.5L4-310 –>Cylinder Block 2.5L (EPE) Enginep. 241
FIGURE 2.5L4-410 –>Crankshaft, Piston and Torque Converter 2.5L (EPE) Enginep. 242
FIGURE 2.5L4-510 –>Camshaft and Valves 2.5L (EPE) Enginep. 244
FIGURE 2.5L4-610 –>Timing Cover 2.5L (EPE) Enginep. 246
FIGURE 2.5L4-710 –>Engine Oiling 2.5L (EPE) Enginep. 248
FIGURE 2.5L4-810 –>Manifold, Intake and Exhaust 2.5L (EPE) Enginep. 250
FIGURE 2.5L4-910 –>Crankcase Ventilation 2.5L (EPE) Enginep. 251
GROUP 4.0L Engine 4.0L Six Cylinderp. 252
FIGURE 4.0L-210 –>Cylinder Head 4.0L (ERH) Enginep. 253
FIGURE 4.0L-310 –>Cylinder Block 4.0L (ERH) Enginep. 255
FIGURE 4.0L-410 –>Crankshaft, Piston and Torque Converter 4.0L (ERH) Enginep. 257
FIGURE 4.0L-510 –>Camshaft and Valves 4.0L (ERH) Enginep. 259
FIGURE 4.0L-610 –>Timing Cover 4.0L (ERH) Engine 1997 TJp. 261
FIGURE 4.0L-610 –>Timing Cover 4.0L (ERH) Engine 1998 TJp. 262
FIGURE 4.0L-610 –>Timing Cover 4.0L (ERH) Engine 1999 TJp. 263
FIGURE 4.0L-710 –>Engine Oiling 4.0L (ERH) Enginep. 264
FIGURE 4.0L-810 –>Manifold, Intake and Exhaust 4.0L (ERH) Enginep. 266
FIGURE 4.0L-910 –>Crankcase Ventilation 4.0L (ERH) Enginep. 267
GROUP 011 Exhaustp. 268
FIGURE 011-110 –>Exhaust System 2.5L (EPE), 4.0L (ERH) Engine 1997 TJp. 269
FIGURE 011-110 –>Exhaust System 2.5L (EPE), 4.0L (ERH) Engine 1998 TJp. 270
FIGURE 011-110 –>Exhaust System 2.5L (EPE), 4.0L (ERH) Engine 1999 TJp. 272
FIGURE 011-210 –>Heat Shields 2.5L (EPE), 4.0(ERH) Enginep. 273
GROUP 013 Frames and Bumpersp. 274
FIGURE 013-110 –>Frame 1997 TJp. 275
FIGURE 013-110 –>Frame 1998 TJp. 278
FIGURE 013-110 –>Frame 1999 TJp. 281
FIGURE 013-210 –>Bumper, Front 1997 TJp. 284
FIGURE 013-210 –>Bumper, Front 1998 TJ 1999 TJp. 285
FIGURE 013-310 –>Bumper, Rearp. 287
FIGURE 013-510 –>Body Mounting Hardwarep. 288
GROUP 014 Fuelp. 289
FIGURE 014-110 –>Fuel Tank 2.5L (EPE), 4.0L (ERH) Enginep. 291
FIGURE 014-210 –>Fuel Filler Tube 2.5L (EPE), 4.0L (ERH) Engine 1997 TJp. 292
FIGURE 014-210 –>Fuel Filler Tube 2.5L (EPE), 4.0L (ERH) Engine 1998 TJp. 293
FIGURE 014-210 –>Fuel Filler Tube 2.5L (EPE), 4.0L (ERH) Engine 1999 TJp. 294
FIGURE 014-310 –>Fuel Lines, Front 2.5L (EPE) Enginep. 295
FIGURE 014-320 –>Fuel Lines, Rear 2.5L (EPE) Enginep. 296
FIGURE 014-330 –>Fuel Lines, Front 4.0L (ERH) Engine 1997 TJ 1998 TJp. 297
FIGURE 014-335 –>Fuel Lines, Front 4.0L Engine 1999 TJp. 298
FIGURE 014-340 –>Fuel Lines, Rear 4.0L (ERH) Enginep. 299
FIGURE 014-410 –>Fuel Injection System 2.5L (EPE), 4.0L (ERH) Engine 1997 TJp. 300
FIGURE 014-410 –>Fuel Injection System 2.5L (EPE), 4.0L (ERH) Engine 1998 TJp. 301
FIGURE 014-410 –>Fuel Injection System 2.5L (EPE), 4.0L (ERH) Engine 1999 TJp. 302
FIGURE 014-510 –>Fuel Module 2.5L (EPE), 4.0L (ERH) Enginep. 303
FIGURE 014-610 –>Throttle Body 2.5L (EPE), 4.0L (ERH) Engine 1997 TJp. 304
FIGURE 014-610 –>Throttle Body 2.5L (EPE), 4.0L (ERH) Engine 1998 TJp. 305
FIGURE 014-610 –>Throttle Body 2.5L (EPE), 4.0L (ERH) Engine 1999 TJp. 306
FIGURE 014-710 –>Throttle Controls 2.5L (EPE), 4.0L (ERH) Enginep. 307
FIGURE 014-810 –>Air Cleaner 2.5L (EPE), 4.0L (ERH) Enginep. 309
FIGURE 014-1010–>Speed Control 1998 TJ 1999 TJp. 310
FIGURE 014-1110–>Accelerator Pedal 2.5L (EPE), 4.0L (ERH) Enginep. 311
GROUP 016 Propeller Shafts and U-Jointsp. 312
FIGURE 016-110 –>Propeller Shaft and Universal Joint Wrangler (TJ) 1997 TJp. 313
FIGURE 016-110 –>Propeller Shaft and Universal Joint Wrangler (TJ) 1998 TJp. 315
FIGURE 016-110 –>Propeller Shaft,Front and Rear 1999 TJp. 316
GROUP 017 Rear Suspensionp. 318
FIGURE 017-110 –>Suspension, Rear w/Shock Absorber 1997 TJp. 319
FIGURE 017-110 –>Suspension, Rear w/Shock Absorber 1998 TJp. 321
FIGURE 017-110 –>Suspension, Rear w/Shock Absorber 1999 TJp. 323
FIGURE 017-210 –>Stabilzer, Rear 1997 TJp. 325
FIGURE 017-210 –>Stabilzer, Rear 1998 TJp. 326
FIGURE 017-210 –>Stabilzer, Rear 1999 TJp. 327
GROUP 019 Steeringp. 328
FIGURE 019-110 –>Wheel, Steering 1997 TJp. 329
FIGURE 019-110 –>Wheel, Steering 1998 TJp. 330
FIGURE 019-110 –>Wheel, Steering 1999 TJp. 331
FIGURE 019-210 –>Column, Steering Upper and Lower 1997 TJp. 332
FIGURE 019-210 –>Column, Steering Upper and Lower 1998 TJp. 334
FIGURE 019-210 –>Column, Steering Upper and Lower 1999 TJp. 336
FIGURE 019-310 –>Gear, Steering w/o Power Steering 1997 TJp. 338
FIGURE 019-310 –>Gear, Steering w/o Power Steering 1998 TJp. 339
FIGURE 019-320 –>Gear, Power Steering 1997 TJp. 340
FIGURE 019-320 –>Gear, Power Steering 1998 TJp. 341
FIGURE 019-320 –>Gear, Power Steering 1999 TJp. 342
FIGURE 019-410 –>Linkage and Damper 1997 TJp. 343
FIGURE 019-410 –>Linkage and Damper 1998 TJp. 345
FIGURE 019-410 –>Linkage and Damper 1999 TJp. 346
FIGURE 019-510 –>Pump, Power Steering 1997 TJp. 347
FIGURE 019-510 –>Pump, Power Steering 1998 TJp. 348
FIGURE 019-510 –>Pump, Power Steering 1999 TJp. 349
FIGURE 019-710 –>Hoses and Reservoir, Power Steering Wrangler, w/2.5L Engine 1997 TJp. 350
FIGURE 019-710 –>Hoses and Reservoir, Power Steering Wrangler, w/2.5L Engine 1998 TJp. 351
FIGURE 019-710 –>Hoses and Reservoir, Power Steering Wrangler, w/2.5L Engine 1999 TJp. 352
FIGURE 019-720 –>Hoses and Reservoir, Power Steering Wrangler, w/4.0L Engine 1997 TJp. 353
FIGURE 019-720 –>Hoses and Reservoir, Power Steering Wrangler, w/4.0L Engine 1998 TJp. 354
FIGURE 019-720 –>Hoses and Reservoir, Power Steering Wrangler, w/4.0L Engine 1999 TJp. 355
GROUP 30RH Automatic Transmission 3 Speedp. 356
FIGURE 30RH-110 –>Transmisson 30RH (DGD)p. 357
FIGURE 30RH-210 –>Case and Related Parts 30RH (DGD)p. 358
FIGURE 30RH-310 –>Oil Pump 30RH (DGD)p. 360
FIGURE 30RH-410 –>Clutch, Front and Rear 30RH (DGD)p. 361
FIGURE 30RH-420 –>Output Shaft 30RH (DGD)p. 363
FIGURE 30RH-510 –>Bands 30RH (DGD)p. 364
FIGURE 30RH-610 –>Governor 30RH (DGD)p. 365
FIGURE 30RH-710 –>Valve Body 30RH (DGD)p. 366
FIGURE 30RH-720 –>Servos 30RH (DGD)p. 368
FIGURE 30RH-730 –>Parking Sprag 30RH (DGD)p. 369
FIGURE 30RH-1230–>Gearshift Controls 30RH (DGD)p. 370
GROUP 32RH Automatic Transmission 3 Speedp. 372
FIGURE 32RH-110 –>Transmission 32RH (DGG)p. 373
FIGURE 32RH-210 –>Case and Related Parts 32RH (DGG) 1997 TJp. 374
FIGURE 32RH-210 –>Case and Related Parts 32RH (DGG) 1998 TJp. 376
FIGURE 32RH-210 –>Case and Related Parts 32RH (DGG) 1999 TJp. 378
FIGURE 32RH-310 –>Oil Pump 32RH (DGG)p. 380
FIGURE 32RH-410 –>Clutch, Front and Rear 32RH (DGG)p. 381
FIGURE 32RH-420 –>Output Shaft 32RH (DGG)p. 383
FIGURE 32RH-510 –>Bands 32RH (DGG)p. 384
FIGURE 32RH-610 –>Governor 32RH (DGG)p. 385
FIGURE 32RH-710 –>Valve Body 32RH (DGG)p. 387
FIGURE 32RH-720 –>Servos 32RH (DGG)p. 389
FIGURE 32RH-730 –>Parking Sprag 32RH (DGG)p. 391
FIGURE 32RH-1230–>Gearshift Controls 32RH (DGG)p. 392
GROUP AISIN Manual Transmission 5 Speedp. 394
FIGURE AISIN-110 –>Transmission (DDQ) 1997 TJp. 395
FIGURE AISIN-110 –>Transmission (DDQ) 1998 TJp. 396
FIGURE AISIN-110 –>Transmission (DDQ) 1999 TJp. 397
FIGURE AISIN-210 –>Case and Extension AX5 (DDQ) 1997 TJp. 398
FIGURE AISIN-210 –>Case and Extension AX5 (DDQ) 1998 TJp. 399
FIGURE AISIN-210 –>Case and Extension AX5 (DDQ) 1999 TJp. 400
FIGURE AISIN-215 –>Case and Related Parts AX15 (DDQ) 1997 TJp. 401
FIGURE AISIN-215 –>Case and Related Parts AX15 (DDQ) 1998 TJ 1999 TJp. 402
FIGURE AISIN-410 –>Gear Train AX5 (DDQ) 1997 TJp. 404
FIGURE AISIN-410 –>Gear Train AX5 (DDQ) 1998 TJp. 407
FIGURE AISIN-410 –>Gear Train AX5 (DDQ) 1999 TJp. 410
FIGURE AISIN-415 –>Gear Train AX15 (DDQ) 1997 TJp. 413
FIGURE AISIN-415 –>Gear Train AX15 (DDQ) 1998 TJp. 415
FIGURE AISIN-415 –>Gear Train AX15 (DDQ) 1999 TJp. 417
FIGURE AISIN-420 –>Gear Train AX15 (DDQ) 1997 TJ 1998 TJp. 419
FIGURE AISIN-420 –>Reverse Idler AX 15 (DDQ) 1999 TJp. 424
FIGURE AISIN-910 –>Fork and Rails AX5 (DDQ) 1997 TJp. 426
FIGURE AISIN-910 –>Fork and Rails AX5 (DDQ) 1998 TJp. 428
FIGURE AISIN-910 –>Forks AX5 (DDQ) 1999 TJp. 430
FIGURE AISIN-915 –>Fork and Rails AX15 (DDQ) 1997 TJp. 432
FIGURE AISIN-915 –>Fork and Rails AX15 (DDQ) 1998 TJp. 434
FIGURE AISIN-915 –>Forks AX15 (DDQ) 1999 TJp. 436
FIGURE AISIN-1210–>Gearshift Controls (DDQ) 1997 TJ 1998 TJp. 437
FIGURE AISIN-1210–>Gearshift Controls (DDQ) 1999 TJp. 438
GROUP 231 Transfer Case Model 231p. 439
FIGURE 231-110 –>Transfer Case Command Trac (DHN)p. 440
FIGURE 231-210 –>Case and Related Parts Command Trac (DHN)p. 441
FIGURE 231-410 –>Gear Train Command Trac (DHN)p. 450
FIGURE 231-910 –>Forks and Rails Command Trac (DHN) 1997 TJp. 458
FIGURE 231-910 –>Forks and Rails Command Trac (DHN) 1998 TJp. 460
FIGURE 231-910 –>Forks and Rails Command Trac (DHN) 1999 TJp. 462
FIGURE 231-1210–>Gearshift Controls Command Trac (DHN)p. 464
GROUP 21P Speedometer Pinionsp. 466
FIGURE 21P-110 –>Speedometer Pinion And Housing 1997 TJp. 467
FIGURE 21P-110 –>Speedometer Pinion And Housing 1998 TJp. 468
FIGURE 21P-110 –>Speedometer Pinion And Housing 1999 TJp. 469
GROUP 022 Wheels, Covers and Jacksp. 470
FIGURE 022-110 –>Wheels 1997 TJ 1998 TJp. 471
FIGURE 022-110 –>Wheels 1999 TJp. 472
FIGURE 022-210 –>Caps And Covers 1997 TJ 1998 TJp. 473
FIGURE 022-210 –>Caps And Covers 1999 TJp. 474
FIGURE 022-310 –>Jack And Storagep. 475
FIGURE 022-410 –>Wheel, Spare Tailgate Mounted 1997 TJp. 476
FIGURE 022-410 –>Wheel, Spare Tailgate Mounted 1998 TJp. 477
FIGURE 022-410 –>Wheel, Spare Tailgate Mounted 1999 TJp. 478
GROUP 23D Wiper/Lock Cylinder and Keysp. 479
FIGURE 23D-105 –>Lock Cylinders And Keys 1997 TJp. 480
FIGURE 23D-105 –>Lock Cylinders & Keys 1998 TJp. 482
FIGURE 23D-105 –>Lock Cylinders & Keys 1999 TJp. 484
FIGURE 23D-205 –>Wiper System 1997 TJp. 486
FIGURE 23D-205 –>Wiper System 1998 TJp. 487
FIGURE 23D-205 –>Wiper System 1999 TJp. 488
FIGURE 23D-305 –>Rear Wiper System 1997 TJp. 489
FIGURE 23D-305 –>Rear Wiper System 1998 TJp. 490
FIGURE 23D-305 –>Rear Wiper System 1999 TJp. 491
GROUP 024 Air Conditioning & Heaterp. 492
FIGURE 024-110 –>Hevac Unit 1997 TJ 1998 TJp. 493
FIGURE 024-110 –>Hevac Unit 1999 TJp. 497
FIGURE 024-205 –>Hoses, Heater 2.5L Enginep. 500
FIGURE 024-210 –>Hoses, Heater 2.5L Engine, RHDp. 501
FIGURE 024-215 –>Hoses, Heater 4.0L Engine 1997 TJ 1998 TJp. 502
FIGURE 024-215 –>Hoses, Heater 4.0L Engine, LHD 1999 TJp. 503
FIGURE 024-220 –>Hoses, Heater 4.0L Engine, RHDp. 504
FIGURE 024-225 –>Plumbing, Hevac 2.5L Engine 1997 TJp. 505
FIGURE 024-225 –>Plumbing, Hevac 2.5L Engine 1998 TJp. 506
FIGURE 024-225 –>Plumbing, Hevac 2.5L Engine 1999 TJp. 507
FIGURE 024-230 –>Plumbing, Hevac 2.5L Engine, Rhd 1997 TJp. 508
FIGURE 024-230 –>Plumbing, Hevac 2.5L Engine, Rhd 1998 TJp. 509
FIGURE 024-230 –>Plumbing, Hevac 2.5L Engine, Rhd 1999 TJp. 510
FIGURE 024-235 –>Plumbing, Hevac 4.0L Engine 1997 TJp. 511
FIGURE 024-235 –>Plumbing, Hevac 4.0L Engine 1998 TJp. 512
FIGURE 024-235 –>Plumbing, Hevac 4.0L Engine 1999 TJp. 513
FIGURE 024-240 –>Pluming, Hevac 4.0L Engine, Rhd 1997 TJp. 514
FIGURE 024-240 –>Pluming, Hevac 4.0L Engine, Rhd 1998 TJp. 515
FIGURE 024-240 –>Pluming, Hevac 4.0L Engine, Rhd 1999 TJp. 516
FIGURE 024-245 –>Seals, A/c Condenser 1997 TJ 1998 TJp. 517
FIGURE 024-245 –>Seals, A/c Condenser 1999 TJp. 518
FIGURE 024-310 –>Control, Heater And A/c 1997 TJ 1998 TJp. 519
FIGURE 024-310 –>Control, Heater And A/c 1999 TJp. 520
FIGURE 024-410 –>Compressor, A/c 1997 TJ 1998 TJp. 521
FIGURE 024-410 –>Compressor, A/c 1999 TJp. 522
FIGURE 024-610 –>Ducts, Heater And A/c 1997 TJ 1998 TJp. 523
FIGURE 024-610 –>Ducts, Heater And A/c 1999 TJp. 524
GROUP 025 Emission Systemsp. 525
FIGURE 025-110 –>Emission Labels 2.5L (EPE), 4.0L (ERH) Enginep. 526
FIGURE 025-310 –>Vacuum Canister 2.5L (EPE), 4.0L (ERH) Engine 1997 TJp. 527
FIGURE 025-315 –>Vacuum Canister 1998 TJ 1999 TJp. 528
FIGURE 025-410 –>Emission Control Vacuum Harness 2.5L (EPE), 4.0 (ERH) Enginep. 529
FIGURE 025-420 –>Leak Detection Pump 1998 TJp. 530
FIGURE 025-420 –>Leak Detection Pump 1999 TJp. 531
GROUP DTJ Doors and Related Partsp. 532
FIGURE DTJ-110 –>Door, Full Front Shell And Hinges 1997 TJp. 533
FIGURE DTJ-110 –>Door, Full Front Shell And Hinges 1998 TJp. 535
FIGURE DTJ-110 –>Door, Full Front Shell And Hinges 1999 TJp. 536
FIGURE DTJ-120 –>Door, Full Front Glass And Regulatorp. 537
FIGURE DTJ-130 –>Door, Full Front Lock And Controls 1997 TJp. 538
FIGURE DTJ-130 –>Door, Full Front Lock And Controls 1998 TJp. 539
FIGURE DTJ-130 –>Door, Full Front Lock And Controls 1999 TJp. 540
FIGURE DTJ-160 –>Door, Half Front Shell And Hinges 1997 TJp. 541
FIGURE DTJ-160 –>Door, Half Front Shell And Hinges 1998 TJp. 542
FIGURE DTJ-160 –>Door, Half Front Shell And Hinges 1999 TJp. 543
FIGURE DTJ-170 –>Door, Half Front Lock And Controls 1997 TJp. 544
FIGURE DTJ-170 –>Door, Half Front Lock And Controls 1998 TJp. 545
FIGURE DTJ-170 –>Door, Half Front Lock And Controls 1999 TJp. 546
FIGURE DTJ-510 –>Mirror, Exteriorp. 547
FIGURE DTJ-610 –>Door Weatherstrips And Runs 1997 TJp. 548
FIGURE DTJ-610 –>Door Weatherstrips And Runs 1998 TJp. 549
FIGURE DTJ-610 –>Door Weatherstrips And Runs 1999 TJp. 550
GROUP ETJ Exterior Ornamentationp. 551
FIGURE ETJ-210 –>Mouldingsp. 552
FIGURE ETJ-310 –>Decals 1997 TJ 1998 TJp. 553
FIGURE ETJ-310 –>Decals 1999 TJp. 554
GROUP ITJ Interior Trimp. 555
FIGURE ITJ-110 –>Sunvisorsp. 556
FIGURE ITJ-310 –>Carpets And Interior Trim Panels Wrangler 1997 TJp. 559
FIGURE ITJ-310 –>Carpets And Interior Trim Panels Wrangler 1998 TJp. 560
FIGURE ITJ-310 –>Carpets And Interior Trim Panels 1999 TJp. 562
FIGURE ITJ-410 –>Door Trim Panels Half Doors & Full Doors 1997 TJp. 563
FIGURE ITJ-410 –>Door Trim Panels Half Doors & Full Doors 1998 TJp. 564
FIGURE ITJ-410 –>Door Trim Panels Half Doors & Full Doors 1999 TJp. 565
FIGURE ITJ-510 –>Front Seats Wrangler 1997 TJp. 566
FIGURE ITJ-510 –>Front Seats 1998 TJp. 569
FIGURE ITJ-510 –>Front Seats 1999 TJp. 572
FIGURE ITJ-610 –>Seat Assemblies, Seat Covers Rear Seat Wrangler 1997 TJp. 575
FIGURE ITJ-610 –>Seat Assemblies, Seat Covers Rear Seat Wrangler 1998 TJp. 577
FIGURE ITJ-610 –>Seat Assemblies, Seat Covers Rear Seat Wrangler 1999 TJp. 579
FIGURE ITJ-710 –>Seat Belts Wrangler 1997 TJ 1998 TJp. 581
FIGURE ITJ-710 –>Seat Belts Wrangler 1999 TJp. 583
FIGURE ITJ-810 –>Seat Assemblies, Adjusters, Recliners 1997 TJp. 585
FIGURE ITJ-810 –>Seat Assemblies, Adjusters, Recliners 1998 TJp. 588
FIGURE ITJ-810 –>Seat Assemblies, Adjusters, Recliners 1999 TJp. 592
GROUP STJ Body Sheet Metal Except Doorsp. 596
FIGURE STJ-210 –>Pan, Floor Front And Rearp. 598
FIGURE STJ-310 –>Plugs Wrangler 1997 TJp. 600
FIGURE STJ-310 –>Plugs 1998 TJ 1999 TJp. 601
FIGURE STJ-410 –>Fender And Flare, Front Wrangler 1997 TJp. 602
FIGURE STJ-410 –>Fender And Flare, Front Wrangler 1998 TJp. 603
FIGURE STJ-410 –>Fender And Flare, Front Wrangler 1999 TJp. 604
FIGURE STJ-510 –>Hood, Lock, Catches Wrngler 1997 TJ 1998 TJp. 605
FIGURE STJ-510 –>Hood, Lock, Catches 1999 TJp. 607
FIGURE STJ-610 –>Panels, Cowl And Dash Wrangler 1997 TJp. 608
FIGURE STJ-610 –>Panels, Cowl And Dash Wrangler 1998 TJp. 610
FIGURE STJ-610 –>Panels, Cowl And Dash Wrangler 1999 TJp. 611
FIGURE STJ-710 –>Glass, Windshield, Backlite, Quarter Windshield Frame, Hinges Wrangler 1997 TJp. 612
FIGURE STJ-710 –>Glass, Windshield, Backlite, Quarter Windshield Frame, Hinges 1998 TJp. 614
FIGURE STJ-710 –>Glass, Windshield, Backlite, Quarter Windshield Frame, Hinges 1999 TJp. 616
FIGURE STJ-810 –>Panels, Body Side Wrangler 1997 TJp. 618
FIGURE STJ-810 –>Panels, Body Side Wrangler 1998 TJp. 620
FIGURE STJ-810 –>Panels, Body Side Wrangler 1999 TJp. 622
FIGURE STJ-1110–>Soft Top And Windows Wrangler 1997 TJp. 624
FIGURE STJ-1110–>Soft Top And Windows Wrangler 1998 TJp. 626
FIGURE STJ-1110–>Soft Top And Windows Wrangler 1999 TJp. 628
FIGURE STJ-1120–>Top Enclosure, Hard 1997 TJp. 630
FIGURE STJ-1120–>Top Enclosure, Hard 1998 TJp. 631
FIGURE STJ-1120–>Top Enclosure, Hard 1999 TJp. 632
FIGURE STJ-1310–>Tailgate Wrangler 1997 TJp. 633
FIGURE STJ-1310–>Tailgate Wrangler 1998 TJp. 635
FIGURE STJ-1310–>Tailgate Wrangler 1999 TJp. 636
FIGURE STJ-1320–>Add-a-Trunkp. 637
FIGURE STJ-1610–>Sport Bar Wranglerp. 638
End of Catalogp. 596

Chapters Covered

  • 002 Front Suspension & Drive — springs, control arms, shocks, track bar, stabilizer bar, front axle drive shafts, housing, assembly and differential
  • 003 Rear Axle — axle, differential and housing, rear axle shafts
  • 004 Parking Brake — lever and cables
  • 005 Service Brakes — front and rear brakes, power booster, master cylinder, lines and hoses, pedals
  • 006 Clutch — clutch, housing, controls and pedals
  • 007 Cooling — radiator, water pump, coolant tank, pulleys, drive belts, transmission oil cooler lines, grilles
  • 008 Electrical — starters, battery tray and cables, lamps, engine/headlamp/instrument/body wiring, wiring repair, spark plugs-cables-coils, alternators, distributor, modules, relays, sensors, single board engine controllers, switches, horns
  • 009 Engine Mounting
  • 011 Exhaust — exhaust system and heat shields
  • 013 Frames and Bumpers — frames, front and rear bumper and fascia, body hold down
  • 014 Fuel — tank, speed control, accelerator pedal, filler tube, fuel lines, rail, pump and sending unit, throttle body and controls, air cleaner
  • 016 Propeller Shafts and U-Joints
  • 017 Rear Suspension — rear suspension and stabilizer
  • 019 Steering — wheel, column, gear, linkage, power steering pump and hoses
  • 022 Wheels, Covers and Jacks — wheels and hardware, covers and center caps, jack and spare tire stowage
  • 024 Air Conditioning & Heater — units, plumbing, controls, compressor, ducts and outlets
  • 025 Emission Systems — labels, vacuum canister, emission harness
  • 08A Instrument Panel and Radios and Consoles — instrument panel, cluster, radio/antenna/speakers, consoles
  • 2.5L4 Engine 2.5L Four Cylinder — cylinder head and block, crankshaft/piston/drive plate, camshafts and valves, timing belt and cover, oiling, manifolds, crankcase ventilation
  • 21P Speedometer Pinions
  • 231 Transfer Case Model 231 — assembly, gearshift controls, case, gear train, fork and rails
  • 23D Wiper/Lock Cylinder and Keys — lock cylinders and keys, windshield and rear wiper/washer
  • 30RH / 32RH Automatic Transmission 3 Speed — assembly, gearshift, case and extension, oil pump, gear train, bands, governor, valve body
  • 4.0L Engine 4.0L Six Cylinder — cylinder head and block, crankshaft/piston/torque converter, camshafts and valves, timing belt and cover, oiling, manifolds, crankcase ventilation
  • AISIN Manual Transmission 5 Speed — assembly, gearshift, case and extension, gear train, forks and rails
  • DTJ Doors and Related Parts — front door, exterior mirror, weatherstrips and seals
  • ETJ Exterior Ornamentation — moldings, decals and tapestripes
  • ITJ Interior Trim — headliner and visor, carpet and tonneau, door trim, front and rear seats, seat belts, adjusters/covers/shields/risers
  • STJ Body Sheet Metal Except Doors — folding top, tailgate, luggage rack, floor pans, plugs, front fenders, hood and release, cowl and dash, glass and rear view mirror, aperture panel

IMAGES PREVIEW

1997-1999 Jeep Wrangler TJ Mopar Illustrated Parts Catalog Chassis Body Trim — PDF page 1 preview
1997-1999 Jeep Wrangler TJ Mopar Illustrated Parts Catalog Chassis Body Trim — PDF page 8 preview
1997-1999 Jeep Wrangler TJ Mopar Illustrated Parts Catalog Chassis Body Trim — PDF page 9 preview

Together those groups give a technician exploded callouts and part-number tables keyed to line (J Wrangler 4WD / U Wrangler 4WD RHD), series, body 77 inch wheelbase, engines EPE/EP0 2.5L and ERH/ER0 4.0L, and transmissions such as DGG/DGD 32RH 3-speed automatic, DDQ 5-speed manual, DG0 all automatic and DBB all manual. Front-suspension figures list shock packages for gas-charged normal duty [SDA] and high-pressure gas charged [SDU], coil springs by sales codes such as ZAD through ZNG or ZBD through ZPG depending on year, track bar, upper and lower control arms with bushings, jounce bumpers and isolators. Front axle shaft pages distinguish power front disc/rear drum [BGA] versus four-wheel anti-lock [BGK] shafts, U-joints, oil slingers, seals and snap rings. Housing pages cover vents, ball-joint kits, knuckles, differential cover, RTV sealant, ABS sensor and related hardware.

Finding a Part

The catalog tells you to start from the group contents list, use the alphabetic noun index, or look up a known part number in the numerical index. Logical illustration numbers stay consistent across catalogs (for example 8-100 starters, 8-200 alternators). Service parts packages appear with related parts. Standard attaching hardware is listed in the group text rather than only in a separate fastener book.

Get the Catalog Working for You

The 1997-1999 Jeep Wrangler TJ Mopar Illustrated Parts Catalog Chassis Body Trim supports ordering the correct shock, spring, axle shaft, knuckle, stabilizer link, fuel pump, transfer-case fork, seat belt, folding-top piece or interior panel instead of guessing from a later JK or earlier YJ book. Matching year, engine code, brake package and left- versus right-hand drive columns on each figure reduces wrong-part returns. Instant PDF delivery after payment means you can open the file on any device and print the exploded view you need in the shop—no shipping wait.

Reviews

There are no reviews yet.

Be the first to review “1997-1999 Jeep Wrangler TJ Mopar Illustrated Parts Catalog Chassis Body Trim”

What Our Customers Say

★★★★★ Live reviews from customers
Loading customer reviews...

🌟 Related Products

Discover more professional manuals for your equipment

-48% OFF
2004 Jeep Wrangler Tj Service Manual 4 Diagnostic Manuals - PDF Download
-40% OFF
Jeep Wrangler Tj 2002 Parts List Catalog Illustrated Manual - PDF DOWNLOAD!!!
-40% OFF
Jeep Wrangler Tj Parts Manual Catalog Download 2000 - PDF DOWNLOAD
-33% OFF
Jeep XJ YJ CJ SJ Part Catalog Manual 1981-1986 - PDF DOWNLOAD
0
    0
    Your Cart
    Your cart is emptyReturn to Shop
    Start Downloading your Manual immediately by proceeding to checkout page
    Continue Shopping
    🛒
    Recently Purchased
    🕒 verified order
