1997-2011 Nissan D22 Series Service Manual & Workshop Supplement Collection

Description

1997-2011 Nissan D22 Series Service Manual & Workshop Supplement Collection

This extensive Nissan D22 Series service manual collection brings together the core workshop information and a long sequence of D22 service supplements in one 6,296-page PDF. The material begins with D22 service documentation from the original 1997-era publications and continues through successive face-lift updates, revised procedures and later-model information, including a supplement covering the 2011 Nissan D22 Series. It is designed around actual maintenance, diagnosis, adjustment, disassembly, inspection, repair and installation work rather than general vehicle operation.

The collection covers a wide range of D22 configurations encountered across different markets and production updates. Engine material appearing throughout the manuals includes KA24E, KA24DE, NA20S, Z24S, QD32, TD25, TD25T, TD25Ti, TD27, VG30E, VG30DE, VG33E, ZD30DDT and YD25DDTi applications. Because the PDF combines the main service information with later supplements, it is particularly useful when working with D22 vehicles whose specifications, wiring, powertrain equipment or service procedures changed during the model’s long production history.

Looking for the 3.2L diesel? This collection includes dedicated QD32 diesel service data, engine specifications, maintenance capacities and diesel injection information, including D22 supplement material covering the 2003 model period.

QD32 3.2L Diesel Coverage

This Nissan D22 manual collection includes specific service information for the QD32 3.2L diesel engine, including D22 applications identified in Nissan model-variation and service-supplement data. The QD32 is listed separately from later turbo-diesel engines such as the YD25DDTi and ZD30DDT, making this collection relevant for owners and technicians working on naturally aspirated QD32-powered D22 models.

The collection also includes D22 supplement information introduced for the 2003 model period, including references to QD32 applications. Nissan’s identification data within the manuals uses the QD32 engine code in D22 model listings, including 2WD and 4WD configurations depending on market and specification.

QD32 Technical Information Included

• Engine: QD32 diesel
• Displacement class: 3.2L diesel
• D22 applications: Single Cab and Double Cab configurations appear in the model-identification data, with 2WD and 4WD applications depending on market
• Engine mechanical data: cylinder head, valve train, camshaft, cylinder block, piston, piston ring, piston pin and crankshaft specifications
• Inspection data: wear limits, clearances, dimensions, runout limits and adjustment values
• Fuel system information: QD32 diesel injection-pump calibration data and related engine-control specifications
• Maintenance data: QD32-specific engine oil and cooling-system capacities
• Drivetrain coverage: manual transmission, automatic transmission where applicable, transfer, propeller shaft and differential service information
• Electrical and diagnostic coverage: wiring diagrams, system checks and fault-diagnosis procedures across applicable D22 systems

Useful QD32 Service Specifications Found in the Manual

• QD32 engine oil refill capacity with filter is listed in the maintenance data for applicable configurations
• QD32 cooling-system capacities are listed by applicable configuration
• QD32 engine-control sections include injection-pump calibration standards
• QD32 mechanical service data includes cylinder-head, camshaft, piston, cylinder-liner and crankshaft specifications
• D22 identification tables specifically map the QD32 engine to applicable D22 model variations

If you are looking for a Nissan D22 manual for the 3.2L QD32 diesel, this collection contains dedicated QD32 service and specification material rather than only gasoline-engine information. Because Nissan issued multiple D22 revisions and regional supplements, always match the relevant engine, drivetrain and market information to your vehicle identification before carrying out repairs.

File Details

• Manual type: Service Manual and Workshop Supplement Collection
• Brand: Nissan
• Model: D22 Series
• Coverage: Original D22 service material plus multiple face-lift and later-model supplements through 2011
• Language: English
• Page count: 6,296 pages
• File format: PDF
• Manufacturer: Nissan Motor Co., Ltd.

Broad D22 Powertrain Coverage

The 1997-2011 Nissan D22 Series Service Manual & Workshop Supplement Collection spans gasoline and diesel D22 applications and contains procedures that distinguish between engines and vehicle configurations where required. The engine-mechanical material includes compression testing, external components, cylinder heads, valve gear, timing systems, oil seals, engine removal, cylinder blocks, pistons, connecting rods, crankshafts, bearings and detailed service-data limits. Depending on the engine, the manual provides procedures for timing chains or the applicable timing components, valve-clearance work, cylinder-head inspection, compression-pressure diagnosis and complete engine disassembly and assembly.

Inspection information is not limited to removal and replacement. The manuals contain measurable service criteria such as clearances, runout, wear limits, bore measurements, bearing clearances, valve and valve-guide limits, spring specifications, tightening sequences and torque values. That level of detail makes the collection useful for both fault diagnosis and decisions about whether a component can be reused, adjusted, machined or must be replaced.

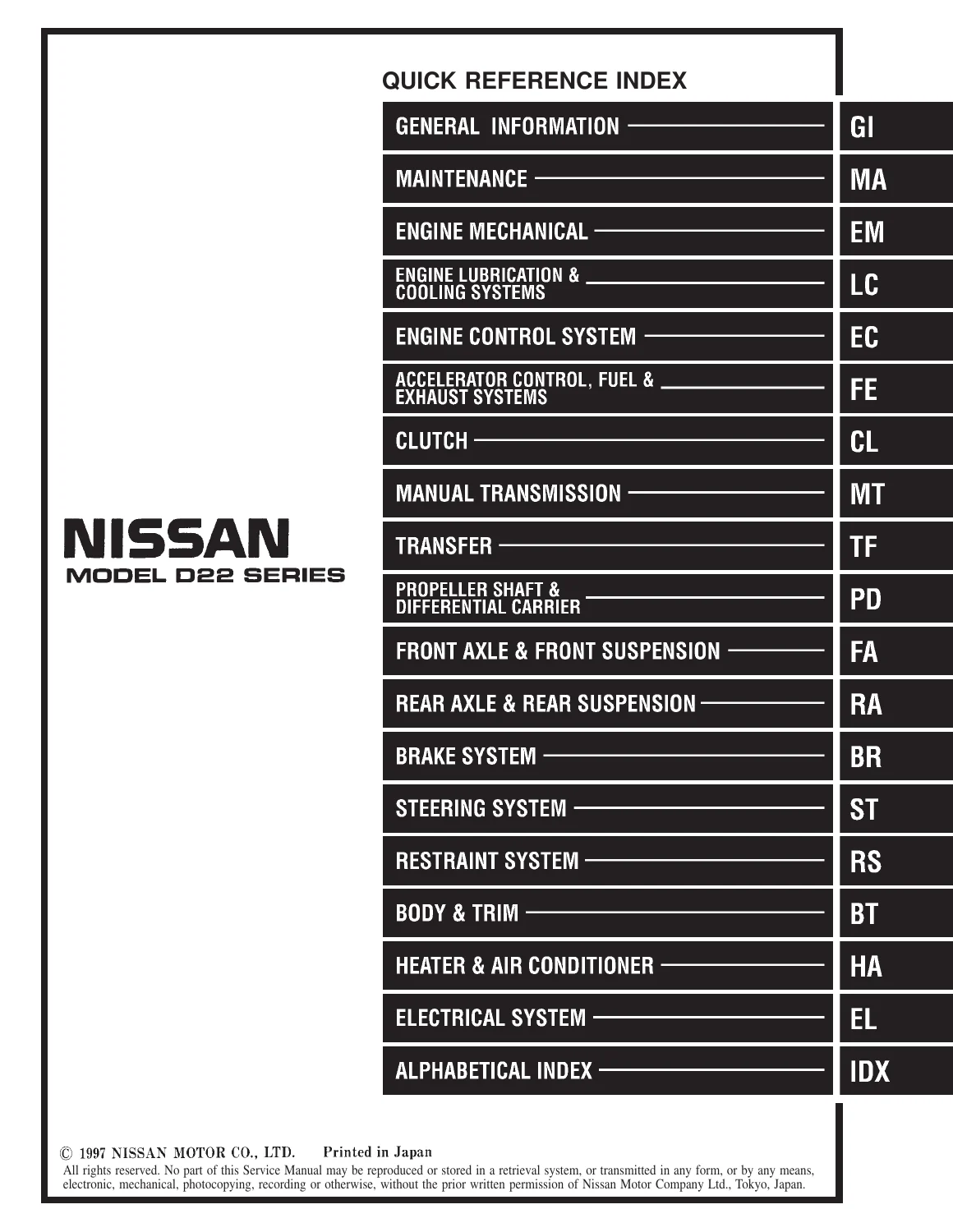

Chapters Covered

• General Information
  • Precautions, vehicle identification, lifting and towing information, tools and general service guidance
  • How to read wiring diagrams and follow diagnostic flow charts
• Maintenance
  • Periodic maintenance and engine maintenance procedures
  • Fluid, belt, filter and inspection information according to applicable configuration
• Engine Mechanical
  • Compression pressure, outer engine components, oil pan and timing systems
  • Cylinder head, valve train, oil seals, engine removal and cylinder block overhaul
  • Service data, inspection dimensions, clearances and adjustment values
• Engine Lubrication & Cooling Systems
  • Lubrication circuits, oil-pressure checks, oil pumps, oil coolers and oil jets
  • Cooling circuits, water pumps, thermostats, radiators, cooling fans and overheating diagnosis
• Engine Control System
  • Engine-control components, circuits and diagnostic procedures for applicable engines
  • System checks, electrical diagnosis and engine-control service information
• Accelerator Control, Fuel & Exhaust Systems
  • Accelerator controls and fuel-system service information
  • Exhaust-system components and related inspection or adjustment procedures
• Clutch
  • Clutch controls, hydraulic components, inspection, adjustment and service procedures
• Manual Transmission
  • Removal, installation, disassembly, inspection and assembly procedures
  • Transmission service data and adjustment information
• Automatic Transmission
  • Later D22 automatic-transmission service information where included by the applicable supplement
• Transfer
  • Transfer controls, removal, disassembly, inspection, adjustment and assembly
• Propeller Shaft & Differential Carrier
  • Propeller-shaft inspection and service
  • Final-drive and differential disassembly, bearing preload, pinion height, tooth contact and assembly
• Front Axle & Front Suspension
  • Front axle, hubs, suspension components, torsion-bar related service and specifications
• Rear Axle & Rear Suspension
  • Rear axle and suspension removal, inspection, service and adjustment information
• Brake System
  • Hydraulic brake components, inspection and service procedures
  • Anti-lock brake system information for applicable models
• Steering System
  • Steering components and power-steering systems, including applicable PB48S and PB59K system information
• Restraint System
  • Seat-belt and Supplemental Restraint System service information
  • Air-bag precautions, components, wiring and diagnosis for applicable 2WD and 4WD models
• Body & Trim
  • Body fittings, interior and exterior trim and related removal and installation procedures
• Heater & Air Conditioner
  • R-134a refrigerant service, refrigeration cycle, compressor service and refrigerant lines
  • Operational checks, pressure diagnosis, wiring, leak testing and control-linkage adjustment
• Electrical System
  • Power supply and distribution, battery, starting and charging systems
  • Headlamps, exterior and interior lighting, meters, warning lamps and warning buzzer
  • Wipers and washers, horn, rear-window defogger, audio and power antenna
  • Power mirrors, power windows, power door locks, electrical-unit locations and harness layouts

Taken together, these chapters provide a workshop-level reference for mechanical, drivetrain, chassis, body and electrical work on the Nissan D22 Series. Procedures are accompanied throughout the collection by component illustrations, exploded assemblies, wiring diagrams, diagnostic charts, connector and harness information, tightening data and service specifications. The supplements add or revise information where later D22 production differed from earlier vehicles, rather than treating every D22 configuration as identical.

Diagnostics, Wiring and Service Data

A major strength of this Nissan D22 workshop manual collection is the amount of diagnostic material included alongside repair procedures. The air-conditioning section, for example, moves from operational checks and symptom charts into preliminary diagnosis, system-pressure testing, electrical checks and component inspection. It provides separate wiring and circuit diagrams, refrigerant-pressure reference data, leak-checking procedures and compressor service information. Similar diagnostic structures appear throughout electrical and engine-control material.

The electrical chapters include system schematics, individual wiring diagrams, harness layouts, electrical-unit locations and component checks. This allows a technician to follow a problem from a symptom through the relevant fuse, power supply, ground, harness, switch, relay or component rather than relying only on a parts-replacement approach. The merged supplements are also valuable where wiring or equipment changed on later D22 versions.

Service Data and Specifications sections provide the numerical information needed to verify repairs. Across the collection these include tightening torques, pressure ranges, clearances, wear and runout limits, adjustment figures, component dimensions, fluid or refrigerant quantities and other model-specific values where applicable. Procedures repeatedly distinguish between engines, drive configurations, regional specifications and revised production equipment when the source manuals require it.

Original Manual Plus Successive D22 Updates

This PDF is more than a single early D22 manual. The included Nissan supplements document successive face-lift and production changes. The collection contains references to original and revised D22 service publications, 1999 face-lift information, 2000 production updates, later supplement revisions for different markets, updates extending through the mid-2000s and a final included supplement specifically covering the 2011 Nissan D22 Series. Several supplements instruct technicians to use their changed or added procedures together with the earlier D22 service manuals, which is why having the material assembled in one collection is especially practical.

Regional references within the service information include Australia, Europe, the Middle East, General areas, China, Turkey, Chile and other applicable markets. Not every procedure applies to every D22; the manual identifies engine, drive type, market or production differences where relevant. This is important when selecting specifications or following a repair procedure on a particular vehicle.

Illustrated Repair Procedures

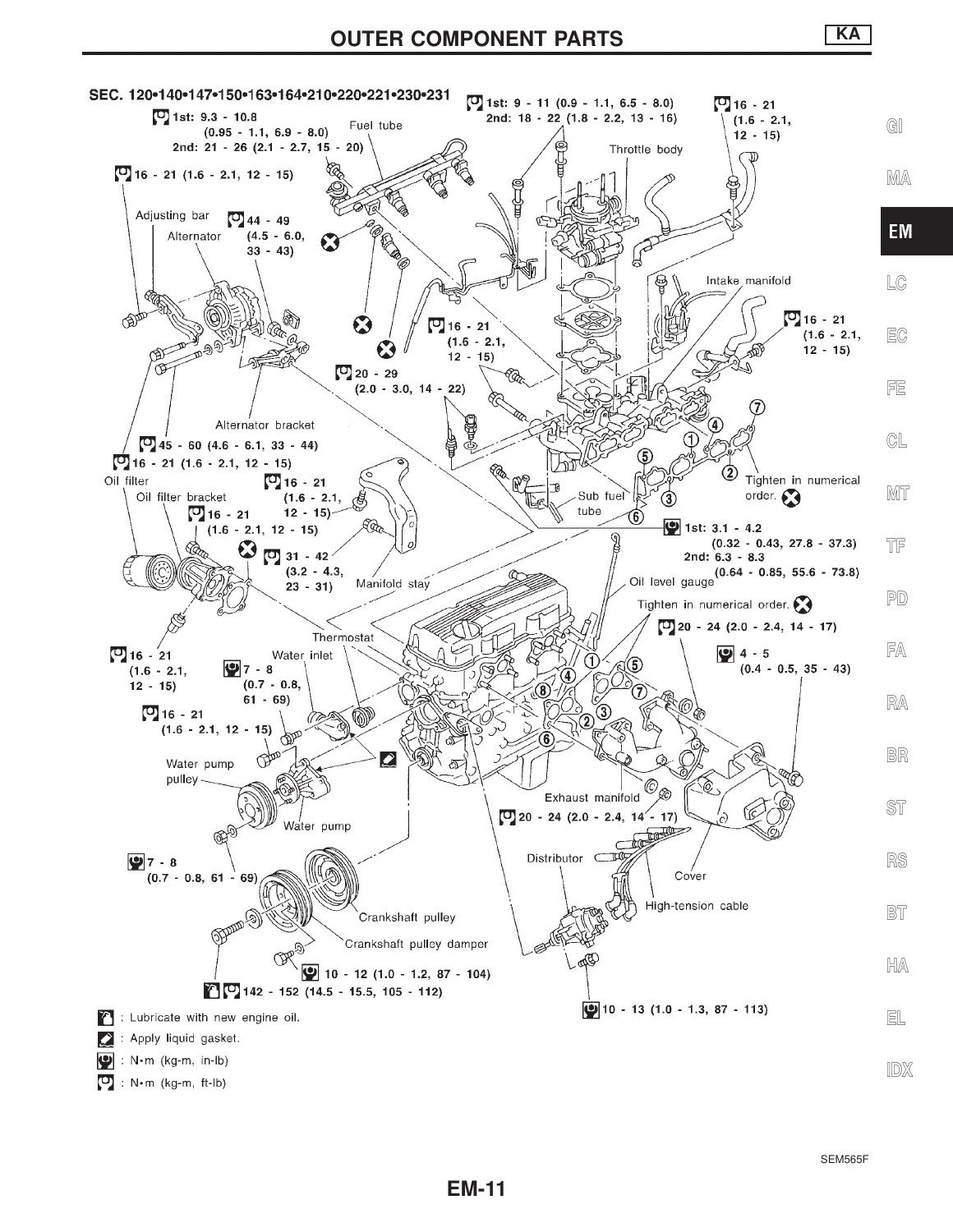

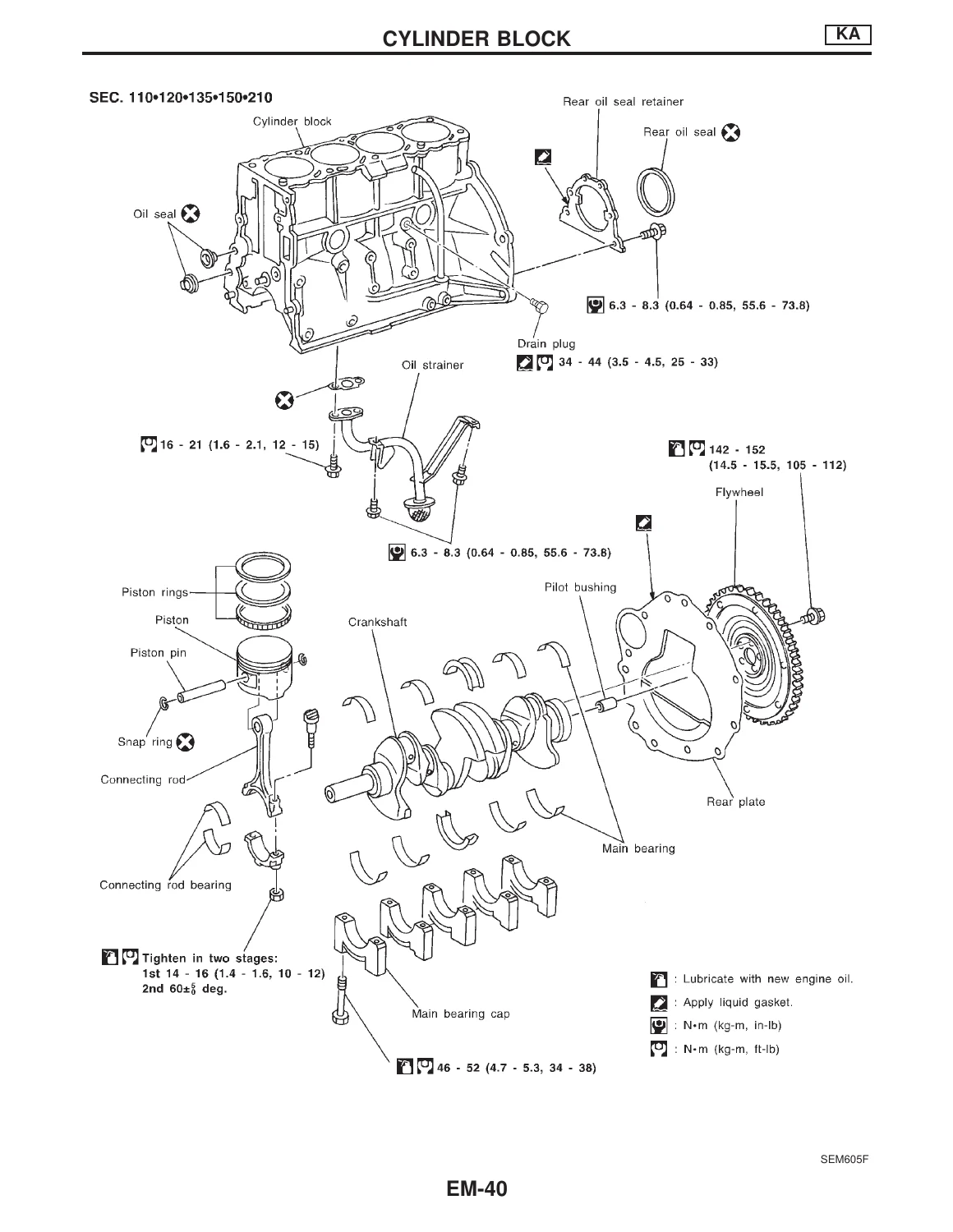

Throughout the 6,296 pages are exploded component drawings, installation diagrams, mechanical illustrations, wiring schematics, flow charts and service-tool illustrations. Engine sections show component relationships and tightening locations before taking the reader through removal, inspection and assembly. Chassis and drivetrain sections provide similar visual guidance for shafts, differential components, axles, suspension and other assemblies. Electrical diagrams identify circuit paths and connector relationships, while diagnostic charts provide structured check sequences for troubleshooting.

The manual also gives safety and preparation instructions before many major operations. These include warnings for lifting and supporting the vehicle, engine removal, SRS work, refrigerant handling and procedures where an incorrect sequence can damage components. Special service tools or suitable equivalents are identified where the procedure calls for them.

Use the Nissan D22 Series Manual for Real Workshop Work

The 1997-2011 Nissan D22 Series Service Manual & Workshop Supplement Collection supports a broad range of work, from routine maintenance and adjustments to engine overhaul, cooling-system repair, clutch and transmission service, transfer and differential work, suspension and brake repairs, steering service, air-conditioning diagnosis, body work and detailed electrical troubleshooting. Its procedures, diagrams, tightening sequences, measurements and service limits help you carry out repairs against the specifications and methods provided for the applicable D22 configuration rather than relying on generic information.

IMAGES PREVIEW

Correct procedures and specifications matter when diagnosing faults, setting clearances, tightening critical fasteners, rebuilding assemblies or tracing electrical problems. With 6,296 pages of Nissan D22 service and supplement material available in one PDF, this collection provides a substantial technical reference for owners, technicians and repair workshops maintaining D22 vehicles across multiple production updates. The manual is supplied as an instant PDF download after purchase, with no physical book and no shipping delay. It can be opened on compatible computers, tablets and phones, and pages can be printed when a paper reference is useful at the vehicle or workbench.
