1998-2010 Volkswagen New Beetle 1.9L & 2.0L Fuel System Factory Repair Manual – PDF

Description

Factory-Level Fuel System Repair Data for 1998-2010 VW New Beetle

This is the official Volkswagen factory repair manual covering the complete fuel supply and management systems for the 1998 through 2010 New Beetle. It is the same documentation used by VW dealership technicians, delivering OEM-specified procedures, diagnostic routines, and technical specifications.

File Details

• Manual Type: Factory Repair Manual (OEM)
• Brand / Model: Volkswagen New Beetle
• Covered Engines: 1.9L 4-Cyl. (ALH & BEW) and 2.0L 4-Cyl. (AEG, AVH, AZG, BDC, BEV & BGD)
• Model Years: 1998 – 2010
• Focus: Full fuel system – supply, injection, EVAP, and electronic controls
• Language: English
• Page Count: 160
• File Format: PDF – instant digital delivery

Chapters & Systems Covered

The manual systematically covers every component of the New Beetle fuel system, from the accelerator pedal to the fuel tank and evaporative emissions. Key chapters include:

IMAGES PREVIEW

• Fuel Supply System Overview – General information, safety precautions, and rules of cleanliness

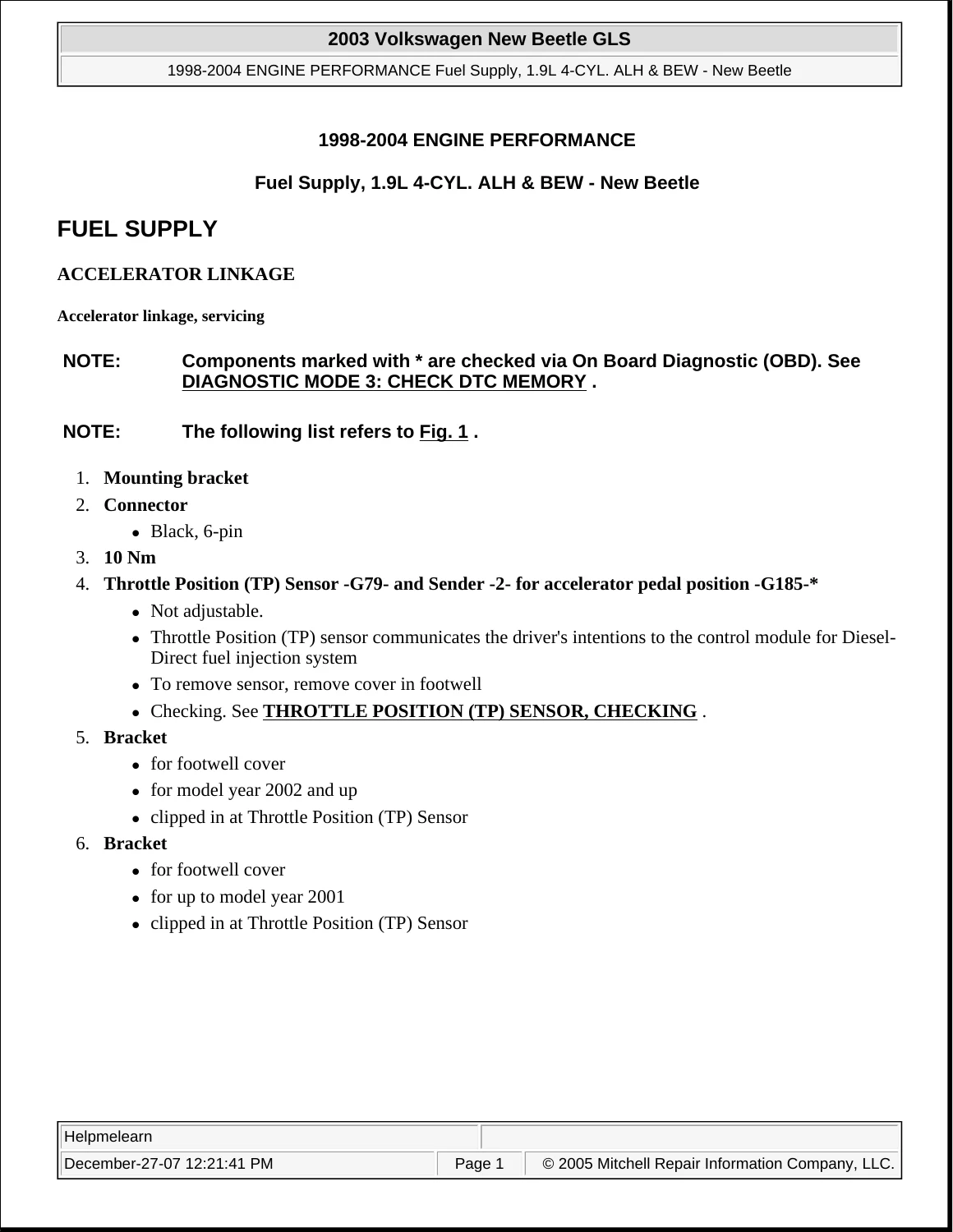

• Accelerator Linkage & Electronic Power Control (EPC) – Throttle Position (TP) sensor -G79- and -G185-, pedal position sender, wiring checks, and adjustment procedures for both cable and EPC systems

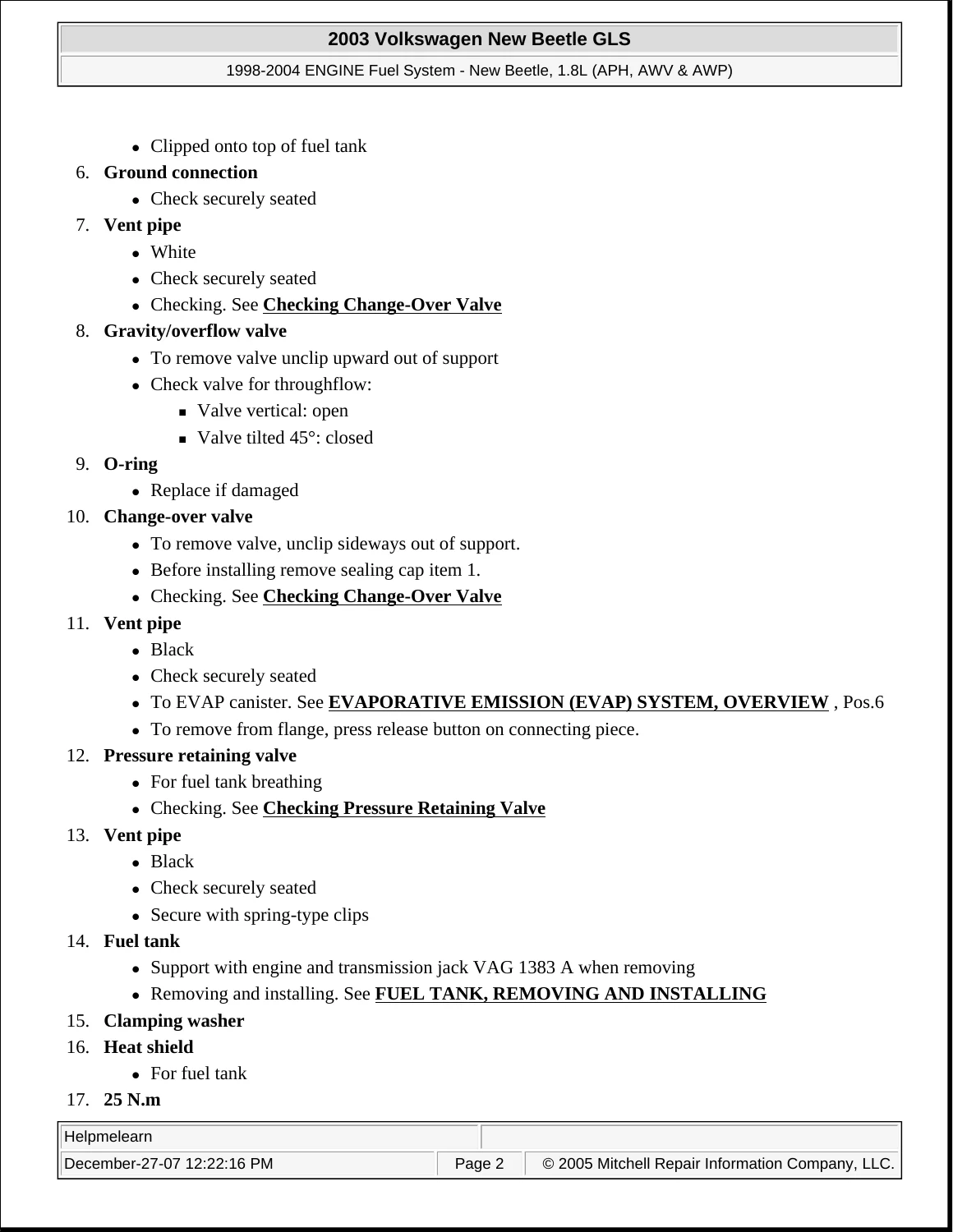

• Fuel Tank & Attachments – Removal and installation of the fuel tank, fuel filter, fuel delivery unit, fuel gauge sensor, and all associated pipes and hoses
• Fuel Delivery Unit – In-tank pump removal/installation, fuel gauge sensor replacement, and installed position verification
• Fuel Filter Servicing – Filter replacement, control valve operation (thermo valve), and water drain procedure
• Fuel Pump Diagnostics – Electrical testing, delivery rate checks, non-return valve testing, and current draw measurement using VAG tools
• Fuel Pump Checking – Comprehensive testing procedures including voltage supply, delivery rate, and system pressure checks
• Fuel Cooler – Removal and installation of the fuel cooler on the return line
• Electronic Engine Power Control (EPC) System – Function, component checking, warning lamp significance, and throttle position sensor testing
• Evaporative Emission (EVAP) System – Functional description, leak detection, component servicing, EVAP canister purge regulator valve -N80- checking, and leak testing procedures
• Leak Detection Pump (LDP) -V144- – Checking voltage supply, resistance, and wiring
• Crash Fuel Shut-Off – Function and system overview
• Fuel Tank Replacement – Ground strap installation for replacement tanks, and complete removal/installation of the fuel tank

This is not a simplified owner’s manual. It is a technical service document with step-by-step procedures, detailed illustrations, exploded-view diagrams, wiring schematics, and all required torque values and specifications. Every procedure includes the necessary special tools and equipment (e.g., VAG 1318 pressure tester, VAG 1598/22 test box) and provides the exact test sequences and pass/fail criteria used in a professional workshop.

What This Manual Enables You To Do

With the 1998-2010 Volkswagen New Beetle 1.9L & 2.0L Fuel System Factory Repair Manual, you can diagnose and resolve a wide range of fuel system issues:

• Diagnose and repair fuel supply problems on both TDI and gasoline engines
• Check and replace throttle position sensors (G79/G185) for EPC systems
• Service fuel tanks, fuel delivery units, and fuel gauge sensors
• Perform fuel pump electrical checks, delivery rate tests, and pressure tests
• Service the EVAP system, including leak detection pump (V144) and purge regulator valve (N80)
• Bleed the fuel system (for BEV/BGD engines) and troubleshoot fuel cooler issues
• Use VAG-specific diagnostic tools (VAG 1551/1552, VAG 1318, VAG 1527, etc.) as shown
• Follow the correct safety protocols for working on pressurized fuel systems

Using the correct factory procedures and specifications is critical for maintaining the performance, reliability, and safety of your New Beetle. Incorrect repairs can lead to poor fuel economy, drivability issues, or even hazardous fuel leaks. This manual eliminates guesswork with clear, proven instructions.

Instant PDF Delivery

This is a digital product. After purchase, you receive immediate access to the complete PDF file. No shipping, no waiting. It can be viewed on any device: computer, tablet, or smartphone, and you can print specific pages for use in the garage.

Take control of your Volkswagen New Beetle’s fuel system maintenance and repair with the same factory-level documentation that professionals rely on. Add the 1998-2010 Volkswagen New Beetle 1.9L & 2.0L Fuel System Factory Repair Manual to your digital library today.
