Description
1998 Dodge Dakota Pickup (AN) Parts Manual
This 1998 Dodge Dakota Pickup (AN) Parts Manual is the illustrated parts catalog for the entire AN-platform Dakota lineup. It is a factory-style exploded-view reference that technicians, restorers, and parts counter staff use to identify every component on the truck by part number, group, and figure. The catalog is organised by vehicle system and covers Regular Cab and Club Cab, two-wheel drive and four-wheel drive, all four engine options, both automatic and manual transmissions, and both transfer case families offered in 1998.
File Details
- Manual type: Illustrated Parts Catalog (Parts Manual)
- Brand / Make: Dodge
- Model line: Dakota Pickup (AN series)
- Model year coverage: 1998 (VIN code W)
- Language: English
- Page count: 447 pages
- File format: PDF
- Document date shown: September 15, 2005
- Series / Line / Body codes: L = Regular Cab, L = Club Cab; 1 = Dakota 2WD, 5 = Dakota 4WD; 31 = Club Cab (131 WB), 61 = Regular Cab (112 WB), 62 = Regular Cab (124 WB)
VIN Plate Decoding Reference
The opening section of the manual walks through the 17-position VIN plate and explains each character: country of origin, make, vehicle type, GVWR and passenger safety class, vehicle line (G = Dakota / Dakota Sport / Dakota 4×4), series, body style, engine code, check digit, model year (V = 1997, W = 1998, X = 1999), assembly plant (S = Dodge City), and the twelve-digit build sequence. Engine codes covered include X (3.9L 6-cyl EHC), Y (5.2L 8-cyl ELF), P (2.5L 4-cyl EPE) and Z (5.9L 8-cyl EML).
Chapters Covered
The 1998 Dodge Dakota Pickup (AN) Parts Manual is divided into numbered factory groups. Each group contains one or more figure numbers, and every figure is an exploded illustration keyed to an itemised parts table with part number, quantity, line, series, body, engine, transmission, and trim columns.
- Group 002 – Front Suspension & Drive: Front Suspension, Front Axle Drive Shafts, Front Axle Housing, Front Axle Assembly, Front Axle Differential, Front Axle Skid Plate
- Group 003 – Rear Axle: Rear Axle Assembly (Corporate 8.25 and 9.25), Differential and Housing, Rear Axle Vent
- Group 004 – Parking Brake: Parking Brake Lever and Cables
- Group 005 – Service Brakes: Front Brakes, Rear Brakes (9 in x 2.5 in and 10 in x 2.5 in), Power Brake Booster, Brake Master Cylinder, Brake Lines and Hoses, Brake Pedals
- Group 006 – Clutch: Clutch, Clutch Housing, Clutch Controls (hydraulic), Clutch Pedals
- Group 007 – Cooling: Radiator and Related Parts (2.5L, 3.9L), Water Pump, Coolant Tank, Pulleys, Drive Belts, Transmission Oil Cooler Lines, Grilles
- Group 008 – Electrical: Starters, Alternators, Distributor, Modules, Relays, Sensors, Single Board Engine Controllers, Switches, Horns, Battery Tray and Cables, Lamps (front, rear, dome, courtesy, reading), Bulbs and Sockets, Wiring (engine, headlamp to dash, instrument panel, body and accessories), Wiring Repair, Spark Plugs, Cables and Coils
- Group 08A – Instrument Panel and Radios and Consoles: Instrument Panel, Instrument Panel Cluster, Radio, Antenna, Speakers, Floor Console, Overhead Console
- Group 9 – Engine Mounting: Front and Rear engine mounting for 2.5L, 3.9L, 5.2L and 5.9L engines (N1 and N5 variants)
- Group 11 – Exhaust: Exhaust System (2.5L; 3.9L/5.2L/5.9L), Heat Shields
- Group 013 – Frames and Bumpers: Frame, Front Bumper and Fascia, Rear Bumper and Fascia, Body Hold Down
- Group 14 – Fuel: Fuel Tank, Fuel Tank Filler Tube, Fuel Lines (front and rear), Fuel Rail, Fuel Pump and Sending Unit, Throttle Body, Throttle Controls, Air Cleaner, Speed Control, Accelerator Pedal
- Group 16 – Propeller Shafts and U-Joints: Front propeller shaft, Rear propeller shaft (1-piece and 2-piece), U-joints
- Group 17 – Rear Suspension: Leaf Springs (AN 1 and AN 5), Rear Stabilizer with Shock Absorbers
- Group 19 – Steering: Steering Wheel, Steering Column (upper and lower), Steering Gear (Rack & Pinion N1 and Gear N5), Steering Linkage, Power Steering Pump (2.5L and 3.9L/5.2L/5.9L), Power Steering Hoses
- Group 22 – Wheels, Covers and Jacks: Wheels and Hardware, Wheel Covers and Center Caps, Jack Stowage (Standard Cab and Club Cab), Spare Tire Stowage
- Group 23D – Wiper/Lock Cylinder and Keys: Lock Cylinders and Keys, Windshield Wiper and Washer Systems
- Group 24 – Air Conditioning & Heater: Heater Unit, Hevac Unit, Plumbing, Heater and A/C Controls, A/C Compressor, Compressor Mounting (2.5L; 3.9L/5.2L/5.9L), Air Ducts and Outlets (Demister System)
- Group 25 – Emission Systems: Emission Labels, Vacuum Canister, Emission Harness (2.5L; 3.9L/5.2L/5.9L), Leak Detection Pump
- Group DAN – Doors and Related Parts: Front Door Shell and Hinges, Front Door Glass and Regulators, Front Door Lock and Controls, Exterior Mirrors, Weatherstrips and Seals
- Group EAN – Exterior Ornamentation: Nameplates, Mouldings and Ornamentation, Decals and Tapestripes
- Group IAN – Interior Trim: Headliner and Visor, Moldings and Scuff Plates, Carpet, Silencers, Door Trim Panels, Front Seats (Full Bench, Split Bench, Bucket), Rear Seats (Folding and Quad), Seat Belts (front and rear), Adjusters, Covers, Shields and Risers, Handles and Lock Bar
- Group SAN – Body Sheet Metal Except Doors: Floor Pans (Club Cab, Regular Cab), Plugs, Front Fenders, Hood and Hood Release, Cowl and Dash Panel, Glass and Rear View Mirror, Aperture Panels, Quarter Panel and Pillar, Roof Panels, Tailgate
- Group 2.5L4 – Engine 2.5L Four Cylinder (EPE): Cylinder Head, Cylinder Block, Crankshaft, Piston and Drive Plate, Camshafts & Valves, Timing Belt and Cover, Engine Oiling, Manifolds, Crankcase Ventilation
- Group 3.9L – Engine 3.9L Six Cylinder (EHC): Cylinder Head, Cylinder Block, Crankshaft, Piston and Torque Converter, Camshafts & Valves, Timing Belt and Cover, Engine Oiling, Manifolds (including Heat Shields), Crankcase Ventilation
- Group 5.2L – Engine 5.2L Eight Cylinder (ELF): Cylinder Head, Cylinder Block, Crankshaft, Piston and Torque Converter, Camshafts & Valves, Timing Belt and Cover, Engine Oiling, Manifolds, Crankcase Ventilation
- Group 5.9L – Engine 5.9L Eight Cylinder (EML): Cylinder Head, Cylinder Block, Crankshaft, Piston and Torque Converter, Camshafts & Valves, Timing Belt and Cover, Engine Oiling, Manifolds, Crankcase Ventilation
- Group 42RE – Automatic Transmission 4 Speed (DGK): Transmission Assembly, Case and Extension, Oil Pump, Gear Train, Clutch Front and Rear, Bands (Reverse and Kickdown), Valve Body, Servo, Parking Sprag, Overdrive Gear Train, Gearshift Controls
- Group 44RE – Automatic Transmission 4 Speed (DGW): Same sub-group structure as 42RE for the 44RE unit
- Group 46RE – Automatic Transmission 4 Speed (DGT): Transmission Assembly, Case and Extension, Oil Pump, Clutch Front and Rear, Intermediate Shaft, Output Shaft, Bands, Valve Body, Servo, Parking Sprag, Overdrive Gear Train, Gearshift Controls
- Group 3500 – Manual Transmission 5 Speed (DDC): Transmission Assembly, Case and Extension, Gear Train, Forks and Rails, Gearshift Controls
- Group AX – Manual Transmission 5 Speed Aisin (DDQ): Transmission Assembly, Case and Adapter, Gear Train, Forks and Rails, Gearshift Controls
- Group 231 – Transfer Case Model 231 (DHJ, DHK, DHN): Transfer Case Assembly, Case and Related Parts, Gear Train, Fork and Rails, Gearshift Controls
- Group 242 – Transfer Case Model 242 (DHC, DHP): Transfer Case Assembly, Case and Related Parts, Gear Train, Fork and Rails, Gearshift Controls
What makes this 1998 Dodge Dakota Pickup (AN) Parts Manual genuinely useful is the level of part-level detail on every page. Each figure is not a generic sketch — it is a properly drawn exploded view with every clip, bolt, bushing, seal, bracket, sensor and harness connector given an item number, and each item number is tied to a factory part number in the facing table. Options are handled explicitly through sales codes and line/series/body/engine/transmission columns, so you can see at a glance whether the part you need applies to a 2.5L Regular Cab 2WD or a 5.9L Club Cab 4WD with anti-lock brakes and the heavy-duty suspension. Notes at the bottom of each figure define the sales codes being referenced (for example, DRA and DRB for the Corporate 8.25 and 9.25 rear axles, BGJ and BGK for brake and anti-lock configurations, or DMD / DMH for axle ratios 3.55 and 3.92), which removes a lot of the guesswork from ordering the right component for your specific truck.
What You Can Do With This Parts Manual
Because this is a parts catalog rather than a service manual, its strength is identification rather than adjustment. It is the right document when you already know which assembly is failing and you need to know exactly which part number, quantity, and variant applies to your truck. Typical uses include:
- Identifying the correct front axle drive shaft, half shaft boot kit, pinion yoke, differential case, ring-and-pinion kit, or axle service assembly for a given axle ratio and 4WD configuration.
- Selecting the correct rear leaf spring by sales code (ZAU/ZNU, ZAV/ZNV, ZBU/ZPU, ZBV/ZPV, ZCU/ZRU, ZCV/ZRV, ZDU/ZSU, ZDV/ZSV, ZEU/ZTU, ZEV/ZTV and so on) for either the AN 1 or AN 5 suspension.
- Ordering brake calipers, rotors, pads, wheel cylinders, brake backing plates, parking brake cables and levers with the correct option code for the truck.
- Finding the correct radiator, fan shroud, water pump, thermostat housing, coolant recovery bottle, drive belt, idler pulley and tensioner for 2.5L, 3.9L, 5.2L and 5.9L engines.
- Identifying electrical parts by their correct name and number — starters, alternators, distributors, single-board engine controllers, relays, sensors, switches, horns, battery trays and cables, bulbs and sockets, and full wiring harness sections.
- Locating door latches, exterior and interior handles, window regulators, glass run seals, weatherstrips, wiper arms, wiper motors, washer reservoirs and washer pumps.
- Identifying instrument panel, cluster, radio, antenna, speaker and console components down to the knob, bezel or mounting screw.
- Rebuilding or resealing a 42RE, 44RE or 46RE automatic transmission with the correct clutch discs, steel plates, seals, snap rings, bands, servos, sprags and valve body components.
- Rebuilding a 3500 (NV3500) or AX (Aisin) 5-speed manual transmission with the correct synchro rings, shift forks, rails, output and input shafts, and shift detent parts.
- Servicing a 231 or 242 transfer case using the correct chain, sprocket, mode fork, range fork, planetary gear, output shaft, bearing, seal and shift control hardware.
- Replacing trim, seats, seat belts, adjusters, carpet, headliner, silencers, mouldings, nameplates, decals and body panels with factory-correct part numbers.
- Ordering fuel system parts — tank, filler tube, fuel lines, fuel rail, fuel module, throttle body, air cleaner and speed control components.
- Sourcing steering gear, power steering pumps, hoses, pitman arm, idler arm, centre link and tie rod ends for either N1 or N5 configurations.
Why the Part Number Matters
On a 1998 Dakota, a single assembly can have several active part numbers depending on engine, transmission, body style, drivetrain, brake package, and trim level. A generic parts store lookup frequently misses one of those variables and sends you home with a part that almost fits. This parts manual exists precisely to close that gap: it shows the entire assembly, identifies each item by number, and lists the specific applications and option codes next to that number. For restoration, insurance repair, fleet maintenance, or simply keeping a 1998 Dakota on the road, that is the difference between one trip to the parts counter and three.
Complete PDF Bookmark Tree
Complete Bookmarks
The complete bookmarks in the “1998 Dodge Dakota Pickup (AN) Parts Manual – Illustrated PDF Catalog” are as follows:
+1998ANp. 1
Return To Model Year Index
Return To 1998 Vehicle Family Index
+General Informationp. 1
VIN Plate Decoding Informationp. 1

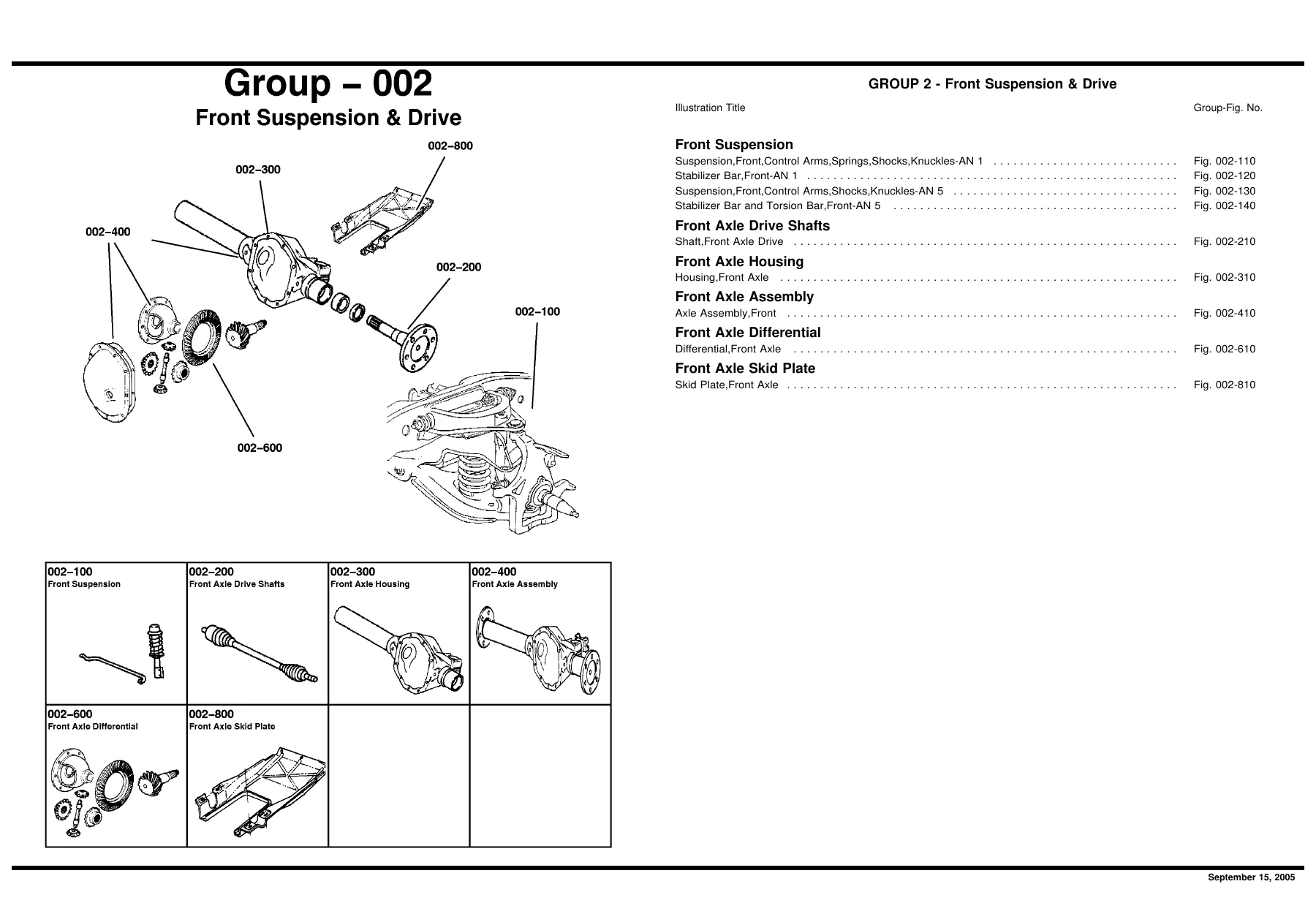

+GROUP 002 Front Suspension & Drivep. 2
FIGURE 002-110 –>Suspension,Front,Control Arms,Springs,Shocks,Knuckles-AN 1p. 3
FIGURE 002-120 –>Stabilizer Bar,Front-AN 1p. 6
FIGURE 002-130 –>Suspension,Front,Control Arms,Shocks,Knuckles-AN 5p. 8
FIGURE 002-140 –>Stabilizer Bar and Torsion Bar,Front-AN 5p. 10
FIGURE 002-210 –>Shaft,Front Axle Drivep. 11
FIGURE 002-310 –>Housing,Front Axlep. 12

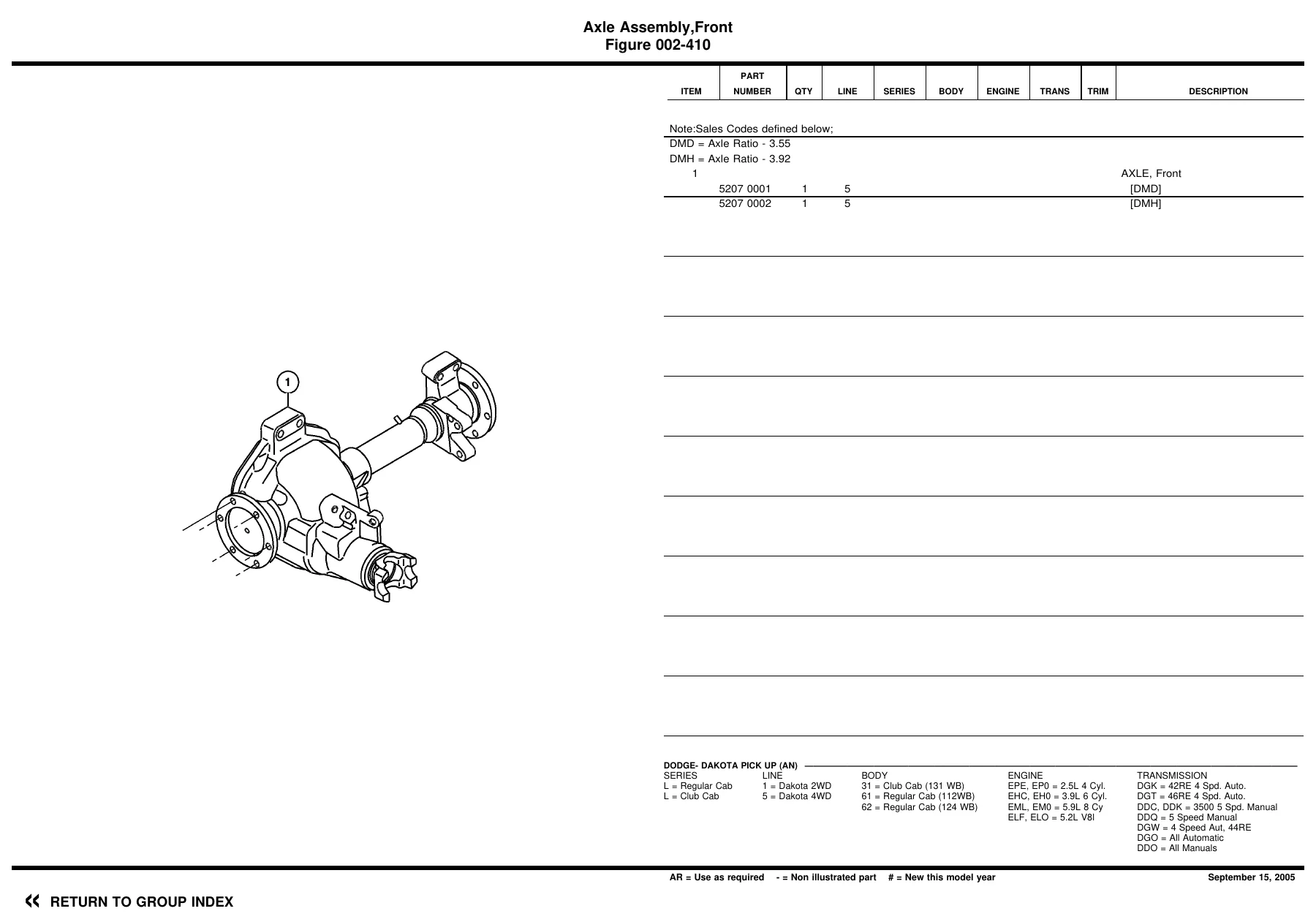

FIGURE 002-410 –>Axle Assembly,Frontp. 13
FIGURE 002-610 –>Differential,Front Axlep. 14
FIGURE 002-810 –>Skid Plate,Front Axlep. 15
+GROUP 003 Rear Axlep. 16
FIGURE 003-110 –>Axle Assembly,Rear,Corporate 8.25 [DRA]p. 17
FIGURE 003-120 –>Axle Assembly,Rear Corporate 9.25 [DRB]p. 18
FIGURE 003-210 –>Axle,Rear,with Differential and Housing,Corporate 8.25 [DRA]p. 19
FIGURE 003-220 –>Axle,Rear,with Differential and Housing,Corporate 9.25 [DRB]p. 24
FIGURE 003-310 –>Vent,Axlep. 29
+GROUP 004 Parking Brakep. 30
FIGURE 004-110 –>Parking Brake Leverp. 31
FIGURE 004-120 –>Parking Brake Cablesp. 32
+GROUP 005 Service Brakesp. 33
FIGURE 005-110 –>Brakes,Frontp. 34
FIGURE 005-210 –>Brakes,Rear,9 Inches x 2.5 Inchesp. 36
FIGURE 005-220 –>Brakes,Rear,10 Inches x 2.5 Inchesp. 39
FIGURE 005-310 –>Booster,Power Brakep. 42
FIGURE 005-410 –>Master Cylinder,Brakep. 43
FIGURE 005-510 –>Lines,Brake,From EHCU or RWAL II to Frame-AN 1,AN 5p. 44
FIGURE 005-520 –>Lines and Hoses,Front-AN 1p. 46
FIGURE 005-530 –>Lines and Hoses,Front-AN 5p. 47
FIGURE 005-540 –>Lines and Hoses,Rear and Chassisp. 48
FIGURE 005-610 –>Pedals,Brake and Clutchp. 49
+GROUP 006 Clutchp. 50
FIGURE 006-110 –>Clutchp. 51
FIGURE 006-210 –>Housing And Pan, Clutchp. 52
FIGURE 006-310 –>Controls, Hydraulic Clutchp. 54
FIGURE 006-410 –>Pedal, Clutchp. 55
+GROUP 007 Coolingp. 56
FIGURE 007-102 –>Radiator And Related Parts 2.5L Enginep. 57
FIGURE 007-105 –>Radiator And Related Parts 3.9L Enginep. 58
FIGURE 007-115 –>Radiator Closure And Air Deflectorp. 60
FIGURE 007-205 –>Water Pump And Related Parts 2.5L Enginep. 61
FIGURE 007-210 –>Water Pump And Related Parts 3.9L, 5.2L And 5.9L Enginep. 62
FIGURE 007-305 –>Coolant Tankp. 63
FIGURE 007-405 –>Drive Pulleys 2.5L Enginep. 64
FIGURE 007-410 –>Drive Pulleys 3.9L, 5.2L And 5.9L Enginep. 65
FIGURE 007-507 –>Drive Belts 2.5L Enginep. 66
FIGURE 007-510 –>Drive Belts 3.9L, 5.2L And 5.9L Enginep. 67
FIGURE 007-605 –>Oil Cooler Lines 3.9L, 5.2L And 5.9L Enginep. 68
FIGURE 007-705 –>Grille And Related Partsp. 70
+GROUP 008 Electricalp. 71
FIGURE 008-105 –>Starter & Mountingp. 73
FIGURE 008-205 –>Alternator (Generator)p. 74
FIGURE 008-210 –>Alternator Mounting 4 Cylinder Enginep. 75
FIGURE 008-215 –>Alternator Mounting 6-8 Cylinder Enginep. 76
FIGURE 008-305 –>Distributorsp. 78
FIGURE 008-410 –>Modulesp. 79
FIGURE 008-510 –>Relaysp. 80
FIGURE 008-610 –>Sensorsp. 81
FIGURE 008-710 –>Single Board Engine Controllers (JTEC)p. 83
FIGURE 008-810 –>Switchesp. 84
FIGURE 008-910 –>Horn & Mountingp. 86
FIGURE 008-1010–>Battery Tray & Cablesp. 87
FIGURE 008-1130–>Lamp – Front Endp. 88
FIGURE 008-1141–>Lamp – Rear Endp. 90
FIGURE 008-1150–>Lamp – Dome – Courtesy – Readingp. 91
FIGURE 008-1195–>Bulbs & Socketsp. 92
FIGURE 008-1210–>Wiring – Enginep. 93
FIGURE 008-1310–>Wiring – Headlamp / Dashp. 94
FIGURE 008-1410–>Wiring – Instrument Panelp. 95
FIGURE 008-1510–>Wiring – Body & Accessoryp. 96
FIGURE 008-1605–>Wiring Package Repairp. 98
FIGURE 008-1905–>Spark Plugs – Cables – Coilsp. 99
+GROUP 08A Instrument Panel and Radios and Consolesp. 101
FIGURE 08A-110 –>Instrument Panelp. 102
FIGURE 08A-210 –>Instrument Clusterp. 105

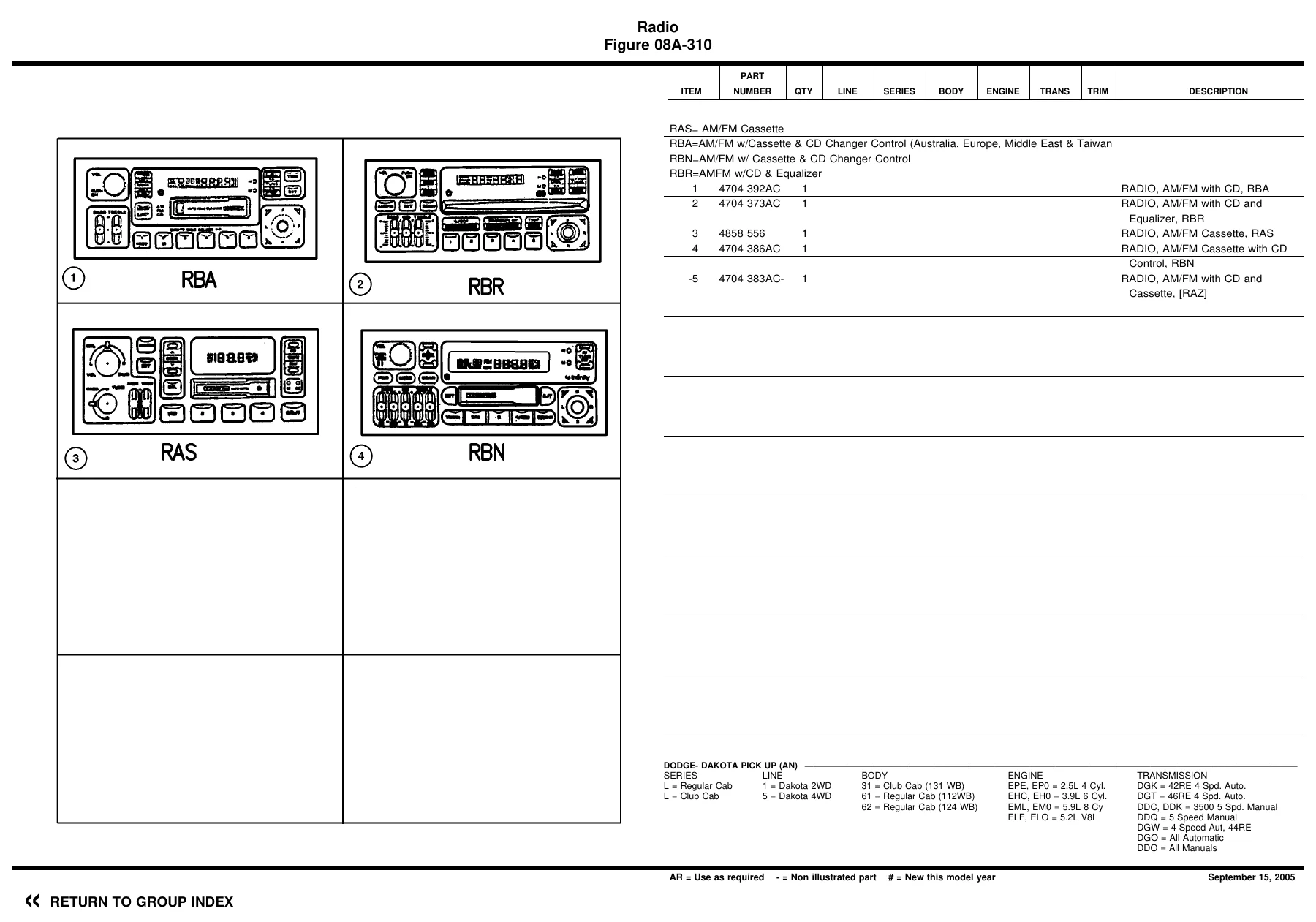

FIGURE 08A-310 –>Radiop. 106
FIGURE 08A-315 –>Speakersp. 107
FIGURE 08A-320 –>Antennap. 108
FIGURE 08A-410 –>Floor Consolep. 109
FIGURE 08A-425 –>Overhead Consolep. 111
+GROUP 009 Engine Mountingp. 112
FIGURE 009-110 –>Engine Mounting, Front 2.5L Engine (EPE)p. 113
FIGURE 009-120 –>Engine Mounting, Rear 2.5L Engine (EPE)p. 114
FIGURE 009-130 –>Engine Mounting, Front, N1 3.9L Engine (EHC)p. 115
FIGURE 009-135 –>Engine Mounting, Rear, N1 3.9L Engine (EHC)p. 116
FIGURE 009-140 –>Engine Mounting, Front, N5 3.9L Engine (EHC)p. 117
FIGURE 009-145 –>Engine Mounting, Rear, N5 3.9L Engine (EHC)p. 118
FIGURE 009-150 –>Engine Mounting, Front, N1 5.2L (ELF), 5.9L (EML) Enginep. 119
FIGURE 009-155 –>Engine Mounting, Rear, N1 5.2L (ELF), 5.9L (EML) Enginep. 120
FIGURE 009-160 –>Engine Mounting, Front, N5 5.2L (ELF), 5.9L (EML) Enginep. 121
FIGURE 009-165 –>Engine Mounting, Rear, N5 5.2L (ELF), 5.9L (EML) Enginep. 122
+GROUP 2.5L4 Engine 2.5L Four Cylinderp. 123
FIGURE 2.5L4-215 –>Cylinder Head 2.5L Engine (EPE)p. 124
FIGURE 2.5L4-315 –>Cylinder Block 2.5L Engine (EPE)p. 125
FIGURE 2.5L4-415 –>Crankshaft, Piston and Torque Converter 2.5L Engine (EPE)p. 126
FIGURE 2.5L4-515 –>Camshaft and Valves 2.5L Engine (EPE)p. 128
FIGURE 2.5L4-615 –>Timing Belt and Cover 2.5L Engine (EPE)p. 129
FIGURE 2.5L4-715 –>Engine Oiling 2.5L Engine (EPE)p. 130
FIGURE 2.5L4-815 –>Manifold, Intake and Exhaust 2.5L Engine (EPE)p. 131
FIGURE 2.5L4-915 –>Crankcase Ventilation 2.5L Engine (EPE)p. 132
+GROUP 3.9L Engine 3.9L Six Cylinderp. 133
FIGURE 3.9L-210 –>Cylinder Head 3.9L Engine (EHC)p. 134
FIGURE 3.9L-310 –>Cylinder Block 3.9L Engine (EHC)p. 135
FIGURE 3.9L-410 –>Crankshaft, Piston and Torque Converter 3.9L Engine (EHC)p. 136
FIGURE 3.9L-510 –>Camshaft and Valves 3.9L Engine (EHC)p. 138
FIGURE 3.9L-610 –>Timing Belt and Cover 3.9L Engine (EHC)p. 140
FIGURE 3.9L-710 –>Engine Oiling 3.9L Engine (EHC)p. 141
FIGURE 3.9L-810 –>Manifold, Intake and Exhaust 3.9L Engine (EHC)p. 143
FIGURE 3.9L-820 –>Manifold, Heat Shields 3.9L Engine (EHC)p. 144
FIGURE 3.9L-910 –>Crankcase Ventilation 3.9L Engine (EHC)p. 145
+GROUP 5.2L Engine 5.2L Eight Cylinderp. 146
FIGURE 5.2L-210 –>Cylinder Head 5.2L Engine (ELF)p. 147
FIGURE 5.2L-310 –>Cylinder Block 5.2L Engine (ELF)p. 148
FIGURE 5.2L-410 –>Crankshaft, Piston and Torque Converter 5.2L Engine (ELF)p. 149
FIGURE 5.2L-510 –>Camshaft and Valves 5.2L Engine (ELF)p. 151
FIGURE 5.2L-610 –>Timing Belt and Cover 5.2L Engine (ELF)p. 153
FIGURE 5.2L-710 –>Engine Oiling 5.2L Engine (ELF)p. 154
FIGURE 5.2L-810 –>Manifold, Intake and Exhaust 5.2L Engine (ELF)p. 156
FIGURE 5.2L-910 –>Crankcase Ventilation 5.2L Engine (ELF)p. 157
+GROUP 5.9L Engine 5.9L Eight Cylinderp. 158
FIGURE 5.9L-210 –>Cylinder Head 5.9L Engine (EML)p. 159
FIGURE 5.9L-310 –>Cylinder Block 5.9L Engine (EML)p. 160
FIGURE 5.9L-410 –>Crankshaft, Piston and Torque Converter 5.9L Engine (EML)p. 161
FIGURE 5.9L-510 –>Camshaft and Valves 5.9L Engine (EML)p. 163
FIGURE 5.9L-610 –>Timing Belt and Cover 5.9L Engine (EML)p. 165
FIGURE 5.9L-710 –>Engine Oiling 5.9L engine (EML)p. 166
FIGURE 5.9L-810 –>Manifold, Intake and Exhaust 5.9L Engine (EML)p. 168
FIGURE 5.9L-910 –>Crankcase Ventilation 5.9L Engine (EML)p. 169
+GROUP 011 Exhaustp. 170
FIGURE 011-110 –>Exhaust System 2.5L Engine (EPE)p. 171
FIGURE 011-120 –>Exhaust System 3.9L (EHC), 5.2L (ELF), 5.9L (EML) Enginep. 172
FIGURE 011-210 –>Heat Shields 3.9L (EHC), 5.2L (ELF) Enginep. 174
+GROUP 013 Frames and Bumpersp. 175
FIGURE 013-110 –>Framep. 176
FIGURE 013-210 –>Bumper, Frontp. 179
FIGURE 013-310 –>Bumper, Rearp. 180
FIGURE 013-510 –>Body Hold Downp. 181
+GROUP 014 Fuelp. 182
FIGURE 014-105 –>Fuel Tank 2.5L (EPE), 3.9L (EHC), 5.2L (ELF), 5.9L (EML) Enginep. 184
FIGURE 014-220 –>Fuel Filler Tube 2.5L (EPE), 3.9L (EHC), 5.2L (ELF), 5.9L (EML) Enginep. 186
FIGURE 014-305 –>Fuel Lines, Front 2.5L (EPE), 3.9L (EHC), 5.2L (ELF), 5.9L (EML) Enginep. 187
FIGURE 014-310 –>Fuel Lines, Rear 2.5L (EPE), 3.9L (EHC), 5.2L (ELF), 5.9L (EML) Enginep. 188
FIGURE 014-410 –>Fuel Railp. 190
FIGURE 014-510 –>Fuel Module 2.5L (EPE), 3.9L (EHC), 5.2L (ELF), 5.9L (EML) Enginep. 191
FIGURE 014-610 –>Throttle Body 2.5L (EPE), 3.9L (EHC), 5.2L (ELF), 5.9L (EML) Enginep. 192
FIGURE 014-710 –>Throttle Controls 2.5L Engine (EPE)p. 193
FIGURE 014-720 –>Throttle Controls 3.9L (EHC), 5.2L (ELF), 5.9L (EML) Enginep. 194
FIGURE 014-815 –>Air Cleaner 2.5L Engine (EPE)p. 195
FIGURE 014-820 –>Air Cleaner 3.9L (EHC), 5.2L (ELF), 5.9L (EML) Enginep. 197
FIGURE 014-1010–>Speed Controlp. 199
FIGURE 014-1110–>Accelerator Pedalp. 200
+GROUP 016 Propeller Shafts and U-Jointsp. 201
FIGURE 016-110 –>Shaft,Propeller,Front-AN 5p. 202
FIGURE 016-120 –>Shaft,Propeller,Rear,1 Piece,Body 31-AN 1,AN 5p. 203
FIGURE 016-130 –>Shaft,Propeller,Rear,1 Piece,Body 61,62-AN 1,AN 5p. 205
FIGURE 016-140 –>Shaft,Propeller,Rear,2 Piece,Body 31,62-AN 1p. 207
+GROUP 017 Rear Suspensionp. 210
FIGURE 017-110 –>Suspension,Rear,Leaf Springs-AN 1p. 211
FIGURE 017-120 –>Suspension,Rear,Leaf Springs-AN 5p. 212
FIGURE 017-210 –>Stabilizer,Rear,with Shock Absorbersp. 213
+GROUP 019 Steeringp. 214
FIGURE 019-110 –>Wheel, Steeringp. 215
FIGURE 019-210 –>Column,Steering,Upper and Lowerp. 216
FIGURE 019-310 –>Gear, Rack & Pinion Power Steering, N1p. 218
FIGURE 019-320 –>Gear And Mounting Power Steering, N5p. 219
FIGURE 019-410 –>Linkage, Steeringp. 220
FIGURE 019-510 –>Pump,Power Steering,and Mounting,2.5 [EP0] Enginep. 221
FIGURE 019-520 –>Pump,Power Steering,and Mounting,3.9L [EH0],5.2L [EL0],5.9L [EM0] Enginesp. 222
FIGURE 019-710 –>Hoses,Power Steering,2.5L [EP0] Enginep. 223
FIGURE 019-720 –>Hoses,Power Steering,with 3.9L [EH0],5.2L [EL0],5.9L [EM0] Enginesp. 224
+GROUP 42RE Automatic Transmission 4 Speedp. 226
FIGURE 42RE-110 –>Transmission 42 RE (DGK)p. 227
FIGURE 42RE-210 –>Case and Related Parts 42 RE (DGK)p. 228
FIGURE 42RE-220 –>Extension 42 RE (DGK)p. 230
FIGURE 42RE-310 –>Oil Pump 42 RE (DGK)p. 231
FIGURE 42RE-410 –>Gear Train 42 RE (DGK)p. 233
FIGURE 42RE-420 –>Gear Train and Intermediate 42 RE (DGK)p. 237
FIGURE 42RE-430 –>Output Shaft 42 RE (DGK)p. 240
FIGURE 42RE-510 –>Bands 42 RE (DGK)p. 241
FIGURE 42RE-710 –>Valve Body 42 RE (DGK)p. 243
FIGURE 42RE-720 –>Servo 42 RE (DGK)p. 247
FIGURE 42RE-730 –>Parking Sprag 42 RE (DGK)p. 249
FIGURE 42RE-1010–>Overdrive Clutch 42 RE (DGK)p. 250
FIGURE 42RE-1230–>Gearshift Controls 42 RE (DGK)p. 254
+GROUP 44RE Automatic Transmission 4 Speedp. 255
FIGURE 44RE-110 –>Transmission 44 RE (DGW)p. 256
FIGURE 44RE-210 –>Case and Related Parts 44 RE (DGW)p. 257
FIGURE 44RE-220 –>Extension 44 RE (DGW)p. 259
FIGURE 44RE-310 –>Oil Pump 44 RE (DGW)p. 260
FIGURE 44RE-410 –>Clutch Front and Rear 44 RE (DGW)p. 262
FIGURE 44RE-420 –>Clutch Front and Rear 44 RE (DGW)p. 266
FIGURE 44RE-430 –>Output Shaft 44 RE (DGW)p. 269
FIGURE 44RE-510 –>Bands 44 RE (DGW)p. 270
FIGURE 44RE-710 –>Valve Body 44 RE (DGW)p. 272
FIGURE 44RE-720 –>Servo 44 RE (DGW)p. 276
FIGURE 44RE-730 –>Parking Sprag 44 RE (DGW)p. 278
FIGURE 44RE-1010–>Clutch 44 RE (DGW)p. 279
FIGURE 44RE-1210–>Gearshift Controls 44 RE (DGW)p. 283
+GROUP 46RE Automatic Transmission 4 Speedp. 284
FIGURE 46RE-110 –>Transmission 46 RE (DGT)p. 285
FIGURE 46RE-217 –>Case and Related Parts 46 RE (DGT)p. 286
FIGURE 46RE-220 –>Extension 46 RE (DGT)p. 288
FIGURE 46RE-325 –>Oil Pump 46 RE (DGT)p. 289
FIGURE 46RE-415 –>Clutch Front and Rear 46 RE (DGT)p. 291
FIGURE 46RE-425 –>Intermedate Shaft 46 RE (DGT)p. 294
FIGURE 46RE-430 –>Output Shaft 46 RE (DGT)p. 297
FIGURE 46RE-515 –>Bands 46 RE (DGT)p. 298
FIGURE 46RE-710 –>Valve Body 46 RE (DGT)p. 300
FIGURE 46RE-725 –>Servo 46 RE (DGT)p. 303
FIGURE 46RE-730 –>Parking Sprag 46 RE (DGT)p. 305
FIGURE 46RE-1010–>Clutch 46 RE (DGT)p. 306
FIGURE 46RE-1220–>Gearshift Controls 46 RE (DGT)p. 309
+GROUP 3500 Manual Transmission 5 Speedp. 310
FIGURE 3500-110 –>Transmission (DDC)p. 311
FIGURE 3500-210 –>Case and Extension (DDC)p. 312
FIGURE 3500-410 –>Gear Train (DDC)p. 314
FIGURE 3500-910 –>Forks and Rail (DDC)p. 317
FIGURE 3500-1210–>Gearshift Controls (DDC)p. 318
+GROUP AX Manual Transmission 5 Speedp. 319
FIGURE AX-110 –>Transmission Aisin (DDQ)p. 320
FIGURE AX-210 –>Case and Adapter Aisin (DDQ)p. 321
FIGURE AX-410 –>Gear Train Aisin (DDQ)p. 324
FIGURE AX-420 –>Gear Train Aisin (DDQ)p. 331
FIGURE AX-910 –>Fork and Rail Aisin (DDQ)p. 335
FIGURE AX-1210–>Gearshift Controls Aisin (DDQ)p. 339
+GROUP 231 Transfer Case Model 231 [DHJ, DHK, DHN]p. 340
FIGURE 231-110 –>Transfer Case Shift on the Fly [DHJ] (DHK)p. 341
FIGURE 231-210 –>Case and Related Parts Shift on the Fly (DHJ) (DHK)p. 342
FIGURE 231-410 –>Gear Train Shift on the Fly (DHJ) (DHK)p. 346
FIGURE 231-910 –>Fork and Rails Shift on the Fly (DHK)(DHJ)p. 349
FIGURE 231-1220–>Gearshift Controls Shift on the Fly (DHK)p. 351
+GROUP 242 Transfer Case Model 242 [DHC, DHP]p. 353
FIGURE 242-110 –>Transfer Case Full Time (DHC) NPG 242 N Truckp. 354
FIGURE 242-210 –>Case and Related Parts Full Time (DHC) NPG 242p. 355
FIGURE 242-410 –>Gear Train Full Time (DHC) NPG 242p. 357
FIGURE 242-910 –>Fork and Rail Full Time (DHC) NPG 242p. 360
FIGURE 242-1230–>Gearshift Controls Full Ttime (DHC) NPG 242p. 362
+GROUP 022 Wheels, Covers and Jacksp. 363
FIGURE 022-110 –>Wheels And Hardwarep. 364
FIGURE 022-210 –>Caps And Covers, Wheelp. 365
FIGURE 022-310 –>Jack And Storage Standard Cabp. 366
FIGURE 022-320 –>Jack And Storage Club Cabp. 367
FIGURE 022-410 –>Wheel, Spare Underslung Mountingp. 368
+GROUP 23D Wiper/Lock Cylinder and Keysp. 369
FIGURE 23D-110 –>Lock Cylinders & Componentsp. 370
FIGURE 23D-210 –>Windshield Wiper & Washerp. 371
+GROUP 024 Air Conditioning & Heaterp. 372
FIGURE 024-105 –>Heater Unitp. 373
FIGURE 024-110 –>Hevac Unitp. 375
FIGURE 024-210 –>Plumbing, Heater And Air Conditioningp. 376
FIGURE 024-305 –>Control, Heaterp. 378
FIGURE 024-310 –>Control, Air Conditioningp. 379
FIGURE 024-405 –>Compressor, A/cp. 380
FIGURE 024-505 –>Mounting, Compressor 2.5L Enginep. 381
FIGURE 024-507 –>Mounting, Compressor 3.9L, 5.2L And 5.9L Enginep. 382
FIGURE 024-605 –>Demister Systemp. 383
+GROUP 025 Emission Systemsp. 384
FIGURE 025-110 –>Emission Labels 2.5L (EPE), 3.9L (EHC), 5.2L (ELF), 5.9L (EML) Enginep. 385
FIGURE 025-310 –>Vacuum Canister 2.5L (EPE), 3.9L (EHC), 5.2L (ELF), 5.9L (EML) Enginep. 386
FIGURE 025-410 –>Emission Control Vacuum Harness 2.5L Engine (EPE)p. 388
FIGURE 025-420 –>Emission Control Vacuum Harness 3.9L (EHC), 5.2L (ELF), 5.9L (EML) Enginep. 389
FIGURE 025-470 –>Leak Detection Pumpp. 390
+GROUP DAN Doors and Related Partsp. 391
FIGURE DAN-110 –>Door, Front Shell And Hingesp. 392
FIGURE DAN-120 –>Door, Front Glass, Regulatorsp. 393
FIGURE DAN-130 –>Door, Front Lock And Controlsp. 394
FIGURE DAN-510 –>Mirrors, Exteriorp. 395
FIGURE DAN-610 –>Door, Front Weatherstrips And Sealsp. 396
+GROUP EAN Exterior Ornamentationp. 397
FIGURE EAN-110 –>Nameplatesp. 398
FIGURE EAN-210 –>Mouldingsp. 399
FIGURE EAN-310 –>Decalsp. 401
+GROUP IAN Interior Trimp. 402
FIGURE IAN-110 –>Headliner And Visorp. 403
FIGURE IAN-210 –>Mouldings, Panels, And Bolsterp. 404
FIGURE IAN-310 –>Carpet And Scuff Platesp. 406
FIGURE IAN-320 –>Silencersp. 407
FIGURE IAN-410 –>Door Trim Panelsp. 408
FIGURE IAN-510 –>Seat Front, Full Bench N Body Trim Codes A2, G1 Standard Cabp. 411
FIGURE IAN-520 –>Seat Front, Split Bench N Body Trim Code V9p. 412
FIGURE IAN-530 –>Seat, Front, Bucket Seats N Body Trim Code M5p. 417
FIGURE IAN-610 –>Rear Seat And Attaching Parts Trim Code M5,v9p. 420
FIGURE IAN-710 –>Belts, Front Seatp. 423
FIGURE IAN-720 –>Belts, Rear Seat Club Cabp. 425
FIGURE IAN-810 –>Adjuster And Attaching Partsp. 426
FIGURE IAN-820 –>Handles, Lock Bar And Attaching Partsp. 429
+GROUP SAN Body Sheet Metal Except Doorsp. 431
FIGURE SAN-210 –>Floor Pan N Body 31 Club Cabp. 433
FIGURE SAN-220 –>Floor Pan N Body 61 And 62p. 434
FIGURE SAN-230 –>Floor Box And Panelp. 435
FIGURE SAN-310 –>Plugs Floor Panp. 436
FIGURE SAN-320 –>Plugs Miscellaneousp. 437
FIGURE SAN-410 –>Fender Frontp. 438
FIGURE SAN-510 –>Hood And Hood Releasep. 439
FIGURE SAN-610 –>Cowl Screen And Shieldp. 440
FIGURE SAN-710 –>Windshield And Mirror, Rear Windowp. 441
FIGURE SAN-810 –>Aperture Panel Bodyside N Body-standard Cabp. 442
FIGURE SAN-820 –>Aperture Panel Bodyside Club Cabp. 443
FIGURE SAN-910 –>Sweptline Box, Panel Outer Box And Fuel Filler Doorp. 444
FIGURE SAN-1110–>Roof Panelsp. 446
FIGURE SAN-1310–>Tailgatep. 447
End of Catalogp. 431
Instant PDF Delivery
The 1998 Dodge Dakota Pickup (AN) Parts Manual is delivered as a PDF download immediately after purchase. There is no shipping, no waiting, and no physical book to keep track of. You can open the file on a laptop or desktop in the garage, on a tablet on the bench, or on a phone at the parts counter, search through the group you need, zoom into a figure, and print the page you are working from. Because the file is yours to keep, you can return to the same figures any time you order another component, which is exactly how a parts catalog should be used.
Who This Parts Manual Is For
This 1998 Dodge Dakota Pickup (AN) Parts Manual is written for anyone who needs to identify genuine-style components by number: independent mechanics, dealership parts personnel, restoration shops, body shops, hobbyists rebuilding a Dakota, and owners who prefer to order their own parts rather than rely on a counterperson’s interpretation. If your truck is a 1998 Dakota and you need the correct exploded view and part number for the assembly in front of you, this is the reference that gives it to you in one place.
Reviews
There are no reviews yet.
