2000 Volvo S70 V70 & 2000-2004 C70 Wiring Diagram Manual – Early Design TP 3943202

Description

2000 Volvo S70 V70 & 2000-2004 C70 Wiring Diagram Manual

This is the complete factory wiring diagram manual for the 2000 Volvo S70 and V70, plus the 2000 through 2004 C70 Cabriolet and Coupé. Published under document number TP 3943202 as Section 3 (39) of the Volvo Service Manual series, it covers the Early design (2000 model year) and provides the full electrical architecture of the vehicle in schematic form — from fuse and relay locations through to every connector, ground point and junction in the harness.

Every circuit in the car is drawn out: power supply and starter, engine management, charging, lighting, instrumentation, climate control, body electrics and safety systems. If you are tracing a fault, repairing damaged wiring, retrofitting an accessory or rebuilding a harness, this 2000 Volvo S70 V70 & 2000-2004 C70 Wiring Diagram Manual is the single reference that shows you how each wire is meant to run.

File Details

• Manual type: Wiring Diagram Manual / Service Manual, Section 3 (39)
• Brand / Manufacturer: Volvo
• Models covered: S70, V70, C70 Cabriolet, C70 Coupé
• Model years: 2000 (S70/V70, Early design) and 2000-2004 (C70)
• Engine management variants: Denso, ME7, MSA 15.8, Bifuel
• Document number: TP 3943202
• Language: English
• File format: PDF
• Page count: 326

Chapters Covered

• How to use the wiring diagram
• Abbreviations and symbol list
• Fuses — engine-compartment relay/fuse box (11A/1-9, 11B/1-5) and electrical distribution unit (11C/1-42)
• Relays — engine-compartment and electrical distribution unit
• Electrical distribution — Denso/ME7 and MSA 15.8
• Data communication (CAN / serial)
• Rails in electrical distribution unit (15/4, 15/8, 31/50, 31/51)
• Ignition lock (3/1)
• Cable harness routing in vehicle
• Connectors — overview and pinouts
• Ground connections (31/4 through 31/91)
• Junction points (23/6 through 23/702)

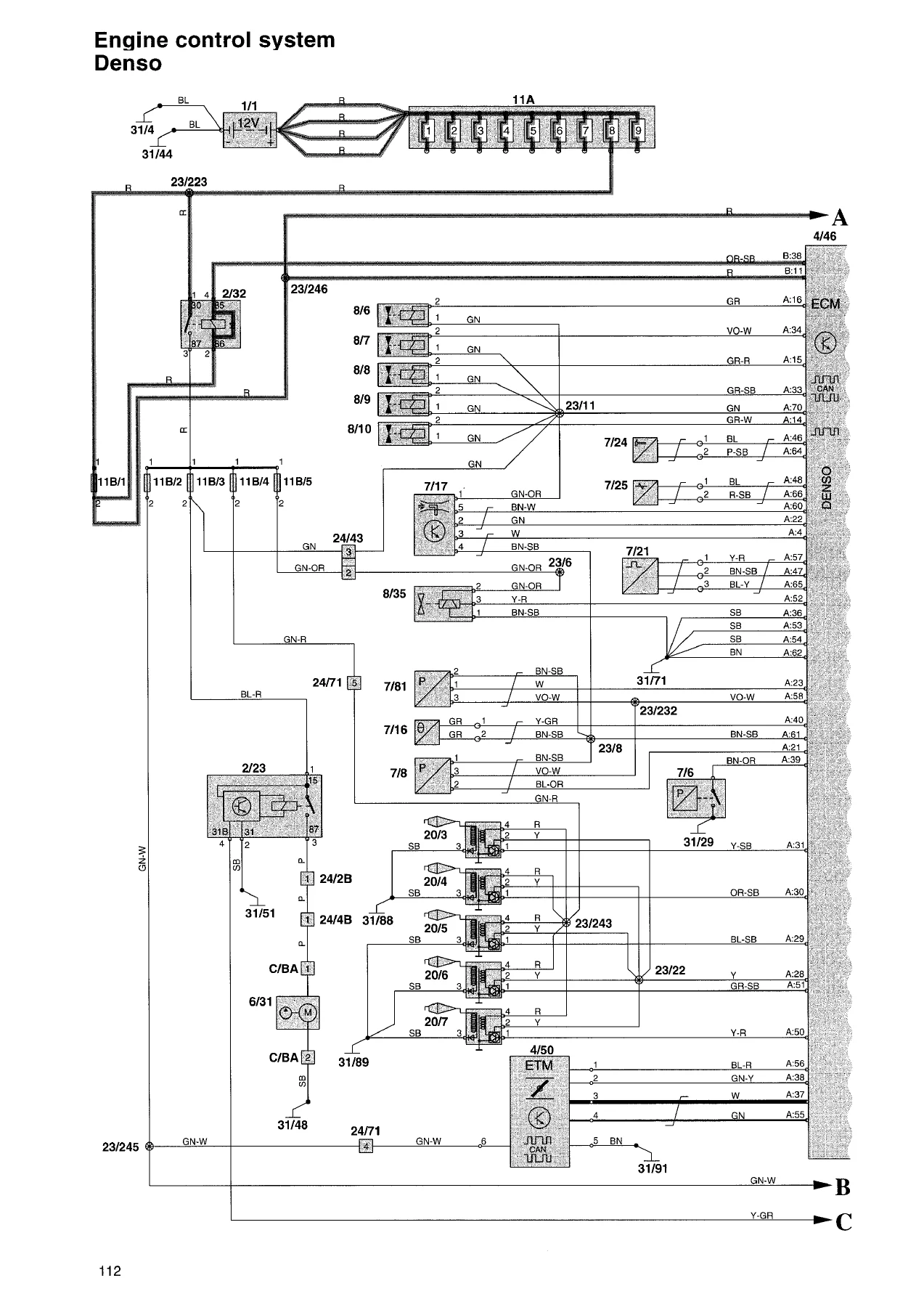

• Group 23/28 — Engine control system (Denso, ME7, MSA 15.8, Bifuel) and emission control
• Group 26 — Electric cooling fan (Denso, ME7, MSA 15.8)
• Group 27 — Cruise control (Denso/ME7, MSA 15.8)
• Group 32/33 — Power supply and starter system
• Group 35 — High/low beam headlights, headlight adjustment, fog lights, parking/tail/licence-plate lighting, brake lights, reversing light, interior lighting, instrument and control lighting
• Group 36 — Direction indicators and hazard warning flashers, horn, cleaning systems, cigarette lighter/12V outlet, anti-theft alarm, electronic starter inhibitor
• Group 37 — Diagnostics (Denso/ME7, MSA 15.8), towing hook wiring, accessory wiring, cooler box wiring
• Group 38 — Seat-belt reminder, seat-belt reminder/key warning, combination instrument

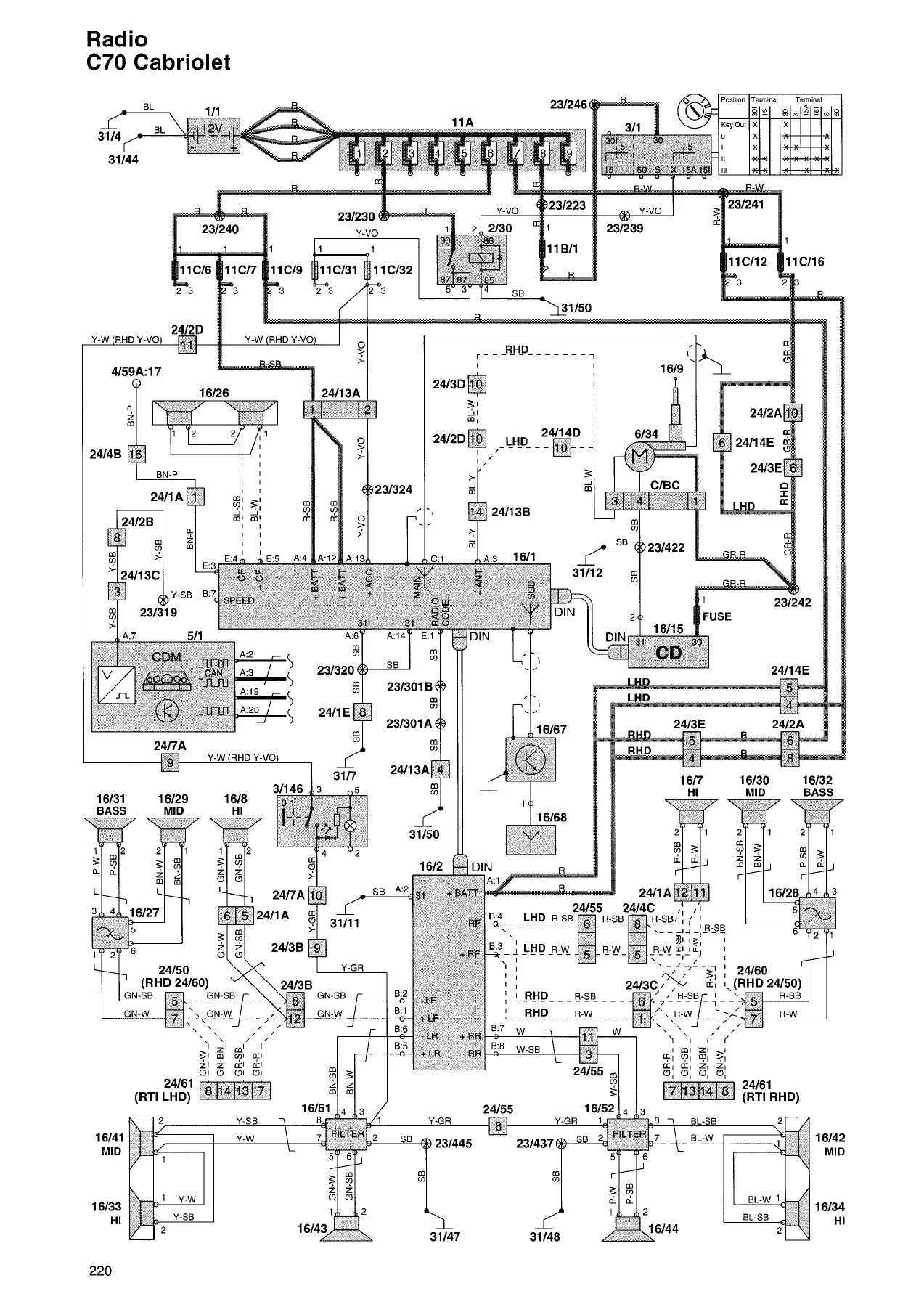

• Group 39 — Radio (C70 Cabriolet, Coupé, S70, V70), radio with 4x50W extra amplifier, Road Traffic Information RTI (early and late design)
• Group 43 — Electronically controlled automatic gearbox AW 50-42/AW42AWD and AW 55-50SN/AW50AWD, P position lock
• Group 59 — ABS brake system and TRACS
• Group 83 — Central locking, hood operation, electric windows, electrically operated sunroof
• Group 84 — Electrically heated rear window and rear view mirrors, electrically operated and folding rear view mirrors
• Group 85 — Electrically heated seats, heated rear seat, electrically operated seats with and without memory
• Group 87 — Standard heater, manual climate control MCC, electronic climate control ECC, auxiliary heater, trunk fans
• Group 88 — Roll Over Protection System ROPS, Supplemental Restraint System SRS, garage opening remote control, inner rear view mirror with automatic dimmer
• List of components (fold-out sheet)

Taken as a whole, the 2000 Volvo S70 V70 & 2000-2004 C70 Wiring Diagram Manual is not a collection of isolated diagrams — it is a system-by-system electrical map of the car. Each diagram is keyed to component numbers, connector numbers and junction points, and those keys tie back to the connector overviews, ground connection lists and cable harness routing sections included in the same document. That cross-referencing is what turns a schematic into something you can actually work from: find the component, follow the wire, identify the connector pin, check the ground, confirm the fuse. Whether the job is a blown lighting circuit, a dead window motor, an intermittent CAN fault, a non-functioning climate control panel or a complete re-wire after accident damage, the answer starts with the correct diagram rather than a guess.

What This Wiring Diagram Manual Lets You Do

Electrical faults are the hardest part of any repair because you cannot see the problem. The 2000 Volvo S70 V70 & 2000-2004 C70 Wiring Diagram Manual removes the guesswork by showing the exact path each circuit takes, the colour of every wire, the connector it passes through and the ground it terminates at. Typical jobs this manual supports include:

• Tracing and repairing faults in lighting, indicators, brake lights, reversing lights and instrument illumination
• Diagnosing central locking, electric window, sunroof and electrically folding mirror problems
• Working on heated seats, seat memory control units and seat motor circuits
• Fault-finding in the ABS/TRACS system and electronically controlled automatic gearboxes (AW 50-42, AW 55-50SN)
• Servicing and diagnosing climate control — standard heater, MCC and ECC — including blower, relay and control-unit wiring
• Engine management diagnostics across the Denso, ME7, MSA 15.8 diesel and Bifuel variants
• Radio, amplifier and RTI (Road Traffic Information) installation and repair, including the 4x50W amplifier harness
• Checking and repairing Supplemental Restraint System (SRS) and Roll Over Protection System (ROPS) circuits
• Accessory wiring, towing hook wiring, cooler box wiring and garage door remote control
• Full harness repair after accident damage or corrosion

Working from the correct factory schematic matters because Volvo electrical systems of this era mix multiple control modules, shared ground points and CAN data communication — a wrong assumption about which wire feeds which module can turn a simple fix into a damaged ECU. This manual gives you the same diagrams the workshop used, with the same component and connector numbering.
