2001 Jeep Grand Cherokee WJ MOPAR Parts Catalog
This is the full illustrated MOPAR parts catalog for the 2001 Jeep Grand Cherokee WJ. Every group is laid out the way a parts counter works: an exploded illustration on one side, a numbered table on the other with the part number, quantity, line, series, body, engine, transmission and trim codes attached to each item. Instead of guessing at a number or describing a bracket over the phone, you look up the group, find the figure, match the callout and read the number straight off the page.
File Details
- Manual type: Illustrated MOPAR parts catalog
- Brand: Jeep / MOPAR
- Model: Grand Cherokee WJ
- Year: 2001
- Language: English
- Page count: 413 pages
- File format: PDF
- Series coverage: H = Laredo, P = Limited
- Line coverage: T = JEEP 2WD, J = JEEP 4WD
- Body code: 74 = Sport Utility 4-DR
- Engine coverage: ERH = 4.0L Power Tech I-6, EVA = 4.7L V8 MPI
- Transmission coverage: DGK = 42RE 4-speed automatic, DGQ = 45RFE 5-speed automatic
Chapters Covered
The 2001 Jeep Grand Cherokee WJ MOPAR parts catalog is organised into numbered groups, each with its own figure list and illustration index:
Complete PDF Bookmark Tree
Complete Bookmarks
The complete bookmarks in the “2001 Jeep Grand Cherokee WJ MOPAR Parts Catalog – Illustrated Parts Manual PDF” are as follows:
+2001WJp. 1
Return to Model Year Index
Return to 2001 Vehicle Family Index
VIN PLATE DECODING INFORMATIONp. 1
+Group – 1 Component Parts for Mopar Accessoriesp. 2
+Audio & Electronicsp. 3

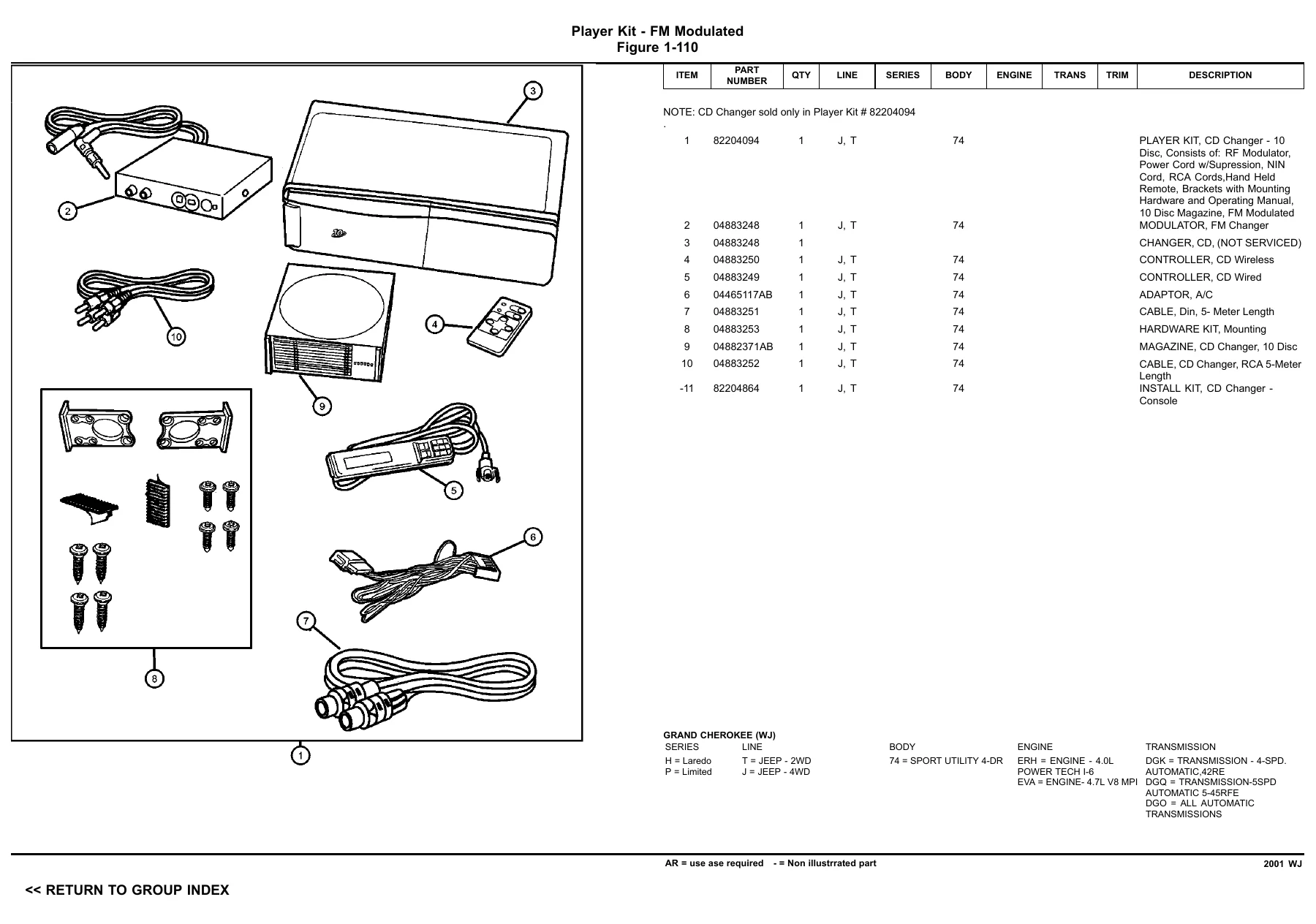

Fig. 1-110 –> Player Kit – FM Modulatedp. 4
Fig. 1-115 –> Player Kitp. 5
Fig. 1-140 –> Navigation Kitp. 6
Fig. 1-150 –> Speaker Kit – Sub Wooferp. 7
+Carriers & Cargo Hauling
Fig. 1-210 –> Bike Carrier – Fold Downp. 8
Fig. 1-211 –> Bike Carrier – Hitch Mountp. 9
Fig. 1-212 –> Bike Carrier – Roof Mountp. 10
Fig. 1-214 –> Bike Carrier – Roof Mount Uprightp. 11
Fig. 1-220 –> Carrier Kit – Canoep. 12
Fig. 1-222 –> Carrier Kit – Water Sportsp. 13
Fig. 1-230 –> Carrier Kit – Ski Hitch Mountp. 14
Fig. 1-232 –> Carrier Kit – Ski (Two Pair)p. 15
Fig. 1-234 –> Carrier Kit – Ski (Four Pair)p. 16
Fig. 1-236 –> Carrier Kit – Ski (Six Pair)p. 17
Fig. 1-260 –> Box Kit – Storage (Interior)p. 18
Fig. 1-262 –> Utility Bar Package – Roofp. 19
Fig. 1-270 –> Carrier Kit – Multipurposep. 20
Fig. 1-272 –> Carrier Kit – Basket Typep. 21
Fig. 1-274 –> Luggage Carrier – Roof Mountp. 22
Fig. 1-280 –> Receiver Kit – Trailer Towp. 23
Fig. 1-282 –> Adapter Kit – Ball Mountp. 24
+Driving Convenience
Fig. 1-310 –> Mounting Kit – Cellular Phonep. 25
Fig. 1-315 –> Filter Kit – Cabin Airp. 26
+Exterior Appearance
Fig. 1-410 –> Brush Guardsp. 27
Fig. 1-412 –> Grille Guardsp. 28
Fig. 1-430 –> Running Boardsp. 29
Fig. 1-432 –> Side Step Kitp. 30
+Exterior Protection
Fig. 1-510 –> Shield Kit, Air Frontp. 31
Fig. 1-520 –> Skid Plate Package – Frontp. 32
Fig. 1-522 –> Skid Plate Package – Transfer Casep. 33
+Fog Lights & Electrical
Fig. 1-610 –> Heater Kitp. 34
Fig. 1-615 –> Light Pkg – Fogp. 35
+Security
Fig. 1-914 –> Alarm – EVS Plus Systemp. 36
+4 – Wheeling & Off Road
Fig. 1-1010 –> Guard, Rock Railsp. 37
+Group – 2 Front Suspension & Drivep. 38
+Front Suspensionp. 38

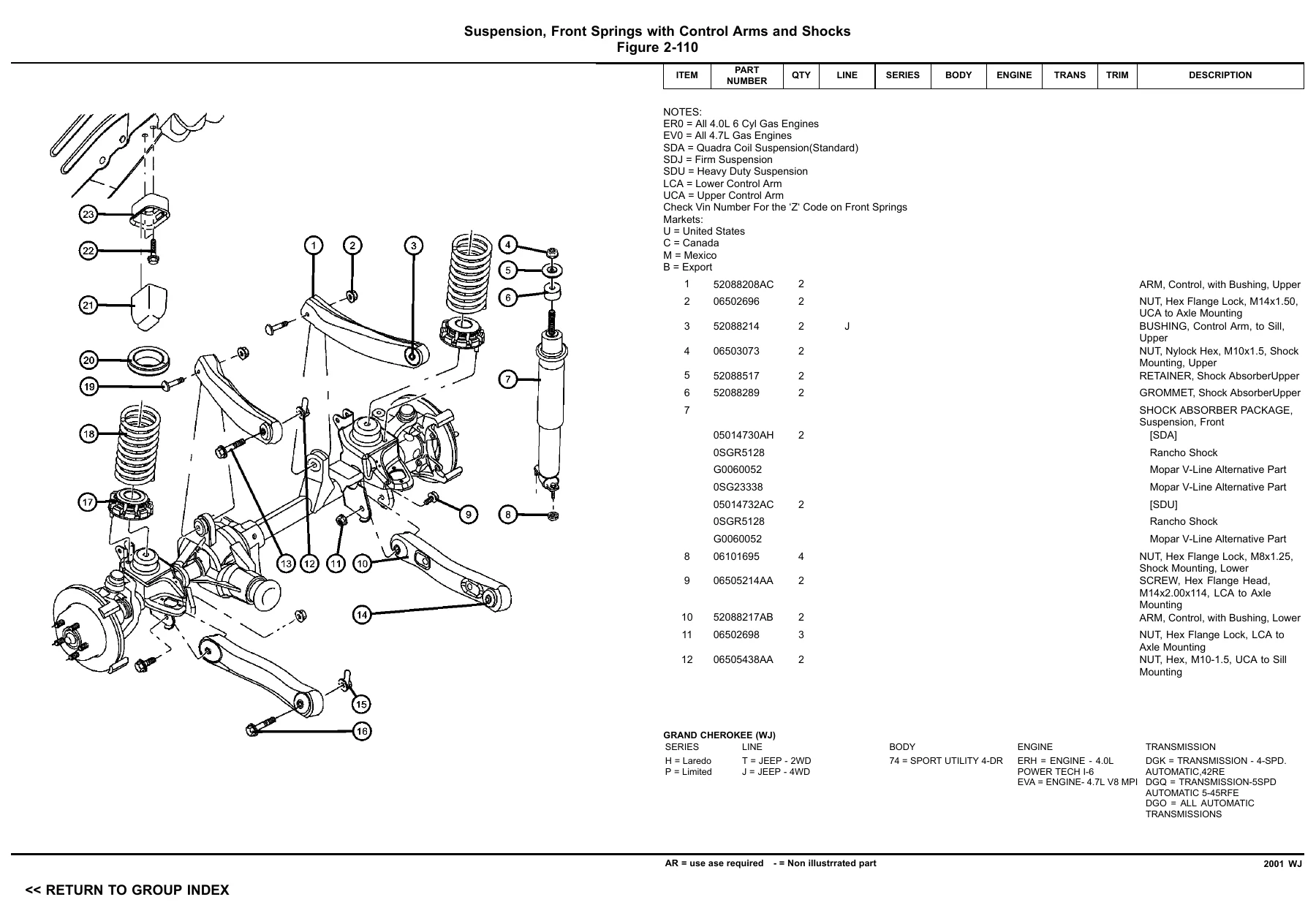

Fig. 2-110 –> Suspension, Front Springs with Control Arms and Sp. 39
Fig. 2-120 –> Front Stabilizer Bar and Track Barp. 41
+Front Axle Drive Shafts
Fig. 2-210 –> Front Axle Shaftsp. 42
+Front Axle Housing
Fig. 2-310 –> Housing,Front Axle,2 Wheel Drivep. 43
Fig. 2-320 –> Housing,Front Axle,4 Wheel Drivep. 44
+Front Axle Assembly
Fig. 2-410 –> Front Axle Assemblyp. 45
+Front Axle Differential
Fig. 2-610 –> Differential, Front Axlep. 46
+Front Axle Skid Plate
Fig. 2-810 –> Skid Plate, Front Axlep. 50
+Group – 3 Rear Axlep. 51
+Rear Axlep. 51
Fig. 3-110 –> Axle Assembly,Rearp. 52
+Differential and Housing
Fig. 3-210 –> Housing,Rear Axle,Dana Model 35p. 54
Fig. 3-220 –> Housing,Rear Axle,Dana Model 44p. 55
Fig. 3-230 –> Differential,Without Trac-Lok [DSA],Dana Model 35p. 56
Fig. 3-240 –> Differential,With Trac-Lok [DSA],Dana Model 35C/1p. 59
Fig. 3-250 –> Differential,Without Trac-Lok,Dana Model 44/226 Mp. 62
Fig. 3-260 –> Differential,With Trac-Lok or Vari-Lok Progressivp. 65
+Rear Axle Vent
Fig. 3-310 –> Rear Axle Ventp. 69
+Rear Axle Shafts
Fig. 3-410 –> Shaft , Rear Axlep. 70
+Group – 4 Parking Brakep. 71
+Parking Brake Lever and Cablesp. 71
Fig. 4-110 –> Lever And Cable – Parking Brakep. 72
Fig. 4-120 –> Rear Disc Parking Brake Assemblyp. 73
+Group – 5 Service Brakesp. 74
+Front Brakesp. 74
Fig. 5-110 –> Front Disc Brake Caliper `Continental Teves`and Rp. 75
Fig. 5-120 –> Front Disc Brake Caliper `Akebono`and Rotorp. 78
+Rear Brakesp. 80
Fig. 5-210 –> Rear Disc Brake Caliperp. 81
+Power Brake Booster
Fig. 5-310 –> Power Brake Boosterp. 82
+Brake Master Cylinder
Fig. 5-410 –> Master Cylinder,Brakep. 83
Fig. 5-420 –> Hydraulic Control Unitp. 84
+Brake Lines and Hoses
Fig. 5-510 –> Brake Lines,Front,Rightp. 85
Fig. 5-520 –> Brakes Lines,Front,Left,and Rearp. 86
Fig. 5-530 –> Front Brake Hose at Caliperp. 87
Fig. 5-540 –> Rear Brake Lines and Hosesp. 88
+Brake Pedals
Fig. 5-610 –> Brake Pedal & Bracketp. 89
+Group – 7 Coolingp. 90
+Radiator and Related Partsp. 90
Fig. 7-150 –> Radiator and Related Parts 4.0L Enginep. 91
Fig. 7-160 –> Radiator and Related Parts 4.7L Enginep. 92
Fig. 7-170 –> Radiator Upper Supportp. 94
+Water Pump and Related Parts
Fig. 7-210 –> Water Pump and Related Parts 4.0L Enginep. 95
Fig. 7-220 –> Water Pump and Related Parts 4.7L Enginep. 96
+Tank, Coolant Engine
Fig. 7-310 –> Coolant Tank, 4.0,4.7L Enginep. 97
+Pulleys and Related Partsp. 97
Fig. 7-420 –> Drive Pulleys 4.0L Enginep. 98
Fig. 7-430 –> Drive Pulleys 4.7L Enginep. 99
+Drive Belts
Fig. 7-520 –> Drive Belts 4.0L and 4.7L Enginesp. 100
+Lines, Transmission Oil Cooler
Fig. 7-610 –> Oil Cooler and Lines 4.0L Enginesp. 101
Fig. 7-620 –> Oil Cooler and Lines 4.7L Enginep. 102
+Grillesp. 102
Fig. 7-720 –> Grille and Related Partsp. 103
+Group – 8 Electricalp. 104
+Startersp. 105

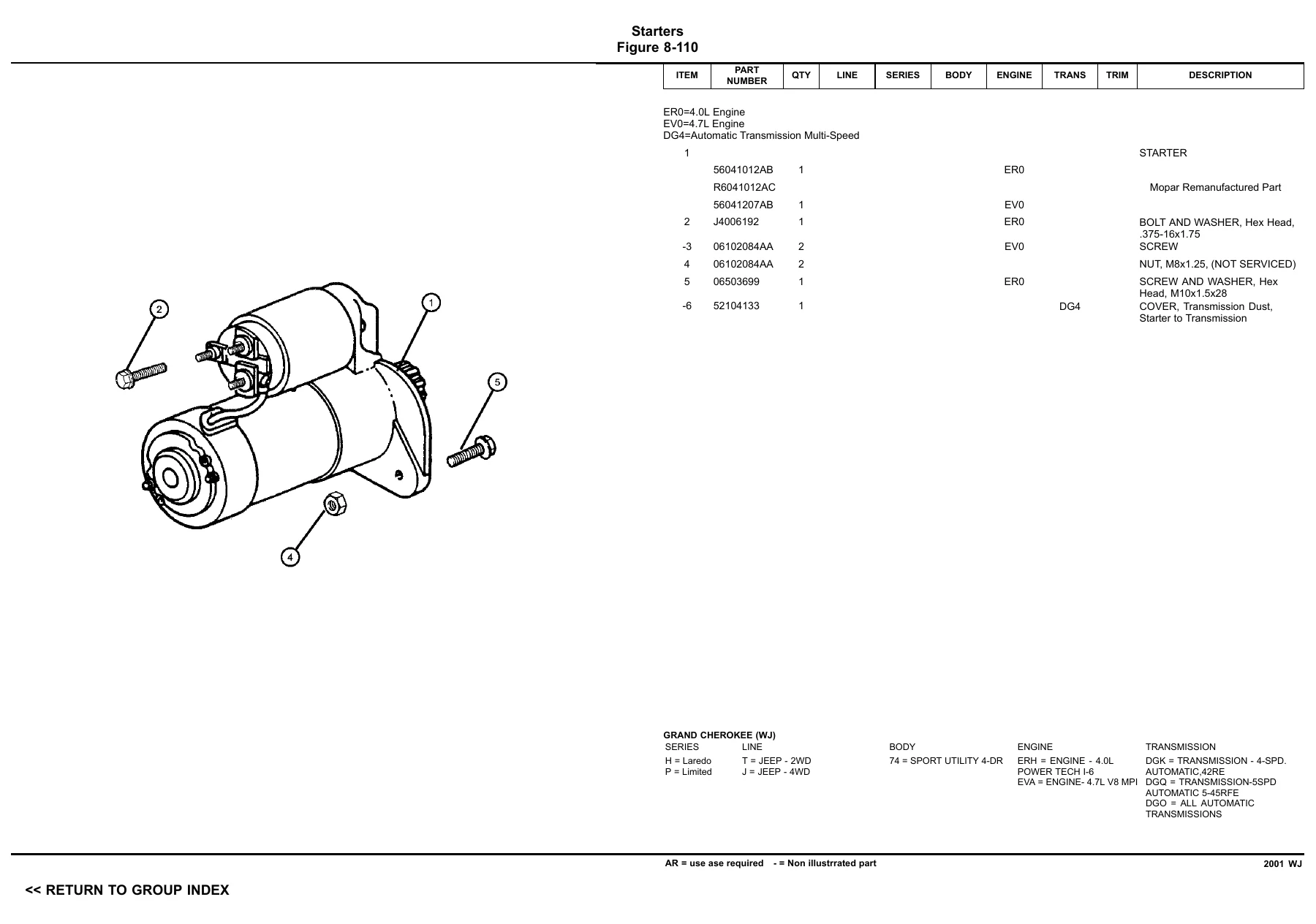

Fig. 8-110 –> Startersp. 106
+Alternators
Fig. 8-210 –> Alternator & Mountingp. 107
+Modules
Fig. 8-405 –> Modulesp. 108
+Relays
Fig. 8-505 –> Power Distribution Center Relays and Fusep. 109
Fig. 8-510 –> Junction Block Relays and Fusesp. 110
+Sensors
Fig. 8-605 –> Sensors Engine 4.0Lp. 111
Fig. 8-606 –> Sensors Oxygen 4.0L enginep. 112
Fig. 8-610 –> Sensors Engine 4.7L Enginep. 113
Fig. 8-611 –> Sensors Oxygen 4.7L Enginep. 114
Fig. 8-615 –> Sensors Drivetrainp. 115
Fig. 8-620 –> Sensors Bodyp. 116
+Single Board Engine Controllers
Fig. 8-710 –> JTEC Modules and Solenoidsp. 118
+Switches
Fig. 8-805 –> Switches Instrument Panel and Consolep. 119
Fig. 8-810 –> Switches Drivetrainp. 120
Fig. 8-815 –> Switches Bodyp. 121
+Horns
Fig. 8-910 –> Hornsp. 123
+Battery Tray and Cables
Fig. 8-1010 –> Battery Tray & Cablesp. 124
+Lamps – Front, Rear and Courtesy
Fig. 8-1110 –> Lamp – Front Endp. 125
Fig. 8-1120 –> Lamp – Rear Endp. 127
Fig. 8-1130 –> Lamp – Courtesy – Dome – Readingp. 128
Fig. 8-1140 –> Bulbs & Socketsp. 129
+Wiring-Engine & Related Parts
Fig. 8-1210 –> Wiring – Engine and Related Items 4.0L Enginep. 130
Fig. 8-1220 –> Wiring – Engine and Related Items 4.7L Enginep. 131
+Wiring-Headlamp to Dash
Fig. 8-1310 –> Wiring – Headlamp / Dashp. 132
+Wiring-Instrument Panel
Fig. 8-1410 –> Wiring – Instrument Panelp. 134
+Wiring-Body & Accessories
Fig. 8-1510 –> Wiring – Body & Acessoriesp. 135
+Wiring Repair
Fig. 8-1605 –> Wiring Repair Packagesp. 137
Fig. 8-1610 –> Power Distribution Center Repairp. 138
+Spark Plugs-Cables-Coils
Fig. 8-1910 –> Spark Plugs – Coilsp. 139
+Group – 08A Instrument Panel and Radios and Consolesp. 140
+Instrument Panelp. 140
Fig. 08A-110 –> Instrument Panelp. 141
+Instrument Panel Cluster
Fig. 08A-210 –> Instrument Clusterp. 145
+Radio, Antenna, and Speakers
Fig. 08A-310 –> Radiosp. 147
Fig. 08A-320 –> Antennap. 148
Fig. 08A-325 –> Speakersp. 149
+Consoles
Fig. 08A-410 –> Floor Consolep. 150
Fig. 08A-420 –> Overhead Consolep. 151
+Group – 9 Engine Mountingp. 152
+Engine Mountingp. 152
Fig. 9-110 –> Engine Mounting, Front, 4.0 (ERH)p. 153
Fig. 9-120 –> Engine Mounting, Rear, 4.0 (ERH)p. 154
Fig. 9-130 –> Engine Mounting, Front, 4.7 (EVA)p. 155
Fig. 9-140 –> Engine Mounting, Rear, 4.7 (EVA)p. 156
+Group – 4.0L Engine 4.0L Six Cylinderp. 157
+Cylinder Headp. 157
Fig. 4.0L-210 –> Cylinder Head, 4.0 (ERH)p. 158
+Cylinder Block
Fig. 4.0L-310 –> Cylinder Block, 4.0 (ERH)p. 159
+Crankshaft, Piston and Torque Converter
Fig. 4.0L-410 –> Crankshaft, Piston and Torque Converter, 4.0 (p. 160
+Camshafts & Valves
Fig. 4.0L-510 –> Camshaft and Valves, 4.0 (ERH)p. 162
+Timing Belt and Cover
Fig. 4.0L-610 –> Timing Belt and Cover, 4.0 (ERH)p. 163
+Engine Oiling
Fig. 4.0L-710 –> Engine Oiling, 4.0 (ERH)p. 164
+Manifolds
Fig. 4.0L-810 –> Manifold, Intake and Exhaust, 4.0 (ERH)p. 166
+Crankcase Ventilation
Fig. 4.0L-910 –> Crankcase Ventilation, 4.0 (ERH)p. 167
+Group – 4.7L Engine 4.7L Eight Cylinderp. 168
+Cylinder Headp. 168
Fig. 4.7L-210 –> Cylinder Head, 4.7 (EVA)p. 169
+Cylinder Block
Fig. 4.7L-310 –> Cylinder Block, 4.7 (EVA)p. 170
+Crankshaft, Pistons and Torque Converter
Fig. 4.7L-410 –> Crankshaft, Piston and Torque Converter, 4.7 (p. 171
+Camshafts and Valvesp. 172
Fig. 4.7L-510 –> Camshaft and Valves, 4.7 (EVA)p. 173
+Timing Belt and Cover
Fig. 4.7L-610 –> Timing Cover, 4.7 (EVA)p. 174
Fig. 4.7L-620 –> Timing Chain and Guides, 4.7 (EVA)p. 175
+Engine Oiling
Fig. 4.7L-710 –> Engine Oiling, 4.7 (EVA)p. 176
+Manifolds
Fig. 4.7L-810 –> Manifold, Intake and Exhaust, 4.7 (EVA)p. 177
+Crankcase Ventilation
Fig. 4.7L-910 –> Crankcase Ventilation, 4.7 (EVA)p. 178
+Group – 11 Exhaustp. 179
+Exhaust Systemp. 179
Fig. 11-110 –> Exhaust System, 4.0 (ERH)p. 180
Fig. 11-120 –> Exhaust System, 4.7 (EVA)p. 181
+Heat Shields
Fig. 11-210 –> Heat Shields, 4.0 (ERH), 4.7 (EVA)p. 182
+Group – 13 Frames and Bumpersp. 183
+Front Bumper and Fasciap. 183
Fig. 13-240 –> Bumper, Frontp. 184
+Rear Bumper and Fascia
Fig. 13-340 –> Bumper, Rearp. 186
+Trailer Tow
Fig. 13-610 –> Tow Eyep. 188
Fig. 13-620 –> Rear Hitchp. 189
+Group – 14 Fuelp. 190
+Tank, Fuelp. 190
Fig. 14-110 –> Fuel Tank, 4.0 (ERH), 4.7 (EVA)p. 191
+Fuel Tank Filler Tube
Fig. 14-210 –> Fuel Tank Filler Tube, 4.0 (ERH), 4.7 (EVA)p. 192
+Fuel Lines
Fig. 14-310 –> Fuel Lines, Front, 4.0 (ERH)p. 193
Fig. 14-320 –> Fuel Lines, Rear, 4.0 (ERH)p. 194
Fig. 14-330 –> Fuel Lines, Front, 4.7 (EVA)p. 195
Fig. 14-340 –> Fuel Lines, Rear, 4.7 (EVA)p. 196
+Fuel Rail
Fig. 14-410 –> Fuel Rail, 4.0 (ERH), 4.7 (EVA)p. 197
+Fuel Pump and Sending Unit
Fig. 14-510 –> Fuel Pump and Sending Unit, 4.0 (ERH), 4.7 (EVA)p. 198
+Throttle Body
Fig. 14-610 –> Throttle Body, 4.0 (ERH), 4.7 (EVA)p. 199
+Throttle Controls
Fig. 14-710 –> Throttle Controls, 4.0 (ERH)p. 200
Fig. 14-720 –> Throttle Controls, 4.7 (EVA)p. 201
+Air Cleaner
Fig. 14-810 –> Air Cleaner, 4.0 (ERH)p. 202
Fig. 14-820 –> Air Cleaner, 4.7 (EVA)p. 203
+Air Intake System
Fig. 14-910 –> Air Intake Systemp. 204
+Speed Control
Fig. 14-1010 –> Speed Control, 4.0 (ERH), 4.7 (EVA)p. 205
+Accelerator Pedalp. 205
Fig. 14-1110 –> Accelerator Pedal, 4.0 (ERH), 4.7 (EVA)p. 206
+Group – 16 Propeller Shafts and U-Jointsp. 207
+Propeller Shaftp. 207
Fig. 16-110 –> Propeller Shafts,Front and Rearp. 208
+Group – 17 Rear Suspensionp. 210
+Rear Suspensionp. 210
Fig. 17-110 –> Supension, Rear,with Spring,Shocks and Control Ap. 211
+Rear Stabilizer
Fig. 17-210 –> Stabilizer Bar, Rearp. 213
+Group – 19 Steeringp. 214
+Steering Wheelp. 214
Fig. 19-110 –> Steering Wheel Assemblyp. 215
+Steering Column
Fig. 19-210 –> Steering Column Assyp. 218
+Steering Gear
Fig. 19-310 –> Steering Gearp. 219
+Steering Linkage
Fig. 19-410 –> Steering Linkagep. 220
+Power Steering Pump
Fig. 19-510 –> Power Steering Pumpp. 221
+Power Steering Hoses
Fig. 19-710 –> Power Steering Hoses-ER0 Enginep. 222
Fig. 19-720 –> Power Steering Hoses [EV0] Enginep. 223
+Group – 42RE Automatic Transmission 4 Speedp. 224
+Transmission Assemblyp. 224
Fig. 42RE-110 –> Transmission 42RE [DGK]p. 225
+Case and Extensionp. 225
Fig. 42RE-210 –> Case and Related Parts 42RE [DGK]p. 226
Fig. 42RE-220 –> Case Rear 42RE [DGK]p. 228
+Oil Pumpp. 228
Fig. 42RE-310 –> Oil Pump 42RE [DGK]p. 229
+Gear Trainp. 230
Fig. 42RE-410 –> Gear Train 42RE [DGK]p. 231
Fig. 42RE-420 –> Gear Train and Intermediate Shaft 42RE [DGK]p. 235
Fig. 42RE-430 –> Output Shaft 42RE [DGK]p. 238
+Bands, Reverse and Kickdownp. 238
Fig. 42RE-510 –> Bands 42RE [DGK]p. 239
+Valve Bodyp. 240
Fig. 42RE-710 –> Valve Body 42RE [DGK]p. 241
Fig. 42RE-720 –> Servos 42RE (DGK)p. 244
Fig. 42RE-730 –> Parking Sprag 42RE [DGK]p. 247
+Overdrive Gear Trainp. 247
Fig. 42RE-1010 –> Overdrive Gear Train 42RE [DGK]p. 248
+Gearshift Controlsp. 251
Fig. 42RE-1210 –> Gearshift Controls 42RE [DGK]p. 252
+Group – 45RFE Automatic Transmission Multi-Speedp. 253
+Transmission Assemblyp. 254
Fig. 45RFE-110 –> Transmission 45RFE [DGQ]p. 255
+Case and Extension
Fig. 45RFE-210 –> Case and Related Parts 45RFE [DGQ]p. 256
Fig. 45RFE-220 –> Adapter 45RFE [DGQ]p. 258
+Oil Pump
Fig. 45RFE-310 –> Oil Pump [45RFE] [ DGQ]p. 259
+Gear Trainp. 260
Fig. 45RFE-410 –> Input Shaft 45RFE [DGQ]p. 261
Fig. 45RFE-420 –> Underdrive 45RFE [DGQ]p. 264
Fig. 45RFE-430 –> Overdrive 45RFE [DGQ]p. 265
Fig. 45RFE-440 –> 2/4 Clutch Retainer 45RFE [DGQ]p. 266
Fig. 45RFE-450 –> Input/Reverse Planetary 45RFE [DGQ]p. 268
Fig. 45RFE-460 –> Reaction Annulus/Sun Gear 45RFE [DGQ]p. 269
Fig. 45RFE-470 –> Low / Reverse Clutchp. 270
+Valve Bodyp. 270
Fig. 45RFE-710 –> Valve Body 45RFE [DGQ]p. 271
Fig. 45RFE-730 –> Parking Sprag 45RFE [DGQ]p. 273
+Gearshift Controlsp. 274
Fig. 45RFE-1210 –> Gearshift Controls 45RFE [DGQ]p. 275
+Seal and Shim Packages
Fig. 45RFE-1302 –> LR Clutch 45RFE [DGQ]p. 276
Fig. 45RFE-1303 –> Input Clutch Plate 45RFE [DGQ]p. 277
Fig. 45RFE-1304 –> OVERHAUL 45RFE [DGQ]p. 278
Fig. 45RFE-1305 –> Input Clutch 45RFE [DGQ]p. 279
Fig. 45RFE-1306 –> Planetary Plate 45RFE [DGQ]p. 280
Fig. 45RFE-1310 –> 2&4 Clutch [DGQ]p. 281
+Group – 242 Transfer Case Model 242 [DHC, DHP]p. 282
+Transfer Case Assemblyp. 282
Fig. 242-110 –> Transfer Case Select Trac [DHP]p. 283
+Case and Related Partsp. 283
Fig. 242-210 –> Case and Related Parts Select Trac [DHP]p. 284
+Gear Train
Fig. 242-410 –> Gear Train Select Trac [DHP]p. 287
+Fork and Railsp. 290
Fig. 242-910 –> Fork and Rails Select Trac [DHP]p. 291
+Gearshift Controlsp. 292
Fig. 242-1210 –> Gearshift Controls Select Trac [DHP]p. 293
+Group – 247 Transfer Case Model 247 [DHF, DHQ]p. 294
+Transfer Case Assemblyp. 294
Fig. 247-110 –> Transfer Case Quadra Trac II on Demand [DHF]p. 295
+Case and Related Parts
Fig. 247-210 –> Case and Related Parts Quadra Trac II on Demandp. 296
+Gear Trainp. 298
Fig. 247-410 –> Gear Train Quadra Trac II on Demand [DHF]p. 299
+Fork and Railsp. 302
Fig. 247-910 –> Fork and Rails Quadra Trac II on Demand [DHF]p. 303
+Gearshift Controlsp. 303
Fig. 247-1210 –> Gearshift Controls Quadra Trac II on Demand [Dp. 304
+Group – 22 Wheels, Covers and Jacksp. 305
+Wheels and Hardwarep. 305
Fig. 22-130 –> Wheels and Hardwarep. 306
+Wheel Covers and Center Caps
Fig. 22-230 –> Caps, Wheel Cover and centerp. 307
+Jack Stowage
Fig. 22-330 –> Jack Stowagep. 308
+Spare Tire Stowage
Fig. 22-460 –> Spare Wheel Stowagep. 309
+Group – 23D Wiper/Lock Cylinder and Keysp. 310
+Lock Cylinders and Keysp. 310
Fig. 23D-130 –> Lock Cylinder & Keysp. 311
+Windshield Wiper and Washer Systems
Fig. 23D-230 –> Windshield Wiper & Washerp. 312
+Rear Wiper and Washer System
Fig. 23D-330 –> Rear Wiper & Washer Systemp. 313
+Group – 24 Air Conditioning & Heaterp. 314
+Air Conditioner and Heater Unitsp. 314
Fig. 24-150 –> HEVAC with Auto Temp Control, LHDp. 315
Fig. 24-170 –> HEVAC with Manual Control, LHDp. 317
+Air Conditioner and Heater Plumbing
Fig. 24-240 –> Hoses, Heater 4.0L Enginep. 319
Fig. 24-245 –> Hoses, Heater 4.7L Enginep. 320
Fig. 24-250 –> Accumulator, Condenser and Lines 4.0L Enginesp. 321
Fig. 24-255 –> Accumulator, Condenser and Lines 4.7L Enginep. 322
Fig. 24-260 –> Hevac Vacuum Engine Lines and Controlsp. 323
+Air Conditioner and Heater Controls
Fig. 24-330 –> Control, Heater and Air Conditionerp. 324
+Air Conditioning Compressor
Fig. 24-410 –> Compressor, Air Conditioning 4.0L Enginep. 325
Fig. 24-420 –> Compressor, Air Conditioning 4.7L Enginep. 326
+Air Conditioning Compressor Mounting
Fig. 24-510 –> Compressor, Mounting 4.0L Enginep. 327
Fig. 24-520 –> Compressor, Mounting 4.7L Enginep. 328
+Air Ducts and Outlets
Fig. 24-610 –> Air Ducts and Outletsp. 329
+Group – 25 Emission Systemsp. 330
+Emission Labelsp. 330
Fig. 25-110 –> Emission Labels, 4.0 (ERH), 4.7 (EVA)p. 331
+Vacuum Canister
Fig. 25-310 –> Vacuum Canister, 4.0 (ERH), 4.7 (EVA)p. 332
+Emission Harness
Fig. 25-410 –> Emission Control Vacuum Harness, 4.0 (ERH), 4.7p. 333
Fig. 25-430 –> Leak Detection Pump, 4.0 (ERH), 4.7 (EVA)p. 334
+Group – DWJ Doors and Related Partsp. 335
+Front Doorp. 335
Fig. DWJ-110 –> Door, Front Shell and Hingesp. 336
Fig. DWJ-120 –> Door, Front Glass and Regulatorsp. 337
Fig. DWJ-130 –> Door, Front Lock and Controlsp. 338
+Rear Door
Fig. DWJ-210 –> Door, Rear Shell and Hingesp. 340
Fig. DWJ-220 –> Door, Rear Glass and Regulatorsp. 341
Fig. DWJ-230 –> Door, Rear Lock and Controlsp. 342
+Exterior Mirror
Fig. DWJ-510 –> Mirrors, Exteriorp. 344
+Weatherstrips and Seals
Fig. DWJ-610 –> Door, Front Weatherstrips and Sealsp. 345
Fig. DWJ-620 –> Door, Rear Weatherstrips and Sealsp. 346
Fig. DWJ-630 –> Door, Rear Tail Gate Weatherstrips and Sealsp. 347
+Group – EWJ Exterior Ornamentationp. 348
+Nameplatesp. 348
Fig. EWJ-120 –> Nameplates and Decalsp. 349
+Moldings and Ornamentation
Fig. EWJ-210 –> Moldings, Upperp. 350
Fig. EWJ-220 –> Cladding and Sill Moldingsp. 351
+Group – IWJ Interior Trimp. 353
+Headliner and Visorp. 354
Fig. IWJ-110 –> Headliner and Assist Handlep. 355
Fig. IWJ-120 –> Sunvisorp. 357
+Panel – Mouldings, Scuff Plates
Fig. IWJ-210 –> Front Trim Panels and Scuff Platesp. 358
Fig. IWJ-220 –> Rear Trim Panelsp. 360
+Carpet
Fig. IWJ-310 –> Carpet and Insulationp. 362
+Door Trim Panels
Fig. IWJ-410 –> Door Trim Panelsp. 364
+Front Seats and Attaching Parts
Fig. IWJ-510 –> Front Seat, Cloth, Trim Code [H7]p. 366
Fig. IWJ-520 –> Front Seat, Leather, Trim Code [FL]p. 368
Fig. IWJ-530 –> Front Seat, Leather, Trim Code [EL]p. 372
+Rear Seats and Attaching Parts
Fig. IWJ-610 –> Rear Seat, Trim Code [H7]p. 378
Fig. IWJ-620 –> Rear Seat, Trim Code [FL]p. 381
Fig. IWJ-630 –> Rear Seat, Trim Code [EL]p. 384
+Seat Belts – Front and Rear
Fig. IWJ-710 –> Front Seatp. 388
Fig. IWJ-720 –> Rear Seat Beltp. 389
+Adjusters, Covers, Shields and Risers
Fig. IWJ-810 –> Recliner and Adjustersp. 390
+Lift Gate Trimp. 393
Fig. IWJ-1010 –> Liftgate Panel and Scuff Platep. 394
+Group – SWJ Body Sheet Metal Except Doorsp. 395
+Floor Pansp. 396
Fig. SWJ-210 –> Front Floor Panp. 397
Fig. SWJ-220 –> Center and Rear Floor Panp. 398
+Plugs
Fig. SWJ-310 –> Plugsp. 399
+Front Fenders
Fig. SWJ-410 –> Front Fenderp. 400
+Hood and Hood Release
Fig. SWJ-510 –> Hood, Latch, Hingesp. 401
+Cowl and Dash Panel
Fig. SWJ-610 –> Panels, Cowl and Dashp. 402
Fig. SWJ-620 –> Insulation, Dash And Cowlp. 403
+Glass and Rear View Mirror
Fig. SWJ-710 –> Glass, Windshield, Backlite, Quarter Window, Rep. 404
+Aperture Panel
Fig. SWJ-810 –> Panels, Body Sidep. 406
+Quarter Panel and Pillars
Fig. SWJ-910 –> Panels, Rear Quarterp. 407
+Roof Panels
Fig. SWJ-1110 –> Panels, Roofp. 409
+Sunroof
Fig. SWJ-1210 –> Sunroofp. 410
+Liftgate Panel
Fig. SWJ-1310 –> Liftgate, Latch and Hingesp. 411
+Luggage Rack
Fig. SWJ-1610 –> Roof Rackp. 413
- Group 1 – Component Parts for MOPAR Accessories (Audio & Electronics, Carriers & Cargo Hauling, Driving Convenience, Exterior Appearance, Exterior Protection, Fog Lights & Electrical, Security)
- Group 2 – Front Suspension & Drive (front springs with control arms and shocks, stabilizer bar and track bar, front axle shafts, front axle housing 2WD and 4WD, front axle assembly, front axle differential, front axle skid plate)
- Group 3 – Rear Axle (axle assembly, differential and housing, rear axle vent, rear axle shafts)
- Group 4 – Parking Brake (parking brake lever and cables, rear disc parking brake assembly)
- Group 5 – Service Brakes (front disc brake caliper Continental Teves and Akebono, rear disc brake caliper, power brake booster, master cylinder, hydraulic control unit, brake lines and hoses, brake pedal and bracket)
- Group 7 – Cooling (radiator and related parts, water pump, coolant tank, pulleys, drive belts, transmission oil cooler lines, grilles)
- Group 8 – Electrical (starters, alternators, modules, relays, power distribution center, junction block, sensors, single board engine controllers, switches, horns, battery tray and cables, lamps, wiring)
- Group 08A – Instrument Panel and Radios and Consoles (instrument panel, cluster, radio, antenna and speakers, floor console, overhead console)
- Group 9 – Engine Mounting (front and rear mounting, 4.0 ERH and 4.7 EVA)
- 4.0L Engine (cylinder head, cylinder block, crankshaft, pistons and torque converter, camshafts and valves, timing belt and cover, engine oiling, manifolds, crankcase ventilation)
- 4.7L Engine (cylinder head, cylinder block, crankshaft, pistons and torque converter, camshaft and valves, timing case and cover, engine oiling, manifolds)
- Group 11 – Exhaust (exhaust system 4.0 ERH and 4.7 EVA, heat shields)
- Group 13 – Frames and Bumpers (front bumper and fascia, rear bumper and fascia, trailer tow, tow eye, rear hitch)
- Group 14 – Fuel (fuel tank, filler tube, fuel lines front and rear, fuel rail, fuel pump and sending unit, throttle body, throttle controls, air cleaner, air intake system, speed control, accelerator pedal)
- Group 16 – Propeller Shafts and U-Joints (front and rear propeller shafts)
- Group 17 – Rear Suspension (rear suspension with spring, shocks and control arms, rear stabilizer bar)
- Group 19 – Steering (steering wheel assembly, steering column, steering gear, steering linkage, power steering pump, power steering hoses ER0 and EV0)
- Group 42RE – Automatic Transmission 4 Speed (transmission assembly, case and extension, oil pump, gear train, output shaft, bands, valve body, servos, parking sprag, overdrive gear train, gearshift controls)
- Group 45RFE – Automatic Transmission Multi-Speed (transmission assembly, case and extension, adapter, oil pump, input shaft, underdrive, overdrive, 2/4 clutch retainer, input/reverse planetary, reaction annulus/sun gear, low/reverse clutch, valve body, parking sprag, gearshift controls, seal and shim packages)
- Group 242 – Transfer Case Model 242 (Select Trac DHP)
- Group 247 – Transfer Case Model 247 (Quadra Trac II on Demand DHF)
- Group 22 – Wheels, Covers and Jacks (wheels and hardware, wheel covers and center caps, jack stowage, spare tire stowage)
- Group 23D – Wiper/Lock Cylinder and Keys (lock cylinders and keys, windshield wiper and washer, rear wiper and washer)
- Group 24 – Air Conditioning & Heater (HEVAC with auto temp control LHD, HEVAC with manual control LHD, heater hoses 4.0L and 4.7L, accumulator, condenser and lines, vacuum lines and controls, heater and A/C control, compressor 4.0L and 4.7L, compressor mounting, air ducts and outlets)
- Group 25 – Emission Systems (emission labels, vacuum canister, emission control vacuum harness, leak detection pump)
- Group DWJ – Doors and Related Parts (front door shell and hinges, front glass and regulators, front lock and controls, rear door shell and hinges, rear glass and regulators, rear lock and controls, exterior mirror, weatherstrips and seals)
- Group EWJ – Exterior Ornamentation (nameplates and decals, moldings, cladding and sill moldings)
- Group IWJ – Interior Trim (headliner and assist handle, sunvisor, trim panels and scuff plates, carpet and insulation, door trim panels, front and rear seats, seat belts, recliner and adjusters, liftgate trim)
- Group SWJ – Body Sheet Metal Except Doors (floor pans, plugs, front fenders, hood and hood release, cowl and dash panel, glass and rear view mirror, aperture panel, quarter panel and pillars, roof panels, sunroof, liftgate panel, luggage rack)
How This 2001 Grand Cherokee WJ MOPAR Parts Catalog Works
Each figure is a self-contained lookup. The illustration shows the assembly exploded with numbered callouts, and the facing table carries the item number, part number, quantity and the applicable line/series/body/engine/trans/trim codes for that item. That last part matters on the WJ because the same bracket or hose often differs between Laredo and Limited, between 2WD and 4WD, and between the 4.0L Power Tech I-6 and the 4.7L V8. The codes are printed right in the row, so you can filter to your exact build rather than ordering the first number that looks close.
The catalog also carries the sales-code legend that decodes the trim, axle, suspension and transfer case designations used throughout the document — ER0/ERH for the 4.0L engines, EV0/EVA for the 4.7L, DGK for the 42RE, DGQ for the 45RFE, DHP for Select Trac, DHF for Quadra Trac II on Demand, and so on. Axle coverage notes Dana 35C and Dana 44 ratios and the Trac-Lok and Vari-Lok options by sales code, and the transfer case sections are split by model number rather than lumped together.
This 2001 Jeep Grand Cherokee WJ MOPAR parts catalog is the parts-side companion to a service manual. It does not contain repair procedures, torque sequences or diagnostic flow charts — what it contains is the part identification layer: figure numbers, callouts, part numbers, quantities and fitment codes across every major group on the vehicle, from the front axle housing to the liftgate latch.
What You Can Do With It
Use the 2001 Jeep Grand Cherokee WJ MOPAR parts catalog to look up a part number before ordering, verify whether a component differs between Laredo and Limited or between 2WD and 4WD, confirm which of the two automatic transmissions your vehicle uses before sourcing a part, trace an assembly apart on the exploded view so you know what clips, seals and fasteners come with it, and cross-check an accessory number against the MOPAR accessory section at the front of the book. Body shops, restorers and DIY owners working on a WJ all end up needing this layer of information, because a service manual tells you how to remove a component but not what number to write on the order form.
Having the illustrated figures in one PDF means you can open the group you need, zoom the illustration, read the callout and copy the number without flipping between a parts counter screen and a photocopy. Whether you are chasing a single weatherstrip, rebuilding a front axle, replacing a blend air door in the HEVAC housing or working out which carrier kit fits the roof, the figure and table are on the same spread.
Instant Delivery
The 2001 Jeep Grand Cherokee WJ MOPAR Parts Catalog is delivered as an instant PDF download after checkout — no shipping, no waiting on a disc, no trip to a dealer parts counter. Open it on a laptop, tablet or phone in the garage, print the figure you are working from, and keep the rest of the 413 pages on file. Everything in the catalog is searchable by part number and organised by group, so the next lookup takes seconds instead of an afternoon.
Reviews
There are no reviews yet.
