2002 Isuzu NPR.NPR HD.NQR W3500 W4500 W5500 Commercial Truck Service Manual – PDF DOWNLOAD

Description

2002 Isuzu NPR.NPR HD.NQR W3500 W4500 W5500 Commercial Truck Service Manual

FILE DETAILS:

2002 Isuzu NPR.NPR HD.NQR W3500 W4500 W5500 Commercial Truck Service Manual

Language : English
Pages : 172
Downloadable : Yes
File Type : PDF
Size: 10.5 MB

DESCRIPTION:

2002 Isuzu NPR.NPR HD.NQR W3500 W4500 W5500 Commercial Truck Service Manual

FOREWORD :

This supplemental service manual contains diagnosis, on-vehicle service, wiring diagrams, and component unit repair for Medium Duty Steel Cab Vehicles. (NPR / NPR HD / NQR… W3500 / W4500 / W5500… DIESEL ENGINE). When used with the Service Manuals (Pub. No. NPD 01-WSM-C01 for chassis and NPD01-ESM-C02 for Engine), complete service coverage is provided. Keep this manual in a handy place for ready reference. If properly used, it will enable the technician to serve the owners of these vehicles. This service manual is intended for use by professional, qualified technicians. Attempting repairs or service without the appropriate training, tools, and equipment could cause injury to you or others and damage to your vehicle that may cause it not to operate properly.

• These vehicles contain parts dimensioned in the metric system as well as in the customary system. Some fasteners are metric and are very close in dimension to familiar customary fasteners in the inch system. It is important to note that, during any vehicle maintenance procedures, replacement fasteners must have the same measurements and strength as those removed, whether metric or customary. (Numbers on the heads of metric bolts and on surfaces of metric nuts indicate their strength.
• Customary bolts use radial lines for this purpose, while most customary nuts do not have strength markings.) Mismatched or incorrect fasteners can result in vehicle damage or malfunction, or possibly personal injury. Therefore, fasteners removed from the vehicle should be saved for re-use in the same location whenever possible. Where the fasteners are not satisfactory for re-use, care should be taken to select a replacement that matches the original. For information and assistance, see your Authorized dealer.

TABLE OF CONTENTS:

2002 Isuzu NPR.NPR HD.NQR W3500 W4500 W5500 Commercial Truck Service Manual

SECTION 00.pdf............................ 0
	0A  GENERAL INFORMATION............... 8
	0B  MAINTENANCE AND LUBRICATION.......18
SECTION 03.pdf............................ 0
	3B3 POWER STEERING....................38
SECTION 05.pdf............................ 0
	5A   HYDRAULIC BRAKES.................42
	5A2 HYDRAULIC BOOSTER BRAKE SYSTEM....46

2002 ISUZU NPR.NPR HD.NQR W3500 W4500 W5500 COMMERCIAL TRUCK SERVICE MANUAL – PDF DOWNLOAD:

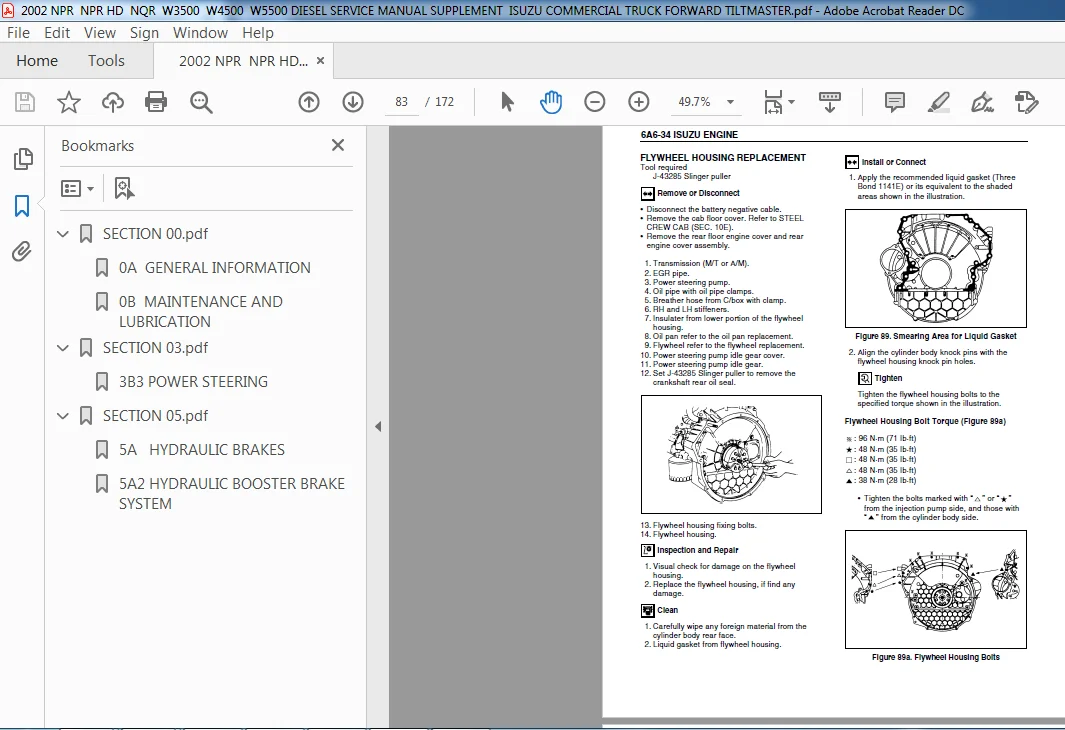

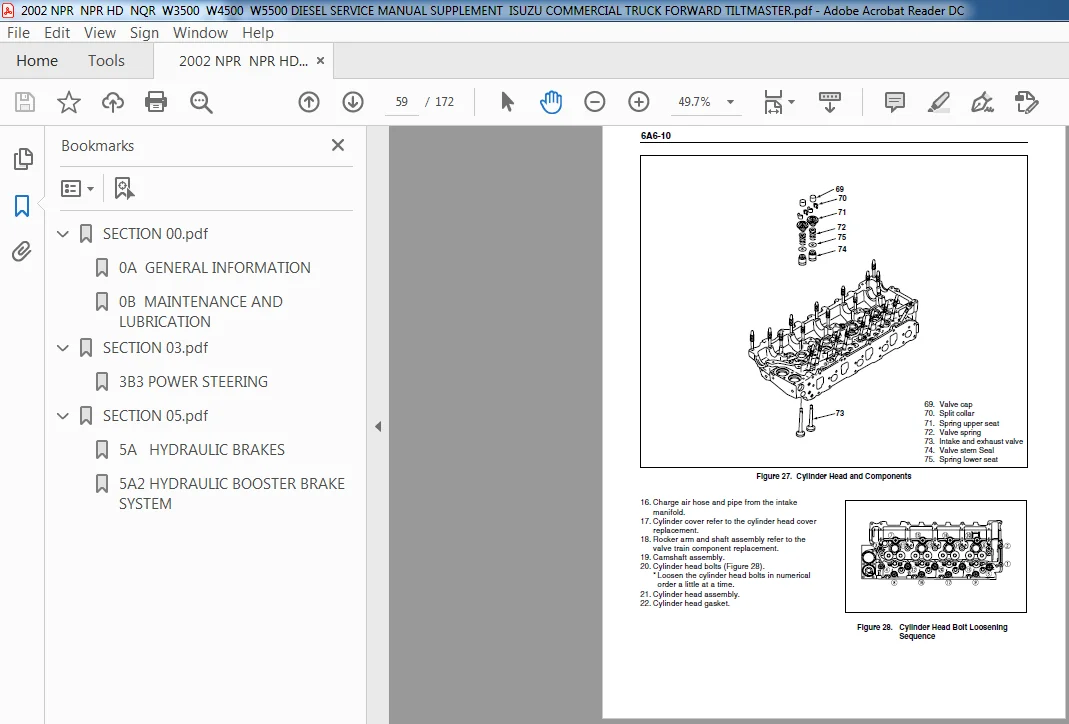

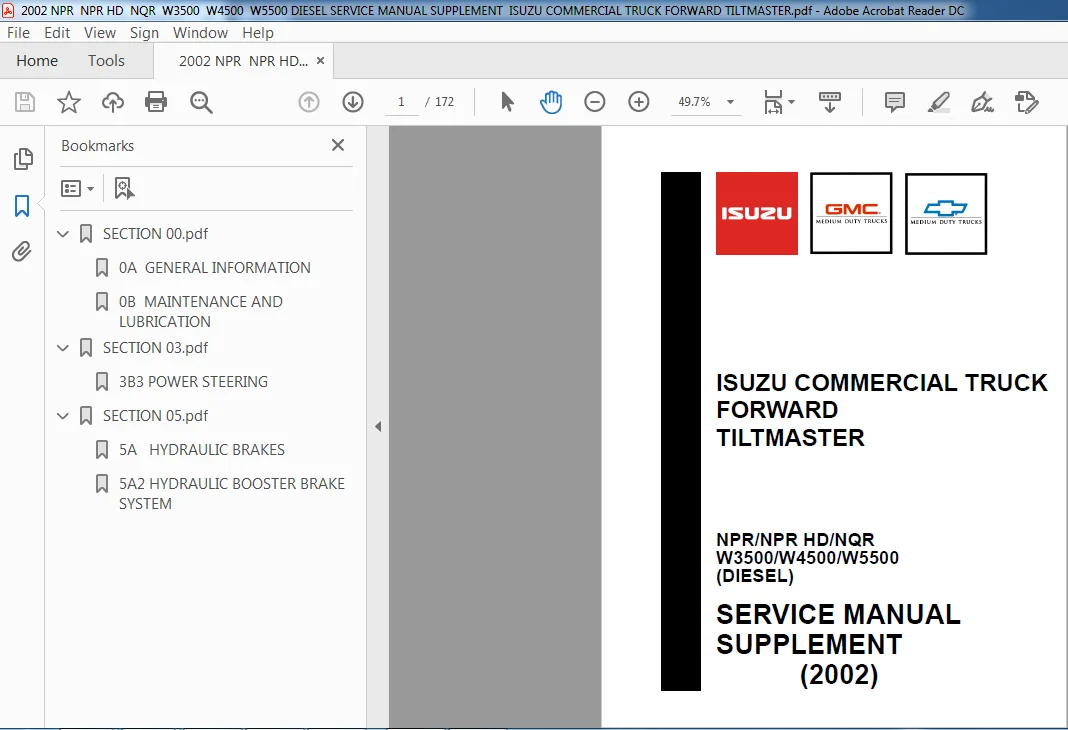

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
