Description
2002 Jeep Liberty Cherokee KJ Parts Catalog

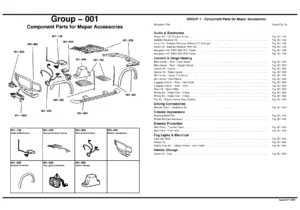

This is the full parts catalog for the 2002 Jeep Liberty and Liberty/Cherokee (KJ) built by DaimlerChrysler Corporation. It is a parts identification document organised by group, pairing exploded component illustrations with Mopar part numbers, quantities and the line, series, body, engine and transmission sales codes that determine which part belongs on which vehicle. Every diagram carries a numbered callout key tied to a parts table, so a part shown on the drawing can be traced straight to its number.
File Details
- Manual type: Parts Catalog (component parts and Mopar accessories)
- Brand / manufacturer: Jeep (DaimlerChrysler Corporation)
- Model: Liberty / Cherokee (KJ), 2002 model year
- Language: English
- Pages: 486
- File format: PDF
Chapters Covered
- VIN Plate Position Interpretation – country of origin, assembler, vehicle type, GVWR and passenger safety, vehicle line, series, body style, engine, check digit, model year, assembly plant, build sequence
- Group 1 – Component Parts for Mopar Accessories: audio and electronics, carriers and cargo hauling, bike carriers (roof mount fork, roof mount upright, spare tire mount), canoe carrier kit, water sports carrier kit, ski carrier, rail mount rack kit, roof box luggage carrier, trailer tow wiring kits, engine fan kit, speed control package, exterior appearance, running board kit, wheel kit, exterior protection, skid plates, fog light kit, heater kit, interior storage, dog guard kit, EVS base and plus alarm systems
- Group 2 – Front Suspension & Drive: front suspension and strut, front sway bar, front axle drive shafts, front axle housing, front axle assembly, front axle differential, front axle skid plate
- Group 3 – Rear Axle: axle assembly, differential and housing (Dana M35/194MM RBI and Corporate 8.25), rear axle vent, rear axle shafts
- Group 4 – Parking Brake: lever and cables
- Group 5 – Service Brakes: front brakes, rear brakes, power brake booster, brake master cylinder, brake lines and hoses (LHD and RHD), brake and clutch pedals
- Group 6 – Clutch: clutch disc and pressure plate, clutch housing, clutch controls, clutch pedal
- Group 7 – Cooling: radiator and related parts for 2.4L, 3.7L and 2.5L diesel, water pump and related parts, coolant and degasser tanks, drive pulleys, drive belts, transmission oil cooler lines, grilles
- Group 8 – Electrical: starters, alternators, modules, relays, power distribution centre, junction block, engine and drive train sensors, body sensors, JTEC controllers, switches, horns, battery tray and cables, front, rear, roof and courtesy lamps, bulbs and sockets, engine wiring, headlamp to dash wiring, instrument panel wiring, body and accessory wiring, wiring repair, spark plug coils
- Group 8A – Instrument Panel, Radios and Consoles: instrument panel, instrument panel cluster, radio, antenna and speakers, floor and overhead consoles
- Group 9 – Engine Mounting: front and rear insulators and brackets for 2.5L diesel, 2.4L and 3.7L
- Group 2.4L Engine: cylinder head, cylinder block, crankshaft, pistons and drive plate, camshafts and valves, timing belt and cover, balance shafts, engine oiling, manifolds, crankcase ventilation
- Group 2.5LD Engine (Turbo Diesel): cylinder head, cylinder block, crankshaft and pistons, camshafts and valves, timing cover, engine oiling, oil lines, oil filter adapter, manifolds, crankcase ventilation
- Group 3.7L Engine: cylinder head, cylinder block, crankshaft, pistons and torque converter, camshafts and valves, timing belt and cover, engine oiling, manifolds, crankcase ventilation
- Group 11 – Exhaust: exhaust systems for 2.5L turbo diesel, 2.4L and 3.7L, heat shields
- Group 13 – Frames and Bumpers: frame cradle, front bumper and fascia, rear bumper and fascia, front and rear tow hooks
- Group 14 – Fuel: fuel tank, filler tube, fuel lines (front and rear for each engine), fuel filter and water separator for 2.5L, fuel rail, fuel injection system and injection pump, fuel pump and sending unit, throttle body, turbocharger, throttle controls, air cleaner, speed control, accelerator pedal
- Group 16 – Propeller Shafts and U-Joints: two wheel drive and four wheel drive shafts
- Group 17 – Rear Suspension: rear suspension and shock, rear stabilizer bar
- Group 19 – Steering: steering wheel, steering column, rack and pinion steering gear, power steering pumps for 2.4L, 2.5L diesel and 3.7L, power steering hoses and reservoirs (LHD and RHD)
- Group 45RFE – Automatic Transmission Multi-Speed: transmission assembly, case and extension, adapter, oil pump, gear train sections, valve body, parking sprag, gearshift controls, seal and shim packages
- Group 3550 – Manual Transmission 5 Speed: transmission assembly, case and extension, gear train, fork and rails, gearshift controls
- Group NV1500 – Manual Transmission 5 Speed: transmission, case and extension, gear train, fork and rail, gearshift controls
- Group 231 – Transfer Case Model 231 (Command Trac): transfer case assembly, case and related parts, gear train, forks and rails, gearshift controls
- Group 242 – Transfer Case Model 242 (Select Trac): transfer case assembly, case and related parts, gear train, forks and rails, gearshift controls
- Group 22 – Wheels, Covers and Jacks: wheels and hardware, wheel caps, jack and hardware, spare wheel stowage
- Group 23D – Wiper / Lock Cylinder and Keys: lock cylinders and keys, windshield wiper and washer, rear wiper and washer
- Group 24 – Air Conditioning & Heater: HEVAC unit, heater plumbing, air conditioning plumbing, controls, compressor and compressor mounting, air distribution ducts
- Group 25 – Emission Systems: emission labels, EGR system, vapour canister, emission vacuum harness, leak detection pump
- Group DKJ – Doors and Related Parts: front door shell and hinges, glass and regulator, lock and controls, rear door shell, glass and regulator, lock and controls, exterior mirrors, weatherstrips and seals
- Group EKJ – Exterior Ornamentation: nameplates, body side moldings, tubular side steps, decals
- Group IKJ – Interior Trim: headliner and visors, interior trim panels, carpets and mats, door trim panels, front seats by trim code, rear seats by trim code, seat belts, recliner and adjuster, swing gate trim
- Group SKJ – Body Sheet Metal Except Doors: front and rear floor pans, underbody skid plates, plugs, front fender, hood, latch and hinges, cowl and dash panel, windshield, quarter window, backlite and mirror, body side aperture panels, rear quarter panels, fuel filler housing and door, roof panel, sunroof, swing gate, latch and hinges, luggage rack
Working through the 2002 Jeep Liberty Cherokee KJ Parts Catalog means working the way the parts counter does: open the group, read the exploded illustration, find the callout number, then read across the parts table for the part number, quantity and the sales-code columns that confirm the part fits the vehicle in front of you. The catalog opens with the VIN plate position chart, which decodes positions one through seventeen so the vehicle line, series, body style, engine and assembly plant can be read directly off the tag. That matters because the same Liberty was built in left hand drive and right hand drive, with two wheel drive and four wheel drive, in Limited, Sport and Renegade trim, and with a 2.4L four cylinder, a 3.7L V6 or a 2.5L turbo diesel.
Mopar Accessories and Component Parts in One Document
The first section deals exclusively with Mopar accessory kits rather than production parts, and it is unusually detailed for an accessory listing. Roof mount fork and upright bike carriers, a spare tire mount carrier, canoe and water sports carrier kits, a roof mount ski carrier, rail mount rack kits, a roof box luggage carrier, trailer tow wiring kits in both four way and seven way form, an engine cooling fan kit, a speed control package, running board kits with end caps, wheel kits, skid plates for the transfer case and fuel tank, fog light and heater kits, and both base and plus EVS alarm systems are all broken out with their individual hardware kits, straps and fasteners itemised line by line.
Front and Rear Running Gear
Group 2 and Group 3 cover the front suspension and drive and the rear axle in full exploded form, including the Dana M35/194MM RBI and the Corporate 8.25 rear axle variants. Front axle housing, drive shafts, differential internals, ring and pinion shim kits, axle shaft bearings and seals, upper and lower control arms, ball joints, coil spring isolators, jounce bumpers and sway bar links are all present. The rear axle pages identify the differential case by tag number, which is the correct way to order internal components rather than ordering by model year alone.
Engines, Transmissions and Transfer Cases
Three separate engine groups cover the 2.4L four cylinder, the 3.7L V6 and the 2.5L four cylinder turbo diesel. Each group is split into cylinder head, cylinder block, crankshaft and pistons, camshafts and valves, timing components, oiling, manifolds and crankcase ventilation. The 3.7L section includes the balance shaft bearing package, piston ring packages and connecting rod bearings. The diesel section carries cylinder liner shims in multiple thicknesses, head gaskets in three thicknesses, glow plugs, injection pump, turbocharger, EGR cooler and valve, and the oil filter adapter assembly.
Driveline coverage is equally complete: the 45RFE multi-speed automatic broken down into case, oil pump, input shaft, underdrive, overdrive, 2/4 clutch retainer, planetary sets and valve body; the 3550 and NV1500 five speed manual transmissions with synchronizers, shift forks, rails and gear trains; and both the NV231 Command Trac and NV242 Select Trac transfer cases with chain, sprockets, planetary, mode fork and sector components.
Electrical, Interior and Body
Group 8 is a large electrical section covering starters and alternators for all three engines, power distribution centre fuses and relays, junction block, JTEC module and solenoid listings, engine sensors for each engine, body and drive train sensors, switches, horns, lamps and sockets, and separate wiring harness sections for engine, headlamp to dash, instrument panel and body. Wiring repair package information is included. Group 8A adds the instrument panel, cluster, radio, antenna, speakers and consoles, including the overhead mini console and floor console by trim code.
Interior and body coverage follows trim codes so the correct colour and material variant can be identified: headliner variations by overhead console, sunroof and side air bag combination; door trim panels in cloth, vinyl and leather; front and rear seat components by trim code; seat belts with adjustable turning loop and extender listings; and the body sheet metal group covering floor pans, fender, hood, cowl and dash panel, glass, aperture panels, rear quarter panels, roof panel, sunroof, swing gate and luggage rack.
What This 2002 Jeep Liberty Cherokee KJ Parts Catalog Lets You Do
Look up the correct part number before ordering instead of describing a component over the phone and hoping. Trace an assembly from the illustration callout to the parts table to confirm every clip, bolt, seal, bushing and bracket that goes back on. Check the sales code columns to make sure the part you are about to buy is built for your engine, transmission, drive configuration and trim level. Cross-check accessory kit contents against the individual hardware kit listings when a kit arrives incomplete. Identify differential internals by case tag number and cylinder head gaskets by thickness. Confirm which of the two rear axle models, the Dana M35/194MM RBI or the Corporate 8.25, is fitted to the vehicle.
Complete PDF Bookmark Tree
Complete Bookmarks
The complete bookmarks in the “2002 Jeep Liberty Cherokee KJ Parts Catalog – Mopar Accessories & Component Parts PDF” are as follows:
+2002KJp. 1
Return to Model Year Index
Return to 2002 Vehicle Family Index
VIN PLATE DECODING INFORMATIONp. 1
+Group – 1 Component Parts for Mopar Accessoriesp. 2
+Audio & Electronicsp. 3
Fig. 1-111 –> Player Kit – CD Changerp. 4
+Carriers & Cargo Hauling
Fig. 1-212 –> Bike Carrier – Roof Mount, Fork Mountp. 5
Fig. 1-214 –> Bike Carrier – Roof Mount, Upright Mountp. 6
Fig. 1-215 –> Bike Carrier – Spare Tire Mountp. 7
Fig. 1-216 –> Carrier Kit – Canoep. 8
Fig. 1-218 –> Carrier Kit – Water Sportsp. 9
Fig. 1-223 –> Ski Carrier – Roof Mountp. 10
Fig. 1-225 –> Ski Carrier – Spare Tire Mountp. 11
Fig. 1-230 –> Rack Kit – Rail Mountp. 12
Fig. 1-235 –> Luggage Carrier – Roof Boxp. 13
Fig. 1-240 –> Wiring Kit – Trailer Towp. 14
Fig. 1-242 –> Wiring Kit – Trailer Towp. 15
Fig. 1-250 –> Fan Kit – Enginep. 16
+Driving Convenience
Fig. 1-310 –> Speed Control Packagep. 17
+Exterior Appearance
Fig. 1-430 –> Running Board Kitp. 18
Fig. 1-460 –> Wheel Kitp. 19
+Exterior Protection
Fig. 1-522 –> Skid Plate – Transfer Casep. 20
Fig. 1-524 –> Skid Plate – Fuel Tankp. 21
+Fog Lights & Electrical
Fig. 1-610 –> Light Kit – Fogp. 22
Fig. 1-620 –> Heater Kitp. 23
+Interior Storage
Fig. 1-810 –> Guard Kit – Dogp. 24
+Security
Fig. 1-910 –> Alarm – EVS Base Systemp. 25
Fig. 1-914 –> Alarm – EVS Plus Systemp. 26

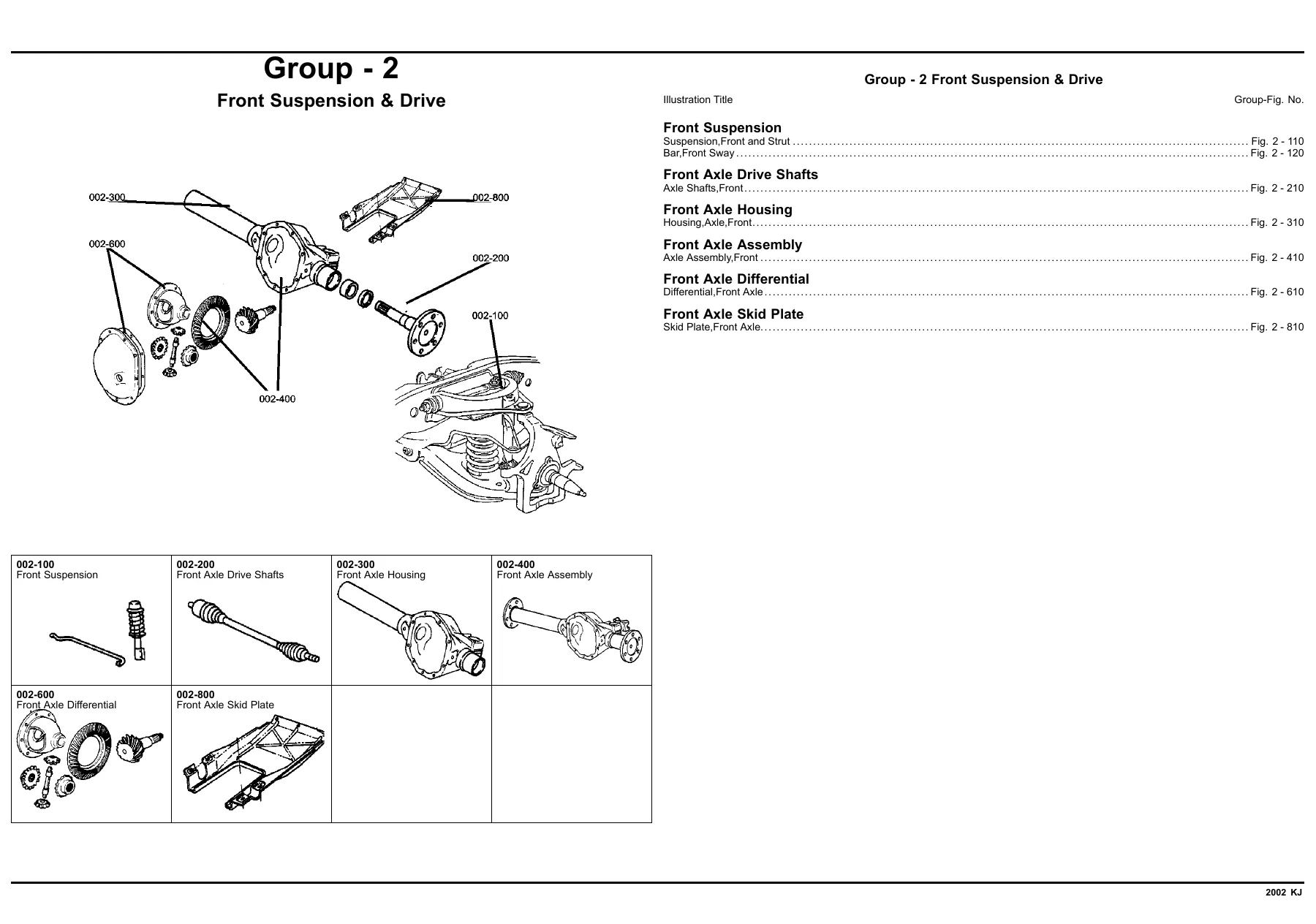

+Group – 2 Front Suspension & Drivep. 27
+Front Suspensionp. 27
Fig. 2-110 –> Suspension,Front and Strutp. 28
Fig. 2-120 –> Bar,Front Swayp. 32
+Front Axle Drive Shafts
Fig. 2-210 –> Axle Shafts,Frontp. 33
+Front Axle Housing
Fig. 2-310 –> Housing,Axle,Frontp. 34
+Front Axle Assembly
Fig. 2-410 –> Axle Assembly,Frontp. 38
+Front Axle Differential
Fig. 2-610 –> Differential,Front Axlep. 41
+Front Axle Skid Plate
Fig. 2-810 –> Skid Plate,Front Axlep. 58
+Group – 3 Rear Axlep. 59
+Rear Axlep. 59
Fig. 3-110 –> Axle Assembly,Rearp. 60
+Differential and Housing
Fig. 3-210 –> Housing,Axle,Rear,Model 35/194MM RBI [DRJ]p. 61
Fig. 3-220 –> Differential,without Trac-Lok [DSA],Dana Model 35p. 62
Fig. 3-230 –> Differential,with Trac-Lok [DSA],Dana Model 35/19p. 64
Fig. 3-240 –> Axle,Rear,with Differential and Housing,Corporatep. 66
+Rear Axle Vent
Fig. 3-310 –> Vent,Rear Axlep. 69
+Rear Axle Shafts
Fig. 3-410 –> Shaft,Rear Axle,Dana Model 35/194MM RBI [DRJ]p. 70
+Group – 4 Parking Brakep. 71
+Parking Brake Lever and Cablesp. 71
Fig. 4-110 –> Parking Brake Lever and Cablesp. 72
+Group – 5 Service Brakesp. 73
+Front Brakesp. 73
Fig. 5-110 –> Brakes,Frontp. 74
+Rear Brakes
Fig. 5-210 –> Brakes,Rear,10 Inches x 1.75 Inchesp. 75
+Power Brake Booster
Fig. 5-310 –> Booster,Power Brakep. 77
+Brake Master Cylinder
Fig. 5-410 –> Master Cylinder,Brakep. 78
+Brake Lines and Hoses
Fig. 5-510 –> Brake Lines,Front,LHDp. 79
Fig. 5-520 –> Brake Lines,Front,RHDp. 80
Fig. 5-530 –> Brake Lines,Rearp. 81
+Brake Pedals
Fig. 5-610 –> Pedals,Brake and Clutchp. 82
+Group – 6 Clutchp. 83
+Clutchp. 83
Fig. 6-110 –> Clutchp. 84
+Clutch Housing
Fig. 6-210 –> Clutch Housingp. 85
+Clutch Controls
Fig. 6-320 –> Clutch Controlp. 86
+Clutch Pedalsp. 86
Fig. 6-420 –> Pedal Clutchp. 87
+Group – 7 Coolingp. 88
+Radiator and Related Partsp. 88

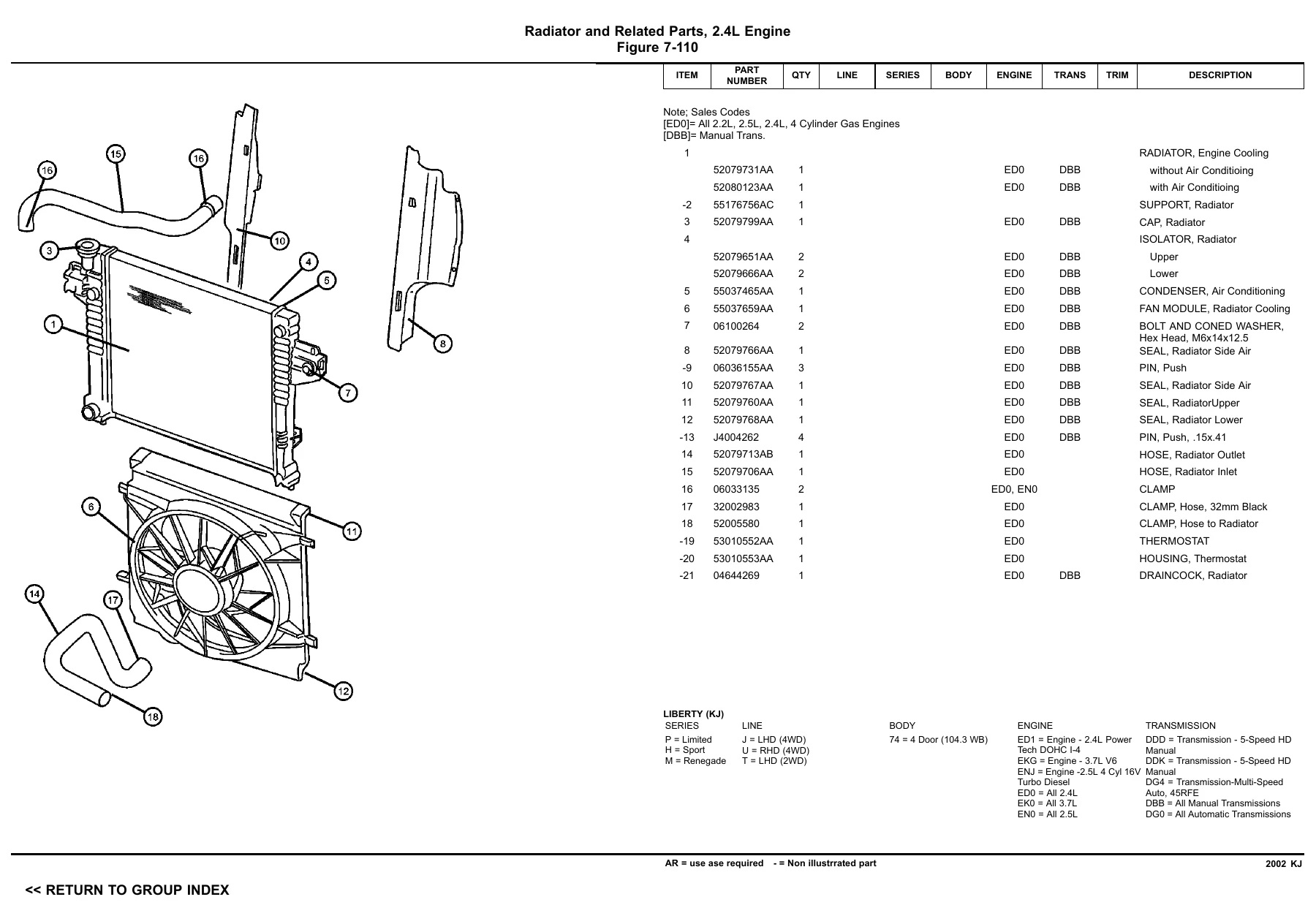

Fig. 7-110 –> Radiator and Related Parts, 2.4L Enginep. 89
Fig. 7-120 –> Radiator and Related Parts, 3.7L Enginep. 90
Fig. 7-130 –> Radiator and Related Parts, 2.5L Diesel Enginep. 92
+Water Pump and Related Parts
Fig. 7-210 –> Water Pump and Related Parts, 2.4L Enginep. 93
Fig. 7-220 –> Water Pump and Related Parts, 3.7L Enginep. 94
Fig. 7-230 –> Water Pump and Related Parts, 2.5L Diesel Enginep. 95
+Tank, Coolant Engine
Fig. 7-305 –> Coolant Tank, 2.4L Enginep. 96
Fig. 7-310 –> Coolant Tank, 3.7L Enginep. 97
Fig. 7-320 –> Coolant Degasser Tank, 2.5L Diesel Enginep. 98
+Pulleys and Related Parts
Fig. 7-410 –> Drive Pulleys, 2.4L Enginep. 99
Fig. 7-420 –> Drive Pulleys, 3.7L Enginep. 100
Fig. 7-430 –> Drive Pulleys, 2.5L Diesel Enginep. 101
+Drive Belts
Fig. 7-510 –> Drive Belts, 2.4L Enginep. 102
Fig. 7-520 –> Drive Belts, 3.7L Enginep. 103
Fig. 7-530 –> Drive Belts, 2.5L Diesel Enginep. 104
+Lines, Transmission Oil Cooler
Fig. 7-610 –> Oil Cooler Linesp. 105
+Grilles
Fig. 7-710 –> Grille and Related Partsp. 106
+Group – 8 Electricalp. 107
+Startersp. 108
Fig. 8-105 –> Starter and Mounting (2.4L Engine)p. 109
Fig. 8-110 –> Starter and Mounting (2.5L Diesel Engine)p. 110
Fig. 8-115 –> Starter and Mounting (3.7L Engine)p. 111
+Alternators
Fig. 8-205 –> Alternator (2.4L Engine)p. 112
Fig. 8-210 –> Alternator (2.5L Diesel Engine)p. 113
Fig. 8-215 –> Alternator (3.7L Engine)p. 114
+Modules
Fig. 8-410 –> Modulesp. 115
+Relays
Fig. 8-505 –> Power Distribution Centerp. 117
Fig. 8-510 –> Junction Block, Relays, Circuit Breakerp. 119
+Sensorsp. 120
Fig. 8-605 –> Sensor, Engine (2.4L Engine)p. 121
Fig. 8-610 –> Sensors, Engine (2.5L Diesel)p. 122
Fig. 8-615 –> Sensors, Engine (3.7L Engine)p. 123
Fig. 8-620 –> Sensor (Drive Train)p. 124
Fig. 8-630 –> Sensor (Body)p. 125
+Single Board Engine Controllers
Fig. 8-710 –> JTEC Modules & Solenoidsp. 126
+Switches
Fig. 8-810 –> Switches (Instrument Panel and Console)p. 127
Fig. 8-820 –> Switches (Drive Train)p. 129
Fig. 8-830 –> Switches (Body)p. 130
+Horns
Fig. 8-910 –> Hornsp. 131
+Battery Tray and Cables
Fig. 8-1010 –> Battery Tray & Cablesp. 132
+Lamps – Front, Rear and Courtesy
Fig. 8-1110 –> Lamp, Frontp. 133
Fig. 8-1115 –> Lamps Roof (Renegade)p. 136
Fig. 8-1120 –> Lamp, Rearp. 137
Fig. 8-1130 –> Lamp, Courtesyp. 139
Fig. 8-1140 –> Bulbs & Socketsp. 140
+Wiring-Engine & Related Parts
Fig. 8-1210 –> Wiring, Engine & Related Partsp. 141
+Wiring-Headlamp to Dash
Fig. 8-1310 –> Wiring, Headlamp / Dashp. 143
+Wiring-Instrument Panelp. 144
Fig. 8-1410 –> Wiring Instrument Panelp. 145
+Wiring-Body & Accessories
Fig. 8-1510 –> Wiring, Body & Accessoriesp. 147
+Wiring Repair
Fig. 8-1610 –> Wiring, Repair Packagep. 151
+Spark Plugs-Cables-Coils
Fig. 8-1910 –> Spark Plug – Coilp. 152
+Group – 08A Instrument Panel and Radios and Consolesp. 153
+Instrument Panelp. 153
Fig. 08A-110 –> Instrument Panelp. 154
+Instrument Panel Cluster
Fig. 08A-210 –> Instrument Panel Clusterp. 162
+Radio, Antenna, and Speakers
Fig. 08A-310 –> Radiosp. 164
Fig. 08A-320 –> Speakersp. 165
Fig. 08A-330 –> Antennap. 166
+Consoles
Fig. 08A-410 –> Console, Overheadp. 167
Fig. 08A-420 –> Console, Floorp. 168
+Group – 9 Engine Mountingp. 170
+Engine Mountingp. 170
Fig. 9-110 –> Engine Mounting, Front With 2.5 Turbo Diesel [ENJp. 171
Fig. 9-115 –> Engine Mounting, Rear With 2.5L Turbo Diesel [ENJp. 172
Fig. 9-120 –> Engine Mounting, Front, 2.4L [ED1]p. 173
Fig. 9-125 –> Mounting Engine, Rear, 2.4L [ED1]p. 174
Fig. 9-130 –> Mounting Engine, Front, 3.7L [EKG]p. 175
Fig. 9-135 –> Mounting Engine, Rear, 3.7L [EKG]p. 176
+Group – 2.4L Engine 2.4L Four Cylinderp. 177
+Cylinder Headp. 177
Fig. 2.4L-210 –> Cylinder Head, 2.4L [ED1]p. 178
+Cylinder Block
Fig. 2.4L-310 –> Cylinder Block, 2.4L [ED1]p. 179
+Crankshaft, Piston, and Drive Plate
Fig. 2.4L-410 –> Crankshaft, Pistons and Flywheel, 2.4L [ED1]p. 180
+Camshafts and Valves
Fig. 2.4L-510 –> Camshaft and Valves 2.4L [ED1]p. 181
+Timing Belt and Cover
Fig. 2.4L-610 –> Timing Belt and Cover, 2.4L [ED1]p. 182
Fig. 2.4L-620 –> Balance Shafts, 2.4L [ED1]p. 183
+Engine Oiling
Fig. 2.4L-710 –> Engine Oiling, 2.4L [ED1]p. 184
+Manifolds
Fig. 2.4L-810 –> Intake and Exhaust Manifolds, 2.4L [ED1]p. 185
+Crankcase Ventilation
Fig. 2.4L-910 –> Crankcase Ventilation, 2.4L [ED1]p. 186
+Group – 3.7L Engine 3.7L Six Cylinderp. 187
+Cylinder Headp. 187
Fig. 3.7L-210 –> Cylinder Head, 3.7L [EKG]p. 188
+Cylinder Block
Fig. 3.7L-310 –> Cylinder Block, 3.7L [EKG]p. 189
+Crankshaft, Piston and Torque Converter

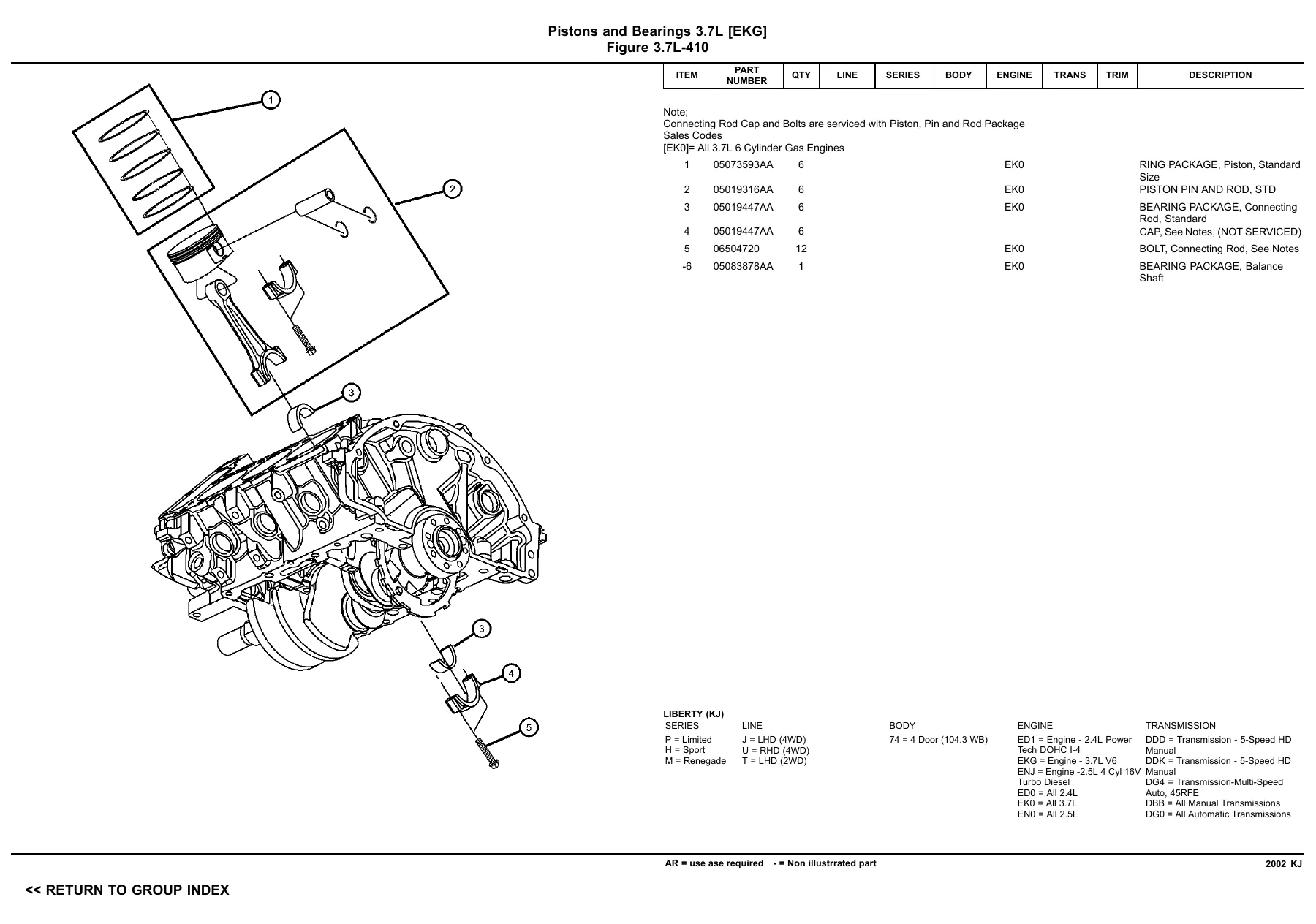

Fig. 3.7L-410 –> Pistons and Bearings 3.7L [EKG]p. 190
Fig. 3.7L-420 –> Crankshaft, Torque Converter And Flywheel, 3.7p. 191
+Camshafts & Valves
Fig. 3.7L-510 –> Camshaft And Valve, 3.7L [EKG]p. 193
+Timing Belt and Cover
Fig. 3.7L-610 –> Timing Cover and Related Parts, 3.7L [EKG]p. 194
Fig. 3.7L-620 –> Timing Chain and Guides, 3.7L [EKG]p. 195
+Engine Oiling
Fig. 3.7L-710 –> Engine Oiling, 3.7L [EKG]p. 196
+Manifolds
Fig. 3.7L-810 –> Manifolds, Intake and Exhaust, 3.7L [EKG]p. 197
+Crankcase Ventilation
Fig. 3.7L-910 –> Crankcase Ventilation, 3.7L [EKG]p. 198
+Group – 2.5LD Engine 2.5L Four Cylinder (Turbo Diesel)p. 199
+Cylinder Headp. 199
Fig. 2.5LD-210 –> Cylinder Head 2.5 Diesel [ENJ]p. 200
+Cylinder Block
Fig. 2.5LD-310 –> Cylinder Block 2.5 Diesel [ENJ]p. 202
+Crankshaft, Piston and Drive Plate
Fig. 2.5LD-410 –> Crankshaft,Pistons and Related, 2.5L Diesel [p. 203
+Camshafts & Valves
Fig. 2.5LD-510 –> Camshaft and Valves 2.5 Diesel [ENJ]p. 205
+Timing Belt and Cover
Fig. 2.5LD-610 –> Timing Cover And Related 2.5 Diesel [ENJ]p. 206
+Engine Oiling
Fig. 2.5LD-710 –> Engine Oiling 2.5 Diesel [ENJ]p. 207
Fig. 2.5LD-720 –> Oil Lines 2.5 Diesel [ENJ]p. 208
Fig. 2.5LD-730 –> Oil Filter Adapter, 2.5L Diesel [ENJ]p. 209
+Manifolds
Fig. 2.5LD-810 –> Manifolds, 2.5L Diesel [ENJ]p. 210
+Crankcase Ventilation
Fig. 2.5LD-910 –> Crankcase Ventilation 2.5 Diesel [ENJ]p. 211
+Group – 11 Exhaustp. 212
+Exhaust Systemp. 212
Fig. 11-110 –> Exhaust System, 2.5L Turbo Diesel [ENJ]p. 213
Fig. 11-120 –> Exhaust System 2.4L [ED1]p. 214
Fig. 11-130 –> Exhaust System 3.7L [EKG]p. 215
+Heat Shields
Fig. 11-210 –> Heat Shieldsp. 216
+Group – 13 Frames and Bumpersp. 217
+Framesp. 217
Fig. 13-110 –> Frame Cradlep. 218
+Front Bumper and Fascia
Fig. 13-210 –> Bumper, Frontp. 219
+Rear Bumper and Fascia
Fig. 13-310 –> Bumper, Rearp. 220
+Trailer Tow
Fig. 13-610 –> Tow Hooks – Frontp. 221
Fig. 13-620 –> Tow Hooks – Rearp. 222
+Group – 14 Fuelp. 223
+Tank, Fuelp. 224
Fig. 14-110 –> Tank, Fuel, All Enginesp. 225
+Fuel Tank Filler Tube
Fig. 14-210 –> Fuel Tank Filler Tube, All Enginesp. 226
+Fuel Lines
Fig. 14-310 –> Fuel Lines Front, 2.4L [ED1]p. 227
Fig. 14-315 –> Fuel Lines Rear, 2.4L [ED1]p. 228
Fig. 14-320 –> Fuel Lines Front, 3.7L [EKG]p. 229
Fig. 14-325 –> Fuel Lines Rear, 3.7L [EKG]p. 230
Fig. 14-330 –> Fuel Lines Front 2.5L Diesel [ENJ]p. 231
Fig. 14-335 –> Fuel Lines Rear, 2.5L Diesel [ENJ]p. 232
Fig. 14-340 –> Fuel Filter And Water Separator, 2.5L [ENJ]p. 233
+Fuel Rail
Fig. 14-410 –> Fuel Rail, 2.4L [ED1]p. 234
Fig. 14-415 –> Fuel Rail, 3.7L [EKG]p. 235
Fig. 14-420 –> Fuel Injection System 2.5 Diesel [ENJ]p. 236
Fig. 14-430 –> Fuel Injection Pump 2.5 Diesel [ENJ]p. 237
+Fuel Pump and Sending Unit
Fig. 14-510 –> Fuel Pump and Sending Unit, 2.4L [ED1], 3.7L [EKp. 238
+Throttle Body
Fig. 14-610 –> Throttle Body, 2.4L [ED1], 3.7, [EKG]p. 239
Fig. 14-620 –> Turbocharger 2.5 Diesel [ENJ]p. 240
+Throttle Controls
Fig. 14-710 –> Throttle Controls, 2.4L [ED1]p. 241
Fig. 14-720 –> Throttle Controls, 3.7L [EKG]p. 242
Fig. 14-730 –> Throttle Controls, 2.5L Diesel [ENJ]p. 243
+Air Cleanerp. 243
Fig. 14-810 –> Air Cleaner, 2.4L [ED1]p. 244
Fig. 14-820 –> Air Cleaner, 3.7L [EKG]p. 245
Fig. 14-830 –> Air Cleaner, 2.5L Diesel [ENJ]p. 246
+Speed Control
Fig. 14-1010 –> Speed Controlp. 247
+Accelerator Pedalp. 247
Fig. 14-1110 –> Accelerator Pedalp. 248
+Group – 16 Propeller Shafts and U-Jointsp. 249
+Propeller Shaftp. 249
Fig. 16-110 –> Propeller Shaft,2 Wheel Drivep. 250
Fig. 16-120 –> Propeller Shaft,4 Wheel Drivep. 251
+Group – 17 Rear Suspensionp. 253
+Rear Suspensionp. 253
Fig. 17-110 –> Suspension,Rear and Shockp. 254
+Rear Stabilizer
Fig. 17-210 –> Stabilizer Bar,Rearp. 256
+Group – 19 Steeringp. 257
+Steering Wheelp. 257
Fig. 19-110 –> Steering Wheelp. 258
+Steering Column
Fig. 19-210 –> Column,Steeringp. 260
+Steering Gear
Fig. 19-310 –> Gear Assembly,Steering,Rack and Pinionp. 262
+Power Steering Pumpp. 263
Fig. 19-510 –> Pump,Power Steering,2.4L [ED0] Gas Enginep. 264
Fig. 19-520 –> Pump,Power Steering,2.5L [EN0] Diesel Enginep. 265
Fig. 19-530 –> Pump,Power Steering,3.7L [EK0] Gas Enginep. 266
+Power Steering Hoses
Fig. 19-710 –> Hoses and Reservoir,LHD,2.4L [ED0] Gas,2.5L [EN0p. 267
Fig. 19-720 –> Hoses and Reservior,RHD,2.4L [ED0] Gas,2.5L [EN0p. 269
Fig. 19-730 –> Hoses and Reservior,LHD,3.7L [EK0] Gas Enginep. 271
Fig. 19-740 –> Hoses and Reservior,RHD,3.7L [EK0] Gas Enginep. 272
+Group – 45RFE Automatic Transmission Multi-Speedp. 273
+Transmission Assemblyp. 273
Fig. 45RFE-110 –> Transmission [45RFE ] [DG4]p. 274
+Case and Extension
Fig. 45RFE-210 –> Case and Related Parts 45RFE [DG4]p. 275
Fig. 45RFE-220 –> Adapter & Extension [45RFE] [DG4]p. 277
+Oil Pump
Fig. 45RFE-310 –> Oil Pump [45RFE] [DG4]p. 278
+Gear Trainp. 279
Fig. 45RFE-410 –> Input Shaft [45RFE] [DG4]p. 280
Fig. 45RFE-420 –> Underdrive [45RFE] [DG4]p. 283
Fig. 45RFE-430 –> Overdrive [45RFE] [DG4]p. 284
Fig. 45RFE-440 –> 2/4 Clutch Retainer [45RFE] [DG4]p. 285
Fig. 45RFE-450 –> Input/Reverse Planetary [45RFE] [DG4]p. 287
Fig. 45RFE-460 –> Reaction Annulus/Sun Gear [45RFE] [DG4]p. 288
Fig. 45RFE-470 –> Low / Reverse Clutch [45RFE] [DG4]p. 289
+Valve Bodyp. 289
Fig. 45RFE-710 –> Valve Body [45RFE] [DG4]p. 290
Fig. 45RFE-730 –> Parking Sprag [45RFE] [DG4]p. 292
+Gearshift Controlsp. 293
Fig. 45RFE-1210 –> Gearshift Controls [45RFE] [DG4]p. 294
+Seal and Shim Packages
Fig. 45RFE-1302 –> LR Clutch [45RFE] [DG4]p. 295
Fig. 45RFE-1303 –> Input Clutch Plate [45RFE] [DG4]p. 296
Fig. 45RFE-1304 –> OVERHAUL [45RFE] [DG4]p. 297
Fig. 45RFE-1305 –> Input Clutch [45RFE] [DG4]p. 298
Fig. 45RFE-1306 –> Planetary Plate [45RFE] [DG4]p. 299
Fig. 45RFE-1310 –> 2&4 Clutch [45RFE] [DG4]p. 300
+Group – 3550 Manual Transmission 5 Speedp. 301
+Transmission Assemblyp. 301
Fig. 3550-110 –> Transmission Assembly [DDD]p. 302
+Case and Extensionp. 302
Fig. 3550-210 –> Case and Extension [DDD]p. 303
+Gear Trainp. 305
Fig. 3550-410 –> Gear Train [DDD]p. 306
+Fork and Railsp. 310
Fig. 3550-910 –> Fork and Rails [DDD]p. 311
+Gearshift Controlsp. 312
Fig. 3550-1210 –> Gearshift Controls [DDD]p. 313
+Group – NV1500 Manual Transmission 5 Speedp. 314
+Transmission Assemblyp. 315
Fig. NV1500-110 –> Transmission [NV 1500] [DDK]p. 316
+Case and Extensionp. 316
Fig. NV1500-210 –> Case and Extension [NV 1500] [DDK]p. 317
+Gear Trainp. 319
Fig. NV1500-410 –> Gear Train [NV 1500] [DDK]p. 320
+Fork and Railsp. 325
Fig. NV1500-910 –> Fork and Rail [NV 1500] [DDK]p. 326
+Gearshift Controlsp. 327
Fig. NV1500-1210 –> Gearshift Controlsp. 328
+Group – 231 Transfer Case Model 231 [DHJ, DHK, DHN]p. 329
+Transfer Case Assemblyp. 329
Fig. 231-110 –> Transfer Case Command Trac [DHN]p. 330
+Case and Related Partsp. 330
Fig. 231-210 –> Case and Related Parts Command Trac [DHN]p. 331
+Gear Train
Fig. 231-410 –> Gear Train Command Trac [DHN]p. 335
+Fork and Railsp. 339
Fig. 231-910 –> Forks and Rails Command Trac [DHN]p. 340
+Gearshift Controlsp. 341
Fig. 231-1210 –> Gearshift Controlsp. 342
+Group – 242 Transfer Case Model 242 [DHC, DHP]p. 343
+Transfer Case Assemblyp. 343
Fig. 242-110 –> Transfer Case Select Trac [DHP]p. 344
+Case and Related Parts
Fig. 242-210 –> Case and Related Parts Select Trac [DHP]p. 345
+Gear Train
Fig. 242-410 –> Gear Train Select Trac [DHP]p. 347
+Fork and Rails
Fig. 242-910 –> Forks and Rails Select Trac [DHP]p. 349
+Gearshift Controls
Fig. 242-1210 –> Gearshift Controlsp. 350
+Group – 22 Wheels, Covers and Jacksp. 351
+Wheels and Hardwarep. 351
Fig. 22-110 –> Wheels and Hardwarep. 352
+Wheel Covers and Center Caps
Fig. 22-210 –> Wheel Capsp. 353
+Jack Stowage
Fig. 22-310 –> Jack and Hardwarep. 354
+Spare Tire Stowage
Fig. 22-410 –> Spare Wheelp. 355
Fig. 22-420 –> Spare Wheel, Exportp. 356
+Group – 23D Wiper/Lock Cylinder and Keysp. 357
+Lock Cylinders and Keysp. 357
Fig. 23D-110 –> Lock Cylinder & Keysp. 358
+Windshield Wiper and Washer Systems
Fig. 23D-210 –> Windshield Wiper & Washerp. 360
+Rear Wiper and Washer System
Fig. 23D-310 –> Rear Wiper & Washerp. 362
+Group – 24 Air Conditioning & Heaterp. 363
+Air Conditioner and Heater Unitsp. 363
Fig. 24-110 –> HEVAC Unitp. 364
+Air Conditioner and Heater Plumbing
Fig. 24-210 –> Plumbing, Heater 2.4L Engine, LHDp. 367
Fig. 24-220 –> Plumbing, Heater 2.4L Engine, RHDp. 368
Fig. 24-230 –> Plumbing, Heater 3.7L Engine, LHDp. 369
Fig. 24-240 –> Plumbing, Heater 3.7L Engine, RHDp. 370
Fig. 24-250 –> Plumbing, Heater 2.5L Diesel Engine, LHDp. 371
Fig. 24-260 –> Plumbing, Heater 2.5L Diesel Engine, RHDp. 372
Fig. 24-270 –> Plumbing, Air Conditioning 2.4L Engine, LHDp. 373
Fig. 24-280 –> Plumbing, Air Conditioning 2.4L Engine, RHDp. 374
Fig. 24-285 –> Plumbing, Air Conditioning 3.7L Engine, LHDp. 375
Fig. 24-288 –> Plumbing, Air Conditioning 3.7L Engine, RHDp. 376
Fig. 24-290 –> Plumbing, Air Conditioning 2.5L Diesel Engine, Lp. 377
Fig. 24-295 –> Plumbing, Air Conditioning 2.5L Diesel Engine, Rp. 378
+Air Conditioner and Heater Controls
Fig. 24-310 –> Control, Heater and Air Conditioningp. 379
+Air Conditioning Compressorp. 379
Fig. 24-410 –> Compressor, 2.4L – 3.7L Enginep. 380
Fig. 24-430 –> Compressor, 2.5L Diesel Enginep. 381
+Air Conditioning Compressor Mounting
Fig. 24-510 –> Compressor Mounting, 2.4L – 3.7L Enginep. 382
Fig. 24-530 –> Compressor Mounting, 2.5L Diesel Enginep. 383
+Air Ducts and Outlets
Fig. 24-610 –> Air Distribution Ductsp. 384
+Group – 25 Emission Systemsp. 385
+Emission Labelsp. 385
Fig. 25-110 –> Emission Labelsp. 386
+EGR System
Fig. 25-210 –> EGR System 2.5 Diesel [ENJ]p. 387
+Vacuum Canister
Fig. 25-310 –> Vapor Canister 2.4L [ED1], 3.7L [EKG]p. 388
+Emission Harness
Fig. 25-410 –> Emission Vacuum Harness 2.5 Diesel [ENJ]p. 389
Fig. 25-420 –> Emission Vacuum Harness 2.4L [ED1], 3.7L [EKG]p. 390
Fig. 25-430 –> Leak Detection Pump 2.4L [ED1] 3.7L [EK0]p. 391
+Group – DKJ Doors and Related Partsp. 392
+Front Doorp. 392
Fig. DKJ-110 –> Door, Front, Shell and Hingesp. 393
Fig. DKJ-120 –> Door, Front, Glass and Regulatorp. 394
Fig. DKJ-130 –> Door, Front, Lock and Controlsp. 395
+Rear Door
Fig. DKJ-210 –> Door, Rear, Shell and Hingesp. 396
Fig. DKJ-220 –> Door, Rear, Glass and Regulatorp. 397
Fig. DKJ-230 –> Door, Rear, Lock and Controlsp. 398
+Exterior Mirror
Fig. DKJ-510 –> Mirrors, Exteriorp. 399
+Weatherstrips and Seals
Fig. DKJ-610 –> Door, Frontp. 401
Fig. DKJ-620 –> Door, Rearp. 402
+Group – EKJ Exterior Ornamentationp. 403
+Nameplatesp. 403
Fig. EKJ-110 –> Nameplatesp. 404
+Moldings and Ornamentation
Fig. EKJ-210 –> Moldings, Body Sidep. 405
Fig. EKJ-220 –> Side Steps, Tubular [MRK]p. 413
+Decals and Tapestripes
Fig. EKJ-310 –> Decalsp. 414
+Group – IKJ Interior Trimp. 415
+Headliner and Visorp. 416
Fig. IKJ-110 –> Headliner and Visorsp. 417
+Moldings, Scuff Plates
Fig. IKJ-210 –> Panels, Interior Trim, Frontp. 420
Fig. IKJ-220 –> Panels, Interior Trim, Rearp. 421
+Carpet
Fig. IKJ-310 –> Carpets and Matsp. 423
+Door Trim Panels
Fig. IKJ-410 –> Trim Panel, Front Doorp. 426
Fig. IKJ-420 –> Trim Panel, Rear Doorp. 429
+Front Seats and Attaching Parts
Fig. IKJ-510 –> Front Seat, Leather, Low Back, Trim Code [DL]p. 431
Fig. IKJ-520 –> Front Seat, Cloth, Low Back, Trim Code [XJ]p. 433
Fig. IKJ-530 –> Front Seat, Cloth, Trim Code [M5]p. 434
Fig. IKJ-540 –> Front Seat, Cloth, Low Back, Trim Code [E7]p. 435
Fig. IKJ-550 –> Front Seat, Cloth, Trim Code [L5]p. 436
+Rear Seats and Attaching Parts
Fig. IKJ-610 –> Rear Seats, Trim Code [M5]p. 437
Fig. IKJ-620 –> Rear Seat, Trim Code [DL]p. 440
Fig. IKJ-630 –> Rear Seat, Trim Code [XJ]p. 443
Fig. IKJ-640 –> Rear Seat, Trim Code [E7]p. 446
Fig. IKJ-650 –> Rear Seat, Trim Code [L5]p. 449
+Seat Belts-Front and Rear
Fig. IKJ-710 –> Seat Belts, Frontp. 452
Fig. IKJ-720 –> Seat Belts, Rearp. 454
+Adjusters, Covers, Shields, and Risers
Fig. IKJ-810 –> Recliner and Adjusterp. 456
+Lift Gate Trim
Fig. IKJ-1010 –> Swing Gate Trim Panelp. 464
+Group – SKJ Body Sheet Metal Except Doorsp. 465
+Floor Pansp. 466
Fig. SKJ-210 –> Front Floor Panp. 467
Fig. SKJ-220 –> Rear Floor Panp. 468
Fig. SKJ-230 –> Plates, Underbody Skidp. 469
+Plugs
Fig. SKJ-310 –> Plugsp. 470
+Front Fenders
Fig. SKJ-410 –> Front Fenderp. 471
+Hood & Hood Release
Fig. SKJ-510 –> Hood, Latch and Hingesp. 474
+Cowl and Dash Panel
Fig. SKJ-610 –> Cowl and Dash Panelp. 475
+Glass and Rear View Mirrorp. 475
Fig. SKJ-710 –> Windshield, Quarter Window, Backlite and Mirrorp. 476
+Aperture Panel
Fig. SKJ-810 –> Panels, Body Sidep. 478
+Quarter Panel and Pillar
Fig. SKJ-910 –> Panels, Rear Quarterp. 479
Fig. SKJ-920 –> Fuel Filler Housing and Doorp. 481
+Roof Panels
Fig. SKJ-1110 –> Roof Panelp. 482
+Sunroof
Fig. SKJ-1210 –> Sunroofp. 483
+Liftgate Panel
Fig. SKJ-1310 –> Swing Gate, Latch, and Hingesp. 484
+Luggage Rack
Fig. SKJ-1610 –> Luggage Rackp. 486
Getting the number right the first time is the whole point. A part that is visually identical between a left hand drive and a right hand drive Liberty, or between a 3.7L V6 and a 2.5L turbo diesel, may still carry a different number, and the sales code columns are what separate them. This catalog carries that information in the same table as the part itself, so the check happens before the order is placed, not after the wrong part arrives.
Delivered as an instant PDF download. No shipping, no waiting on a disc, no postage. Open it on any device — desktop, laptop, tablet or phone — and print the group or illustration you are working from so it can sit on the bench next to the vehicle. Keep it on file for the next job on the same Jeep.
Reviews
There are no reviews yet.
