2002 Mercedes-Benz CLK 320 Coupe Operator’s Manual USA Edition PDF

Description

2002 Mercedes-Benz CLK 320 Coupe Operator’s Manual USA Edition PDF

The 2002 Mercedes-Benz CLK 320 Coupe Operator’s Manual USA Edition PDF is a 330-page vehicle reference for the CLK-Class Coupé, specifically identifying the CLK 320. It explains the controls, operating systems, driving functions, warning displays, practical roadside procedures, care information, and technical data supplied for this model. The manual is especially useful for owners who want the correct operating sequence for vehicle features, need to interpret dashboard messages, or want model-specific capacities and technical reference data close at hand.

File Details

• Manual type: Operator’s Manual
• Brand: Mercedes-Benz
• Model: CLK 320, model code 208.365
• Vehicle family: CLK-Class Coupé
• Edition: USA Edition A 2002
• Order No.: 6515 1242 13
• Part No.: 208 584 27 83
• Language: English
• Pages: 330
• File format: PDF

Owner-Focused Operating Reference

This Mercedes-Benz CLK 320 operator’s manual is much broader than a quick-start booklet. It walks through the vehicle from the driver’s controls and central locking system to the automatic transmission, climate control, restraint systems, multifunction display, audio equipment, practical emergency procedures, vehicle care, and technical data. Instructions are accompanied throughout by illustrations of switches, displays, controls, vehicle components, and operating positions.

The manual also describes optional equipment where applicable, so some features shown may not be installed on every vehicle. It is an operator’s manual rather than a dedicated workshop repair manual: its strength is correct vehicle operation, owner-level checks and procedures, system use, warning interpretation, emergency guidance, and technical reference rather than internal engine or transmission overhaul procedures.

Chapters Covered

• Introduction
  • Product information; operator’s manual; where to find information; reporting safety defects

  IMAGES PREVIEW

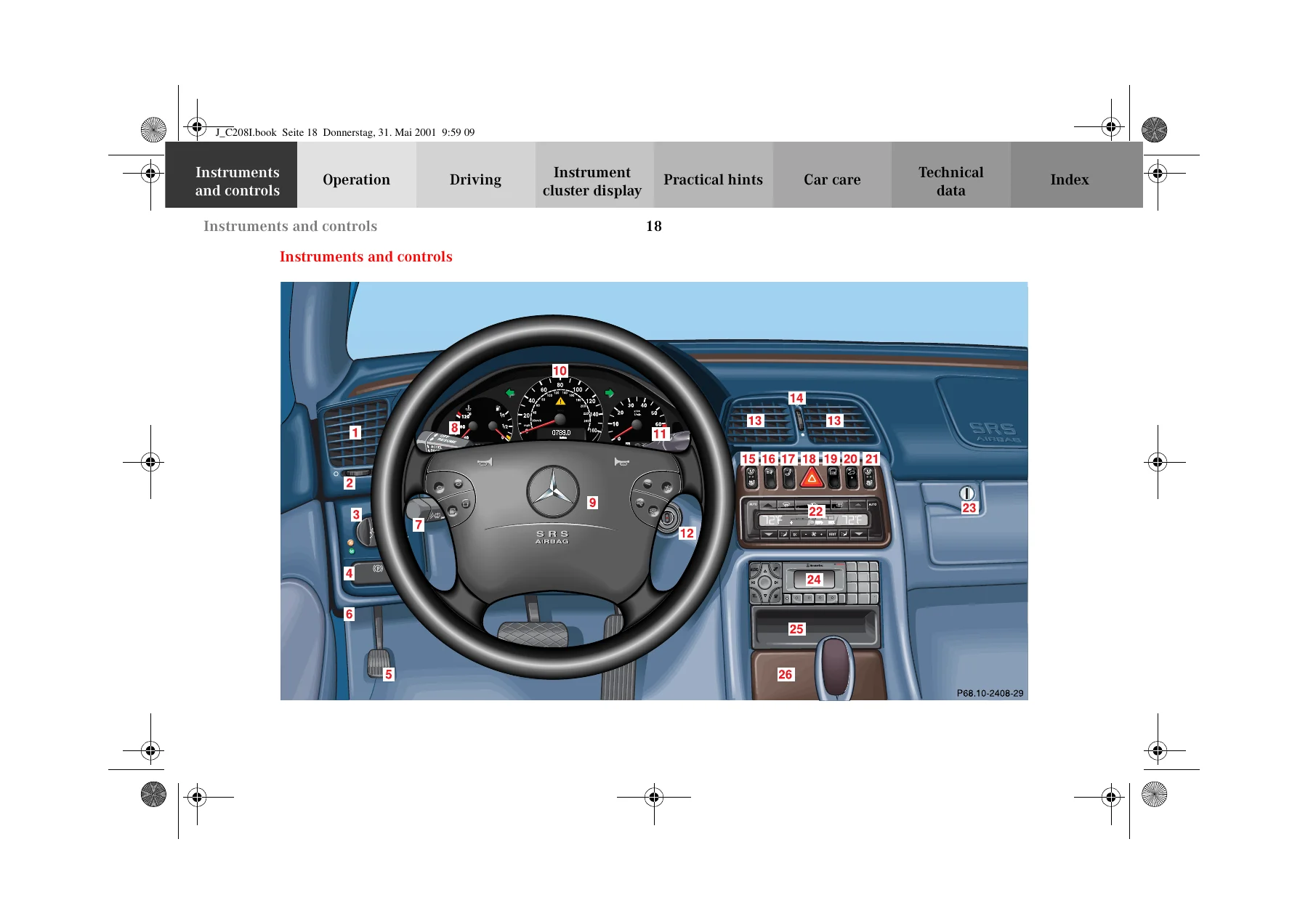

• Instruments and controls
  • Driver controls; center console; overhead control panel
• Operation
  • Vehicle keys, start lock-out, central locking, remote control, doors, trunk, antitheft and tow-away alarms
  • Power seats, head restraints, multicontour and heated seats
  • Seat belts, emergency tensioning retractors, SRS airbags, BabySmart airbag deactivation, infant and child restraints
  • Telescoping steering column, inside and exterior rear view mirrors
  • Instrument cluster, indicator lamps, multifunction steering wheel and multifunction display
  • Trip and main odometer, audio systems, telephone, navigation system, trip computer, malfunction message memory and individual settings
  • Flexible service system (FSS), engine oil level indicator and engine oil consumption
  • Exterior lamps, headlamp cleaning, combination switch and hazard warning flasher
  • Automatic climate control, rear window defroster, air recirculation, residual engine heat and dust filter
  • Power windows, sliding/pop-up roof, interior lighting and rear window sunshade
  • Storage compartments, glove box, cup holders, ashtrays, lighter and split folding rear seat backrest
  • Loading instructions, cargo tie-down rings, telephone, garage door opener and ski sack
• Driving
  • Radio transmitters, break-in period, maintenance, catalytic converter and emission control
  • Tele Aid, steering lock, starting and turning off the engine
  • Automatic transmission, parking brake and driving instructions
  • Brakes, tires, snow chains, winter driving, deep water and traveling abroad
  • Cruise control, Brake Assist System (BAS), Antilock Brake System (ABS) and Electronic Stability Program (ESP)
  • Gas station information and regular checks before a long trip
• Instrument cluster display
  • Malfunction and indicator lamps
  • Multifunction display warnings for engine, charging, brakes, coolant, lighting, steering, oil level, ESP, washer fluid and Tele Aid systems
• Practical hints
  • First aid kit, fuses, hood, engine oil, automatic transmission fluid, coolant and washer system
  • Spare wheel, vehicle tools, jack, tire replacement, wheel changing and tire inflation pressure
  • Battery, jump starting, towing and manual transmission-selector release
  • Exterior lamps, headlamp and taillamp assemblies, electronic key batteries and remote-control synchronization
  • Emergency sliding/pop-up roof operation, manual fuel-filler flap release, wiper blade insert and roof rack
• Vehicle care
  • Cleaning and care, power washing, paintwork, tar stains, engine cleaning and vehicle washing
  • Ornamental moldings, lamps, windows, wiper blade, light alloy wheels and instrument cluster
  • Steering wheel, selector lever, cup holder, seat belts, headliner, upholstery, plastic and rubber parts
• Technical data
  • Spare parts service, warranty coverage and identification labels

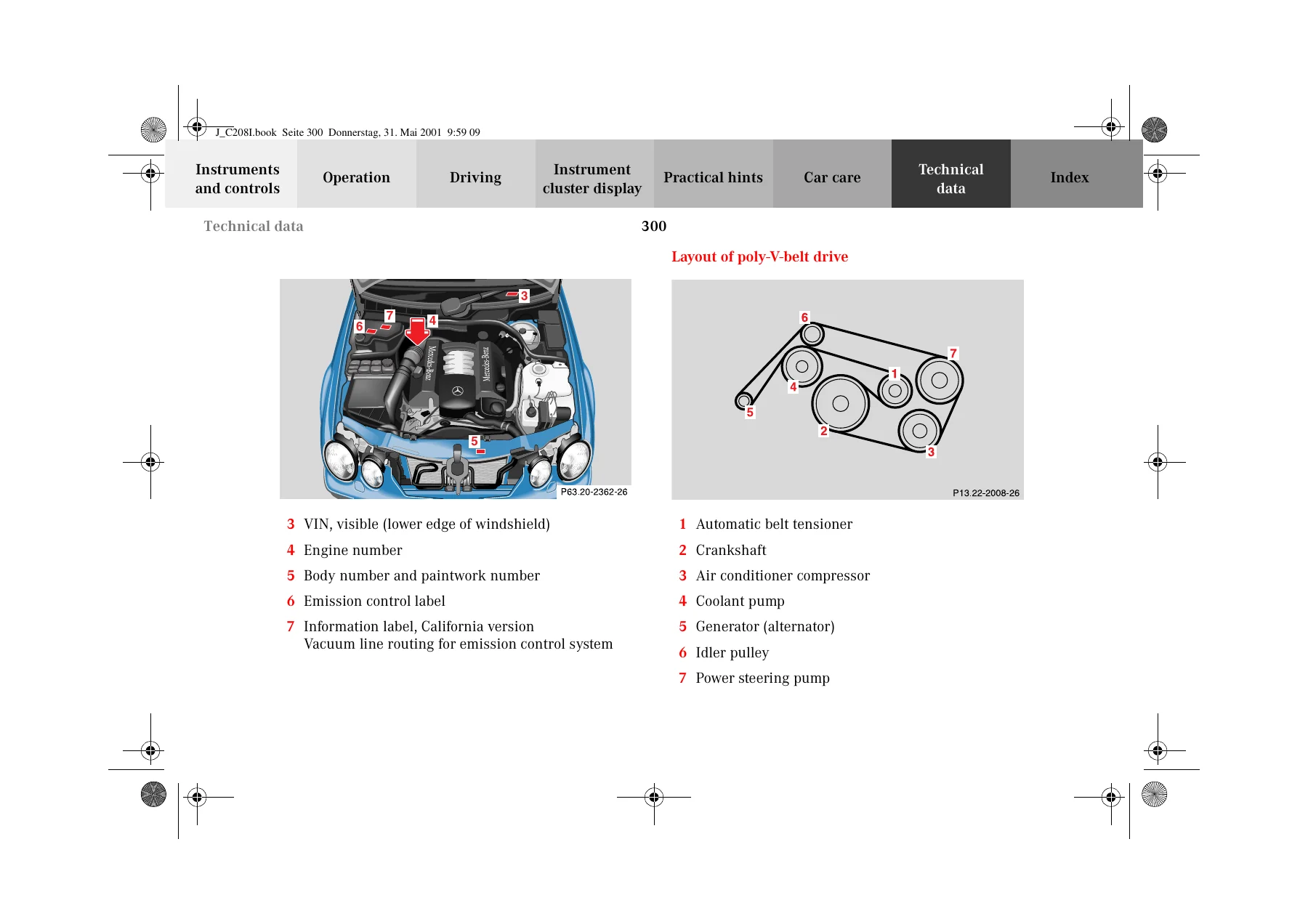

  • Layout of poly-V-belt drive and model technical data
  • Rims and tires, electrical system, weights and main dimensions
  • Fuels, coolants and lubricants with capacities
  • Engine oils, air-conditioner refrigerant, brake fluid, premium unleaded gasoline, fuel requirements and coolants
  • Consumer information
• Index
  • Alphabetical topic reference for locating operating and technical information

Together these sections give the owner a single reference for normal operation, system settings, safety features, warning messages, common roadside tasks, routine checks, and the key technical information printed for the CLK 320.

Technical Data Included for the CLK 320

The technical-data section identifies the vehicle as CLK 320 (208.365) with engine 112, a 4-stroke gasoline-injection six-cylinder engine. The manual lists a bore of 3.54 in (89.90 mm), stroke of 3.30 in (84.00 mm), total piston displacement of 195.2 cu.in. (3199 cm3), 10:1 compression ratio, output of 215 hp at 5700 rpm, and maximum torque of 232 ft.lb at 3000 rpm. It also provides the maximum engine speed, firing order, poly-V-belt length, spark-plug information, electrical-system data, wheel and tire specifications, and principal vehicle dimensions.

Capacity data is included for the engine with oil filter, automatic transmission, rear axle, power steering, brake system, windshield/headlamp washer system, cooling system, fuel tank and air-conditioning system. For example, the manual lists 8.5 US qt (8.0 l) for the engine with oil filter, 8.5 US qt (8.0 l) for the automatic transmission, approximately 9.5 US qt (9.0 l) for the cooling system, and approximately 16.4 US gal (62.0 l) for the fuel tank. Fuel guidance specifies premium unleaded gasoline with a posted octane of 91, while the air-conditioning section identifies R-134a refrigerant.

Useful Guidance for Everyday Ownership

The 2002 Mercedes-Benz CLK 320 Coupe Operator’s Manual USA Edition PDF is particularly useful when a warning or unfamiliar feature appears. The multifunction-display section explains how to review malfunction and warning messages, while the instrument-cluster section identifies lamps for systems such as ABS, BAS, ESP, SRS, brake warnings and the check-engine indicator. The Flexible Service System pages explain Service A and Service B indications and how the remaining service interval is shown. The engine-oil-level pages explain the display procedure and the possible oil-level messages.

For roadside situations, the practical-hints section covers checking and adding fluids, changing a wheel, tire pressures, battery handling, jump starting, towing, manual release procedures, lamp replacement, electronic-key battery replacement and remote synchronization. The driving section adds operating guidance for the automatic transmission, cruise control, ABS, BAS and ESP, while the vehicle-care section gives model-specific cleaning precautions for exterior and interior materials.

Get the CLK 320 Manual in PDF Format

This 2002 Mercedes-Benz CLK 320 Coupe Operator’s Manual USA Edition PDF helps you operate the vehicle’s controls and systems correctly, interpret warning information, carry out owner-level checks and roadside procedures, and consult the printed specifications and capacities for the CLK 320. Using the model-specific procedures and values in the manual helps avoid relying on generic instructions that may not match the vehicle.

Delivery is instant as a PDF after purchase, with no shipping required. You can keep the manual on any device for quick reference and print the pages you need for the garage, glove-box records, maintenance planning, or roadside use.
