2003-2005 Honda Civic Hybrid 1.3L Engine Overhaul Service Manual

Description

2003-2005 Honda Civic Hybrid 1.3L Engine Overhaul Service Manual is the dedicated engine section of the Honda service documentation for the first-generation Civic Hybrid (2003, 2004, 2005), built around the 1.3L 4-cylinder gasoline engine and its Integrated Motor Assist interface. This is the reference a technician reaches for when pulling the engine, resealing the block, rebuilding the cylinder head, replacing the cam chain, or measuring crankshaft and connecting rod clearances to factory limits. Every procedure, torque value, and service limit that the engine work depends on is here in one place.

File Details

• Manual type: Engine overhaul / service section
• Brand: Honda
• Model: Civic Hybrid
• Engine: 1.3L 4-cylinder (Hybrid) with Integrated Motor Assist
• Model years: 2003-2005
• Language: English
• File format: PDF
• Page count: 266

Chapters Covered

• IMA System Service Precautions
• Engine Removal (special tools, front subframe adapter, full step sequence)
• Engine Installation
• Cylinder Head — Special Tools and Component Location
• Engine Compression Inspection
• VTEC Rocker Arm Test
• Valve Clearance Adjustment
• Crankshaft Pulley Removal and Installation
• Cam Chain Removal and Installation
• Chain Case Oil Seal Installation
• Cylinder Head Cover Removal and Installation
• Cylinder Head Removal
• Cylinder Head Inspection for Warpage
• Rocker Arm Assembly and Camshaft Removal
• Rocker Arm and Shaft Disassembly / Reassembly
• Rocker Arm and Shaft Inspection
• Camshaft Inspection
• CMP Pulse Plate Replacement
• Valve, Spring, and Valve Seal Removal
• Valve Inspection
• Valve Stem-to-Guide Clearance Inspection
• Valve Guide Replacement
• Valve Seat Reconditioning
• Valve, Spring, and Valve Seal Installation
• Rocker Arm Assembly and Camshaft Installation
• Cylinder Head Installation
• Cylinder Block — Special Tools and Component Location
• Connecting Rod and Crankshaft End Play Inspection
• Crankshaft Main Bearing Replacement
• Connecting Rod Bearing Replacement
• Oil Pan Removal
• Crankshaft and Piston Removal

What makes this 2003-2005 Honda Civic Hybrid 1.3L engine overhaul manual genuinely useful is the depth of the machine-specific detail it holds. Engine removal is walked through bolt by bolt, including the front subframe adapter tool, the alignment marks you must cut into the subframe before dropping it, and the order in which the mount bolts come out. Cylinder head work is documented at the level a rebuilder needs: warpage measurement points and the 0.2 mm maximum resurface limit, valve guide installed height, valve seat cutter angles, and the difference between the intake and exhaust stem seal springs. Bearing work doesn’t stop at a clearance number — it walks you through the crank bore code and journal code stampings on the block and crankshaft, then hands you the color-code table to select the correct replacement bearing. Timing is covered with cam chain alignment marks for the crankshaft sprocket and camshaft sprocket, plus the note about keeping the chain away from magnetic fields. Chain case and oil pan resealing include the liquid gasket bead widths and the four-minute working window. The VTEC rocker arm test uses shop air at a specified pressure to confirm the pistons move freely. This is the document that lets a competent DIYer or independent shop treat the 1.3L hybrid engine like any other Honda mill, without guessing.

What This Manual Helps You Do

The 2003-2005 Honda Civic Hybrid 1.3L Engine Overhaul Service Manual supports the jobs that actually come up on a high-mileage hybrid: pulling the engine for a rebuild, replacing a leaking chain case or oil pan gasket, chasing a compression problem, resurfacing a warped head, replacing worn valve guides and seats, timing the cam chain after head work, and selecting the correct main and rod bearings by color code rather than by eye. It also covers the IMA-side precautions you must observe before touching anything near the high-voltage system, and it documents the diagnostic checks — compression, VTEC rocker arm operation, valve clearance — that tell you whether the engine needs to come out at all.

Correct specifications are the whole point. The aluminum head on this engine tolerates very little warpage before it must be resurfaced, and the color-coded bearing selection leaves no room for a best-guess replacement. The torque sequences and angle-tightening steps in this manual are what keep the head gasket sealed and the main bearings alive. Without them, an engine overhaul on a Civic Hybrid becomes an expensive experiment.

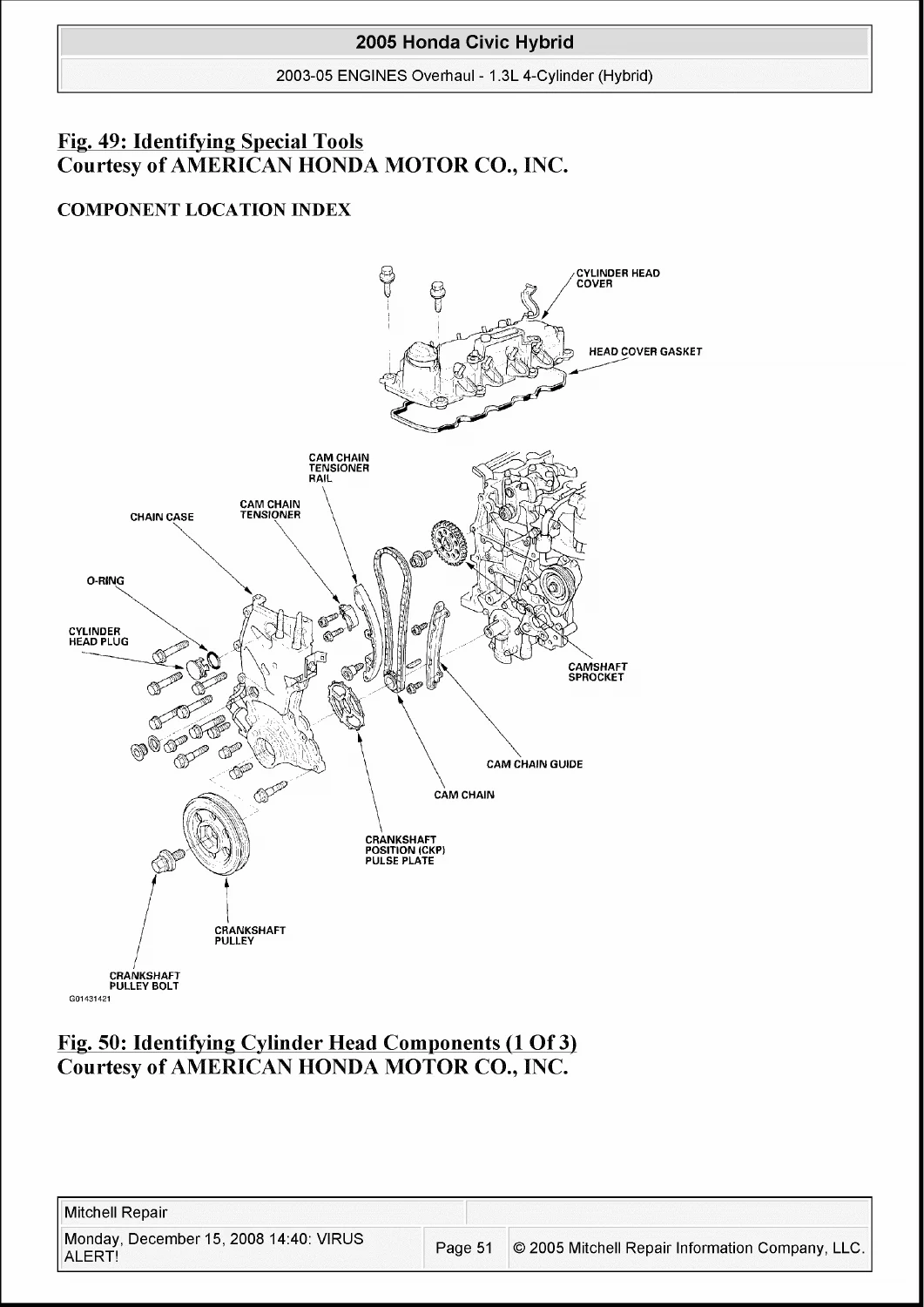

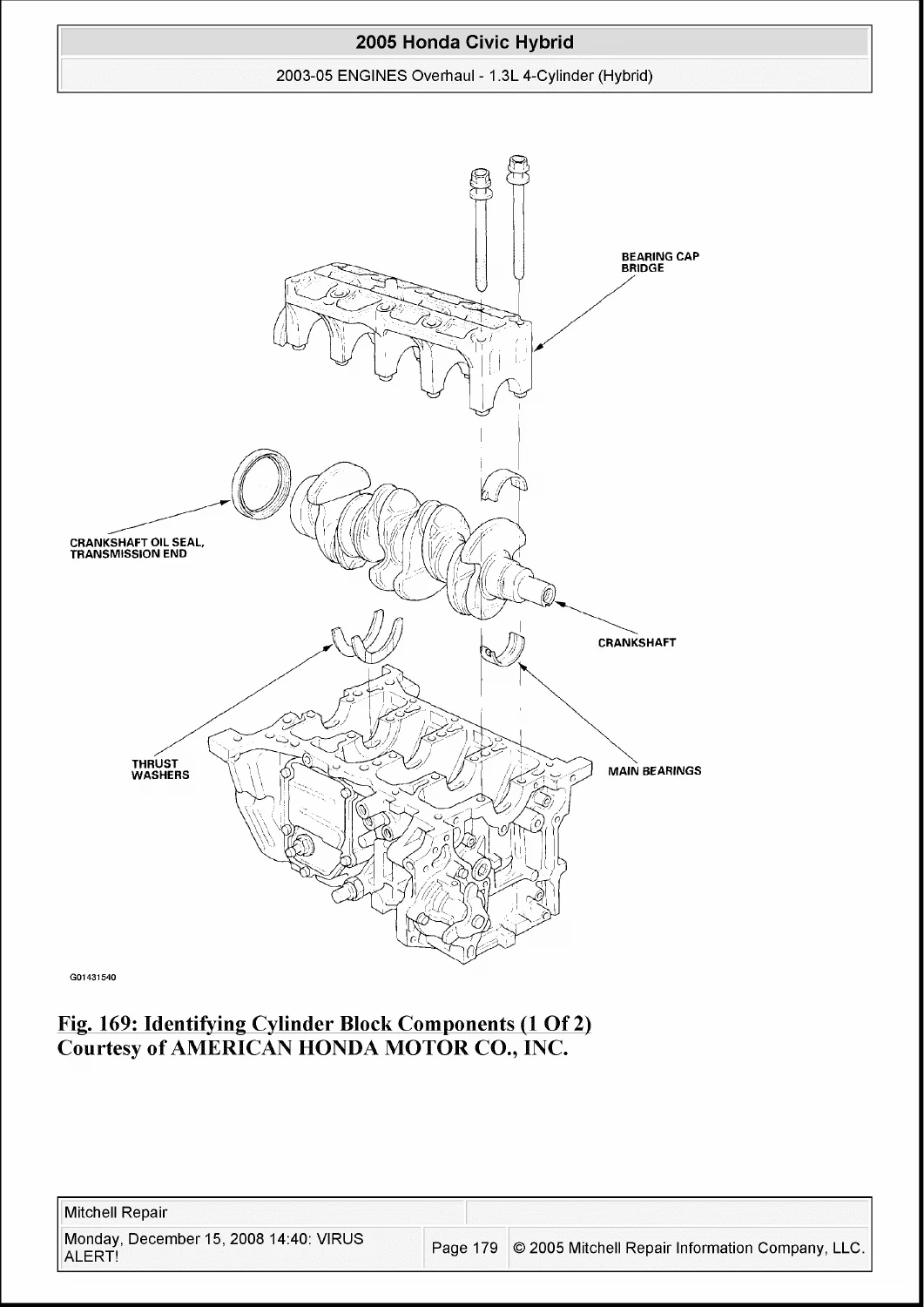

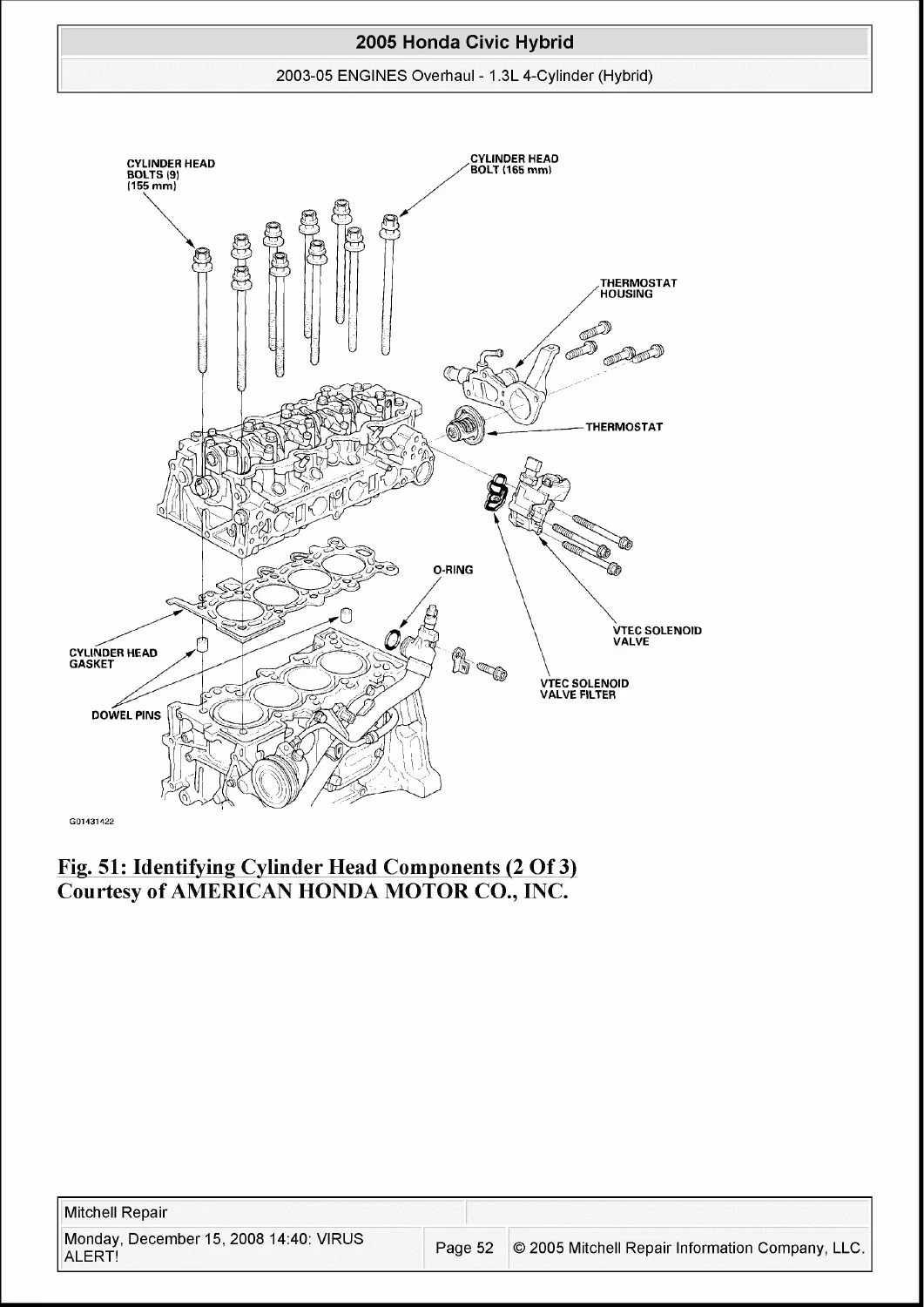

IMAGES PREVIEW

Instant PDF Delivery

This 2003-2005 Honda Civic Hybrid 1.3L engine overhaul manual is delivered as an instant PDF download after checkout — no shipping, no waiting, no physical book to lose in the shop. Open it on a laptop, tablet, or phone, print the pages you need for the bay, and keep the file for every future job on the car. Whether you are rebuilding the head on a 2003 sedan or timing the cam chain on a 2005, the pages are one download away.
