2004 Honda CBR1000RR Service Manual CBR1000RR-4 PDF Download

Description

2004 Honda CBR1000RR Service Manual

This 2004 Honda CBR1000RR Service Manual CBR1000RR-4 PDF Download provides detailed workshop information for the CBR1000RR-4, with service procedures, specifications, inspection criteria, adjustment data and illustrated component guidance. The material is written around actual workshop tasks, from routine maintenance and body-panel removal through valve-clearance work, drive-chain servicing, suspension checks and lubrication-system inspection.

For technicians and owners working on the 2004 Honda CBR1000RR-4, the manual is particularly useful because important measurements and service limits are placed alongside the relevant procedures. General information includes motorcycle dimensions, engine and drivetrain specifications, system capacities, tightening torques, lubrication points, cable and harness routing and emission-control information. Later sections combine step-by-step instructions with photographs and line drawings showing access points, fastener locations, component orientation and assembly order.

Important: This 586-page PDF contains Sections 1 through 5 in detail and ends on the opening page of Section 6, Fuel System (Programmed Fuel Injection). Later service sections shown in the manual contents are not included in this file.

File Details

• Manual type: Service Manual
• Brand: Honda
• Model: CBR1000RR-4
• Year: 2004
• Language: English
• Pages: 586
• File format: PDF

Workshop Data and Specifications

The opening section gives a substantial service-data reference before the repair procedures begin. The engine is identified as a four-cylinder inline design inclined 28 degrees forward, with a bore and stroke of 75.0 x 56.5 mm, 998.4 cm3 displacement and 11.9:1 compression ratio. The fuel-delivery system is PGM-FI (Programmed Fuel Injection) with a 44.0 mm throttle bore, while the drivetrain uses a hydraulically operated multi-plate wet clutch and constant-mesh six-speed transmission.

Service tables cover lubrication specifications, cylinder head and valve measurements, transmission and gearshift limits, crankshaft and piston data, front and rear suspension information, hydraulic brake dimensions, battery and charging data, lighting specifications and both standard and component-specific torque values. These tables give the technician direct access to standard dimensions and wear limits rather than relying on visual judgment alone.

The general-information material also contains detailed lubrication and seal-point charts plus extensive cable and harness routing illustrations. Routing diagrams identify items such as throttle cables, clutch hose, brake hose, ECM, injectors, IAT sensor, CMP and CKP sensors, regulator/rectifier connections, ignition-coil sub-harness, starter wiring and emission-system hose routing.

Chapters Covered

• General Information
• Technical Features
• Frame/Body Panels/Exhaust System
• Maintenance
• Lubrication System

General Information

This section establishes the core reference data for servicing the CBR1000RR-4. It includes service rules, model identification, general specifications, lubrication and fuel-system specifications, cylinder-head and valve data, drivetrain measurements, suspension and brake specifications, electrical information and detailed tightening torques. Lubrication and seal locations are illustrated, followed by cable, hose and wiring-harness routing diagrams. Emission-control coverage explains the crankcase system, secondary air supply, exhaust emission controls and the California evaporative emission system.

Technical Features

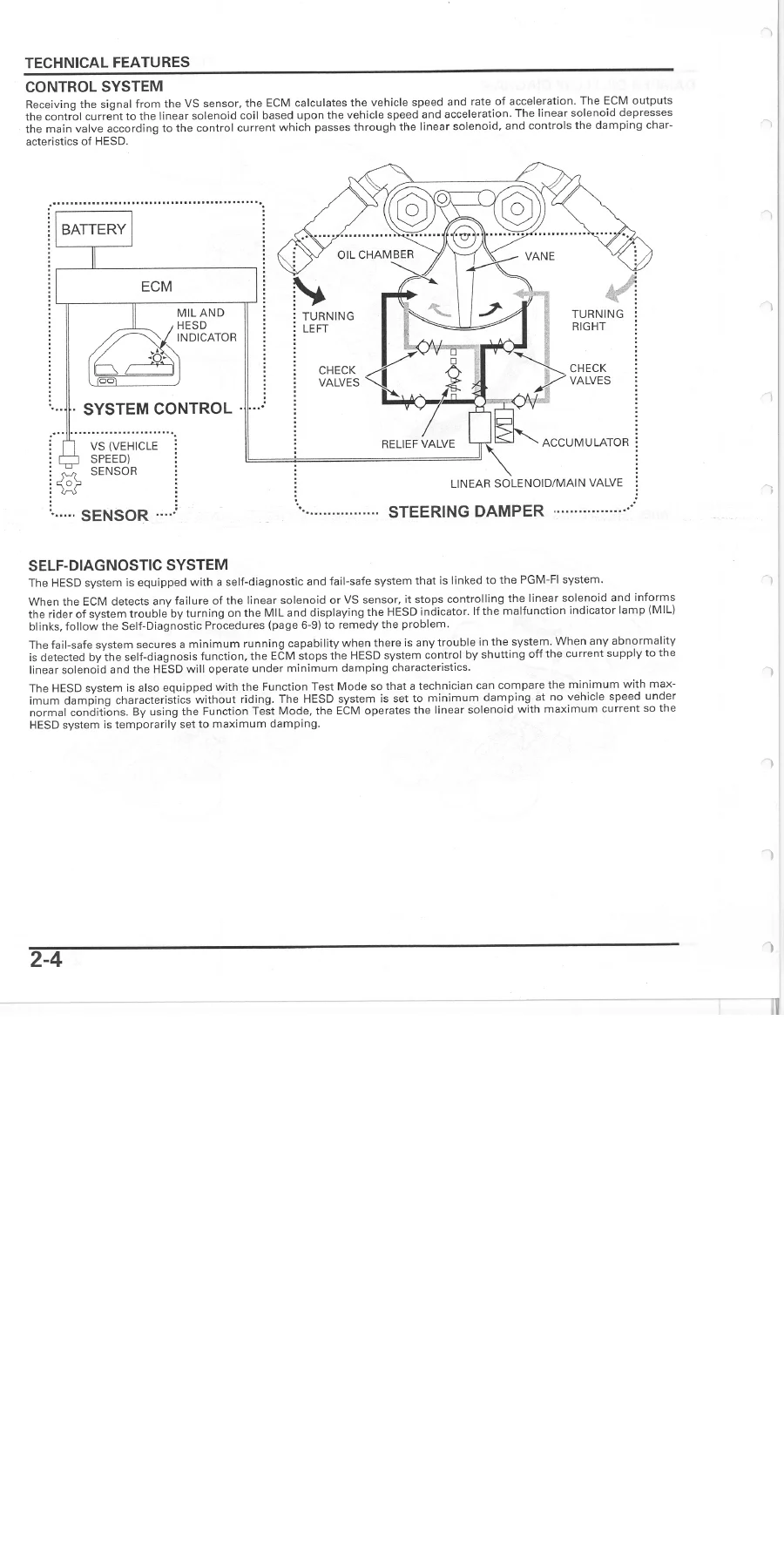

The technical-features chapter explains several model-specific systems rather than simply listing components. It covers the HESD (Honda Electronic Steering Damper), including operating principles, damping characteristics, system control and oil-flow diagrams. The radial-mounted front brake caliper design is illustrated and described. The EGCV (Exhaust Gas Control Valve) section explains the servo-operated exhaust valve and gives operating-angle information for different engine-speed and gear conditions.

Frame/Body Panels/Exhaust System

This chapter provides removal, installation and assembly information for the motorcycle’s external bodywork and exhaust-related components. It identifies body-panel locations and then works through the rider and passenger seats, rear seat cowl, under and middle cowls, upper cowl and windscreen, top shelter, front and rear fenders and seat-rail components. Fastener positions, trim clips, collars, hooks, grommets and tightening values are shown throughout.

The exhaust-system procedures go considerably deeper than simple bodywork removal. The manual shows access to the muffler, heat protectors, exhaust valve cover and cable arrangement, along with pipe-joint hardware and mounting points. Installation illustrations clarify component orientation and the sequence in which brackets, guards, gaskets and fasteners are fitted.

Maintenance

The maintenance section is one of the most practically useful parts of this 2004 Honda CBR1000RR service manual. It begins with service specifications, required tools and a maintenance schedule based on odometer intervals. Individual procedures cover the fuel line, throttle operation, air cleaner, spark plugs, valve clearance, engine oil and filter, idle speed, radiator coolant, secondary air supply, evaporative-emission components, drive chain, brakes, clutch fluid, exhaust gas control valve, suspension, fasteners and wheels/tires.

Valve-clearance inspection is illustrated using crankshaft and camshaft timing marks, cylinder positions and feeler-gauge checks. The manual specifies 0.16 +/- 0.03 mm for intake valve clearance and 0.30 +/- 0.03 mm for exhaust valve clearance, then explains shim selection and rechecking after adjustment. Engine-oil service includes oil-level checks, drain and filter procedures, sealing-washer inspection and tightening information.

Drive-chain coverage includes slack inspection, cleaning and lubrication, wear checking and replacement using the specified drive-chain tool set. Chain replacement diagrams show the master link, O-rings, plate and staking procedure, including measurement of the staked area. Brake maintenance covers fluid level, pad wear, hose inspection and brake-light-switch adjustment. Suspension pages explain front and rear inspection plus compression and rebound damping adjustment.

Lubrication System

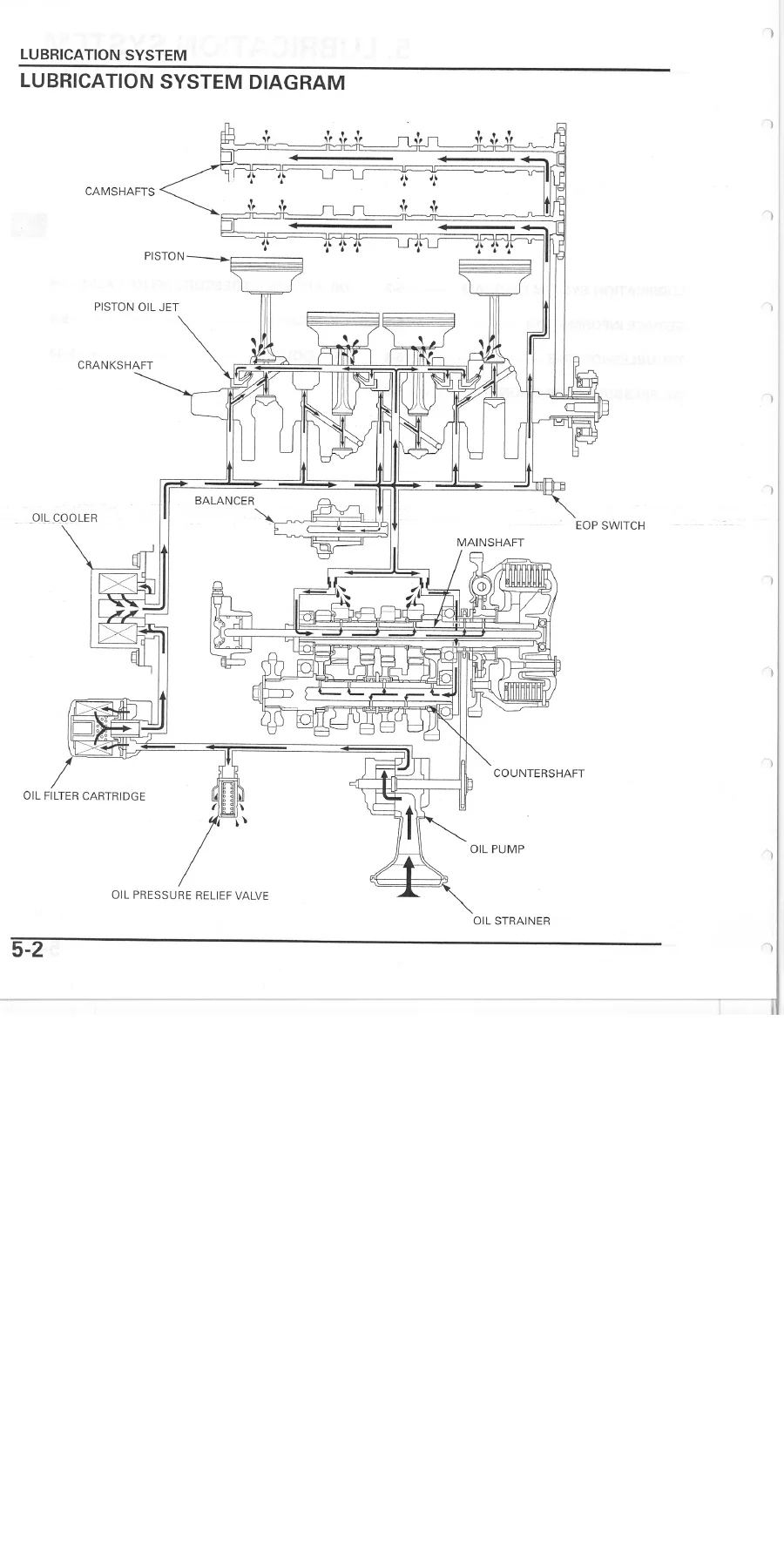

The lubrication chapter begins with a full oil-flow diagram showing how oil is distributed through the crankshaft, pistons and camshaft areas. Service information lists engine-oil quantities, recommended oil and oil-pump specifications. Troubleshooting guidance addresses conditions such as low oil level, excessive oil consumption, external leaks, worn piston rings, cylinders, valve stem seals and valve guides.

Oil-pressure inspection shows connection of the pressure gauge at the engine-oil-pressure switch location. Further procedures cover the oil strainer and pressure-relief valve, oil pan drain base, oil-pump removal, disassembly, inspection and assembly, and oil-cooler removal and installation. Pump checks include rotor tip clearance and body clearance against the stated service limits, supported by close-up photographs and exploded illustrations.

A Practical CBR1000RR-4 Workshop Reference

This 2004 Honda CBR1000RR CBR1000RR-4 service manual is useful when the job requires more than a basic maintenance checklist. It supports accurate inspection, adjustment, disassembly and reassembly by showing where components are located, how they fit together, which measurements need to be checked and what tightening values apply. Whether you are servicing the valve train, changing engine oil, replacing a drive chain, removing bodywork, checking brakes and suspension or diagnosing lubrication-system concerns, the procedures and service data help reduce guesswork.

Correct service values matter on a high-performance motorcycle. Using the specified clearances, capacities, torque figures and wear limits helps avoid incorrect assembly and makes it easier to decide whether a component can remain in service or requires attention. The illustrated routing and assembly diagrams are also valuable when several hoses, wires, clips or fasteners have been removed during a larger job.

IMAGES PREVIEW

Your manual is supplied as an instant PDF download after purchase. There is no shipping delay and no physical book to wait for. Open it on a computer, tablet or phone, keep it available in the workshop, and print the pages you need for the job at hand.
