2004 Jeep Grand Cherokee WJ WG Illustrated Parts List PDF Manual
This 2004 Jeep Grand Cherokee WJ WG Illustrated Parts List PDF Manual is the full parts catalog for the 2004 Grand Cherokee built on the WJ platform and sold in Europe under the WG designation. Across 441 pages it breaks the entire vehicle into exploded diagrams, each with numbered call-outs matched to a Mopar part-number table — so you can visually identify a component and order by number instead of guessing.
Nothing on the vehicle is left out. Front and rear axles, service and parking brakes, cooling, electrical, the entire instrument panel and console assembly, all three engine families (4.0L inline-six, 4.7L V8, and the Mercedes-Benz-sourced 2.7L diesel), exhaust, frames and bumpers, fuel and emissions, propeller shafts, rear suspension, steering, the 42RE / 45RFE / NAG1 automatic transmissions, the Model 247 transfer case, wheels and jacks, HVAC, doors, exterior trim, interior trim, body sheet metal, and every label location — each is documented in its own group with the same illustrated format.
File Details
- Manual type: Illustrated Parts List / Parts Catalog
- Brand: Jeep (Mopar part numbers)
- Model: Grand Cherokee WJ / WG (Europe)
- Model year: 2004
- Language: English
- Page count: 441 pages
- File format: PDF
- Body style: 74 — Sport Utility 4-DR
- Series codes: H (Highline), J (Jeep 4WD), P (Premium), U (Jeep 4WD RHD), S (Sport)
Chapters Covered
- Group 2 — Front Suspension & Drive: front axle assembly, front axle housing, front axle drive shafts, front axle differential, front axle skid plate
- Group 3 — Rear Axle: axle assembly, Dana 44/226MM housing and differential, rear axle vent, rear axle shafts
- Group 4 — Parking Brake: lever, cables, brake shoes, springs
- Group 5 — Service Brakes: front and rear disc caliper and rotor, power brake booster, master cylinder, brake lines and hoses (front, rear, chassis), brake pedal and bracket
- Group 7 — Cooling: radiator and related parts (4.0L, 4.7L, 2.7L diesel), upper support, water pump (4.0L, 4.7L, 2.7L diesel), coolant tank, drive pulleys, drive belts, transmission oil cooler and lines, grilles
- Group 8 — Electrical: starters, alternators (4.0L, 4.7L, 2.7L diesel), modules, relays, fuses, sensors (4.0L, 4.7L, 2.7L diesel, oxygen, drivetrain, body), JTEC modules and solenoids, switches, horns, battery tray and cables, lamps (front, rear, courtesy), bulbs and sockets, engine wiring, headlamp-to-dash wiring, instrument panel wiring, body and accessory wiring, air bag modules and sensors, air bags and clock spring
- Group 08A — Instrument Panel, Radios and Consoles: instrument panel, instrument panel cluster, radio, antenna, speakers, floor console, overhead console
- Group 9 — Engine Mounting: brackets, insulators, supports
- Group 4.0L — 4.0L Six Cylinder Engine: cylinder head, cylinder block, crankshaft/piston and torque converter, camshafts and valves, timing belt and cover, engine oiling, manifolds, crankcase ventilation
- Group 4.7L — 4.7L Eight Cylinder Engine: cylinder head, cylinder block, crankshaft/pistons and torque converter, camshafts and valves, timing belt and cover, timing chain and guides, engine oiling, manifolds, crankcase ventilation
- Group 2.7LD — 2.7L Diesel (Mercedes Benz): cylinder head, cylinder block, crankshaft/piston and drive plate, camshafts and valves, timing belt and cover, vacuum pump, engine oiling, oil pan, manifolds, crankcase ventilation
- Group 11 — Exhaust: exhaust system (2.7L diesel, 4.0L, 4.7L), heat shields
- Group 13 — Frames and Bumpers: front bumper and fascia, rear bumper and fascia, trailer tow, tow eye, rear hitch
- Group 14 — Fuel: fuel tank, filler tube, fuel lines (front and rear), fuel rail and injection system, fuel pump and sending unit, throttle body (4.0L and 4.7L), turbo charger and electric turbo modulator (2.7L diesel), throttle controls, air cleaner, air intake system, speed control, accelerator pedal
- Group 16 — Propeller Shafts and U-Joints: front and rear propeller shafts
- Group 17 — Rear Suspension: springs, shocks, upper and lower control arms, stabilizer bar
- Group 19 — Steering: steering wheel assembly, steering column, steering gear, steering linkage (LHD and RHD), power steering pump (gas and diesel), power steering hoses (4.0L, 4.7L, 2.7L diesel)
- Group 42RE — Automatic Transmission 4 Speed: transmission assembly, case and extension, oil pump, gear train, bands, valve body, servos, parking sprag, overdrive gear train, gearshift controls
- Group 45RFE — Automatic Transmission Multi-Speed: transmission assembly, case and extension, adapter, oil pump, gear train sections, valve body, parking sprag, gearshift controls, seal and shim packages
- Group NAG1 — Automatic Transmission 5 Speed (DGJ): transmission assembly, case and extension, oil pump, holding clutch, driving clutches K1/K2/K3, planetary sets, multiple disc brakes, electronic-hydraulic control unit, gearshift controls
- Group 247 — Transfer Case Model 247 (DHF): transfer case assembly, case and related parts, gear train, fork and rails, gearshift controls
- Group 22 — Wheels, Covers and Jacks: wheels and hardware, wheel covers and center caps, jack stowage, spare wheel stowage
- Group 23D — Wiper / Lock Cylinder and Keys: lock cylinders and keys, windshield wiper and washer, rear wiper and washer
- Group 24 — Air Conditioning & Heater: HEVAC with auto temp control (LHD and RHD), HEVAC with manual control (LHD and RHD), heater hoses (2.7L, 4.0L, 4.7L), accumulator, condenser and lines, controls, compressor (4.0L, 4.7L, 2.7L diesel), compressor mounting, air ducts and outlets
- Group 25 — Emission Systems: EGR system 2.7L diesel, vacuum canister, emission control vacuum harness
- Group DWG — Doors and Related Parts: front door shell and hinges, front door glass and regulator, front door lock and control, rear door shell and hinges, rear door glass and regulators, rear door lock and controls, exterior mirrors, weatherstrips and seals
- Group EWG — Exterior Ornamentation: nameplates and decals, upper moldings, cladding and sill moldings
- Group IWG — Interior Trim: headliner and assist handle, sun visor, front trim panels and scuff plates, rear trim panels, side air bag curtain, carpet and insulation, door trim panel, front seats (cloth, leather, leather UL), rear seats (cloth, leather, leather UL), front and rear seat belts, recliners and adjusters, liftgate panel and scuff plate
- Group SWG — Body Sheet Metal Except Doors: front floor pan, center and rear floor pan, floor pan outer insulation, plugs, front fenders, hood/latch/hinges, cowl and dash panels, dash and cowl insulation, glass (windshield, backlite, quarter window, rear view mirror), body side aperture panel, rear quarter panels and pillars, roof panels, sunroof, liftgate latch and hinges, roof rack
- Group LBLS — Labels All Vehicle Locations: instrument panel and visors, engine compartment, doors and pillars, fuel door, rear cargo and storage
Altogether this 2004 Jeep Grand Cherokee WJ WG Illustrated Parts List PDF Manual gives you a complete component-level map of the vehicle. It is not a repair guide — it is the reference that tells you exactly which part belongs where, under what sales code, and with which Mopar number, from the axle housing to the liftgate striker.
Complete PDF Bookmark Tree
Complete Bookmarks
The complete bookmarks in the “2004 Jeep Grand Cherokee WJ WG Illustrated Parts List PDF Manual” are as follows:
+2004WGp. 1
Return to Model Year Index
Return to 2004 Vehicle Family Index
VIN PLATE DECODING INFORMATIONp. 1

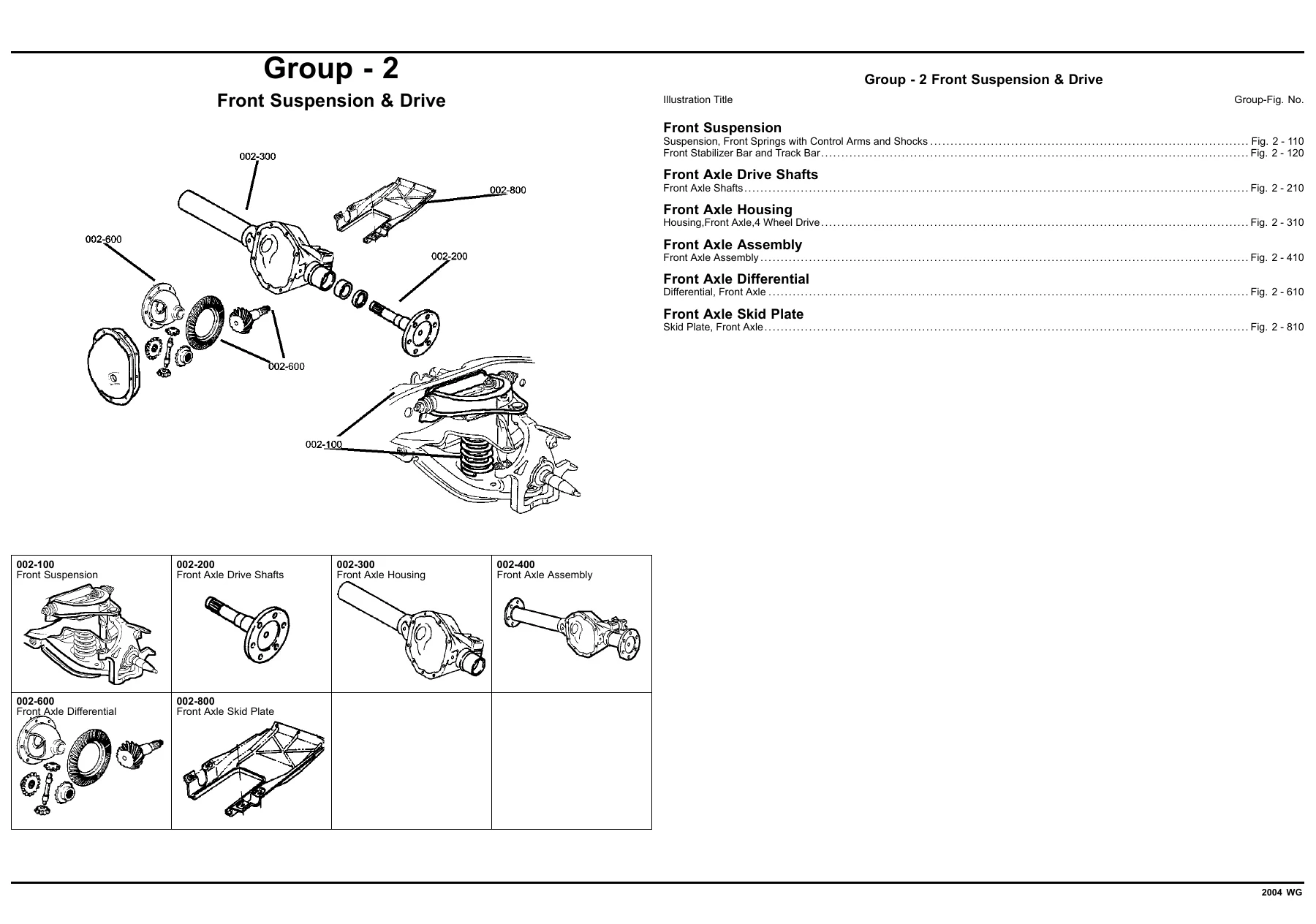

+Group – 2 Front Suspension & Drivep. 2
+Front Suspensionp. 2

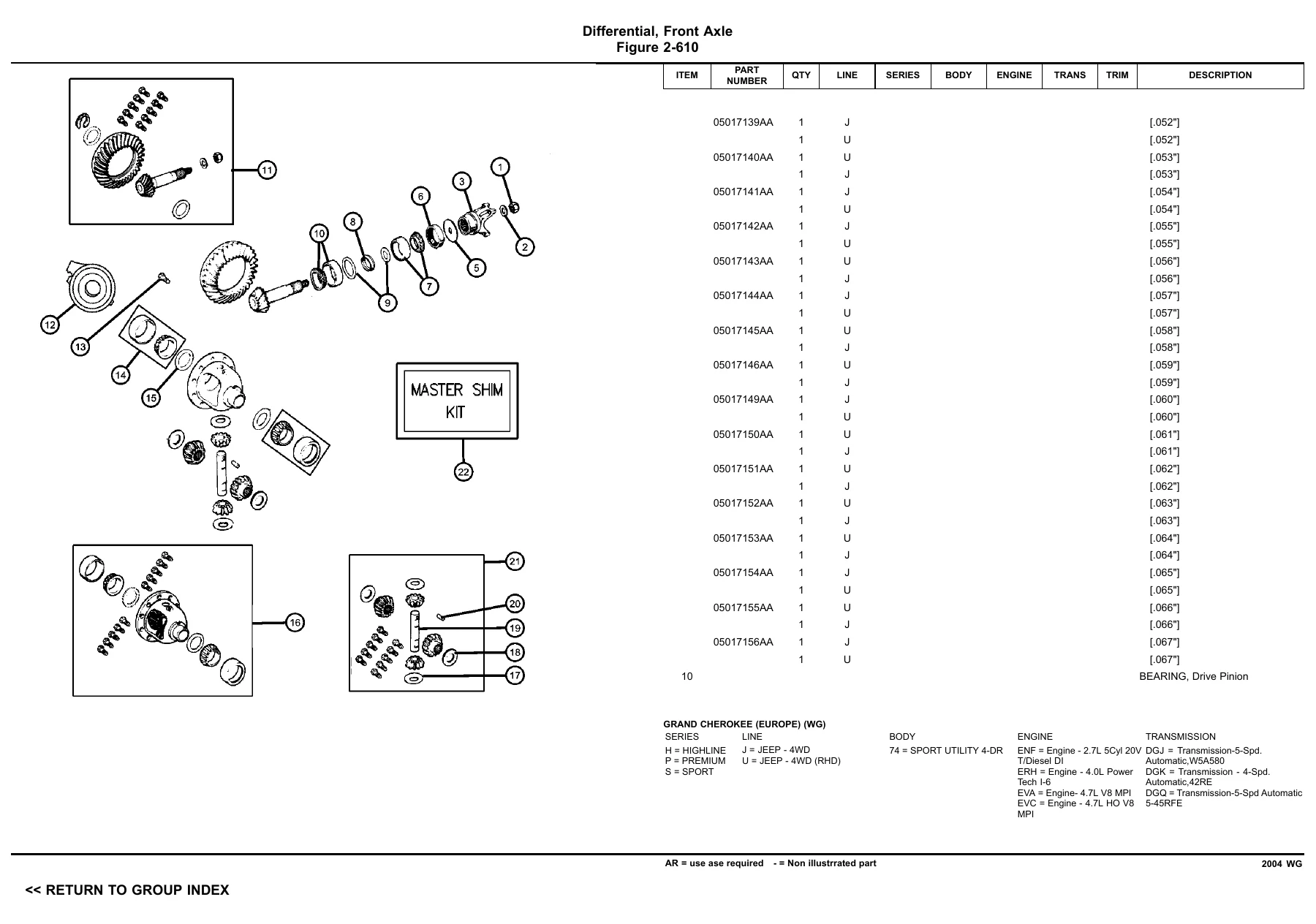

Fig. 2-110 –> Suspension, Front Springs with Control Arms and Sp. 3
Fig. 2-120 –> Front Stabilizer Bar and Track Barp. 5
+Front Axle Drive Shafts
Fig. 2-210 –> Front Axle Shaftsp. 6
+Front Axle Housing
Fig. 2-310 –> Housing,Front Axle,4 Wheel Drivep. 7
+Front Axle Assembly
Fig. 2-410 –> Front Axle Assemblyp. 10
+Front Axle Differential
Fig. 2-610 –> Differential, Front Axlep. 12
+Front Axle Skid Plate
Fig. 2-810 –> Skid Plate, Front Axlep. 18
+Group – 3 Rear Axlep. 19
+Rear Axlep. 19
Fig. 3-110 –> Axle Assembly,Rearp. 20
+Differential and Housing
Fig. 3-210 –> Housing,Rear Axle,Dana 44/226MM [DRK]p. 21
Fig. 3-220 –> Differential and Axle Shafts,Dana 44/226MM [DRK],p. 22
+Rear Axle Vent
Fig. 3-310 –> Rear Axle Ventp. 25
+Rear Axle Shafts
Fig. 3-410 –> Shaft,Rear Axle,Dana 44p. 26
+Group – 4 Parking Brakep. 27
+Parking Brake Lever and Cablesp. 27
Fig. 4-110 –> Lever And Cable – Parking Brakep. 28
Fig. 4-120 –> Rear Disc Parking Brake Assemblyp. 29
+Group – 5 Service Brakesp. 30
+Front Brakesp. 30
Fig. 5-110 –> Front Disc Brake Caliper and Rotorp. 31
+Rear Brakesp. 33
Fig. 5-210 –> Rear Disc Brake Caliper and Rotorp. 34
+Power Brake Booster
Fig. 5-310 –> Power Brake Boosterp. 35
+Brake Master Cylinder
Fig. 5-410 –> Master Cylinder,Brakep. 36
Fig. 5-420 –> Hydraulic Control Unitp. 37
+Brake Lines and Hoses
Fig. 5-510 –> Brake Lines and Hoses,Frontp. 38
Fig. 5-520 –> Brake Lines and Hoses,Rear and Chassisp. 40
+Brake Pedals
Fig. 5-610 –> Brake Pedal & Bracketp. 41
+Group – 7 Coolingp. 42
+Radiator and Related Partsp. 42
Fig. 7-150 –> Radiator and Related Parts 4.0L Enginep. 43

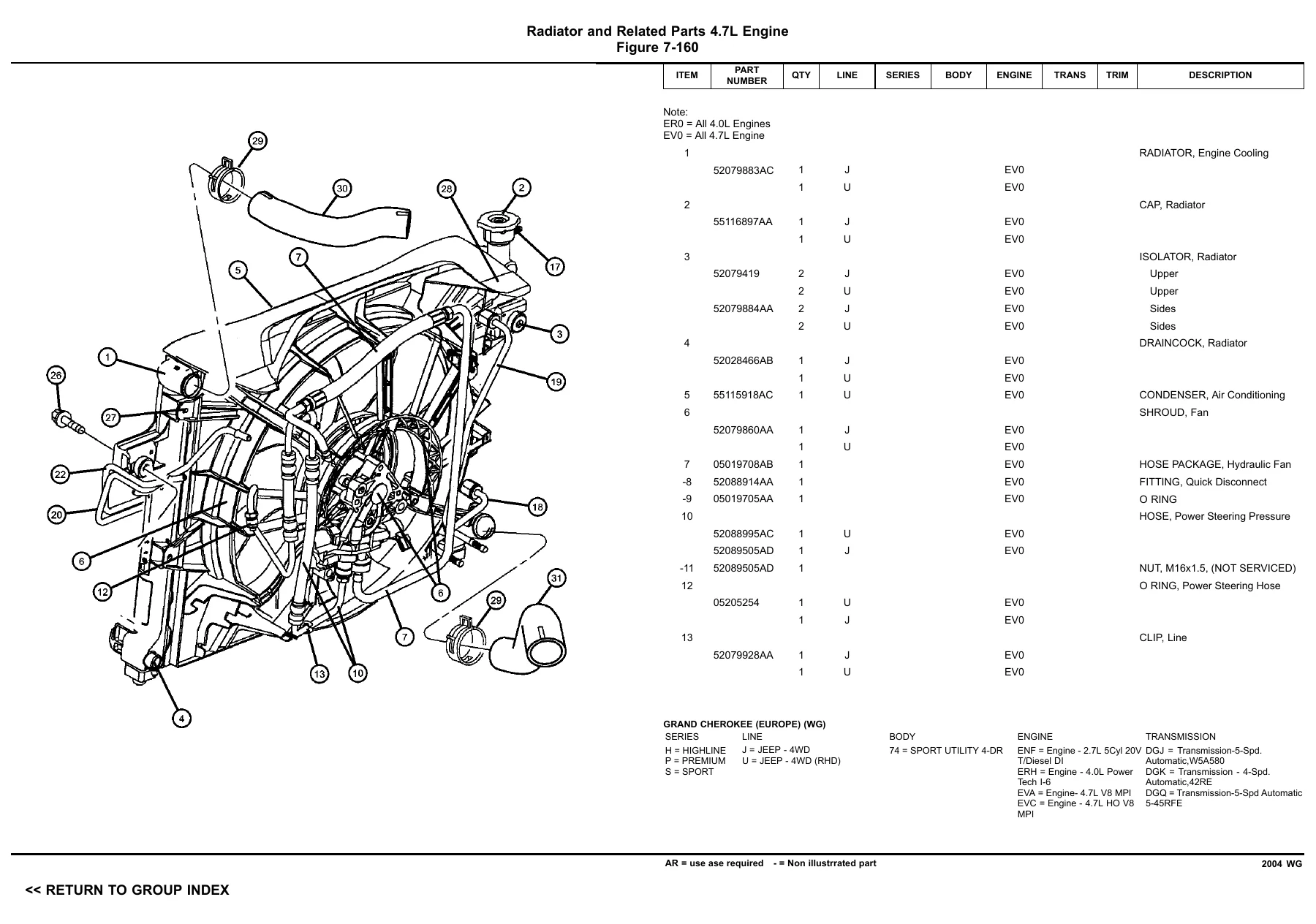

Fig. 7-160 –> Radiator and Related Parts 4.7L Enginep. 45
Fig. 7-165 –> Radiator and Related Parts 2.7L Diesel Enginep. 48
Fig. 7-170 –> Radiator Upper Supportp. 51
+Water Pump and Related Parts
Fig. 7-210 –> Water Pump and Related Parts 4.0L Enginep. 52
Fig. 7-220 –> Water Pump and Related Parts 4.7L Enginep. 53
Fig. 7-230 –> Water Pump and Related Parts 2.7L Diesel Enginep. 54
+Tank, Coolant Engine
Fig. 7-310 –> Coolant Tank, 4.0,4.7L Enginep. 55
Fig. 7-320 –> Coolant Tank, 2.7L Diesel Enginep. 56
+Pulleys and Related Parts
Fig. 7-420 –> Drive Pulleys 4.0L Enginep. 57
Fig. 7-430 –> Drive Pulleys 4.7L Enginep. 58
Fig. 7-440 –> Drive Pulleys 2.7L Diesel Enginep. 59
+Drive Belts
Fig. 7-520 –> Drive Belts 4.0L and 4.7L Enginesp. 60
Fig. 7-530 –> Drive Belts 2.7L Diesel Enginesp. 61
+Lines, Transmission Oil Coolerp. 61
Fig. 7-610 –> Oil Cooler and Lines 4.0L Enginesp. 62
Fig. 7-620 –> Oil Cooler and Lines 4.7L Enginep. 63
Fig. 7-630 –> Oil Cooler and Lines 2.7L Diesel Enginep. 64
+Grilles
Fig. 7-720 –> Grille and Related Partsp. 65
+Group – 8 Electricalp. 66
+Startersp. 67
Fig. 8-110 –> Startersp. 68
+Alternators
Fig. 8-205 –> Alternator – 4.0L Enginep. 69
Fig. 8-210 –> Alternator – 4.7L Enginep. 70
Fig. 8-215 –> Alternator 2.7L Dieselp. 71
+Modules
Fig. 8-405 –> Modulesp. 72
+Relays
Fig. 8-505 –> Power Distribution Center Relays and Fusesp. 74
Fig. 8-510 –> Junction Block – Relays and Fusesp. 75
+Sensors
Fig. 8-605 –> Sensors 4.0L Enginep. 76
Fig. 8-610 –> Sensors 4.7L Enginep. 77
Fig. 8-615 –> Sensors, Oxygen 4.0L [ER0]p. 78
Fig. 8-620 –> Sensors, Oxygen 4.7L [EVO]p. 79
Fig. 8-625 –> Sensors, 2.7L Diesel Enginep. 80
Fig. 8-630 –> Sensors Drivetrainp. 81
Fig. 8-635 –> Sensors Bodyp. 82
+Single Board Engine Controllers
Fig. 8-710 –> JTEC Modules and Solenoidsp. 84
+Switches
Fig. 8-805 –> Switches Instrument Panel and Consolep. 86
Fig. 8-810 –> Switches Drivetrainp. 87
Fig. 8-815 –> Switches Bodyp. 88
+Horns
+Battery Tray and Cables
Fig. 8-1010 –> Battery Tray & Cablesp. 92
+Lamps – Front, Rear and Courtesy
Fig. 8-1110 –> Lamp – Front Endp. 93
Fig. 8-1120 –> Lamp – Rear Endp. 96
Fig. 8-1130 –> Lamp – Courtesy – Dome – Readingp. 98
Fig. 8-1140 –> Bulbs & Socketsp. 99
+Wiring-Engine & Related Parts
Fig. 8-1210 –> Wiring – Engine & Related Partsp. 101
+Wiring-Headlamp to Dash
Fig. 8-1310 –> Wiring – Headlamp / Dashp. 102
+Wiring-Instrument Panel
Fig. 8-1410 –> Wiring – Instrument Panelp. 103
+Wiring-Body & Accessories
Fig. 8-1510 –> Wiring – Body & Acessoriesp. 104
+Wiring Repair
Fig. 8-1605 –> Wiring Repair Packagesp. 107
+Air Bag Systems
Fig. 8-1705 –> Air Bag Modules and Sensorsp. 108
Fig. 8-1710 –> Air Bags and Clock Springp. 109
+Spark Plugs-Cables-Coils
Fig. 8-1910 –> Spark Plugs – Coilsp. 110
+Group – 08A Instrument Panel and Radios and Consolesp. 111
+Instrument Panelp. 111
Fig. 08A-110 –> Instrument Panelp. 112
+Instrument Panel Cluster
Fig. 08A-210 –> Instrument Clusterp. 119
+Radio, Antenna, and Speakers
Fig. 08A-310 –> Radiop. 121
Fig. 08A-320 –> Antennap. 122
Fig. 08A-325 –> Speakersp. 123
+Consoles
Fig. 08A-410 –> Floor Consolep. 124
Fig. 08A-420 –> Overhead Consolep. 127
+Group – 9 Engine Mountingp. 128
+Engine Mountingp. 128
Fig. 9-110 –> Engine Mounting, Front [ENF]p. 129
Fig. 9-120 –> Engine Mounting, Rear [ENF]p. 130
Fig. 9-130 –> Engine Mounting, Front [ERH]p. 131
Fig. 9-140 –> Engine, Mounting Brace [ERH]p. 132
Fig. 9-150 –> Engine Mounting, Rear [ERH]p. 133
Fig. 9-160 –> Engine Mounting, Front [EVA- EVC]p. 134
Fig. 9-170 –> Engine Mounting, Rear [EVA-EVC]p. 135
+Group – 4.0L Engine 4.0L Six Cylinderp. 136
+Cylinder Headp. 136
Fig. 4.0L-210 –> Cylinder Head [ERH]p. 137
+Cylinder Block
Fig. 4.0L-310 –> Cylinder Block, 4.0 (ERH)p. 138
+Crankshaft, Piston and Torque Converter
Fig. 4.0L-410 –> Crankshaft, Piston and Torque Converter, 4.0 (p. 139
+Camshafts & Valves
Fig. 4.0L-510 –> Camshaft & Valves, 4.0 (ERH)p. 141
+Timing Belt and Cover
Fig. 4.0L-610 –> Timing Belt and Cover, 4.0 (ERH)p. 142
+Engine Oiling
Fig. 4.0L-710 –> Engine Oiling, 4.0 (ERH)p. 143
+Manifolds
Fig. 4.0L-810 –> Manifold, Intake and Exhaust, 4.0 (ERH)p. 145
+Crankcase Ventilation
Fig. 4.0L-910 –> Crankcase Ventilation, 4.0 (ERH)p. 146
+Group – 4.7L Engine 4.7L Eight Cylinderp. 147
+Cylinder Headp. 147
Fig. 4.7L-210 –> Cylinder Head, 4.7 [EVA,EVC]p. 148
+Cylinder Block
Fig. 4.7L-310 –> Cylinder Block, 4.7 [EVA,EVC]p. 150
+Crankshaft, Pistons and Torque Converter
Fig. 4.7L-410 –> Crankshaft, Piston and Torque Converter, 4.7 [p. 151
+Camshafts and Valves
Fig. 4.7L-510 –> Camshaft and Valves, 4.7 [EVA,EVC]p. 153
+Timing Belt and Cover
Fig. 4.7L-610 –> Timing Cover, 4.7L [EVA, EVC]p. 155
Fig. 4.7L-620 –> Timing Chain and Guides, 4.7 [EVA,EVC]p. 156
+Engine Oiling
Fig. 4.7L-710 –> Engine Oiling, 4.7 [EVA,EVC]p. 157
+Manifolds
Fig. 4.7L-810 –> Manifold, Intake and Exhaust, 4.7 [EVA,EVC]p. 158
+Crankcase Ventilation
Fig. 4.7L-910 –> Crankcase Ventilation, 4.7 EVA,EVC]p. 159
+Group – 2.7LD 2.7L Diesel – Mercedes Benz [ENF]p. 160
+Cylinder Headp. 160
Fig. 2.7LD-210 –> Head, Cylinderp. 161
Fig. 2.7LD-220 –> Cover, Cylinder Headp. 162
Fig. 2.7LD-230 –> Esthetic Engine Coverp. 163
+Cylinder Block
Fig. 2.7LD-310 –> Engine Completep. 164
Fig. 2.7LD-320 –> Cylinder Block & Related Partsp. 165
+Crankshaft, Piston and Drive Plate
Fig. 2.7LD-410 –> Crankshaft & Pistonsp. 166
+Camshafts and Valves
Fig. 2.7LD-510 –> Camshaft & Valvesp. 167
+Timing Belt and Cover
Fig. 2.7LD-610 –> Timing Cover & Chainp. 168
Fig. 2.7LD-620 –> Vaccum Pumpp. 170
+Engine Oiling
Fig. 2.7LD-710 –> Oil Pumpp. 171
Fig. 2.7LD-720 –> Oil Cooler & Filterp. 172
Fig. 2.7LD-730 –> Oil Panp. 173
Fig. 2.7LD-740 –> Turbo Oil Linesp. 174
+Manifolds
Fig. 2.7LD-810 –> Intake Manifoldp. 175
Fig. 2.7LD-820 –> Exhaust Manifoldp. 176
+Crankcase Ventilation
Fig. 2.7LD-910 –> Crankcase Ventilationp. 177
+Group – 11 Exhaustp. 178
+Exhaust Systemp. 178
Fig. 11-110 –> Exhaust System, [ENF]p. 179
Fig. 11-120 –> Exhaust System, [ERH]p. 180
Fig. 11-130 –> Exhaust System, [EVA-EVC]p. 181
+Heat Shields
Fig. 11-210 –> Heat Shields,[ERH,EVA,EVC]p. 182
+Group – 13 Frames and Bumpersp. 183
+Front Bumper and Fasciap. 183
Fig. 13-240 –> Bumper, Frontp. 184
+Rear Bumper and Fascia
Fig. 13-340 –> Bumper, Rearp. 185
+Trailer Tow
Fig. 13-610 –> Tow Eyep. 187
Fig. 13-620 –> Rear Hitchp. 188
+Group – 14 Fuelp. 189
+Tank, Fuelp. 190
Fig. 14-110 –> Fuel Tank,p. 191
+Fuel Tank Filler Tubep. 191
Fig. 14-210 –> Fuel Tank Filler Tube,[ENF,ERH,EVA,EVC]p. 192
+Fuel Lines
Fig. 14-310 –> Front, Fuel Lines [ENF]p. 193
Fig. 14-320 –> Fuel Lines, Rear [ENF]p. 194
Fig. 14-330 –> Fuel Lines, Front [ERH]p. 195
Fig. 14-340 –> Fuel Lines, Rear [ERH]p. 196
Fig. 14-350 –> Fuel Lines, Front [EVA,EVC]p. 197
Fig. 14-360 –> Fuel Lines, Rear [EVA,EVC]p. 198
+Fuel Rail
Fig. 14-410 –> Injection System [ENF]p. 199
Fig. 14-420 –> Fuel Injection Pump [ENF]p. 200
Fig. 14-430 –> Fuel Rail [ERH]p. 201
Fig. 14-440 –> Fuel Rail [EVA-EVC]p. 202
+Fuel Pump and Sending Unitp. 202
Fig. 14-510 –> Fuel Pump & Sending Unit [ENF] [ERH][EVA][EVC]p. 203
+Throttle Body
Fig. 14-610 –> Throttle Body [ERH]p. 204
Fig. 14-620 –> Throttle Body [EVA-EVC]p. 205
Fig. 14-630 –> Turbo Charger [ENF]p. 206
Fig. 14-640 –> Electric Turbo Modulatorp. 207
+Throttle Controls
Fig. 14-710 –> Throttle Controls [ENF]p. 208
Fig. 14-720 –> Throttle Controls [ERH]p. 209
Fig. 14-730 –> Throttle Controls [EVA,EVC]p. 210
Fig. 14-740 –> Throttle Controls, Transmissionp. 211
+Air Cleaner
Fig. 14-810 –> Air Cleaner [ENF]p. 212
Fig. 14-820 –> Air Cleaner [ERH]p. 213
Fig. 14-830 –> Air Cleaner [EVA,EVC]p. 214
+Air Intake System
Fig. 14-910 –> Air Intake [EVA,EVC, ENF, ERH]p. 215
+Speed Control
Fig. 14-1010 –> Speed Controlp. 216
+Accelerator Pedalp. 216
Fig. 14-1110 –> Accelerator Pedal [ENF,ERH,EVA,EVC]p. 217
+Group – 16 Propeller Shafts and U-Jointsp. 218
+Propeller Shaftp. 218
Fig. 16-110 –> Propeller Shafts,Front and Rearp. 219
+Group – 17 Rear Suspensionp. 221
+Rear Suspensionp. 221
Fig. 17-110 –> Supension,Rear with Springs,Shocks, and Controlp. 222
+Rear Stabilizer
Fig. 17-210 –> Stabilizer Bar, Rearp. 224
+Group – 19 Steeringp. 225
+Steering Wheelp. 225
Fig. 19-110 –> Steering Wheel Assemblyp. 226
+Steering Column
Fig. 19-210 –> Steering Column Assyp. 229
+Steering Gear
Fig. 19-310 –> Steering Gear Assemblyp. 230
+Steering Linkage
Fig. 19-410 –> Steering Linkage,Left Hand Drivep. 231
Fig. 19-420 –> Steering Linkage,Right Hand Drivep. 233
+Power Steering Pump
Fig. 19-510 –> Power Steering Pump-Gasp. 234
Fig. 19-520 –> Power Steering Pump-Dieselp. 235
+Power Steering Hoses
Fig. 19-710 –> Power Steering Hoses-4.0L [ER0] Gas Enginep. 236
Fig. 19-720 –> Power Steering Hoses-4.7L [EV0] Gas Enginep. 237
Fig. 19-730 –> Power Steering Hoses-2.7L [EN0] Diesel Enginep. 239
+Group – 42RE Automatic Transmission 4 Speedp. 241
+Transmission Assemblyp. 241
Fig. 42RE-110 –> Transmission [42RE] [DGK]p. 242
+Case and Extension
Fig. 42RE-210 –> Case & Related Parts [42RE] [DGK]p. 243
Fig. 42RE-220 –> Case Rear [42RE] [DGK]p. 245
+Oil Pump
Fig. 42RE-310 –> Oil Pump [42RE] [DGK]p. 246
+Gear Train
Fig. 42RE-410 –> Clutch, Front & Rear [42RE] [DGK]p. 247
Fig. 42RE-420 –> Gear Train and Intermediate Shaft [42RE] [p. 249
Fig. 42RE-430 –> Output Shaft [42RE] [DGK]p. 251
+Bands, Reverse and Kickdown
Fig. 42RE-510 –> Bands [42RE] [DGK]p. 252
+Valve Body
Fig. 42RE-710 –> Valve Body [42RE] [DGK]p. 253
Fig. 42RE-720 –> Servos [42RE] [DGK]p. 255
Fig. 42RE-730 –> Parking Sprag [42RE] [DGK]p. 256
+Overdrive Gear Train
Fig. 42RE-1010 –> Overdrive Gear Train [42RE] [DGK]p. 257
+Gearshift Controls
Fig. 42RE-1210 –> Gearshift Controls [42RE] [DGK]p. 259
+Group – 45RFE Automatic Transmission Multi-Speedp. 260
+Transmission Assemblyp. 261
Fig. 45RFE-110 –> Transmission Assembly [DGQ]p. 262
+Case and Extension
Fig. 45RFE-210 –> Case and Related Parts [45RFE] [DGQ]p. 263
Fig. 45RFE-220 –> Adapter [45RFE] [DGQ]p. 264
+Oil Pump
Fig. 45RFE-310 –> Oil Pump [45RFE] [DGQ]p. 265
+Gear Train
Fig. 45RFE-410 –> Input Shaft [45RFE] [DGQ]p. 266
Fig. 45RFE-420 –> Underdrive [45RFE] [DGQ]p. 267
Fig. 45RFE-430 –> Overdrive [45RFE] [DGQ]p. 268
Fig. 45RFE-440 –> 2/4 Clutch Retainer [45RFE] [DGQ]p. 269
Fig. 45RFE-450 –> Input/Reverse Planetary [45RFE] [DGQ]p. 271
Fig. 45RFE-460 –> Reaction Annulus/Sun Gear [45RFE] [DGQ]p. 272
Fig. 45RFE-470 –> Low / Reverse Clutchp. 273
+Valve Body
Fig. 45RFE-710 –> Valve Body [45RFE] [DGQ]p. 274
Fig. 45RFE-730 –> Parking Sprag [45RFE] [DGQ]p. 275
+Gearshift Controls
Fig. 45RFE-1210 –> Gearshift Controls [45RFE] [DGQ]p. 276
+Seal and Shim Packages
Fig. 45RFE-1310 –> LR Clutch [45RFE] [DGQ]p. 277
Fig. 45RFE-1320 –> Input Clutch Plate [45RFE] [DGQ]p. 278
Fig. 45RFE-1330 –> OVERHAUL [45RFE] [DGQ]p. 279
Fig. 45RFE-1340 –> Input Clutch [45RFE] [DGQ]p. 280
Fig. 45RFE-1350 –> Planetary Plate [45RFE] [DGQ]p. 281
Fig. 45RFE-1360 –> 2&4 Clutch [45RFE] [DGQ]p. 282
+Group – NAG1 Automatic Transmission 5 Speed [DGJ]p. 283
+Transmission Assemblyp. 283
Fig. NAG1-110 –> Transmission Assemblyp. 284
+Case and Extension
Fig. NAG1-210 –> Case & Extensionp. 285
Fig. NAG1-220 –> Transmission Case, Linkages & Related Partsp. 286
+Oil Pump
Fig. NAG1-310 –> Pump, Oilp. 288
+Gear Train
Fig. NAG1-410 –> MultI-Disc Holding Clutch – [B1]p. 289
Fig. NAG1-420 –> Driving Clutch, Front Planetary – [K1]p. 290
Fig. NAG1-430 –> Planetary Carrier – [K1]p. 291
Fig. NAG1-440 –> Driving Clutch – [K2]p. 292
Fig. NAG1-450 –> Center & Rear Planetary Set – Output Shaftp. 293
Fig. NAG1-460 –> Driving Clutch – [K3]p. 294
Fig. NAG1-470 –> Multiple Disc Brake & Parking Lock Gearwheel –p. 295
Fig. NAG1-480 –> Multiple Disc Brake & Parking Lock Gearwheel –p. 296
Fig. NAG1-490 –> Multiple Disc Brake & Parking Lock Gearwheel –p. 297
+Valve Body
Fig. NAG1-710 –> Electronic – Hydraulic Control Unitp. 298
+Gearshift Controls
Fig. NAG1-1210 –> Gearshift Controlsp. 299
+Group – 247 Transfer Case Model 247 [DHF]p. 300
+Transfer Case Assemblyp. 301
Fig. 247-110 –> Transfer Case Quadra Trac II on Demand [DHF] [Dp. 302
+Case and Related Partsp. 302
Fig. 247-210 –> Case and Related Parts [DHF] [DHQ]p. 303
+Gear Train
Fig. 247-410 –> Gear Train Quadra Trac II on Demand [DHF] [DHQ]p. 307
+Fork and Railsp. 309
Fig. 247-910 –> Fork & Rails [DHF] [DHQ]p. 310
+Gearshift Controlsp. 310
Fig. 247-1210 –> Gearshift Controls Quadra Trac II on Demand [Dp. 311
+Group – 22 Wheels, Covers and Jacksp. 313
+Wheels and Hardwarep. 313
Fig. 22-130 –> Wheels and Hardwarep. 314
+Wheel Covers and Center Caps
Fig. 22-230 –> Caps, Wheel Cover and centerp. 315
+Jack Stowage
Fig. 22-330 –> Jack Stowagep. 316
+Spare Tire Stowage
Fig. 22-460 –> Spare Wheel Stowagep. 317
+Group – 23D Wiper/Lock Cylinder and Keysp. 318
+Lock Cylinders and Keysp. 318
Fig. 23D-130 –> Lock Cylinder & Keysp. 319
+Windshield Wiper and Washer Systemsp. 320
Fig. 23D-230 –> Windshield Wiper & Washerp. 321
+Rear Wiper and Washer Systemp. 322
Fig. 23D-330 –> Rear Wiper & Washer Systemp. 323
+Group – 24 Air Conditioning & Heaterp. 324
+Air Conditioner and Heater Unitsp. 324
Fig. 24-150 –> HEVAC with Auto Temp Control, LHDp. 325
Fig. 24-160 –> HEVAC with Auto Temp Control, RHDp. 327
Fig. 24-170 –> HEVAC with Manual Control, LHDp. 329
Fig. 24-180 –> HEVAC with Manual Control, RHDp. 331
+Air Conditioner and Heater Plumbing
Fig. 24-230 –> Hoses, Heater 2.7L Diesel Enginep. 333
Fig. 24-240 –> Hoses, Heater 4.0L Enginesp. 334
Fig. 24-245 –> Hoses, Heater 4.7L Enginep. 335
Fig. 24-248 –> Accumulator, Condenser and Lines 2.7L Diesel Engp. 336
Fig. 24-250 –> Accumulator, Condenser and Lines 4.0L Enginesp. 338
Fig. 24-255 –> Accumulator, Condenser and Lines 4.7L Enginep. 339
Fig. 24-260 –> Hevac Vacuum Engine Lines and Controlsp. 341
+Air Conditioner and Heater Controls
Fig. 24-330 –> Control, Heater and Air Conditionerp. 342
+Air Conditioning Compressorp. 342
Fig. 24-410 –> Compressor, Air Conditioning 4.0L Enginep. 343
Fig. 24-420 –> Compressor, Air Conditioning 4.7L Enginep. 344
Fig. 24-430 –> Compressor, Air Conditioning 2.7L Diesel Enginep. 345
+Air Conditioning Compressor Mounting
Fig. 24-510 –> Compressor, Mounting 4.0L Enginep. 346
Fig. 24-520 –> Compressor, Mounting 4.7L Enginep. 347
+Air Ducts and Outlets
Fig. 24-610 –> Air Ducts and Outletsp. 348
+Group – 25 Emission Systemsp. 349
+EGR Systemsp. 349
Fig. 25-210 –> EGR System 2.7L Dieselp. 350
+Vacuum Canister
Fig. 25-310 –> Vacuum Canister, [ERH ,EVA,EVC]p. 351
+Emission Harness
Fig. 25-410 –> Emission Control Vacuum Harness, [ERH, EVA,EVC]p. 352
+Group – DWG Doors and Related Partsp. 353
+Front Doorp. 353
Fig. DWG-110 –> Door,Front Shell and Hingesp. 354
Fig. DWG-120 –> Door,Front Glass and Regulatorp. 355
Fig. DWG-130 –> Door,Front Lock and Controlp. 356
+Rear Doorp. 358
Fig. DWG-210 –> Door,Rear Shell and Hingesp. 359
Fig. DWG-220 –> Door,Rear Glass and Regulatorsp. 360
Fig. DWG-230 –> Door,Rear Lock and Controlsp. 361
+Exterior Mirror
Fig. DWG-510 –> Mirrors,Exteriorp. 363
+Weatherstrips and Seals
Fig. DWG-610 –> Door,Front Weatherstrips and Sealsp. 365
Fig. DWG-620 –> Door,Rear Weatherstrips and Sealsp. 366
Fig. DWG-630 –> Door,Rear Tailgate Weatherstripsp. 367
+Group – EWG Exterior Ornamentationp. 368
+Nameplatesp. 368
Fig. EWG-110 –> Nameplates and Decalsp. 369
+Moldings and Ornamentation
Fig. EWG-210 –> Moldings,Upperp. 370
Fig. EWG-220 –> Cladding and Sill Moldingsp. 371
+Group – IWG Interior Trimp. 374
+Headliner and Visorp. 375
Fig. IWG-110 –> Headliner and Assist Handlep. 376
Fig. IWG-120 –> Sunvisorp. 378
+Panel – Mouldings, Scuff Plates
Fig. IWG-210 –> Front Trim Panels and Scuff Platesp. 379
Fig. IWG-220 –> Rear Trim Panelsp. 381
Fig. IWG-230 –> Side Air Bag Curtainp. 383
+Carpet
Fig. IWG-310 –> Carpet and Insulationp. 384
+Door Trim Panels
Fig. IWG-410 –> Door Trim Panelp. 386
+Front Seats and Attaching Parts
Fig. IWG-510 –> Front Seat, Cloth,Trim Code [K7]p. 389
Fig. IWG-520 –> Front Seat, Leather, Trim Code [SL]p. 391
Fig. IWG-530 –> Front Seat, Leather, Trim Code [UL]p. 394
+Rear Seats and Attaching Partsp. 395
Fig. IWG-610 –> Rear Seat, Cloth, Trim Code [K7]p. 396
Fig. IWG-620 –> Rear Seat, Leather,Trim Code [SL]p. 400
Fig. IWG-630 –> Rear Seat, Leather, Trim Code [UL]p. 404
+Seat Belts – Front and Rearp. 406
Fig. IWG-710 –> Front Seat Beltp. 407
Fig. IWG-720 –> Rear Seat Beltp. 409
+Adjusters, Covers, Shields and Risers
Fig. IWG-810 –> Recliners and Adjustersp. 410
+Lift Gate Trimp. 414
Fig. IWG-1010 –> Liftgate Panel and Scuff Platep. 415
+Group – SWG Body Sheet Metal Except Doorsp. 416
+Floor Pansp. 417
Fig. SWG-210 –> Front Floor Panp. 418
Fig. SWG-220 –> Center and Rear Floor Panp. 419
Fig. SWG-230 –> Floor Pan Outer Insulationp. 420
+Plugs
Fig. SWG-310 –> Plugsp. 421
+Front Fenders
Fig. SWG-410 –> Front Fendersp. 422
+Hood and Hood Release
Fig. SWG-510 –> Hood, Latch, Hingesp. 423
+Cowl and Dash Panel
Fig. SWG-610 –> Panels,Cowl and Dashp. 424
Fig. SWG-620 –> Insulation,Dash and Cowlp. 425
+Glass and Rear View Mirror
Fig. SWG-710 –> Glass,Windshield,Backlite,Quarter Window,Rear Vp. 426
+Aperture Panel
Fig. SWG-810 –> Panel, Body Sidep. 428
+Quarter Panel and Pillars
Fig. SWG-910 –> Panels, Rear Quarterp. 429
+Roof Panels
Fig. SWG-1110 –> Panels,Roofp. 431
+Sunroof
Fig. SWG-1210 –> Sunroofp. 432
+Liftgate Panel
Fig. SWG-1310 –> Liftgate,Latch and Hingesp. 433
+Luggage Rack
Fig. SWG-1610 –> Roof Rackp. 435
+Group – LBLS Labels All Vehicle Locationsp. 436
+Interiorp. 436
Fig. LBLS-110 –> Instrument Panel and Visorsp. 437
+Under Hood
Fig. LBLS-210 –> Engine Compartmentp. 438
+Doors
Fig. LBLS-310 –> Doors and Pillarsp. 439
+Exterior
Fig. LBLS-410 –> Fuel Doorp. 440
+Rear Cargo & Storage
Fig. LBLS-510 –> Rear Cargo and Storagep. 441
What It Enables
- Order the correct part first time using the illustrated call-out and matched part number, rather than relying on a description alone
- Verify fitment across Highline, Premium, Sport, LHD and RHD configurations, plus the 2.7L diesel, 4.0L six, and 4.7L V8 engine variants
- Track down discontinued or hard-to-find hardware by group, figure number, and item number
- Confirm which part goes with which sales code (SDA / SDJ / SDU suspension, DGJ / DGK / DGQ transmissions, and others)
- See how an assembly is put together before disassembly, including every bracket, clip, seal, and fastener shown in the exploded view
- Give a body shop or restoration shop the exact numbers for trim, cladding, seals, and moldings that are otherwise easy to mix up
Get Instant Access
Every section of the 2004 Jeep Grand Cherokee WJ WG Illustrated Parts List PDF Manual is delivered as a single downloadable PDF — no shipping, no waiting, no physical binder to lose. Open it on any laptop, tablet, or phone, print the pages you need for the garage, and search the group you are working on the moment the download finishes. When you need the correct part number for a 2004 Grand Cherokee, having the full WJ / WG parts catalog at hand is the fastest way to get it right.
Reviews
There are no reviews yet.
