2005 Buick Rendezvous & Pontiac Aztek 3.4L V6 Engine Mechanical Service Manual

Description

2005 Buick Rendezvous & Pontiac Aztek 3.4L V6 Engine Mechanical Service Manual

This 2005 Buick Rendezvous & Pontiac Aztek 3.4L V6 Engine Mechanical Service Manual is a focused, factory-style technical reference covering the 3.4L (RPO LA1) V6 engine used across both platforms. If you’re working on the engine mechanical systems of a 2005 Rendezvous or Aztek, this manual walks through specifications, diagnostics, and every on-vehicle repair procedure in the order a technician would actually use them.

File Details

• Manual Type: Engine Mechanical Service Manual
• Brand/Model: Buick Rendezvous & Pontiac Aztek
• Engine Coverage: 3.4L V6 (RPO LA1, VIN E)
• Language: English
• Page Count: 538 pages
• File Format: PDF

Chapters Covered

• Specifications
  • Fastener Tightening Specifications
  • Engine Mechanical Specifications (General Data, Block, Crankshaft, Connecting Rod, Oil Pump, Piston Rings, Valves, Valve Springs)
  • Sealers, Adhesives, and Lubricants
• Component Locator

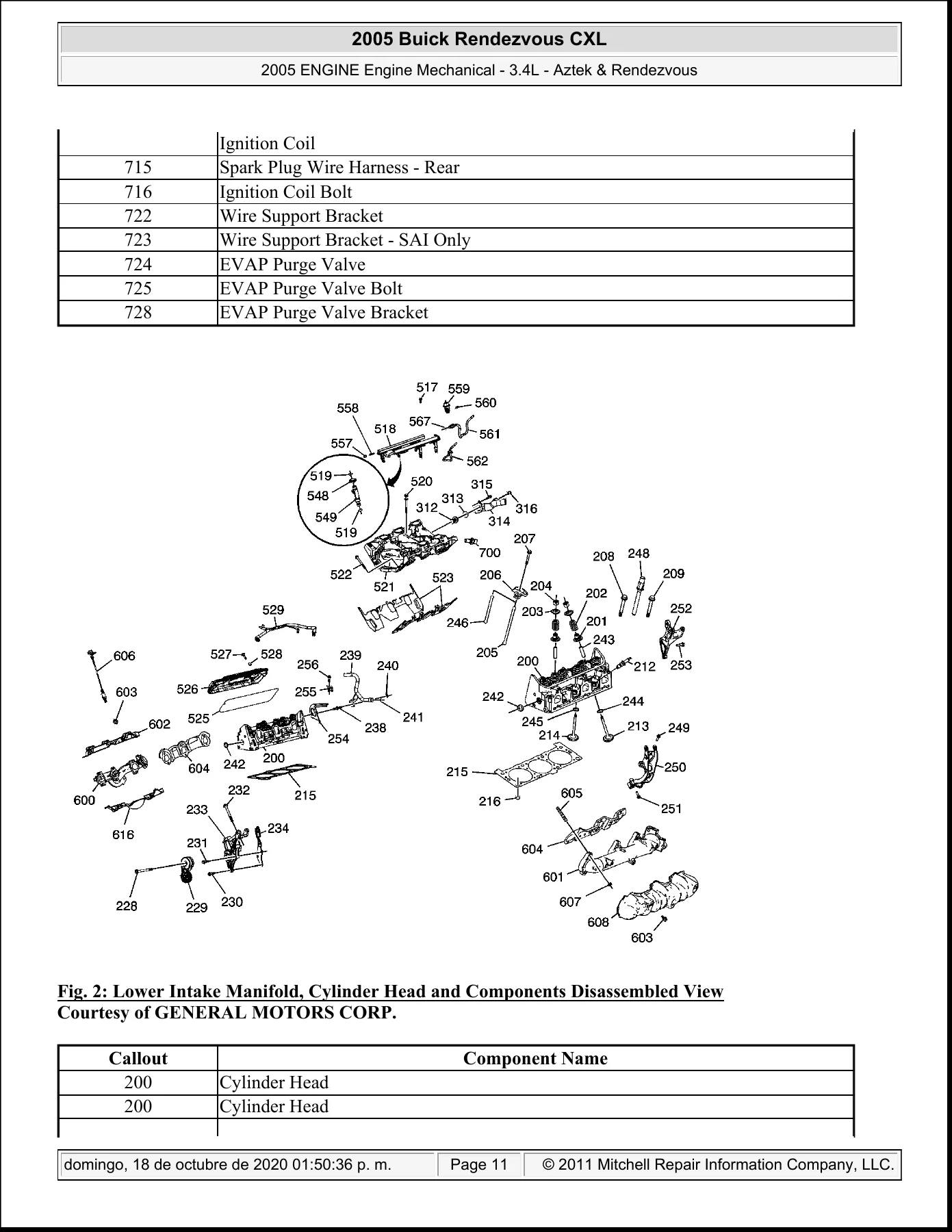

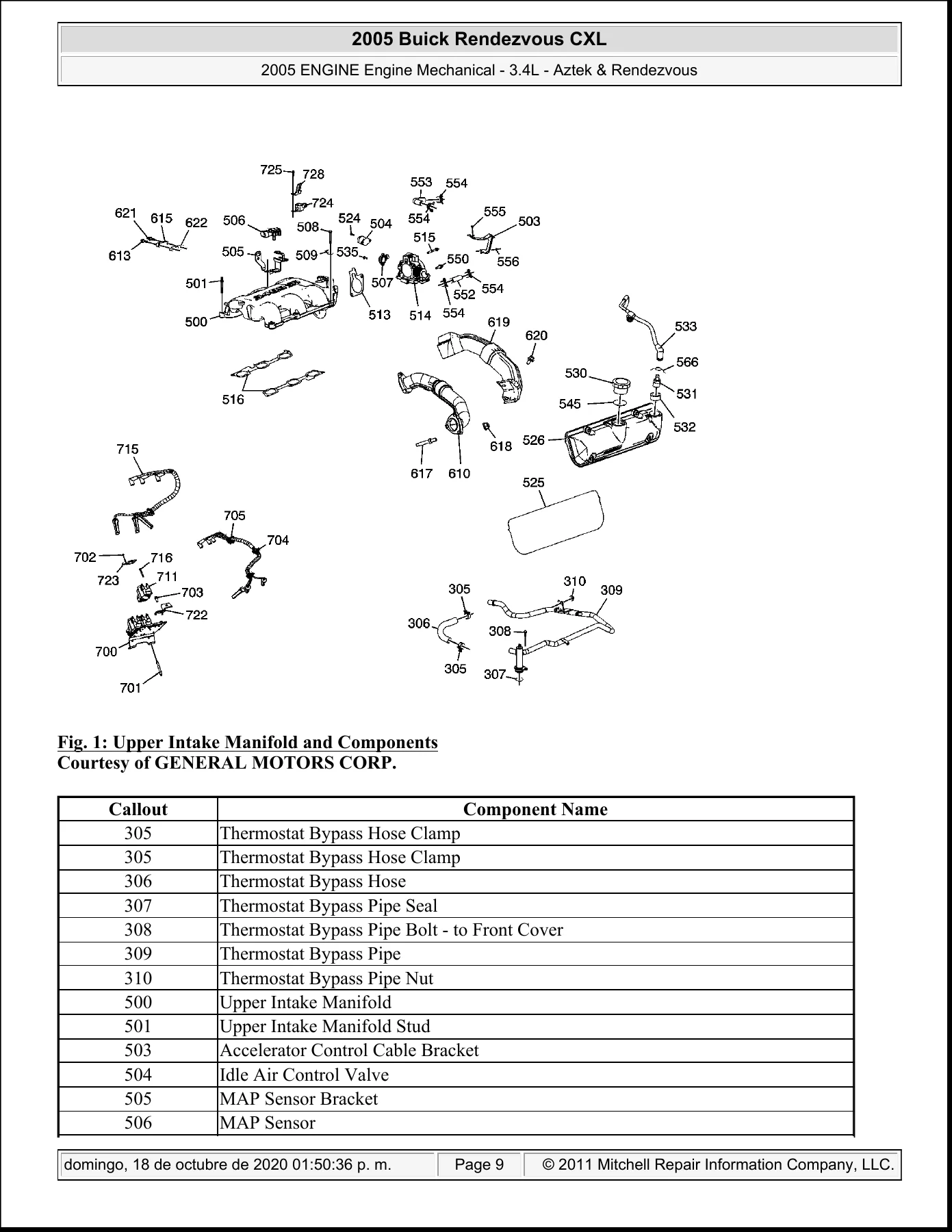

  • Disassembled Views (Upper & Lower Intake Manifold, Cylinder Head, Oil Pan, Timing Components)
• Diagnostic Information and Procedures
  • Diagnostic Starting Point – Engine Mechanical
  • Engine Compression Test
  • Drive Belt System Description
  • Drive Belt Squeal, Whine, Rumbling, Vibration, Falls Off, and Tensioner Diagnosis
  • Drive Belt Excessive Wear Diagnosis
  • Base Engine Misfire with Abnormal Valve Train Noise
  • Base Engine Misfire with Coolant Consumption
  • Base Engine Misfire with Excessive Oil Consumption
  • Coolant in Engine Oil
  • Coolant in Combustion Chamber
  • Engine Noise Under Load
  • Lower Engine Noise, Regardless of Engine Speed
  • Engine Will Not Crank – Crankshaft Will Not Rotate
• On-Vehicle Repair Instructions

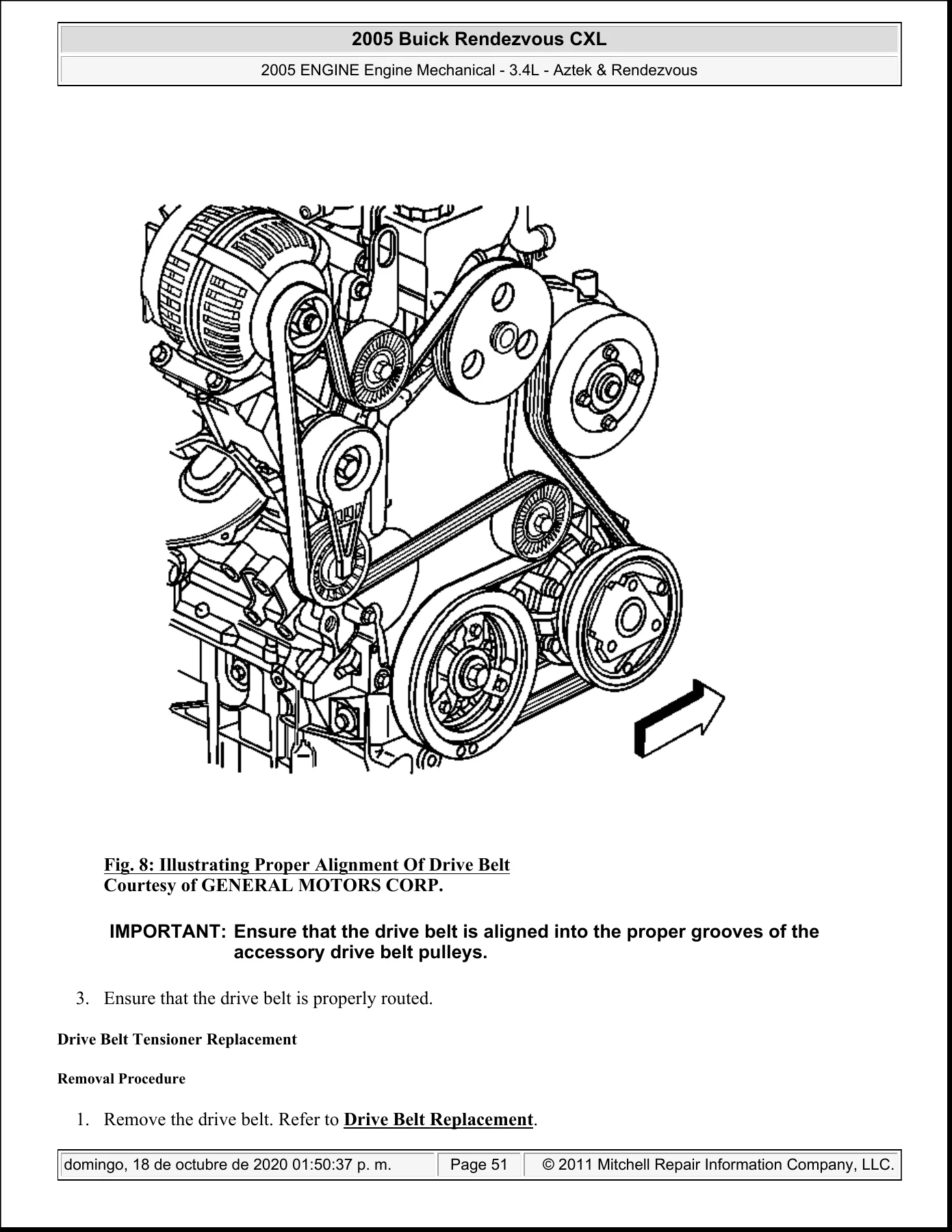

  • Drive Belt Replacement
  • Drive Belt Tensioner Replacement
  • Crankshaft Balancer Replacement
  • Crankshaft Front Oil Seal Replacement
  • Crankshaft Rear Oil Seal Replacement
  • Crankshaft Oil Deflector Replacement
  • Engine Front Cover Replacement
  • Timing Chain and Sprockets Replacement
  • Camshaft Rear Bearing Hole Plug Replacement
  • Valve Rocker Arm and Push Rod Replacement
  • Valve Lifter Replacement
  • Valve Stem Oil Seal and Valve Spring Replacement
  • Engine Oil and Oil Filter Replacement
  • Engine Oil Level Sensor and/or Switch Replacement
  • Engine Oil Pressure Sensor and/or Switch Replacement
  • Oil Level Indicator and Tube Replacement
  • Oil Filter Adapter and Bypass Valve Assembly Replacement
  • Oil Pan Replacement
  • Oil Pump Replacement
  • Oil Pump Drive Replacement
  • Positive Crankcase Ventilation (PCV) Valve Replacement
  • Engine Flywheel Replacement
  • Engine Replacement

  IMAGES PREVIEW







• Cleanliness and Care
• Engine Identification

Taken together, this 2005 Buick Rendezvous & Pontiac Aztek 3.4L V6 Engine Mechanical Service Manual gives a technician everything needed to diagnose a noise, misfire, or oil/coolant complaint on the 3.4L engine and then carry the repair through from removal to torque-to-spec reinstallation, using the same fastener values, clearances, and component callouts referenced throughout the document.

Why You Need This 3.4L V6 Engine Mechanical Manual

Engine work on the 3.4L V6 in the Rendezvous and Aztek depends on exact numbers – crankshaft main bearing clearances, connecting rod bearing torque sequences (first pass plus final-pass degree turns), piston ring end gaps, and valve seat angles are all spelled out in this manual rather than left to guesswork. Whether you’re chasing a lower-engine knock, replacing a leaking crankshaft oil seal, pulling the timing chain and sprockets, or doing a full engine swap, the step-by-step removal and installation procedures in this 2005 Buick Rendezvous & Pontiac Aztek 3.4L V6 Engine Mechanical Service Manual keep the job aligned with the correct specifications the first time, which matters for oil pressure, compression, and long-term reliability. Skipping the documented torque sequence on something like the crankshaft balancer bolt or the connecting rod bearing caps is exactly how comebacks happen, and having this manual on hand means you’re not relying on memory or a forum thread for those numbers. This is an instant PDF download – there’s no shipping wait, no physical book to store, and no compatibility issue with your device. Open it on a laptop, tablet, or phone in the shop, or print out just the pages you’re working from for a job on your 2005 Rendezvous or Aztek 3.4L engine.
