2006 Challenger 4450 MT SPRA-COUPE Liquid Sprayers Parts Manual – PDF DOWNLOAD

Description

2006 Challenger 4450 MT SPRA-COUPE Liquid Sprayers Parts Manual – PDF DOWNLOAD

DESCRIPTION:

2006 Challenger 4450 MT SPRA-COUPE Liquid Sprayers Parts Manual – PDF DOWNLOAD

TABLE OF CONTENTS:

2006 Challenger 4450 MT SPRA-COUPE Liquid Sprayers Parts Manual – PDF DOWNLOAD

SECTION 1 – ENGINE GROUP
WR121027 ENGINE SUPPORT GROUP 1-1
6703507 ARM ASSY-PULLEY 1-2
WR121163 EXHAUST GROUP 1-3
WR123096 COOLING GRP 1-4
WR123097 AIR CLEANER GRP 1-5
WR121510 FILTER-AIR 1-6
WR123098 FUEL GRP – 4000 SERIES 1-7
WR123104 INSTALL THROTTLE 1-8
WR125783 ENGINE-PERКINS 122 НР 1-9
6668788 PACКAGE-PARTS,FORD 1-1 О
503978D1 ENGINE INSTL-CAT 122НР 1-11
6665654 MOTOR-ST ARTER 1-12
SECTION 2 – DRIVELINE GROUP
WR123102 DRIVE TRAIN INSTL – 4000 МТ 2-1
WR123127 STEERING GRP – WF,80 IN 2-2
WR127275 BRAKE INSTL-4450 2-3
WR55922 BRAKE ASSY,LH 2-4
WR55923 BRAKE ASSY,RH 2-5
6800721 CYLINDER ASSY-BRAKE 2-6
WR123141 CHAINCASE GRP-4450 2-7
WR121641 CASE-CHAIN,FNL DRIVE,LH,ASM 2-8
WR121651 CASE-CHAIN,FNL DRIVE,RH,ASM 2-9
7001735 DRIVESHAFT INSTL-4000,80 2-10
WR55933 SHAFT-DRIVE 80-108 HD 2-11
7001734 ОРТ-72 IN DRIVESHAFT 2-12
6661411 TRANSMISSION ASSY 2-13
WR36176 SHAFT DRIVE T-S,MANUAL 2-14
6673306 SHAFT-DRIVE,72IN 2-15
6672337 DIFFERENTIAL ASSY 2-16
6673303 SHAFT-DRIVE,72IN 2-17
6626530 CLUTCH ASSY 2-18
SECTION З – FRAME AND SUSPENSION GROUP
WR135239 FRAME GROUP – 4000М7 3-1
WR135240 FRAME GRP – 4000М8 3-2
WR123124 FRAME-ADJ REAR 3-3
WR123125 FRAME-ADJ REAR 3-4
6595456 FRAME ASSY 3-5
WR126434 CHANNEL ASSY 3-6
6595398 FRAME ASSY 3-7
WR126433 CHANNEL ASSY 3-8
6626949 F/A-FRONT EXTENSION,SC 3-9
WR121025 FOOTBOARD GROUP 3-10
WR132676 FTBOARD GRP-W/0 ВМ REST,4450MT 3-11
6669692 HITCH-INSTL 3-12
4450 МТ SPRA-COUPE 2006
WR126866 BELLY PAN INSTL-WF 3-13
SECTION 4 – AXLE AND STEERING GROUP
WR131685 EXTENSION INSTL-FRONT 4-1
6803935 WIDE FRONT GROUP-72 IN ,SC 4-2
6803944 OPT-WIDE FRONT,SC 4-3
6803541 HUB ASSY-WHEEL 4-4
WR39080 TIE ROD ASM-3440-80 4-5
WR39079 TIE ROD ASM-3440-72 4-6
6626719 STEERING GRP-WF,72 IN 4-7
6597223 STEERING ASSY-ARM 4-8
SECTION 5 – HYDRAULIC GROUP
WR123122 TUBE ASSY 5-1
WR26528 VALVE-CHECK,CV08200N25 5-2
WR36507 CYLINDER-HYD, 5-3
WR122643 VALVE-HYD,BM LFT/ТRK ADJ,3BANK 5-4
6597879 GRIP ASSY-HANDLE 5-5
6801744 TANK ASSY-HYD 5-6
WR123630 HYD INSTL-WF STEERING 5-7
WR123631 HYD INSTL-80 AXLE ADJ, 4000 5-8
WR123632 HYD INSTL-72 AXLE ADJ, 4000 5-9
WR134265 HYD INSTL-H FRM 5-10
WR134272 ASM-VALVE,RELIEF ВООМ TIP 5-11
WR123635 HYD INSTL-BOOM FOLD 5-12
WR122415 CYLINDER-HYD,2.00X4.00X1 .00 5-13
WR129450 CYLINDER-HYD,2.00X8.44X1 .00 5-14
WR122424 CYLINDER-HYD, 1.75Х16.84Х1 .00 5-15
WR122422 CYLINDER-HYD, 1.75Х5.ООХ1 .00 5-16
WR122423 CYLINDER-HYD, 1.75Х6.19Х1 .00 5-17
WR122414 CYLINDER-HYD,2.00X20.00X1 .00 5-18
WR122407 CYLINDER-HYD,2.00X15.25Х1 .00 5-19
WR122408 CYLINDER-HYD,2.00X14.25X1 .00 5-20
WR122409 CYLINDER-HYD, 1.50Х8.38Х. 75 5-21
WR128010 CYLINDER-HYD,2.25 Х 1.00 Х 6.5 5-22
WR235991 CYLINDER ASM- ВООМ TIP FOLD 5-23
WR129756 HOSE INSTL-BM TIL T,SC6080,7X50 5-24
WR129757 HOSE INSTL-BM TIP,SC6080,7X50 5-25
WR133193 HYD INSTL-4X50MT CHAS,SC6080 5-26
6664973 VALVE-FLOAT,2 POSITION 5-27
WR128811 CYL ASM-HYD,BM SWING, SC6080 5-28
WR128929 TUBE INSTL-HYD,H FRAME 5-29
WR133622 VALVE ASM-HYD,BOOM,6 BANK,4X50 5-30
WR122642 VALVE-HYD,BOOM,6 BANK 5-31
WR133623 HOSE INSTL-HYD,H FRAME,4X50 5-32
WR133625 HOSE INSTL-HYD,BM LFT,4X50 5-33
WR133621 VALVE INSTL-HYD,BM,6 BANK,4X50 5-34
WR134266 ASM VALVE-HYD, Н FRAME 5-35
WR134515 HYD INSTL-CHASSIS,4000M 5-36
WR134293 ASM VALVE-2 POSITION, FLOAT 5-37
4450 МТ SPRA-COUPE 2006
WR134516 ASM PUMP-HYD 4000,CHASSIS
WR134517 ASM-VALVE CHARGE
WR134518 ASM FIL TER-HYD,4000,CHASSIS
WR134519 ASM-SWITCH PRESSURE
WR134520 ASM VALVE-HYD,4000,CHASSIS
WR134282 HYD INSTL-H FRAME
WR134283 ASM VALVE-HYD, Н FRAME
WR134289 HYD INSTL-NO Н FRM
WR37386 VALVE ASSY-CONTROL
WR123121 PUMP HYDRAULIC
WR122403 CYLINDER-HYD,2.00X20.00X1 .00
6801835 TANK ASSY
SECTION 6 – САВ GROUP
6801637 PEDAL ASSY-BRAKE
6669627 VALVE-MODULATING
503977D1 САВ INSTL CHAL
504177D1 САВ ТОР ASM-CHAL
WR134145 КIT-RADIO,SC
WR127683 SEAT INSTL
6653399 SEAT-SUSPENSION
6672201 THROTTLE ASSY-HAND
WR125695 CLUTCH PEDAL INSTL
WR127307 SHIFT INSTL-MT
505457D1 КIT-RADIO,SC
505432D1 HYD INSTL-CHAS,4000M,SC6080
SECTION 7 – AIR CONDITIONING AND HEATING GROUP
HEATER-КIT
AIR CONDITIONER-КIT
BLOWER-КIT
FAN ASSEMBL У
SECTION 8 – ELECTRICAL GROUP
6624973 КIT-OVERSPRA У
WR123114 ELECTRICAL INSTL-3 VALVE
WR123116 ELECTRICAL INSTL-5 VALVE
WR128001 BATTERY INSTALL
WR134429 ELECTRICAL INSTL-CHASSIS,4000M
WR128124 ELECTRICAL INSTL-CAB
WR128557 F/A-FLOODLIGHT КIТ
WR126509 AL TERNA TOR, 140 АМР-2 GROOVE
6617401 LIGHT ASSY
6663952 LIGHT-FLOOD,MED
SECTION 9 – APPEARANCE GROUP
503981D1 HOOD INSTL-CHAL
4450 МТ SPRA-COUPE 2006
504172D1 HOOD ASM-CHAL
SECTION 1 0 – TIRE AND WHEEL GROUP
TIRE INSTL-320/9,GRAY
TIRE ASM-320/85R24,LH,GRAY
TIRE ASM-320/85R24,RH,GRAY
TIRE ASM-9.00X24,GRAY
SECTION 1 1 – DECAL GROUP
503984D1 DECAL INSTL-CHAL,4450
SECTION 1 2 – TANK AND SADDLE GROUP
SECTION 1 3 – PRODUCT PUMP AND PRESSURE PLUMBING GROUP
WR123351 SPRAY INSTL-60 FT MANIFOLD 13-1
WR123567 SPRAY INSTL-4000 CHASSIS 13-2
WR128592 SPRAY SYSTEM INSTAL-H FRM 13-3
WR55864 VALVE ASSY-BOOM SHUT OFF, 13-4
WR55858 VALVE ASSY-КZ, 3 SECTION, 13-5
WR425565 SPRAY INSTL-CTR MANIFOLD 13-6
WR123352 SPRAY INSTL-80 FT MANIFOLD 13-7
WR123568 SPRAY INSTL – Н FRM 13-8
WR55861 VALVE ASSY-BOOM SHUT OFF, 13-9
WR425567 SPRAY INSTL-LOOSE PARTS КIТ 13-10
6596508 NOZZLE ASSY-SINGLE 13-11
6596509 NOZZLE ASSY-DOUBLE 13-12
6668810 PUMP-SPRAY 13-13
6802436 VALVE ASSY-INLET 13-14
6665873 FIL TER ASSY-BOOM 13-15
WR55856 VALVE ASSY-КZ, 5 SECTION, 13-16
WR132508 NOZZLE ASM-SINGLE 13-17
WR132509 NOZZLE ASM DOUBLE 13-18
WR133819 MANF INSTL-CTR,SC6080,4X50 13-19
WR133905 VALVE ASM-SHUTOFF,BM SECT,5 13-20
6632184 VALVE-PRESSURE,CONTROL 13-21
WR133820 ОРТ-РР PLMB,SC6080X5X20,ON 13-22
WR127095 PIPE ASM-90D W/1.00HB,6X20,PP 13-23
WR127097 PIPE ASM-T W/2 1.ООНВ,5Х20,РР 13-24
WR133893 PIPE ASM-X W/3 1.ООНВ,5Х20,РР 13-25
WR133896 PIPE ASM-T W/2 1.ООНВ,2Х20,РР 13-26
WR133897 PIPE ASM-90D W/1.00HB,3X20,PP 13-27
WR133898 BRKT ASM-STR,LG,2IPS,REV Р CLP 13-28
WR133980 NOZZLE ASM-OPT,80X20 ON,TPL 13-29
4450 МТ SPRA-COUPE 2006
6596121 STRAINER-MANIFOLD 13-30
6512905 INSERT ASSY-SQ END 13-31
WR50914 VALVE-BALL,2IN FP,W/CAM 13-32
6670750 FIL TER-INLINE 13-33
504212D1 FLWMTR КIT-2.00SP FLG,RFM60P 13-34
WR128771 FLWMTR-2.00SP FLG,RFM60P,12V 13-35
SECTION 1 4 – ВООМ GROUP
WR37476 TIL Т RACK ASSEMBL У 14-1
WR37776 TUBE ASSY-RACK TIL Т 14-2
WR37564 ВООМ LIFT GROUP 14-3
WR37810 REAR Н FRAME GROUP 14-4
WR121622 SPRING, ASSY 14-5
WR123366 ВООМ GRP-RH,60 FT 14-6
WR38719 LINK ASSY-WING FOLD,INNER 14-7
WR38720 LINK ASSY-WING FOLD,OUTER 14-8
WR123367 ВООМ GRP-LH,60 FT 14-9
WR123368 ВООМ GRP-RH,80 FT 14-10
WR123369 ВООМ GRP-LH,80 FT 14-11
WR425564 КIT-LOOSE PARTS,BOOM HINGE 14-12
WR128736 ОРТ-ВООМ 60/80 14-13
WR125308 ВООМ ASM-60/80,LH 14-14
WR125307 ВООМ ASM-60/80 14-15
WR125309 ВООМ ASM-60/80,RH 14-16
WR128733 RACK INSTL-TIL Т,ВООМ,60/80 14-17
WR125244 RACK ASM-TIL Т,ВООМ,60/80 14-18
WR128734 FRAME INSTL-H,REAR,BM,60/80 14-19
WR128732 FRAME ASM-H,REAR,BM,60/80 14-20
WR133801 BAR INSTL-MTG,PLMB,CTR,SC6080 14-21
WR133805 LIFT INSTL-BOOM,PAR LINK,4X50 14-22
WR133821 BOOMREST INSTL-SC6080,4X50 14-23
6804644 BAG-PARTS 14-24
WR122500 BRKT ASM-STR,LG,3IPS CLP 14-25
WR122516 BRKT ASM-STR,SH,IPS CLP,P CLP 14-26
WR122517 BRKT ASM-STR,LG,IPS CLP,2P 14-27
WR122519 BRKT ASM-STR,LG,2IPS CLP 14-28
WR122520 BRKT ASM-L,PP STAUFF 14-29
WR122571 BRKT ASM-L,PP STAUFF,REV Р CLP 14-30
WR122610 BRKT ASM-L,PP STAUFF,CTR Р CLP 14-31
WR129084 BRKT ASM-STR,LG,2IPS CLP,1.00U 14-32
WR129085 BRKT ASM-L,PP STAUFF, 1.00U 14-33
WR129086 BRKT ASM-STR,SH,IPS CLP, 1.00U 14-34
WR132555 BRKT ASM-STR,LG,2IPS,P CLP 14-35
WR519562 NOZ HLDR-TPL 1.00 IPS 14-36
SECTION 1 5 – CONTROLLER GROUP
505464D1 CONTROLLER INSTL-RAVEN 460,WF 15-1
SECTION 1 6 – FOAM MARKER GROUP
4450 МТ SPRA-COUPE 2006
WR55875 F/A-MARKER,RSC 2130
6631680 COMPRESSOR-FOAM MARKER
WR55879 FIL TER ASSY-CARBON
WR55904 DEFLECTOR-COLLECTOR, 2 IN
WR55888 RSC FOAMHEADNALVE ASSY
WR55908 TANK ASSY,13 GAL RSC2130
WR55910 CAP-ASSY, 2 1/4 IN
6660391 FIL TER ASSY, INCLINE
WR132886 CONTROL MODULE ASSEMBL У
SECTION 1 7 – OPTIONS GROUP
WR125685
WR130579
WR130580
WR131686
WR126863
FRESH WATER INSTL
F/A-50HR FIL TER КIТ
F/A-500HR FIL TER КIТ
OVERSPRAY INSTL

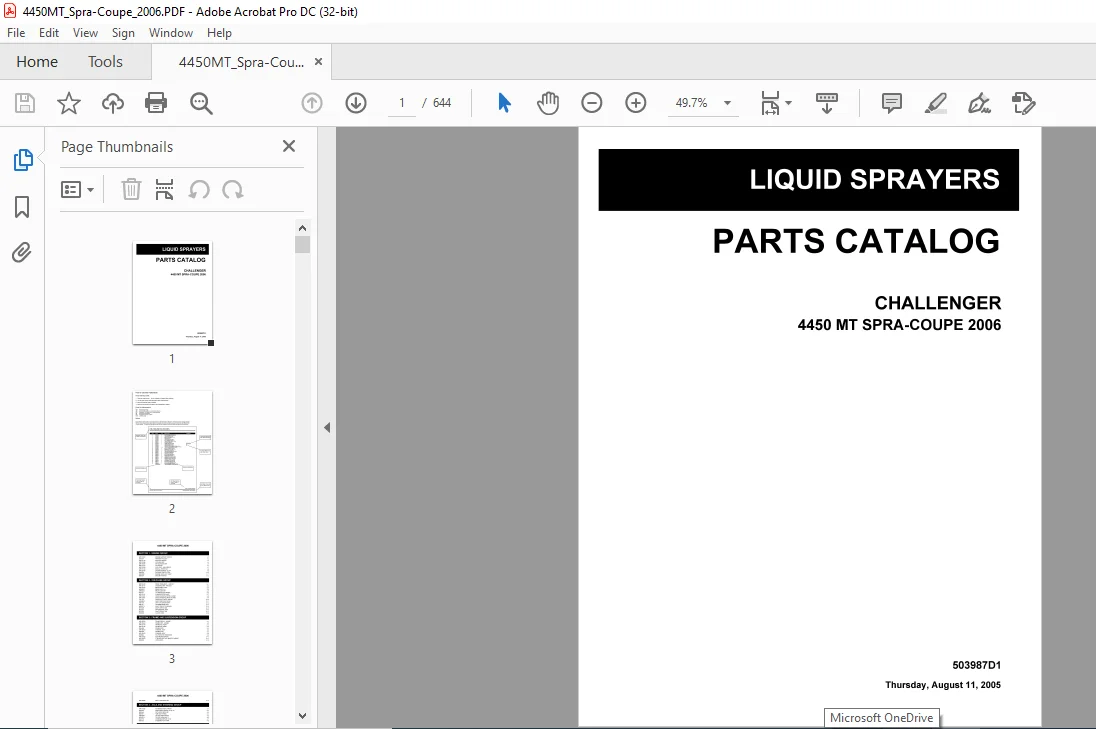

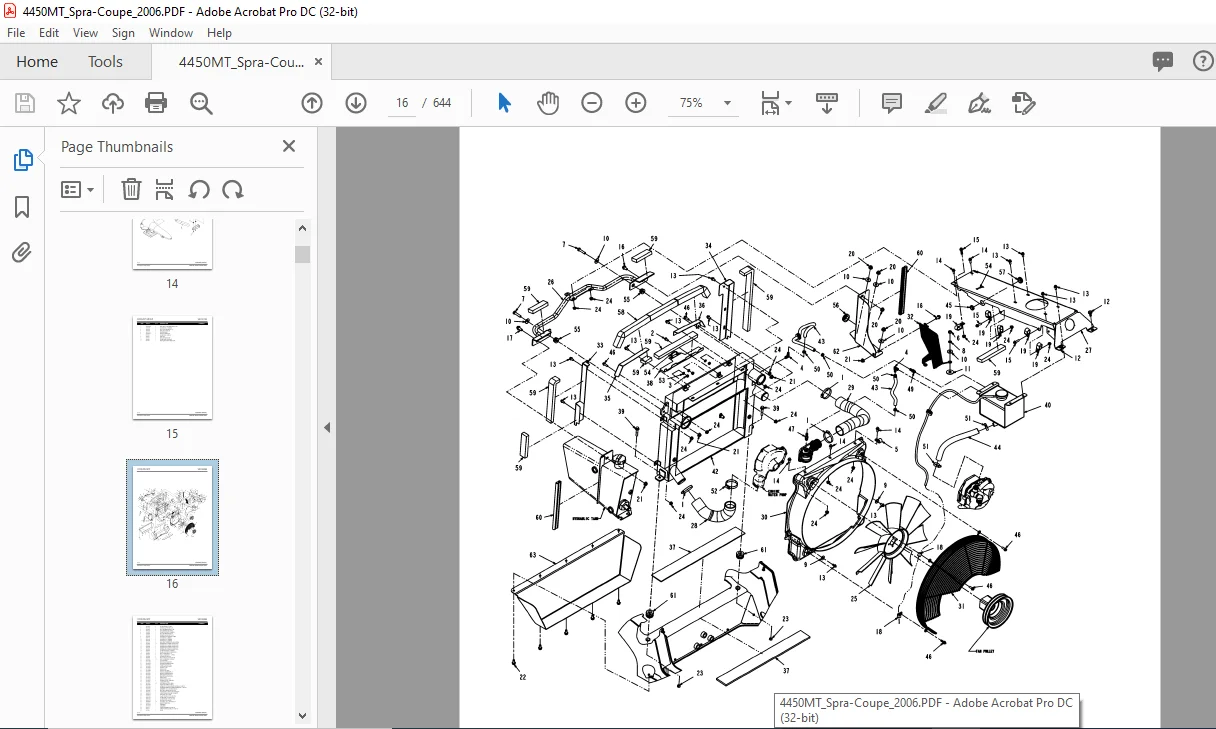

IMAGES PREVIEW OF THE MANUAL:
