2007-2011 Volvo XC90 Workshop Repair Manual- PDF DOWNLOAD
Original price was: $86.95.$30.95Current price is: $30.95.
2007-2011 Volvo XC90 Workshop Repair Manual- PDF DOWNLOAD
Description
2007-2011 Volvo XC90 Workshop Repair Manual- PDF DOWNLOAD
FILE DETAILS:
2007-2011 Volvo XC90 Workshop Repair Manual- PDF DOWNLOAD
Language : English
Pages : 35120
Downloadable : Yes
File Type : PDF
Size: 283 MB

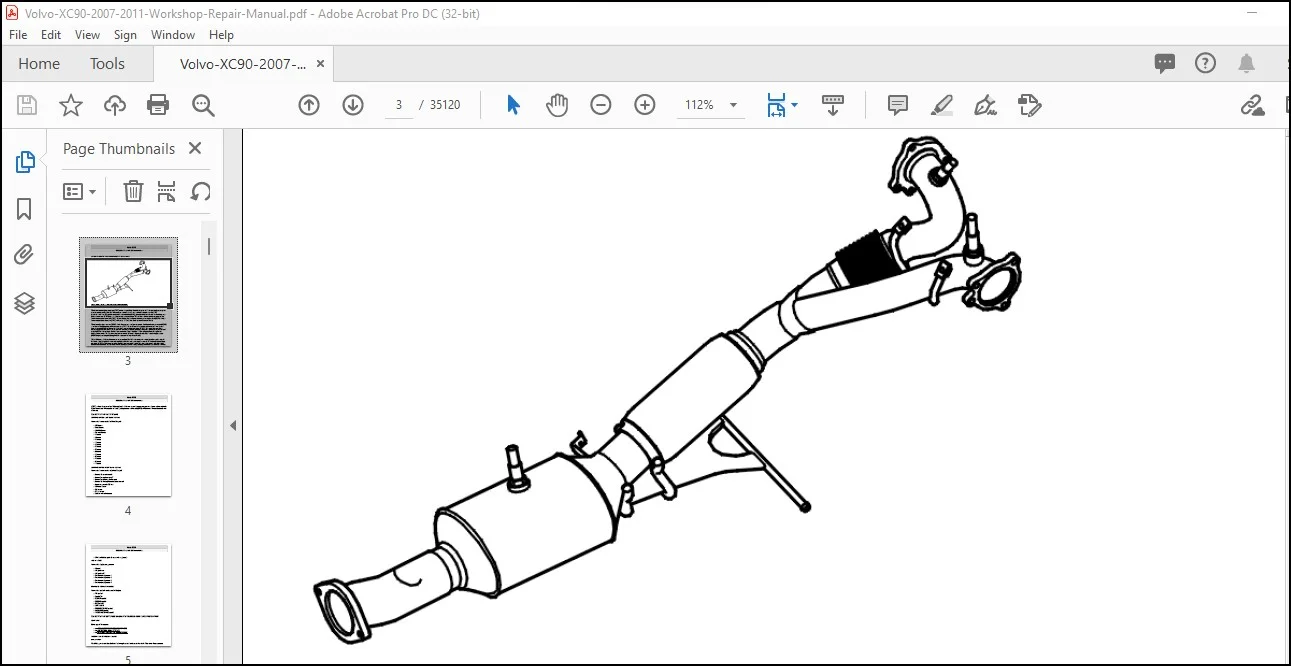

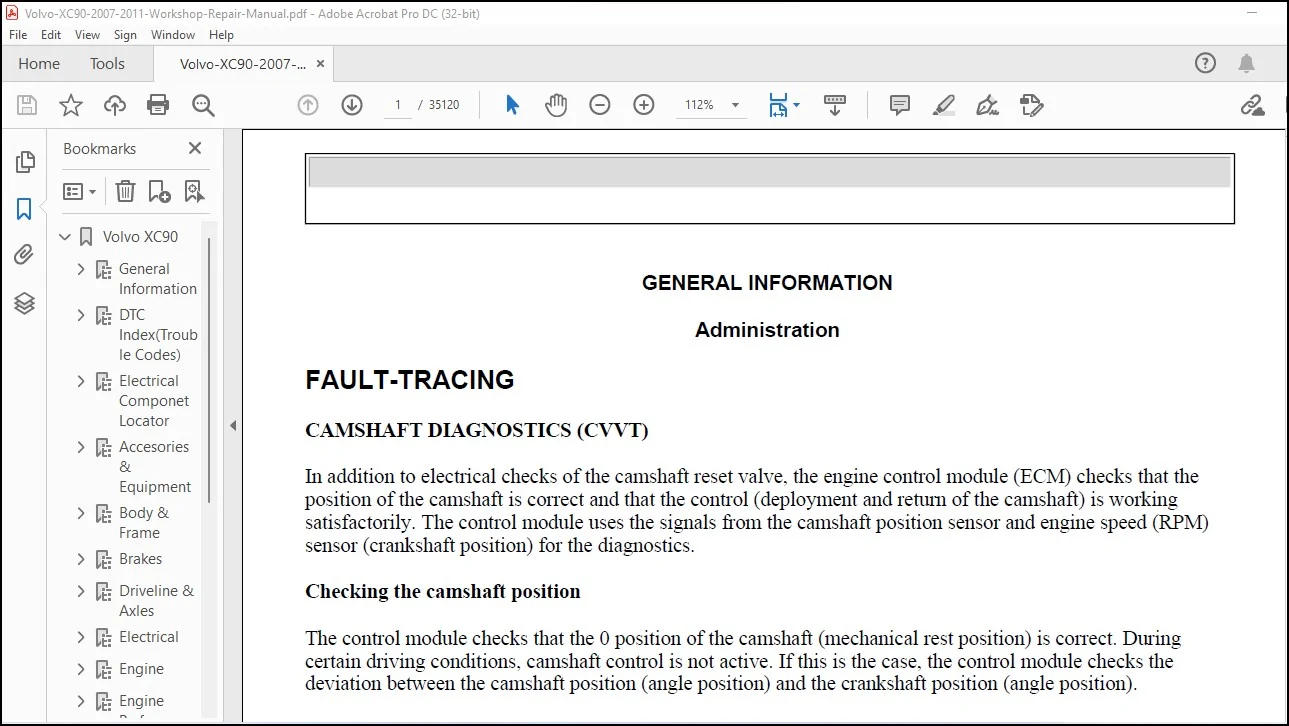

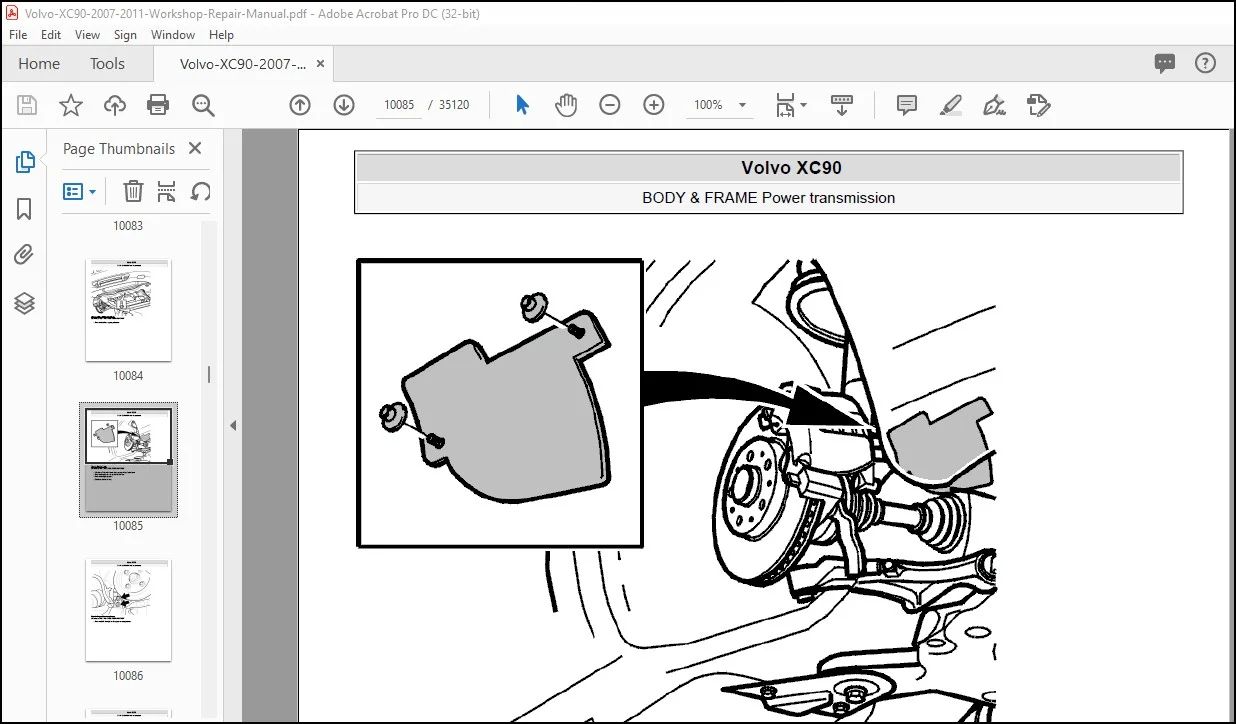

IMAGES PREVIEW OF THE MANUAL:
This is the complete OEM workshop repair manual for the Volvo XC90, covering model years 2003–2012. The manual is written for professional technicians and covers every system on the vehicle — from full engine overhaul procedures across five engine variants to individual diagnostic trouble codes for every electronic control module on the car.
The file includes factory fault-tracing logic, step-by-step removal and installation procedures, signal specifications, wiring diagrams, and DTC-by-DTC repair procedures for over 20 control modules. This is the same reference used by Volvo dealership technicians.
| VehicleVolvo XC90 | Years Covered2003 – 2012 |
| Engine VariantsB5254T2 · B6294T · B6324S · B6324S5 · B8444S | Transmissions4T65 AWD · AW50/51 · AW55-50/51SN · TF-80SC · TF-80SC AWD |
| File FormatPDF | Manual Pages35,000+ |
Engine Systems
Full repair coverage for all five engine variants including crank mechanism, cylinder head, timing gear/chain, fuel system, intake/exhaust, valve mechanism, CVVT camshaft diagnostics, oil system, cooling system, ignition and engine management. Includes overhaul specifications with tolerances for each engine code.
Diagnostic Trouble Codes — All Control Modules
Individual DTC procedures for every module: ECM (engine), TCM (transmission), BCM (brakes), CCM (climate), CEM (central electronics), REM/UEM/AEM (body modules), DDM/PDM (door modules), DIM (instruments), SRS (restraints), SAS (steering angle), PSM (power seats), PHM/BPM (phone), IAM/AUD/ICM/MMM (infotainment), DEM (differential), GPS, HCM (headlamp), and more.
Electrical & Electronics
Full system wiring diagrams, electrical component locator, connector and ground locations, CAN network fault-tracing, LIN bus diagnostics, MOST network, and signal specifications for every control module.
Transmission
Complete DTC and repair procedures for all automatic transmission variants, gear ratio checks, solenoid and pressure control diagnostics, oil level/quality checks, torque converter, gear selector, and full removal/installation procedures.
Brakes, Steering & Suspension
ABS/DSTC brake control system with full DTC index, hydraulic brake system, parking brake, wheel alignment, front and rear suspension, power steering, steering column, and steering angle sensor module.
Body, Doors & Interior
Doors and lids with full DDM/PDM DTC coverage, power windows, central locking, sun roof, exterior glass and weather-strip, body frame repair, interior upholstery, seats, seat belts, SRS airbag system, and interior equipment.
Climate & HVAC
Climate control module DTC procedures for all variants, blower motor, damper motors, seat heating, evaporator, air conditioning, combustion pre-heater (parking heater), and auxiliary heater systems.
Infotainment, Phone & Navigation
Full repair coverage for all infotainment generations (2003–2012) including ICM, IAM, AUD, MMM, PHM, BPM, GPS, ATM, RSE rear seat entertainment, Bluetooth, USB/iPod, satellite radio, and parking assistance camera.
Driveline & AWD
Propeller shaft, front and rear drive shafts, CV joints, differential electronic module (DEM) with full DTC index, centre differential, and all AWD variants across every model year.
General & Fault-Tracing – General fault-tracing procedures – Overhaul / thread repair instructions – Power transmission flanged joints – Stock maintenance checklists (2003–12) | DTC Index — All Modules – AEM · AUD · AUU · BCM – CCM · CEM · DDM/PDM · DEM – DIM · ECM (B6324S / B8444S) – GPS · HCM · IAM · ICM · MMM – PHM/BPM · PSM · REM · SAS · SRS · TCM · UEM |
Electrical System – Component locator (relays, sensors, solenoids, connectors, grounds) – CAN / LIN / MOST network fault-tracing – Cables, fuses, central fusebox – Wiring diagrams — all systems – Battery, alternator, starter motor | Engine – ECM — B6324S / B6324S5 / B8444S – Crank mechanism, cylinder head, timing – Fuel system, injectors, EVAP – Intake, exhaust, turbocharger – Oil system, cooling system, ignition, CVVT – Full mechanical specifications (all variants) |
Transmission – 4T65 AWD · AW50/51 · AW55 · TF-80SC – TCM DTC procedures — all variants – Solenoids, pressure control, gear ratios – Gear selector, torque converter – Full removal/installation + wiring diagrams | Brakes – BCM DTC procedures (2003–2012) – ABS / DSTC brake control system – Master cylinder, brake booster – Front and rear wheel brakes – Parking brake, hydraulic bleeding |
Driveline & AWD – DEM DTC index — all AWD variants – Propeller shaft, CV joints – Centre differential — all variants – Drive shafts, hub and bearing – Wheels, tires, hubs | Steering & Suspension – SAS / SWM DTC procedures – Power steering, steering gear – Front axle, control arms, spring struts – Rear suspension, sub-frame – Anti-roll bar, shock absorbers, wheel alignment |
Body, Doors & Interior – DDM / PDM DTC procedures (2003–12) – Power windows, mirrors, central locking – Sun roof, tailgate, fuel filler – Exterior glass, seals, trim, emblems – Body frame repair — all sections | Interior & Restraints – PSM / SRS / DIM DTC procedures – Front and rear seats — all variants – Seat belts, SRS airbag system – Dashboard, radio panel, interior trim – Child safety systems |
Climate & HVAC – CCM DTC procedures (2003–12) – Blower, damper motors, evaporator – Seat heating, air quality sensor – A/C system, refrigerant – Combustion pre-heater / parking heater | Infotainment & Media – ICM · IAM · AUD · MMM DTC procedures – PHM / BPM phone module DTCs – Rear seat entertainment — Gen 3/4 – Navigation, GPS, Bluetooth, USB/iPod – Parking assistance camera (PAC) |
Lighting – HCM DTC procedures (2007–12) – Front / rear / interior lighting R&R – Xenon headlamp, beam adjustment | System Wiring Diagrams – A/C · ABS · Anti-theft · Body control · CAN data lines – Engine performance · Exterior/interior lights – Ground & power distribution · Door locks · Power seats – Radio · SRS · Transmission · Sunroof · Wipers |
