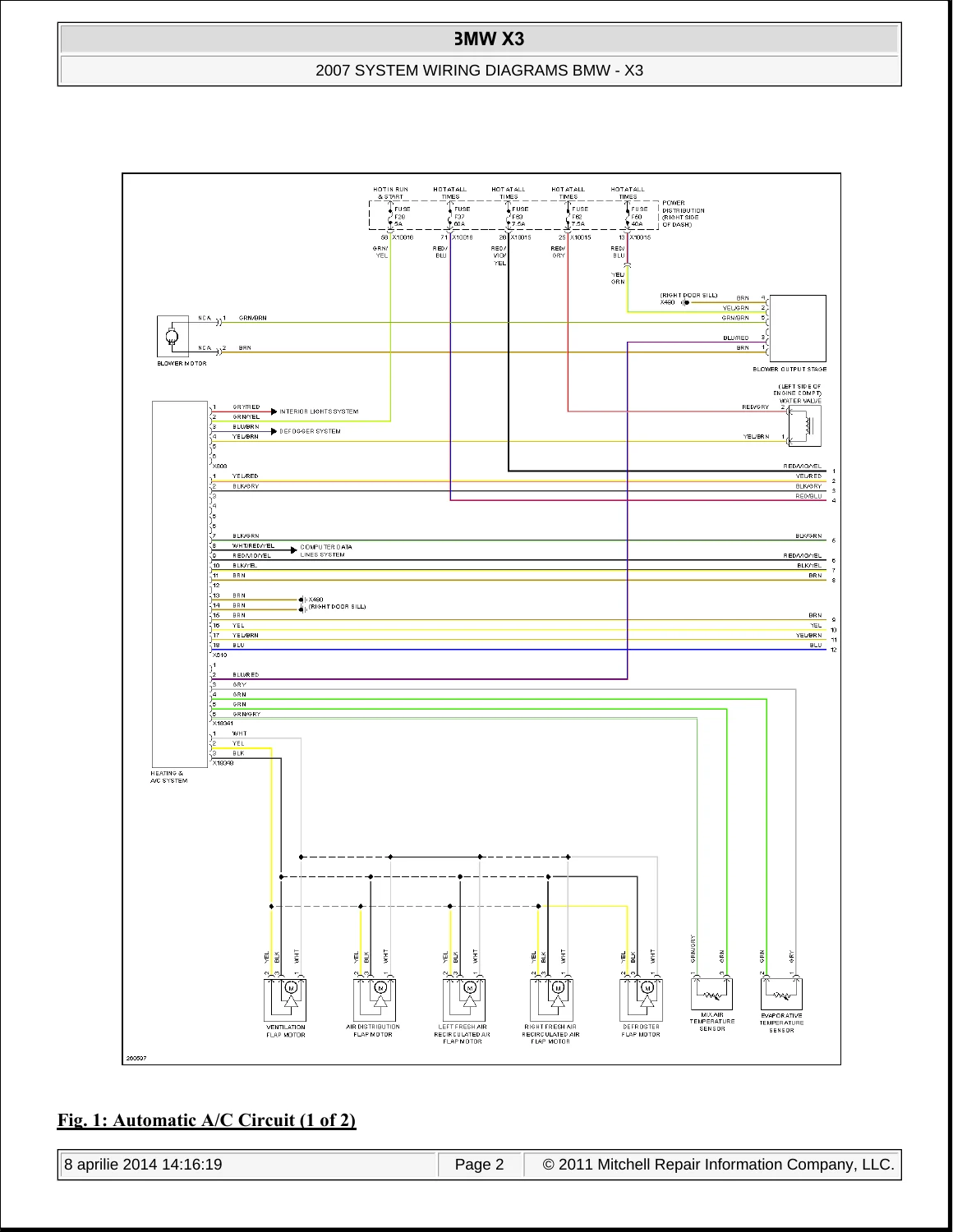

2007 BMW X3 E83 Workshop Repair Manual & Wiring Diagrams PDF
This 2007 BMW X3 E83 Workshop Repair Manual & Wiring Diagrams PDF is an exceptionally extensive 5817-page technical reference compilation built around the BMW X3 E83. It brings together workshop repair instructions, technical data, tightening torques, special-tool information, diagnostic material, system descriptions and a dedicated collection of 2007 BMW X3 electrical circuit diagrams. The depth of the material makes it suitable for jobs ranging from routine servicing and component replacement to drivetrain work, electrical troubleshooting and major mechanical repair.
The workshop information is presented in the detailed procedure-oriented format used throughout the source material: preliminary operations are identified before a repair, special tools are called out where required, individual fasteners are linked to tightening specifications, installation notes are separated from removal instructions, and warnings are placed directly beside operations where incorrect handling could cause damage or injury. Numerous component illustrations, assembly drawings and electrical schematics accompany the procedures.
This is a large reference compilation rather than a single short handbook. Alongside X3 E83-specific repair information, it includes BMW technical training and service information applicable to the E83 and, in some sections, related BMW models or earlier X3 configurations used to explain shared systems and service procedures. The applicable model or engine designation is shown within the individual procedures, allowing the technician to select the information relevant to the vehicle being serviced.
File Details
- Manual Type: Workshop Repair Manual and Wiring Diagrams Reference Compilation
- Brand: BMW
- Model: X3 / E83
- Model Year: 2007
- Language: English
- Page Count: 5817 pages
- File Format: PDF
Workshop Repair Information

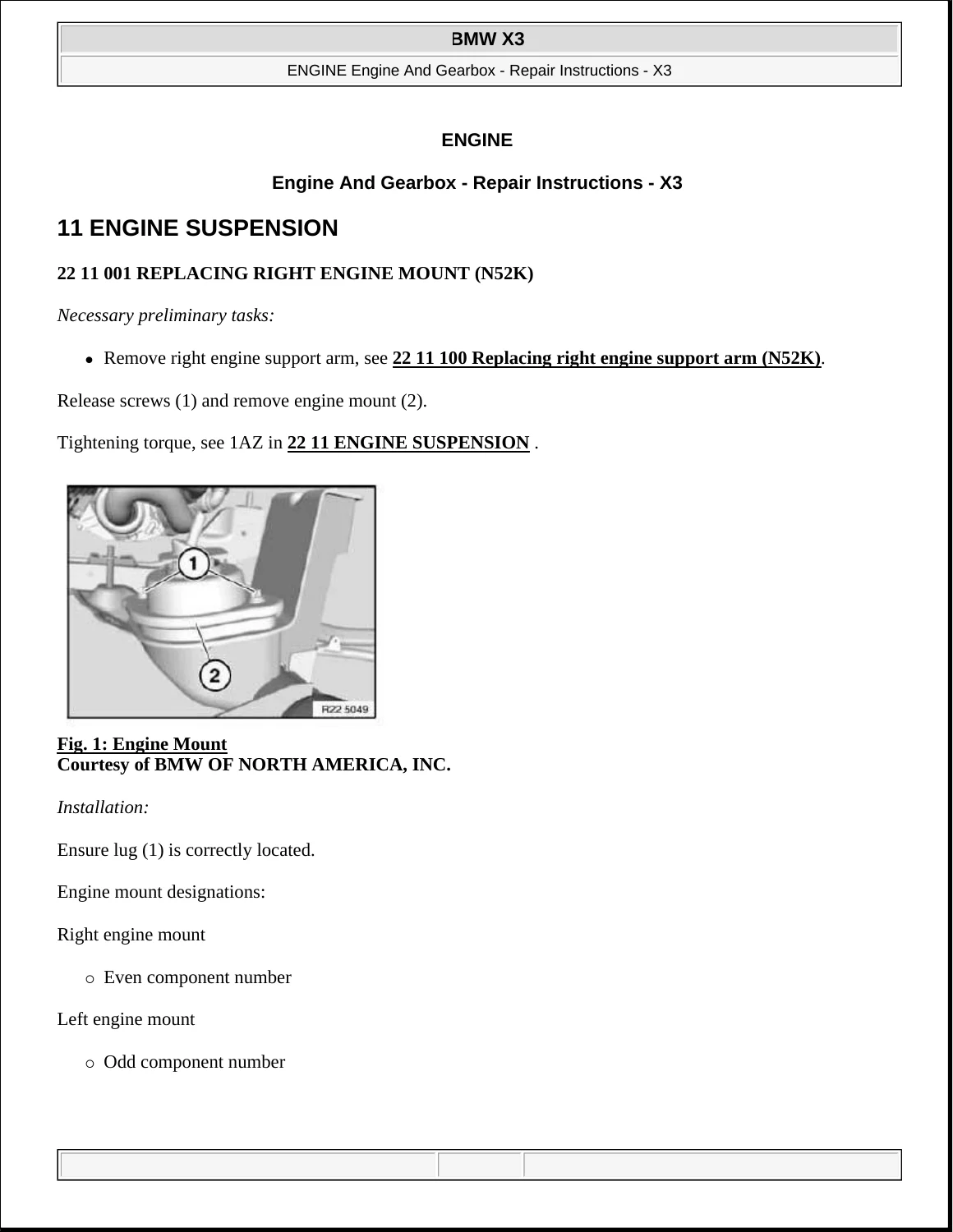

The mechanical portion of the 2007 BMW X3 E83 workshop manual goes well beyond basic maintenance instructions. Detailed repair procedures show component removal, disassembly where applicable, installation order, required preliminary work and the special tools BMW specifies for many operations. Engine-related material includes six-cylinder mechanical service, engine mounting and support components, oil-service procedures, cylinder-head and valve-train work, measuring techniques, intake and fuel-system components, sensors, exhaust-system repair and extensive tightening-torque references.
Examples within the engine sections include procedures for engine mounts and support arms, securing the engine in its installation position, engine oil and filter service, ignition-related components, variable valve gear, intake hoses, coolant-temperature sensing, exhaust removal and installation, and numerous related assemblies. Diagnostic information is also present for engine-management systems, including fault-code descriptions, monitoring criteria, possible fault causes and prescribed repair or test actions.
Drivetrain, Transmission and xDrive Coverage
The drivetrain material includes the BMW X3 transmission, driveshaft and xDrive-related systems. Manual-transmission information includes removal and installation procedures, servicing cautions, approved lubricant requirements and technical data. Transfer-case coverage includes removal, replacement operations and servicing of the ATC 400 xDrive transfer case, including oil-level instructions and post-replacement service functions where specified.
The reference material also explains the E83 drive arrangement, including front and rear driveshafts, front axle drive, rear final drive, output shafts and the relationship between the transfer case and the front and rear driveline. Component illustrations help identify mounting points, shafts, joints and associated hardware during repair.
Brakes, Steering and Suspension
Brake-system chapters contain both service procedures and technical data. The material includes front and rear brakes, brake discs, brake-pad wear information, parking-brake specifications, brake testing and bleeding, tightening torques and the special tools used during hydraulic brake work. Technical-data sections provide measurable limits such as disc dimensions, minimum thickness and parking-brake dimensions where applicable.
Steering and wheel-alignment sections provide illustrated repair procedures covering steering-wheel and steering-column related work, steering-system components, hydraulic connections, alignment operations and the tools used for adjustment or disassembly. Safety procedures are included for repairs involving the steering-wheel airbag, with specific warnings concerning removal, handling and installation of gas-generator components.
Body, Interior and Equipment Repairs
The BMW X3 E83 repair manual also covers substantial body and equipment work. Exterior body-panel procedures include removal, replacement and repair operations for structural and trim components, with illustrations showing screw locations, weld areas, panel positioning and replacement sections. The material includes instructions for front and rear body areas, side panels and related assemblies.
Complete PDF Bookmark Tree
Complete Bookmarks
The complete bookmarks in the “2007 BMW X3 E83 Workshop Repair Manual & Wiring Diagrams PDF” are as follows:
+BMW X3 2007p. 1
+General Informationp. 1
+Basic Engine Measuring Techniques – Overviewp. 1
BASIC MEASURING TECHNIQUESp. 1
+BMW Universal Bluetooth – Overview – All Modelsp. 26
BMW UNIVERSAL BLUETOOTH™p. 26
+Breakout Boxes & Connectors – Overviewp. 56
BREAKOUT BOXES AND CONNECTORSp. 56
+Car Care Products – Operating Fluidsp. 169
1.0 BMW CAR CARE PRODUCTS AND ALTERNATE SUPPLIERSp. 169
+Charging Systems – Overviewp. 172
+CIP Programming – Overviewp. 208
+Coding And Programming – Overview – All Modelsp. 224
INTRODUCTION TO CODING & PROGRAMMINGp. 224
CODING & PROGRAMMING EQUIPMENTp. 233
CODING PLUGp. 285
VARIANT CODINGp. 295
CODING CODEp. 306
VEHICLE CODING INFORMATIONp. 310
EPROMS & EEPROMSp. 329
PROGMANp. 337
CODING, INDIVIDUALIZATION & PROGRAMMING (CIP)p. 400
+Complete Vehiclep. 487

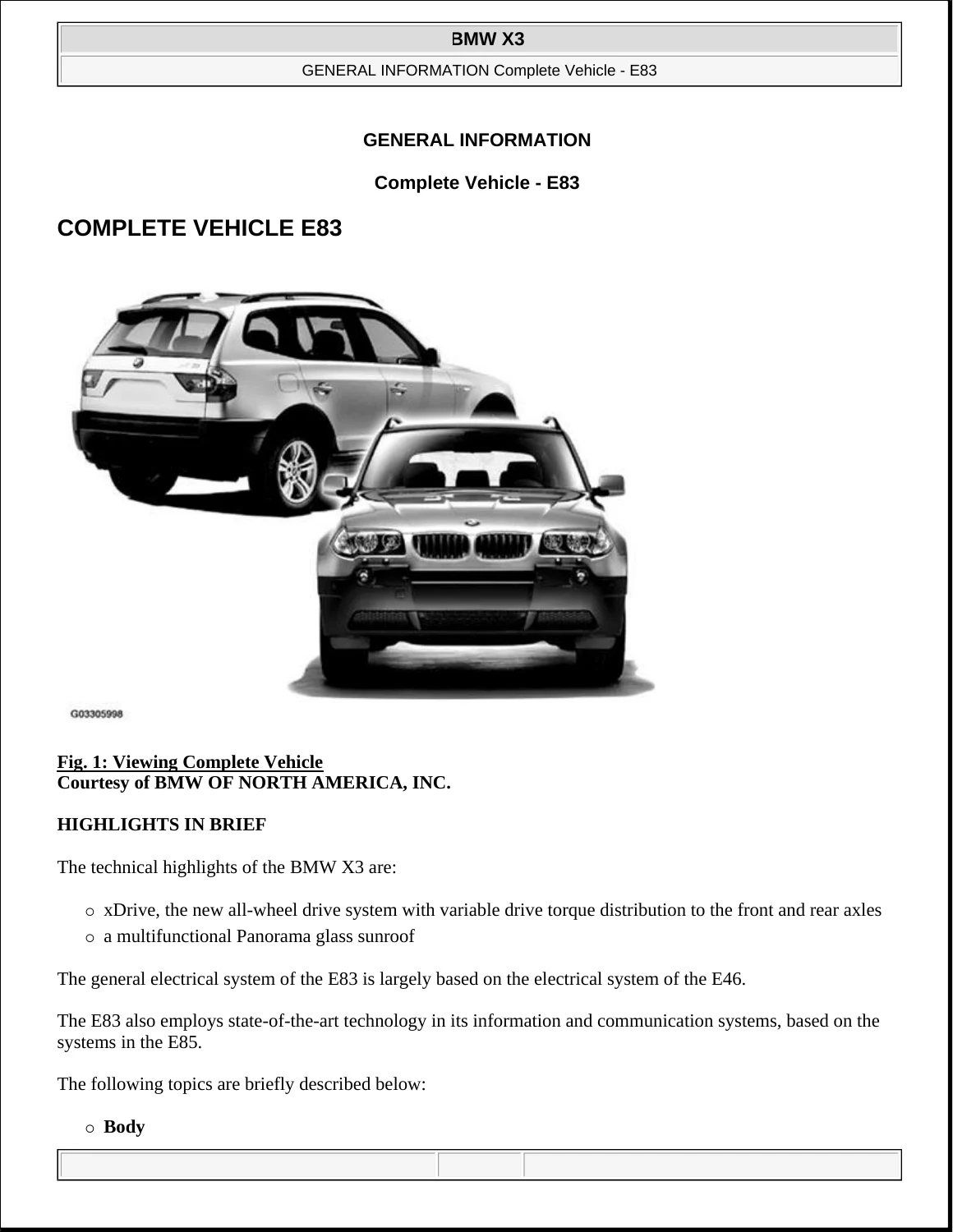

COMPLETE VEHICLE E83p. 487
+Drive – Overviewp. 501
+DVOM – Overviewp. 517
+E83 Product Overviewp. 549
E83 LIFE CYCLE IMPULSEp. 549
+Electronic Signals – Overview – All Modelsp. 559
+Emissions – Overviewp. 608
+Engine Diagnosis – Overviewp. 636
+Engine Service Informationp. 673
+New Engine Technology – Overviewp. 743
BASIC MEASURING TECHNIQUESp. 743
+Passive Safety Systemp. 760
INTRODUCTION TO PASSIVE SAFETYp. 760
+Safety Systems – Overviewp. 778
+Starting Systems – Overviewp. 796
+Telephone Diagnostics – Overview – All Modelsp. 819
+The Battery – Overview – All Modelsp. 829
+Understanding Diagnostics – Overview – All Modelsp. 868
UNDERSTANDING DIAGNOSTICSp. 868
+xDrive & DSC – Overviewp. 875
+DTC Index(Trouble Codes)p. 900
+DTC INDEX – THEORY & OPERATIONp. 900
DIAGNOSTIC TROUBLE CODE INDEXp. 900
+DTC INDEXp. 903
SELF-DIAGNOSTICS DTCSp. 903
+Electrical Componet Locationsp. 919
+Diagnostic Connector (DLC) Locationsp. 919
DOMESTIC CARSp. 919
DOMESTIC LIGHT TRUCKS & VANSp. 925
IMPORTED CARS & TRUCKSp. 928
+Electrical Componet Locatorp. 952
BUZZERS, RELAYS & TIMERSp. 952
CIRCUIT PROTECTION DEVICESp. 952
CONTROL UNITSp. 952
MOTORSp. 953
SENDING UNITS & SENSORSp. 954
SOLENOIDS & SOLENOID VALVESp. 955
SWITCHESp. 955
MISCELLANEOUSp. 955
CONNECTORSp. 957
GROUNDSp. 957
SPLICESp. 957
COMPONENT LOCATION GRAPHICSp. 958
+Accesories & Equipmentp. 1020
+Audio – SI Techniquesp. 1020
FUNCTIONS CHANGED AFTER VEHICLE PROGRAMMING E60, E61, E63,p. 1020
E64, E65, E66, E87, E90, E91p. 1020
FUNCTIONS CHANGED AFTER VEHICLE PROGRAMMING E60, E61, E63,p. 1020
E64p. 1020
SATELLITE DIGITAL AUDIO RADIO SERVICE E60, E61, E63, E64, E90, E91p. 1020
DIGITAL AND ANALOGUE TELEVISION E60, E61, E63, E64, E65, E66p. 1051
ANTI-THEFT ALARM SYSTEM E63/E64p. 1107
+Audio, Navigation and Anti-Theft – Repair Instructionsp. 1108
11 MONO RADIOp. 1108
12 STEREO RADIO, AMPLIFIERp. 1111
13 SPEAKER AND COVERp. 1116
20 AERIAL/ANTENNAp. 1119
24 REAR WINDOW AERIAL/ANTENNAp. 1125
50 VIDEO AND TV EQUIPMENTp. 1127
75 ANTI-THEFT ALARM SYSTEMp. 1130
77 AIRBAG TRIGGER DEVICEp. 1133
81 ON-BOARD COMPUTERp. 1140
90 NAVIGATION SYSTEMSp. 1142
+Audio, Navigation and Anti-Theft – SI Techniquesp. 1154
MULTIPLE RESTRAINT SYSTEM 4p. 1154
+Audio, Navigation and Anti-Theft – Special Toolsp. 1163
65 AUDIO, NAVIGATION AND ANTI-THEFTp. 1163
+Audio, Navigation and Anti-Theft – Tightening Torquesp. 1164
52 VIDEO MONITORp. 1164
77 AIRBAG TRIGGER DEVICEp. 1164
+Cellular Phone Systems – Repair Instructionsp. 1166
11 TRANSCEIVER, HANDSET AND SUPPORT, CARD READERp. 1166
21 HANDHELD COMPUTERp. 1169
50 ANTENNAp. 1172
+Cruise Control – Special Toolsp. 1174
66 DISTANCE SYSTEMS, CRUISE CONTROLp. 1174
+Cruise Control Systems – Repair Instructionsp. 1175
20 PARK DISTANCE CONTROLp. 1175
+Electrical Drives – Repair Instructionsp. 1181
11 CENTRAL LOCKING UNIT/UNLOCKING UNITSp. 1181
13 MIRROR ADJUSTMENTp. 1183
31 DRIVE, SEAT ADJUSTMENTp. 1186
61 DRIVE, SLIDE-TILT SUNROOF/CONVERTIBLE TOPp. 1190
62 DRIVE, WINDOW REGULATORp. 1193
66 DRIVE, SEAT ADJUSTMENTp. 1196
+Electrical Drives – Tightening Torquesp. 1199
62 DRIVE, WINDOW REGULATORp. 1199
+Instruments – Repair Instructionsp. 1200
11 INSTRUMENT CLUSTERp. 1200
+Remote Keyless Entry – SI Techniques – All Modelsp. 1202
NEW RADIO REMOTE CONTROL (RKE)p. 1202
+Seats – Operating Fluidsp. 1217
1.0 SEAT LEATHER CAREp. 1217
2.0 PREMIUM LEATHER CARE KITp. 1217
+Seats – Repair Instructionsp. 1218
13 FRONT SEAT NORMAL, MANUALp. 1218
14 FRONT SEAT NORMAL, ELECTRICp. 1271
15 FRONT SEAT SPORTS, MANUALp. 1288
16 FRONT SEAT SPORTS, ELECTRICp. 1298
26 REAR SEAT THROUGH-LOADINGp. 1342
+Seats – Special Toolsp. 1375
+Seats – Tightening Torquesp. 1376
10 FRONT SEATSp. 1376
24 REAR SEAT, NORMALp. 1377
25 REAR SEAT, NORMAL, ELECTRICp. 1377
26 REAR SEAT, THROUGH-LOADINGp. 1378
+Trailers – Tightening Torquesp. 1379
10 LOADING PLATFORMp. 1379
21 HOODp. 1380
+Trailers & Equipment – Repair Instructionsp. 1381
10 LOADING PLATFORMp. 1381
21 HOODp. 1452
+Various Accessories – Tightening Torquesp. 1489
60 VARIOUS ACCESSORIESp. 1489
+Body & Framep. 1490
+Body Cavity Sealing and Undercoating – Operating Fluidsp. 1490
1.0 GENERAL INFORMATION ON PRESERVATION MEASURESp. 1490
2.0 BODY CAVITY SEALINGp. 1490
3.0 BODY CORROSION PROTECTIONp. 1490
4.0 OTHER FLUIDSp. 1492
+Body Equipment – Operating Fluidsp. 1493
1.0 ADHESIVES/SEALANTS FOR GLASSp. 1493
2.0 OTHER FLUIDSp. 1493
3.0 CONTACT CEMENTp. 1493
4.0 INSTANT ADHESIVE FOR RUBBER, METAL AND PLASTIC SURFACES.p. 1493
5.0 LOCTITE 380p. 1493
6.0 GLASS ADHESIVEp. 1494
7.0 PREMIUM LEATHER CARE KITp. 1494
+Body Equipment – SI Techniquesp. 1495
INTERIOR MIRROR WITH DIGITAL COMPASSp. 1495
+Body Equipment – Special Toolsp. 1500
+Body Equipment – Tightening Torquesp. 1512
31 ROOF OUTER SKINp. 1512
33 FRONT TRIM PANELp. 1512
35 SIDE PANELSp. 1513
51 FRONT SIDE DOORSp. 1513
52 REAR SIDE DOORSp. 1514
61 FRONT LIDp. 1515
62 REAR LIDp. 1515
+Exterior & Interior Trim – Repair Instructionsp. 1518
00 GENERALp. 1518
11 FRONT BUMPERp. 1522
12 REAR BUMPERp. 1558
13 TRIM, COVERS, HANDLE TRIMp. 1581
14 BMW EMBLEMS, MODEL EMBLEMSp. 1596
16 MIRRORS/COVERS/ASHTRAYS/SHELVES/TRAYSp. 1601
17 LIDSp. 1653
21 FRONT DOOR LOCKS, HANDLES, FITTINGSp. 1654
22 REAR DOOR LOCKS, HANDLES, FITTINGSp. 1679
23 HOOD LATCH, LOCKSp. 1700
24 TRUNK LATCH, LOCKSp. 1710
31 FRONT AND REAR WINDOWp. 1721
32 FRONT MANUALLY OPERATED WINDOWSp. 1742
33 FRONT ELECTRICALLY OPERATED WINDOWSp. 1749
34 REAR MANUALLY OPERATED WINDOWSp. 1751
36 HINGED WINDOWp. 1764
37 ELECTRICAL POWER WINDOWS, BODYp. 1768
41 FRONT DOOR TRIM PANEL WITH ARM RESTp. 1771
42 REAR DOOR TRIM PANEL WITH ARM RESTp. 1777
43 SIDE COVERING WITH ARMRESTSp. 1783
44 ROOF TRIM PANELp. 1794
45 INSTRUMENT CLUSTER TRIM PANELp. 1797
46 PARCEL SHELF TRIM PAN/ROLLER SUN BLINDp. 1812
47 FLOOR/LUGGAGE COMPARTMENT/ENGINE COMPARTMENT/TRIMp. 1813
PANELSp. 1813
48 FRONT LID INSULATION LININGp. 1828
49 REAR LID TRIM PANELp. 1834
71 GASKETS/SEALS/LOOSE BODY PARTSp. 1838
+Exterior Body Panels – Repair Instructionsp. 1859
00 BODYp. 1859
11 SUPPORT MEMBERSp. 1894
12 LUGGAGE COMPARTMENT FLOORp. 1914
14 WHEEL WELLSp. 1918
21 SIDE FRAME AND DOOR PILLARSp. 1932
31 ROOF OUTER SKINp. 1937
33 FRONT TRIM PANELp. 1939
34 REAR TRIM PANELp. 1940
35 SIDE PANELSp. 1944
51 FRONT SIDE DOORSp. 1951
52 REAR SIDE DOORSp. 1955
61 FRONT LIDp. 1956
62 REAR LIDp. 1959
63 OTHER FLAPSp. 1961
+Panorama Glass Sunroof – SI Techniquesp. 1966
PANORAMA GLASS SUNROOFp. 1966
+Slide & Tilt Roof and Convertible Top – SI Techniquesp. 1986
PANORAMA GLASS SUNROOFp. 1986
+Slide & Tilt Roof and Convertible Top – Tightening Torquesp. 1993
12 MECHANICAL SUN ROOF COMPONENTSp. 1993
13 ELECTRICAL SUN ROOF COMPONENTSp. 1993
+Slide & Tilt Sunroof – Special Toolsp. 1994
54 SLIDE-TILT SUNROOF AND COVERTIBLE TOPp. 1994
+Sliding & Tilt Sunroof – Repair Instructionsp. 1995
10 SUNROOFp. 1995
13 ELECTRICAL SUN ROOF COMPONENTSp. 2030
+Sunroof and Convertible Top – Operating Fluidsp. 2053
1.0 CONVERTIBLE TOP MATERIALp. 2053
2.0 CONVERTIBLE TOP REAR (PLASTIC) WINDOWp. 2053
3.0 CONVERTIBLE TOP STORAGE LID ADHESIVEp. 2054
4.0 CONVERTIBLE TOP SEALING FRAME ADHESIVEp. 2054
5.0 CONVERTIBLE TOP HYDRAULIC FLUIDp. 2054
6.0 SUNROOFp. 2054
+Brakesp. 2055
+Brakes – Operating Fluidsp. 2055
1.0 GENERAL INFORMATIONp. 2055
2.0 HANDLING BRAKE FLUIDSp. 2056
3.0 BMW TESTED AND APPROVED BRAKE FLUIDSp. 2056
4.0 BRAKE FLUID CHANGE INTERVALSp. 2056
5.0 OTHER OPERATING FLUIDSp. 2056
+Brakes – SI Techniquesp. 2058
34 BRAKESp. 2058
DYNAMIC STABILITY CONTROL 8PLUSp. 2058
+Brakes – Special Toolsp. 2074
+Brakes – Technical Datap. 2079
11 FRONT BRAKESp. 2079
21 REAR BRAKESp. 2079
41 PARKING BRAKEp. 2080
+Brakes – Tightening Torquesp. 2081
00 BRAKE TESTING AND BLEEDINGp. 2081
11 FRONT BRAKESp. 2081
21 REAR BRAKESp. 2082
31 MASTER BRAKE CYLINDERp. 2082
32 BRAKE LINESp. 2083
33 BRAKE BOOSTERp. 2083
41 PARKING BRAKEp. 2084
51 MECHANICAL-HYDRAULIC COMPONENTSp. 2084
+Disc – Repair Instructionsp. 2086
00 BRAKE TESTING AND BLEEDINGp. 2086
10 HAND BRAKEp. 2096
11 FRONT BRAKESp. 2100
21 REAR BRAKESp. 2115
31 MASTER BRAKE CYLINDERp. 2132
32 BRAKE LINESp. 2137
33 BRAKE BOOSTERp. 2143
35 ELECTRICAL COMPONENTSp. 2145
41 PARKING BRAKEp. 2148
51 MECHANICAL/HYDRAULIC COMPONENTSp. 2159
52 ELECTRONIC COMPONENTSp. 2161
90 TROUBLESHOOTINGp. 2167
+Pedal Assembly – Repair Instructionsp. 2173
11 PEDAL MOUNTING BLOCKp. 2173
21 BRAKE PEDAL WITH LINKAGEp. 2173
31 CLUTCH PEDAL WITH LINKp. 2176
40 ACCELERATOR PEDAL ACTUATORp. 2177
+Pedals – Operating Fluidsp. 2179
1.0 GENERAL INFORMATIONp. 2179
+Pedals – Tightening Torquesp. 2180
11 PEDAL MOUNTING BLOCKp. 2180
40 ACCELERATOR PEDAL ACTUATIONp. 2180
+Driveline & Axlesp. 2181
+Front Axle – Operating Fluidsp. 2181
1.0 GENERAL INFORMATION ON HIGH TEMPERATURE MULTI-PURPOSEp. 2181
GREASEp. 2181
2.0 APPROVED HIGH TEMPERATURE MULTI-PURPOSE GREASEp. 2181
3.0 APPROVED FRONT AXLE FINAL DRIVE OILSp. 2181
+Propeller Shaft – Operating Fluidsp. 2183
1.0 GENERAL INFORMATIONp. 2183
+Propeller Shaft – Repair Instructionsp. 2184
00 PROPELLER SHAFT GENERALp. 2184
11 PROPELLER SHAFT ASSEMBLYp. 2186
12 CENTER CONSOLE ASSEMBLYp. 2195
+Propeller Shaft – Special Toolsp. 2202
26 PROPELLER SHAFTSp. 2202
+Propeller Shaft – Technical Datap. 2204
00 PROPELLER SHAFT GENERALp. 2204
+Propeller Shaft – Tightening Torquesp. 2205
11 PROPELLER SHAFT ASSEMBLYp. 2205
+Rear Axle – Operating Fluidsp. 2209
1.0 GENERAL INFORMATION ON FINAL DRIVE OILp. 2209
2.0 APPROVED FINAL DRIVE OILS FOR FRONT AND REAR AXLE FINALp. 2209
DRIVES WITH AND WITHOUT LIMITED SLIP OR VISCOUS COUPLINGp. 2209
3.0 FINAL DRIVE OIL FOR BMW M1 MOTORSPORT COUPEp. 2210
4.0 OIL CHANGE INTERVALSp. 2210
5.0 CARS WITHOUT SERVICE INDICATOR (INCLUDING BMW M1)p. 2210
6.0 CARS WITH SERVICE INDICATORp. 2211
7.0 OUTPUT SHAFTSp. 2211
8.0 WHEEL BEARINGSp. 2211
9.0 DIFFERENTIAL HOUSING FINAL DRIVE COVERS AND HOUSINGp. 2211
+Rear Axle – SI Techniquesp. 2213
KINEMATIC DIAGNOSIS SYSTEM AND ENVIRONMENTp. 2213
+Electricalp. 2239
+Accessories Control System – Repair Instructionsp. 2239
00 TROUBLESHOOTINGp. 2239
12 AUXILIARY CABLESp. 2249
13 CONNECTORS, TERMINALS, FUSE BOXp. 2266
20 BATTERYp. 2323
21 BATTERY REMOVALp. 2337
31 SWITCHp. 2342
33 HORNp. 2362
35 ECUS, MODULESp. 2363
36 RELAYSp. 2377
61 WINDSCREEN WIPERSp. 2381
62 REAR WINDOW WIPERSp. 2392
67 HEADLIGHT WASHER SYSTEMp. 2400
71 WINDOW WASHER SYSTEMp. 2406
+Electrical Drives – Repair Instructionsp. 2413
11 CENTRAL LOCKING UNIT/UNLOCKING UNITSp. 2413
13 MIRROR ADJUSTMENTp. 2415
31 DRIVE, SEAT ADJUSTMENTp. 2418
61 DRIVE, SLIDE-TILT SUNROOF/CONVERTIBLE TOPp. 2422
62 DRIVE, WINDOW REGULATORp. 2425
66 DRIVE, SEAT ADJUSTMENTp. 2428
+Electrical Drives – Tightening Torquesp. 2431
62 DRIVE, WINDOW REGULATORp. 2431
+Electrical System – Operating Fluidsp. 2432
1.0 BATTERYp. 2432
2.0 SEALANT/SUPER GLUE/CONTACT CLEANERp. 2432
3.0 ELECTRICAL CONTACT ENHANCER AND CONTACT CLEANERp. 2432
+Fuse Assignment Symbol Definitionsp. 2434
+Fuses & Circuit Breakers – E83p. 2457
IDENTIFICATIONp. 2457
COMPONENT IDENTIFICATIONp. 2457
+General Electrical System – SI Techniquesp. 2464
INTERIOR MIRROR WITH DIGITAL COMPASSp. 2464
BUS STRUCTURESp. 2468
PANORAMA GLASS SUNROOFp. 2475
+General Electrical System – Special Toolsp. 2483
61 GENERAL ELECTRICAL SYSTEMp. 2483
+General Electrical System – Technical Datap. 2510
11 WIRING HARNESSp. 2510
61 WINDSCREEN WIPERSp. 2510
+General Electrical System – Tightening Torquesp. 2511
12 AUXILIARY CABLEp. 2511
21 BATTERY WITH TERMINALp. 2511
31 SWITCHp. 2512
61 WINDSCREEN WIPERSp. 2512
62 REAR WINDOW WIPERp. 2513
+Enginep. 2515
+Cooling System – Operating Fluidsp. 2515
1.0 GENERAL INFORMATION ON LONG-TERM ANTIFREEZE ANDp. 2515
CORROSION INHIBITORSp. 2515
2.0 COOLANT ADDITIVESp. 2516
+Cooling System – Repair Instructionsp. 2517
00 COOLANT, CHECKING COOLING SYSTEMp. 2517
10 RADIATOR, EXPANSION TANK, PIPESp. 2534
11 ENGINE RADIATOR WITH ATTACHMENTp. 2538
21 OIL COOLERp. 2551
22 OIL COOLER LINESp. 2556
+Cooling System – Special Toolsp. 2569
+Cooling System – Technical Datap. 2576
COOLING SYSTEMp. 2576
17 11 RADIATOR AND MOUNTING PARTS E65 / E70 / N62 / N62TU / N52 /p. 2576
N52Kp. 2576
+Cooling System – Tightening Torquesp. 2577
00 COOLANT, CHECKING COOLING SYSTEMp. 2577
11 ENGINE RADIATOR WITH ATTACHMENTp. 2577
21 OIL COOLERp. 2578
22 OIL COOLER LINESp. 2578
40 AUXILIARY ELECTRICAL FANp. 2579
+Engine – Operating Fluidsp. 2580
1.0 GENERAL INFORMATIONp. 2580
2.0 GRADING OF OILSp. 2581
3.0 ENGINE OIL REQUIREMENTS AND SPECIFICATIONSp. 2582
4.0 ENGINE OIL CHANGE INTERVALSp. 2584
5.0 CONDITION BASED SERVICEp. 2585
6.0 ENGINE OIL ADDITIVESp. 2586
7.0 BREAK-IN INSTRUCTIONSp. 2586
8.0 N52, N52KP AND N54 FRONT AND REAR RADIAL SEAL SEALANTp. 2586
10.0 LUBRICANT FOR OXYGEN SENSORp. 2586
11.0 OIL CONSUMPTIONp. 2586
13.0 OPERATING FLUIDS TABLE AND ALTERNATE SUPPLIERSp. 2587
+Engine – SI Techniques – (6-Cyl.)p. 2590
11 ENGINEp. 2590
VACUUM SUPPLYp. 2590
+Engine – Special Toolsp. 2594
+Engine – Technical Datap. 2599
00 ENGINE, GENERALp. 2599
11 ENGINE BLOCKp. 2600
12 CYLINDER HEAD WITH COVERp. 2600
21 CRANKSHAFT WITH BEARINGp. 2602
23 VIBRATION DAMPERp. 2604
24 CONNECTING ROD WITH BEARINGp. 2604
25 PISTON WITH RINGS AND PINp. 2604
31 CAMSHAFTp. 2606
34 VALVES WITH SPRINGSp. 2606
40 OIL SUPPLYp. 2607
41 OIL PUMP WITH FILTER AND DRIVEp. 2607
+Engine – Tightening Torques – (6-Cyl.)p. 2608
11 ENGINE BLOCKp. 2608
12 CYLINDER HEAD WITH COVERp. 2609
13 OIL SUMPp. 2610
21 CRANKSHAFT WITH BEARINGp. 2612
22 FLYWHEELp. 2612
23 VIBRATION DAMPERp. 2613
24 CONNECTING ROD WITH BEARINGp. 2613
28 V-RIBBED BELT WITH TENSIONERp. 2614
31 CAMSHAFTp. 2614
36 VARIABLE CAMSHAFT TIMINGp. 2615
37 VARIABLE VALVE GEARp. 2615
41 OIL PUMP WITH FILTERp. 2616
42 OIL FILTER AND LINESp. 2617
51 WATER PUMP WITH DRIVEp. 2618
53 THERMOSTAT AND CONNECTIONSp. 2618
61 INTAKE MANIFOLDp. 2619
62 EXHAUST MANIFOLDp. 2620
66 VACUUM PUMPp. 2620
72 AIR PUMP, LINES AND CONTROL VALVEp. 2621
78 EMISSION CONTROL, OXYGEN SENSORp. 2621
+Engine And Gearbox – Repair Instructionsp. 2622
11 ENGINE SUSPENSIONp. 2622
31 TRANSMISSION SUSPENSION, MANUAL TRANSMISSIONp. 2626
32 TRANSMISSION SUSPENSION, AUTOMATIC TRANSMISSIONp. 2628
+Engine and Gearbox Suspension – Special Toolsp. 2635
22 ENGINE AND GEARBOX SUSPENSIONp. 2635
+Engine and Gearbox Suspension – Tightening Torquesp. 2637
11 ENGINE SUSPENSIONp. 2637
32 TRANSMISSION MOUNTSp. 2638
+Engine Electrical System – Special Toolsp. 2640
12 ENGINE ELECTRICAL SYSTEMp. 2640
+Engine Electrical System – Tightening Torquesp. 2643
12 IGNITION WIRES, SPARK PLUGSp. 2643
14 ELECTRONIC SWITCHING OR CONTROL UNITp. 2643
31 ALTERNATOR WITH DRIVE AND MOUNTp. 2643
32 REGULATORp. 2644
41 STARTER WITH MOUNTINGp. 2644
42 STARTER LEADp. 2645
52 CONNECTORS PLUGS, LOOMp. 2646
61 OIL PRESSURE/OIL TEMPERATURE GAUGEp. 2646
62 COOLANT TEMPERATUREp. 2646
72 SENSOR FOR CONTROL UNITp. 2647
90 CONTROL UNIT BOXp. 2647
+Engine Mechanical – Repair Instructions – (6-Cylinder)p. 2649
00 ENGINE, GENERALp. 2649
12 CYLINDER HEAD WITH COVERp. 2665
13 OIL SUMPp. 2683
14 HOUSING COVERp. 2687
21 CRANKSHAFT WITH BEARINGp. 2703
22 FLYWHEELp. 2743
1123 VIBRATION DAMPERp. 2747
24 CONNECTING ROD WITH BEARINGp. 2748
25 PISTON WITH RINGS AND PINp. 2752
28 V-RIBBED BELT WITH TENSIONER / DEFLECT ELEMENTp. 2766
31 CAMSHAFTp. 2774
33 ROCKER ARM WITH BEARING MOUNTp. 2803
34 VALVES WITH SPRINGSp. 2805
37 VARIABLE VALVE GEARp. 2812
40 OIL SUPPLYp. 2828
41 OIL PUMP WITH FILTER AND DRIVEp. 2830
1142 OIL FILTER AND LINESp. 2843
51 WATER PUMP WITH DRIVEp. 2845
53 THERMOSTAT AND CONNECTIONSp. 2847
61 INTAKE MANIFOLDp. 2849
62 EXHAUST MANIFOLDp. 2852
1166 VACUUM PUMPp. 2853
1178 EMISSION CONTROL, OXYGEN SENSORp. 2858
+Exhaust System – Operating Fluidsp. 2862
1.0 GENERAL INFORMATIONp. 2862
+Exhaust System – Tightening Torquesp. 2863
00 EXHAUST SYSTEM, COMPLETEp. 2863
20 EXHAUST SYSTEMp. 2864
30 EXHAUST PIPEp. 2864
40 EXHAUST MANIFOLDp. 2864
+Exhaust Systems – Repair Instructionsp. 2866
EXHAUST SYSTEM COMPLETEp. 2866
MUFFLERS, PETROLp. 2869
EXHAUST MANIFOLD WITH INTEGRATED CATALYTIC CONVERTERp. 2883
+Fuel Supply System – Special Toolsp. 2889
16 FUEL SUPPLY SYSTEMp. 2889
+Fuel Supply System – Technical Datap. 2892
11 FUEL TANK WITH MOUNTINGp. 2892
+Fuel Supply System – Tightening Torquesp. 2893
11 FUEL TANK WITH MOUNTINGp. 2893
12 FUEL TRANSFER, SENSOR FOR GAUGEp. 2893
13 FUEL VENTILATIONp. 2894
14 FUEL PUMPp. 2895
+Fuel System – Operating Fluidsp. 2896
1.0 FUELS FOR GASOLINE ENGINESp. 2896
1.1 MINIMUM OCTANE AND AKI RATINGS FOR GASOLINE ENGINESp. 2900
1.2 SUMMARY OF FUEL GRADE REQUIREMENTSp. 2901
2.0 FUEL SYSTEM CLEANER PLUSp. 2903
+Fuel System – Repair Instructionsp. 2906
00 FUEL PICK-UP, CLEANING SYSTEMp. 2906
11 FUEL TANK WITH MOUNTINGp. 2914
12 FUEL DELIVERY, SENSOR FOR DISPLAYp. 2928
13 FUEL VENTILATION/DEAERATIONp. 2942
14 FUEL PUMPp. 2943
+Ignition System – Repair Instructionsp. 2950
00 TROUBLESHOOTINGp. 2950
12 IGNITION WIRES, SPARK PLUGSp. 2954
13 IGNITION COILp. 2955
14 ELECTRONIC SWITCHING OR CONTROL UNITp. 2962
31 ALTERNATOR WITH DRIVE AND MOUNTINGp. 2967
32 REGULATORp. 2974
41 STARTER WITH MOUNTINGp. 2978
61 OIL PRESSURE-OIL TEMPERATURE GAUGEp. 2982
+Engine Performancep. 2985
+Diagnostic Trouble Codes – MSV80 Engine Operating Systemp. 2985
+Emission Applicationsp. 3918
EMISSION APPLICATIONSp. 3918
ABBREVIATIONSp. 3918
+Firing Order & Cylinder Identificationp. 3920
FIRING ORDER & CYLINDER IDENTIFICATIONp. 3920
+Fuel System – Repair Instructionsp. 3923
31 FUEL PUMP WITH DRIVE AND LINEp. 3923
53 INJECTION NOZZLE AND LINESp. 3927
54 THROTTLE AND OPERATIONp. 3931
62 SENSOR FOR CONTROL UNITp. 3934
64 START VALVESp. 3937
71 INTAKE SILENCERp. 3938
72 AIR CLEANERp. 3939
90 CARBON CANISTER VENTILATIONp. 3941
+Fuel System – Special Toolsp. 3942
+Fuel System – Technical Datap. 3957
53 INJECTION NOZZLE AND LINESp. 3957
+Fuel System – Tightening Torquesp. 3958
31 FUEL PUMP WITH DRIVE AND LINEp. 3958
32 FUEL FILTERp. 3958
51 INJ. PUMP, REGULAR, MIXER REGULATORp. 3958
53 INJECTION NOZZLE AND LINESp. 3959
54 THROTTLE AND OPERATIONp. 3959
62 SENSOR FOR CONTROL UNITp. 3960
64 START VALVESp. 3960
+Self Diagnosis – Theory & Operation – (N52 Engine)p. 3961
DIAGNOSTIC TROUBLE CODE INDEXp. 3961
CATALYST MONITORINGp. 3963
MISFIRE MONITORINGp. 3964
EVAP-SYSTEM LEAK DIAGNOSIS (MODULE DM-TL)p. 3966
FUEL LEVEL SENSORp. 3971
POSITIVE CRANKCASE VENTILATION (PCV) SYSTEMp. 3974
AMBIENT TEMPERATURE MONITORINGp. 3975
FUEL SYSTEM MONITORINGp. 3977
OXYGEN SENSOR MONITORING LINEAR UPSTREAM / BINARYp. 3979
DOWNSTREAMp. 3979
CLOSED LOOP LAMBDA CONTROL – ENABLE CONDITIONSp. 3990
ENGINE COOLANT TEMPERATURE (ECT) MONITORINGp. 3991
THERMOSTATp. 3993
INTAKE AIR TEMPERATURE (IAT) MONITORINGp. 3994
CAMSHAFT AND CRANKSHAFT SENSOR INCLUDING VALVE TIMINGp. 3995
VARIABLE VALVE LIFT – ELECTRICAL DIAGNOSISp. 4000
ELECTRONIC THROTTLE CONTROL MONITORp. 4002
ISC (IDLE SPEED CONTROL) ACTUATORp. 4003
AIR MASS FLOW METER – RATIONALITY CHECKp. 4004
MANIFOLD DIFFERENTIAL PRESSURE SENSOR – RATIONALITY CHECKp. 4004
COMPREHENSIVE COMPONENT MONITORING OBD II SIEMENS VDOp. 4004
FUNCTION DEFINITIONp. 4004
LISTING OF ALL ECM INPUT AND OUTPUT SIGNALSp. 4006
LOCATION OF THE DATA LINK CONNECTORp. 4012
DRAWING AND LOCATION OF THE MALFUNCTION INDICATOR LIGHTp. 4015
CALCULATED LOAD AND FUEL TRIM DETERMINATIONp. 4016
START EMISSION REDUCTION STRATEGY MONITORINGp. 4017
+HVACp. 4022
+Air Conditioning & Heating Systems – Repair Instructionsp. 4022
11 HEATER WITH OPERATIONp. 4022
22 NOZZLES AND OUTLETSp. 4041
31 MICROFILTERp. 4044
50 AIR CONDITIONING SYSTEMp. 4049
51 A/C HOUSING/EVAPORATOR, SWITCHING ELEMENTSp. 4060
52 COMPRESSORp. 4070
53 CONDENSER AND DRYER WITH LINESp. 4079
+Cabin Air Filterp. 4087
REMOVAL & INSTALLATIONp. 4087
+Heating and Air Conditioning – Operating Fluidsp. 4089
1.0 AIR CONDITIONER REFRIGERANTp. 4089
2.0 REFRIGERATION OILp. 4090
3.0 AIR CONDITIONING UNIT DISINFECTANTSp. 4091
4.0 AIR CONDITIONER REFRIGERATION/OIL FILL CAPACITIESp. 4091
+Heating and Air Conditioning – Special Toolsp. 4096
64 HEATING AND AIR CONDITIONINGp. 4096
+Heating and Air Conditioning – Technical Datap. 4102
50 AIR CONDITIONING SYSTEMp. 4102
51 AC HOUSING-EVAPORATORp. 4102
+Heating and Air Conditioning – Tightening Torquesp. 4103
11 HEATER WITH OPERATIONp. 4103
12 AUXIL. HEATER WITH CONTROL ELEMENTSp. 4103
52 COMPRESSORp. 4104
53 CONDENSER AND DRYER WITH LINESp. 4105
+Lightingp. 4106
+Lighting – Repair Instructionsp. 4106
10 LAMP SETTINGSp. 4106
12 HEADLIGHTSp. 4109
13 TURN SIGNAL INDICATOR LIGHTSp. 4118
14 CLEARANCE AND SIDE MARKER LAMPSp. 4118
17 FOG LIGHTS, AUXILIARY LIGHTSp. 4119
21 REAR LIGHT CLUSTERp. 4122
25 BRAKE LIGHTSp. 4128
26 LICENCE PLATE LIGHTSp. 4130
31 INTERIOR LIGHTSp. 4130
99 LIGHT BULBSp. 4137
+Lights – SI Techniquesp. 4156
GLOSSARY OF ELECTRICAL COMPONENTSp. 4156
ADAPTIVE HEADLIGHTSp. 4158
+Lights – Technical Datap. 4173
10 LAMP SETTINGSp. 4173
12 HEADLIGHTSp. 4173
13 TURN SIGNAL INDICATORp. 4173
17 FOG LIGHTS, AUXILIARY LIGHTSp. 4173
21 REAR LIGHT CLUSTERp. 4174
26 LICENCE PLATE LIGHTSp. 4174
31 INTERIOR LIGHTSp. 4174
+Lights – Tightening Torquesp. 4176
21 REAR LIGHT CLUSTERp. 4176
+Vehicle Lighting – Product Informationp. 4177
ADAPTIVE HEADLIGHTS E60, E61, E63, E64, E65, E66, E70, E81, E87, E90,p. 4177
E91, E92, E93p. 4177
MAIN-BEAM ASSISTANT E60, E61, E63, E64, E65, E66, E70, E90, E91, E92,p. 4196
E93p. 4196
+Maintenancep. 4207
+Maintenance & OE General Informationp. 4207
00 MAINTENANCE AND GENERAL INFORMATIONp. 4207
+Maintenance and General Information – Operating Fluidsp. 4258
1.0 INTRODUCTIONp. 4258
2.0 CORROSION PROTECTION FOR VEHICLE IN LONG-TERM STORAGEp. 4258
3.0 CONVERSION TABLEp. 4259
4.0 ALTERNATE UNIVERSAL LUBRICANTS AND WORKSHOP SUPPLIESp. 4259
5.0 APPROVED OPERATING FLUIDS SOURCESp. 4262
+Maintenance and General Information – Special Toolsp. 4265
00 MAINTENANCE AND GENERAL INFORMATIONp. 4265
+Maintenance and General Information – Tightening Torquesp. 4320
00 MAINTENANCE AND GENERAL INFORMATIONp. 4320
+Maintenance Reminder Light Reset Procedures – Gasolinep. 4326
BRAKE PAD WARNING LIGHTp. 4326
OXYGEN SENSOR WARNING LIGHTp. 4327
SERVICE INTERVAL REMINDER LIGHTSp. 4328
TIRE PRESSURE MONITOR SYSTEM (TPMS)p. 4337
+Restraintsp. 4354
+Air Bag Deactivation Proceduresp. 4354
SPECIAL CARE DURING MECHANICAL REPAIRSp. 4354
SYSTEM OPERATION CHECKp. 4354
SERVICE PRECAUTIONSp. 4355
DISABLING & ACTIVATING AIR BAG SYSTEMp. 4355
+Restraints – Tightening Torquesp. 4356
11 SEAT BELTSp. 4356
12 AIRBAG GENERATOR/AIRBAG UNITp. 4357
+Steeringp. 4359
+Overview – (E83)p. 4359
DESCRIPTION & OPERATIONp. 4359
+Steering – Operating Fluidsp. 4363
GEMMER STEERINGp. 4363
ZF RACK AND PINION STEERING WITHOUT POWER ASSISTp. 4363
BALL AND NUT OR RACK AND PINION POWER STEERINGp. 4363
OIL CHANGE FOR POWER STEERINGp. 4364
HORN SLIP RINGSp. 4364
+Steering & Wheel Alignment – Repair Instructionsp. 4365
00 ELECTRONIC CHASSIS ALIGNMENTp. 4365
11 MECHANICAL STEERING GEARp. 4389
13 STEERING GEAR WITH SERVO UNITp. 4390
21 STEERING ARMS, TIE RODS, STEERING DAMPERp. 4401
31 STEERING COLUMNp. 4404
32 STEERING LOCKp. 4419
33 STEERING WHEELp. 4422
34 STEERING WHEEL FOR AIRBAGp. 4426
41 PUMP AND OIL SUPPLYp. 4430
43 ELECTRONIC POWER STEERINGp. 4450
90 TROUBLESHOOTINGp. 4451
+Steering and Wheel Alignment – SI Techniquesp. 4453
32 STEERING AND WHEEL ALIGNMENTp. 4453
SERVOTRONICp. 4453
KINEMATIC DIAGNOSIS SYSTEM AND ENVIRONMENTp. 4456
+Steering and Wheel Alignment – Special Toolsp. 4482
32 STEERING AND WHEEL ALIGNMENTp. 4482
+Steering and Wheel Alignment – Technical Datap. 4491
00 ELECTRONIC CHASSIS ALIGNMENTp. 4491
+Steering and Wheel Alignment – Tightening Torquesp. 4492
00 ELECTRONIC CHASSIS ALIGNMENTp. 4492
13 STEERING GEARp. 4492
21 STEERING ARMS, TIE RODS, STEERING DAMPERp. 4493
31 STEERING COLUMNp. 4495
33 STEERING WHEELp. 4497
34 STEERING WHEEL FOR AIRBAGp. 4497
41 PUMP AND OIL SUPPLYp. 4498
+Suspensionp. 4501
+Front Axle – Special Toolsp. 4501
+Front Axle – Technical Datap. 4522
00 GENERALp. 4522
10 FRONT AXLE SUSPENSIONp. 4522
21 WHEEL BEARINGS AND STUB AXLEp. 4523
32 SHOCK ABSORBERp. 4523
50 FRONT AXLE GEARBOXp. 4524
+Front Axle – Tightening Torquesp. 4525
10 FRONT AXLE SUSPENSIONp. 4525
12 STRUTS WITH RUBBER MOUNTSp. 4526
21 WHEEL BEARINGS AND STUB AXLEp. 4528
31 SPRING STRUTp. 4529
35 STABILIZER BARp. 4530
50 FRONT AXLE GEARBOXp. 4532
60 OUTPUT SHAFTp. 4532
+Front Suspension – Repair Instructionsp. 4534
00 GENERALp. 4534
10 FRONT AXLE SUSPENSIONp. 4542
11 FRONT SUB-FRAMEp. 4544
12 STRUTS WITH RUBBER MOUNTSp. 4550
21 WHEEL BEARINGS AND STUB AXLEp. 4566
31 SPRING STRUTp. 4575
33 SPRING WITH SUSPENSIONp. 4583
35 STABILIZER BARp. 4593
50 FRONT AXLE GEARBOXp. 4598
51 SEAL AND O-RINGSp. 4602
53 DIFFERENTIAL WITH BEARINGSp. 4610
60 OUTPUT SHAFTp. 4611
90 TROUBLESHOOTINGp. 4623
+Integrated Suspension Systems – Operating Fluidsp. 4626
1.0 GENERAL INFORMATIONp. 4626
2.0 APPROVED HYDRAULIC FLUIDSp. 4626
3.0 CHECKING HYDRAULIC FLUID LEVELSp. 4627
+Integrated Suspension Systems – Repair Instructionsp. 4628
00 GENERALp. 4628
14 ELECTRICAL COMPONENTSp. 4629
+Integrated Suspension Systems – Tightening Torquesp. 4633
14 ELECTRICAL COMPONENTSp. 4633
+Rear Axle – Repair Instructionsp. 4636
00 GENERALp. 4636
10 FINAL DRIVEp. 4641
11 FINAL DRIVE WITH COVERp. 4646
17 FINAL DRIVE MOUNTINGp. 4665
21 OUTPUT SHAFTSp. 4668
31 REAR SUB-FRAMEp. 4684
32 CONTROL ARMS AND STRUTSp. 4691
33 AXLE MOUNTINGp. 4717
41 WHEEL BEARINGSp. 4723
52 SHOCK ABSORBERp. 4727
53 SPRINGS WITH SUSPENSIONp. 4730
55 STABILIZER BARp. 4734
90 TROUBLESHOOTINGp. 4737
+Rear Axle – Special Toolsp. 4740
+Rear Axle – Technical Datap. 4788
00 GENERALp. 4788
10 FINAL DRIVEp. 4789
11 FINAL DRIVE WITH COVERp. 4789
41 WHEEL BEARINGSp. 4790
+Rear Axle – Tightening Torquesp. 4791
11 FINAL DRIVE WITH COVERp. 4791
17 FINAL DRIVE MOUNTINGp. 4792
21 OUTPUT SHAFTSp. 4794
31 REAR SUB-FRAMEp. 4794
32 CONTROL ARMS AND STRUTp. 4794
33 AXLE MOUNTINGp. 4798
41 WHEEL BEARINGSp. 4798
52 SHOCK ABSORBERp. 4799
55 STABILIZER BARp. 4800
+Wheel And Tires – SI Techniques – All Modelsp. 4802
KINEMATIC DIAGNOSIS SYSTEM AND ENVIRONMENTp. 4802
RUNFLAT INDICATORp. 4839
TYRES WITH EMERGENCY RUNNING CHARACTERISTICS AND TYREp. 4849
PRESSURE WARNING SYSTEMSp. 4850
STORING WHEELS AND TYRESp. 4869
+Wheel and Tires – Special Toolsp. 4877
36 WHEELS AND TIRESp. 4877
+Wheel and Tires – Technical Datap. 4886
+Wheel and Tires – Tightening Torquesp. 4888
10 WHEELSp. 4888
11 DISC WHEELS (RIMS)p. 4888
+Wheels & Tires – Repair Instructionsp. 4889
10 WHEELSp. 4889
11 DISC WHEELS (RIMS)p. 4905
12 TIRESp. 4918
13 MOUNTINGp. 4926
+Wheels And Tires – Operating Fluidsp. 4929
1.0 TIRE MOUNTING PASTEp. 4929
2.0 WHEEL CLEANERSp. 4929
3.0 WHEEL HUB COVERSp. 4929
4.0 ANTI-CORROSION PASTEp. 4929
+Transmissionp. 4930
+Automatic Transmission – Operating Fluidsp. 4930
1.0 GENERAL INFORMATION ON AUTOMATIC TRANSMISSION FLUIDSp. 4930
2.0 OIL ADDITIVESp. 4930
3.0 APPROVED AUTOMATIC TRANSMISSION FLUIDS FOR INITIALp. 4930
FILLINGS AND CORRECTING FLUID LEVELSp. 4930
4.0 CHECKING TRANSMISSION FLUID LEVELp. 4938
+Automatic Transmission – Repair Instructionsp. 4940
00 TRANSMISSION ASSEMBLYp. 4940
11 TRANSMISSION CASE, OIL SUMPp. 4961
13 EXTENSION HOUSING, BEARINGS, SEALp. 4967
14 MECHANICAL ATTACHMENTSp. 4971
31 OIL PUMPp. 4975
33 GEAR SELECTOR VALVEp. 4981
34 SHIFT VALVES, PARKINGp. 4982
35 WIRING HARNESS, SHIFT ELEMENTS AND SENSORSp. 4989
40 TORQUE CONVERTERp. 4990
50 SHIFT FUNCTIONp. 4992
+Automatic Transmission – SI Techniquesp. 4995
24 AUTOMATIC TRANSMISSIONp. 4995
6-SPEED AUTOMATIC TRANSMISSIONp. 4995
+Automatic Transmission – Special Toolsp. 5010
24 AUTOMATIC TRANSMISSIONp. 5010
+Automatic Transmission – Technical Datap. 5072
00 TRANSMISSION ASSEMBLYp. 5072
+Automatic Transmission – Tightening Torquesp. 5073
00 TRANSMISSION ASSEMBLYp. 5073
11 TRANSMISSION CASE, OIL SUMPp. 5075
13 EXTENSION HOUSING, BEARING, SEALp. 5078
15 ELECTRICAL ATTACHMENTSp. 5078
21 DRIVE/INTERMEDIATE OUTPUT SHAFTSp. 5078
22 PLANETARY DRIVEp. 5079
23 RELEASE CLUTCHESp. 5079
30 HYDR/EL CONTROL COMPONENTS/ELEMENTSp. 5079
31 OIL PUMPp. 5080
32 REGULATORp. 5081
34 SHIFT VALVES PARKINGp. 5082
35 WIRING HARNESS SHIFT ELEMENTS & SENSORp. 5083
40 TORQUE CONVERTERp. 5083
51 EXTERNAL GEARSHIFTp. 5084
52 INTERNAL GEARSHIFTp. 5084
71 TRANSMISSION MOUNTINGp. 5084
+Clutch – Operating Fluidsp. 5086
1.0 GENERAL INFORMATIONp. 5086
2.0 SMG: SEQUENTIAL MANUAL GEAR BOXp. 5086
3.0 OTHER OPERATING FLUIDSp. 5086
+Clutch – Repair Instructionsp. 5087
00 MAINTENANCE AND INSPECTIONp. 5087
21 CLUTCH WITH DRIVING DISCp. 5090
51 CLUTCH RELEASE CONTROL WITH LEVERp. 5107
52 CLUTCH OPERATION (HYDRAULIC)p. 5111
+Clutch – Special Toolsp. 5119
+Clutch – Technical Datap. 5132
21 CLUTCH WITH DRIVING DISCp. 5132
+Clutch – Tightening Torquesp. 5133
11 CLUTCH HOUSINGp. 5133
21 CLUTCH WITH DRIVING DISCp. 5133
52 CLUTCH OPERATION (HYDRAULIC)p. 5133
+Diagnostic Trouble Codes – 6-Speed ZF Transmissionp. 5135
DIAGNOSTIC TROUBLE CODESp. 5135
+Electronic Transmission Control – Overviewp. 5140
ELECTRONIC TRANSMISSION CONTROLp. 5140
+Gear Shift – Repair Instructionsp. 5227
11 CENTRE SHIFT MANUAL TRANSMISSIONp. 5227
16 CENTRE SHIFT AUTOMATIC TRANSMISSIONp. 5242
+Gear Shift Mechanism – Operating Fluidsp. 5249
1.0 GENERAL INFORMATIONp. 5249
+Gear Shift Mechanism – Special Toolsp. 5250
25 GEAR SHIFT MECHANISMp. 5250
+Gear Shift Mechanism – Tightening Torquesp. 5251
11 CENTER SHIFT MANUAL TRANSMISSIONp. 5251
16 CENTER SHIFT AUTOMATIC TRANSMISSIONp. 5251
+Manual Transmission – Operating Fluidsp. 5253
1.0 GENERAL INFORMATION ON GEAR LUBRICANTSp. 5253
2.0 OIL ADDITIVESp. 5253
3.0 MANUAL TRANSMISSION OIL REQUIREMENTS AND SPECIFICATIONSp. 5253
4.0 TRANSMISSION OIL CHANGE INTERVALp. 5256
5.0 SMG: SEQUENTIAL MANUAL GEAR BOXp. 5256
+Manual Transmission – Repair Instructionsp. 5257
00 COMPLETE TRANSMISSIONp. 5257
11 HOUSING WITH COVERp. 5275
12 BEARING IN HOUSING, SEALING RINGp. 5276
14 ELECTRICAL ADD-ON PARTSp. 5285
+Manual Transmission – SI Techniquesp. 5287
KINEMATIC DIAGNOSIS SYSTEM AND ENVIRONMENTp. 5287
TIRES WITH EMERGENCY RUNNING CHARACTERISTICS AND TIREp. 5313
PRESSURE WARNING SYSTEMSp. 5313
COMPARISON STANDARD TIRES / SELF-SUPPORTING TIRESp. 5323
STORING WHEELS AND TIRESp. 5326
+Manual Transmission – Special Toolsp. 5331
23 MANUAL TRANSMISSIONp. 5331
+Manual Transmission – Technical Datap. 5401
00 COMPLETE TRANSMISSIONp. 5401
11 HOUSING WITH COVERp. 5404
21 TRANSMISSION SHAFTSp. 5406
22 GEARSp. 5410
23 SYNCHRONIZATIONp. 5414
31 INTERNAL GEARSHIFT COMPONENTp. 5420
+Manual Transmission – Tightening Torquesp. 5422
00 COMPLETE TRANSMISSIONp. 5422
11 HOUSING WITH COVERp. 5423
21 TRANSMISSION SHAFTSp. 5425
31 INTERNAL GEARSHIFT COMPONENTp. 5426
41 EXTERNAL GEARSHIFT COMPONENTp. 5426
71 TRANSMISSION SUSPENSIONp. 5427
+Overview – All Modelsp. 5429
STANDARD/AUTOMATIC TRANSMISSIONp. 5429
HYDRAULIC TRANSMISSION VS. ELECTRO-HYDRAULIC TRANSMISSIONp. 5430
TRANSMISSION IDENTIFICATIONp. 5431
TRANSMISSION HYDRAULICSp. 5432
TRANSMISSION CONTROL MODULEp. 5472
+Overview – xDrivep. 5474
DESCRIPTION & OPERATIONp. 5474
TOPPING UP/CHANGING TRANSFER CASE OILp. 5474
PURPOSE OF SYSTEMp. 5475
SYSTEM COMPONENTSp. 5476
PRINCIPLE OF OPERATIONp. 5485
+Removal & Installation – (GS6-37BZ)p. 5490
REMOVAL & INSTALLATIONp. 5490
TORQUE SPECIFICATIONSp. 5504
+Servicing – A5S 325Z & A5S 360R & 390Rp. 5506
APPLICATIONp. 5506
LUBRICATIONp. 5510
ADJUSTMENTSp. 5514
PROGRAMMINGp. 5516
REMOVAL & INSTALLATIONp. 5516
TORQUE SPECIFICATIONSp. 5615
+Servicing – GS6-37BZp. 5617
APPLICATIONp. 5617
LUBRICATIONp. 5617
ADJUSTMENTSp. 5618
REMOVAL & INSTALLATIONp. 5619
TORQUE SPECIFICATIONSp. 5621
+Transfer Box – SI Techniquesp. 5622
+Transfer Box – Special Toolsp. 5630
+Transfer Box – Technical Datap. 5633
00 TRANSFER CASE, GENERALp. 5633
+Transfer Box – Tightening Torquesp. 5634
00 TRANSFER CASE GENERALp. 5634
+Transfer Case – Operating Fluidsp. 5636
1.0 TRANSFER CASE OPERATING FLUIDSp. 5636
+Transfer Case – Repair Instructionsp. 5637
00 TRANSFER CASE, GENERALp. 5637
10 TRANSFER CASEp. 5640
21 TRANSMISSION SHAFTSp. 5650
+Transmission Fundamentals – Overviewp. 5660
TRANSMISSION FUNDAMENTALSp. 5660
+System Wiring Diagramsp. 5714
+System Wiring Diagramsp. 5714
AIR CONDITIONINGp. 5714
ANTI-LOCK BRAKESp. 5719
ANTI-THEFTp. 5721
BODY CONTROL MODULESp. 5725
COMPUTER DATA LINESp. 5728
COOLING FANp. 5730
CRUISE CONTROLp. 5732
DEFOGGERSp. 5734
ENGINE PERFORMANCEp. 5736
EXTERIOR LIGHTSp. 5741
GROUND DISTRIBUTIONp. 5746
HEADLIGHTSp. 5751
HORNp. 5755
INSTRUMENT CLUSTERp. 5757
INTERIOR LIGHTSp. 5759
MEMORY SYSTEMSp. 5762
NAVIGATIONp. 5764
POWER DISTRIBUTIONp. 5769
POWER DOOR LOCKSp. 5775
POWER MIRRORSp. 5778
POWER SEATSp. 5782
POWER TOP/SUNROOFp. 5789
POWER WINDOWSp. 5791
RADIOp. 5793
SHIFT INTERLOCKp. 5799
STARTING/CHARGINGp. 5801
SUPPLEMENTAL RESTRAINTSp. 5804
TRANSMISSIONp. 5808
TRUNK, TAILGATE, FUEL DOORp. 5811
WARNING SYSTEMSp. 5813
WIPER/WASHERp. 5815
Lighting and equipment sections cover exterior and interior lamps, bulb replacement, luggage-compartment lighting, footwell lighting, glovebox lighting and other electrical equipment. Procedures identify required release tools, connector handling and installation details. Other BMW technical sections explain electrical connectors, terminal removal, breakout-box use, coding and programming concepts, vehicle communication systems and service diagnostic equipment.
Chapters Covered
- General Information
- Basic Engine Measuring Techniques
- Maintenance and General Information
- Complete Vehicle – E83
- Drive – Overview – X3
- Coding and Programming
- Breakout Boxes and Connectors
- Charging Systems
- BMW electrical and diagnostic system information
- Engine
- Engine Mechanical – Repair Instructions
- Engine and Gearbox – Repair Instructions
- Engine technical data and tightening torques
- Engine mounting and support
- Lubrication and engine oil service
- Cylinder head and valve-train procedures
- Exhaust Systems – Repair Instructions
- Engine Performance
- Fuel System – Repair Instructions
- Fuel-system special tools
- Engine-management diagnostic trouble codes
- Sensor and intake-system procedures
- Transmission
- Manual Transmission
- Transmission removal and installation
- Transfer Case – Repair Instructions
- ATC 400 xDrive transfer case
- Driveshaft and drivetrain information
- Brakes
- Front Brakes
- Rear Brakes
- Parking Brake
- Brake testing and bleeding
- Technical data and tightening torques
- Brake special tools
- Suspension
- Steering and Wheel Alignment
- Steering repair instructions
- Wheel-alignment equipment and procedures
- Steering and suspension special tools
- Accessories and Equipment
- Exterior Body Panels – Repair Instructions
- Lighting – Repair Instructions
- Electrical component and circuit-diagram information
- 2007 System Wiring Diagrams – BMW X3
- Air conditioning circuits
- Anti-lock brake circuits
- Power distribution
- Power door locks
- Power mirrors
- Power seats and heated-seat circuits
- Additional vehicle electrical systems and component circuits
Together, these sections provide a broad working reference for identifying systems, dismantling and replacing components, checking measurements, following specified tightening procedures, interpreting diagnostic information and tracing electrical circuits. The combination of repair procedures and wiring information is particularly valuable when a fault crosses mechanical and electrical systems, such as engine-management sensors, electrically controlled drivetrain components, lighting, comfort equipment or power-distribution problems.
2007 BMW X3 Wiring Diagrams
A dedicated wiring-diagram section appears toward the end of the compilation and is specifically identified as 2007 System Wiring Diagrams – BMW X3. These pages provide circuit-level schematics rather than only general electrical descriptions. Coverage includes automatic and manual air-conditioning circuits, anti-lock braking, power distribution, door locks, mirrors, seats, heated seats, heated steering wheel and numerous additional vehicle circuits.
The diagrams are useful when tracing power supplies, grounds, switches, control units, motors, sensors and interconnections. Combined with the connector-handling and general electrical information elsewhere in the manual, they provide a strong reference for systematic electrical troubleshooting rather than relying solely on component replacement.
Technical Data, Tightening Torques and Special Tools
A major strength of this 2007 BMW X3 E83 Workshop Repair Manual & Wiring Diagrams PDF is the amount of supporting workshop data included alongside the repair procedures. Many systems have dedicated technical-data and tightening-torque sections. Fastener specifications are identified by component and application, while service-limit information is provided where the underlying procedure requires measurement or inspection.
Special-tool chapters identify BMW tool numbers, applications and illustrations. Throughout repair procedures, the required tool numbers are referenced again at the point of use. This makes the compilation valuable not just for understanding how a component fits together, but for planning the repair before dismantling begins.
Illustrated Procedures and Diagnostic Reference
Thousands of pages contain figures showing components, mounting points, fasteners, special-tool placement, connector release methods, drivetrain assemblies and repair steps. The manual also includes explanatory technical material on systems such as xDrive, vehicle electrical architecture, charging systems, communication networks, coding and programming, and diagnostic equipment. Diagnostic trouble-code material extends the reference into fault analysis by describing monitored components, fault criteria, possible causes and repair procedures.
Repair Your BMW X3 With the Correct Technical Reference
The 2007 BMW X3 E83 Workshop Repair Manual & Wiring Diagrams PDF gives owners, independent workshops and technicians a single extensive reference for mechanical repair, scheduled service, engine work, drivetrain and xDrive repairs, brake and steering service, body-component replacement, electrical diagnosis and circuit tracing. Using the documented repair sequence, technical specifications, tightening torques, safety notes and wiring information helps reduce guesswork and supports more accurate diagnosis and reassembly.
Your manual is supplied as an instant PDF download after purchase. There is no physical book and no shipping delay. The PDF can be opened on compatible computers, tablets and phones and individual pages can be printed when you need workshop copies beside the vehicle.
Reviews
There are no reviews yet.
