2007 Kawasaki Ultra 250X JT1500B Jet Ski Factory Service Manual

Description

2007 Kawasaki Ultra 250X JT1500B Service Manual

This is the complete factory Service Manual for the 2007 Kawasaki Ultra 250X, model code JT1500B, the supercharged flagship of the Ultra lineup for that model year. Anyone working on this Jet Ski will recognize the layout immediately — it is the genuine Kawasaki chapter structure, tab-indexed by system, exactly as it left the factory for dealer technicians. If you own, service, or plan to restore an Ultra 250X, this manual gives you every torque spec, clearance, and procedure Kawasaki itself used to build and repair this watercraft.

File Details

• Manual type: Factory Service Manual
• Brand / Model: Kawasaki Ultra 250X, model JT1500B7F
• Language: English
• Page count: 477 pages
• File format: PDF, instant digital download
• Publication: First Edition (1), December 15, 2006

Chapters Covered

The 2007 Kawasaki Ultra 250X Service Manual is organized into 16 tabbed chapters, matching the black-tab quick reference system used in the printed original:

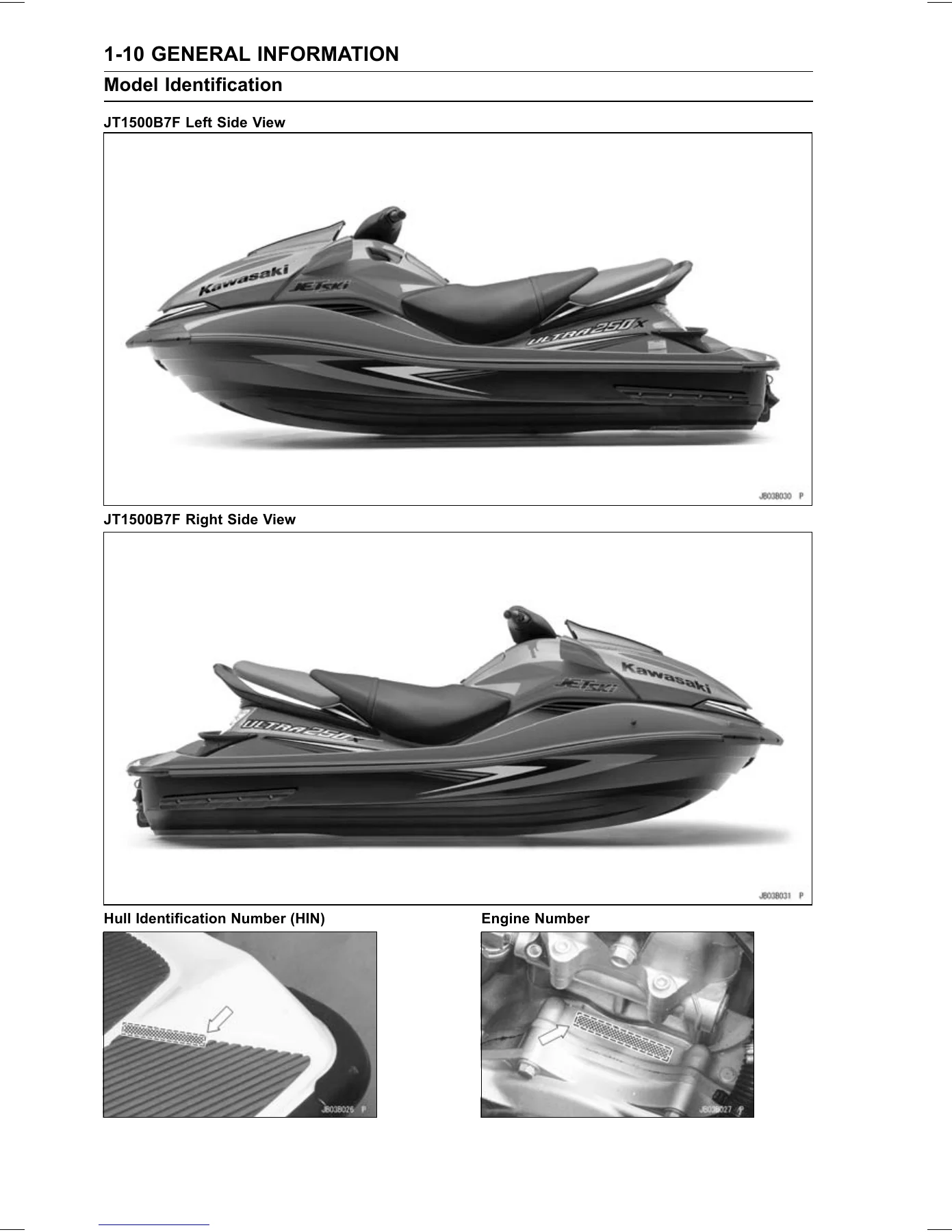

• General Information – before-servicing precautions, model identification, general specifications, unit conversion tables
• Periodic Maintenance – maintenance chart, torque and locking agent tables, fuel system, engine lubrication, top end, bottom end, cooling/bilge, pump/impeller, steering, hull, electrical, and lubrication procedures
• Fuel System (DFI) – digital fuel injection components and diagnostics
• Engine Lubrication System – oil change, oil filter, oil pump service
• Exhaust System
• Engine Top End – cylinder head, camshafts, valve clearance
• Engine Removal/Installation
• Engine Bottom End – crankshaft, connecting rods, crankcase
• Cooling and Bilge Systems – includes dedicated after-submerging recovery procedures for the four-stroke supercharged engine
• Drive System
• Pump and Impeller
• Steering
• Hull/Engine Hood
• Electrical System
• Storage
• Appendix

IMAGES PREVIEW

Together these chapters walk a technician through the entire watercraft, from the front storage compartment down to the jet pump nozzle, giving both routine maintenance intervals and full teardown-and-rebuild procedures for every major system on this specific model.

What Sets the Ultra 250X Apart

The JT1500B is powered by a 1 498 cm³ (91.4 cu in.) 4-stroke, DOHC, 4-cylinder, water-cooled engine fitted with a gear-driven supercharger and intercooler, producing 184 kW (250 PS) at 7 750 rpm. Because this four-stroke supercharged design behaves very differently from the two-stroke Jet Skis most older manuals cover, Kawasaki wrote thorough, model-specific recovery procedures for a submerged or swamped engine directly into this manual — procedures a generic or two-stroke service manual simply will not have. The manual also documents the Kawasaki Diagnostic System (KDS) software and adapter cables used to interface with the DFI (digital fuel injection) system.

What You Can Do With This Manual

• Perform every scheduled service in the Periodic Maintenance Chart — oil and filter changes, spark plug inspection, supercharger drive belt tension and wear checks, supercharger gear oil level checks, valve clearance adjustment, and impeller inspection
• Diagnose and service the fuel injection and supercharger/intercooler system, including drive belt replacement and pulley inspection
• Rebuild the engine top end and bottom end using the full torque and locking-agent tables for every fastener on the watercraft
• Service the steering, jet pump, impeller, and drive coupling
• Carry out the four-stroke-specific submersion recovery procedure and cooling/bilge system flushing
• Troubleshoot the electrical system, starter, charging system, and multifunction meter

Correct torque values and clearances matter enormously on a supercharged engine like this one — the manual’s Torque and Locking Agent tables cover everything from 1.5 N·m sensor screws to 245 N·m crankcase bolts, so you tighten every fastener to the exact factory figure rather than guessing.

This 2007 Kawasaki Ultra 250X Service Manual downloads instantly as a PDF after purchase — no shipping, no waiting. Read it on a laptop, tablet, or phone in the garage, or print out just the pages you need for the job at hand.
