2007 Yamaha XF50 XF50E & MBK Booster X Scooter Service Manual (15P-F8197-E0)

The 2007 Yamaha XF50 XF50E & MBK Booster X Scooter Service Manual (15P-F8197-E0) is the definitive workshop reference produced by Yamaha Motor Taiwan Co., Ltd. for authorized Yamaha and MBK dealership technicians, professional mechanics, and scooter owners. Engineered specifically for the liquid-cooled, four-stroke, fuel-injected 49cc platform, this factory repair manual provides complete, step-by-step technical procedures covering all aspects of routine maintenance, advanced electronic fuel injection (FI) troubleshooting, engine rebuilding, CVT belt drive maintenance, chassis servicing, and electrical system overhaul.

File Details

Scope of Coverage

Complete mechanical, electrical, fuel injection, cooling, powertrain, chassis, and troubleshooting procedures.

Chapters Covered

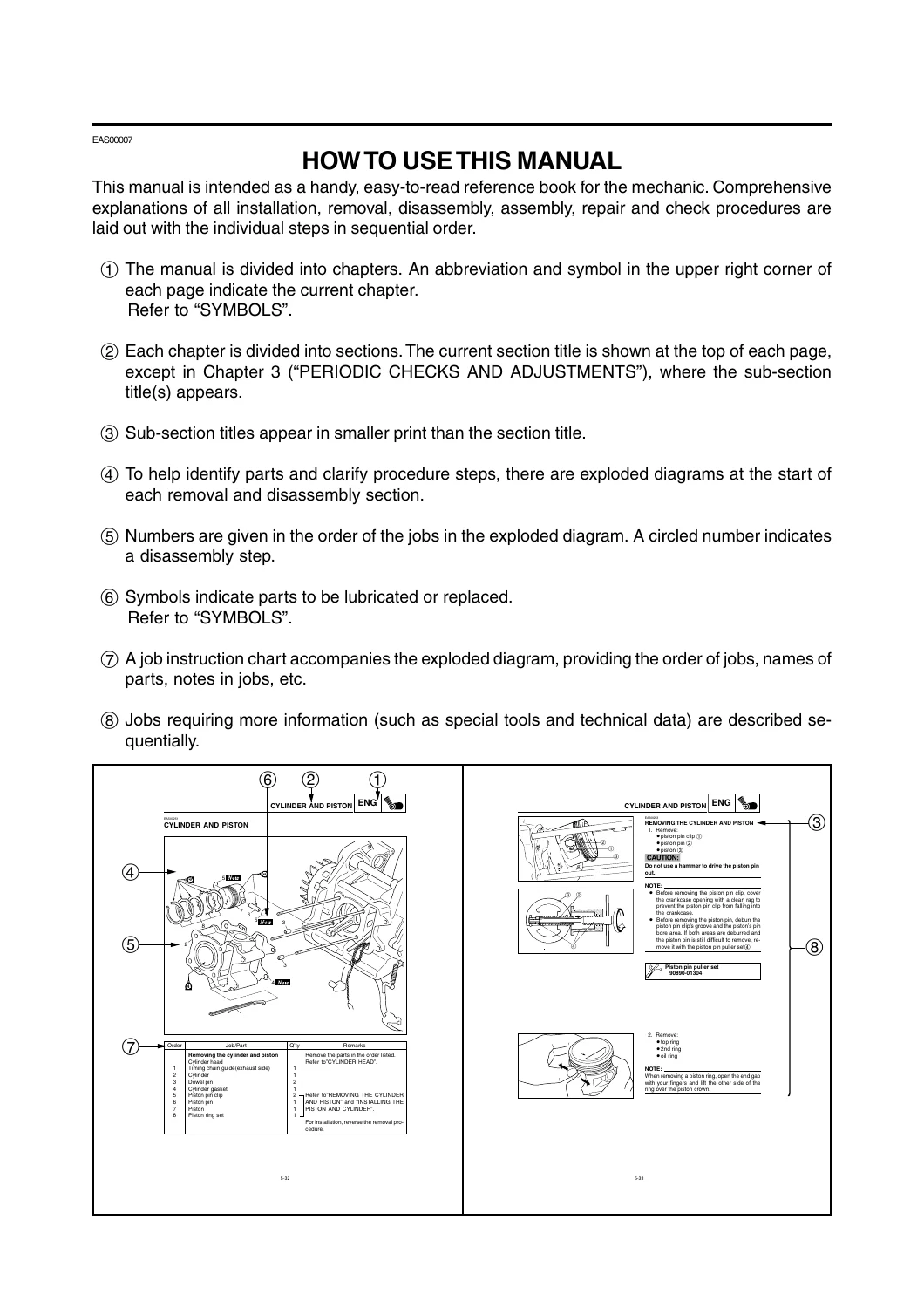

• Chapter 1 — General Information

  Vehicle identification number (VIN) and model label locations, outline and operational theory of the 3B3 electronic fuel injection system, workshop safety protocols, replacement part handling, electrical connection inspection routines, and Yamaha special tool part number references.

• Chapter 2 — Specifications

  General scooter dimensions and weight ratings; detailed engine specifications including 3-valve valvetrain geometry, cylinder bore, piston-to-cylinder clearance, and camshaft lobe dimensions; chassis specifications; electrical component values; metric-to-imperial conversion tables; general tightening torques; engine and chassis tightening torque charts; lubrication points; cooling circuit schematics; and complete frame cable/wire harness routing diagrams.

• Chapter 3 — Periodic Checks and Adjustments

  Periodic maintenance and lubrication schedule; body cover, leg shield, footrest board, and panel removal sequences; valve clearance measurement and shim selection tables (intake: 0.10–0.16 mm, exhaust: 0.18–0.24 mm); idle CO exhaust volume calibration with the Yamaha FI Diagnostic Tool; idle speed inspection (2000–2200 r/min); spark plug maintenance; engine compression pressure testing (1450 kPa standard); engine oil and final gear oil drain and refill procedures; air filter replacement; cooling system inspection and coolant change; drum brake shoe wear checks and cable free play adjustments; steering head bearing adjustment; and battery charging routines.

• Chapter 4 — Chassis

  Disassembly, inspection, and reassembly of front and rear wheels, wheel bearings, cast aluminum rims, and speedometer gear drives; front and rear mechanical drum brake shoe assemblies, camshaft levers, and drum wear limit specifications (110.5 mm max); front telescopic fork overhaul, spring free length checks (208.2 mm), and 10W fork oil replacement (0.034 L per leg); handlebar assembly; steering head angular ball bearing inspection; and rear coil spring shock absorber servicing.

• Chapter 5 — Engine

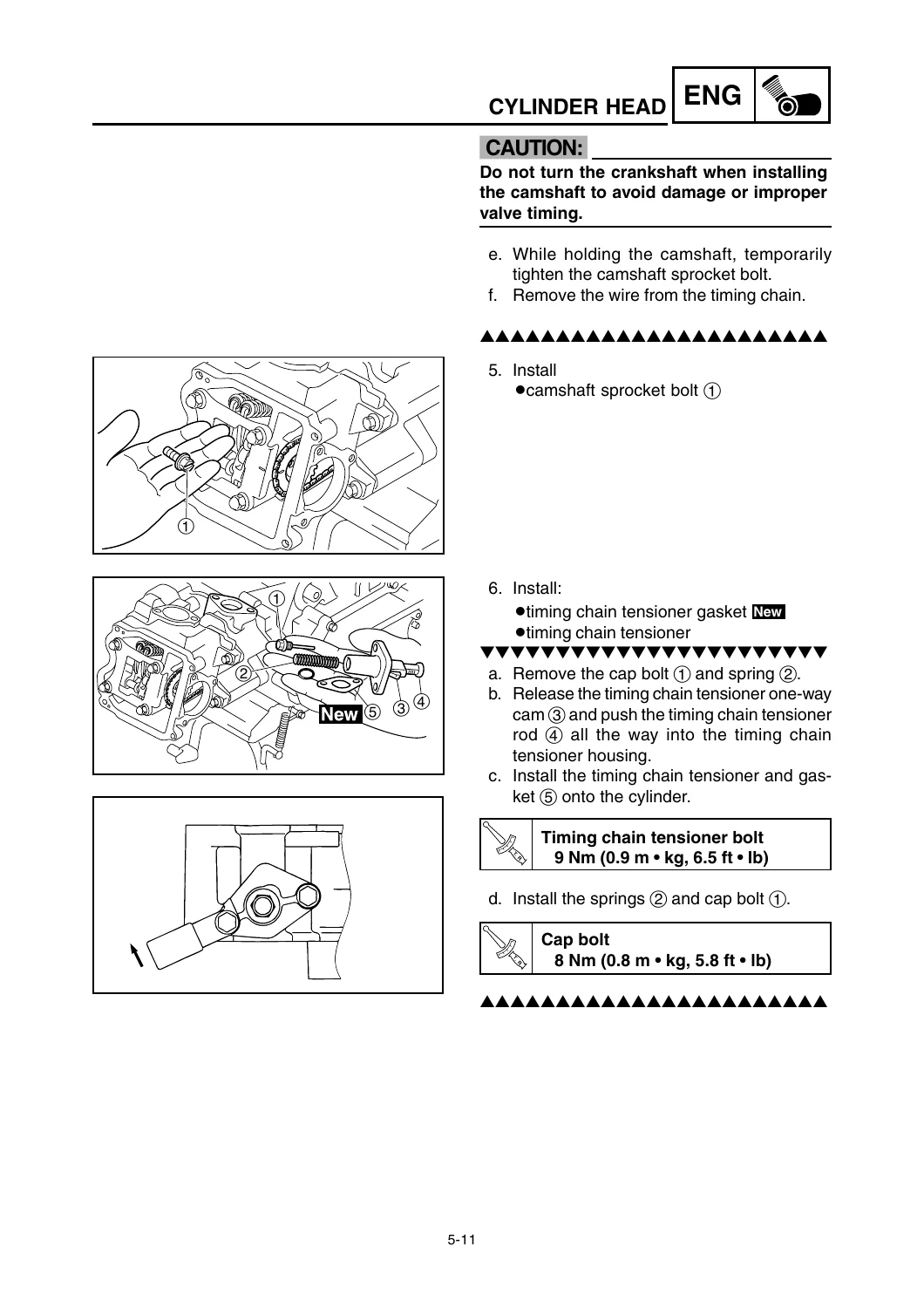

  Step-by-step procedures for engine removal and installation; cylinder head inspection, warpage limits (0.05 mm), and tightening sequences; camshaft and rocker arm removal; valve guide replacement and valve seat lapping; cylinder barrel inspection and piston ring end gap measurements; kickstarter ratchet gear assembly; CVT V-belt case teardown, primary sliding sheave weights, and secondary sheave torque cam servicing; starter clutch and AC magneto rotor removal (left-hand thread clutch nut: 90 Nm); trochoid oil pump overhaul; final transmission gear inspection; and crankcase splitting with crankshaft assembly replacement.

• Chapter 6 — Cooling System

  Radiator inspection, radiator cap pressure testing (107.9–137.3 kPa opening pressure), thermostat opening temperature checks (83–87 °C start, 100 °C full open with 3.5 mm lift), water pump teardown, mechanical water pump seal installation using special driver tools, and complete coolant refill and bleeding instructions.

• Chapter 7 — Fuel Injection System

  Detailed operation and testing of the 3B3 AISAN electronic fuel injection system; wiring schematics; ECU self-diagnostic functions and engine trouble warning light fault code tables (codes 12 through 61); diagnostic monitoring mode (D01 through D70); AISAN electric fuel pump inspection (246–254 kPa output pressure); fuel injector testing; throttle position sensor (TPS) voltage checks (0.63–0.73V closed); idle speed control (ISC) stepper valve resistance (18–22 Ω); intake air pressure and temperature sensors; lean angle cut-off switch; and secondary air induction system (AIS) reed and cut-off valve servicing.

• Chapter 8 — Electrical System

  Electrical component location guide; full wiring diagrams with international color coding; switch continuity testing; Transistorized Coil Ignition (TCI) circuit checks and ignition coil resistance (primary: 2.16–2.64 Ω, secondary: 8.64–12.96 kΩ); electric starting motor rebuild and starter relay test; AC magneto stator coil checks (0.28–0.42 Ω); semiconductor rectifier/regulator testing (13.0–14.0V no-load output); lighting and signaling circuits; and sealed maintenance-free (MF) battery charging guidelines.

• Chapter 9 — Troubleshooting

  Systematic diagnostic flowcharts for starting failures, poor idling, mid-to-high speed performance issues, automatic clutch and V-belt slipping, engine overheating, poor drum braking performance, and unstable chassis handling.

Technical Specifications

Why This Manual Matters & Instant PDF Delivery

Attempting complex mechanical service, electrical troubleshooting, or fuel injection adjustments on modern 4-stroke scooters without authentic factory specifications risks expensive component damage, incorrect fuel metering, stripped threads, or improper valve timing. The 2007 Yamaha XF50 XF50E & MBK Booster X Scooter Service Manual gives you direct access to genuine manufacturer procedures, exploded diagrams, and precise electrical resistance charts, ensuring every repair meets strict factory quality standards.

This manual is available for immediate digital download in PDF format. There are no shipping transit times or backorders—download the complete manual instantly to your desktop, laptop, tablet, or smartphone, or print out high-resolution assembly diagrams and wiring schematics for direct reference in your workshop.
