2008-2012 Yamaha YZF-R125 Service Manual – The Complete Workshop Reference

The 2008-2012 Yamaha YZF-R125 Service Manual is the full workshop reference for the YZF-R125, produced by MBK Industrie and issued under document number 5D7-F8197-E0. It is written around the 5D71 (Europe) version of the machine and carries a technician from routine periodic maintenance all the way through complete engine disassembly, fuel injection diagnostics and chassis overhaul. Every removal or disassembly section opens with an exploded diagram, follows with a job instruction chart giving the order of work, part names, notes and tightening torques, and then describes the jobs that need more detail – special tools, measured values and step sequences – in order.

File Details

• Manual type: Service Manual (workshop repair and maintenance)
• Brand / manufacturer: Yamaha / MBK Industrie
• Model: YZF-R125 (5D71, Europe)
• Document number: 5D7-F8197-E0
• Edition: First edition, January 2008
• Language: English
• File format: PDF
• Page count: 356 pages

Chapters Covered

• General Information – vehicle identification number, model label, FI system outline, multi-function display operation, special tools
• Specifications – general, engine, chassis and electrical specifications, tightening torques, lubrication points and lubricant types, cable routing
• Periodic Checks and Adjustments – valve clearance, exhaust gas volume, engine idling speed, throttle cable free play, spark plug, ignition timing, compression pressure, engine oil level and changes, clutch cable free play, air filter element, fuel line, cylinder head breather hose, exhaust system, coolant level and changes, rear disc brake, brake fluid level, front and rear brake pads, brake hoses, bleeding the hydraulic brake system, drive chain slack and lubrication, steering head, front fork, tires, wheels, cables, levers, pedals, sidestand, rear suspension, battery, fuses, headlight bulbs and headlight beam adjustment
• Chassis – front wheel, rear wheel, front brake, rear brake, handlebars, front fork, steering head, rear shock absorber assembly, swingarm, chain drive
• Engine – engine removal and installation, cylinder head, camshaft, valves and valve springs, cylinder and piston, generator and starter clutch, electric starter, clutch, oil pump, shift shaft, balancer gear, crankcase, crankshaft, transmission
• Cooling System – radiator, thermostat, water pump
• Fuel System – fuel tank, throttle body, air induction system
• Electrical System – ignition system, electric starting system, starting circuit cut-off operation, charging system, lighting system, signaling system, cooling system circuit, fuel injection system with ECU self-diagnostic function and diagnostic mode, fuel pump system, electrical components testing
• Troubleshooting – starting failures, incorrect engine idling speed, poor medium and high speed performance, faulty gear shifting, shift pedal problems, jumping out of gear, faulty clutch, overheating, overcooling, poor braking, faulty front fork legs, unstable handling, faulty lighting or signaling system
• Wiring Diagram – complete colour-coded schematic for the YZF-R125 2008

What makes this manual genuinely useful is that it does not stop at the headline procedures. The fuel injection chapter includes the ECU self-diagnostic function table with fault codes, the diagnostic code table, sensor and actuator operation tables, and per-fault-code troubleshooting details with probable causes and reinstatement methods. The engine chapters give measured limits as well as nominal values – camshaft lobe dimensions, rocker arm and shaft clearances, valve stem runout, cylinder bore taper and out-of-round limits, piston-to-cylinder clearance, piston ring end gap and side clearance, crankshaft runout, big end side clearance and crankshaft width. Chassis chapters give disc thickness and deflection limits, brake pad lining limits, fork spring free length, wheel runout limits and swingarm end free play. Electrical chapters give coil resistances, sensor output voltages and switch continuity tables, so fault finding is done against numbers rather than guesswork.

What You Can Actually Do With It

With this Yamaha YZF-R125 service manual in hand you can set valve clearance to the cold specification, adjust the engine idling speed and throttle cable free play, measure compression pressure against the standard and minimum-maximum figures, replace the oil filter element and refill to the correct quantity, bleed the hydraulic brake system, set the drive chain slack, adjust the steering head bearing play and set the rear brake pedal position. You can strip the top end – cylinder head cover, camshaft sprocket, timing chain tensioner, camshaft, rocker arms, valves and valve springs – and rebuild it with the correct tightening sequence and torque values, including the two-stage cylinder head bolt sequence. You can separate the crankcase, remove the crankshaft with the specified tools, disassemble and reassemble the main axle and drive axle, and check the shift forks and shift drum. You can pull the clutch, inspect the friction plates, clutch plates and springs against their wear limits, and reinstall with the correct clutch boss nut torque and lock washer tab. You can service the cooling system from radiator through thermostat to water pump, and work through the fuel system from the tank and fuel pump body to the throttle body and air induction reed valve assembly.

Why the Correct Numbers Matter

Yamaha publishes separate specifications for a reason. A valve clearance set by feel, a cylinder head bolt sequence tightened in the wrong order, a clutch boss nut that is not staked, a drive chain run too tight – each of these turns a straightforward service into an expensive repair. This manual gives the torque values, clearances, wear limits, spring free lengths, capacities and service intervals that the machine was built to, along with the lubrication points and the lubricant or sealant to use at each one. It also flags the parts that must be replaced rather than reused, such as gaskets, oil seals, O-rings, copper washers, cotter pins and lock washers, so nothing goes back on the bike in a condition that will fail later.

Who This Is For

Owners who do their own servicing on a YZF-R125 and want the actual factory procedures rather than a generic guide will find everything here, from a first oil change through to a bottom-end rebuild. Independent workshops and mechanics who take on the model will find the exploded diagrams, tightening charts and measured limits they need to bill the job confidently. Anyone diagnosing an engine trouble warning light on the FI model gets the full fault code path rather than a description of symptoms.

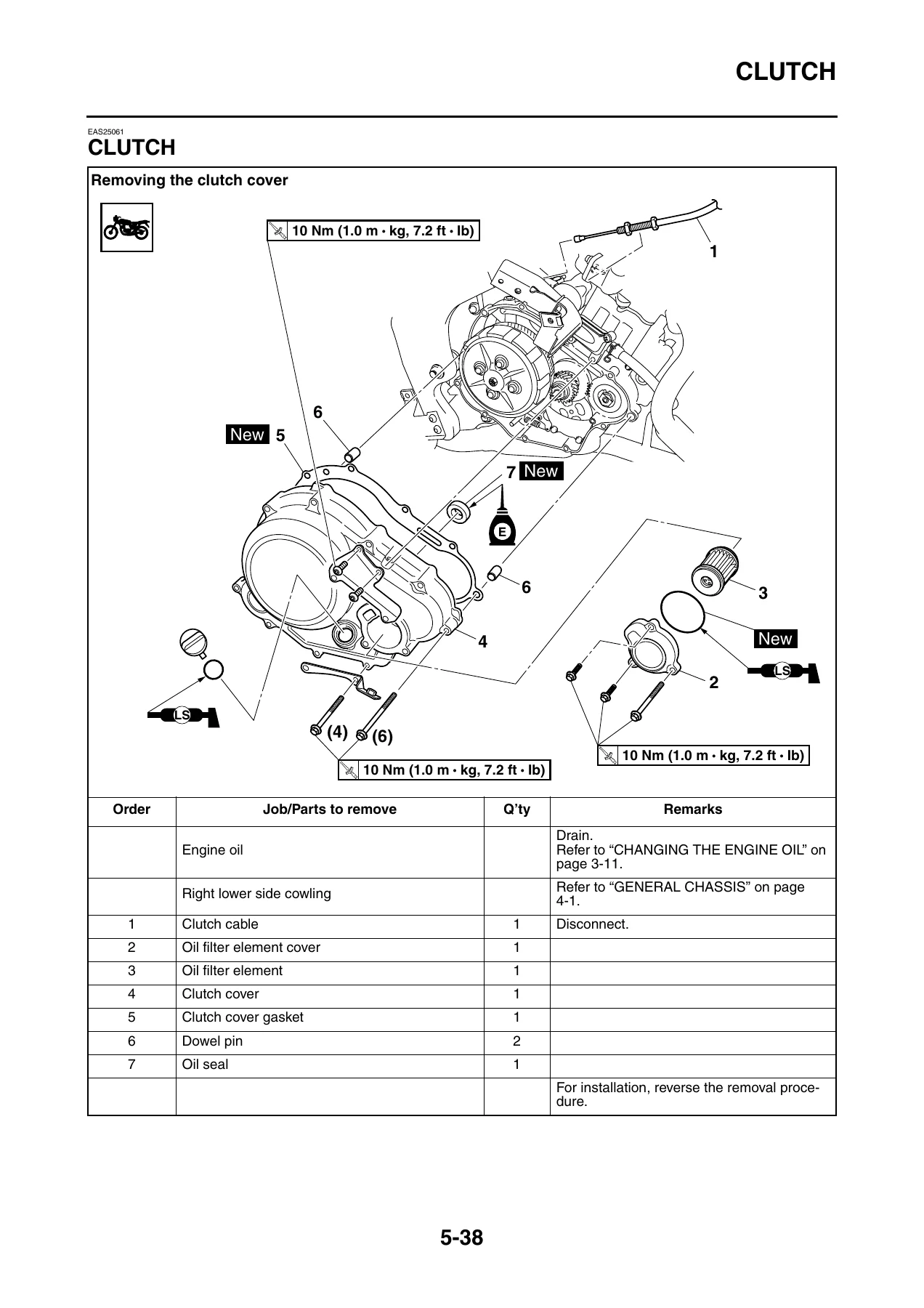

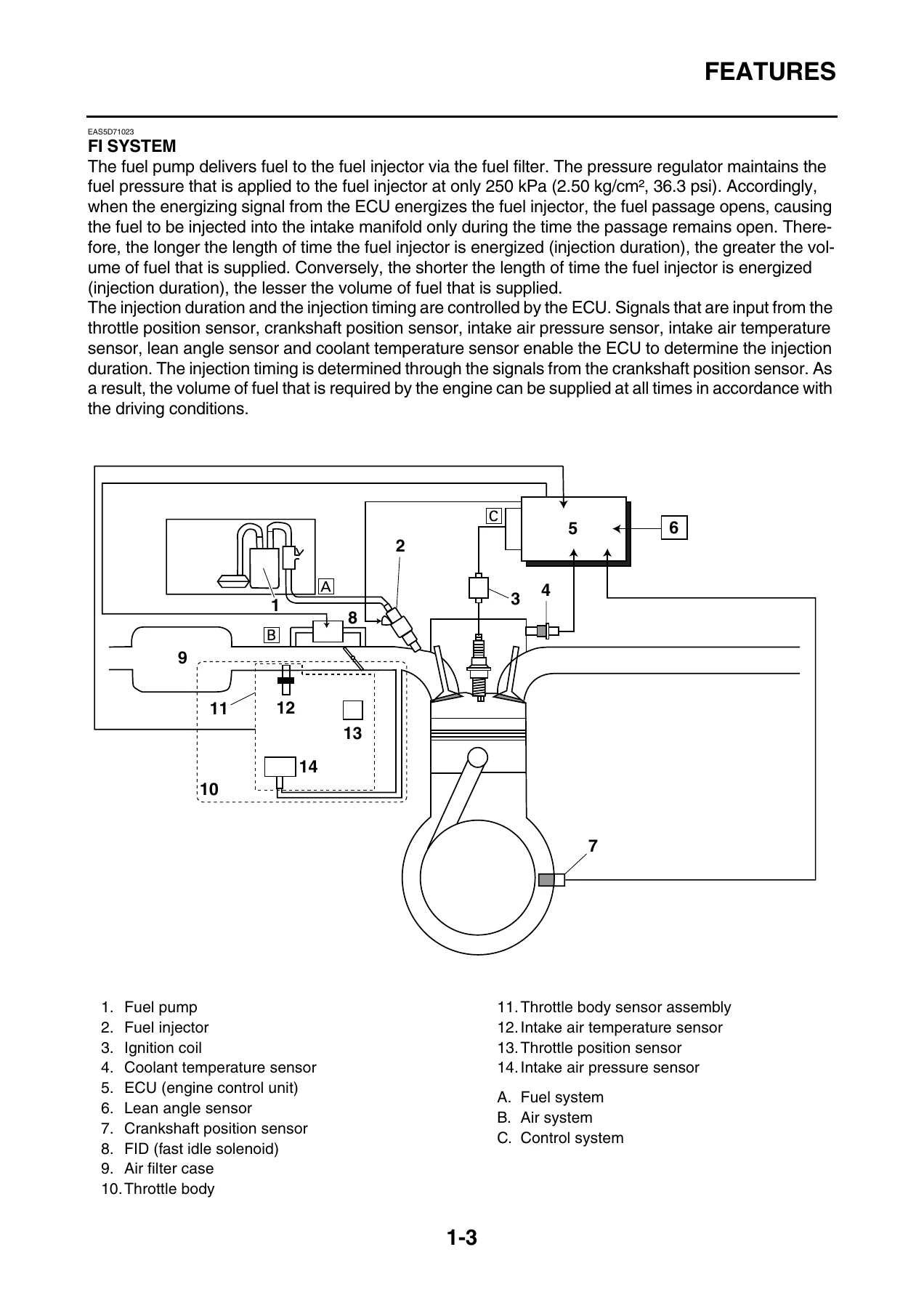

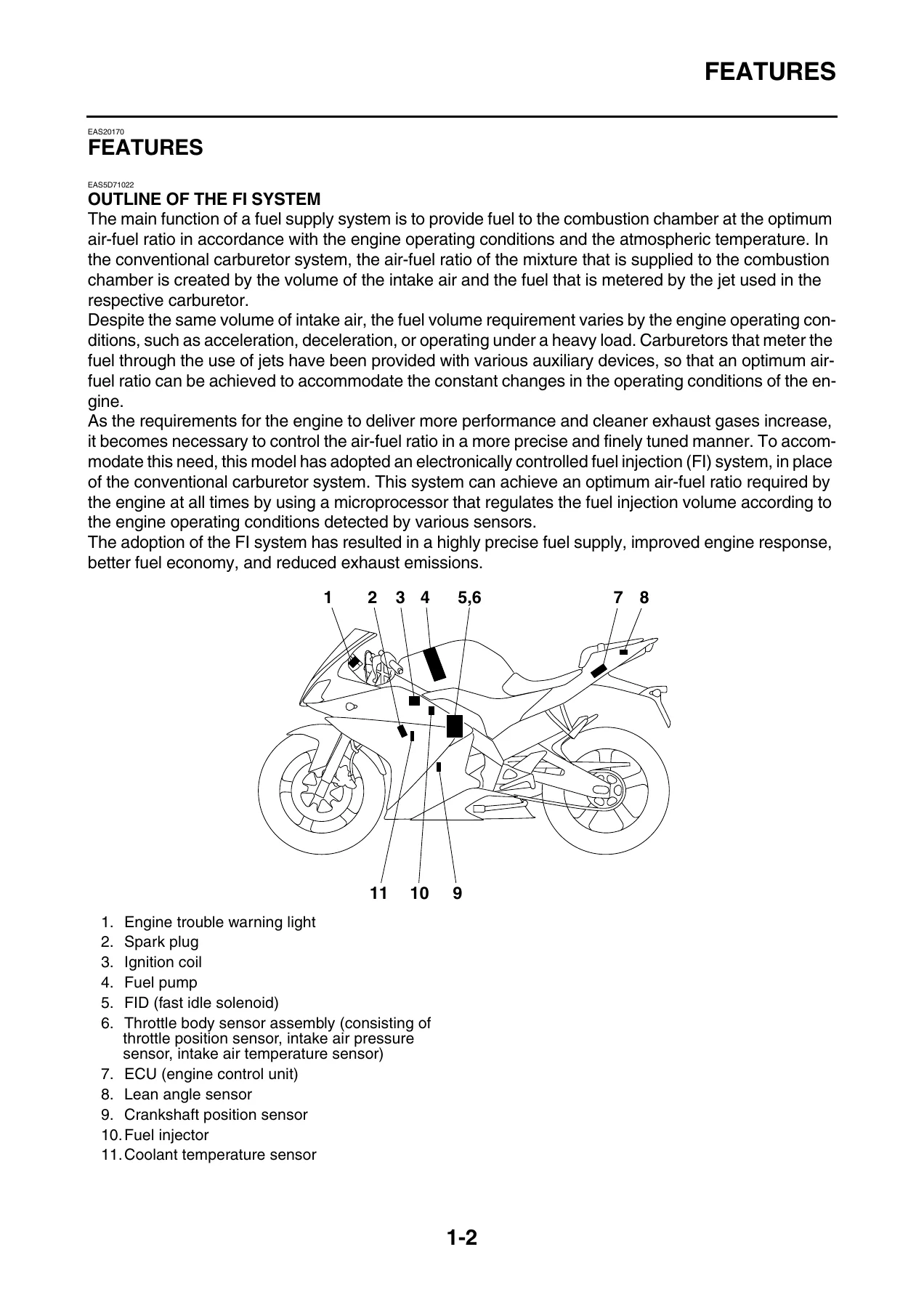

IMAGES PREVIEW

Instant Download

The 2008-2012 Yamaha YZF-R125 Service Manual is delivered as a digital PDF the moment your order is complete. There is no shipping, no waiting and no physical book to keep track of. Download it once and it is yours to keep – open it on a laptop in the workshop, on a tablet beside the bike, or on a phone when you are checking a torque value mid-job, and print the pages or diagrams you want to work from. Whether you are adjusting valve clearance, tracing a fault code through the fuel injection system, rebuilding the top end or working through the wiring diagram, the complete 2008-2012 Yamaha YZF-R125 Service Manual gives you the procedures, the specifications and the diagrams to do it properly the first time.
