2010 Suzuki DF60A DF60AT DF60ATH Outboard Service Manual – 99500-88L00-01E

Description

2010 Suzuki DF60A DF60AT DF60ATH Outboard Service Manual – 99500-88L00-01E

The 2010 Suzuki DF60A DF60AT DF60ATH Outboard Service Manual – 99500-88L00-01E is a detailed service reference for the Suzuki DF60A outboard, compiled around the 2010 (K10) model. Across 336 pages it brings together routine maintenance, service data, diagnostic procedures, electronic control checks, power unit disassembly and assembly, cooling and lubrication work, fuel and ignition service, starting and charging systems, mid-unit and lower-unit work, power trim and tilt procedures, and wire and hose routing. The specification section identifies DF60AT and DF60ATH variants under prefix 06002F, while the manual title and service procedures are centered on the DF60A family.

File Details

• Manual type: Service Manual
• Brand and model: Suzuki DF60A outboard motor
• Covered variants shown in specifications: DF60AT and DF60ATH
• Model basis: 2010 (K10)
• Document number: 99500-88L00-01E
• Language: English
• Page count: 336 pages
• File format: PDF

Service Information Built Around the DF60A

This Suzuki DF60A service manual starts with identification, fuel and oil recommendations, break-in guidance, propeller selection, battery requirements, specifications, service data, tightening torques, service materials and special tools. The specifications describe a 4-stroke DOHC, three-cylinder powerhead with 941 cm3 displacement, 72.5 mm bore and 76.0 mm stroke, 9.7:1 compression ratio, multi-point sequential electronic fuel injection, water cooling and wet-sump lubrication. Maximum output is listed as 44.1 kW (60 PS), with a recommended operating range of 5 300 – 6 300 r/min.

Maintenance information is practical and procedure-driven. The manual includes the periodic maintenance schedule plus engine oil level checks and changes, oil-filter replacement, gear-oil service, spark-plug inspection, tappet-clearance inspection and shim adjustment, idle-speed and IAC-duty checks, ignition-timing inspection, fuel-line and filter inspection, water-pump and impeller service, propeller checks, anode and bonding-wire inspection, battery service, fastener inspection, oil-pressure testing and cylinder-compression testing. Service values are supplied alongside the procedures, including engine oil quantities of 2.7 L for an oil change and 2.9 L with filter replacement, and a gearcase oil capacity of 610 ml.

Diagnostics, Electrical Testing and Engine Control

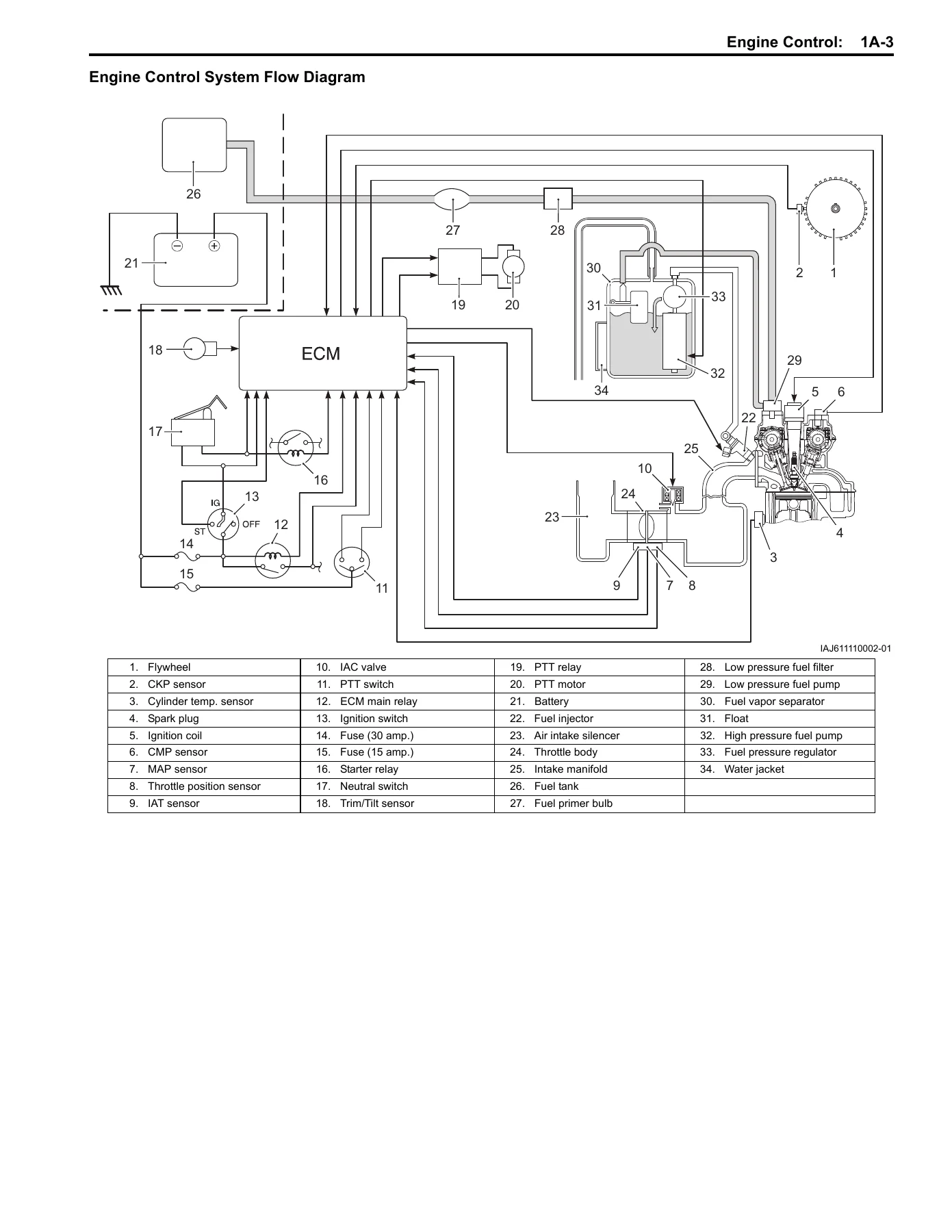

A major portion of the 2010 Suzuki DF60A DF60AT DF60ATH Outboard Service Manual – 99500-88L00-01E is devoted to the engine control system. It explains ECM control of fuel injection, ignition, idle air, the high-pressure fuel pump, caution systems, self-diagnostics, fail-safe operation, operating-hour indication, the oil-change reminder, start-in-gear protection and power trim and tilt relay control. The manual maps ECM terminals, wire colors and circuit voltages, and gives step-by-step checks for sensors, switches, relays and actuators.

Self-diagnostic coverage includes MAP sensor, cylinder-temperature sensor, IAT sensor, CKP sensor, CMP sensor, air-intake system, fuel injector, throttle-position sensor, rectifier/regulator over-charging, oil-pressure switch and trim-sensor faults. Troubleshooting tables lead through connector checks, voltage and resistance measurements, circuit continuity and component tests. Separate procedures cover the MAP sensor output, TPS output, trim-sensor output, IAC valve, ECM main relay, emergency-stop switch and other electrical devices. This makes the manual useful not only for mechanical repair but also for tracing faults where sensor signals, wiring, ECM inputs or controlled components are involved.

Mechanical Overhaul and Major Component Work

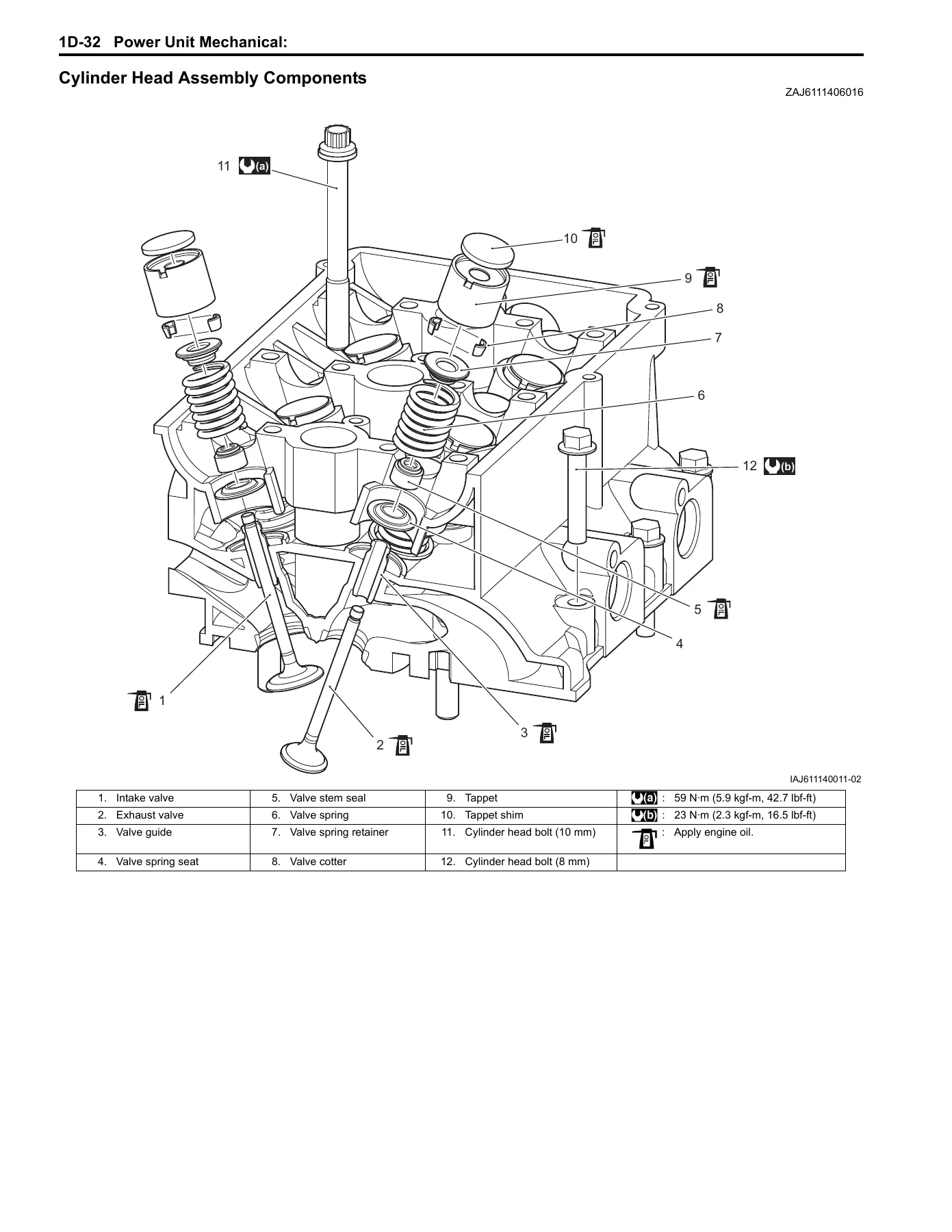

The power-unit section goes beyond maintenance and into engine teardown, inspection and reassembly. It covers the timing chain, chain tensioner and camshaft sprockets; camshafts, tappets and shims; cylinder-head removal and assembly; valves, guides and springs; pistons, piston rings and connecting rods; crankshaft and bearing inspection; oil seals; and power-unit removal and installation. Detailed service-data tables provide standard dimensions, clearances and service limits for cylinder-head, camshaft, valve, piston, ring, connecting-rod and crankshaft work, together with tightening torque specifications for critical fasteners.

IMAGES PREVIEW

Related systems are handled in their own sections. Lubrication coverage includes the engine-oil circuit, oil-pressure diagnosis, oil pump, oil-pressure switch and strainer. Cooling coverage includes circulation diagrams, thermostat, water-pressure valve, water pump and water tube. Fuel-system material follows the electronic fuel injection and delivery path through pressure testing, fuel lines, vapor separator, high-pressure pump, injectors and low-pressure pump. Ignition, starting and charging chapters provide system descriptions, symptom diagnosis, component tests and removal/installation procedures.

Chapters Covered

• Precautions
  • General service precautions and safety requirements
• General Information
  • Symbols, abbreviations and wire-color symbols
  • Identification, fuel and oil recommendations, break-in and propeller selection
  • Battery requirements, specifications, service data and tightening torques
  • Recommended service materials and special tools
• Maintenance and Tune-Up
  • Periodic maintenance schedule and lubrication points
  • Engine oil, oil filter, gear oil and spark plug service
  • Tappet clearance, idle/IAC duty and ignition timing
  • Fuel lines, fuel filter, water pump, propeller, anodes, battery, oil pressure and compression
• Engine Control
  • ECM functions, caution system, self-diagnostic system and fail-safe system
  • Operating-hour indication and oil-change reminder
  • Self-diagnostic code troubleshooting and IAC troubleshooting
  • ECM circuit inspection and main-relay inspection
• Engine Electrical Devices
  • CKP, CMP, cylinder-temperature, IAT, MAP, TPS, neutral and trim sensors
  • Sensor resistance, output-voltage and switch inspections
  • ECM power-source and emergency-stop circuits
• Power Unit Mechanical
  • Power-unit construction, removal and installation
  • Timing chain, tensioner and camshaft sprockets
  • Camshafts, tappets, shims and cylinder head
  • Pistons, rings, connecting rods, crankshaft, bearings and oil seals
• Power Unit Lubrication
  • Lubrication circuit, oil-pressure diagnosis, oil pump, pressure switch and strainer
• Power Unit Cooling System
  • Cooling-water circulation, thermostat, water-pressure valve, water pump and water tube
• Fuel System
  • Electronic fuel injection, fuel delivery, high-pressure pump and idle-air control
  • Fuel-pressure diagnosis, vapor separator, injectors and low-pressure pump
• Ignition System
  • Ignition control, symptom diagnosis, spark plugs, ignition coils, CKP/CMP checks and switch/relay inspection
• Starting System
  • Electric starter and start-in-gear protection
  • Starter troubleshooting, motor testing, disassembly, relay and switch inspections
• Charging System
  • Charging-system diagnosis, flywheel, battery charge coil, rectifier/regulator and fuse inspection
• Housing and Bracket
  • Side covers, tiller handle, engine holder, oil pan, driveshaft housing, mounts, clamp, swivel and steering brackets
• Power Trim and Tilt
  • PTT operating principles and system diagram
  • Fluid level, air bleeding, trim/tilt limit setting, unit service, motor and relay/switch inspection
• Right Hand Rotation Lower Unit
  • Lower-unit diagnosis, propeller, water pump and lower-unit removal
  • Disassembly, bearings, oil seals, assembly, trim-tab adjustment, gear shimming and adjustment
• Wire Routing
  • Wiring diagram and wiring-harness routing
• Fuel / Water Hose Routing
  • Fuel-hose routing and water-hose routing

Taken as a whole, the DF60A manual connects routine service work with the measurement and inspection data needed for deeper repairs. A technician can move from scheduled maintenance and symptom diagnosis into circuit testing, component removal, internal engine measurement, reassembly and final routing checks without relying on a short maintenance-only guide. The document itself states that it is intended for qualified service technicians and assumes the reader already has basic outboard-service knowledge and appropriate tools.

Service the Suzuki DF60A with the Correct Procedures and Data

The 2010 Suzuki DF60A DF60AT DF60ATH Outboard Service Manual – 99500-88L00-01E supports jobs ranging from scheduled oil, filter, spark-plug, tappet and water-pump service to EFI troubleshooting, sensor and circuit testing, powerhead disassembly, cylinder-head work, timing-chain service, PTT repair, lower-unit overhaul and wiring or hose routing. Having the specified clearances, service limits, test values, tightening torques, component sequences and diagrams in one reference helps repairs follow the procedures and measurements given for this DF60A service information.

Delivery is instant as a PDF after purchase, with no physical shipping. You can open the manual on a compatible phone, tablet or computer and print the pages you need for workshop use.
